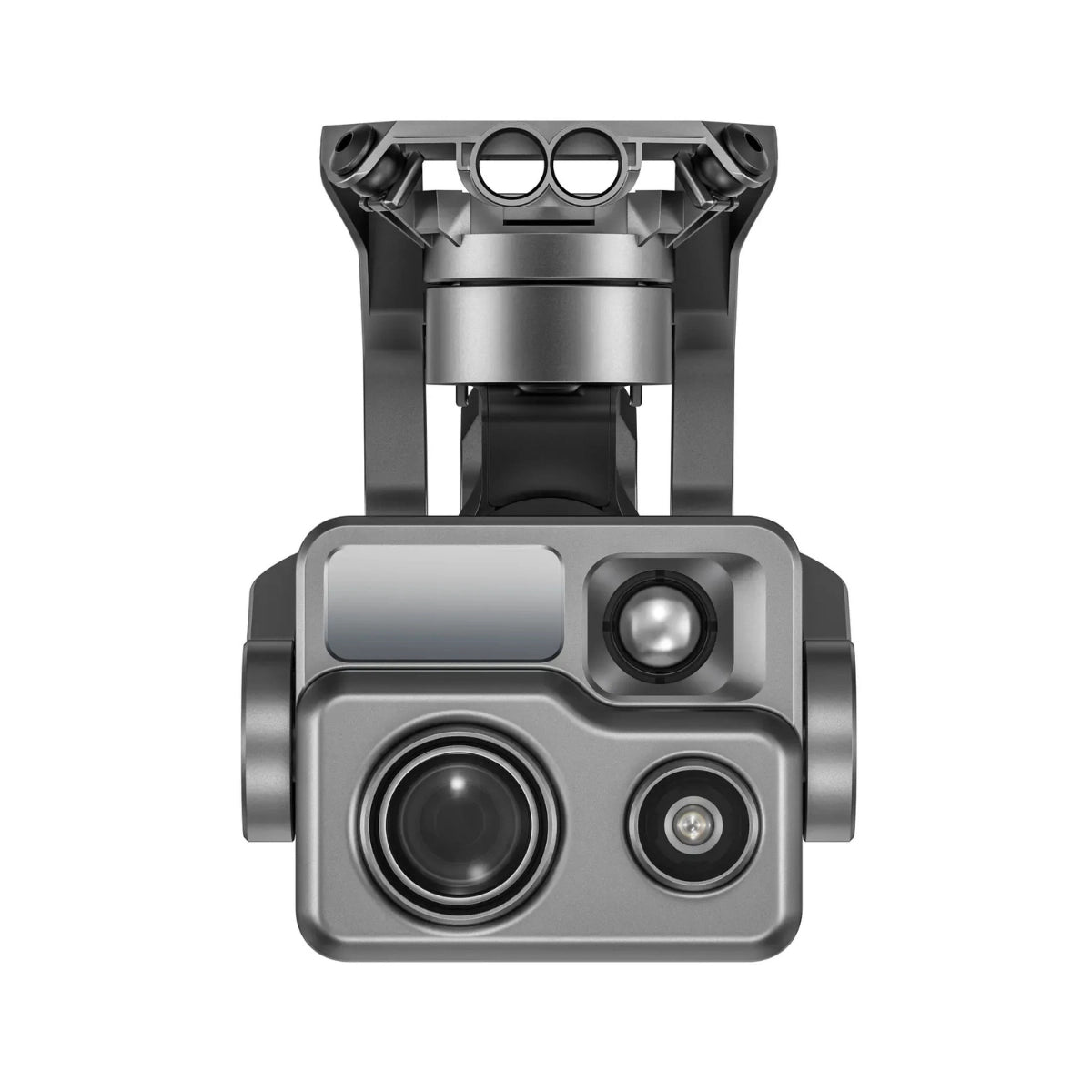

Autel EVO Max 4T XE Gimbal Camera

Autel EVO Max 4T XE Gimbal Camera

$4,099.00
$4,099.00
Sale Sold out
Shipping calculated at checkout.

S-AR-EVO-MAX-4TXE-CAM

SKU S-AR-EVO-MAX-4TXE-CAM MPN EVO-MAX-PAYLOAD-4T-XE
  • Zoom camera delivers 10x optical and 160x hybrid zoom
  • Thermal sensor captures detailed radiometric data across two gain modes
  • Wide angle camera resolves 50 megapixel stills at 85 degrees
  • Laser rangefinder pinpoints target distance up to 3737 feet
  • Stabilized gimbal keeps all four sensors steady during flight
  • High gain mode reads temperatures down to negative four degrees
  • Low gain mode extends thermal readings past one thousand degrees
  • Interchangeable design mounts across compatible Autel EVO Max airframes
  • Temperature alerts report coordinates automatically for high and low thresholds
  • Supersensitive mode extends wide camera ISO range to 32000
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max 4T XE Gimbal Camera: 160x Hybrid Zoom With Radiometric Thermal Measurement

The Autel EVO Max 4T XE Gimbal Camera is a four-sensor payload built for detailed inspection, surveillance, and search missions that demand both visual detail and precise thermal data. This is the gimbal payload only; the EVO Max aircraft is sold separately. A 3-axis gimbal stabilizes the 48MP zoom camera, 50MP wide-angle camera, radiometric thermal imager, and laser rangefinder, delivering four data streams from a single flight.

Operators can pull in tight on distant subjects with 10x optical zoom and up to 160x hybrid zoom, then confirm exact distance with the built-in laser rangefinder without changing sensors mid-mission. The gimbal payload is interchangeable across compatible aircraft within the Autel EVO Max series, including original series and V2 hardware equivalents, so crews standardizing on Autel platforms can move this sensor across multiple airframes as mission needs shift.

Key Features and Benefits

  • Zoom camera: reaches 10x optical and up to 160x hybrid zoom
  • Thermal imaging: captures 640x512 radiometric data across a wide range
  • Wide angle camera: captures 50MP stills with an 85 degree view
  • Laser rangefinder: measures distance from 16 to 3737 feet
  • 3-axis gimbal: stabilizes all four sensors for smooth footage
  • High gain mode: reads temperatures from negative 4 to 302 degrees
  • Low gain mode: extends thermal readings up to 1022 degrees
  • Interchangeable payload: mounts directly across compatible EVO Max series aircraft
  • Temperature alerts: automatically flag high and low temperature thresholds with coordinates
  • Supersensitive mode: extends wide camera ISO range up to 32000

Applications and Use Cases

  • Search and rescue: locate subjects using wide range thermal detection
  • Industrial inspection: zoom into distant equipment without close aircraft approach
  • Utility inspection: pinpoint overheating components using high gain thermal mode
  • Fire and disaster response: measure extreme heat with low gain mode
  • Perimeter security: monitor property boundaries continuously with stabilized zoom imaging
  • Accident investigation: measure exact distances using the onboard laser rangefinder
  • Law enforcement operations: track subjects day or night from altitude
  • Mapping and surveying: capture high resolution stills for accurate documentation

The EVO Max 4T XE Gimbal Camera exists to put zoom, wide-angle, thermal, and rangefinding data into one flight instead of several. Combining 160x hybrid zoom with dual-mode radiometric thermal imaging lets crews document, measure, and detect in a single pass regardless of distance or temperature extremes. Its interchangeable design keeps that capability available across every compatible airframe in an operator's fleet.

Technicians who need day, night, and thermal coverage from one payload will find the EVO Max 4T XE Gimbal Camera fits that role directly. DSLRPros can confirm which EVO Max airframes in your fleet are compatible before the unit ships, and our team stands ready to help configure it for your first mission. Order the EVO Max 4T XE Gimbal Camera from DSLRPros today.

Compatibility

  • Autel Robotics EVO Max 4T XE

Zoom Camera

  • Sensor: 1/2-inch CMOS, 48 MP
  • Aperture: f/2.8–f/4.8
  • Optical zoom: 2.7×–10× (continuous)
  • Maximum hybrid zoom: 160×
  • Video resolution: 4000 × 3000 @ 30 fps
  • Video format: MP4
  • Maximum bitrate: 70 Mb/s
  • Supported file systems: exFAT, FAT32
  • Photo resolution (JPG): 4000 × 3000, 8192 × 6144
  • Photo resolution (DNG): 4000 × 3000
  • Photo format: JPG
  • Photo mode: Auto
  • Diagonal field of view: 40°–10.3°
  • Effective focal length: 11.8–43.3 mm
  • 35 mm equivalent focal length: 64–234 mm
  • Autofocus: PDAF + CDAF
  • Manual focus distance: 2 m to infinity
  • ISO range (Auto/Manual): 100–6400
  • Photo shutter speed: 8 s–1/10,000 s
  • Video shutter speed: 1/30–1/10,000 s

Wide Angle Camera

  • Sensor: 1/2-inch CMOS, 48 MP (50 MP effective)
  • Focal length: 4.49 mm
  • 35 mm equivalent focal length: 24 mm
  • Aperture: f/2.8
  • Diagonal field of view: 85°
  • Autofocus motor: FF
  • Focus distance: 1.5 m to infinity
  • ISO range (Auto/Manual): 100–6400
  • ISO range (Super Sensitive Mode): 100–32,000
  • Digital zoom: 1×–2.6×
  • Photo shutter speed: 8 s–1/10,000 s
  • Video shutter speed: 1/30–1/10,000 s
  • Photo resolution (JPG): 4000 × 3000, 8192 × 6144
  • Photo resolution (DNG): 4096 × 3072
  • Photo mode: Auto/Manual
  • Video resolution: 4000 × 3000 @ 30 fps
  • Video format: MP4
  • Maximum bitrate: 70 Mb/s
  • Supported file systems: exFAT, FAT32

Thermal Camera

  • Sensor: Uncooled VOx microbolometer
  • Resolution: 640 × 512
  • Field of view: 61°
  • Focal length: 9.1 mm
  • Aperture: f/1.0
  • Focus distance: 6 m to infinity
  • Pixel pitch: 12 μm
  • Spectral range: 8–14 μm
  • Radiometric measurement: Center, Spot, Rectangular
  • Temperature range (High Gain): -20°C to 150°C (-4°F to 302°F)
  • Temperature range (Low Gain): 0°C to 550°C (32°F to 1022°F)
  • Temperature accuracy: ±3°C or ±3% of reading
  • Accurate temperature measurement distance: 1–25 m
  • Digital zoom: 16×
  • Temperature alerts: High and low thresholds with coordinate and temperature reporting
  • Thermal palettes: White Hot, Black Hot, Searing, Rainbow, Grey, Ironbow, Cold, Hot
  • Photo format: JPG (with temperature information)
  • Photo mode: Auto
  • Video resolution: 640 × 512 @ 30 fps
  • Video format: MP4

Laser Rangefinder

  • Wavelength: 905 nm
  • Measurement range: 5–1200 m (16.4–3737 ft)
  • Measurement accuracy: ±1 m + D × 0.15% (D = distance to target)

Gimbal

  • Mechanical pitch range: -135° to 45°
  • Mechanical roll range: -45° to 45°
  • Mechanical yaw range: -45° to 45°
  • Controllable pitch range: -90° to 30°
  • Maximum pitch control speed: 100°/s
  • Angular vibration: <0.005°

Power

  • Power interface: Proprietary
  • 1x Autel EVO Max 4T XE Gimbal Camera
Does this listing include the drone airframe?

No, this is the gimbal payload only, and the EVO Max aircraft is sold separately. Operators need a compatible EVO Max airframe to fly this payload. DSLRPros can confirm which airframe in your fleet will accept this gimbal before you order. Our team can also help arrange a compatible aircraft if you do not already own one.

Is the EVO Max 4T XE Gimbal Camera interchangeable across different Autel airframes?

Yes, this payload is interchangeable across compatible aircraft within the Autel EVO Max series, including original series and V2 hardware equivalents. That means fleets running a mix of EVO Max generations can share this gimbal across multiple aircraft rather than dedicating one unit to a single airframe. Software recognition and mounting are consistent across those compatible generations. Confirm your specific airframe model with DSLRPros before ordering to verify fit.

How far can the laser rangefinder measure?

The laser rangefinder measures from approximately 16.4 feet out to 3,737 feet (5 to 1,200 meters) with a listed accuracy of about 1 meter plus a small percentage of the measured distance. This makes it useful for confirming exact standoff distances during inspection or investigation work. The rangefinder operates independently of the zoom, wide-angle, and thermal sensors. It provides a fast, single-tap distance reading during active missions.

What temperature range can the thermal sensor measure?

The EVO Max 4T XE thermal sensor covers a combined range of approximately -4°F to 1022°F across its high and low gain modes, giving operators flexibility for both ambient inspection work and extreme heat scenarios like fires. High gain mode is suited to typical equipment and structural inspection temperatures, while low gain mode extends coverage into much higher heat ranges. Radiometric accuracy is rated at plus or minus 3°C or 3% of the reading, whichever is greater. This lets crews take actionable temperature readings, not just visual thermal imagery.

How much optical and digital zoom does the 4T XE gimbal offer?

The zoom camera provides 10x continuous optical zoom and up to 160x combined hybrid zoom, letting operators inspect distant subjects without closing the distance. The thermal sensor adds its own 16x digital zoom for closer thermal detail. Video is captured at 4000 x 3000 resolution at 30 fps across both the zoom and wide-angle cameras. This gives crews flexibility to switch between wide situational awareness and tight detail inspection in the same flight.
