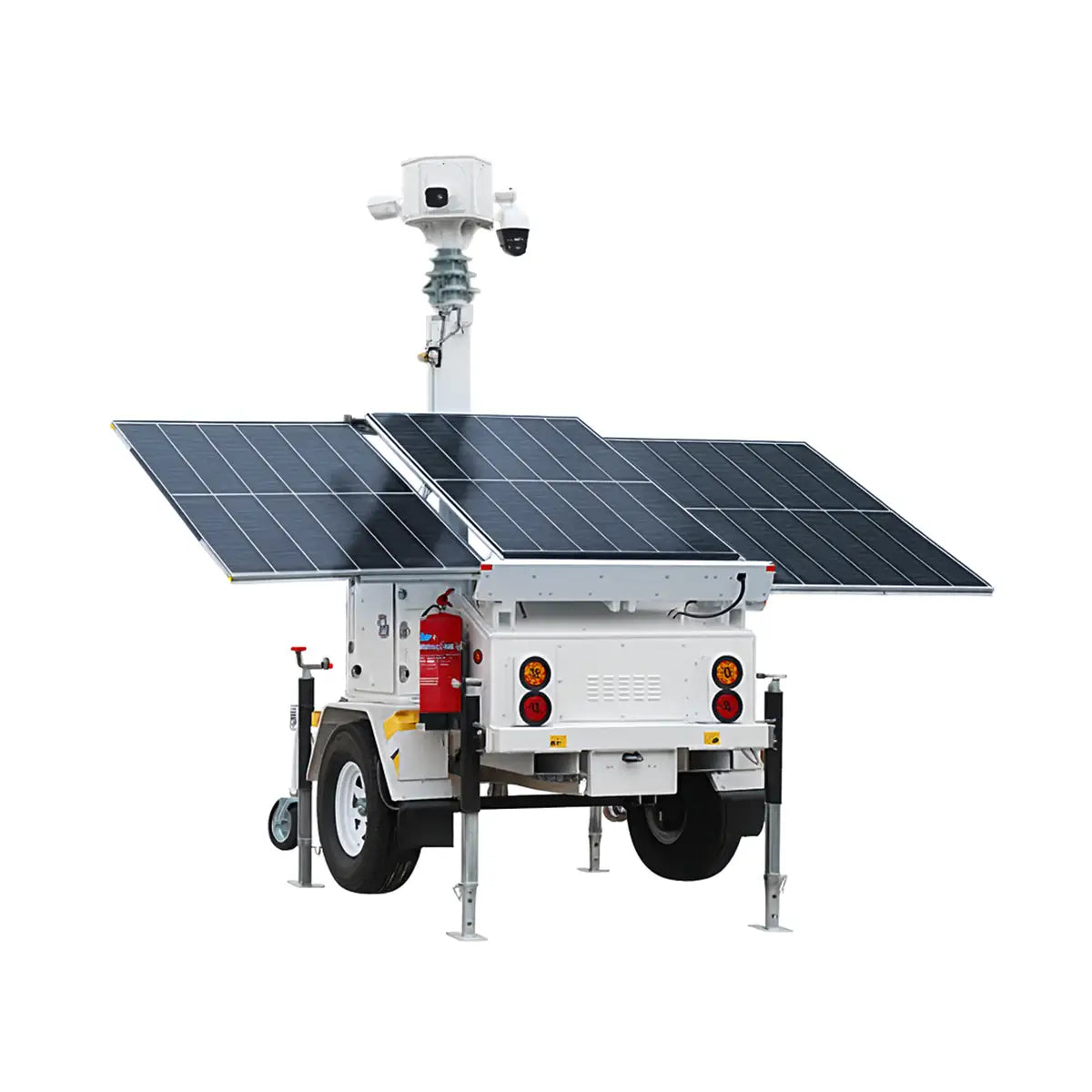

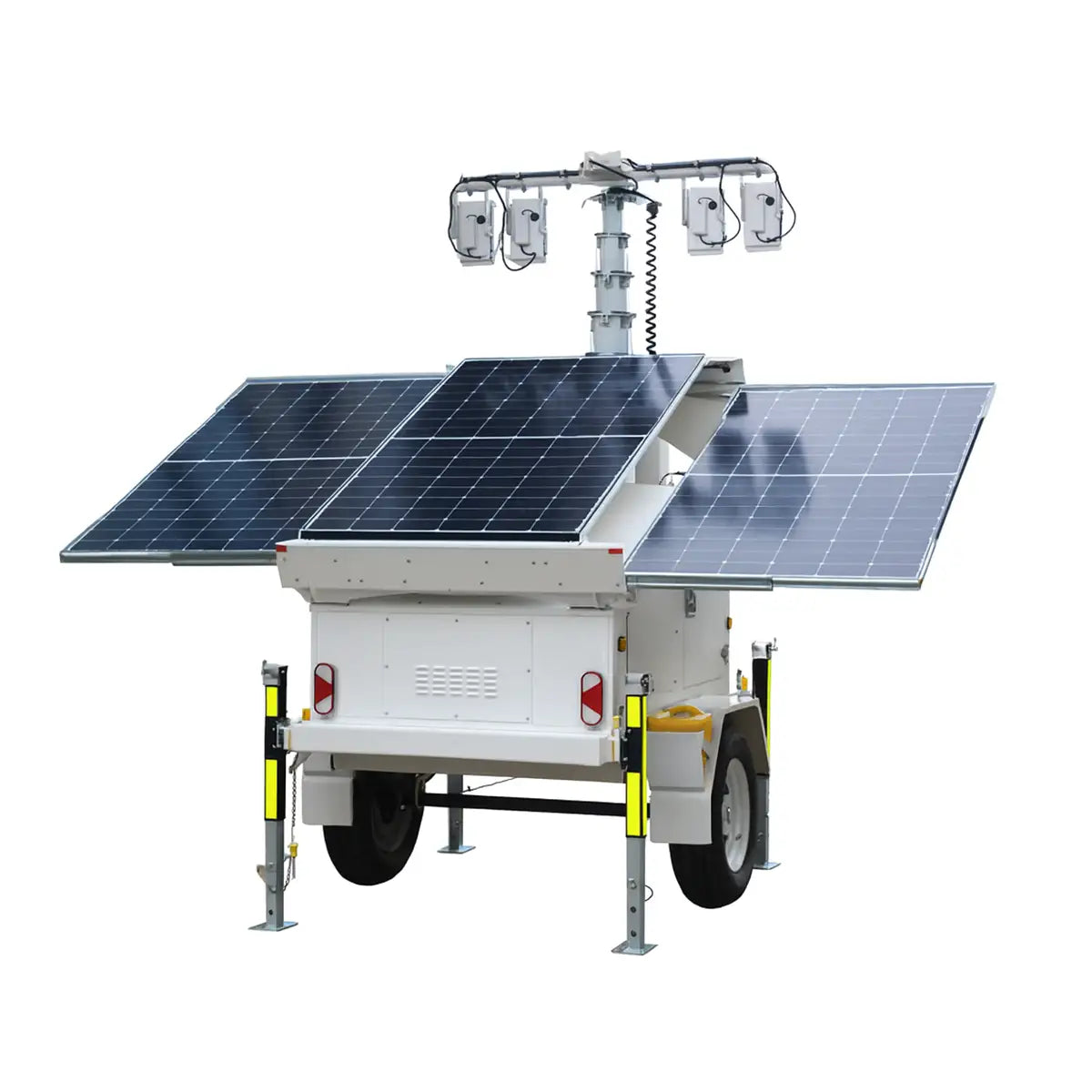

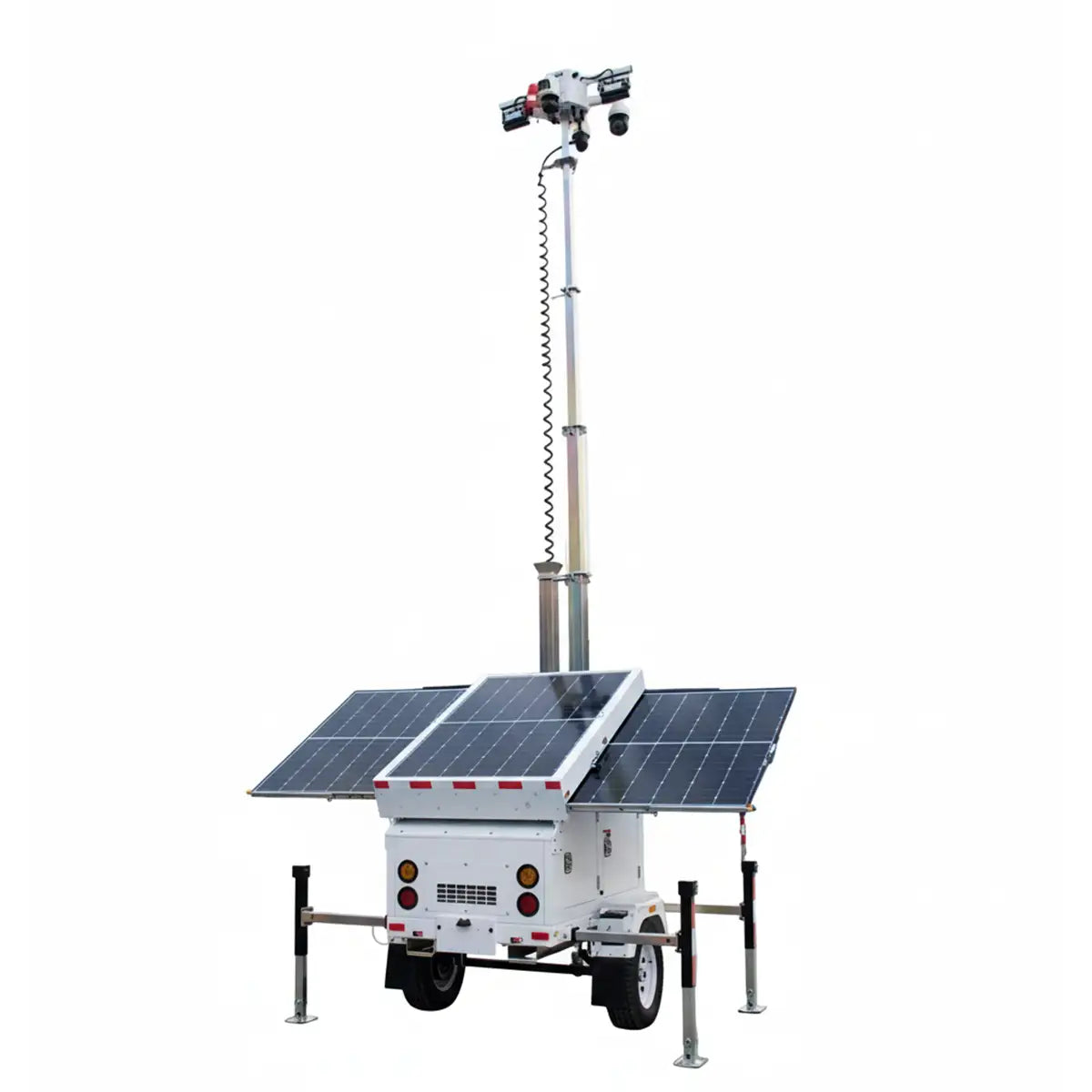

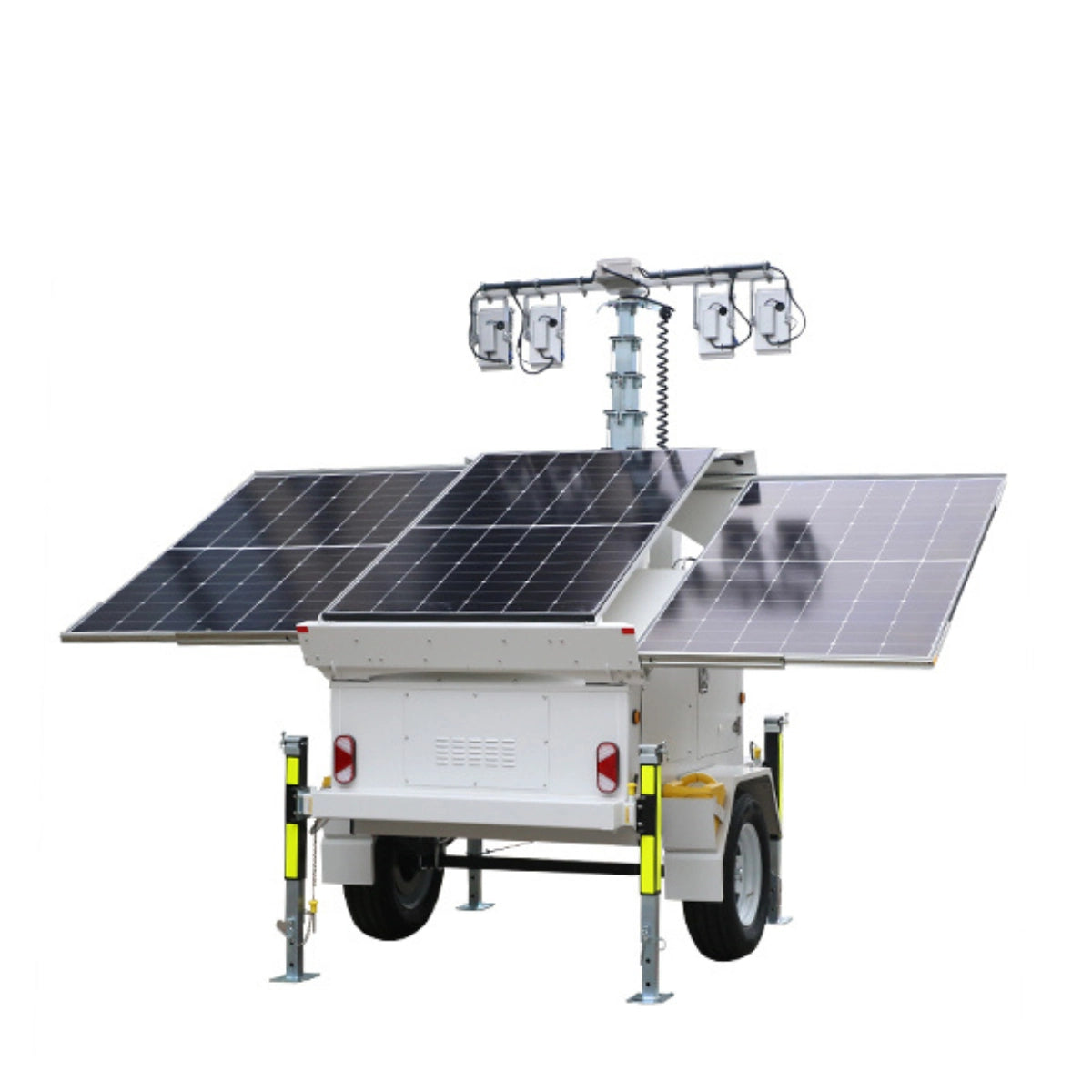

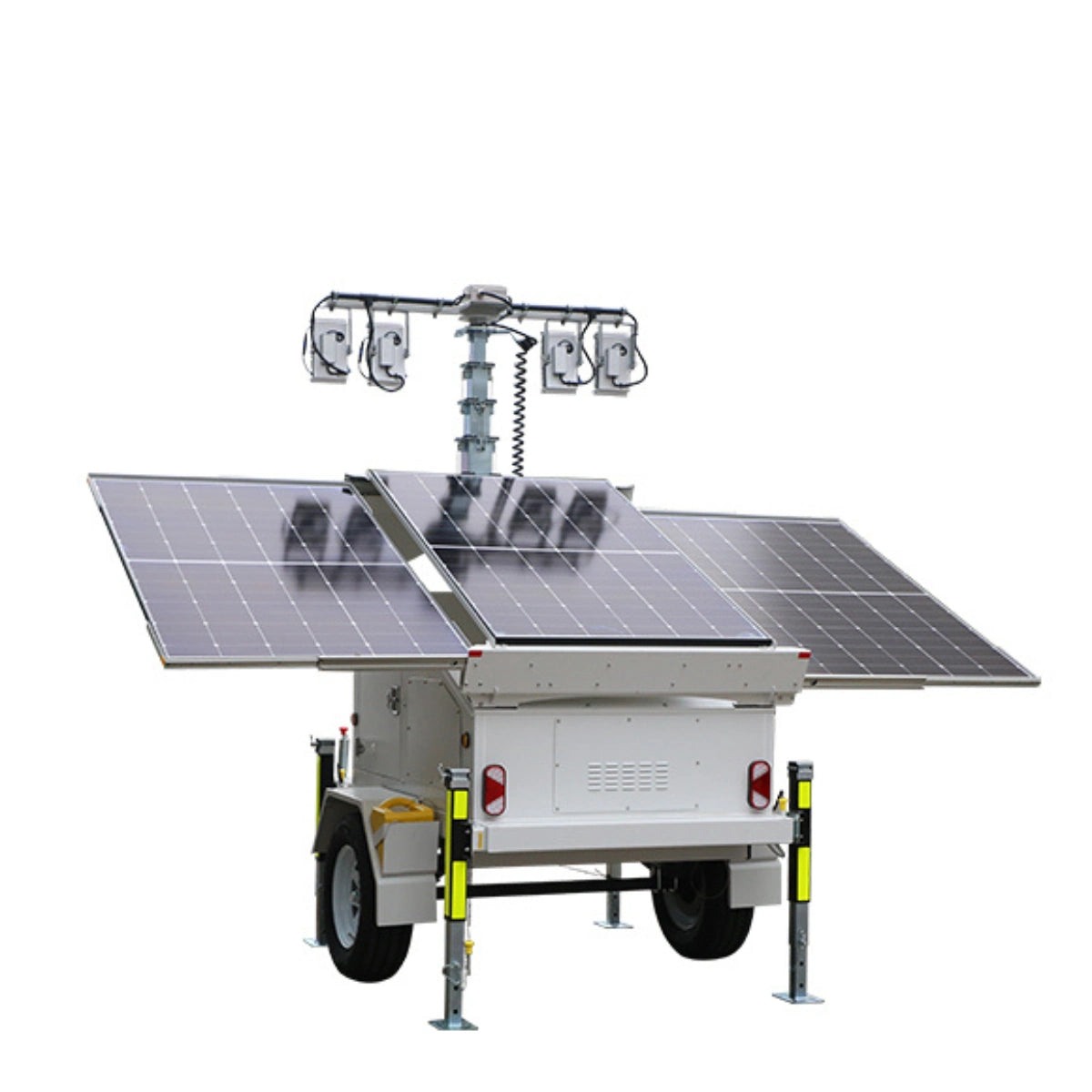

Solar Powered Light Tower VTS3P-L

Solar Powered Light Tower VTS3P-L

$0.00
$0.00
Sale Sold out
Shipping calculated at checkout.

S-NB-VTS3P-L

  • Medium-small single-axle solar security trailer light tower
  • Includes 3x 435W solar panels with fast 7.3-hour charging
  • 9.6–14.4 kWh battery that can operate up to 21 hours
  • 38,400–96,000 lumens LED lighting with adjustable angle and brightness
  • Multiple mast height options (6–9 m)
  • Easy to tow and deploy with single-axle trailer
  • Quiet, eco-friendly operation
  • Corrosion-resistant, durable structure
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Solar Powered Light Tower VTS3P-L: Reliable, Eco-Friendly Mobile Lighting

The Solar Powered Light Tower VTS3P-L is a medium-small, single-axle solar powered light tower designed to deliver powerful, flexible outdoor lighting—without noise, pollution, or the need for a traditional power supply.

Built for rugged use and easy deployment, it is ideal for construction sites, parking lots, highways, mines, oil-field operations, and other large outdoor areas requiring high-intensity illumination.

Solar Powered Light Tower VTS3P-L used to light highway construction site

Why It Stands Out

  • Long-lasting, reliable power: The combination of substantial solar panel capacity and high-capacity battery pack enables the tower to stay operational for several days without external power. It can last up to 7 days under appropriate conditions.
  • Fast charging & extended runtime: It takes around 7.3 hours to fully charge via solar, and can then run continuously for approximately 21 hours.
  • Adjustable, high-intensity lighting - With up to 96,000 lumens and an adjustable LED array (angle and brightness), it offers flexible lighting coverage tailored to site conditions, making it ideal for uneven terrain or targeted illumination.
  • Environmentally friendly & maintenance-light: As a solar-powered unit, it operates with "0" noise and "0" pollution. The design emphasizes durability, with corrosion-resistant, rust-protected housing, and components such as MPPT, inverter, and charger built for stability.
  • Portable and easy to deploy: Its compact size, single-axle trailer design, guide wheel, and tow-hitch make it easy to pull into position and deploy outdoors. Once positioned, stabilizer supports ensure a stable base.
  • User-friendly maintenance design: Features such as a rear heat-dissipation vent (for battery cooling), a locking oil-filling port to prevent tampering, and a top exhaust pipe for routine inspection—all contribute to safe, low-maintenance operation.

Key System Specifications

  • 3 × 435 W solar panels (DC 24 V system)
  • 9.6 kWh or 14.4 kWh gel battery pack (depending on configuration)
  • LED light output: 38,400 - 96,000 lumens, with selectable total wattage (e.g. 240 / 360 / 400 W)
  • Optional mast: 6 to 9 meters (manual, electric or hydraulic)
  • Trailer: Single-axle with standard tow hitch (Australia/North America standard), stabilizer supports for stable positioning

Use Cases

The VTS3P-L is suitable for a wide range of lighting applications, including:

  • Outdoor parking lots and garages, where bright, stable lighting is needed overnight.
  • Highway or road works for temporary or long-term night-time lighting along highways or remote roads.
  • Mining, oil, and industrial sites, especially in remote locations where grid power may be unavailable.
  • Construction sites, emergency worksites, or any field operation requiring portable, high-intensity lighting without access to mains power.
  • Events or projects in remote or off-grid areas where environmental friendliness, low noise, and mobility are important.

With a robust design aiming for more than 12 years of service life (under proper usage), Solar Powered Light Tower VTS3P-L delivers dependable lighting performance in a portable, sustainable package.

  • Solar Panels: 3 × 435W panels (24V system)
  • Battery Options: 9.6kWh or 14.4kWh gel battery pack
  • Lighting Output: 38,400-96,000 lumens LED
  • LED Lamp Power Options: 240W / 360W / 400W
  • Runtime per Charge: Up to 21 hours (conditions dependent)
  • Charging Time: Approx. 7.3 hours via solar (ideal sunlight conditions)
  • Mast Height Options: 6m, 7m, 8m, or 9m (manual / electric / hydraulic)
  • Trailer Type: Medium-small single axle trailer
  • Tow Standard: Australia / North America standard hitch
  • Braking System: Mechanical brake (U.S. standard)
  • System Voltage: DC 24V
  • Structure: Corrosion-resistant, rust-preventive housing
  • Light Adjustability: Adjustable LED angle and brightness
  • Cooling Feature: Rear heat-dissipation vents (dust- and water-resistant)
  • Security Features: Lockable top oil-filling port; anti-tamper design
  • Inspection Feature: Top exhaust pipe for easy daily inspection
  • 1x Solar Powered Light Tower VTS3P-L
What is the lighting output of the Solar Powered Light Tower VTS3P-L?

It delivers between 38,400 and 96,000 lumens using LED lights.

How long can the VTS3P-L operate on a full charge?

On a full charge, it can run continuously up to 21 hours, and under favorable conditions it can last up to 7 days (with solar recharging / power-saving usage).

How long does it take to charge the VTS3P-L battery via solar panels?

It takes about 7.3 hours to fully charge using its solar panels.

Can the light angle and brightness of the Solar Powered Light Tower VTS3P-L be adjusted?

Yes, the LED light group supports adjustable angle and brightness, for flexible lighting tailored to terrain or site needs.

Is the VTS3P-L environmentally friendly and low-maintenance?

Yes, because it is fully solar powered, the unit runs with zero noise and zero pollution. The design also features corrosion- and rust-resistant housing, making it more durable and lower maintenance.

What is the expected service life of the VTS3P-L?

The manufacturer expects the VTS3P-L to serve users for more than 12 years under proper use and maintenance.
