High-Resolution Drone Camera Payloads: Full-Frame Mapping Sensors, Optical Zoom, and Multi-Sensor Systems for Enterprise Operations

This collection covers the high-resolution optical imaging payloads DSLRPros stocks for enterprise drone platforms — sensors designed for photogrammetric survey, precision mapping, standoff inspection, and multi-sensor nighttime operations where integrated aircraft cameras do not meet mission requirements. The eight payloads span full-frame RGB cameras (DJI Zenmuse P1, Sentera 65R, Inspired Flight Sony ILX-LR1), multi-sensor inspection payloads combining optical zoom with thermal and laser rangefinder (Gremsy VIO, Deepthink S3), and imaging systems exclusive to the ACSL SOTEN aircraft (Standard Camera, Optical Zoom Camera). Platform compatibility varies significantly across this collection — some payloads mount only to DJI Matrice platforms via Skyport V2 or E-Port, others are exclusive to Inspired Flight aircraft, and the ACSL SOTEN cameras are proprietary to that aircraft only. Confirm platform compatibility with DSLRPros before purchasing any payload in this collection.

DSLRPros is an authorized dealer for DJI, Sentera, Inspired Flight, and ACSL, providing pre-sale configuration guidance, platform compatibility confirmation, and technical support for every payload order. If you are evaluating thermal payloads rather than optical imaging systems, those are in the Thermal Infrared Payloads collection.

Payload Comparison: Sensor Type, Resolution, and Platform Compatibility

Payload Descriptions and Mission Contexts

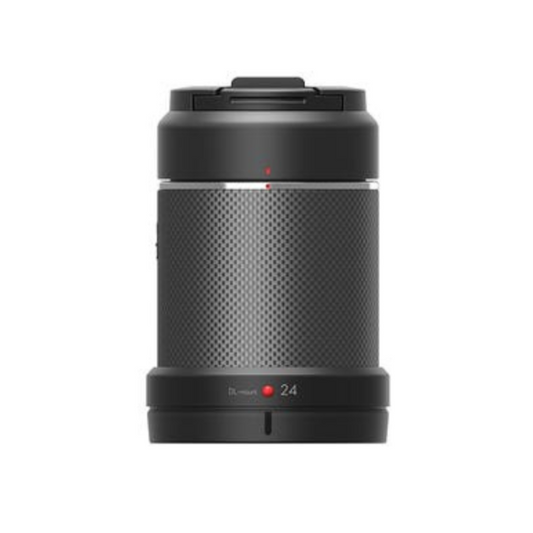

DJI Zenmuse P1 (Matrice 300/350/400): a full-frame 45 MP photogrammetry payload with interchangeable prime lenses — 24 mm, 35 mm, or 50 mm options are available — and a global mechanical shutter for distortion-free capture during forward flight. DNG (RAW) output is standard. Smart Oblique Capture simultaneously photographs the same area from five angles in a single flight, and the P1 supports mapping without ground control points when RTK is active. Maximum area coverage is up to 3 km² per flight at 5 cm GSD. The Zenmuse P1 is compatible with the Matrice 300 RTK, Matrice 350 RTK, and Matrice 400, and is explicitly listed as eligible for the DSLRPros Care Extended Warranty.

Sentera 65R Sensor Kit for M300/M350/M400 (Skyport V2): a 65.4 MP global shutter RGB sensor designed from the ground up for drone photogrammetry and precision agriculture visual-band workflows. The Gpixel GMAX3265 sensor resolves 9,344 x 7,000 pixels at 3.2 µm pixel pitch, capturing at 3 frames per second with a 0.45 cm/pixel ground sampling distance at low altitude. The 512 GB internal NVMe PCle storage handles a full day of high-frequency captures without a card swap. A 43 mm focal length and 38.3° x 29.2° FOV provide efficient area coverage per pass. Compatible with Matrice 300/350/400 via 27 mm DJI Skyport V2 interface.

Inspired Flight Sentera 65R for IF800 and IF1200 (Smart Dovetail): the same 65.4 MP Gpixel global shutter sensor integrated with the Smart Dovetail for Inspired Flight platforms. Compatible with both IF800 and IF1200 aircraft. Designed for operators who need the 65R's ultra-high-resolution mapping capability on an NDAA-compliant Blue UAS certified platform where DJI aircraft cannot be deployed.

Inspired Flight Sony ILX-LR1 (IF800 and IF1200): Sony's ILX-LR1 industrial camera integrated into an aerial payload for the IF800 and IF1200 platforms. The 61 MP full-frame back-illuminated Exmor R CMOS sensor with BIONZ XR processing delivers exceptional per-pixel detail and wide dynamic range across ISO 100 to 32000. Interchangeable Sony E-mount lenses allow operators to match focal length to altitude and coverage requirements — the bundle includes a 35 mm lens. Mechanical and electronic shutters support accurate exposure during forward flight. UHD 4K video recording up to 60fps covers inspection documentation requirements. The complete payload weighs approximately 243 g with lens, preserving IF800 flight endurance. Compatible with IF800 and IF1200 via Smart Dovetail.

Inspired Flight Gremsy VIO (IF800 and IF1200): a hot-swappable multi-sensor inspection payload for NDAA/Blue UAS platforms. The VIO integrates a 640x512 radiometric thermal sensor, a 4K optical zoom camera with 20x optical and 240x combined zoom, and a 2,400 m laser rangefinder in a single stabilized gimbal. The hot-swap design enables rapid mission-to-mission payload changes without tools. For operators on IF800 or IF1200 platforms who require the Gremsy VIO's thermal and long-range optical capability — full specifications are covered in the Thermal Infrared Payloads collection.

Deepthink S3 Tri-Sensor Night Vision and Thermal Camera (M350 RTK and M400): a three-sensor payload combining a 640x512 radiometric VOx thermal camera (12 µm pixel pitch), a 4 MP 1/1.8-inch Super Starlight CMOS visual camera rated to 0.0001 lux, and a 1,500 m laser rangefinder, with an AI-ISP imaging engine for context-aware low-light processing. Designed for nighttime public safety, wildlife monitoring, and operations where thermal detection alone does not provide sufficient visual detail for subject identification or scene documentation.

ACSL SOTEN Optical Zoom Camera / CX-GB400 (ACSL SOTEN aircraft only): a 12 MP optical zoom camera with 2.5x optical zoom in ACSL's proprietary one-touch hot-swap payload format. Compatible exclusively with the ACSL SOTEN aircraft via its unique payload interface — not mountable to any DJI, Inspired Flight, or other platform. For operators running ACSL SOTEN fleets who need extended reach for visual inspection without changing aircraft.

ACSL SOTEN Standard Camera / CX-GB100 (ACSL SOTEN aircraft only): a 20 MP 1-inch CMOS sensor with mechanical shutter in ACSL's proprietary payload format. Designed for high-resolution visual documentation on the SOTEN aircraft. Compatible exclusively with the ACSL SOTEN via its one-touch hot-swap mount. Currently sold out at DSLRPros — contact us for restock availability.

Choosing the Right High-Resolution Payload for Your Mission

• Full-frame photogrammetric survey with DJI platforms: the Zenmuse P1 is the correct choice — 45 MP full-frame with interchangeable lenses, global mechanical shutter, DNG output, Smart Oblique Capture, mapping without GCPs, and compatibility across M300/M350/M400; DSLRPros Care eligible
• Ultra-high-resolution RGB mapping for maximum area efficiency: the Sentera 65R at 65.4 MP and 0.45 cm/pixel GSD at low altitude reduces the number of images required to cover a given area compared to lower-resolution sensors; available in Skyport V2 (M300/M350/M400) and Smart Dovetail (IF800/IF1200) configurations
• Full-frame survey on NDAA/Blue UAS platform: the Sony ILX-LR1 on IF800 or IF1200 provides 61 MP full-frame capability with interchangeable E-mount lenses on NDAA-compliant aircraft; the correct choice for government and defense-adjacent programs where DJI aircraft are restricted
• Multi-sensor inspection with thermal and long-range zoom on NDAA platform: Gremsy VIO on IF800 or IF1200 — thermal, 240x zoom, and 2,400 m LRF in one hot-swappable payload
• Nighttime public safety or wildlife operations requiring both thermal and visual detail: Deepthink S3 on M350 RTK or M400 — 0.0001 lux starlight camera alongside 640x512 radiometric thermal for contextual scene documentation in near-total darkness
• Optical imaging on ACSL SOTEN: only the ACSL SOTEN Standard Camera and Optical Zoom Camera are compatible — no other payloads in this collection mount to the SOTEN aircraft
• Optical zoom without thermal requirement: the ACSL SOTEN Optical Zoom Camera (CX-GB400) provides 2.5x optical zoom on SOTEN; for standoff zoom inspection on DJI platforms, the Zenmuse H30T in the Thermal Infrared collection includes a 34x optical zoom camera alongside its thermal sensor

Platform Compatibility Summary

• DJI Matrice 300 RTK: Zenmuse P1 (E-Port), Sentera 65R (Skyport V2)
• DJI Matrice 350 RTK: Zenmuse P1 (E-Port), Sentera 65R (Skyport V2), Deepthink S3 (Skyport V2)
• DJI Matrice 400: Zenmuse P1 (E-Port V2), Sentera 65R (Skyport V2 adapter), Deepthink S3 (Skyport V2)
• Inspired Flight IF800: Sony ILX-LR1 (Smart Dovetail), Sentera 65R (Smart Dovetail), Gremsy VIO (proprietary gimbal mount)
• Inspired Flight IF1200: Sony ILX-LR1 (Smart Dovetail), Sentera 65R (Smart Dovetail), Gremsy VIO (proprietary gimbal mount)
• ACSL SOTEN: CX-GB100 Standard Camera, CX-GB400 Optical Zoom Camera — no other payloads in this collection are compatible

Where These Payloads Get Deployed

• Photogrammetric survey and cadastral mapping: Zenmuse P1 and Sentera 65R produce per-pixel GSD outputs at survey grade — P1 at full-frame 45 MP with interchangeable lenses for GSD flexibility; 65R at 65.4 MP for maximum area efficiency per flight in large-scale programs
• Construction progress documentation and 3D site modeling: full-frame payloads with mechanical shutters capture sharp forward-flight imagery without rolling shutter distortion; Smart Oblique Capture on the P1 generates five-angle simultaneous data for 3D reconstruction in a single pass
• Infrastructure and asset inspection with standoff optical zoom: Gremsy VIO's 240x combined zoom documents conductor hardware, turbine blade surfaces, and structural components from safe standoff distances without bringing the aircraft into hazard zones
• Nighttime public safety and wildlife management: Deepthink S3's combination of 0.0001 lux starlight imaging and 640x512 radiometric thermal maintains full operational capability in near-total darkness — thermal locates the subject, starlight camera provides contextual visual documentation for identification
• NDAA-compliant survey and inspection programs: Sony ILX-LR1 and Sentera 65R on IF800/IF1200 deliver full-frame and ultra-high-resolution mapping on Blue UAS certified platforms for programs where DJI aircraft are restricted by procurement policy
• Precision agriculture visual-band analysis: Sentera 65R at 65.4 MP and 3 fps enables high-speed coverage of large agricultural areas; the same dataset supports AI-based plant counting, weed mapping, and canopy analysis workflows
• ACSL SOTEN visual inspection and documentation: CX-GB100 (20 MP mechanical shutter) and CX-GB400 (12 MP 2.5x zoom) provide NDAA-compliant visual documentation on the SOTEN aircraft for operators who require both optical and thermal capability from a single aircraft platform

Frequently Asked Questions

What is the difference between the Zenmuse P1 and the Sentera 65R for mapping on DJI platforms?

Both are full-resolution mapping sensors for the Matrice 300/350/400 platform family, but they serve different program requirements. The Zenmuse P1 is a 45 MP full-frame camera with interchangeable prime lenses (24/35/50 mm), global mechanical shutter, DNG RAW output, and Smart Oblique Capture — optimized for photogrammetric survey workflows where lens flexibility, oblique capture, and native DJI software integration are priorities. The Sentera 65R is a 65.4 MP global shutter RGB sensor at 9,344 x 7,000 pixels with 0.45 cm/pixel GSD, 3 fps capture rate, and 512 GB internal NVMe storage — optimized for high-speed large-area coverage where maximum pixel count per image and fast capture rate reduce total mission time. The P1 is eligible for the DSLRPros Care Extended Warranty; the Sentera 65R is not currently listed.

Which high-resolution optical payload should I use on the Inspired Flight IF800?

Two options are available at DSLRPros for the IF800 via Smart Dovetail: the Sony ILX-LR1 (61 MP full-frame, interchangeable E-mount lenses, UHD 4K/60fps, 243 g) and the Sentera 65R (65.4 MP global shutter, 3 fps, 512 GB NVMe storage). A third option, the Gremsy VIO, adds thermal and 2,400 m laser rangefinder alongside 4K optical zoom for programs requiring multi-sensor capability. For pure mapping and photogrammetry, choose between ILX-LR1 and 65R based on whether lens interchangeability (ILX-LR1) or maximum pixel density and capture speed (65R) is the primary requirement.

Are the ACSL SOTEN cameras compatible with DJI or Inspired Flight platforms?

No. The ACSL SOTEN Standard Camera (CX-GB100) and Optical Zoom Camera (CX-GB400) use ACSL's proprietary one-touch hot-swap payload interface, which is exclusive to the SOTEN aircraft. They cannot be mounted to any DJI, Inspired Flight, Freefly, or other third-party platform. Similarly, no DJI Zenmuse, MicaSense, Sentera, or Gremsy payload is compatible with the SOTEN aircraft. If you operate both a SOTEN and a DJI or IF800 platform, you will need separate payloads for each.

Is the Zenmuse P1 eligible for DSLRPros Care Extended Warranty?

Yes. The DJI Zenmuse P1 is listed as an eligible product under the DSLRPros Care Extended Warranty. Coverage runs 13 months from the ship date and includes accidental damage from pilot error, collisions, drops, water exposure, signal interference, and internal malfunctions, with up to one replacement unit per term. The policy must be purchased before the product ships. Contact DSLRPros to add coverage at the time of purchase.

What is the Deepthink S3's optical camera specification and how does it compare to standard day cameras?

The Deepthink S3's visual sensor is a 4 MP 1/1.8-inch Super Starlight CMOS rated to 0.0001 lux — an illumination level that corresponds to a clear moonless night sky with starlight only. At this sensitivity level, the camera produces color imagery at light conditions where standard drone cameras produce unusable noise. This is not a zoom or wide-area mapping camera — it is a low-light situational awareness and subject-identification sensor designed for nighttime public safety operations, wildlife monitoring, and covert surveillance where thermal detection alone does not provide enough visual context. The AI-ISP imaging engine processes the output in real time to enhance detail and reduce noise during flight.

Shop HD and High-Resolution Drone Camera Payloads at DSLRPros

The payloads in this collection span full-frame photogrammetry sensors, ultra-high-resolution global shutter mapping cameras, multi-sensor inspection gimbals, and platform-exclusive optical systems for NDAA-compliant aircraft — each designed for a specific combination of aircraft platform and mission requirement. DSLRPros provides platform compatibility confirmation, configuration guidance, and technical support for every payload order to ensure what you purchase is verified for your specific aircraft and workflow before it ships.

DSLRPros is an authorized dealer for DJI, Sentera, Inspired Flight, and ACSL. Contact us to confirm compatibility, request a quote, or discuss which payload matches your platform and mission profile.
