Inspired Flight Gremsy VIO Payload for IF800 & IF1200

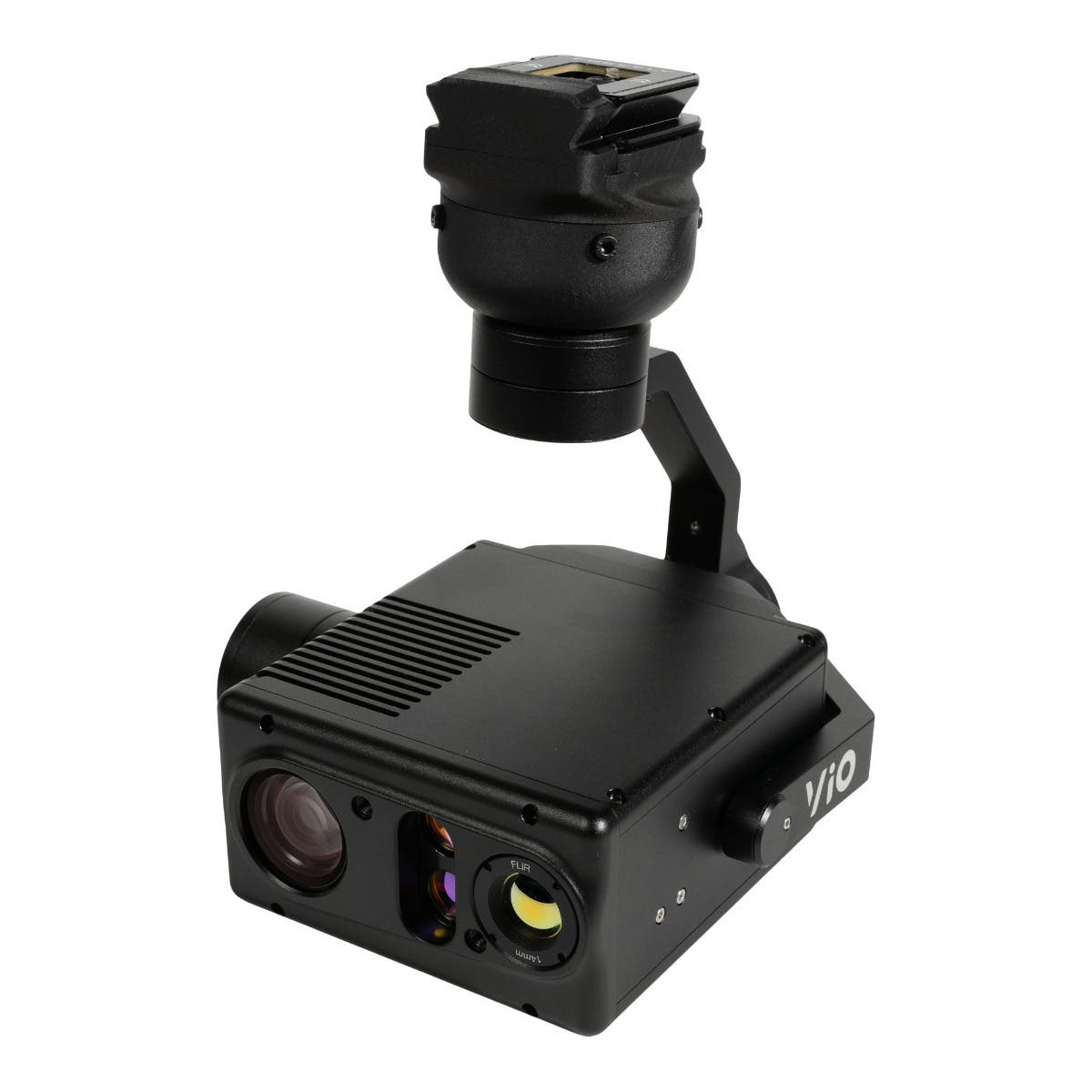

Inspired Flight Gremsy VIO F1 Payload: Compact EO/IR and laser sensing for industrial operations

The Inspired Flight Gremsy VIO F1 Payload is a compact, multi-sensor EO/IR solution designed for industrial inspection, public safety, and infrastructure monitoring missions. Built around a stabilized 3-axis gimbal, it integrates a 4K zoom camera, a 640 × 512 radiometric thermal sensor, and a long-range laser rangefinder into a lightweight payload optimized for Inspired Flight platforms.

Compatible with both IF800 and IF1200 aircraft, the VIO F1 delivers high-resolution visual data, precise thermal measurements, and accurate distance information in a single integrated system suited for demanding operational environments.

Sensor and imaging system overview

• 4K zoom camera: captures 3840 × 2160 video at 30 fps.
• 20× optical zoom: supports detailed inspection from stand-off distances.
• 30× super resolution zoom: enhances detail beyond optical range.
• 640 × 512 thermal sensor: delivers radiometric infrared imaging at 60 Hz.
• Thermal sensitivity: ≤50 mK NETD supports detection of subtle heat differences.
• Laser rangefinder: measures distances up to 7874 ft (2400 m).
• Integrated 3-axis gimbal: maintains image stability during flight.
• Compact payload design: optimized for industrial UAV operations.

Built for reliable sensing in demanding environments

The Gremsy VIO F1 is engineered to provide consistent imaging performance across varied operational conditions. Its EO camera uses an 8.51 MP 1/2.5-inch CMOS sensor with a focal range of 4.4–88.4 mm, enabling operators to capture fine details without repositioning the aircraft.

The thermal camera’s fixed-focus 14 mm lens and 32° horizontal field of view support reliable scene coverage, while radiometric data enables temperature analysis directly from captured imagery. High-speed gimbal stabilization minimizes motion artifacts during inspection and response missions.

Field performance for inspection and response missions

In real-world deployments, the VIO F1 allows teams to observe, measure, and assess targets efficiently. The thermal camera supports 1× to 8× digital zoom for closer inspection of heat sources, while the laser rangefinder provides distance measurements at 1 Hz up to 2400 m or 10 Hz up to 1200 m.

Measurement accuracy ranging from 0.1 m to 0.5 m supports precise spatial awareness during inspections. Combined EO, thermal, and ranging capabilities reduce the need for multiple payload swaps, improving mission efficiency.

Platform compatibility and system alignment

• Inspired Flight IF800: fully supported enterprise aircraft platform.
• Inspired Flight IF1200: fully supported heavy-lift enterprise platform.
• Gremsy gimbal integration: optimized for Inspired Flight payload interfaces.
• EO/IR data output: supports visual and thermal inspection workflows.
• Laser ranging data: supports distance-aware observation and assessment.

Operational use cases across industries

• Utility inspections: assess power lines and substations using EO and thermal data.
• Industrial facility monitoring: identify overheating equipment remotely.
• Public safety response: support situational awareness with multi-sensor imaging.
• Fire monitoring: detect hotspots using radiometric thermal imaging.
• Infrastructure inspections: observe bridges, towers, and assets from safe distances.
• Environmental monitoring: track thermal anomalies in natural environments.
• Security overwatch: maintain visual and thermal observation over large areas.
• Search operations: detect heat signatures and measure target distances.

Designed for enterprise integration

The Gremsy VIO F1 is designed to integrate cleanly into Inspired Flight enterprise UAV workflows. Its compact form factor and stabilized gimbal support predictable deployment on IF800 and IF1200 aircraft, while combined EO, thermal, and laser sensing reduces operational complexity. By consolidating multiple sensing modalities into a single payload, the VIO F1 supports efficient mission planning and reliable data collection for professional teams.

The Inspired Flight Gremsy VIO F1 Payload delivers compact multi-sensor capability for industrial aerial operations. It is built for organizations that require reliable visual, thermal, and ranging data in the field.

Available from DSLRPros, supporting enterprise UAV programs with platform expertise and operational support.
