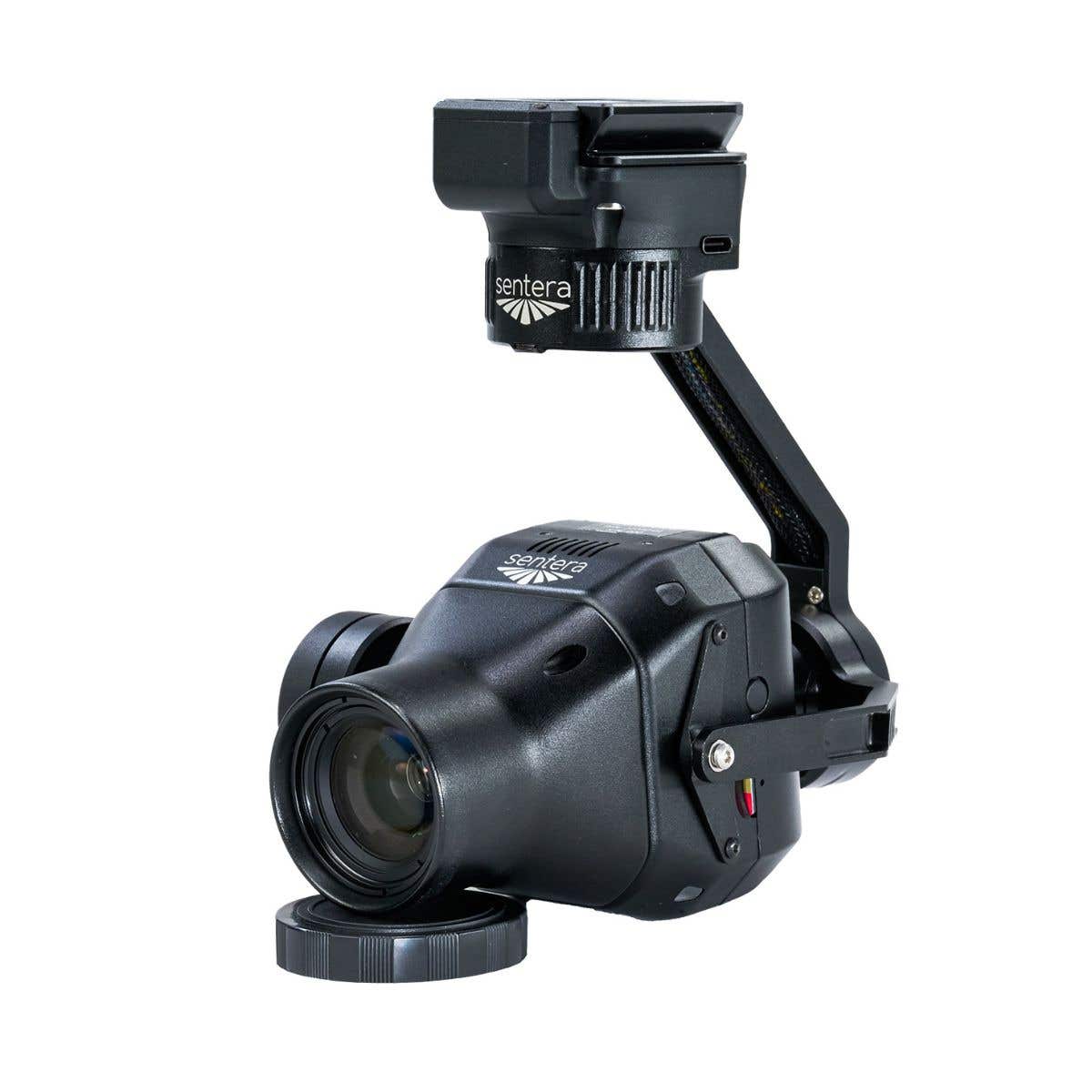

Inspired Flight Sentera 65R for IF800 & IF1200

Inspired Flight Sentera 65R for IF800 & IF1200: Ultra-high-resolution global-shutter mapping for accelerated aerial surveys

The Inspired Flight Sentera 65R for IF800 & IF1200 is a precision RGB mapping sensor engineered to capture more ground per image while maintaining survey-grade accuracy. Built around a 65-megapixel Gipxel GMAX3265 global-shutter sensor with a native resolution of 9344 × 7000 pixels, the 65R is optimized for seamless drone and RTK integration. High pixel density, fast capture rates, and integrated synchronization enable teams to reduce flight time without sacrificing data quality, making the 65R well suited for large-area surveying, modeling, and monitoring missions.

Mapping and imaging capabilities

• 65-megapixel global-shutter sensor minimizes motion blur during flight
• Native 9344 × 7000 resolution captures more ground per image
• Ground sampling distance reaches 0.45 cm per pixel at 38 m altitude
• Fast 3 fps capture rate reduces flight time per project
• 27 mm lens balances coverage area and spatial detail
• Integrated IMU supports time-aligned image capture workflows
• PPS synchronization enables accurate time and position tagging
• High-accuracy geo-tagging supports survey and mapping outputs

Imaging accuracy and data integrity

The 65R’s imaging performance is built around accuracy and efficiency rather than creative profiles. A global shutter eliminates rolling-shutter distortion, ensuring sharp imagery during dynamic flight. With a pixel size of 3.2 µm and a 57.6° horizontal field of view, each capture delivers dense, uniform coverage. High pixel counts reduce the number of required flight lines, while precise synchronization and geo-tagging support reliable mosaics, DSMs, and analytical outputs across a wide range of survey and modeling workflows.

Performance advantages for professional survey teams

Designed specifically for drone integration, the Sentera 65R combines ultra-high resolution with fast capture to shorten mission timelines. Integrated NVMe storage allows high-volume data capture without external media handling, while multiple interfaces support flexible system integration. Typical power consumption of 12 W and a lightweight 330 g form factor preserve aircraft endurance. Together, these characteristics enable survey teams to fly fewer missions, process cleaner datasets, and deliver results faster across large operational areas.

Platform compatibility and system integration

• Compatible with Inspired Flight IF800 aircraft
• Compatible with Inspired Flight IF1200 aircraft
• IF1200 integration requires Inspired Flight IF1200 Dovetail Kit 3.0 (sold separately)
• Supports RTK-aligned workflows through PPS synchronization
• Interfaces include USB-C, Gigabit Ethernet, UART, and digital I/O
• Input pulse and PWM support external capture triggering

Professional application scenarios

• Large-area surveying: capture dense imagery while minimizing flight time
• Topographic mapping: generate accurate orthomosaics and surface models
• Construction monitoring: document progress with repeatable high-resolution data
• Environmental monitoring: collect detailed imagery across wide regions
• Infrastructure planning: support mapping-driven decision making
• Agricultural analysis: create precise visual datasets for assessment
• Land development: support modeling and measurement workflows
• Research operations: acquire consistent datasets for analysis

Designed for enterprise integration

The Sentera 65R is engineered for reliable deployment within professional aerial operations. Integrated synchronization, standardized interfaces, and onboard storage simplify fleet-wide integration and repeatable mission execution. When paired with Inspired Flight IF800 or IF1200 platforms, the sensor delivers consistent, high-accuracy imagery suited for enterprise survey and mapping programs.

The Inspired Flight Sentera 65R for IF800 & IF1200 delivers more pixels per flight without compromising accuracy. It is purpose-built for organizations that prioritize efficiency, precision, and scalable aerial data collection.

Available now from DSLRPros. Equip your Inspired Flight platform with ultra-high-resolution mapping performance trusted by survey professionals nationwide.
