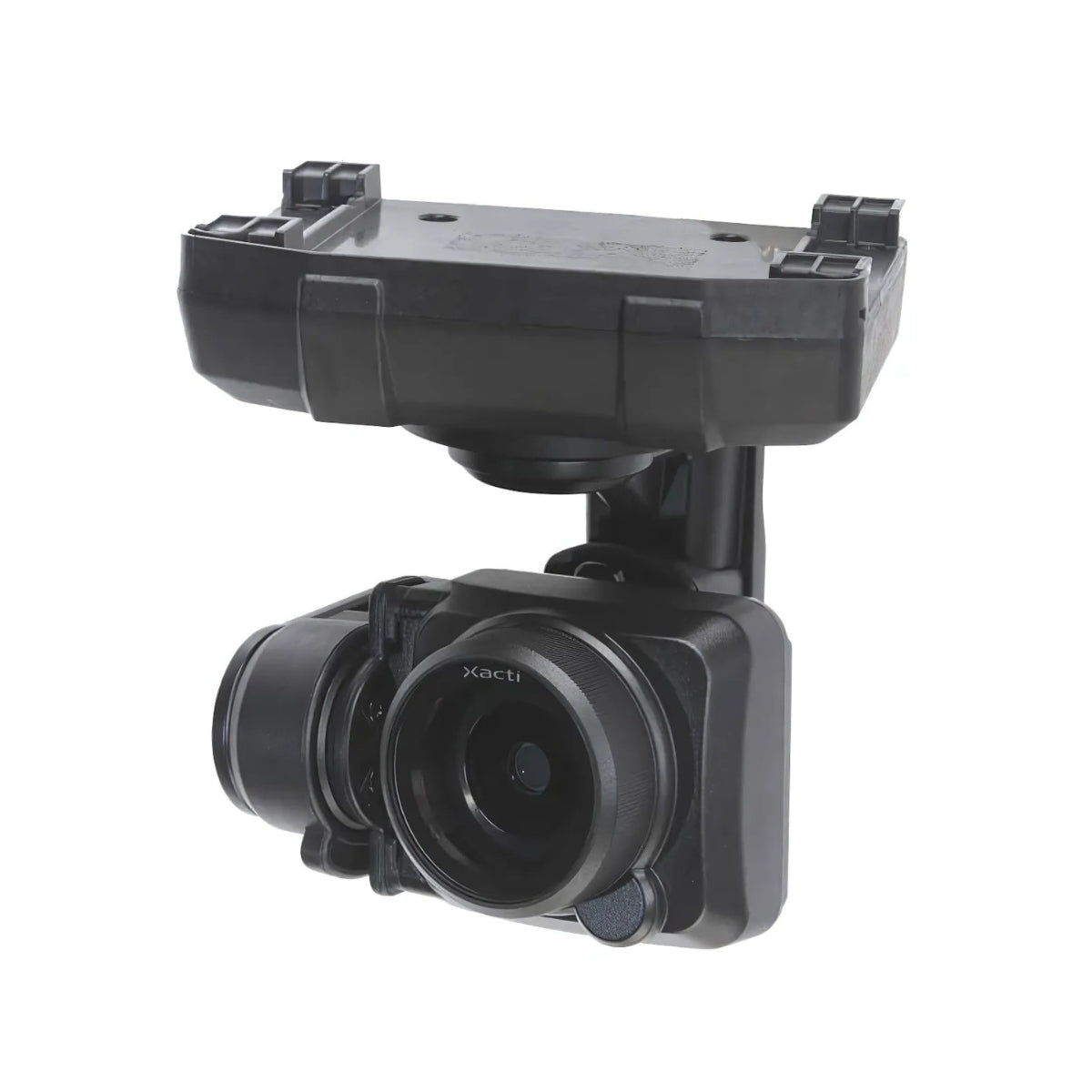

ACSL SOTEN Standard Camera

ACSL SOTEN Standard Camera

$1,000.00
$1,000.00
Sale Sold out
Shipping calculated at checkout.

S-SOTEN-CX-GB100

SKU S-SOTEN-CX-GB100 MPN CX-GB100
  • 1-inch 20 MP sensor delivers detailed aerial visual imagery
  • Mechanical shutter minimizes distortion during dynamic flight capture
  • 4K video recording supports professional visual documentation missions
  • 3-axis gimbal stabilizes imagery during maneuvering flight operations
  • Hot-swappable design enables rapid payload changes on SOTEN aircraft
  • Supports secure data encryption before onboard recording
  • Wide aperture range supports varied lighting conditions
  • Dedicated SOTEN payload supports consistent RGB capture across missions
  • NDAA-compliant design with encrypted onboard storage support
  • Ideal for public safety, inspection, and critical infrastructure use
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

ACSL SOTEN Standard Camera: 20 MP 1-Inch Mechanical Shutter Payload for the SOTEN Platform

The ACSL SOTEN Standard Camera is a 20-megapixel, 1-inch sensor gimbal camera built exclusively for the ACSL SOTEN unmanned aircraft system.

Manufactured by Xacti Corporation in Japan, it serves as the baseline imaging payload for the SOTEN platform, delivering high-resolution stills and 4K video across inspection, mapping, documentation, and general-mission operations. It attaches and detaches via the SOTEN's one-touch swappable camera bay without tools, and the gimbal initializes automatically on power-up.

Key Features and Benefits

  • Sensor resolution: 20 MP 1-inch sensor delivers sharp, detailed aerial imagery
  • Mechanical shutter: eliminates rolling shutter distortion in survey and mapping flights
  • Video capability: records 4K at 30fps and slow motion up to 240fps at nHD resolution
  • Gimbal stabilization: 3-axis stabilization holds ±0.02° accuracy across pan, tilt, and roll
  • Onboard encryption: operator-controlled data encryption protects imagery at rest on media
  • Focus flexibility: supports single AF, continuous AF, and manual focus with multi or spot area
  • Exposure control: -2EV to +2EV compensation in 1/3EV steps for challenging lighting conditions
  • One-touch swap: attaches and detaches without tools; gimbal self-initializes on power-up
  • Format support: shoots JPEG, DNG, or simultaneous JPEG+DNG at up to 20 MP resolution
  • ISO range: AUTO through ISO 6400 for usable imagery in low-ambient-light environments

Designed for operators who need a reliable, versatile imaging payload right out of the box, the Standard Camera supports mechanical and electronic shutters, multiple video resolutions up to 4K/30fps, and operator-controlled onboard data encryption.

EXIF data is compatible with RTK and mapping software, making it a practical first payload for survey-adjacent workflows and a dependable daily driver for field crews running inspection and documentation missions on the SOTEN platform.

Mechanical Shutter Precision for Mapping-Grade Results

When survey accuracy and image integrity are the deliverable, the mechanical shutter on the ACSL SOTEN Standard Camera removes the geometric errors that electronic shutters introduce during forward flight. Paired with EXIF data that feeds directly into RTK and photogrammetry pipelines, the camera produces geotagged imagery ready for orthomosaic generation, volume calculations, and as-built documentation without requiring post-processing corrections.

At 20 MP on a 1-inch sensor with a 28 mm equivalent focal length, it captures enough ground resolution for most inspection and mapping deliverables at standard operational altitudes. The 3-axis gimbal stabilizes the image path to ±0.02°, keeping frames sharp even in moderate wind conditions, and the 60-minute recording time per session supports extended mapping corridors without interruption.

Compatibility and System Integration

  • ACSL SOTEN: exclusive compatible aircraft via one-touch swappable camera bay
  • ACSL TAKEOFF: fully integrated ground control application for mission planning and camera control
  • ACSL TENSO Smart Controller: compatible for standard field operation and mission execution
  • ACSL TAITEN Smart Controller: compatible with extended range and full gimbal control customization
  • ACSL SOTEN RTK Module: integrates for centimeter-level geotagging on survey and mapping missions
  • microSD cards: UHS speed class U3 or V30 minimum, up to 512GB capacity supported
  • RTK and mapping software: EXIF output compatible with photogrammetry and mapping pipelines

Applications and Use Cases

  • Infrastructure inspection: captures detailed 20 MP stills of powerlines, towers, and bridge structures
  • Construction documentation: 4K video and high-resolution stills support progress monitoring deliverables
  • Survey and mapping: mechanical shutter and RTK-compatible EXIF feed photogrammetry workflows directly
  • General field operations: versatile across missions without requiring payload swaps or reconfiguration
  • Emergency response documentation: rapid deployment and 4K capture support situational awareness records
  • Agricultural site assessment: wide-field 28 mm equivalent FOV covers large areas efficiently per sortie
  • Law enforcement documentation: encrypted onboard storage protects mission-sensitive imagery at rest

The ACSL SOTEN Standard Camera is the operational core of the SOTEN platform — a Japan-manufactured, 20 MP imaging payload that handles the broadest range of professional missions without specialization trade-offs. Its mechanical shutter, dual-format shooting, and RTK-compatible output make it the right starting point for any operator standing up a SOTEN-based program.

DSLRPros is an authorized U.S. dealer for the ACSL SOTEN payload lineup. Whether you are configuring a single-aircraft setup or building a multi-payload fleet, DSLRPros provides pre-sale configuration guidance, verified ACSL components, and U.S.-based support from purchase through deployment.

Add the ACSL SOTEN Standard Camera to your SOTEN system at DSLRPros today.

General

  • Model Name: CX-GB100
  • Dimensions: 78 × 82 × 70 mm (W × H × D)
  • Weight: 180 g
  • Dust and Waterproof Rating: IP4X (JIS C 0920)
  • Supply Voltage: 12 V
  • Power Consumption: 12 W (maximum)
  • Operating Temperature: 0°C to 40°C
  • Operating Humidity: 10% to 90%

Camera

  • Image Sensor: 1-inch sensor, 20 MP effective pixels
  • Lens Field of View: 64° (horizontal), 44° (vertical), 73° (diagonal)
  • Focal Length (35 mm equivalent): 28 mm
  • Aperture Range: f/2.8 to f/11
  • Shutter Speed: Mechanical 8–1/2000 s; Electronic 8–1/8000 s
  • ISO Range: Auto, ISO 125–6400
  • Still Image Size (JPEG): 5448 × 3632 (20 MP); 4752 × 3168 (15 MP); 3888 × 2592 (10 MP)
  • Still Image Size (DNG): 5464 × 3646 (20 MP)
  • Photo Formats: JPEG, DNG, JPEG + DNG
  • Video Resolution / Frame Rate: 4K 3840 × 2160 @30p; 2.7K 2704 × 1520 @30p/60p; Full HD 1920 × 1080 @30p/60p/120p; HD 1280 × 720 @30p/60p; nHD 640 × 360 @30p/60p/120p/240p
  • Video Format: MOV (H.264)
  • Live View Format / Quality: MJPEG Full HD @30p

Storage

  • Supported File Systems: FAT32, exFAT
  • Supported SD Cards: microSD (UHS Speed Class U3, Video Speed Class V30 or above), up to 512 GB
  • Recommended SD Cards: SanDisk Extreme 32 GB (SDSQXAF-032G-JN3MD); SanDisk Extreme 64 GB (SDSQXAF-064G-JN3MD); SanDisk Extreme 128 GB (SDSQXA0-128G-JN3MD)
  • 1x ACSL SOTEN Standard Camera
What is the ACSL SOTEN Standard Camera and what aircraft is it compatible with?

The ACSL SOTEN Standard Camera is a 20 MP, 1-inch sensor gimbal camera manufactured by Xacti Corporation in Japan, designed exclusively for the ACSL SOTEN unmanned aircraft system. It mounts via the SOTEN's one-touch swappable camera bay and is not compatible with other aircraft. It works with both the TENSO and TAITEN Smart Controllers and integrates fully with the ACSL TAKEOFF ground control application.

Why does the mechanical shutter matter for mapping and survey missions?

A mechanical shutter physically opens and closes to capture each frame, eliminating the rolling shutter distortion that occurs when an electronic shutter reads the sensor line by line during aircraft motion. For mapping and survey flights, this means straight lines stay straight and geometric accuracy is preserved in the imagery. The ACSL SOTEN Standard Camera's mechanical shutter, combined with RTK-compatible EXIF output, makes it suitable for photogrammetry workflows that require accurate geotagged imagery.

What video resolutions and frame rates does the ACSL SOTEN Standard Camera support?

The camera records at 4K (3840 x 2160) at 30fps, 2.7K at 30 or 60fps, FullHD at 30, 60, or 120fps, HD at 30 or 60fps, and nHD at 30, 60, 120, or 240fps. All video is recorded in MOV format using H.264 codec to a microSD card with a UHS speed class of U3 or V30 or higher. Maximum continuous recording time per session is 60 minutes.

How does the onboard data encryption work on the ACSL SOTEN Standard Camera?

The camera supports operator-controlled encryption of data written directly to the microSD recording media. Encryption can be enabled or disabled per mission, meaning imagery, video, and associated data remain encrypted at rest on the card until the operator chooses to access them. This feature applies to onboard storage only and is separate from the AES-256 communications encryption on the SOTEN aircraft itself.

Does the ACSL SOTEN Standard Camera work with the RTK module for precision mapping?

Yes. The ACSL SOTEN RTK Module integrates with the standard camera workflow to add real-time kinematic positioning, enabling centimeter-level geotagging of imagery captured during the mission. The camera's EXIF data output is compatible with RTK and photogrammetry software pipelines. The RTK module is available as a standalone accessory or is included in the Survey RTK Bundle Plus configurations sold at DSLRPros.

What microSD cards are compatible with the ACSL SOTEN Standard Camera?

The camera requires a microSD card rated at UHS speed class U3 or Video Speed Class V30 or higher, with a maximum supported capacity of 512GB. Xacti recommends SanDisk Extreme cards in 32GB, 64GB, 128GB, 256GB, and 512GB capacities. Both FAT32 and exFAT file systems are supported, with auto-split recording available at 1, 3, 5, or 10 minute intervals.
