ACSL SOTEN Survey RTK Bundle Plus with Rapid Deployment Hard Case

ACSL SOTEN Survey RTK Bundle Plus with Rapid Deployment Hard Case: NDAA-Compliant Small UAS with Centimeter-Level RTK Positioning for Mapping and Survey Missions

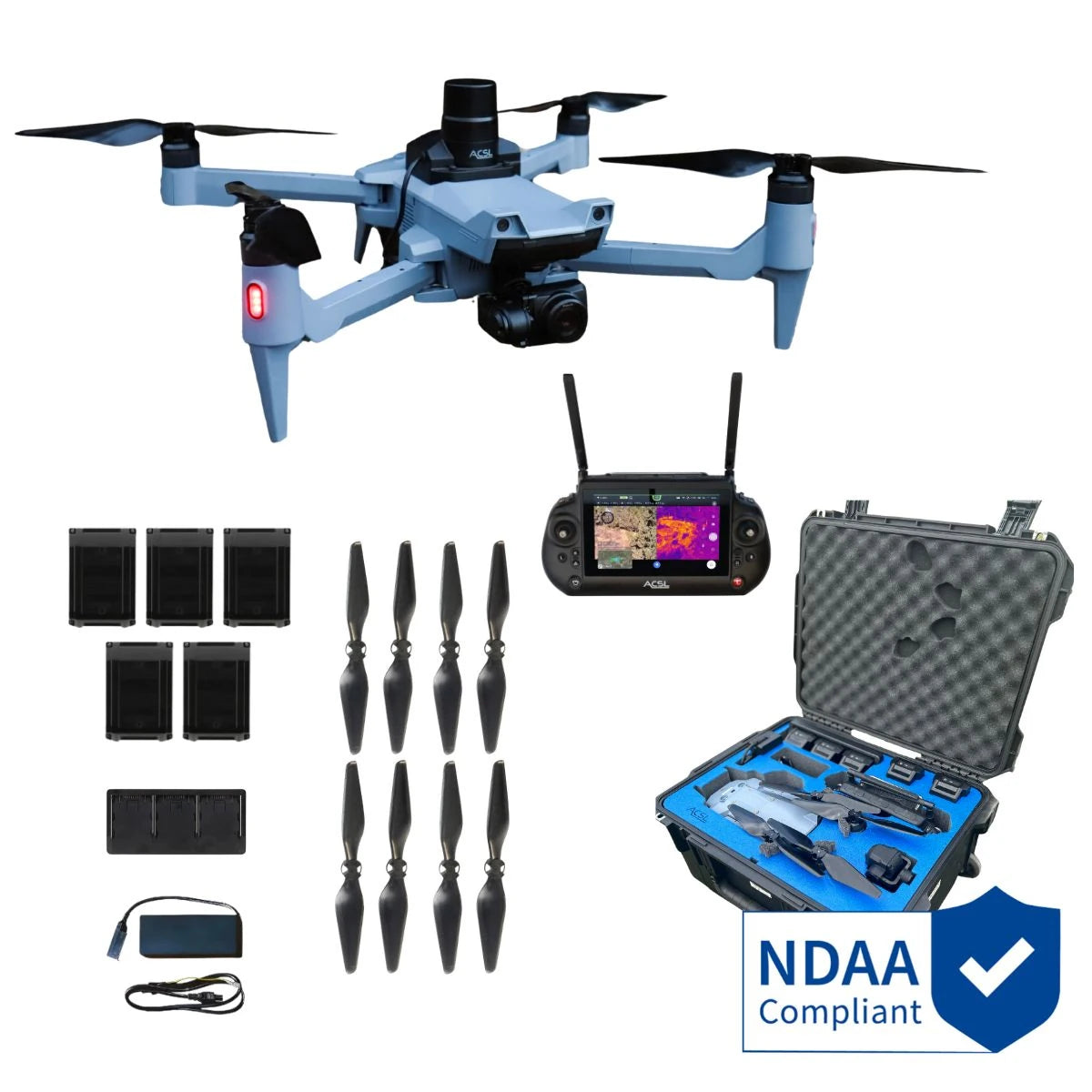

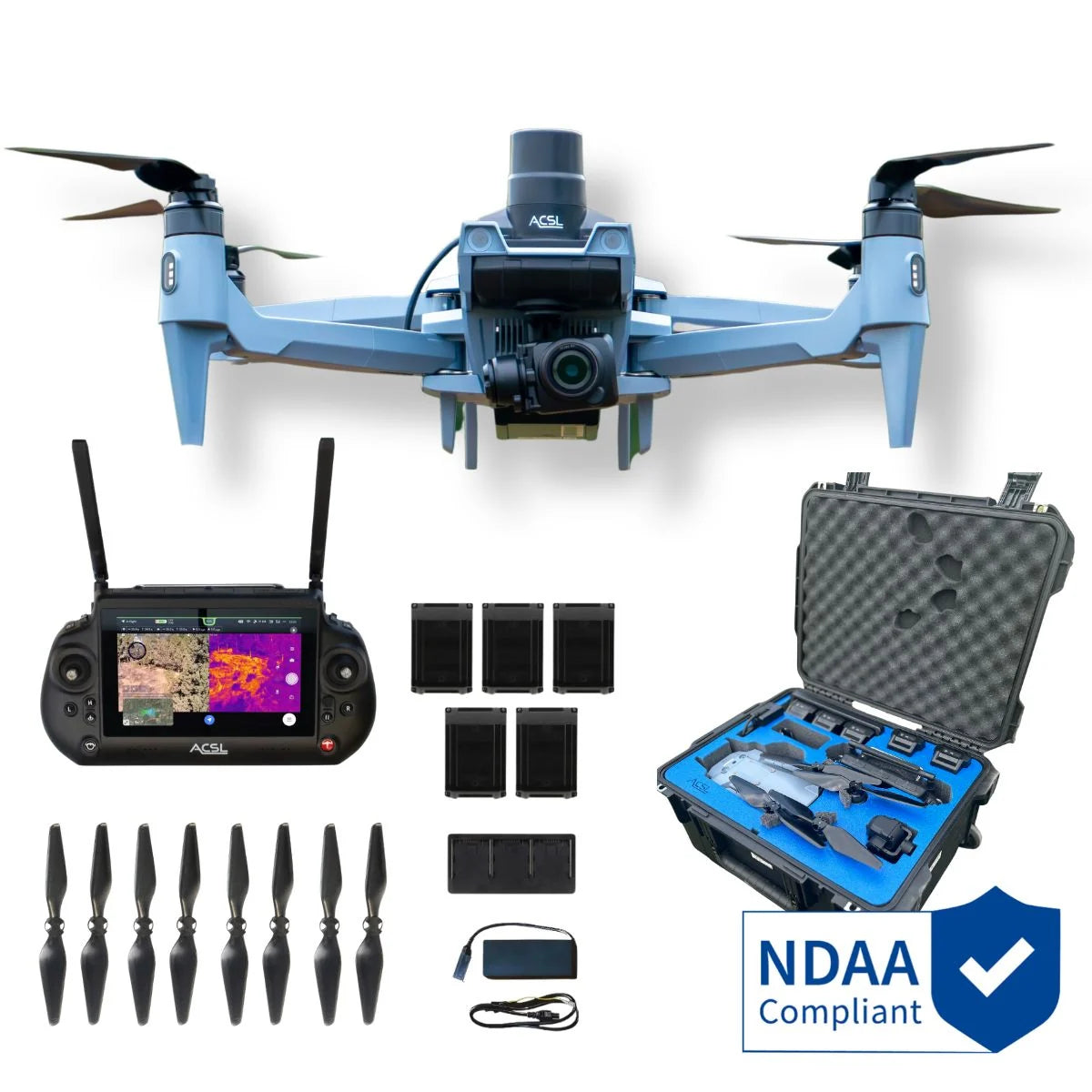

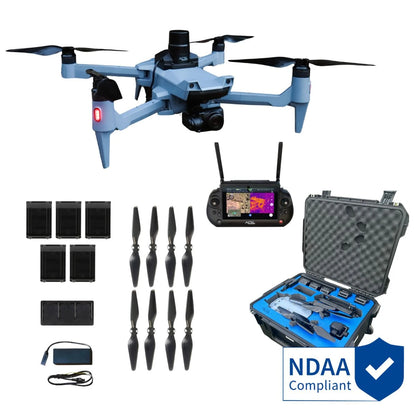

The ACSL SOTEN Survey RTK Bundle Plus with Rapid Deployment Hard Case is a complete, field-ready UAS package built for professionals who need precise positioning data on every flight. It combines Japan's NDAA-compliant SOTEN airframe with the TAITEN Smart Controller, the ACSL SOTEN RTK Module, five smart batteries, and a wheeled hard-shell case with custom blue foam interior—everything required to run mapping, surveying, and precision inspection missions from a single, organized kit.

The RTK module mounts to the top of the aircraft and operates simultaneously with the bottom-mounted camera payload, so operators capture georeferenced visual data without any hardware tradeoff.

Key Features and Benefits

• RTK positioning: centimeter-level accuracy supports survey-grade mapping and data collection workflows.
• NDAA compliance: aircraft and TAITEN controller both meet federal procurement requirements.
• Simultaneous payloads: RTK module and camera operate together from independent top and bottom mounts.
• Dual-band Fides-Link: 2.4 GHz and 5.8 GHz AES-256 encrypted link for resilient field communications.
• IP43 airframe: resists rain, dust, and particulates during active outdoor survey operations.
• Five-battery complement: supports extended multi-sortie field sessions without returning to base.
• TAITEN display: 7-inch 1500-nit panel with Android 13 and ACSL TAKEOFF pre-installed.
• One-touch camera: bottom gimbal mount supports visible, thermal, zoom, and multispectral payloads.
• Rapid deployment case: wheeled hard-shell with custom foam organizes the full bundle for field transport.
• SLAS augmentation: Michibiki quasi-zenith sub-meter positioning enhances base GNSS accuracy.

At the core of this bundle is a platform built for data quality and operational security. The SOTEN airframe carries an IP43-rated enclosure, multi-direction obstacle sensing, and the included 20MP CX-GB100 with 1-inch sensor and mechanical shutter for high-resolution still and 4K video capture.

The RTK module adds centimeter-level positioning accuracy to the standard GNSS stack, covering GPS, GLONASS, QZSS, and SLAS sub-meter augmentation, making this system a viable tool for survey-grade data collection workflows. AES-256 encrypted communications through ACSL Fides-Link, ISO/IEC 15408-based security architecture, and optional on-media data encryption keep collected data protected from takeoff to transfer.

Precision Data Collection on Every Sortie

Survey and mapping workflows demand positioning data you can trust from flight to flight. The SOTEN RTK module delivers centimeter-level accuracy on top of the aircraft's existing GPS, GLONASS, QZSS, and SLAS GNSS stack, giving field operators the georeferencing precision needed for accurate orthomosaic generation, terrain modeling, and site documentation.

The CX-GB100 captures 20MP stills and 4K video at 30fps, stabilized by a 3-axis gimbal to within 0.02 degrees, so image geometry stays consistent across the full coverage area. With 25 minutes of flight time per battery and five batteries in the kit, operators can run meaningful survey coverage in a single field session.

The TAITEN Smart Controller's offline map support and optional LTE connectivity keep mission planning and autonomous flight execution available regardless of site connectivity.

Compatibility and System Integration

• CX-GB100 standard camera: included 1-inch 20MP payload with mechanical shutter and 4K capture.
• ACSL SOTEN RTK Module: included; mounts to top of aircraft, operates with camera simultaneously.
• SAMO high-resolution thermal camera: optional NDAA-compliant EO/IR payload with 640x512 Boson sensor (sold separately).
• CX-GB400 optical zoom camera: optional 2.5x optical with up to 25x combined zoom capability (sold separately).
• CX-GB300 multispectral camera: optional 1-inch 20MP payload with RGB TIFF 16-bit output (sold separately).
• ACSL TAKEOFF app: pre-installed on TAITEN for integrated flight, gimbal, and autonomous mission control.
• ACSL Fides-Link: dual-band AES-256 encrypted link with 6-plus mile unobstructed range.
• Optional LTE module: enables remote and closed-network operations for BVLOS-capable workflows (sold separately).

Applications and Use Cases

• Topographic mapping: capture georeferenced datasets for accurate terrain model and contour generation.
• Construction survey: document site progress and validate grading and earthwork against design plans.
• Land surveying: collect precise aerial data to support boundary, cadastral, and title survey workflows.
• Infrastructure inspection: combine RTK accuracy with visual capture for georeferenced asset documentation.
• Precision agriculture: generate accurate field maps to support variable-rate application and crop planning.
• Corridor survey: map linear assets including roads, pipelines, and utility corridors efficiently by air.
• Volumetric analysis: collect data for stockpile measurement and cut-and-fill calculations on active sites.
• Public safety documentation: produce accurately georeferenced scene maps for incident reporting.

The ACSL SOTEN Survey RTK Bundle Plus with Rapid Deployment Hard Case is built for field operators who need survey-grade positioning and high-resolution visual capture in a single, portable, and compliant package. The RTK module, camera, five batteries, and full support kit ship together in a wheeled hard-shell case that moves from truck to launch point in a single trip. For professionals running mapping and survey programs where positional accuracy directly affects data value, this bundle delivers the tools to meet that standard consistently.
