Sentera 6X Thermal Pro Sensor Kit for Inspired Flight IF800

Sentera 6X Thermal Pro Sensor Kit for Inspired Flight IF800: Synchronized Multispectral, RGB, and Radiometric Thermal Data Capture

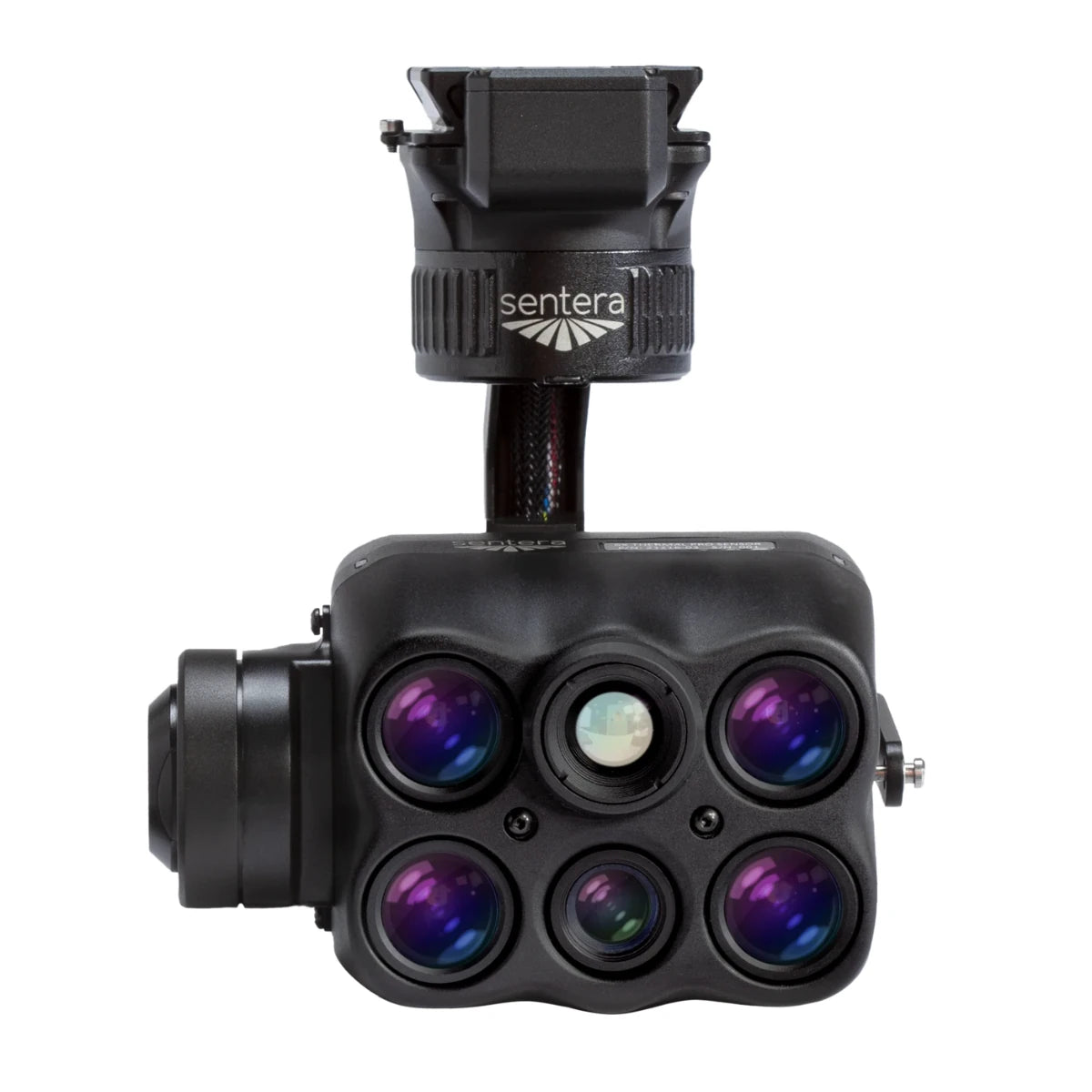

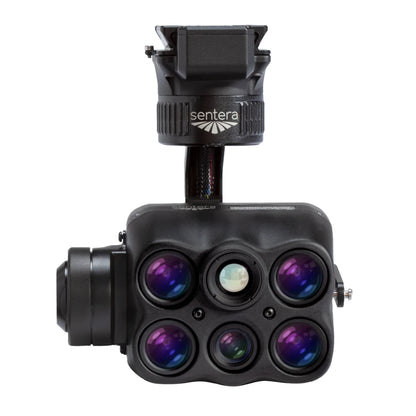

The Sentera 6X Thermal Pro Sensor Kit for Inspired Flight IF800 is a multi-sensor payload built for operators who need consistent, high-quality data across multiple imaging layers in a single flight. It integrates four 3.2MP global shutter multispectral sensors, a 20MP RGB camera, and a 640 × 512 FLIR Boson radiometric thermal imager, allowing you to capture aligned datasets without switching payloads or repeating missions.

Designed for real deployment, the system includes a Smart Dovetail gimbal, incident light sensor, and calibrated reflectance panel to maintain data consistency in changing field conditions. With synchronized capture, onboard 512GB storage, and NDAA compliant design, it supports repeatable workflows where accuracy, reliability, and regulatory compliance are non-negotiable.

Key Features and Benefits

• Multi-sensor payload: Combines 4 × 3.2MP multispectral, 20MP RGB, thermal sensors.
• NDAA compliant design: Meets requirements for government and regulated operations.
• Global shutter capture: Eliminates motion distortion for accurate multispectral datasets.
• Radiometric thermal imaging: 640 × 512 FLIR Boson sensor captures calibrated temperature data.
• Synchronized acquisition: All sensors capture simultaneously for precise multi-layer alignment.
• High-resolution RGB imaging: 20MP camera enables detailed inspection and mapping outputs.
• Fast capture rate: 5 FPS supports efficient large-area data collection missions.
• Large onboard storage: 512GB SSD supports extended missions without data interruption.
• Calibration system included: Light sensor and reflectance panel ensure radiometric accuracy.
• Open data formats: Outputs JPEG and TIFF formats for flexible processing workflows.

High-Accuracy Multi-Sensor Mapping Workflows

The 6X Thermal Pro is designed for operations where data accuracy and consistency directly impact outcomes. With a ground sampling distance of 0.4 in (1.0 cm) for RGB, 1.0 in (2.6 cm) for multispectral, and 3.4 in (8.75 cm) for thermal at 200 ft (60 m), it provides measurable detail across all data layers.

The 5 FPS capture rate and 512GB onboard storage enable efficient coverage of large sites without compromising resolution. Combined with radiometric calibration tools and synchronized capture, the system produces datasets ready for analysis without additional alignment steps.

Compatibility and System Integration

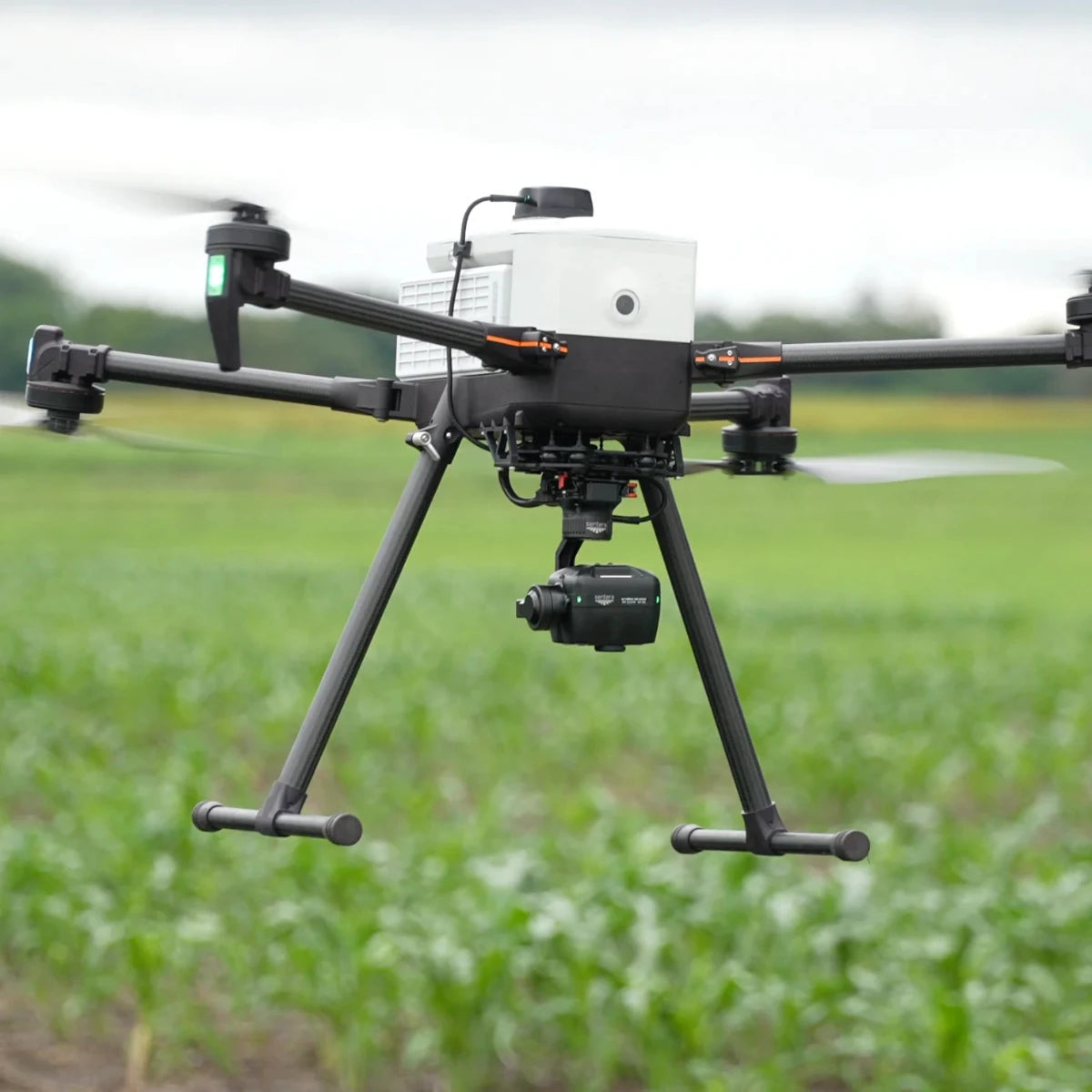

• IF800 Tomcat integration: Uses Smart Dovetail gimbal for stable payload mounting.
• MAVLink protocol support: Ensures communication with compatible flight control systems.

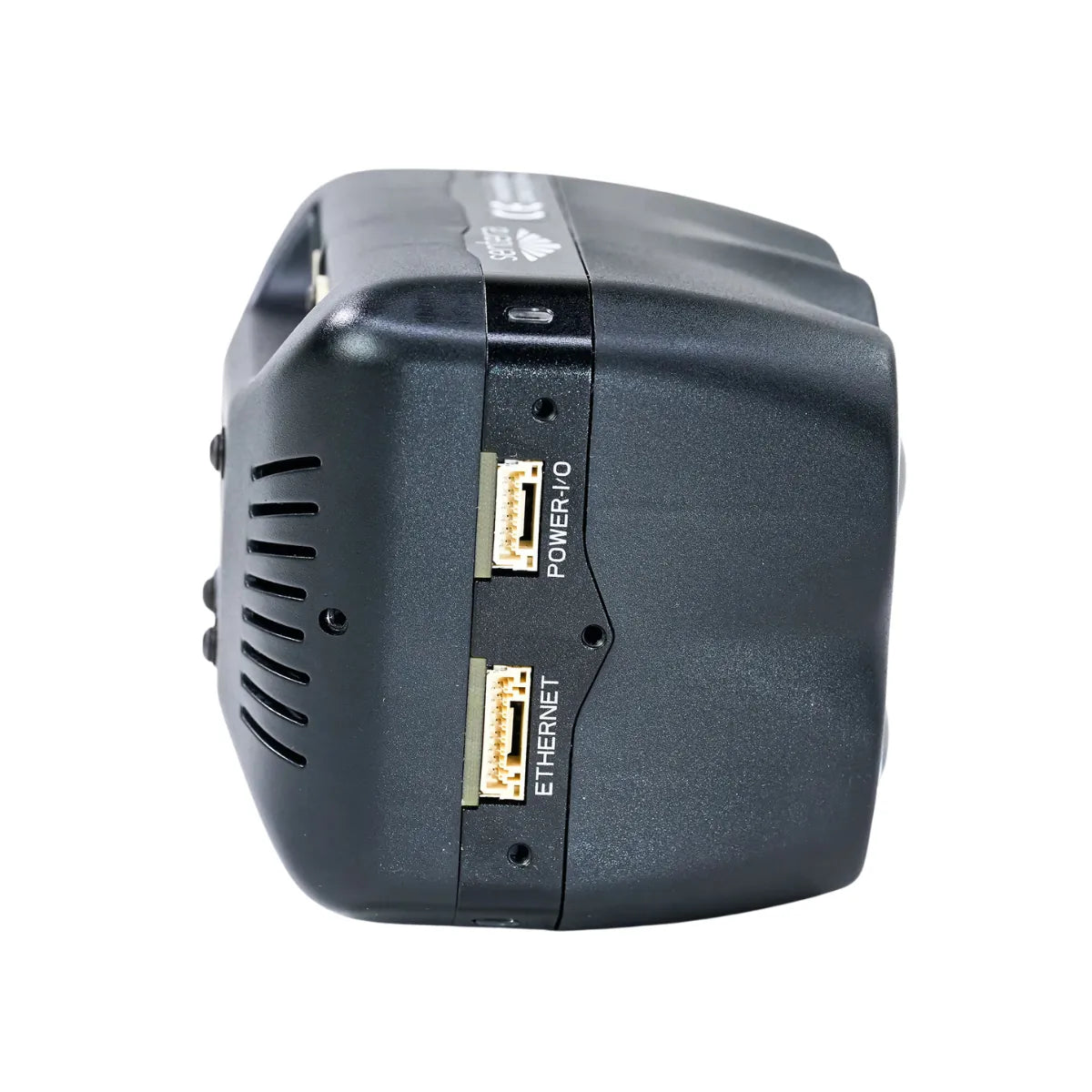

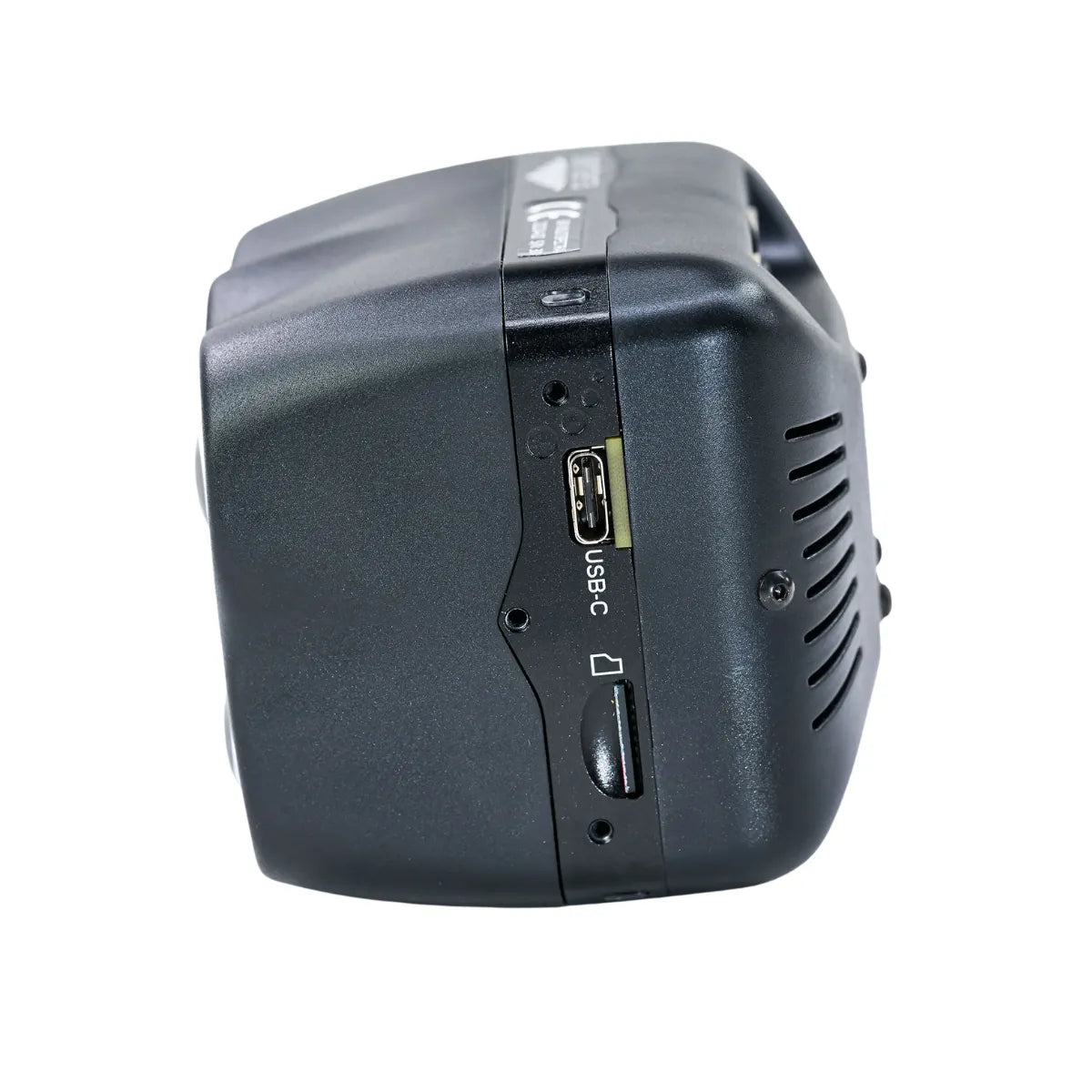

• USB-C and Ethernet interfaces: Support data transfer and integration workflows.
• Multiple I/O options: Supports PPS, serial, and discrete input/output connections.

Applications and Use Cases

• Crop health analysis: Detect vegetation stress using multispectral and thermal data.
• Irrigation monitoring: Identify water stress, leaks, and soil moisture variation patterns.
• Environmental mapping: Analyze vegetation indices, land cover, and ecosystem changes.
• Infrastructure inspection: Detect thermal anomalies in mechanical and electrical systems.
• Fire detection support: Identify hotspots using radiometric thermal imaging data.
• Conservation monitoring: Track vegetation health and habitat conditions over time.

The Sentera 6X Thermal Pro Sensor Kit delivers synchronized, high-resolution data across multiple sensing modalities in a single deployment. Its calibrated workflow and integrated design reduce operational complexity while improving data reliability for professional analytics.

At DSLRPros, we focus on systems that perform in real-world conditions, not just on paper. Our UAV specialists can help you deploy the 6X Thermal Pro on the IF800 and configure it for your specific workflow. Order now or contact DSLRPros to build an NDAA-compliant, field-ready solution with confidence.
