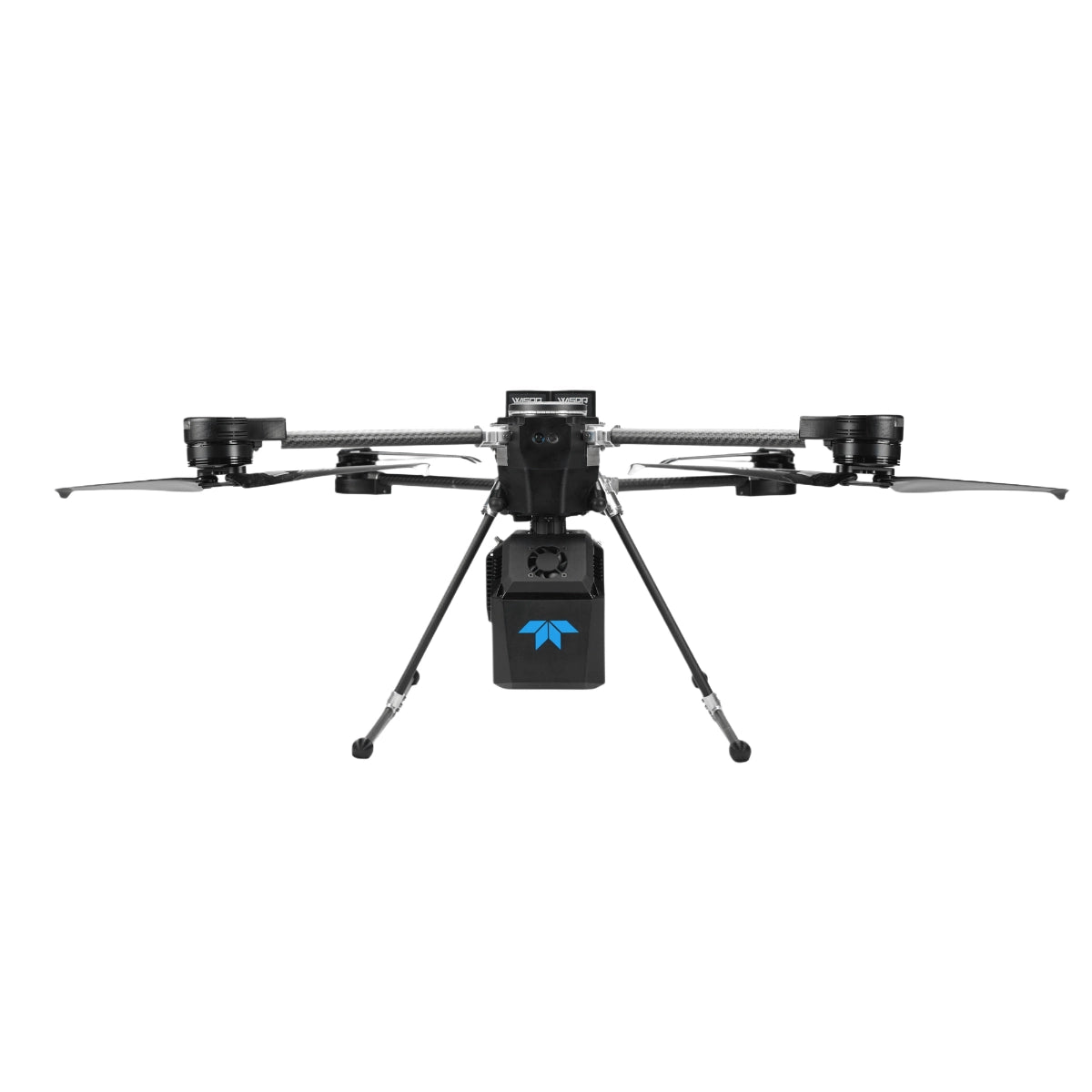

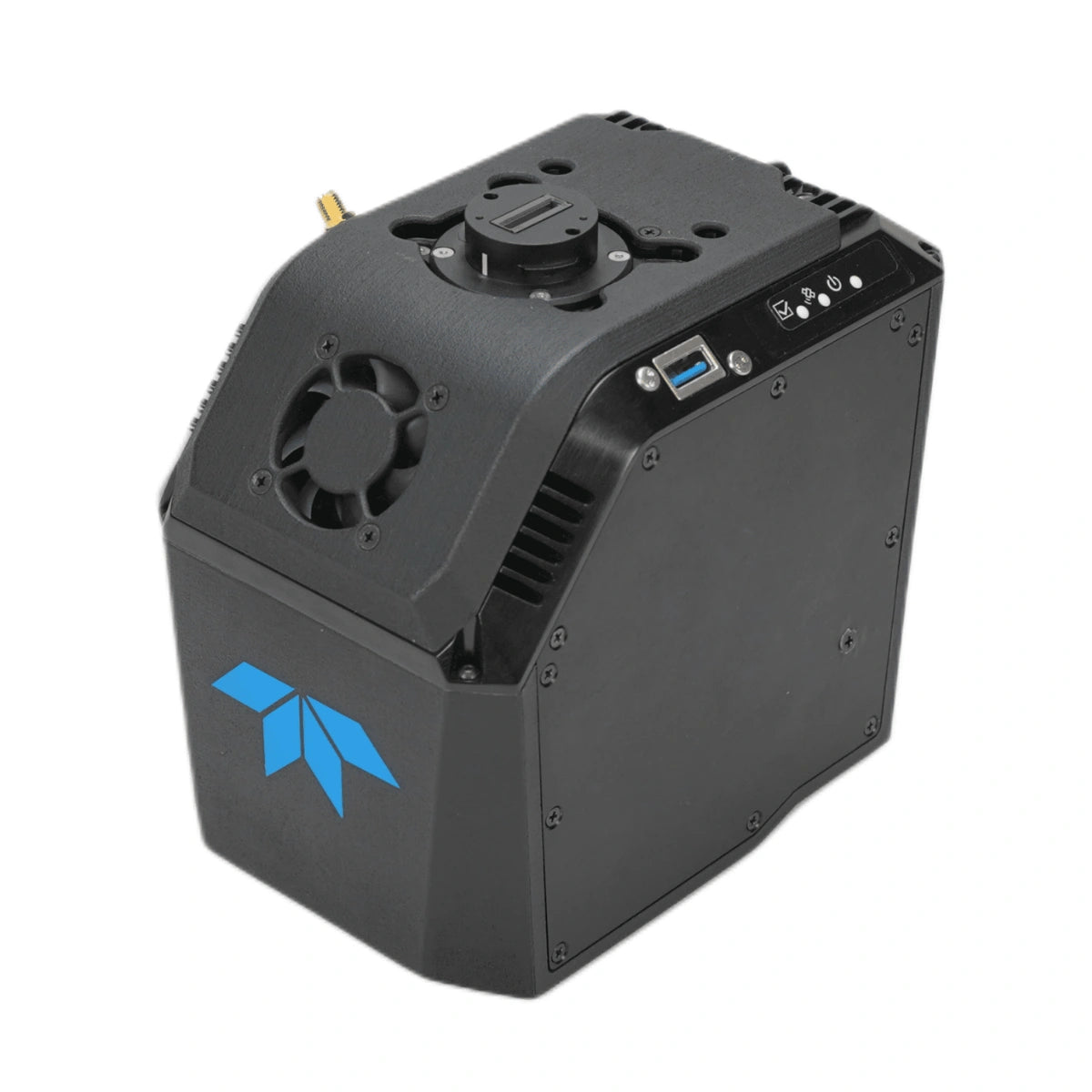

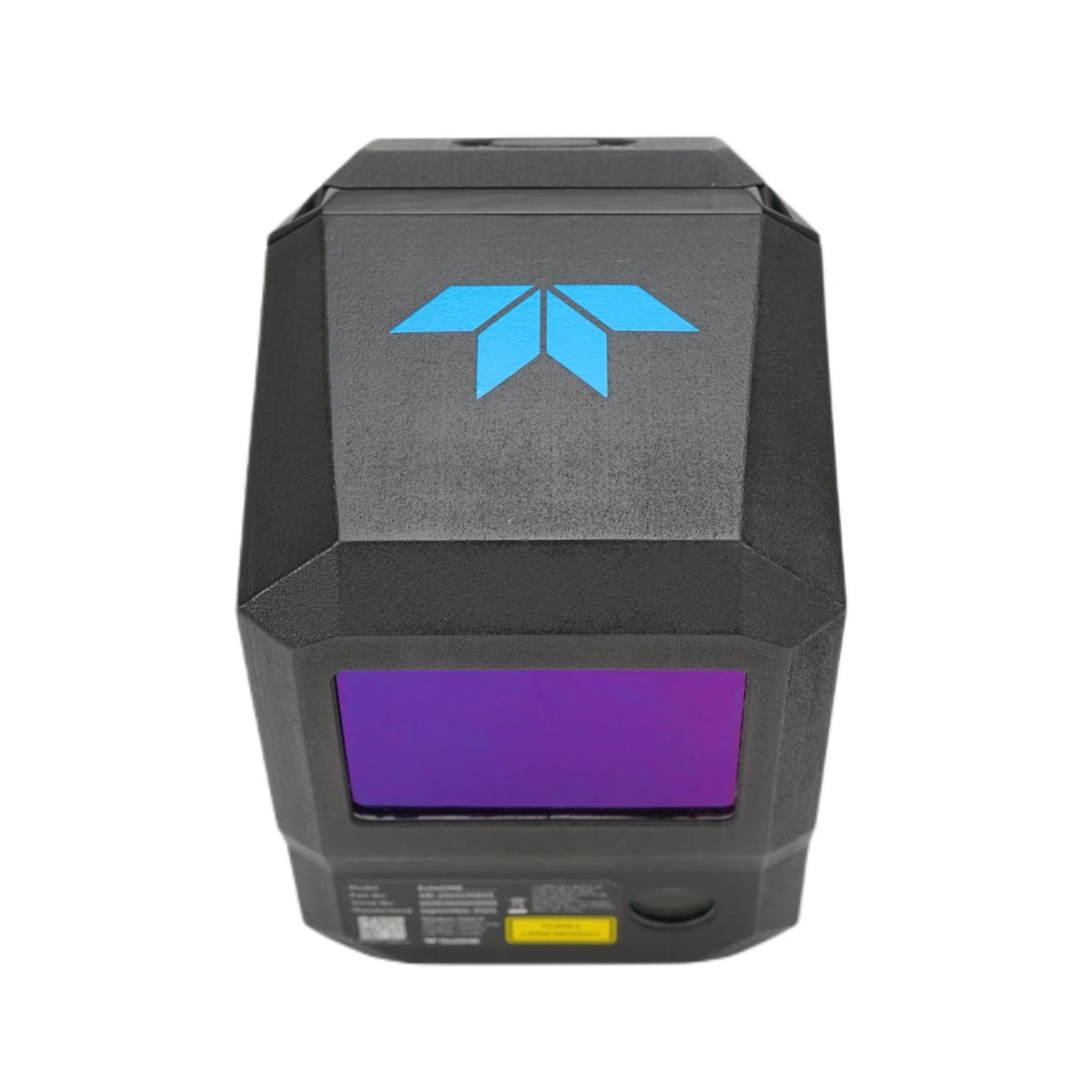

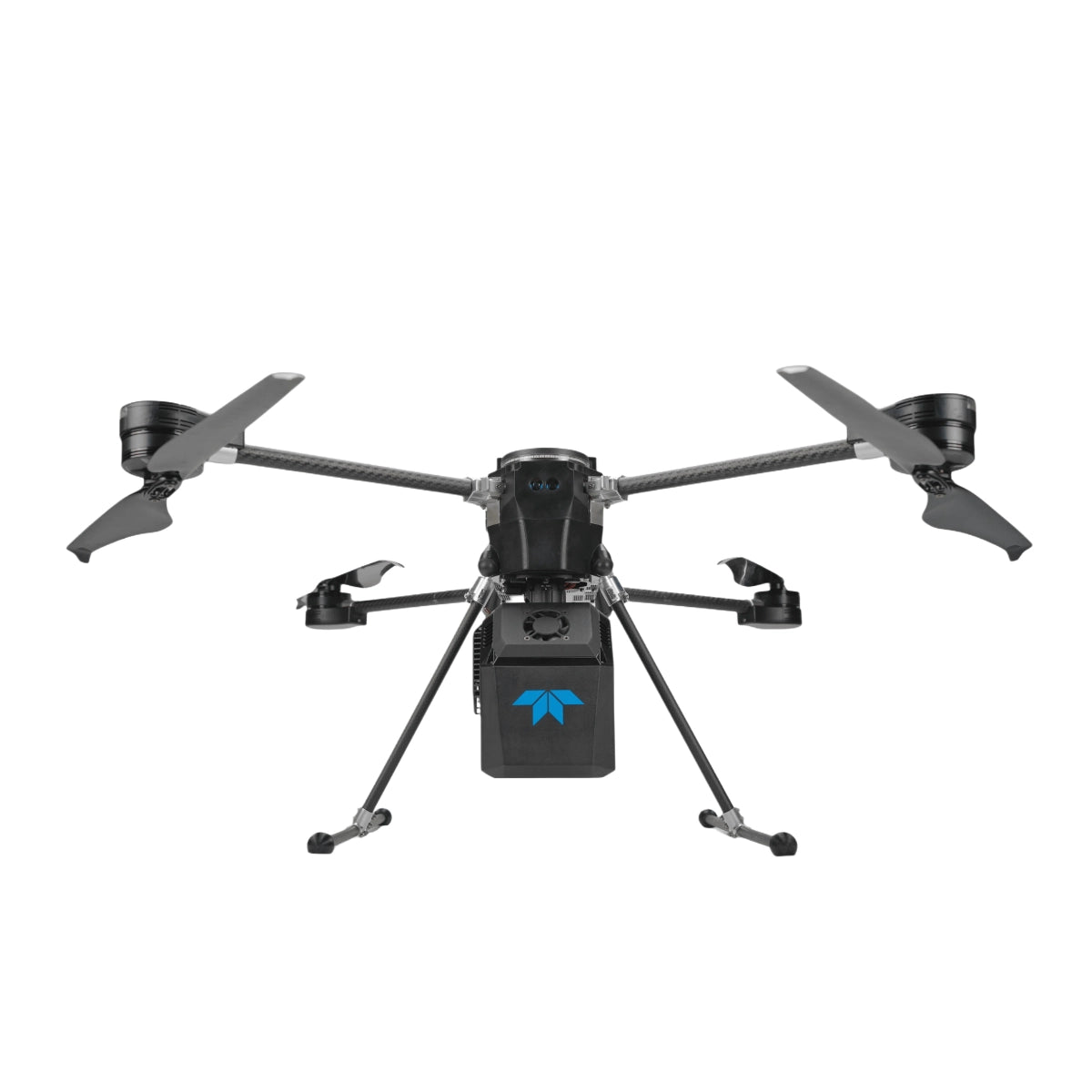

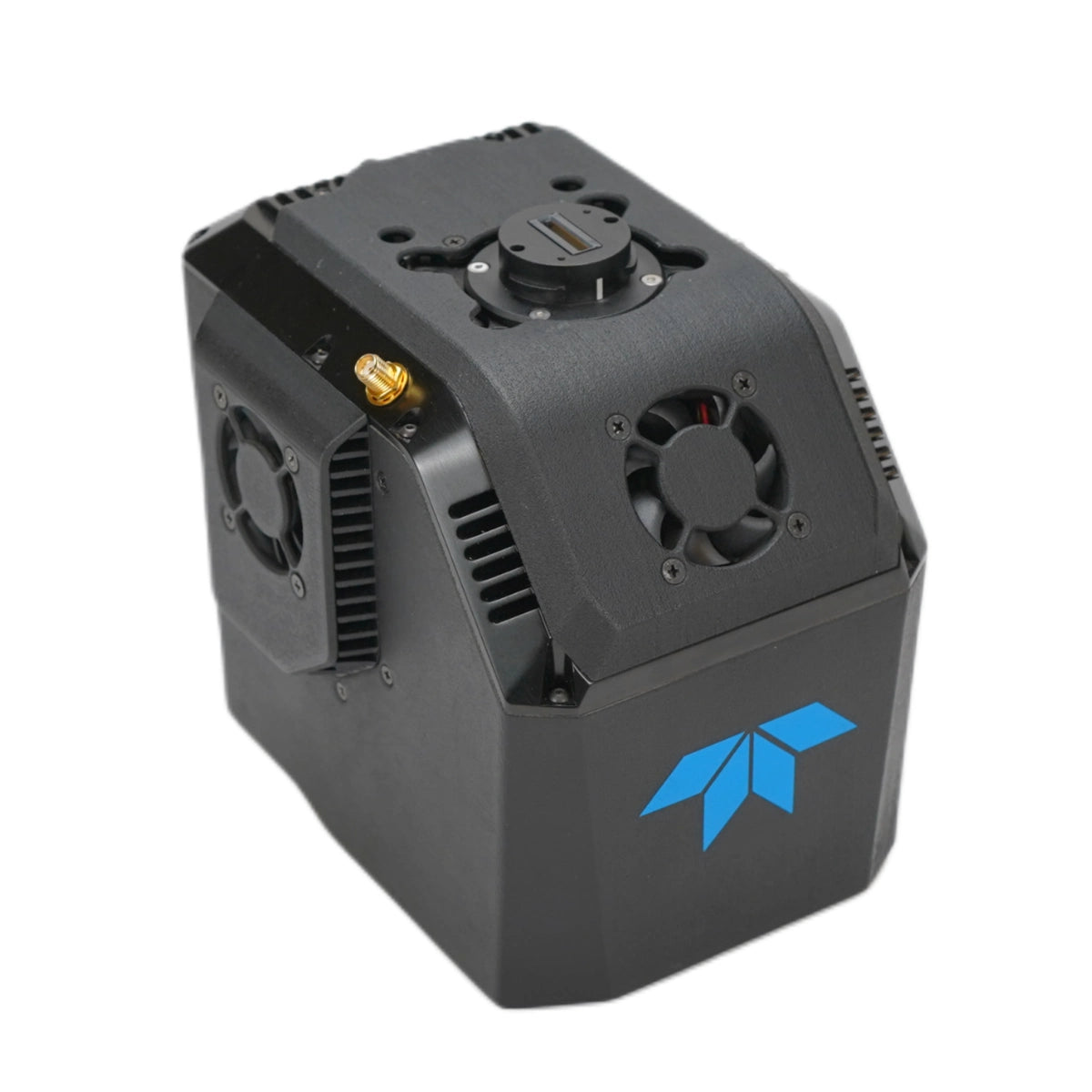

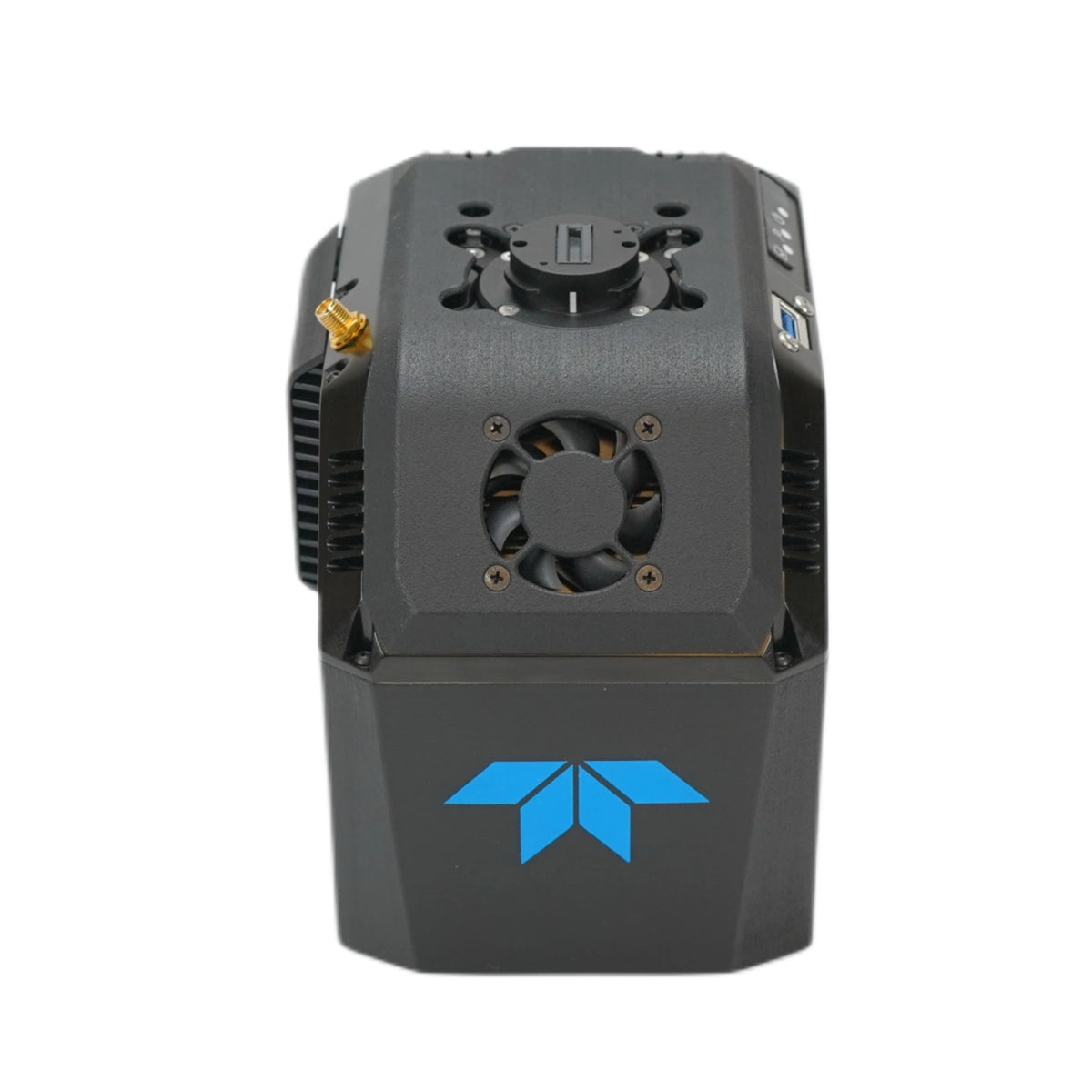

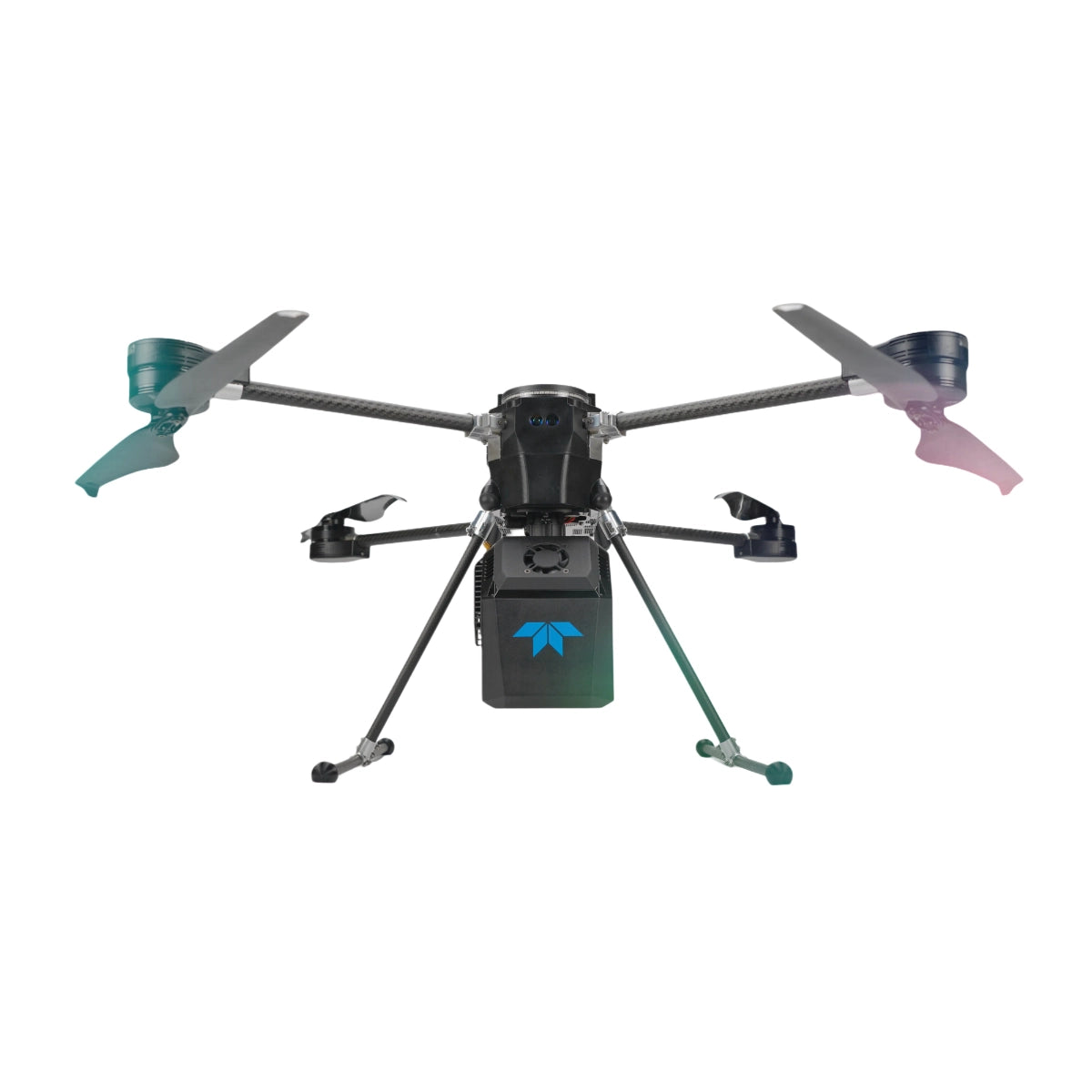

Inertial Labs RESEPI Teledyne EchoONE 5MP Camera (No FPV Gimbal)

Inertial Labs RESEPI Teledyne EchoONE 5MP Camera (No FPV Gimbal)

$57,575.00
$57,575.00
Sale Sold out
Shipping calculated at checkout.

S-WSP-RESEPI-ECHO

SKU S-WSP-RESEPI-ECHO MPN 2100.010.040
  • NDAA-compliant per FY2020 Section 848 and FY2023 Section 817 requirements
  • Real-time onboard georeferenced point cloud for pilot QC before site departure
  • Up to 8 returns per pulse for deep canopy penetration and multi-return scanning
  • Long-range scanning reaches 270 m at 20% reflectivity in 400 kHz mode
  • Survey-grade absolute vertical accuracy of 1.5 cm RMSEz at 120 m AGL
  • 5 mm precision and 10 mm range accuracy across all scanning configurations
  • 90-degree horizontal FOV with four vertical scan angles for wide swath coverage
  • Kernel-210 IMU delivers PPK pitch/roll accuracy of 0.006 degrees
  • IP54 rated for dust and water spray protection in field environments
  • Integrated 5MP global shutter camera at 80-degree FOV for colorized point clouds
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Teledyne EchoONE 5MP Camera: NDAA-Compliant Airborne Laser Scanner With Real-Time Georeferenced Point Clouds for the SkyScout Series

The Teledyne EchoONE 5MP Camera is a secure, NDAA-compliant airborne laser scanner powered by Inertial Labs RESEPI technology and compatible with the WISPR SkyScout Series.

Designed for engineering-grade LiDAR applications in utilities, surveying, transportation, and infrastructure, it delivers colorized, georeferenced point clouds with 1.5 cm RMSEz absolute vertical accuracy at 120 m and up to 8 returns per pulse — more than any other payload in the RESEPI lineup.

Compliant with FY2020 NDAA Section 848 and FY2023 NDAA Section 817, it is built for regulated programs where supply chain security and geospatial data protection are operational requirements.

The EchoONE operates with configurable 400 kHz or 600 kHz pulse repetition frequencies, reaching a maximum measuring range of 270 m at 20% reflectivity in 400 kHz mode and 225 m in 600 kHz mode.

Its 90° horizontal field of view and four fixed vertical scan lines at -10°, -4°, +4°, and +10° deliver wide swath coverage that captures both ground-level surfaces and vertical infrastructure such as utility poles and building facades in a single pass. Range accuracy is 10 mm with 5 mm precision.

A standout capability for field operations is real-time onboard georeferenced point cloud generation, enabling pilot-side LAS file quality review before leaving the project site. An integrated 5MP global shutter camera at 80° FOV produces colorized point clouds for additional visual context beyond intensity data.

Teledyne EchoONE 5MP Core Features and Advantages

  • NDAA-compliant: meets FY2020 Section 848 and FY2023 Section 817 for secure data programs.
  • Real-time point cloud: georeferenced LAS file generated onboard for pilot QC before site departure.
  • Up to 8 returns per pulse: deepest canopy penetration and multi-return capability in the lineup.
  • Long-range scanning: 270 m at 20% reflectivity in 400 kHz mode for large-area coverage.
  • Survey-grade accuracy: 1.5 cm RMSEz absolute vertical accuracy at 120 m AGL confirmed.
  • 5 mm precision: tightest precision figure of any payload in the RESEPI family at 1 sigma.
  • 90° horizontal FOV: four vertical scan angles maximize swath and capture vertical infrastructure.
  • Kernel-210 IMU: pitch/roll accuracy of 0.006° PPK and heading accuracy of 0.03° PPK.
  • IP54 rated: sealed against dust and water spray for field deployment across varied environments.
  • 5MP global shutter camera: 80° FOV colorization camera produces color-fused point cloud output.

Scroll horizontally to compare all payloads →

Specification Inertial Labs RESEPI Livox AVIA 24MP Camera (FPV Gimbal) Inertial Labs RESEPI Ouster REV7 OS1-64 24MP Camera (FPV Gimbal) Inertial Labs RESEPI GEN-II Ouster OS1-64 61MP Camera (No FPV Gimbal) Inertial Labs RESEPI Lite M2X 24MP Camera (FPV Gimbal) Inertial Labs RESEPI Ultra Lite XT-32 5MP Camera (FPV Gimbal) Inertial Labs RESEPI Teledyne EchoONE 5MP Camera (No FPV Gimbal)
LiDAR sensor Livox AVIA Ouster OS1-64 REV7 Ouster OS1-64 REV7 Hesai XT-32 M2X Hesai XT-32 Teledyne proprietary (1535 nm)
Laser channels 6 64 64 32 32 4 vertical scan lines
Pulse rate 720,000/s (triple return) 2,621,000/s (dual return) 2,621,000/s (dual return) 1,920,000/s (triple return) 1,280,000/s (dual return) 400 kHz / 600 kHz (configurable)
Number of returns 3 (triple) 2 (dual) 2 (dual) 3 (triple) 2 (dual) Up to 8 per pulse
Laser range 190m @ 10% / 320m @ 80% reflectivity 90m @ 10% / up to 200m 90m @ 10% / up to 200m 80m @ 10% / up to 300m 80m @ 10% (c9-24) / up to 120m 270m @ 20% (400 kHz) / 225m (600 kHz)
Range accuracy +/- 2 cm +/- 2.5 cm +/- 2.5 cm +/- 1 cm +/- 1 cm 10 mm accuracy / 5 mm precision
Horizontal FOV 70.4° 360° 360° 360° 360° 90°
Vertical FOV 4.5° / 77.2° (scan pattern dependent) 45° 45° 40.3° 31° 4 lines: -10°, -4°, +4°, +10°
System accuracy 3–5 cm (2–3 cm with noise removal) 3–5 cm (2–4 cm with noise removal) 3–5 cm (2–4 cm with noise removal) 2–3 cm (1.5–2.5 cm with noise removal) 2–3 cm (1.5–2.5 cm with noise removal) 1.5 cm RMSEz @ 120 m
Recommended AGL Up to 85 m Up to 100 m Up to 75 m 50–100 m Up to 100 m Up to 205 m (400 kHz)
IMU Inertial Labs Tactical Grade IMU-P Inertial Labs Tactical Grade IMU-P Inertial Labs Kernel-210 Inertial Labs Tactical Grade IMU-P Inertial Labs Kernel-210 Inertial Labs Kernel-210
GNSS receiver Single or dual antenna NovAtel OEM7720 NovAtel OEM7720 Single or dual antenna NovAtel OEM7500 GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC
Position accuracy (PPK) 0.5 cm 0.5 cm 0.5 cm 0.5 cm 0.5 cm PPK supported
Pitch/roll accuracy 0.03° RTK / 0.006° PPK 0.03° RTK / 0.006° PPK 0.03° RTK / 0.004° PPK 0.03° RTK / 0.004° PPK 0.03° RTK / 0.006° PPK 0.03° RTK / 0.006° PPK
Heading accuracy 0.15° RTK / 0.03° PPK 0.15° RTK / 0.03° PPK 0.08° RTK / 0.02° PPK 0.1° RTK / 0.02° PPK 0.1° RTK / 0.03° PPK 0.08° RTK / 0.03° PPK
Camera 24MP RGB, Sony E-Mount 16mm, 70° FOV 24MP RGB, Sony E-Mount 16mm, 70° FOV 61MP Sony ILX-LR1, 18mm fixed, 100° FOV 24MP RGB, Sony E-Mount 16mm, 70° FOV 5MP CMOS colorization, fixed manual focus, 70.8° HFOV 5MP global shutter, 80° FOV (optional 61MP Sony ILX-LR1)
Weight 0.9 kg (no cam) / 1.2 kg (with cam) 1.0 kg (no cam) / 1.4 kg (with cam) 1.7 kg 1.0 kg (no cam) / 1.4 kg (with cam) 1.1 kg 1.65 kg
Storage 256 GB USB 256 GB USB 512 GB internal SSD 256 GB USB 256 GB USB 512 GB onboard + USB removable
Onboard computer Quad Core, 1GB RAM, 8GB eMMC Quad Core, 1GB RAM, 8GB eMMC Hexacore, 8GB DDR4 RAM, 16GB eMMC Quad Core, 1GB RAM, 8GB eMMC Quad Core, 1GB RAM, 8GB eMMC —
Real-time point cloud No No Yes (GEN-II) No No Yes (on-sensor)
SLAM No No Yes (Kudan) No Yes (Kudan) No
Strip alignment No No Yes (BayesMap) No Yes (BayesMap) Optional (Teledyne LMS Pro)
NDAA compliance Yes Yes Yes Yes Yes Yes (FY2020 Sec 848 + FY2023 Sec 817)
IP rating — — — — — IP54
FPV Gimbal Yes (SkyScout SnapFit) Yes (SkyScout SnapFit) No (standard SnapFit) Yes (SkyScout SnapFit) Yes (SkyScout SnapFit) No
Best for Powerline surveys, corridor mapping, high-speed large-area passes Wide-area terrain mapping, site surveys, construction volumetrics High-res imaging + LiDAR fusion, advanced survey programs Vegetation analysis, dense canopy, highest range accuracy Endurance missions, weight-sensitive deployments Utility corridor mapping, government programs, real-time QC

The Teledyne EchoONE 5MP Camera is built for SkyScout Series operators who need engineering-grade LiDAR accuracy, real-time deliverable review, and the deepest multi-return capability available in a deployable payload. Its 8-return per pulse scanning, 5 mm precision, real-time georeferenced point cloud output, and dual NDAA compliance make it the right choice for utility corridor mapping, vegetation management, topographic surveying, and government programs where data quality and security are both non-negotiable.

DSLRPros carries the Teledyne EchoONE 5MP Camera for the WISPR SkyScout Series, including the complete system with 512 GB onboard storage and PCMasterPro software pipeline. Our team can help you determine whether the EchoONE or another RESEPI configuration best fits your program requirements.

Order the Teledyne EchoONE 5MP Camera at DSLRPros today.

System Specifications

  • Absolute accuracy: 1.5 cm RMSEz @ 120 m
  • Example area coverage (30 min, 400 ft / 120 m AGL, 8 m/s, 20% sidelap): 695 acres / 281 ha

Laser

  • Laser pulse repetition frequency: 400 kHz / 600 kHz
  • Effective pulse repetition frequency: 316 kHz / 474 kHz
  • Maximum measuring range (20% targets): 270 m / 225 m
  • Maximum operating altitude AGL (20% targets): 205 m / 170 m
  • Returns: Up to 8 per pulse (0.7 m minimum target separation)
  • Range accuracy / precision (1σ): 10 mm / 5 mm
  • Laser beam divergence (1/e²): 0.5 mrad
  • Minimum range: 3.0 m
  • Horizontal field of view: 90°
  • Vertical scan lines: -10°, -4°, +4°, +10°
  • Lines per second: Up to 250
  • Wavelength: 1535 nm
  • Laser classification: Class 1 (IEC 60825-1:2014)

GPS-Aided INS

  • Supported constellations: GPS, GLONASS, Galileo, BeiDou, QZSS, NavIC (IRNSS), SBAS, L-Band
  • Supported frequencies: L1, L2, L5
  • Pitch/Roll accuracy: 0.03° (RTK), 0.006° (PPK)
  • Heading accuracy: 0.08° (RTK), 0.03° (PPK)

Camera

  • Internal camera: 5 MP global shutter, 80° field of view
  • External camera: Optional Sony ILX-LR1

Environmental

  • Operating temperature: -10°C to 50°C
  • Storage temperature: -40°C to 85°C
  • Ingress rating: IP54
  • Compliance: NDAA, CE, RoHS, WEEE, REACH

Physical Specifications

  • Dimensions: 170 × 144 × 110 mm
  • Weight: 1.2 kg
  • Power: 60 W, 9–50 V

Operational

  • Communication: WLAN, Wi-Fi
  • Onboard storage: 512 GB
  • Removable storage: USB

Software

  • Inertial Labs PCMaster Pro: One-click post-processing, post-processing inertial data, colorization, point cloud visualization and measurement, automation tools
  • Teledyne LMS Pro (optional): Multiple coordinate reference systems, LiDAR system calibration, boresight calibration, strip alignment, control point reports, visual quality control tools

Options

  • Gremsy payload interface
  • External Sony ILX-LR1 61 MP camera
  • Teledyne LMS Pro
  • 1x Inertial Labs RESEPI Teledyne EchoONE 5MP Camera (no FPV Gimbal)
What does "No FPV Gimbal" mean for this RESEPI payload?

The RESEPI payload for the WISPR SkyScout Series is available in two adapter configurations. The standard configuration ships with the SkyScout SnapFit adapter, which handles power and data transmission between the payload and the drone. The No FPV Gimbal version uses this standard adapter without an integrated FPV camera, suited to operators whose workflow does not require real-time downward visibility through the payload adapter during flight.

How does the Teledyne EchoONE's NDAA compliance differ from other RESEPI payloads?

The EchoONE is compliant with both FY2020 NDAA Section 848 and FY2023 NDAA Section 817, covering both hardware supply chain requirements and data security provisions. It is also certified CE, RoHS, WEEE, and REACH compliant. For operators running government, utility, or regulated infrastructure programs where dual NDAA compliance documentation is a contract requirement, the EchoONE provides the most explicitly certified compliance posture of any payload in the RESEPI lineup.

What makes the EchoONE's scanning geometry different from other RESEPI payloads?

Unlike other RESEPI payloads that use a rotating mirror for 360° horizontal coverage, the EchoONE uses a 90° horizontal field of view with four fixed vertical scan lines at -10°, -4°, +4°, and +10° at nadir. This geometry maximizes swath width for efficient area coverage while simultaneously capturing vertical infrastructure such as utility poles and building facades — making it particularly effective for utility corridor mapping and transportation projects where both ground surface and vertical asset data are required from a single pass.

What is the real-time georeferenced point cloud capability of the EchoONE?

The EchoONE generates a fully georeferenced point cloud onboard in real time during each flight. This allows the pilot to review the LAS file on-site before leaving the project area, enabling quality control checks and confirmation of complete coverage without returning to the office first. The system also supports a real-time API for third-party integrations. This is a unique operational capability not available in other RESEPI configurations, which rely entirely on post-mission processing.

What LiDAR performance does the Teledyne EchoONE deliver?

The EchoONE supports configurable 400 kHz and 600 kHz pulse repetition frequencies. At 400 kHz, it reaches a maximum measuring range of 270 m at 20% reflectivity with a maximum operating altitude of 205 m AGL. At 600 kHz, maximum range is 225 m with a maximum operating altitude of 170 m AGL. The system delivers up to 8 returns per pulse with 0.7 m minimum target separation, 10 mm range accuracy, and 5 mm precision at 1 sigma. The 1535 nm eye-safe laser is Class 1 rated per IEC 60825-1:2014.

What software and storage does the Teledyne EchoONE include?

The system includes 512 GB onboard storage with WLAN and WiFi communication. The PCMasterPro software suite covers one-click post-processing, inertial data processing, point cloud colorization, visualization, measurement, and automation tools. Optional Teledyne LMS Pro adds multiple coordinate reference systems, LiDAR system calibration, boresight calibration, strip alignment, control point reporting, and visual quality control tools. An optional external Sony ILX-LR1 61MP camera is also available for simultaneous orthomosaic and inspection imagery capture alongside the standard 5MP colorization camera.
