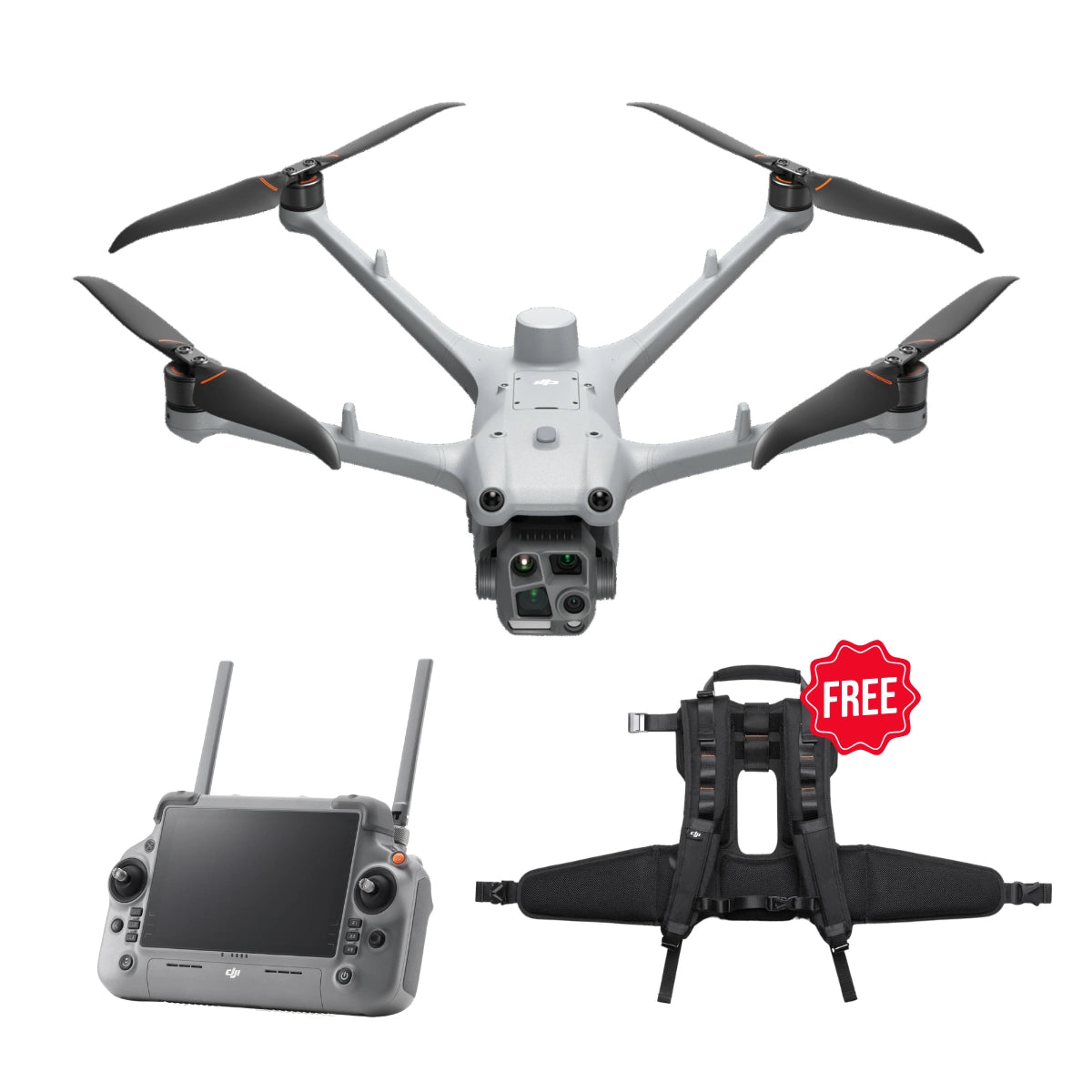

DJI Matrice 4TD Standalone Unit + Free Carrying Case Strap

DJI Matrice 4TD Standalone Unit + Free Carrying Case Strap

Regular price $9,800.00
Regular price Sale price $9,800.00
Sale Sold out
Shipping calculated at checkout.

SKU:B-NB-M4TD-CS

SKU B-NB-M4TD-CS MPN CP.EN.00000663.01 EAN 6937224106383 UPC 190021140905
  • Triple 48 MP cameras cover wide medium and telephoto imaging distances
  • Thermal sensor identifies heat signatures in low visibility conditions reliably
  • Extended flight time reaches 54 minutes on a single battery charge
  • Precision wire detection spots 12mm obstacles at operational flight speed
  • Elevated gimbal tilt reaches under bridges and overhead structural inspections
  • Night Scene mode and NIR lighting extend visibility after dark
  • Weatherproof IP55 airframe withstands rain fog and dusty field conditions
  • Fast 240W charging minimizes downtime between back-to-back flight missions

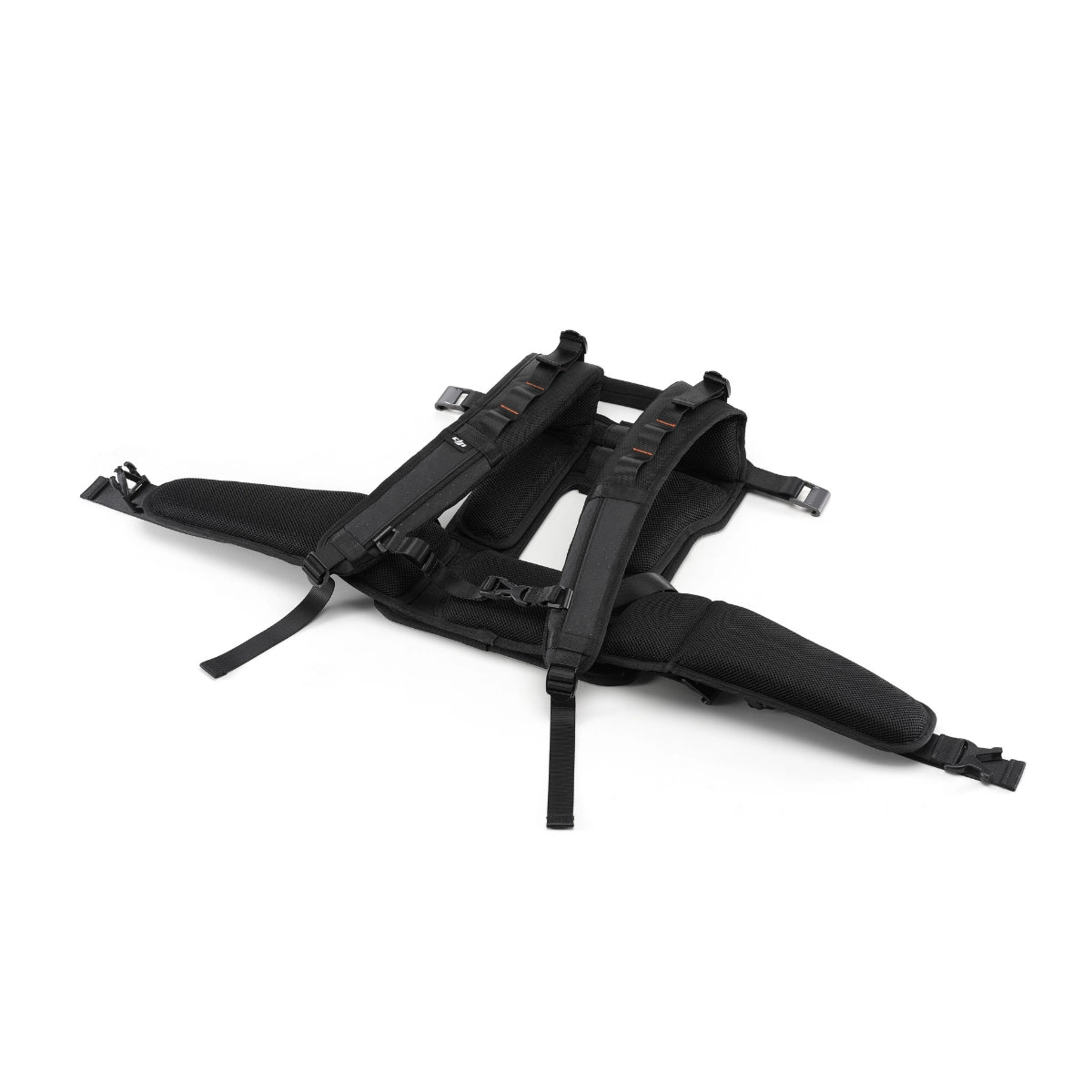

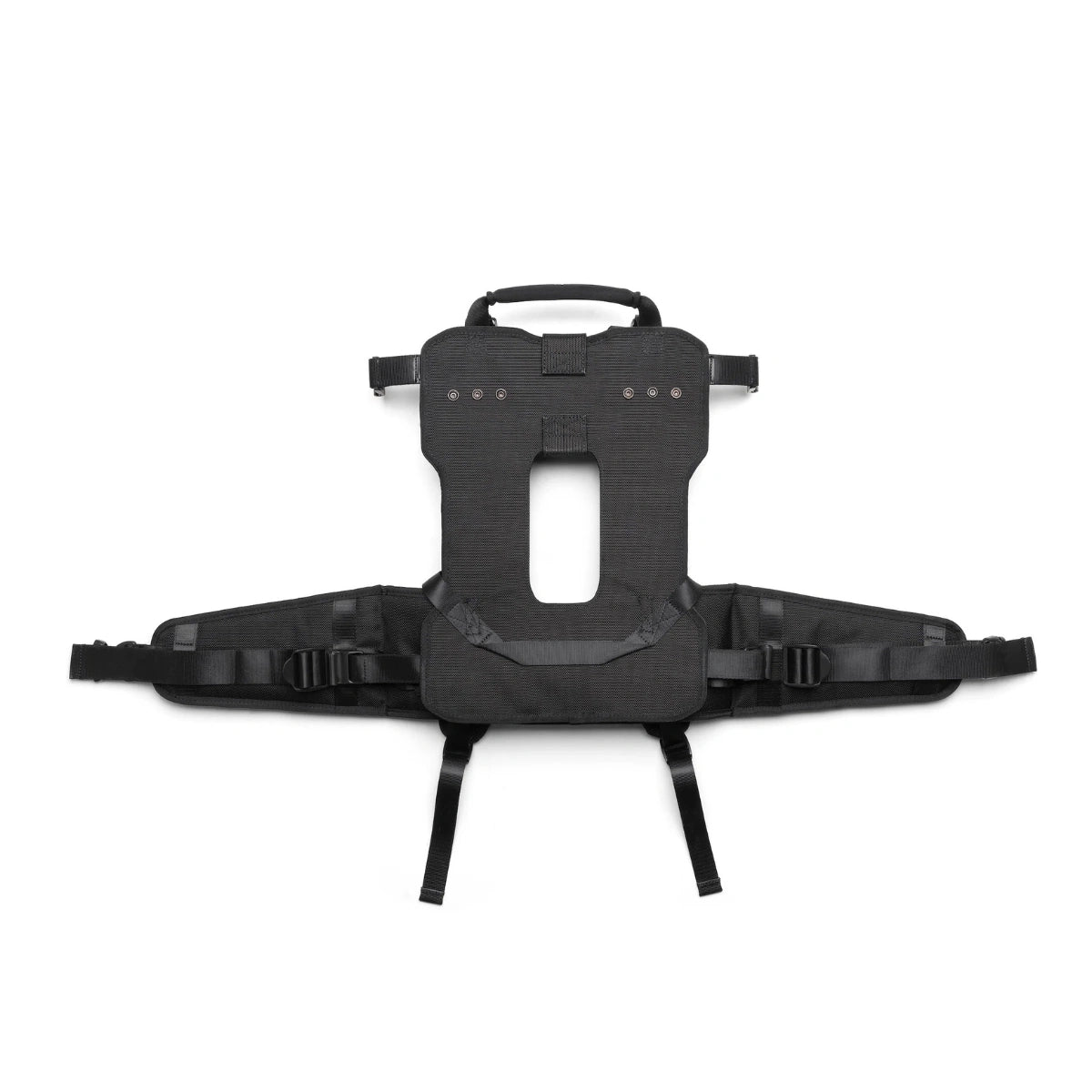

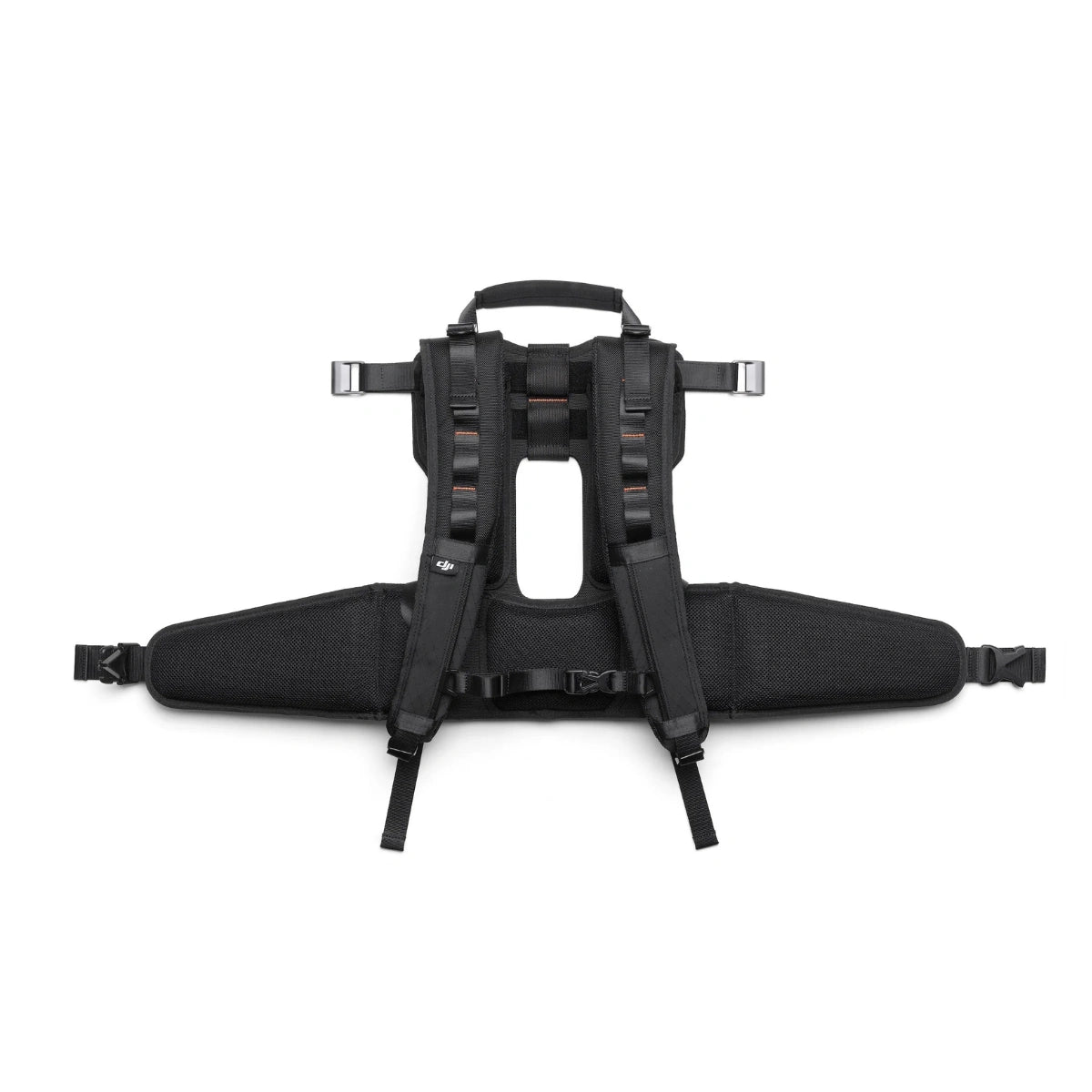

  • Complimentary Carrying Case Strap converts hard case to backpack transport
  • Enhanced RC Plus 2 controller delivers rugged IP54 field durability

3 total reviews

View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 4TD Standalone Unit: Thermal Imaging Plus a Free Carrying Case Strap

The DJI Matrice 4TD Standalone Unit pairs triple 48 MP visual cameras with a 640 x 512 thermal sensor in a single IP55-rated airframe, giving inspection and public safety teams high-resolution imaging and infrared detection in one platform.

This bundle includes the RC Plus 2 Enterprise Enhanced Controller and adds a Matrice 4 Series Carrying Case Strap at no additional cost, converting the included hard case into a backpack-style load for field transport.

The M4TD delivers up to 54 minutes of flight time, an 80-degree upward gimbal tilt for under-bridge inspection, and wire detection down to 12 mm at flight speeds up to 15 m/s.

Key Features and Benefits

  • Triple imaging: 48 MP wide, medium, and telephoto cameras cover every distance.
  • Thermal detection: 640x512 sensor identifies heat signatures in low visibility.
  • Extended endurance: up to 54 minutes of maximum flight time per charge.
  • Wire detection: identifies 12mm obstacles at speeds up to 15 m/s.
  • Overhead access: 80-degree upward gimbal tilt reaches under bridges and structures.
  • Night visibility: Night Scene mode and NIR lighting support after-dark missions.
  • Weatherproof build: IP55-rated airframe withstands rain, fog, and dust exposure.
  • Fast charging: included 240W hub and adapter minimize turnaround between flights.
  • Free transport upgrade: Carrying Case Strap included at no additional cost.
  • Long-range control: RC Plus 2 Enhanced Controller offers IP54 durability.

Field crews covering ground on foot between launch points know that a hard case with no strap becomes its own logistical problem.

This bundle solves that directly by including the Carrying Case Strap free with your Matrice 4TD purchase, letting technicians carry the aircraft, controller, and accessories as a backpack instead of a hand-carried case.

The M4TD itself brings Night Scene mode and near-infrared auxiliary lighting for after-dark operations, along with an IP55-rated airframe built for rain, fog, and dust. A DJI Matrice 4 Series 240W Charging Hub and matching 240W USB-C Power Adapter ship standard, keeping turnaround fast between missions.

Built for Inspection Work in Real Conditions

Inspection work rarely happens in ideal conditions, and the M4TD is built around that reality. Its 640 x 512 thermal sensor supports both standard and Ultra-High Resolution Infrared modes, giving operators flexibility between fast field checks and detailed diagnostic capture.

The 80-degree upward gimbal tilt reaches spaces standard forward-facing cameras cannot, making under-bridge and overhead structural inspections practical rather than improvised. Combined with wire detection accurate to 12 mm and an IP55-rated airframe, this platform holds up to the demands of powerline, infrastructure, and public safety work regardless of weather.

Compatibility and System Integration

  • DJI RC Plus 2 Enhanced Controller: standard controller for this unit (included).
  • 240W Charging Hub: fast sequential charger for the included battery (included).
  • 240W USB-C Power Adapter: matched power source for the charging hub (included).
  • Carrying Case Strap: converts the hard case to backpack carry (included, free).
  • DJI Dock 3: enables fully autonomous missions via FlightHub 2 (sold separately).
  • DSLRPros Care Plus: extended warranty coverage for this aircraft (sold separately).
  • DJI FlightHub 2: supports remote mission planning and fleet management (sold separately).

Applications and Use Cases

  • Public safety response: thermal and visual imaging support emergency scene assessment.
  • Infrastructure inspection: telephoto and thermal cameras evaluate powerlines, towers, and bridges.
  • Search and rescue: thermal detection supports overwatch and heat-signature tracking.
  • Night operations: Night Scene mode and NIR lighting maintain after-dark visibility.
  • Utility inspection: wire detection supports safer flight near powerlines and cables.
  • Disaster assessment: rapid thermal and visual capture speeds post-event evaluation.
  • Perimeter security: extended flight time supports long-duration patrol and monitoring missions.

The Matrice 4TD exists to give inspection and public safety teams reliable thermal and visual coverage in conditions where standard platforms fall short. IP55 weatherproofing, wire detection, and 54-minute endurance mean this aircraft holds up to real field demands, not just ideal ones.

DSLRPros bundles the Carrying Case Strap free with every Matrice 4TD Standalone Unit, so your field kit is ready for backpack-style transport from day one. Our team can help confirm your Dock 3 or Care Plus needs before your aircraft ships.

Order the DJI Matrice 4TD Standalone Unit with Free Carrying Case Strap today at DSLRPros.

General

  • Model: Matrice 4TD
  • Number of rotors: 4
  • Configuration: Drone with camera
  • Edition: Standard
  • FAA registration: Required for non-commercial use
  • Features: Camera included
  • Kit style: Base
  • Skill level: Enterprise
  • Color: White

Aircraft Performance

  • Maximum flight time: 54 minutes
  • Max hover time: 47 minutes
  • Takeoff weight: Up to 4.6 lbs (2.0 kg)
  • Max ascent speed: 6 m/s (Normal), 10 m/s (Sport)
  • Max descent speed: 6 m/s (Normal), 8 m/s (Sport)
  • Max horizontal speed: 15 m/s forward, 12 m/s backward, 10 m/s sideways (Normal); 21 m/s forward, 19 m/s backward, 15 m/s sideways (Sport)
  • Max wind resistance: 12 m/s
  • Max takeoff altitude: 21,325 ft (6500 m)
  • Max flight distance: 43 km
  • Max pitch angle: 25Β° (Normal), 30Β° (Sport)
  • Max angular velocity: 200Β°/s

Positioning and Environment

  • GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS
  • Hovering accuracy (vertical): Β±0.1 m (Vision), Β±0.5 m (GNSS), Β±0.1 m (RTK)
  • Hovering accuracy (horizontal): Β±0.3 m (Vision), Β±0.5 m (GNSS), Β±0.1 m (RTK)
  • Operating temperature: -4Β°F to 122Β°F (-20Β°C to 50Β°C)
  • Ingress protection rating: IP55

Storage

  • Supported microSD cards: U3/Class 10/V30 or above (exFAT)
  • Recommended: Lexar 1066x (64 GB to 512 GB)
  • Recommended: Kingston Canvas Go! Plus (64 GB to 512 GB)

Remote Controller

  • Model: DJI RC Plus 2 Enterprise
  • Operating temperature: -4Β°F to 122Β°F (-20Β°C to 50Β°C)

Camera System

  • Still resolution: Wide-angle 20 MP; Medium tele 12/48 MP; Tele 12/48 MP
  • Video resolution: 4K (3840 Γ— 2160 @30 fps), FHD (1920 Γ— 1080 @30 fps)
  • Image sensors: Wide 1/1.3" CMOS 48 MP; Medium tele 1/1.3" CMOS 48 MP; Tele 1/1.5" CMOS 48 MP
  • Lens: Wide 82Β° FOV, 24 mm, f/1.7; Medium tele 35Β° FOV, 70 mm, f/2.8; Tele 15Β° FOV, 168 mm, f/2.8
  • Focus range: Wide 1 m to ∞; Medium tele 3 m to ∞; Tele 3 m to ∞
  • Digital zoom: 16Γ— (112Γ— hybrid)
  • ISO range: Up to 409600 (tele up to 819200)
  • Shutter speed: 2–1/8000 s
  • Photo modes: Single, timed, smart capture, panorama
  • Photo format: JPEG
  • Video format: MP4 (H.264)
  • Max video bitrate: H.264 60 Mbps, H.265 40 Mbps
  • File system: exFAT

Gimbal

  • Stabilization: 3-axis mechanical (tilt, roll, pan)
  • Controllable tilt: -90Β° to +90Β°
  • Angular vibration: Β±0.005Β°

Sensing System

  • System type: Omnidirectional binocular vision with 3D infrared
  • Obstacle detection (forward/backward): 0.5–20 m
  • Obstacle detection (lateral): 0.5–16 m
  • Obstacle detection (upward): 0.5–20 m
  • Obstacle detection (downward): 0.5–16 m

Video Transmission

  • Transmission system: DJI O4+ Enterprise
  • Live view: 720p/30 fps or 1080p/30 fps
  • Operating frequencies: 2.4 GHz, 5.1 GHz, 5.8 GHz
  • Max transmission distance: 25 km (FCC), 12 km (CE/SRRC/MIC)
  • Transmission distance with interference: 1.5–25 km
  • Latency: Approx. 100 ms (aircraft to dock, network dependent)

Battery

  • Capacity: 6768 mAh
  • Voltage: 22.14 V
  • Battery type: LiNiMnCoO2
  • Energy: 149.9 Wh
  • Quantity: 1

Dimensions

  • Aircraft (without propellers): 37.77 Γ— 41.62 Γ— 21.25 cm

Weight

  • Aircraft: Approx. 1.85 kg (4.07 lbs)
  • 1x DJI Matrice 4TD
  • 1x DJI RC Plus 2 Enterprise
  • 1x DJI Matrice 4D Series Low-Noise Anti-Ice Spare Propellers (Pair)
  • 1x DJI 240W Power Adapter
  • 1x DJI Matrice 4D Series 240W Charging Hub
  • 1x DJI Matrice 4D Series Storage Case
  • 1x Screwdriver Set
  • 1x Screwdriver (for Remote Controller)
  • 1x USB-C to USB-C Data Cable
  • 1x USB-A to USB-C Data Cable
  • 1x DJI Power Fast Charge Cable for Drones
  • 1x Gimbal Protector
  • 1x microSD Card
  • 6x M2.5 Propeller Blade Screws
  • 6x Rubber Washers (for Propellers)
  • 4x M1.6 Aircraft Cellular Module Compartment Screws
  • 1x Matrice 4 Series Carrying Case (FREE)
What cameras are included on the DJI Matrice 4TD?

It includes three 48 MP visual cameras and one infrared thermal camera.

What thermal resolution does the DJI Matrice 4TD use?

The Matrice 4TD uses a 640 x 512 infrared thermal sensor, with support for up to 1280 x 1024 video at 30fps when Ultra-High Resolution Infrared mode is enabled. It offers both Normal and UHR Infrared still photo modes, giving operators flexibility for fast checks or detailed diagnostic capture depending on mission needs.

What advantages does the DJI Matrice 4TD provide in public safety missions?

Its 1280 Γ— 1024 thermal camera, 48 MP zoom and wide cameras, and night-vision tools offer clear visibility in hazardous, low-light, or long-distance scenarios.

What is the primary use case for Matrice 4D vs Matrice 4TD?

Matrice 4D: Best suited for high-precision mapping, surveying, and infrastructure tasks where high-res visible cameras and laser range measurement matter.

Matrice 4TD: Best for inspections, search and rescue, thermal monitoring etc., thanks to the added thermal camera and near-infrared light support.

What’s the main difference between the Matrice 4D and Matrice 4TD?

The key difference is in the sensor/camera configuration:

  • The Matrice 4D is optimized for high-precision mapping with a 4/3” 20 MP wide-angle camera plus medium-tele and tele cameras.
  • The Matrice 4TD swaps in a thermal-imaging camera (infrared) in addition to a 48 MP wide-angle (1/1.3” CMOS) and the same medium tele and tele cameras, making it more oriented to inspections, search/rescue, thermal tasks.
What comes free with this bundle?

This bundle includes a complimentary DJI Matrice 4 Series Carrying Case Strap at no additional cost, added to the standard Matrice 4TD Standalone Unit kit. The strap converts the included hard case into a backpack-style load using a four-latch attachment system, making it easier to carry the aircraft, controller, and accessories across job sites.

Can the Matrice 4TD fly autonomously?

Yes, but only when paired with a DJI Dock 3, which is not included in this standalone unit. Once installed and connected to DJI FlightHub 2, the Matrice 4TD can perform pre-programmed missions autonomously through the dock. This standalone listing is intended for manually piloted operation.
