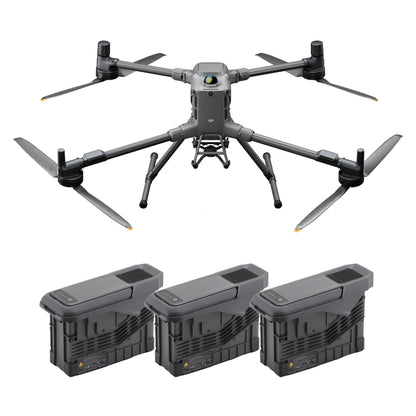

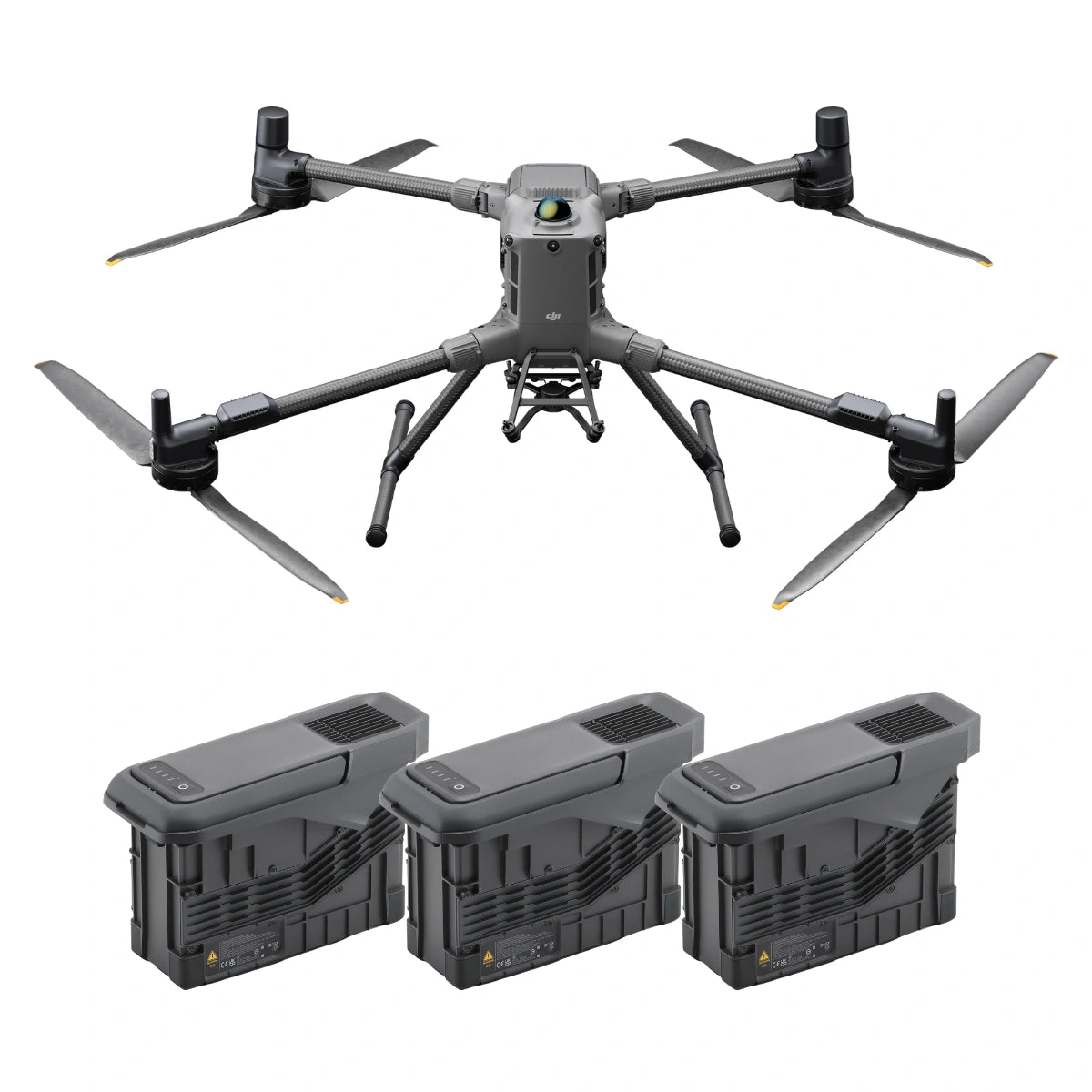

DJI Matrice 400 + 3x TB100 Intelligent Flight Batteries

DJI Matrice 400 + 3x TB100 Intelligent Flight Batteries

$15,667.00
$15,967.00 $15,667.00
Sale Sold out
Shipping calculated at checkout.

B-DJI-M400-3BAT

SKU B-DJI-M400-3BAT MPN CP.EN.00000667.01 EAN 6937224120570 UPC 190021146051
  • Enterprise flagship platform delivers 59 minutes of flight time
  • Six-kilogram payload capacity supports up to seven simultaneous payloads
  • Rotating LiDAR captures 520,000 points per second in real time
  • Long-range mmWave radar detects power lines through all weather
  • Extended 40-kilometer O4 transmission delivers three-channel 1080p live video
  • Three included TB100 batteries provide extended field-day rotation
  • Hot-swappable battery design minimizes downtime between back-to-back flight missions
  • Weatherproof IP55 rating supports operation in rain and dust
  • Precision RTK positioning achieves one-centimeter horizontal accuracy in the field
  • Compatible with Zenmuse H30, L2, L3, and P1 payloads

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 400 + 3x TB100 Battery Bundle: Flagship Endurance, Powered and Field-Ready From Day One

The DJI Matrice 400 + 3x TB100 Intelligent Flight Battery Bundle pairs DJI's flagship enterprise drone platform with three TB100 Intelligent Flight Batteries, giving operators in public safety, industrial inspection, and large-scale mapping a fully powered aircraft ready for back-to-back missions in a single order.

The Matrice 400 delivers up to 59 minutes of forward flight time with a payload installed, a 6 kg payload capacity spread across four E-Port V2 ports, and an obstacle sensing suite built around rotating LiDAR, six-direction mmWave radar, and low-light vision sensors. Field crews get flagship-level endurance and sensing without sourcing the aircraft and battery inventory separately.

Key Features and Benefits

  • 59-minute flight time: forward flight endurance measured with payload installed.
  • 6 kg payload: capacity supports up to seven payloads via E-Port ports.
  • Rotating LiDAR: 360-degree horizontal coverage generates 520,000 points per second.
  • mmWave radar: detects power lines through rain, fog, and snow.
  • Three TB100 batteries: included for extended rotation across mission days.
  • Hot-swap capable: battery changes with aircraft capacitor system minimize downtime.
  • 40 km transmission: O4 Enterprise Enhanced delivers three-channel 1080p live view.
  • IP55 protection: rated for -20Β°C to 50Β°C operating conditions.
  • RTK positioning: delivers 1 cm horizontal accuracy without ground control points.
  • Cold-weather ready: battery self-heating supports charging in low temperature conditions.

New Matrice 400 operators need enough battery inventory to keep flying between charge cycles, and this bundle removes that extra procurement step. Each included TB100 delivers 977 Wh of energy in a Li-ion 13S configuration, supports hot-swap operation with the aircraft's capacitor system, and includes intelligent self-heating for cold-weather missions.

With three batteries on hand, operators can rotate power through extended field days while charging one battery back at base. The DJI Intelligent Battery Station BS100, used for charging and battery management, is sold separately and should be ordered alongside this bundle for full mission readiness.

Endurance Backed by Reliable Power

Pairing the Matrice 400 with three TB100 batteries addresses a common first-purchase gap: aircraft ordered without enough power on hand to sustain a full field day. Each TB100's 977 Wh capacity and 4C discharge rate sustain the platform's full sensing suite, including rotating LiDAR and mmWave radar, through demanding missions without compromising flight time.

A 400-cycle rating per battery supports fleet economics over years of regular use, while hot-swap compatibility with the aircraft's capacitor system keeps turnaround between flights short on multi-sortie days. For operators standardizing on the M400 platform, having the aircraft and a three-battery rotation in one order simplifies onboarding and shortens time to first flight.

Compatibility and System Integration

  • Zenmuse H30 and H30T: multi-sensor payloads with thermal and zoom, sold separately.
  • Zenmuse L2 and L3: LiDAR payloads for mapping missions, sold separately.
  • Zenmuse P1: full-frame photogrammetry payload compatible with the gimbal, sold separately.
  • BS100 battery station: required for charging, not included in this bundle, sold separately.
  • D-RTK 3 station: provides RTK correction for centimeter-level positioning, sold separately.
  • DJI FlightHub 2: software platform for remote fleet and mission management.
  • DJI Cellular Dongle 2: dual-dongle connectivity support, sold separately for this aircraft.

Applications and Use Cases

  • Power line inspection: LiDAR and radar detect lines at operational flight speed.
  • Emergency response: extended battery rotation supports prolonged search operations.
  • Large-scale mapping: Zenmuse P1 and L2 payloads capture photogrammetry and LiDAR data.
  • Infrastructure surveying: RTK positioning delivers centimeter accuracy without ground control points.
  • Industrial inspection: IP55 protection sustains operation across harsh site conditions.
  • Long-range corridor missions: 40 km transmission and airborne relay extend coverage.

The Matrice 400 exists to give enterprise operators endurance, payload capacity, and obstacle sensing in one platform, without forcing tradeoffs between mission length and detection accuracy. Bundling the aircraft with three TB100 batteries closes a common first-order gap and keeps crews flying through a full field day. It remains the platform professionals turn to when power line inspection, mapping, and emergency response missions cannot tolerate compromise.

DSLRPros stocks the Matrice 400 with a three-battery TB100 set so field teams can order aircraft and mission-day power in a single transaction instead of coordinating separate line items. Our team can help match additional Zenmuse payloads, a BS100 charging station, or DSLRPros Care Plus coverage to your specific mission profile.

Order the DJI Matrice 400 + 3x TB100 Battery Bundle from DSLRPros today to get your platform moving toward deployment.

Aircraft

  • Takeoff Weight (with propellers):Β Without Batteries: 5020β€―Β±β€―20β€―g; With Batteries: 9740β€―Β±β€―40β€―gΒ
  • Max Takeoff Weight:Β 15.8β€―kg
  • Dimensions:Β Unfolded: 980Γ—760Γ—480β€―mm; Folded: 490Γ—490Γ—480β€―mm; Carrying Case: 779Γ—363Γ—528β€―mm
  • Max Payload:Β 6β€―kg
  • Propeller Size:Β 25 inches
  • Diagonal Wheelbase:Β 1070β€―mm
  • Max Ascent Speed:Β 10β€―m/s
  • Max Descent Speed:Β 8β€―m/s
  • Max Horizontal Speed:Β 25β€―m/s
  • Max Takeoff Altitude:Β 7000β€―m
  • Max Flight Time:Β 59β€―minutes
  • Max Hover Time:Β 53β€―minutes
  • Max Flight Distance:Β 49β€―km
  • Max Wind Resistance:Β 12β€―m/s
  • Max Yaw Angular Velocity:Β 100Β°/s
  • Max Pitch Angle:Β 35Β°
  • Operating Temperature: –20Β° to 50β€―Β°C
  • GNSS:Β GPS + Galileo + BeiDou + GLONASS*
  • Hovering Accuracy:

    Vertical: Β±0.1β€―m (vision), Β±0.5β€―m (satellite), Β±0.1β€―m (RTK)
    Horizontal: Β±0.3β€―m (vision), Β±0.5β€―m (satellite), Β±0.1β€―m (RTK)

  • RTK GNSS Accuracy:Β 1β€―cm + 1β€―ppm (H), 1.5β€―cm + 1β€―ppm (V)
  • RTK Heading:Β Better than 2Β°
  • ADS‑B In:Β Range: 20β€―km
  • Internal Storage:Β N/A
  • Ports:Β USB‑C Debug, E‑Port V2 Γ—4, Cellular Dongle 2 Γ—2
  • Propeller Model:Β 2510F
  • Beacon:Β Built-in
  • Ingress Protection:Β IP55

Gimbal

  • Max Payload (Single Connector):Β 1400β€―g
  • Max Payload (Dual Connector):Β 950β€―g
  • Max Payload (Third Connector):Β 3β€―kg (quick‑release), 6β€―kg (screw lock)

Sensing System

  • Sensors:Β Omnidirectional binocular vision, LiDAR, infrared, mmWave radar
  • Forward/Backward:Β Range: 0.4–21β€―m; Detection: 0.4–200β€―m; FOV: 90°×90Β°
  • Lateral:Β Range: 0.6–21β€―m; Detection: 0.5–200β€―m; FOV: 90°×90Β°
  • Downward:Β Range: 0.5–19β€―m; FOV: 160Β° front/rear, 105Β° sides
  • Rotating LiDAR:Β Range: 0.5–100β€―m; FOV: 360°×58Β°
  • Upper LiDAR (3D ToF):Β Range: 0.5–25β€―m; FOV: 60°×60Β°
  • Infrared:Β Range: 0.3–8β€―m; FOV: 60°×60Β°
  • mmWave Radar:Β Range: 36–50β€―m; FOV: Β±45Β°

FPV Camera

  • Resolution:Β 1080p
  • Field of View:Β DFOV 150Β°, HFOV 139.6Β°, VFOV 95.3Β°
  • Frame Rate:Β 30β€―fps
  • Night Vision:Β Starlight-grade

Video Transmission

  • System:Β DJI O4 Enterprise Enhanced
  • Live View:Β 3‑channel 1080p/30fps
  • Frequencies & Power:Β Multiple bands including 902–928β€―MHz, 2.4β€―GHz, and 5.8β€―GHz
  • Max Distance:Β 40β€―km (FCC), 20β€―km (CE)
  • Performance with Interference:Β 1.5–40β€―km depending on strength
  • Max Download Speed:Β 80β€―Mbps
  • Antennas:Β 8 WLAN, 2 sub2G, 4G Γ—4
  • Other Features:Β Dual Control, Cellular Dongle support

Battery

  • Model:Β TB100
  • Capacity:Β 20254β€―mAh
  • Voltage:Β 48.23β€―V
  • Max Charging Voltage:Β 54.6β€―V
  • Cell Type:Β Li-ion 13S
  • Energy:Β 977β€―Wh
  • Weight:Β 4720β€―Β±β€―20β€―g
  • Charging Temp:Β 5–45β€―Β°C
  • Discharging Temp: –20–75β€―Β°C
  • Heating:Β Onboard & Station Support
  • Discharge Rate:Β 4C
  • Max Charging Power:Β 2C
  • Cycle Count:Β 400

Battery Station

  • Model:Β BS100
  • Weight:Β 11.8β€―kg
  • Dimensions:Β 605Γ—410Γ—250β€―mm
  • Supported Batteries:Β TB100 / TB100C / WB37
  • Operating Temperature: –20–40β€―Β°C
  • Input:Β 100–240β€―V AC
  • Output:

    TB100: up to 2184β€―W
    WB37: 52β€―W
    USB‑C: up to 65β€―W

  • Charging Channels:Β 3 TB100 & 2 WB37
  • Modes:Β Ready‑to‑Fly, Standard, Fast, Silent
  • Charging Time:Β 45–110β€―min depending on mode and voltage

Remote Controller (DJI RC Plus 2)

  • Video Transmission:Β DJI O4 Enterprise Enhanced
  • Max Distance:Β 40β€―km (FCC), 20β€―km (CE)
  • Frequencies:Β Multiple bands
  • Antennas:Β 2T4R dual‑band + sub2GΒ 2T2R
  • Wi‑Fi:Β 802.11 a/b/n/ac/ax, up to 1774.5β€―Mbps
  • Bluetooth:Β 5.2
  • Screen:Β 7.02β€³, 1920Γ—1200, 1400β€―nits
  • Battery:Β Internal (6500β€―mAh) + Optional External (4920β€―mAh)
  • Runtime:Β 3.8β€―h (internal), 7β€―h (w/ external)
  • Charging Time:Β ~2β€―h
  • Storage:Β 8β€―GB RAM + 128β€―GB + microSD
  • Ports:Β HDMI, SD, USB‑C (PD), USB‑A
  • Weight:Β 1.15β€―kg
  • Dimensions:Β 268Γ—163Γ—94.5β€―mm
  • GNSS:Β GPS + Galileo + BeiDou
  • OS:Β Android 11

Supported Accessories

  • Zenmuse H30/H30T/L2/P1
  • Zenmuse S1, V1
  • Manifold 3
  • DJI RC Plus 2 sub2G SDR
  • Cellular Dongle 2
  • D‑RTK 3 & 2
  • X‑Port, E‑Portβ€―V2
  • SkyPort V3 Adapter
  • 1x Matrice 400 Aircraft (with propeller holder)
  • 1x DJI TB100 Intelligent Flight Battery
  • 1x Carrying Case
  • 2x Propellers (Pair)
  • 6x Propeller Washers and Screws
  • 1x DJI RC Plus 2 Enterprise Enhanced Remote Controller (with DJI RC Plus 2 sub2G SDR Module)
  • 1x Power Cable
  • 1x Remote Controller Strap and Bracket (with two screws)
  • 1x WB37 Intelligent Battery
  • 2x Landing Gear
  • 1x USB-C to USB-C Cable
  • 1x Screws and Tool Set
  • 1x Cleaning Tool Set
  • 1x Rubber Port Covers and Screws
  • 4x Gimbal Damper
What's included in the DJI Matrice 400 + 3x TB100 battery bundle?

This bundle includes one Matrice 400 aircraft with its standard kit and three DJI TB100 Intelligent Flight Batteries. The standard aircraft kit includes the carrying case, remote controller with sub2G SDR module, propellers, landing gear, and associated hardware. The DJI Intelligent Battery Station BS100, used to charge the TB100 batteries, is not included and is sold separately. Zenmuse payloads such as the H30T, L2, L3, and P1 are also sold separately.

Why does this bundle include three TB100 batteries instead of one?

Three batteries let operators keep the Matrice 400 flying through extended field days by rotating power while one battery charges. Each TB100 supports up to 59 minutes of flight time under no-payload conditions, so a three-battery set extends total available flight time across a mission without waiting on a single battery to recharge. This is especially useful for public safety, inspection, and mapping operations that require multiple sorties in a day.

Do I need to buy the BS100 battery station separately?

Yes. The BS100 Intelligent Battery Station is required to charge the TB100 batteries and is not included in this bundle. It supports up to three TB100 batteries and two WB37 batteries at once, with charging times of 45 to 110 minutes depending on the mode selected. DSLRPros can help you add a BS100 to your order if you don't already own one.

How does the Matrice 400 support autonomous and fleet operations?

The M400 integrates with DJI FlightHub 2 for centralized remote control of flights, gimbal cameras, PSDK accessories, and route functions across multiple aircraft. The open SDK ecosystem β€” Payload SDK, Mobile SDK, and Cloud API β€” enables custom workflow integration for proprietary mission management platforms.

The built-in airborne relay module allows one M400 to extend signal coverage for a second M400 in obstructed environments, and dual DJI Cellular Dongle 2 support enables automatic switching between carrier networks for persistent connectivity in remote or interference-prone deployments.

Can the DJI Matrice 400 operate in harsh weather and extreme temperatures?

Yes. The M400 carries an IP55 ingress protection rating, making it resistant to dust and water jets, and its operating temperature range spans -20Β°C to 50Β°C (-4Β°F to 122Β°F) without solar radiation.

The TB100 battery supports self-heating for cold-weather operations, automatically warming to 20Β°C before entering normal operation mode. For maritime applications, the M400 supports takeoff from stationary vessels and landing on moving vessels traveling at speeds below 10 knots, with a 3Γ—3 m deck area required for safe takeoff and landing.

What payloads are compatible with the DJI Matrice 400?

The M400 is compatible with Zenmuse H30, H30T, L2, L3, and P1 gimbal cameras, as well as the Zenmuse S1 drone spotlight, Zenmuse V1 drone speaker, and Manifold 3 onboard computer.

It supports single or dual downward gimbal configurations and features four external E-Port V2 ports that allow up to seven payloads to be mounted simultaneously with a combined maximum load of 6 kg. Third-party payloads are also supported via DJI X-Port and SKYPORT V3 adapter sets.

Does the Matrice 400 include a payload or camera?

No payload is included with this listing. The M400 is a platform aircraft designed to accept a range of DJI Zenmuse payloads including the H30T, L2, L3, P1, and H20N, as well as third-party payloads via the E-Port V2 interface. DSLRPros carries compatible payloads separately and can assist with system configuration.

What is the DJI Matrice 400 and what makes it DJI's enterprise flagship?

The DJI Matrice 400 is DJI's most advanced enterprise drone platform, released in June 2025. It delivers 59 minutes of forward flight time with a payload installed, a 6 kg maximum payload capacity, and an obstacle sensing system that fuses rotating LiDAR, six-direction mmWave radar, and full-color fisheye vision sensors for power-line-level detection at speeds up to 25 m/s.

Combined with the DJI O4 Enterprise Enhanced Video Transmission system's 40 km range and support for up to seven simultaneous payloads, the M400 represents a significant capability advance over previous enterprise platforms in its class.

Does the DJI Matrice 400 include batteries?

No. The base Matrice 400 ships without the TB100 Intelligent Flight Battery or the BS100 Intelligent Battery Station, both of which are sold separately. The in-box contents include the aircraft, carrying case, two pairs of propellers, remote controller with sub2G SDR module, WB37 intelligent battery for the remote controller, landing gear, and associated hardware.

Operators should factor battery and charging station procurement into their total system configuration when ordering through DSLRPros.
