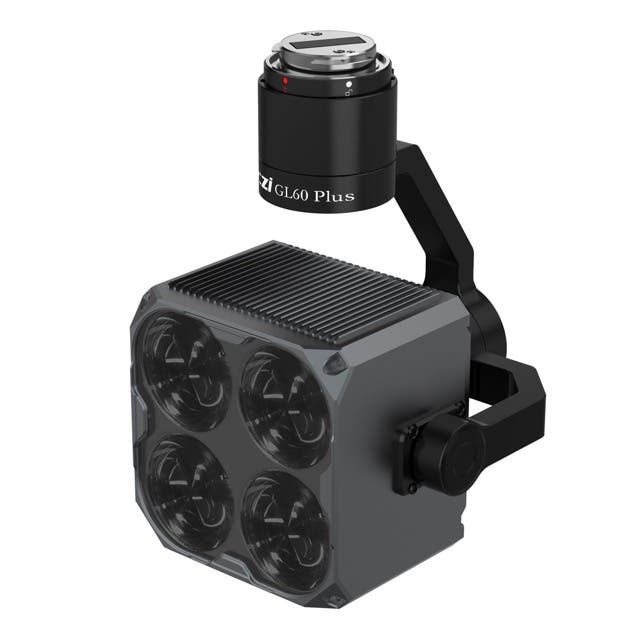

CZI GL60 Plus SDK Gimbal Drone Spotlight for DJI M300 and M350 RTK
Illuminate critical operations with the CZI GL60 Plus SDK Gimbal Drone Spotlight, designed for DJI’s enterprise drones. With a powerful focused beam, precision optics, and ultra-lightweight design, this spotlight enhances low-light operations from the air. Compatible with DJI M300 RTK, M350 RTK, and M200 V2 via SkyPort V2.0, it's built for public safety, search and rescue, utility inspections, and more.
Key Features of the GL60 Plus Drone Spotlight
- Optical Beam Control – 4 sets of imaging optics with 4 lenses each produce a sharp 15° beam angle
- High Brightness Output – Delivers 24 lux at the center of a 100m spotlight area
- Wide Illumination Range – Covers 1,225 m² at 150m altitude
- Lightweight Design – Weighs just 750g for maximum flight time
- Power Efficient – Consumes 120W at peak
- DJI SkyPort V2.0 Compatibility – Seamlessly integrates with M300 RTK, M350 RTK, M200 V2
- SDK Integration – Works with DJI enterprise software ecosystems
Technical Specifications
| Feature | Details |
|---|---|
| Light Output | 24 lux at 100m center |
| Beam Angle | 15° |
| Coverage Area | 1,225 m² at 150m altitude |
| Weight | 750g |
| Max Power Consumption | 120W |
| Mount Type | DJI SkyPort V2.0 |
| Drone Compatibility | DJI M200 V2, M300 RTK, M350 RTK |
| SDK Support | Yes |
Use Cases for GL60 Plus Drone Spotlight
- Public Safety – Improve night-time visibility during patrols or suspect searches
- Search and Rescue – Illuminate wide zones for locating missing persons in low visibility
- Utility Inspection – Light up infrastructure like power lines and substations for detailed checks
- Firefighting – Enhance visibility in smoke or nighttime fire zones for incident response
- Private Security – Monitor large properties and respond to perimeter breaches in low light
Why Choose DSLRPros
- U.S.-based drone spotlight support and training
- Compatible hardware for DJI enterprise platforms
- Proven industry use cases and field deployment experience
- Fast order fulfillment with expert configuration guidance
Talk to a Spotlight Expert
Need help integrating the GL60 Plus spotlight into your DJI system? Contact us for compatibility checks, a quote, or to request integration support.
Frequently Asked Questions
What drones is the GL60 Plus spotlight compatible with?
It supports DJI M200 V2, M300 RTK, and M350 RTK via the DJI SkyPort V2.0 interface.
How bright is the GL60 Plus spotlight?
It delivers 24 lux at the center of a 100-meter beam and illuminates up to 1,225 square meters from 150m altitude.
Can I use this drone spotlight for inspections?
Yes, it's ideal for aerial inspection work such as powerline checks, infrastructure monitoring, and utility patrols in low-light conditions.
Does this spotlight support SDK integration?
Yes, the GL60 Plus supports SDK integration for custom mission profiles and control.
Is the GL60 Plus suitable for search and rescue operations?
Absolutely. It provides high-intensity illumination over large areas, making it suitable for nighttime SAR missions.
