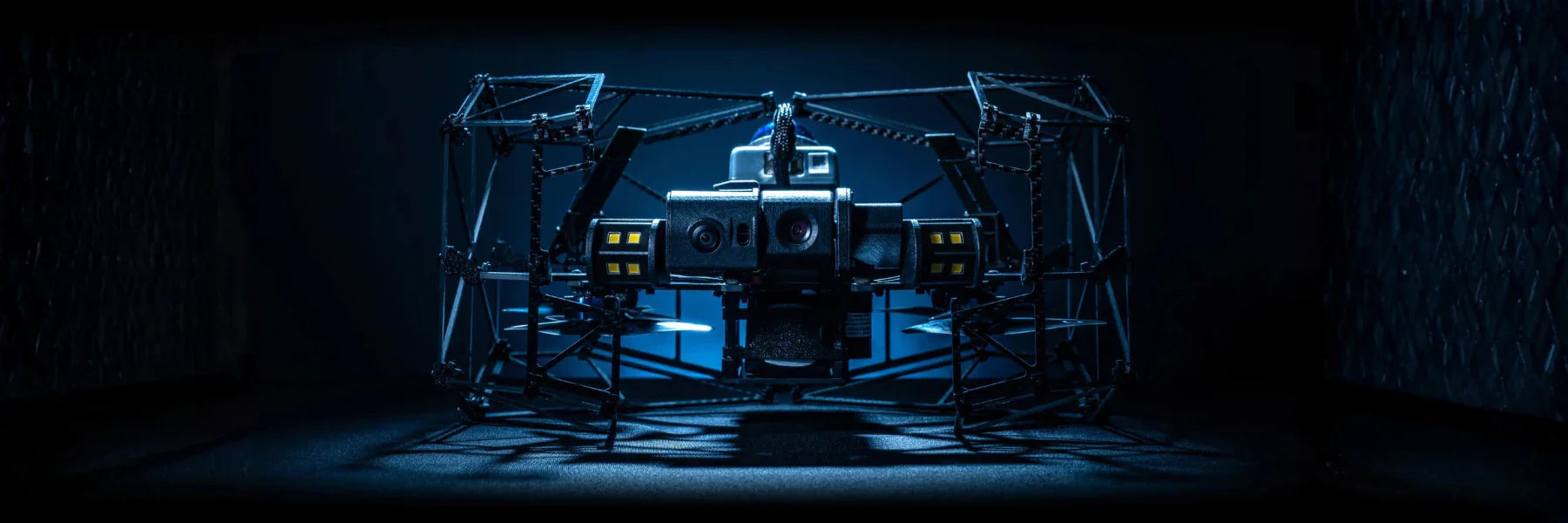

Terra Xross 1: GPS-Free Indoor Inspection With LiDAR Stabilization and 4K Imaging
The Terra Xross 1 is a Japan-made indoor inspection drone engineered for confined, GPS-denied environments where conventional UAVs cannot operate safely. Developed by TerraDrone, it is built around a LiDAR-based stabilization system and a full-surround protective cage, allowing operators to fly in spaces that are cramped, dark, dusty, or structurally complex—without relying on satellite positioning. It is used by inspection professionals across infrastructure, industrial, and facilities management sectors where visual access to confined spaces is operationally critical.
The Terra Xross 1 is not a general-purpose outdoor drone. It is a purpose-built inspection tool. Its onboard 4K camera, integrated LiDAR sensor, and 10,480-lumen LED lighting system are all fixed components designed to work together in low-visibility, close-quarters conditions.
For operators who need reliable data from spaces that are otherwise inaccessible or hazardous to enter, the Terra Xross 1 fills a role that no standard outdoor UAV platform adequately covers.
GPS-Denied Operation: How the Terra Xross 1 Holds Position Indoors
Outdoor drones depend on GPS for position hold and flight stability. The Terra Xross 1 operates without it. Its primary stabilization system is a Class 1 LiDAR sensor that continuously scans the surrounding environment, generating a real-time 3D point cloud at 200,000 points per second at a 10 Hz frame rate.
This data gives the aircraft a live spatial reference — walls, ceilings, structural elements, equipment — allowing it to hold position and navigate without any satellite input. A supplementary visual odometry sensor adds a second layer of environmental awareness, further stabilizing flight when conditions change.
The result is super-stable flight in environments where GPS signal is absent or unreliable: storage tanks, bridge interiors, building voids, tunnels, and industrial facilities. The LiDAR system also enables BVLOS operation within confined spaces — the real-time 3D monitoring feed allows pilots to detect obstacles and navigate safely even when the aircraft is out of direct visual range.
Terra Xross 1 Configurations and Package Options
- Terra Xross 1 standard package: aircraft with integrated camera, LiDAR, LED lighting, protective cage, battery, and first year of Terra Xross Cloud Basic 500GB included
Terra Xross 1 Integrated Camera System, Accessories, and Ground Support Hardware
Integrated camera and sensor systems (fixed, non-interchangeable)
- Integrated camera system: 1/1.7-inch 8MP sensor; 4K (3840×2160) video resolution; 180° tilt range; auto control mode with auto white balance
- Integrated LiDAR system: Class 1 laser; range 131 ft (40 m) @ 10% reflectivity, 230 ft (70 m) @ 80% reflectivity; range precision 2 cm @ 10 m; 200,000 points/s point rate; 10 Hz frame rate
- Integrated LED lighting: 10,480 lumen maximum output; dual LED light arrays; designed for clear imaging in dark or low-visibility confined spaces
Optional add-on accessories (field-attachable / spare and replacement parts)

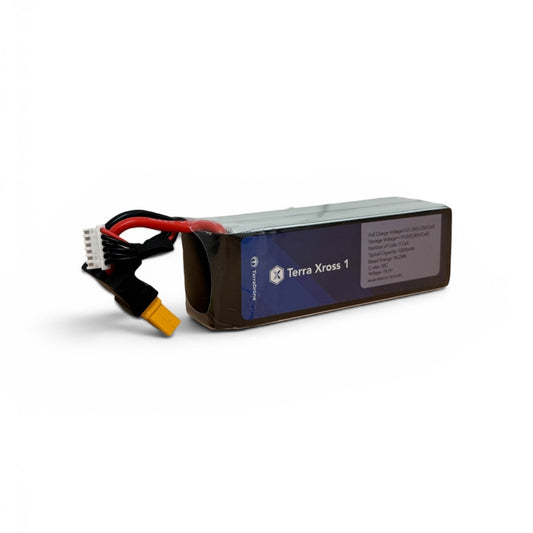

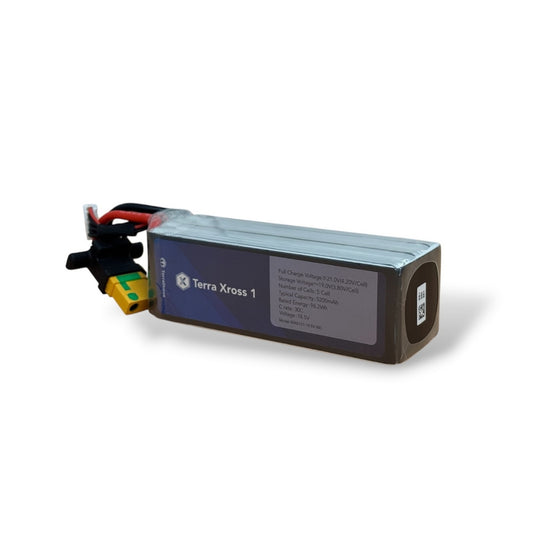

- Terra Xross 1 Battery: spare flight battery for the Terra Xross 1

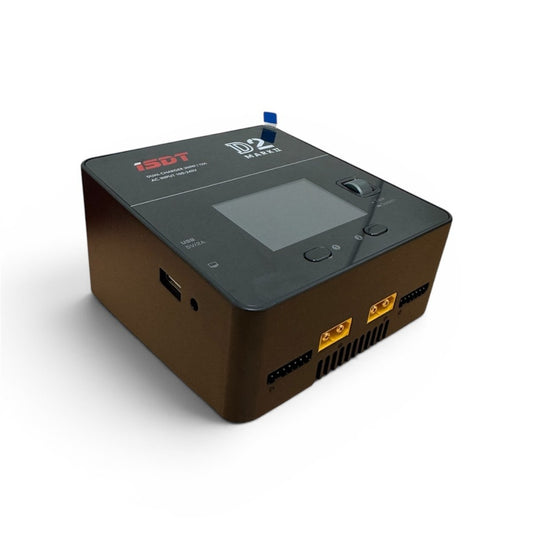

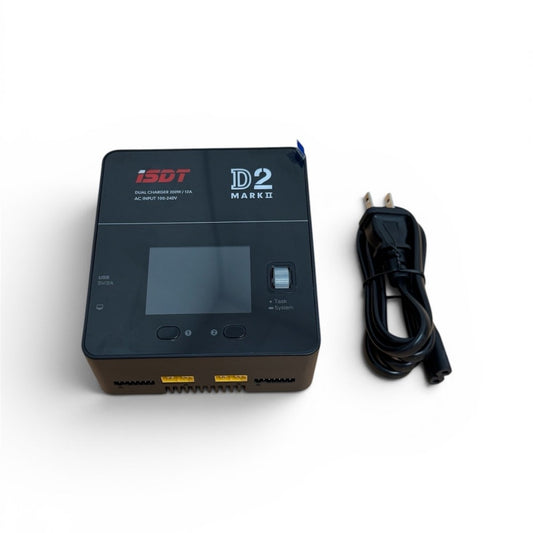

- Terra Xross 1 Battery Charger: dedicated charging unit for Terra Xross 1 batteries

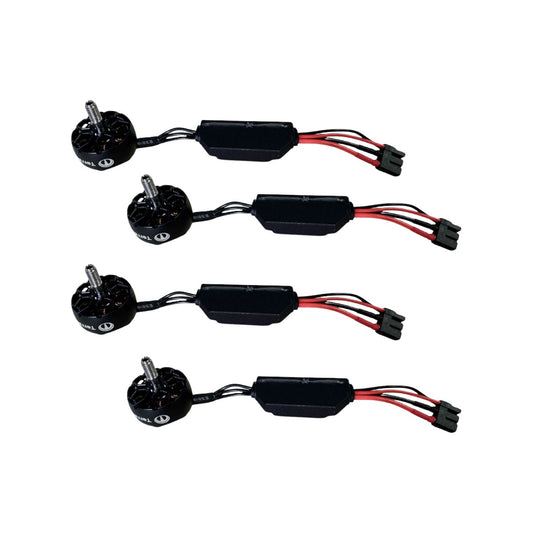

- Terra Xross 1 Motor Set (4 pcs): replacement motor set; motors are wear components subject to periodic replacement based on usage and operating conditions

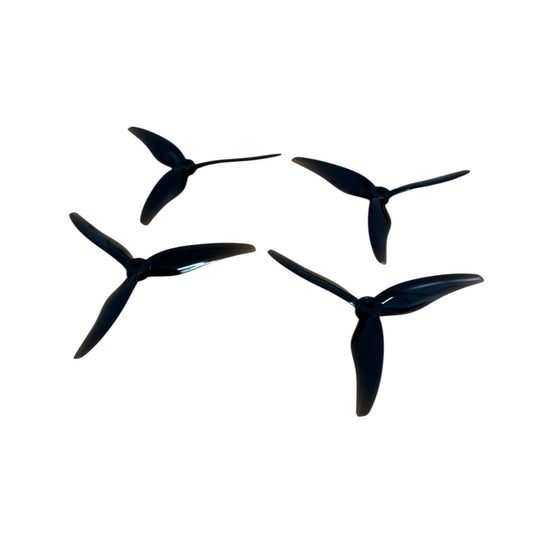

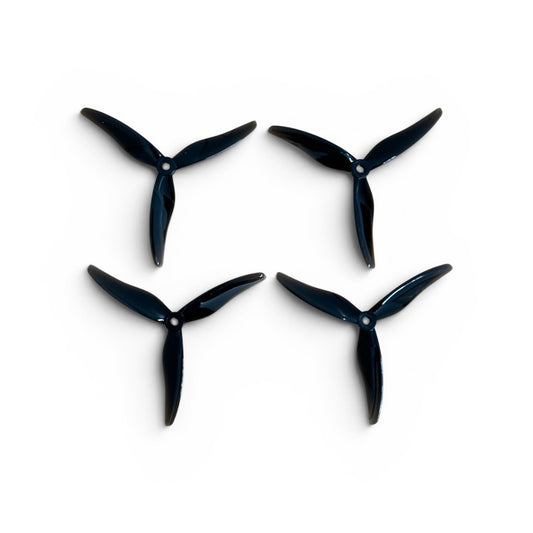

- Terra Xross 1 Propellers (1 set): replacement propeller set; rated for replacement every 10 flight hours or immediately upon damage; regular replacement reduces operational risk

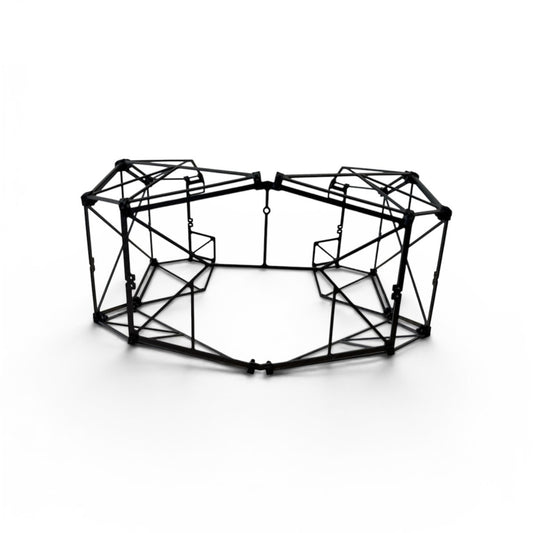

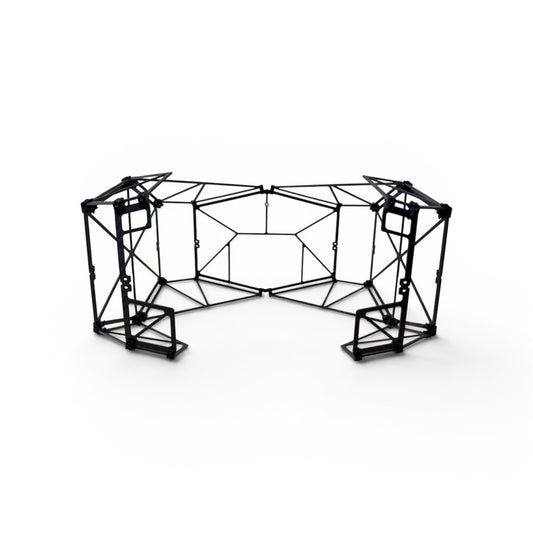

- Terra Xross 1 Cage (1 set): replacement protective cage system; designed to absorb contact and collision in confined environments; replaceable structure minimizes downtime after impact damage
Ground support and control hardware
- Terra Xross Range Extender: communication accessory for complex or signal-obstructed environments; recommended when operating in hard-to-reach areas where signal propagation is limited; allows pilots to maintain communication with the aircraft from outside the confined space
Software and cloud platforms
- Terra Xross Cloud Basic 500GB: cloud platform for inspection data storage, management, and team access; links still images and video to 3D LiDAR data; supports collaboration and reporting across inspection teams; first year included with Terra Xross 1 package, charges apply from second year onward
- Terra Xross Cloud Additional Storage (500GB): expansion storage for operations generating increasing data volumes
What the Terra Xross 1 Delivers on Every Inspection Mission
- LiDAR stabilization: Class 1 LiDAR scans at 200,000 points/s to hold position in GPS-denied spaces without satellite input
- Visual odometry: supplementary sensor layer adds environmental awareness for stable flight in changing conditions
- 4K imaging: 1/1.7-inch 8MP sensor captures 3840×2160 video with 180° tilt coverage of inspection surfaces
- LED illumination: 10,480 lumen maximum output lights dark interiors for clear footage and reliable defect detection
- Protective cage: full-surround structural frame absorbs contact and protects the aircraft, propellers, and surrounding structure during confined space flight
- BVLOS monitoring: real-time 3D point cloud feed allows obstacle detection and safe navigation beyond direct visual line of sight
- Tethered power option: tethering to a power pack provides continuous power supply, eliminating the risk of mid-flight battery depletion
- Compact form factor: 36 cm x 31 cm x 21 cm (14.2 in x 12.2 in x 8.3 in) body fits through access points that larger drones cannot enter
- 10-minute flight time: battery-only flight duration supports focused, task-specific inspection sorties
- Max speed: 2.5 m/s (8.2 ft/s) allows controlled, deliberate navigation in tight spaces
- Wind resistance: rated to 3 m/s (9.8 ft/s) for stable operation in spaces with airflow
- Replacement parts availability: motors, propellers, and cage components are all available as separate line items, supporting sustained operational readiness
Where Operators Deploy the Terra Xross 1
- Storage tank interiors: inspection of tank walls, floors, and structural welds in enclosed metal environments
- Bridge and tunnel structures: access to interior voids, deck undersides, and confined structural cavities
- Industrial facilities: inspection of machinery housings, ductwork, and process equipment interiors
- Building infrastructure: roof voids, ceiling spaces, and building service shafts inaccessible to personnel
- Confined space compliance inspections: documentation of spaces requiring entry permits, reducing the need for manned entry
- Power generation assets: internal inspection of turbine housings, generator enclosures, and similar equipment
- Post-incident damage assessment: rapid visual documentation of interior spaces following structural incidents
Terra Xross Cloud and Inspection Data Workflow
The Terra Xross 1 integrates with Terra Xross Cloud, a cloud-based data management platform designed specifically for inspection operations. The platform links captured still images and video footage directly to the 3D LiDAR point cloud data collected during each flight, allowing inspection teams to review findings in spatial context rather than managing image libraries in isolation.
Teams can access, annotate, and share inspection data from different locations, which simplifies reporting and supports collaborative review across engineering, compliance, and operations stakeholders.
The first year of Terra Xross Cloud Basic 500GB is included with the Terra Xross 1 package. From the second year onward, the subscription continues at the standard rate. For operations generating higher data volumes, Terra Xross Cloud Additional Storage is available in 500GB increments.
Matching the Terra Xross 1 to Your Inspection Operation
- Confined space access requirement: deploy when the inspection target cannot be safely or practically reached by personnel or standard outdoor UAVs
- GPS-denied environment: use when satellite signal is unavailable — indoors, underground, or inside metallic structures
- Low-light conditions: the 10,480-lumen integrated lighting system makes the Terra Xross 1 appropriate when visual clarity in dark interiors is a non-negotiable requirement
- BVLOS inspection need: where direct visual contact with the aircraft cannot be maintained throughout the flight path, the real-time 3D monitoring feed supports safer navigation
- Data volume planning: factor Terra Xross Cloud storage tier into operational planning — the included first-year Basic 500GB subscription covers initial deployment; expanding operations will require additional storage
- Parts and maintenance planning: motor sets and propellers are consumable components; build replacement intervals into your operational schedule to avoid unplanned downtime
Operators who require consistent, repeatable access to confined spaces — and who need documented visual and spatial data from those environments — will find the Terra Xross 1 purpose-matched to that mission profile in a way that general-purpose drones are not.
