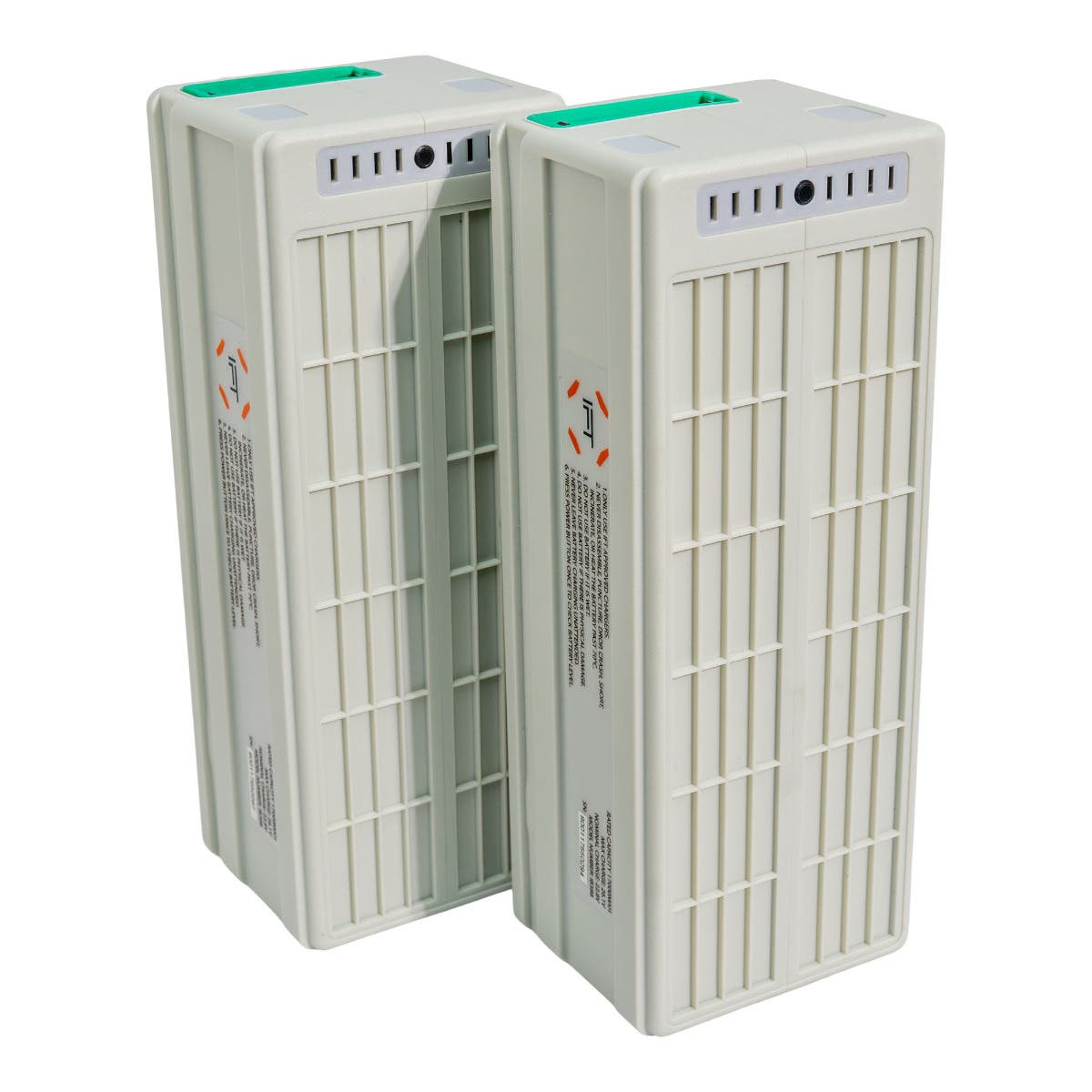

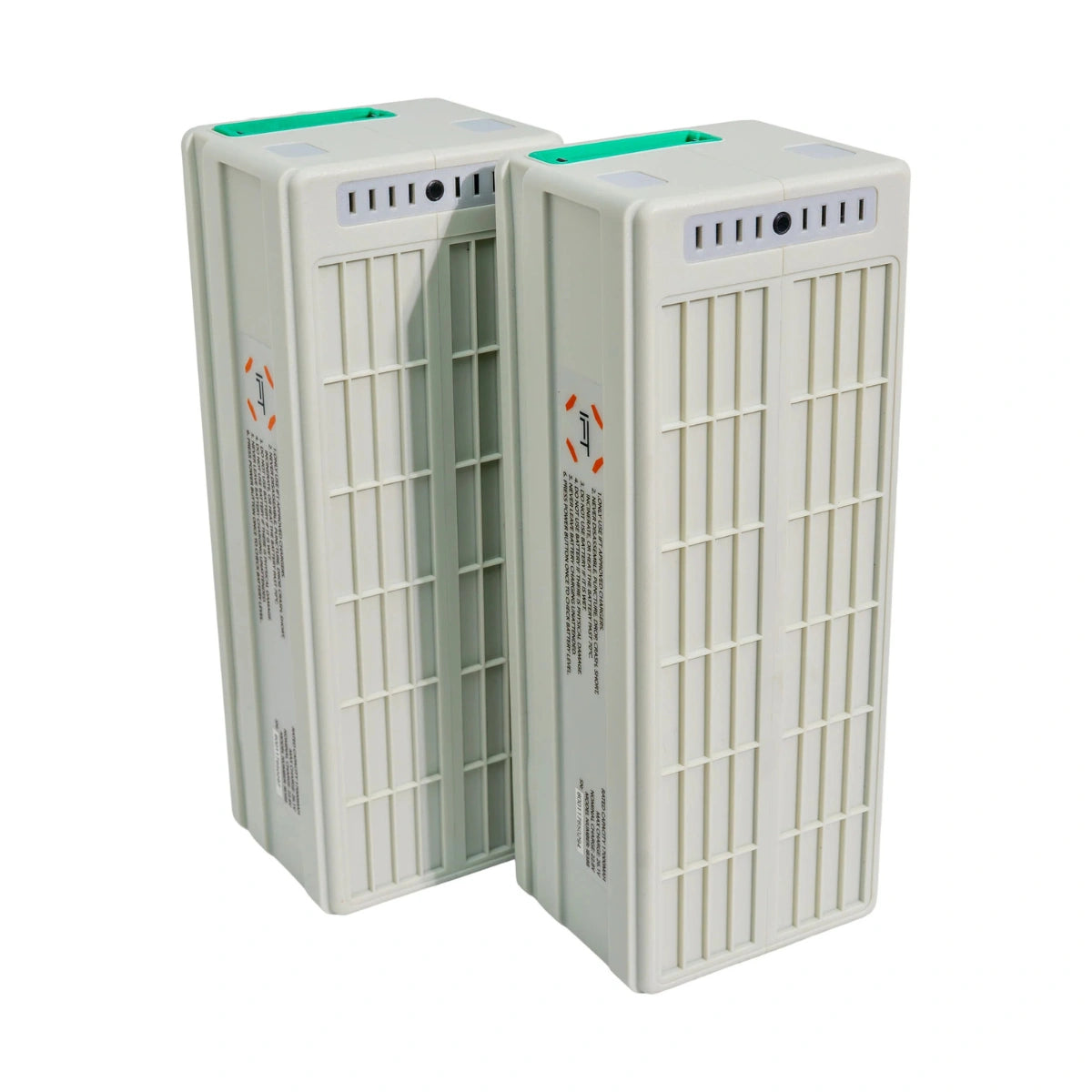

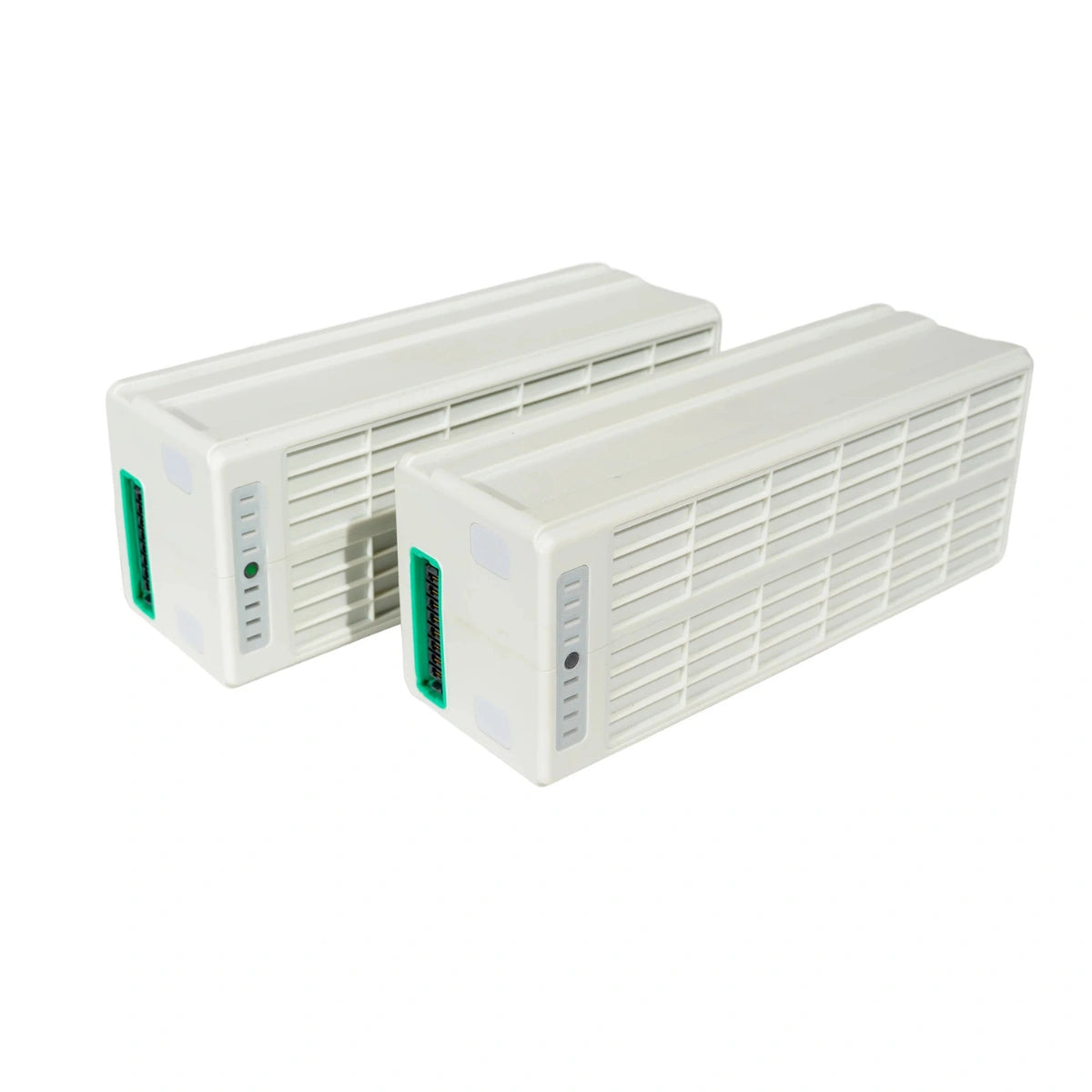

Inspired Flight IF800 Battery Set

Inspired Flight IF800 Battery Set

$1,500.00
$1,500.00
Sale Sold out
Shipping calculated at checkout.

S-IF-IF800-BATT

SKU S-IF-IF800-BATT MPN 102836
  • Includes 2 IB388 batteries for complete IF800 flight power system
  • 387.6 Wh energy capacity supports extended UAV flight operations
  • 17,000 mAh capacity delivers high endurance for mission workloads
  • 22.8 V nominal voltage ensures stable aircraft power delivery
  • Hot-swappable design enables battery changes without system shutdown
  • Smart BMS protects against overcharge, discharge, and temperature faults
  • NFC support enables quick battery diagnostics and status monitoring
  • DroneCAN communication integrates directly with IF800 aircraft systems
  • Internal cell balancing maintains <0.01 V variance for consistency
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Inspired Flight IF800 Battery Set: Dual IB388 High-Voltage Smart Batteries for IF800 Flight Operations

The Inspired Flight IF800 Battery Set includes two IB388 American-made high-voltage intelligent batteries designed specifically for the IF800 (Tomcat) platform. Each battery delivers 387.6 Wh of energy with a 22.8 V nominal voltage, forming a matched dual-battery system required for flight.

Built with a 6S LiHv configuration and integrated BMS, the IB388 provides stable power delivery, internal cell balancing, and system-level communication via DroneCAN. With hot-swappable capability and NFC-enabled diagnostics, this battery set supports continuous operations, rapid redeployment, and real-time battery health monitoring in demanding UAV environments.

Key Features and Benefits

  • Dual IB388 set: includes 2 batteries for complete IF800 flight configuration
  • 387.6 Wh capacity: supports extended flight operations per battery unit
  • 17,000 mAh rating: delivers high-capacity energy for mission endurance
  • 22.8 V nominal: stable voltage output for consistent aircraft performance
  • Hot-swappable design: enables battery replacement without powering down aircraft
  • Smart BMS system: protects against overcharge, discharge, and temperature faults
  • NFC diagnostics: provides tap-based access to battery health and status data
  • DroneCAN communication: integrates directly with IF800 aircraft systems
  • Internal balancing: maintains <0.01 V cell variance for performance consistency

Applications and Use Cases

  • Replacement batteries: provides direct IB388 replacement for IF800 operations
  • Extended missions: supports longer deployments with additional battery sets
  • Multi-flight workflows: enables continuous operations through battery rotation
  • Training operations: supports repeated flight cycles for pilot training sessions
  • Field deployment: reduces downtime with hot-swappable battery capability
  • Operational readiness: ensures reliable power availability across mission schedules

The IF800 Battery Set delivers a complete, high-capacity power solution designed for consistent performance and system integration. Its smart battery architecture and hot-swap capability support efficient, repeatable UAV operations.

With DSLRPros, you get access to field-proven UAV power systems designed for reliability and performance. Order the Inspired Flight IF800 Battery Set from DSLRPros today.

Battery Specifications

  • Battery chemistry: Lithium polymer high-voltage (LiHv)
  • Configuration: 6S1P with internal BMS
  • Nominal energy: 387.6 Wh
  • Capacity: 17,000 mAh
  • Nominal voltage: 22.8 V
  • Max voltage (100%): 26.1 V
  • Minimum voltage (1% capacity): 21.6 V
  • Minimum safe voltage: 19.8 V

Charge and Discharge

  • Max continuous discharge: 40 A
  • Max burst discharge: 55 A
  • Max charge current: 17 A (1C)
  • Cut-off charge current: 18 A
  • Max charge voltage: 26.1 V (4.35 V/cell)
  • Overcharge cutoff voltage: 4.38 V/cell (BMS regulated)

Battery Management

  • Cell balancing: BMS controlled (<0.01 V variance)
  • Self-discharge: Reduces to 3.8 V/cell after 48 hours
  • Additional data access: Available via NFC
  • Aircraft communication: DroneCAN

Physical

  • Weight: 2.08 kg
  • Dimensions: 74 × 89 × 228 mm

Environmental

  • Operating temperature: -10°C to 45°C
  • Max internal temperature: 70°C
  • Storage temperature: 10°C to 30°C

Lifecycle

  • Life expectancy: 150–300 cycles
  • Long-term storage: Cycle once every 3 months
  • 2x IB388 High Voltage Smart Batteries (1 set)
What is included in the Inspired Flight IF800 Battery Set?

The Inspired Flight IF800 Battery Set includes two IB388 high-voltage smart batteries. These are required as a pair for IF800 flight operations. Each battery is designed to work as part of a matched system.

What are the key specifications of the IB388 battery in the IF800 Battery Set?

Each IB388 battery has 387.6 Wh capacity, 17,000 mAh, and a 22.8 V nominal voltage. It operates up to 26.1 V when fully charged. It uses a 6S LiHv configuration with an integrated BMS.

Does the Inspired Flight IF800 Battery Set support hot swapping?

Yes, the IB388 batteries are hot-swappable. This allows battery replacement without powering down the aircraft. It helps reduce downtime during operations.

How does the Inspired Flight IF800 Battery Set monitor battery health?

The battery includes an integrated BMS with NFC capability. Operators can access detailed battery data using compatible tools. It also communicates with the aircraft via DroneCAN.

What is the expected lifecycle of the Inspired Flight IF800 Battery Set?

The IB388 battery is rated for approximately 150 to 300 cycles. Proper charging and storage practices can help maintain performance. Regular cycling is recommended for long-term storage.
