DJI BS60 Intelligent Battery Station for Matrice 300 RTK TB60 (Part No.5)

DJI BS60 Intelligent Battery Station for Matrice 300 RTK TB60 (Part No.5)

$979.00
$1,550.00 $979.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-BSTB60

SKU S-DJI-BSTB60 MPN CP.EN.00000224.01 EAN 6958265101861
  • Stores eight TB60 and four WB37 batteries securely
  • Intelligent charging prioritizes faster flight readiness
  • Dual-voltage AC input supports flexible deployments
  • Hard-shell case with wheels improves mobility
  • Supports TB65 batteries with required firmware update
  • Built for Matrice 300 Series battery workflows
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI BS60 Intelligent Battery Station: centralized battery charging and storage for Matrice 300 Series

The DJI BS60 Intelligent Battery Station is a dedicated solution for charging, storing, and transporting batteries used in Matrice 300 Series operations. Built into a rugged hard-shell case, it supports high-volume battery management for enterprise teams running extended or multi-mission workflows. Intelligent charging logic prioritizes batteries with higher remaining charge to accelerate flight readiness, while dual-voltage AC support enables flexible deployment across job sites.

Designed specifically for TB60 and WB37 batteries, the BS60 helps operators reduce downtime, protect battery health, and maintain organized power logistics in demanding field environments.

Integrated battery charging, storage, and transport system

  • High-capacity storage: Holds up to eight TB60 and four WB37 batteries
  • Simultaneous charging support: Charges two TB60 and one WB37 battery at once
  • Intelligent charging logic: Prioritizes batteries with higher remaining charge
  • Dual-voltage AC input: Supports 100–120 V and 220–240 V power sources

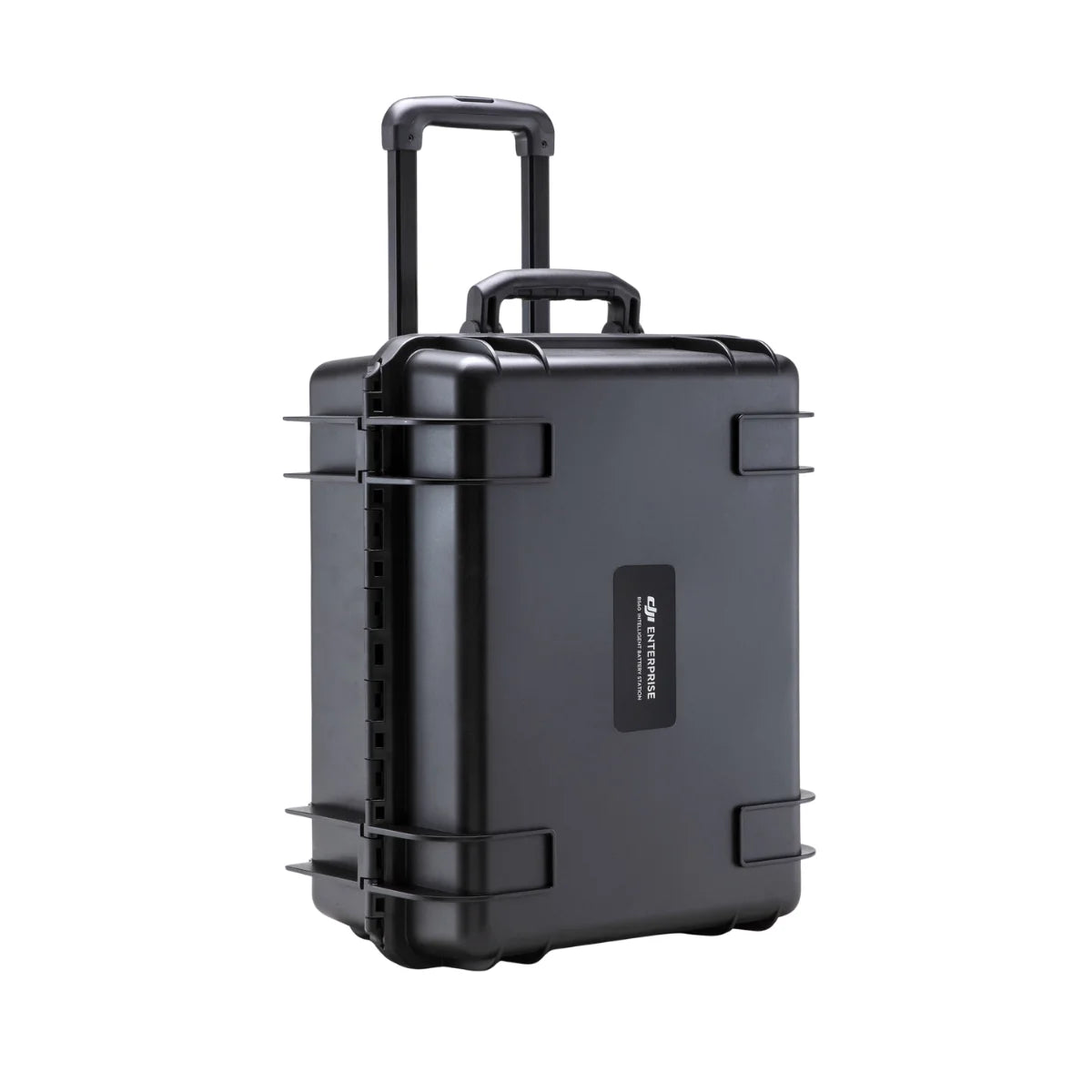

  • Rugged mobility design: Hard-shell case with wheels and telescoping handle
  • Secure enclosure features: Locking clasps, padlock holes, pressure valve

Battery compatibility and firmware requirements

  • Matrice 300 Series workflows: Designed for M300 RTK battery operations
  • TB60 Intelligent Flight Batteries: Fully supported for charging and storage
  • WB37 Intelligent Batteries: Supported for controller power management
  • TB65 battery support: Requires BS60 firmware version v07.00.00.01 or later
  • Firmware update sequence: Remote Controller → Aircraft → Payload → Battery Station → Battery
  • Battery usage guidance: Do not mix TB60 and TB65 batteries during flight

The DJI BS60 Intelligent Battery Station is a practical investment for enterprise teams managing high battery throughput with the Matrice 300 Series. By combining intelligent charging logic, organized storage, and transport-ready durability, it helps reduce downtime and simplify daily battery workflows. Firmware support for both TB60 and TB65 batteries adds flexibility for evolving fleets, while clear usage guidance helps prevent operational issues. For operators looking to standardize power management and maintain consistent flight readiness, the BS60 is a dependable addition to a professional setup through DSLRPros.

BS60 Intelligent Battery Station

  • Dimensions: 501 × 403 × 252 mm (L × W × H)
  • Net weight: 8.37 kg
  • Maximum capacity: Eight TB60 Intelligent Flight Batteries
  • Maximum capacity: Four WB37 Intelligent Batteries
  • Input voltage: 100–120 VAC, 50–60 Hz
  • Input voltage: 220–240 VAC, 50–60 Hz
  • Maximum input power: 1070 W
  • Output power (100–120 V): 750 W
  • Output power (220–240 V): 992 W
  • Operating temperature: -20° to 40° C (-4° to 104° F)
  • 1x DJI BS60 Intelligent Battery Station for Matrice 300 RTK
  • 1x AC Power Cable
What batteries are compatible with the DJI BS60 Intelligent Battery Station?

The BS60 supports TB60 Intelligent Flight Batteries and WB37 Intelligent Batteries. TB65 batteries are supported after updating the station to the required firmware version.

How many batteries can the DJI BS60 Intelligent Battery Station hold?

It can store up to eight TB60 flight batteries and four WB37 controller batteries.

How does charging priority work on the DJI BS60 Intelligent Battery Station?

The station charges the batteries with the highest remaining power first to speed readiness.

Is the DJI BS60 Intelligent Battery Station portable?

Yes. It features built-in wheels, a telescoping handle, and a carry handle.

What is required to activate charging on the DJI BS60 Intelligent Battery Station?

Activation requires a USB Type-C connection to a Matrice 300 RTK remote controller. Consult user manual for details.
