Autel EVO Max Speaker and Spotlight

Autel EVO Max Speaker and Spotlight

$979.00
$979.00
Sale Sold out
Shipping calculated at checkout.

S-AR-MAX-SPKR

SKU S-AR-MAX-SPKR MPN 102002240 UPC 889520208963
  • Integrated spotlight and speaker payload expands EVO Max operational capabilities
  • Follow gimbal pitch spotlight maintains illumination aligned with camera view
  • High-output 60W spotlight supports nighttime inspection and search missions
  • Narrow 14-degree beam delivers focused illumination from altitude
  • Adjustable brightness levels allow optimized lighting for changing environments
  • Built-in loudspeaker broadcasts warnings messages or instructions from the air
  • 114 dB speaker output ensures clear audio projection during operations
  • Up to 300 meter broadcast distance supports public safety communication
  • PSDK payload interface ensures seamless integration with EVO Max drones

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Max Speaker and Spotlight: Integrated aerial lighting and voice broadcast payload

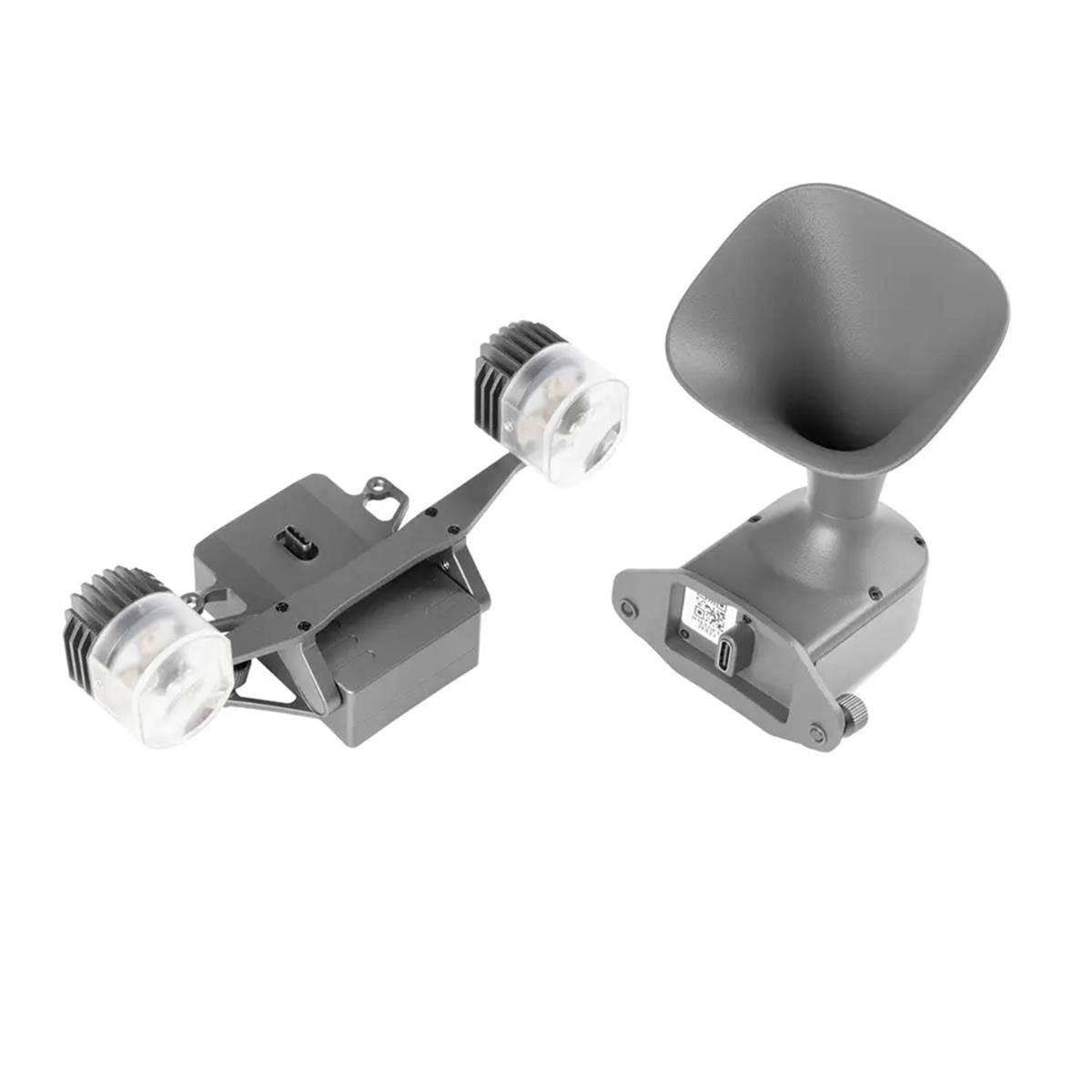

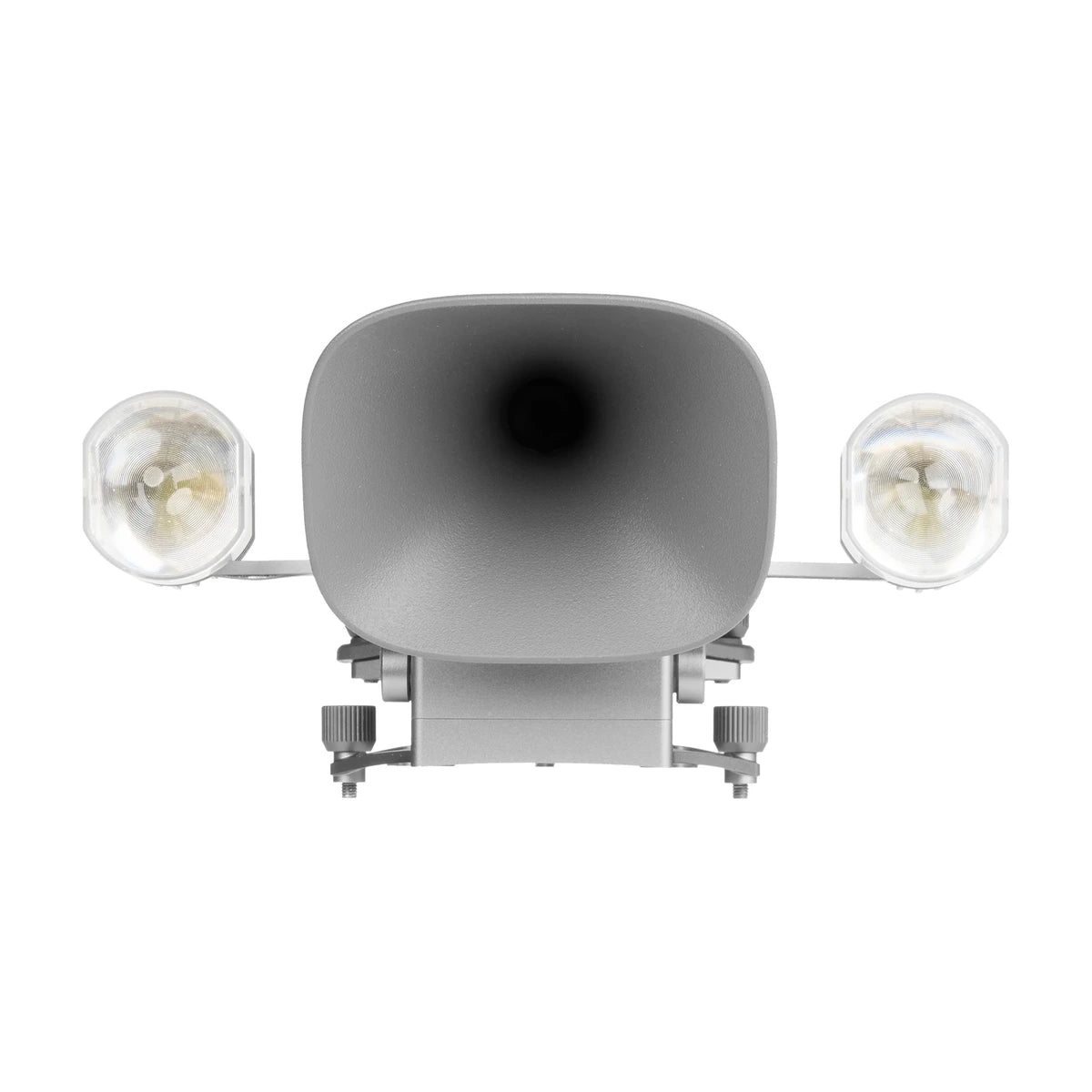

The Autel EVO Max Speaker and Spotlight is a dual-function payload designed for the Autel EVO Max series drones, combining a high-power searchlight with a remote loudspeaker for aerial communication.

Built for public safety, emergency response, and inspection operations, the device enhances mission effectiveness by enabling both illumination and voice broadcasting from the aircraft. Its intelligent “follow gimbal pitch” capability automatically aligns the spotlight with camera movement, keeping the illuminated area centered on the target.

With adjustable brightness levels and a powerful broadcast speaker, the system supports a wide range of real-world field operations.

Key features and advantages

  • Follow gimbal pitch spotlight: Automatically aligns illumination with camera viewing direction.
  • 60W aerial spotlight output: Provides powerful lighting for nighttime operations.
  • Three brightness levels: Allows lighting adjustment for different environmental conditions.
  • Narrow 14-degree beam: Focuses illumination precisely on ground targets.
  • Extended illumination range: Lights target areas up to approximately 150 meters.
  • Integrated broadcast loudspeaker: Enables aerial voice announcements and warning messages.
  • High-output audio system: Produces up to 114 dB sound pressure.
  • Long-range broadcast capability: Delivers voice communication up to 300 meters.
  • PSDK payload interface: Ensures seamless integration with EVO Max aircraft.

The Autel EVO Max Speaker and Spotlight expands the operational capability of the EVO Max platform by combining two critical mission tools into a single payload. By delivering both powerful illumination and remote communication, it enables operators to safely manage nighttime operations, emergency responses, and aerial announcements from the air.

With decades of UAV industry experience, DSLRPros equips professional drone teams with mission-ready accessories and technical support. Order the Autel EVO Max Speaker and Spotlight from DSLRPros to enhance your EVO Max drone’s operational capability.

General Specifications

  • Electrical interface: PSDK interface
  • Dimensions: 145 × 116 × 83 mm
  • Installation method: standard quick-release mount
  • Compatible aircraft: Autel EVO Max series

Spotlight System

  • Spotlight power: 60 W
  • Lighting angle: 14°
  • Lighting distance: 50 m / 100 m / 150 m
  • Lighting coverage area: 113 m² / 471 m² / 1063 m²
  • Central illuminance: 30 lux / 7 lux / 3 lux
  • Spotlight function: follow gimbal pitch with adjustable brightness levels
  • Adjustable angle: +30° to -90° controllable gimbal

Speaker System

  • Speaker power: 10 W
  • Sound pressure level: 114 dB at 1 meter
  • Broadcast distance: ≥300 m

Environmental Specifications

  • Operating temperature: -10 °C to 50 °C
  • Storage temperature: -20 °C to 60 °C
  • 1x Autel EVO Max Speaker and Spotlight
What does the Autel EVO Max Speaker and Spotlight do?

The Autel EVO Max Speaker and Spotlight combines an aerial searchlight and loudspeaker into a single drone payload. The spotlight illuminates ground areas while the speaker broadcasts messages or warnings. This allows operators to communicate with people on the ground during drone missions.

Which drones are compatible with the Autel EVO Max Speaker and Spotlight?

The Autel EVO Max Speaker and Spotlight is designed for the Autel EVO Max series drones. This includes the EVO Max 4T, EVO Max 4N, and EVO Max 4T XE models. The payload connects through the aircraft’s PSDK interface.

How powerful is the spotlight on the Autel EVO Max Speaker and Spotlight?

The Autel EVO Max Speaker and Spotlight uses a 60W spotlight with a narrow 14-degree beam angle. The light can illuminate targets up to approximately 150 meters away depending on conditions. Three brightness levels allow operators to adjust lighting intensity.

How loud is the speaker on the Autel EVO Max Speaker and Spotlight?

The built-in speaker on the Autel EVO Max Speaker and Spotlight produces up to 114 dB of sound pressure at one meter. It can broadcast messages or warnings up to approximately 300 meters away. The volume can be adjusted to suit the mission environment.

What is the follow gimbal pitch feature on the Autel EVO Max Speaker and Spotlight?

The follow gimbal pitch feature automatically adjusts the spotlight angle to match the movement of the drone’s camera gimbal. This keeps the illuminated area aligned with the camera view. It ensures the target remains properly lit as the camera moves.
