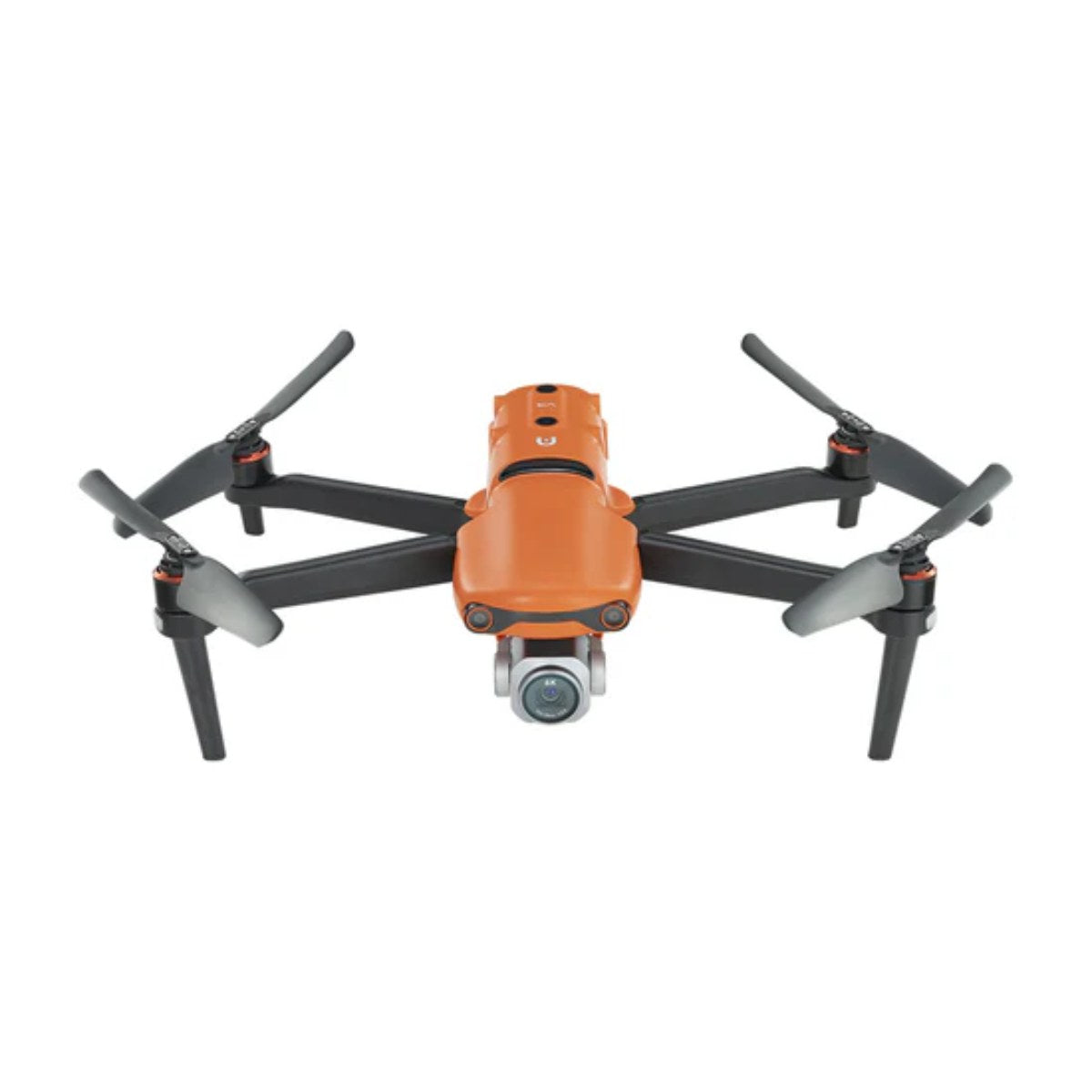

• Front view of an orange drone with extended propellers and integrated camera.
1 8

Autel EVO II Pro 6K Rugged Bundle V3

Autel EVO II Pro 6K Rugged Bundle V3

$2,099.00
$2,099.00
Sale Sold out
Shipping calculated at checkout.

S-AR-E2PRO-V3

SKU S-AR-E2PRO-V3 MPN 102001513.0 EAN 0889520200325
  • Equipped with Sony’s new 20-MP 1“ CMOS camera
  • Moonlight Algorithm 2.0 for night photography
  • 4K HDR video
  • Hyperlapse in 6K
  • SkyLink 2.0 Video Transmission
  • 360° obstacle avoidance
  • 15-km maximum transmission range
  • 40-minute maximum flight time
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Redefine Aerial Imaging With Autel EVO II Pro 6K V3

The Autel EVO II Pro 6K V3 marks a groundbreaking advancement in aerial imaging technology, offering professionals unparalleled capabilities for diverse applications. With exceptional imaging, superior flight performance, and innovative features, this drone is the ultimate tool for creative and operational success.

Unmatched Imaging Excellence

If you're seeking a high-performance drone for professional-grade visuals, the EVO II Pro 6K V3 delivers:

  • Sony 20-MP 1-Inch CMOS Sensor: Capture stunning 20MP stills and 6K video at 30 frames per second with extraordinary clarity and detail.
  • Adjustable Aperture and ISO: Achieve full creative control with an aperture range of f2.8-f11 and maximum ISO of 44,000.
  • Moonlight Algorithm 2.0: Enhance low-light performance with noise suppression, perfect for night photography.
  • HDR Brilliance: Experience vivid colors and fine details, even in high-contrast areas with High Dynamic Range imaging.

This camera system ensures professionals can capture cinematic-quality visuals in any lighting condition, from daylight to challenging low-light scenarios.

Optimized Flight Performance with Safety

Built for endurance and reliability, the EVO II Pro 6K V3 ensures:

  • Extended Flight Time: A robust 7100mAh battery delivers up to 40 minutes of flight per charge, enabling longer missions.
  • SkyLink 2.0 Video Transmission: Maintain a transmission range of up to 15 kilometers with real-time QHD video within 1 kilometer.
  • Advanced Obstacle Avoidance: 360° obstacle detection enhances safety by avoiding potential hazards in all directions.
  • Sensor Suite: Equipped with 19 sensors, including 12 visual sensors and IMUs, for three-dimensional mapping and real-time path planning.
  • Anti-Interference Technology: Tri-band communication with frequency hopping ensures stable operation in complex environments.

These features make the EVO II Pro 6K V3 a dependable tool for professionals seeking precision, security, and peace of mind during critical operations.

Effortless Control and Usability

The Smart Controller SE takes control to the next level with:

  • 6.4-Inch OLED Touchscreen: Enjoy anti-glare visuals with HD picture transmission for a seamless viewing experience.
  • 8-Core Processor: Enables smooth operations and compatibility with third-party apps.
  • Weather-Resistant Design: Rated IP43, ensuring reliable performance in various weather conditions.

This intelligent controller enhances usability, providing a durable and flexible solution for personal and commercial applications.

Key Features and Benefits

  • 20MP 1-Inch Sony CMOS Sensor for stunning detail and 6K video at 30 fps
  • Adjustable Aperture (f/2.8-f/11) and ISO up to 44,000 for flexible exposure control
  • Moonlight Algorithm 2.0 for excellent low-light performance
  • HDR Imaging for rich color and dynamic range
  • Up to 40 Minutes of Flight Time with a high-capacity 7100mAh battery
  • SkyLink 2.0 Transmission with up to 15 km range and QHD downlink
  • 360° Obstacle Avoidance with 19 onboard sensors for full-environment awareness
  • Tri-Band Anti-Interference Technology for stable operation in complex RF environments
  • Smart Controller SE with a 6.4" OLED touchscreen and IP43-rated durability

Applications and Use Cases

  • Agriculture: Monitor crop health, plan irrigation, and perform multispectral analysis
  • Search and Rescue: Locate individuals in remote or hazardous areas using high-resolution imaging
  • Firefighting: Assess fire perimeters and hotspots with real-time aerial views
  • Law Enforcement: Support surveillance, crowd monitoring, and accident documentation
  • Infrastructure Inspection: Evaluate powerlines, bridges, and pipelines for damage or wear

The Autel EVO II Pro 6K V3 combines state-of-the-art imaging, long-lasting flight performance, and intelligent control in a compact, feature-rich package.

Perfect for photographers, drone pilots, and industry professionals, this drone delivers the reliability and flexibility you need to excel.

Aircraft

  • Takeoff weight: 1191 g
  • Max takeoff weight: 2000 g
  • Wheelbase: 397 mm

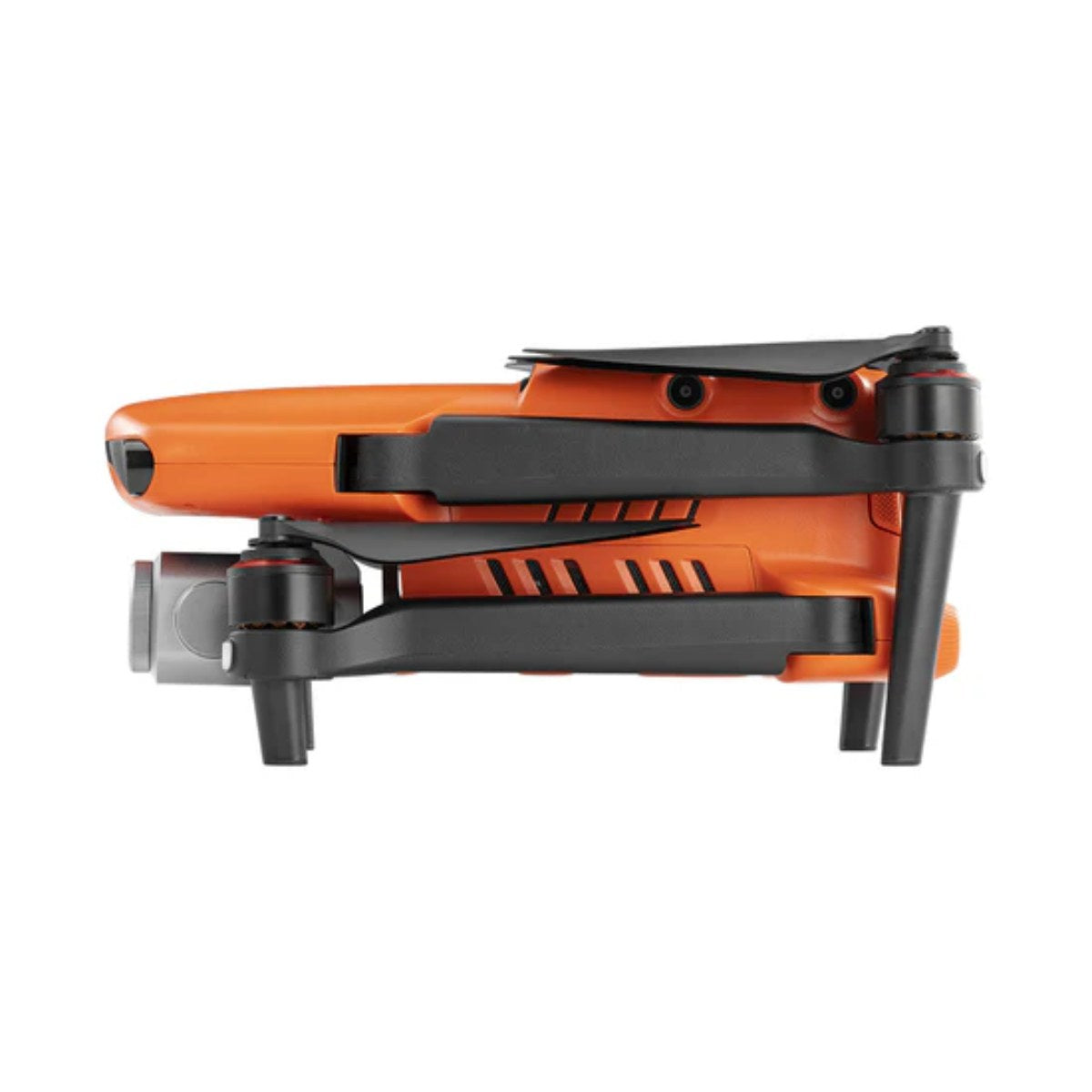

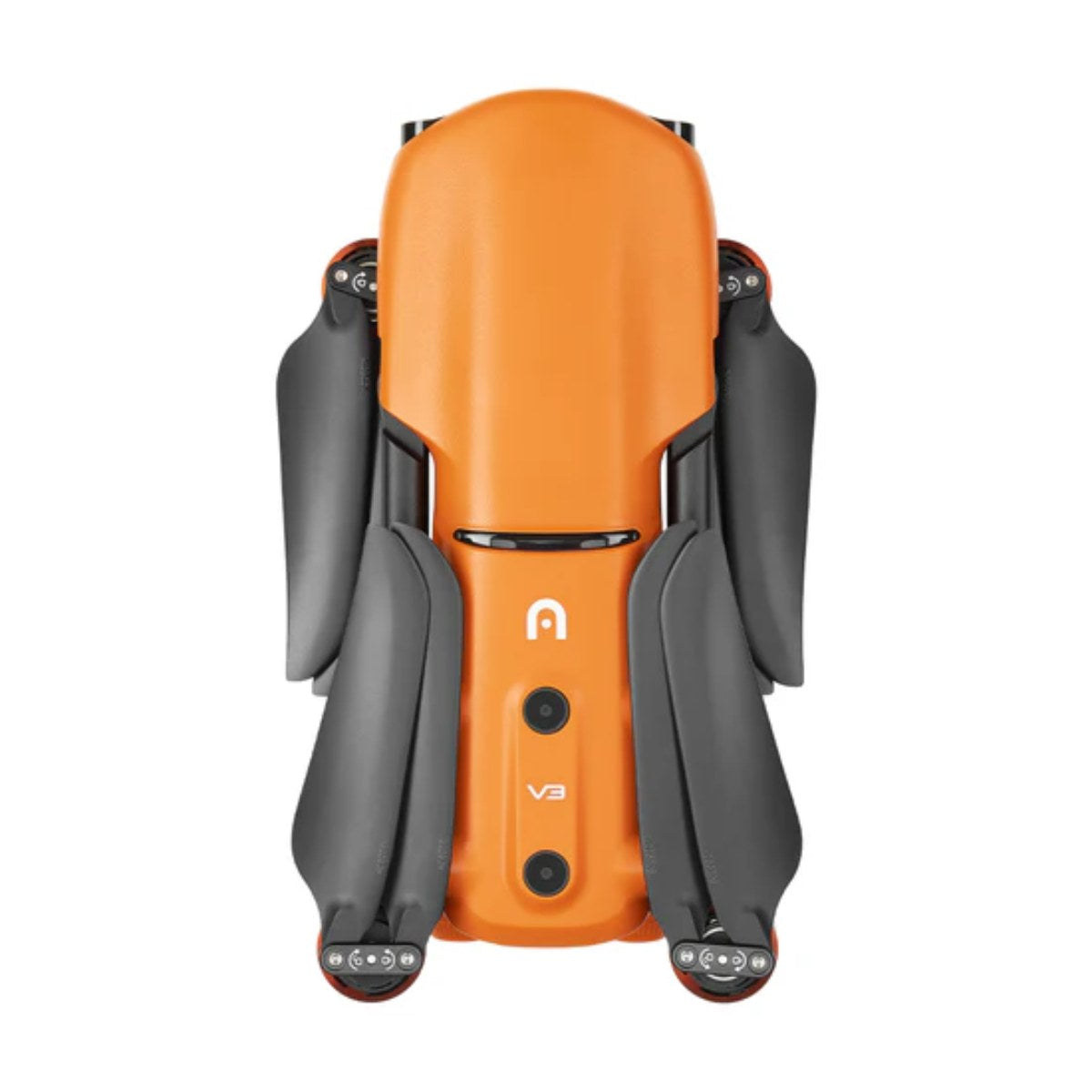

  • Size (L*W*H): 230*130*108 mm (folded), 457*558*108 mm (unfolded)
  • Maximum service ceiling altitude: 7000 m
  • Max ascent speed: 8 m/s (Ludicrous)
  • Max descent speed: 4 m/s (Ludicrous)
  • Max horizontal flight speed: 20 m/s (Ludicrous)
  • Max flight distance (no wind): 25 km
  • Max tilt angle: 33° (Ludicrous)
  • Max angular velocity: 120°/s
  • Max flight time (no wind): 40 min
  • Max hovering time (no wind): 35 min
  • Operating temperature range: -10℃ ~ 40℃
  • Maximum resistance to wind: Level 8
  • Operating frequency:

    902-928 MHz (FCC Only)
    2.400-2.4835 GHz
    5.725-5.850 GHz (non-Japan)
    5.650-5.755 GHz (Japan Only)

  • Transmission power:

    900M FCC/ISED: ≤31 dBm
    2.4G FCC/ISED: ≤32 dBm, SRRC/CE/MIC/RCM: ≤20 dBm
    5.8G (non-Japan) / 5.7G (Japan) FCC/ISED/SRRC/MIC: ≤33 dBm, CE/RCM: ≤14 dBm

  • Hovering accuracy:

    Vertical: ±0.1 m (visual positioning); ±0.5 m (GPS)
    Horizontal: ±0.3 m (visual positioning); ±1.5 m (GPS)

  • GNSS: GPS/Beidou/Glonass/Gallieo
  • Internal storage: 8GB
  • SD storage: max. support 256GB (UHS-3 or Class 10)

Gimbal

  • Gimbal: 3-axis stabilization
  • Mechanical range: Tilt: -135° to +45°, Pan: -100° to +100°
  • Controllable rotation range: Tilt: -90° to +30°, Pan: -90° to +90°
  • Max control speed (Tilt): 300°/s
  • Angular Vibration Range: ±0.005°

Remote controller and image transmission

  • Operating frequency:

    902-928 MHz (FCC Only)
    2.400-2.4835 GHz
    5.725-5.850 GHz (non-Japan)
    5.650-5.755 GHz (Japan Only)

  • Transmission power:

    FCC: ≤33 dBm
    CE: ≤20 dBm@2.4G, ≤14 dBm@5.8G
    SRRC: ≤20 dBm@2.4G, ≤33 dBm@5.8G/5.7G

  • Max Transmission Distance (unobstructed, free of interference):

    FCC: 15 km
    CE: 8 km

  • Display screen: 2340x1080 60fps
  • Battery: 1900mAh
  • Operating time: ~2 hours (Max. Brightness), ~4 hours (50% Brightness)
  • Charging time: 90 minutes
  • Internal Storage: ROM 128GB + expandable storage via micro-SD card

Sensing system

  • Sensing system type: Omnidirectional sensing system
  • Forward:

    Accurate measurement range: 0.5-18 m
    Effective sensing speed:
    Viewing angle: Horizontal: 60°, Vertical: 80°

  • Backward:

    Accurate measurement range: 0.5-16 m
    Effective sensing speed:
    Viewing angle: Horizontal: 60°, Vertical: 80°

  • Upward:

    Accurate measurement range: 0.5-10 m
    Effective sensing speed:
    Viewing angle: Horizontal: 65°, Vertical: 50°

  • Downward:

    Accurate measurement range: 0.5-10 m
    Effective sensing speed:
    Viewing angle: horizontal: 100°, vertical: 80°

  • Left and right:

    Accurate measurement range: 0.5-10 m
    Effective sensing speed:
    Viewing angle: horizontal: 65°, vertical: 50°

  • Operating Environment:

    Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15)
    Upward: Detects diffuse reflective surfaces (>20%)

  • Downward: Surface with clear pattern and adequate lighting (lux > 15), Detects diffuse reflective surfaces (>20%)

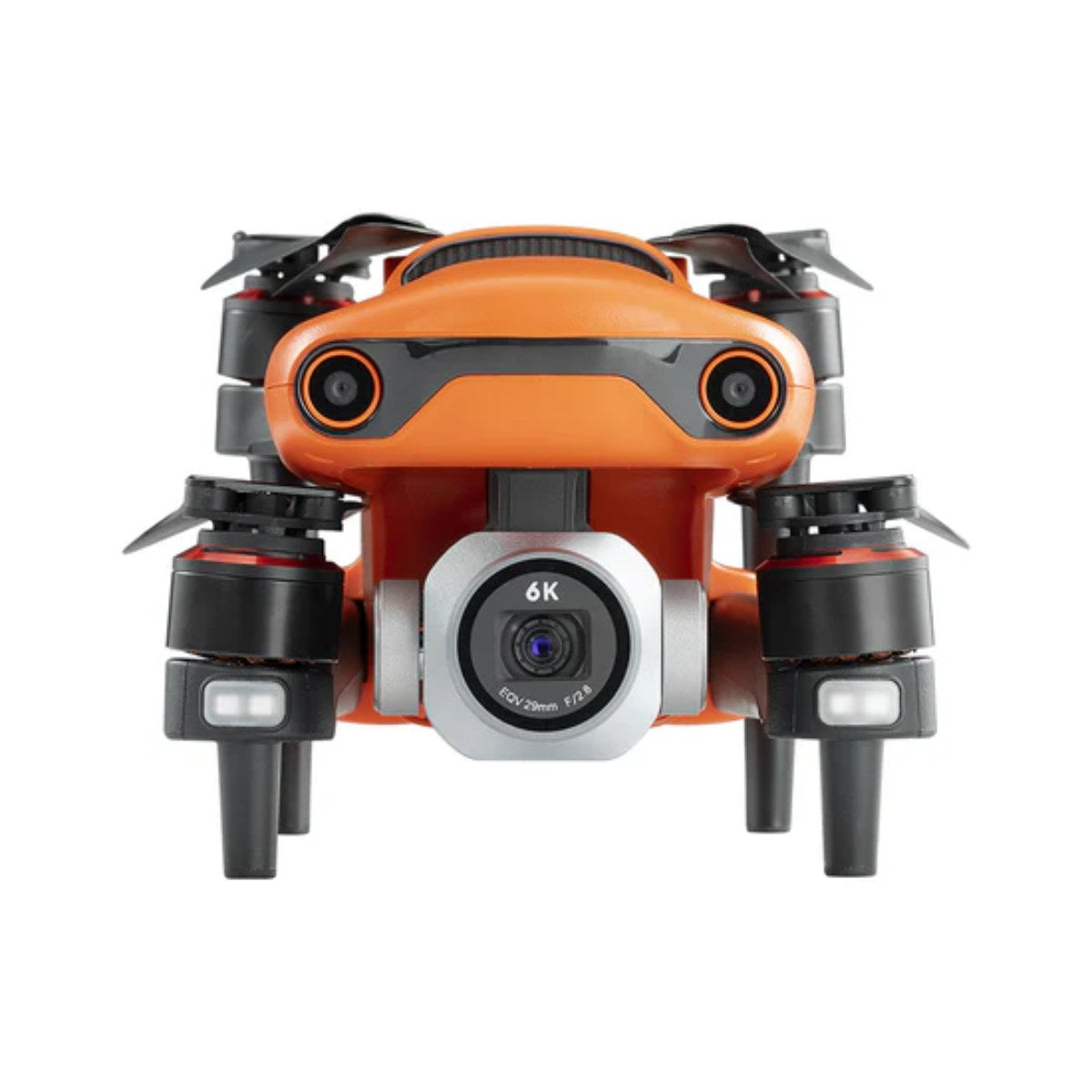

Camera

  • Sensor: 1 inch CMOS; 20M pixels
  • Lens: FOV: 82°, 35 mm format equivalent focal length: 29 mm, Aperture: f/2.8 - f/11, Focus range: 0.5 m to infinity
  • ISO range: Video: 100-44000, Photos: 100-6400
  • Shutter speed: Photo mode: 1/8000 ~ 8s, Other: 1/8000 ~ 1/frame rates
  • Zoom: 1-16x (up to 3x lossless zoom)
  • Photo mode: Single shot/Burst shooting/AEB/Time Lapse/HDR
  • Maximum photo size: 5472*3648 (3:2), 5472*3076 (16:9), 3840*2160 (16:9)
  • Image Format: JPG (default) / DNG / JPG+DNG
  • Photo mode resolutions: 5472x3076P30/P25/P24, 3840x2160P60/P50/P48/P30/P25/P24, 2720x1528P60/P50/P48/P30/P25/P24, 1920x1080P60/P50/P48/P30/P25/P24
  • Video format: MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  • Max bitrate: 120Mbps
  • Supported SD cards: micro SD card (UHS-3 or above)

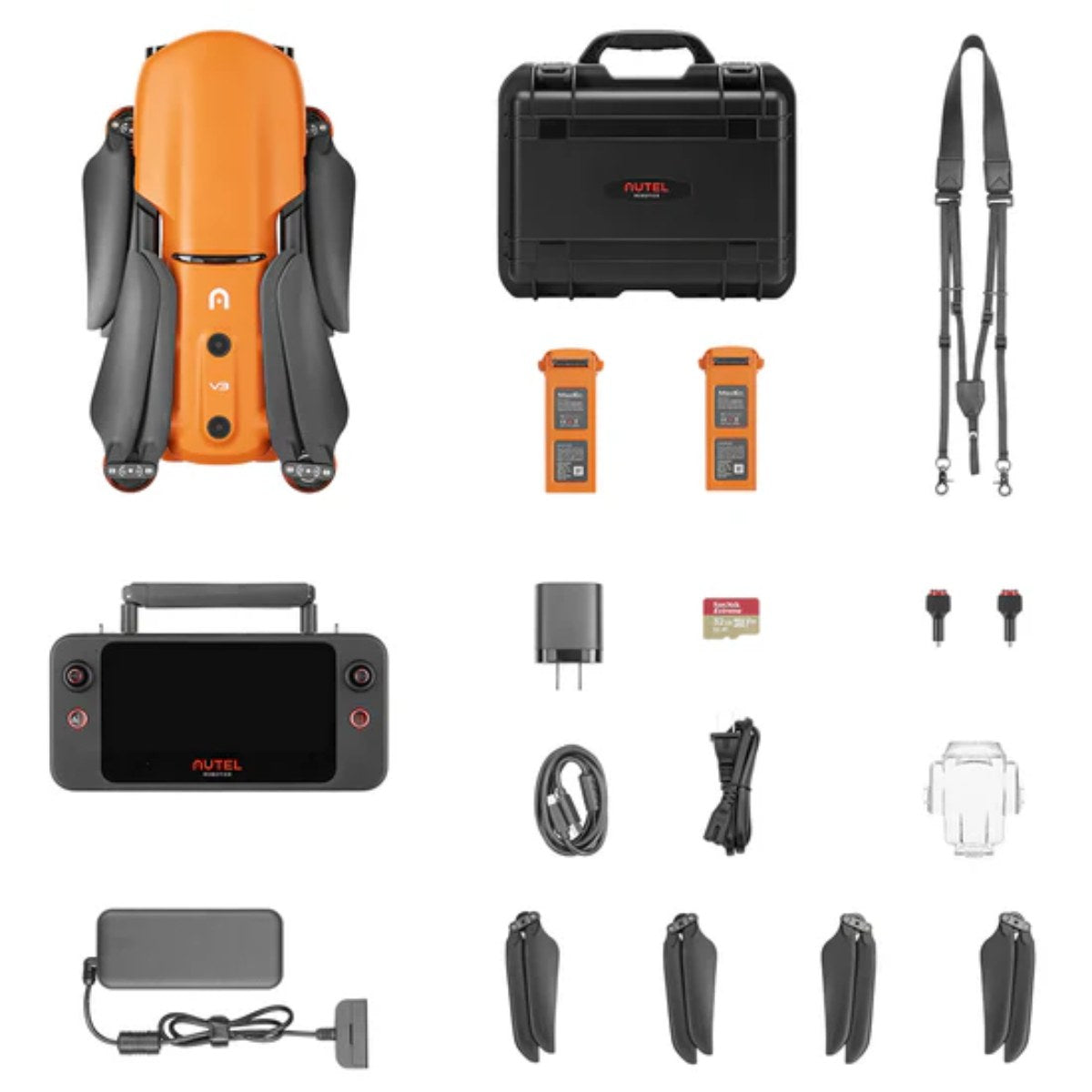

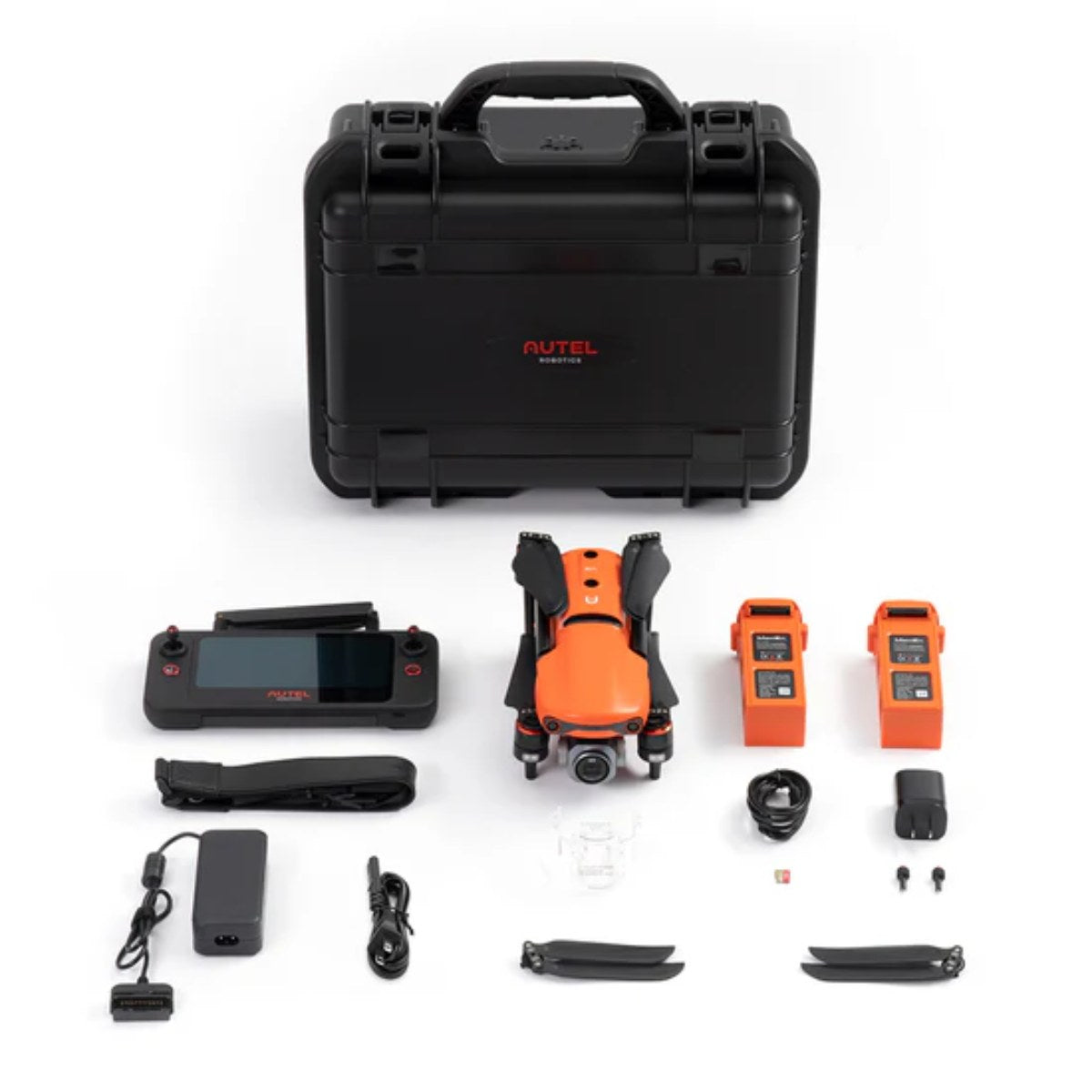

  • 1x Aircraft (including battery, propellers, gimbal holder, and 32G SD Card)
  • 1x Remote Controller (sticks included)
  • 1x Spare battery
  • 1x Spare propeller (pair)
  • 1x Battery charger + power cable
  • 1x RC charger
  • 1x RC charging cable
  • 1x RC lanyard
  • 1x Spare control stick (pair)
  • 1x Manuals (Packing List, Quick Guide, Disclaimer & Safety Instructions, and Battery Safety)

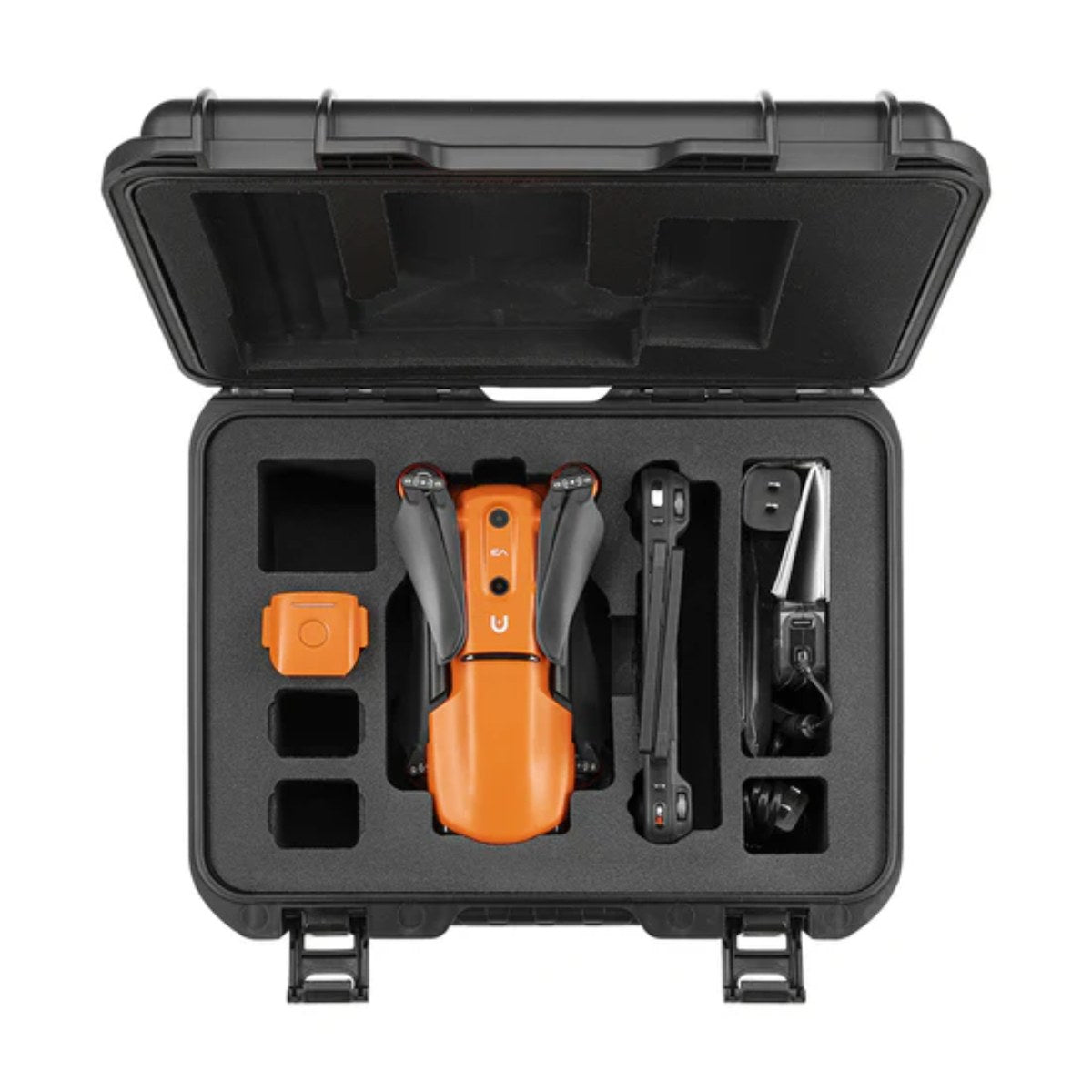

  • 1x Carry case
What's the difference between the EVO II Pro 6K Enterprise and the EVO II Pro 6K?

Compared with other products in the EVO II series, EVO II Enterprise bundles allow you to attach industry expansion accessories (spotlight, loudspeaker, strobe, RTK modules).

How does the Autel EVO II Pro 6K RTK compare to DJI RTK drones?

While DJI drones like the Mavic 3E or Phantom 4 RTK offer strong performance, the EVO II Pro 6K RTK delivers comparable mapping accuracy with longer battery life and no geofencing restrictions, a major advantage for U.S.-based operators.

Can I use the EVO II Pro 6K RTK with PPK workflows?

Absolutely. The drone logs raw GNSS data for post-processing. You can export flight logs and process them in supported PPK software for survey-grade deliverables.

What is the difference between the Autel EVO II Pro 6K RTK and the non-RTK version?

The RTK version includes an integrated real-time kinematic module that delivers centimeter-level accuracy for mapping and surveying. The non-RTK version does not support precision GNSS workflows.
