• AIRINS Sniffer4D OU Sensing Module
1 1

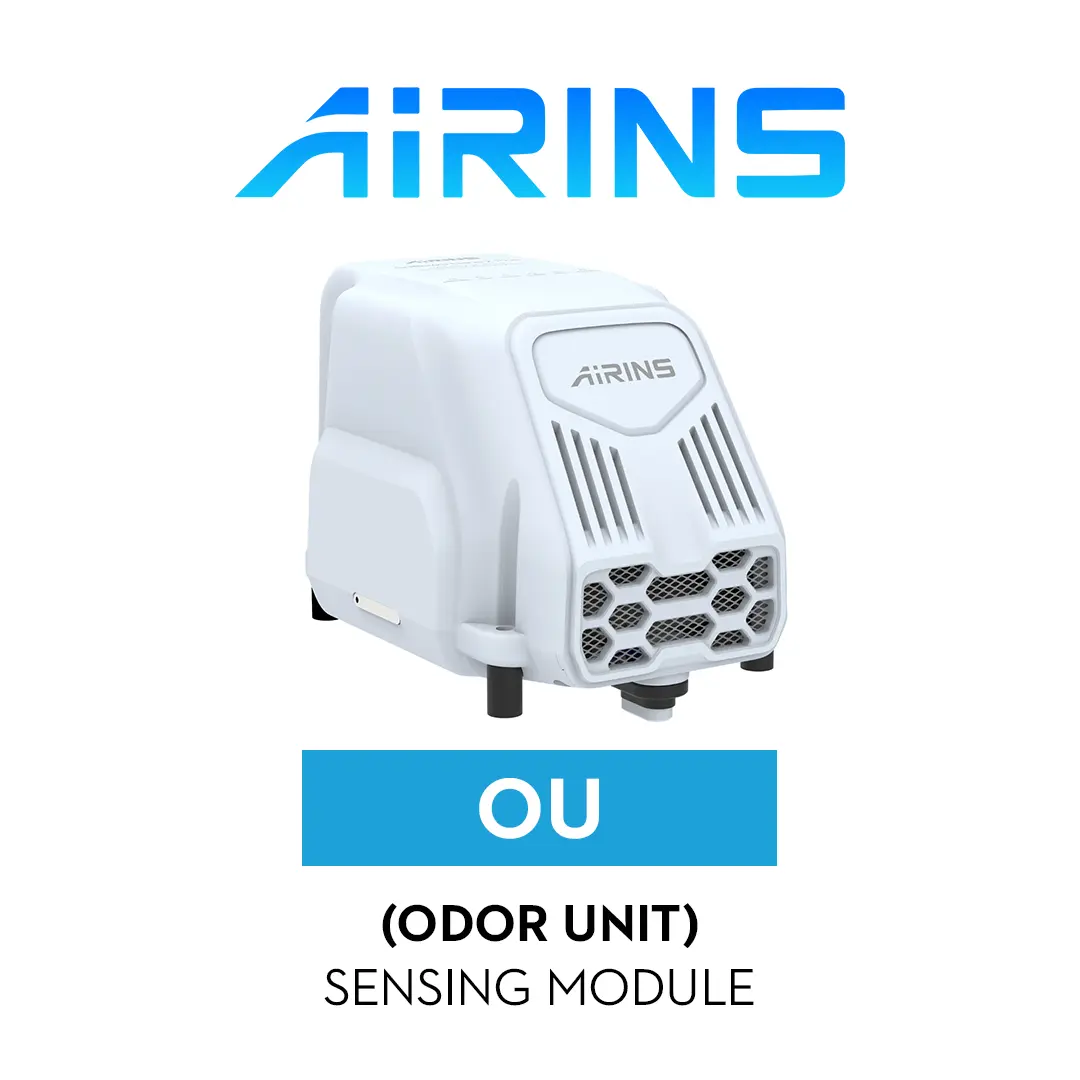

AIRINS Sniffer4D OU Sensing Module

AIRINS Sniffer4D OU Sensing Module

$2,744.00
$2,744.00
Sale Sold out
Shipping calculated at checkout.

S-AIN-S4D-N2P-OU

  • Electrochemical sensor measures general odor concentration with high precision
  • Point one ppm detection limit catches low level odor events
  • Wide linear range covers trace levels through elevated odor concentrations
  • Sub thirty second response delivers fast readings during active flight
  • Fine resolution captures subtle shifts in odor gas concentration accurately
  • Thirty six month service life supports extended field deployment cycles
  • Wide temperature tolerance operates from negative forty to fifty five
  • Wide humidity range functions reliably up to ninety five percent
  • Single slot install adds odor sensing to any Base Unit build
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Sniffer4D OU Sensing Module: Detect Odor Fast for Field Investigation Missions

The Sniffer4D OU Sensing Module gives odor investigation teams a fast, under-30-second reading dedicated to general odor detection, installing into a single slot on the Sniffer4D Nano 2 Plus Base Unit. It uses an electrochemical sensor tuned specifically to detect odor causing compounds in the field.

Rated for a 36 month service life and operable from -40 to 55 degrees Celsius, it holds up across some of the widest environmental conditions in the Sniffer4D catalog, useful for programs running odor investigations across variable climates and seasons. Its wide humidity tolerance, up to 95 percent RH, supports both dry and humid deployment sites.

Key Features and Benefits

  • Electrochemical sensing: measures general odor concentration with high precision accuracy.
  • 0.1 ppm detection limit: catches low level odor events across sites.
  • 10 ppm linear range: covers trace levels through elevated odor concentrations.
  • Under 30 second response: delivers fast readings during active flight operations.
  • 0.01 ppm resolution: captures fine shifts in odor gas concentration.
  • 36 month service life: supports extended field deployment before replacement.
  • Wide temperature range: operates reliably from -40 to 55 degrees Celsius.
  • Wide humidity range: functions up to 95 percent RH non-condensing conditions.
  • Single slot install: adds odor sensing without claiming the full array.

The OU Sensing Module exists to give odor investigation programs a fast, dependable way to trace complaints back to a source without a lengthy wait for readings. Its wide temperature and humidity tolerance means it holds up across seasonal and regional deployment conditions.

DSLRPros tests every OU Sensing Module for accurate odor detection before it ships. Order the OU Sensing Module from DSLRPros and add fast, dependable odor detection to your next flight.

  • Detection principle: electrochemistry
  • Linear range: 0 to 10 ppm
  • Limit of detection: 0.1 ppm
  • Repeatability: <5% FS
  • Overall response time (t90): <30 seconds (0-10 ppm)
  • Display resolution: 0.01 ppm
  • Warm-up time from cold start: β‰ˆ3 minutes
  • Estimated service life: >36 months
  • Operating temperature: -40 to 55Β°C β€” note: may require zero-point readjustment due to changes in operating temperature or working environment
  • Operating humidity: 15 to 95% RH (non-condensing)
  • 1x AIRINS Sniffer4D OU Sensing Module
How fast does this module deliver an odor reading?

The OU module responds in under 30 seconds across its full 0 to 10 ppm range, one of the faster response times in the Sniffer4D lineup. This makes it well suited to routine odor investigation flights where you need a quick reading rather than a long dwell time over a suspected source. Its 0.1 ppm detection limit still provides good sensitivity for typical odor complaint investigations.

What is the OU module typically used for?

This module is built for general odor detection and general environmental monitoring. It's commonly used to trace odor complaints back to a source, whether that's an industrial facility, waste site, or agricultural operation. DSLRPros can help confirm this module fits your particular investigation program.

How long does this module last before it needs replacement?

The module carries an estimated service life of more than 36 months, matching some of the longer-lasting modules in the Sniffer4D catalog. This makes it a dependable choice for programs running frequent odor investigation flights over an extended period. DSLRPros can advise on typical replacement planning based on your flight frequency.
