ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Hard Case

ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Hard Case: NDAA-Compliant Visual Inspection Ready from First Deployment

The ACSL SOTEN Inspection Bundle Plus with Rapid Deployment Case is a complete, field-ready UAS solution built around Japan's NDAA-compliant SOTEN small unmanned aircraft.

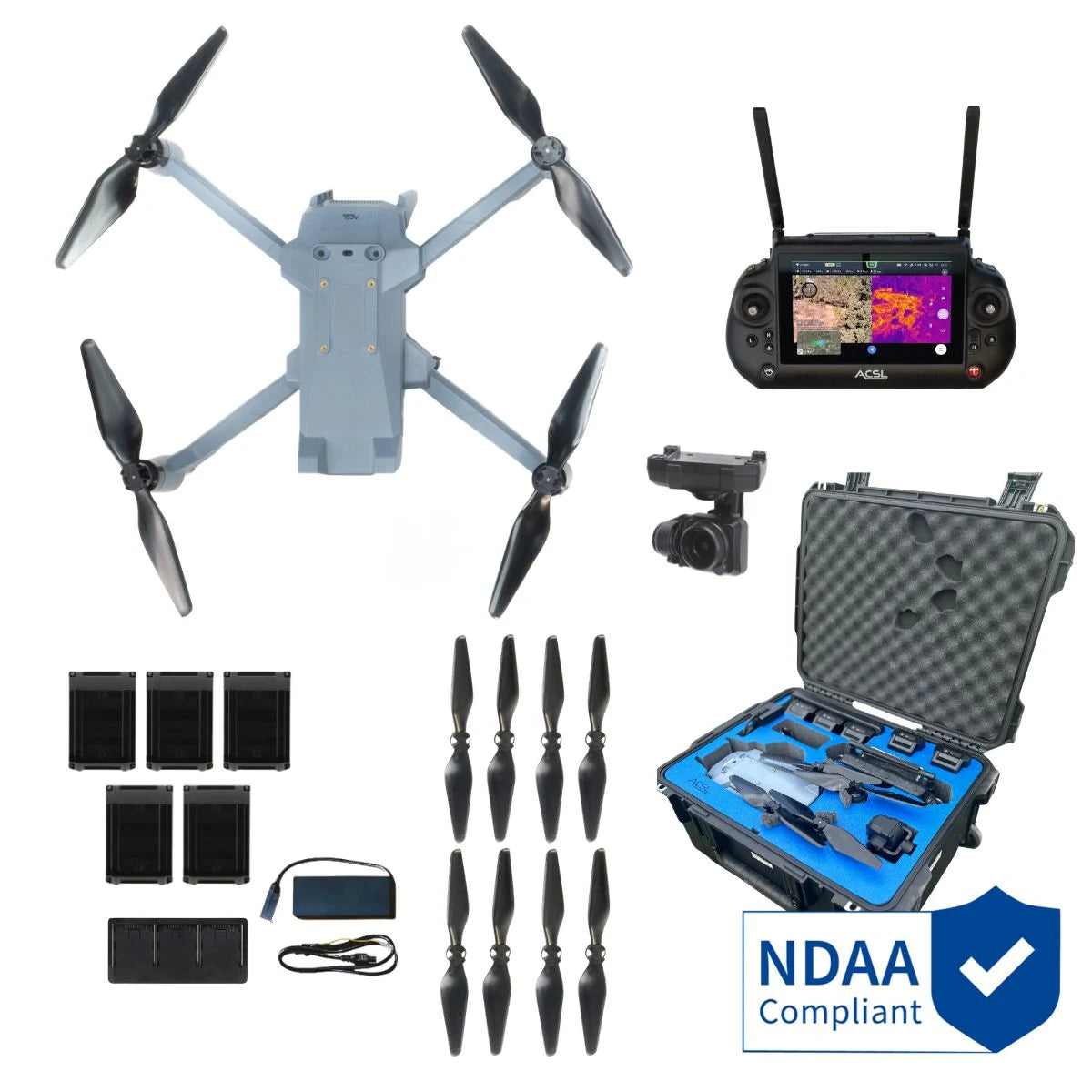

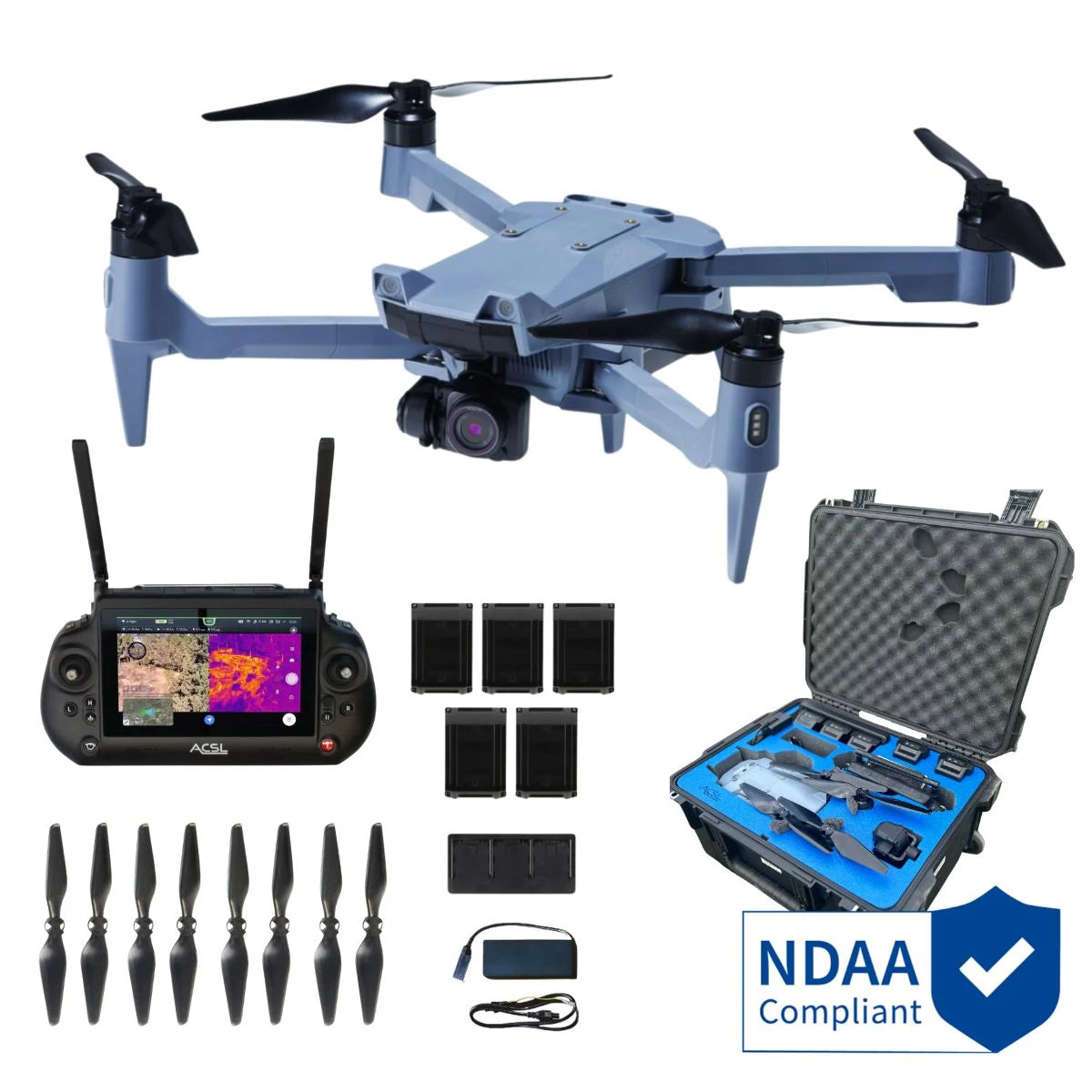

Engineered for inspection teams operating across utilities, critical infrastructure, and public safety environments, this bundle pairs the dual-band SOTEN airframe with the TAITEN Smart Controller, five smart batteries, and a rugged wheeled deployment case designed to get your team airborne faster.Every component ships pre-organized in a custom blue foam interior, so setup time stays where it belongs: minimal.

Key Features and Benefits

• NDAA compliance: aircraft and TAITEN controller both meet federal procurement requirements.
• Dual-band radio: 2.4 GHz and 5.8 GHz Fides-Link delivers resilient control and video link.
• IP43 airframe: resists rain, dust, and particulates during active outdoor inspection missions.
• One-touch camera: field-swappable payload system supports visible, thermal, zoom, and multispectral.
• AES-256 encryption: all communications and optional media storage are cryptographically protected.
• Five batteries: extended multi-sortie capacity supports longer field sessions without resupply.
• TAITEN display: 7-inch 1500-nit panel stays readable in direct sunlight during outdoor operations.
• Obstacle sensing: forward, upward, and downward detection keeps the aircraft clear during flight.
• LTE option: optional module enables remote and closed-network operations in disconnected areas.
• SLAS positioning: Michibiki quasi-zenith augmentation delivers sub-meter accuracy within Japan.

At the center of the system is a platform built for operational trust. The SOTEN airframe carries an IP43-rated enclosure, multi-direction obstacle sensing, and a one-touch swappable camera system anchored by the included 20MP CX-GB100 visible camera with 1-inch sensor and mechanical shutter.

Security architecture based on ISO/IEC 15408 principles and AES-256 encrypted communications through ACSL Fides-Link ensure that data collected in the field stays protected from capture to storage.

With GNSS coverage spanning GPS, GLONASS, QZSS, and SLAS sub-meter augmentation, positioning is reliable even in demanding environments.

Inspection-Ready Performance Across Every Deployment

The SOTEN platform is purpose-built for the realities of industrial inspection work. A 15 m/s (33 mph) top speed and 25-minute flight time with the standard camera give operators enough range and endurance to cover asset runs efficiently.

The 1-inch sensor CX-GB100 captures 20MP stills and 4K video at 30fps, with a 3-axis gimbal holding framing to within 0.02 degrees of commanded position. The TAITEN Smart Controller runs Android 13 with ACSL TAKEOFF pre-loaded, supports up to three paired controllers per aircraft for training or dedicated payload operation, and delivers up to 8 hours of runtime on a single charge.

Paired with optional offline maps and LTE connectivity, the SOTEN system keeps working when infrastructure does not.

Compatibility and System Integration

• CX-GB100 standard camera: 1-inch 20MP sensor with mechanical shutter and 4K video output.
• SAMO thermal camera: optional NDAA-compliant EO/IR payload with 640x512 Boson sensor (sold separately).
• CX-GB400 optical zoom: optional 2.5x optical zoom camera with up to 25x combined reach (sold separately).
• CX-GB300 multispectral: optional 1-inch 20MP payload with RGB TIFF 16-bit analytical output (sold separately).
• ACSL TAKEOFF app: pre-installed on TAITEN for flight, gimbal, and mission planning control.
• ACSL Fides-Link: AES-256 encrypted dual-band link with 6-plus mile unobstructed range.
• Optional LTE module: enables closed-network and BVLOS-capable tele-operations in remote sites.
• Offline maps: ACSL TAKEOFF supports map caching for operations without internet access.

Applications and Use Cases

• Utility inspection: survey powerlines, substations, and energy infrastructure from safe distances.
• Public safety: provide aerial overwatch, evidence collection, and situational awareness on scene.
• Industrial inspection: access confined or elevated assets without scaffolding or manned entry.
• Disaster response: deploy rapidly into affected areas for damage assessment and documentation.
• Compliance documentation: capture consistent 20MP still records for regulatory reporting workflows.
• Infrastructure monitoring: conduct repeatable visual audits of bridges, towers, and critical structures.
• Training operations: run dual or triple-controller sessions to build operator proficiency on platform.
• Search operations: cover large search areas efficiently with a fast, portable, and field-ready aircraft.

The SOTEN Inspection Bundle Plus with Rapid Deployment Case exists to reduce the gap between arrival on site and productive aerial work. The wheeled hard-shell case, pre-organized blue foam interior, five-battery complement, and triple charger mean the system is unpacked, checked, and airborne in minutes rather than hours.

For inspection teams that need a dependable, compliant, and mission-ready platform every time they open the case, the SOTEN delivers without compromise.

DSLRPros has extensive experience supporting enterprise UAS programs across public safety, energy, and industrial inspection sectors. When you purchase the ACSL SOTEN Inspection Bundle Plus through DSLRPros, you get platform expertise, pre-sale application guidance, and after-sale support from a team that understands how these systems are actually used in the field.

Order today at DSLRPros and put a proven inspection platform to work.
