• DSLRPros Inspired Flight IF1200 Utility Inspection Package

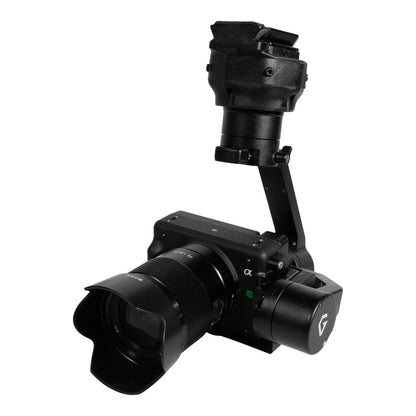

  • Sony ILX-LR1 camera mounted on the drone.
1 5

DSLRPros Inspired Flight IF1200 Utility Inspection Package

DSLRPros Inspired Flight IF1200 Utility Inspection Package

$49,745.00
$49,745.00
Sale Sold out
Shipping calculated at checkout.

B-NB-IF1200-UI

  • Inspired Flight IF1200A heavy-lift hexacopter
  • Sony ILX-LR1 61MP full-frame camera payload included
  • Up to 43-minute maximum flight time for extended inspection missions
  • SAFE system for controlled landing after motor failure
  • NDAA-compliant and Blue UAS approved platform
  • Dual GPS with real-time FPV monitoring
  • Wind resistance up to 23 knots
  • Supports interchangeable Sony E-mount lenses
  • External DC-powered camera for long missions
  • UHD 4K video and ultra-high-resolution still imaging
  • Optimized for utility and infrastructure inspections
  • Enterprise configuration, setup, and support from DSLRPros
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DSLRPros Inspired Flight IF1200 Utility Inspection Package

The DSLRPros Inspired Flight IF1200 Utility Inspection Package is a purpose-built aerial solution for utility operators who require endurance, payload flexibility, and uncompromising data quality.

Combining the heavy-lift, NDAA-compliant Inspired Flight IF1200A hexacopter with the full-frame Inspired Flight Sony ILX-LR1 camera payload, this package is optimized for inspecting powerlines, substations, transmission corridors, and other critical infrastructureβ€”safely, efficiently, and at scale.

PerformanceΒ Features at a Glance

  • Heavy-lift IF1200A hexacopter optimized for utility inspection missions
  • Up to 43 minutes of flight time with 16000mAh batteries
  • SAFE drone system for controlled landing in the event of motor failure
  • Blue UAS and NDAA compliant for regulated and government operations
  • Sony ILX-LR1 full-frame 61MP camera for ultra-detailed inspection imagery
  • Interchangeable Sony E-mount lenses for flexible inspection workflows
  • Wind resistance up to 23 knots for stable flight near infrastructure
  • External DC-powered payload for extended inspection missions

Designed for enterprise, government, and industrial users, this inspection-ready combo delivers long flight times, robust redundancy, and ultra-high-resolution imaging to support detailed visual analysis and long-term asset management.

IF1200A Hexacopter: Built for Utility Inspection Demands

The Inspired Flight IF1200A is engineered for mission-critical operations where reliability and performance are non-negotiable. With a maximum flight time of up to 43 minutes and a payload capacity of up to 19.1 lbs under Part 107, the IF1200A enables utility teams to inspect long asset runs in fewer flights.

Its hexacopter design and SAFE drone system provide an added layer of operational security. In the event of a motor failure, the aircraft transitions into a safe manual flight mode and alerts the pilot to landβ€”an essential feature when operating near energized lines or critical infrastructure.

Dual GPS, real-time FPV, and advanced flight modes such as Position Hold, Loiter, Auto, and Return-to-Launch support precise maneuvering and repeatable inspection paths. With a top speed of 56 mph and resistance to winds up to 23 knots, the IF1200A maintains stability and control even in challenging utility environments.

Trusted Compliance for Regulated Utility Operations

The IF1200A is fully NDAA compliant and Blue UAS listed, making it suitable for utility providers and government-affiliated operators with strict procurement and cybersecurity requirements.

These certifications reduce deployment barriers, ensure long-term supportability, and align the platform with federal and enterprise UAS standards.

Manufactured and supported in California, USA, the IF1200A offers a secure, domestically supported platform for organizations operating in sensitive or regulated airspace.

Sony ILX-LR1: Full-Frame Imaging for Detailed Asset Inspection

The Inspired Flight Sony ILX-LR1 payload brings industrial-grade, full-frame imaging to aerial utility inspections. At its core is a 61MP back-illuminated Exmor R CMOS sensor powered by the BIONZ XR processor, enabling exceptional detail capture across large inspection areas.

This level of resolution allows operators to identify fine defects such as corrosion, cracked insulators, damaged fittings, and hardware wearβ€”reducing the need for repeat flights or manual re-inspections.

Imaging Performance Optimized for Aerial Inspections

The ILX-LR1 delivers low-noise imagery with wide dynamic range across an ISO range of 100–32000, making it effective in varying lighting conditions often encountered during utility inspections. Mechanical and electronic shutter options support accurate exposure during both hover-based inspections and corridor mapping flights.

Support for interchangeable Sony E-mount lenses allows operators to tailor focal lengths for specific inspection tasksβ€”whether capturing wide-area corridor imagery or zoomed-in views of individual components. UHD 4K video recording further supports detailed visual documentation and review.

Advantages of the ILX-LR1 on the IF1200 Platform

When deployed on the IF1200A, the lightweight 243 g ILX-LR1 payload preserves flight endurance while benefiting from the aircraft’s heavy-lift stability. External DC power eliminates the need for camera battery swaps, streamlining long-duration inspection workflows.

Micro-HDMI output enables live monitoring or external recording, while compatibility with Sony’s Camera Remote SDK allows full remote control of camera settings, shutter, and live view. It supports synchronized and repeatable data capture across inspection missions.

Utility Inspection Use Cases

  • Powerline and transmission corridor inspections
  • Substation and switchyard visual assessments
  • Inspection of poles, towers, and insulators
  • Right-of-way and vegetation management surveys
  • High-resolution documentation for maintenance planning
  • Asset condition monitoring and historical record building
  • Post-storm and emergency infrastructure assessments

A Complete, Inspection-Ready Solution from DSLRPros

The DSLRPros Inspired Flight IF1200 Utility Inspection Package delivers a powerful combination of endurance, redundancy, and imaging precision tailored specifically for utility inspection professionals.

From large-area corridor coverage to close-up component analysis, this system enables safer inspections, reduced downtime, and higher-quality data.

When you purchase from DSLRPros, you gain access to experienced UAS specialists who assist with system configuration, payload selection, training, and ongoing support. You can rest assured your IF1200 inspection platform is mission-ready from day one.

Performance

  • Max Ascent Speed: 5 m/s (16 ft/s)
  • Max Descent Speed: 2.5 m/s (8.2 ft/s)
  • Max Air Speed: 25 m/s (56 mph)
  • Max Wind Resistance: 12 m/s (23 knots), 15 m/s gusts (29 knots)
  • Max Tilt Angle: 30Β°
  • Max Angular Velocity: Tilt: 300Β°/s, Yaw: 45Β°/s
  • Operating Temperature: -20Β°C to 45Β°C (-4Β°F to 113Β°F)
  • Operating Humidity: 10% to 95%
  • Service Ceiling (with payload):

    3.9 km (12,800 ft) with 4 kg
    2.2 km (7,200 ft) with 8.7 kg

Physical Features

  • Diagonal Size: 1,025 mm (40.4 in)
  • Unfolded Size (WxLxH): 165.5 x 154 x 76.5 cm (65.1 x 60.6 x 30.2 in)
  • Folded Size (WxLxH): 47.5 x 49.5 x 47 cm (18.7 x 19.5 x 18.5 in)
  • Empty Weight (without batteries): 7.8 kg (17.2 lbs)
  • Weight with Batteries: 16.3 kg (35.9 lbs)
  • Max Gross Takeoff Weight: 25 kg (55 lbs)
  • Max Payload Capacity: 8.7 kg (19.1 lbs)
  • Transport Case Size (WxLxH): 64.8 x 64.8 x 58.4 cm (25.5 x 25.5 x 23.0 in)
  • Transport Case Weight (with aircraft): 29 kg (64 lbs)

Flight Stack

  • Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMUs
  • GNSS / Compass: Dual CubePilot Here3 M8P
  • Payload Power Rails: 12s Battery Voltage; 5V, 12V/15V, 18V, 44.4V
  • Payload Interface: IF1200A Universal Payload Interface
  • Operating Software: Copter by Ardupilot

Flight Modes

  • Position Hold: Holds altitude and position; manually change position
  • Loiter: Holds altitude and position; allows precise manual movements via GPS
  • Auto: Executes predefined waypoint mission
  • RTL (Return to Launch): Returns to takeoff point and lands automatically
  • Land: Auto landing while maintaining horizontal position
  • Altitude Hold: Maintains altitude only; used as failsafe if GPS signal is lost
  • 1x Inspired Flight IF1200A Hexacopter with GS-ONE Ground Control Station
  • 1x Inspired Flight IF1200 Battery Set
  • 1x Inspired Flight IF1200 Dovetail Kit 3.0 Version (Required for Payload Integration)
  • 1x Inspired Flight Sony ILX-LR1 Payload for IF1200
Is remote camera control supported on the Inspired Flight Sony ILX-LR1 Payload for IF1200?

Yes, Sony’s Camera Remote SDK enables full remote operation.

Does the Inspired Flight Sony ILX-LR1 Payload for IF1200 record 4K video?

Yes, it supports internal UHD 4K recording up to 59.94 fps.

Does the Inspired Flight Sony ILX-LR1 Payload for IF1200 support interchangeable lenses?

Yes, it supports Sony E-mount full-frame lenses.

What image resolution does the Inspired Flight Sony ILX-LR1 Payload for IF1200 provide?

It captures approximately 61MP full-frame still images.

Does the IF1200A support third-party payload integrations (e.g., LiDAR, multispectral)?

Yes, the universal payload interface and documented payload adapter guides show support for third-party sensors (e.g., Sentera 6X series).

Is the IF1200A made in the USA?

Yes, it is built and supported in California, USA.

Is the IF1200A NDAA and Blue UAS compliant?

Yes, the platform is engineered and marketed for enterprise/government use, and is NDAA-compliant and Blue UAS approved.

How can I clean the IF1200A?

Blow off with compressed air, then wipe debris with isopropyl alcohol & microfiber cloth. Avoid dampening electronics.

Why is my IF1200A difficult to unlock and fold after flight?

Thrust can make the folding arm locks difficult. Solution: support the bottom of the arm with a slight upward force while sliding the lock to release.

What is the top speed of the IF1200A?

Maximum air speed is about 25 m/s (β‰ˆ56 mph).

What is the maximum payload capacity of the IF1200A?

Maximum payload around 19.1 lbs (8.7 kg).

What is the maximum flight time of the IF1200A?

Up to about 43 minutes under ideal conditions (no payload) for the IF1200A.

What is the difference between the IF1200 and the IF1200A?

The IF1200 and IF1200A are the same aircraft model; some documentation uses one term or the other.

What’s the difference between the Inspired Flight IF800 and IF1200A?

The IF1200A is engineered for heavy-lift missions, offering higher payload capacity and longer endurance, making it suitable for large-scale mapping and utility projects. The IF800 is a versatile, mid-sized platform, ideal for urban missions and applications where a balance of portability and payload capability is essential.
