DSLRPros Inspired Flight IF1200 Utility Inspection Package

DSLRPros Inspired Flight IF1200 Utility Inspection Package

The DSLRPros Inspired Flight IF1200 Utility Inspection Package is a purpose-built aerial solution for utility operators who require endurance, payload flexibility, and uncompromising data quality.

Combining the heavy-lift, NDAA-compliant Inspired Flight IF1200A hexacopter with the full-frame Inspired Flight Sony ILX-LR1 camera payload, this package is optimized for inspecting powerlines, substations, transmission corridors, and other critical infrastructure—safely, efficiently, and at scale.

Performance Features at a Glance

• Heavy-lift IF1200A hexacopter optimized for utility inspection missions
• Up to 43 minutes of flight time with 16000mAh batteries
• SAFE drone system for controlled landing in the event of motor failure
• Blue UAS and NDAA compliant for regulated and government operations
• Sony ILX-LR1 full-frame 61MP camera for ultra-detailed inspection imagery
• Interchangeable Sony E-mount lenses for flexible inspection workflows
• Wind resistance up to 23 knots for stable flight near infrastructure
• External DC-powered payload for extended inspection missions

Designed for enterprise, government, and industrial users, this inspection-ready combo delivers long flight times, robust redundancy, and ultra-high-resolution imaging to support detailed visual analysis and long-term asset management.

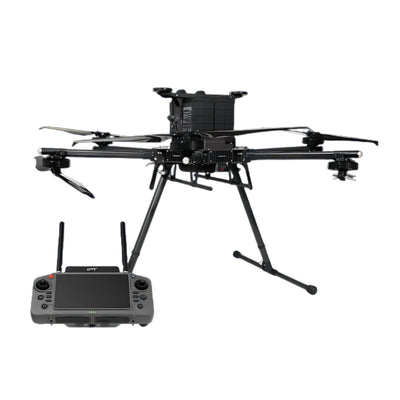

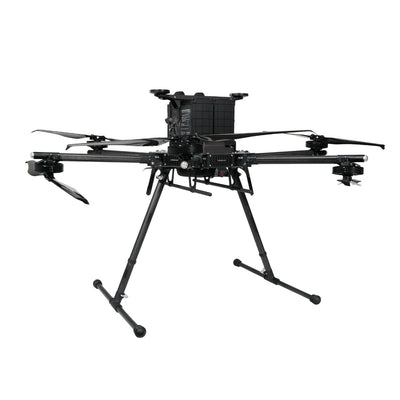

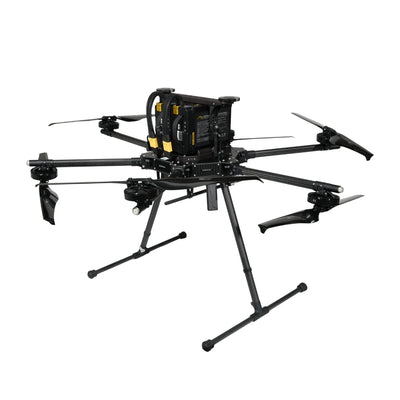

IF1200A Hexacopter: Built for Utility Inspection Demands

The Inspired Flight IF1200A is engineered for mission-critical operations where reliability and performance are non-negotiable. With a maximum flight time of up to 43 minutes and a payload capacity of up to 19.1 lbs under Part 107, the IF1200A enables utility teams to inspect long asset runs in fewer flights.

Its hexacopter design and SAFE drone system provide an added layer of operational security. In the event of a motor failure, the aircraft transitions into a safe manual flight mode and alerts the pilot to land—an essential feature when operating near energized lines or critical infrastructure.

Dual GPS, real-time FPV, and advanced flight modes such as Position Hold, Loiter, Auto, and Return-to-Launch support precise maneuvering and repeatable inspection paths. With a top speed of 56 mph and resistance to winds up to 23 knots, the IF1200A maintains stability and control even in challenging utility environments.

Trusted Compliance for Regulated Utility Operations

The IF1200A is fully NDAA compliant and Blue UAS listed, making it suitable for utility providers and government-affiliated operators with strict procurement and cybersecurity requirements.

These certifications reduce deployment barriers, ensure long-term supportability, and align the platform with federal and enterprise UAS standards.

Manufactured and supported in California, USA, the IF1200A offers a secure, domestically supported platform for organizations operating in sensitive or regulated airspace.

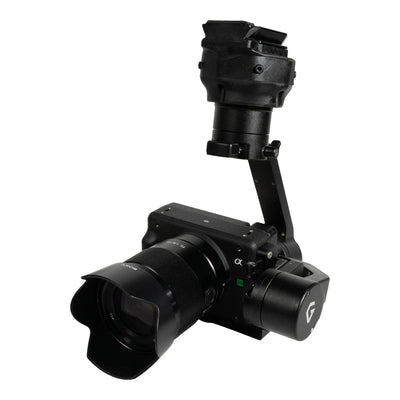

Sony ILX-LR1: Full-Frame Imaging for Detailed Asset Inspection

The Inspired Flight Sony ILX-LR1 payload brings industrial-grade, full-frame imaging to aerial utility inspections. At its core is a 61MP back-illuminated Exmor R CMOS sensor powered by the BIONZ XR processor, enabling exceptional detail capture across large inspection areas.

This level of resolution allows operators to identify fine defects such as corrosion, cracked insulators, damaged fittings, and hardware wear—reducing the need for repeat flights or manual re-inspections.

Imaging Performance Optimized for Aerial Inspections

The ILX-LR1 delivers low-noise imagery with wide dynamic range across an ISO range of 100–32000, making it effective in varying lighting conditions often encountered during utility inspections. Mechanical and electronic shutter options support accurate exposure during both hover-based inspections and corridor mapping flights.

Support for interchangeable Sony E-mount lenses allows operators to tailor focal lengths for specific inspection tasks—whether capturing wide-area corridor imagery or zoomed-in views of individual components. UHD 4K video recording further supports detailed visual documentation and review.

Advantages of the ILX-LR1 on the IF1200 Platform

When deployed on the IF1200A, the lightweight 243 g ILX-LR1 payload preserves flight endurance while benefiting from the aircraft’s heavy-lift stability. External DC power eliminates the need for camera battery swaps, streamlining long-duration inspection workflows.

Micro-HDMI output enables live monitoring or external recording, while compatibility with Sony’s Camera Remote SDK allows full remote control of camera settings, shutter, and live view. It supports synchronized and repeatable data capture across inspection missions.

Utility Inspection Use Cases

• Powerline and transmission corridor inspections
• Substation and switchyard visual assessments
• Inspection of poles, towers, and insulators
• Right-of-way and vegetation management surveys
• High-resolution documentation for maintenance planning
• Asset condition monitoring and historical record building
• Post-storm and emergency infrastructure assessments

A Complete, Inspection-Ready Solution from DSLRPros

The DSLRPros Inspired Flight IF1200 Utility Inspection Package delivers a powerful combination of endurance, redundancy, and imaging precision tailored specifically for utility inspection professionals.

From large-area corridor coverage to close-up component analysis, this system enables safer inspections, reduced downtime, and higher-quality data.

When you purchase from DSLRPros, you gain access to experienced UAS specialists who assist with system configuration, payload selection, training, and ongoing support. You can rest assured your IF1200 inspection platform is mission-ready from day one.
