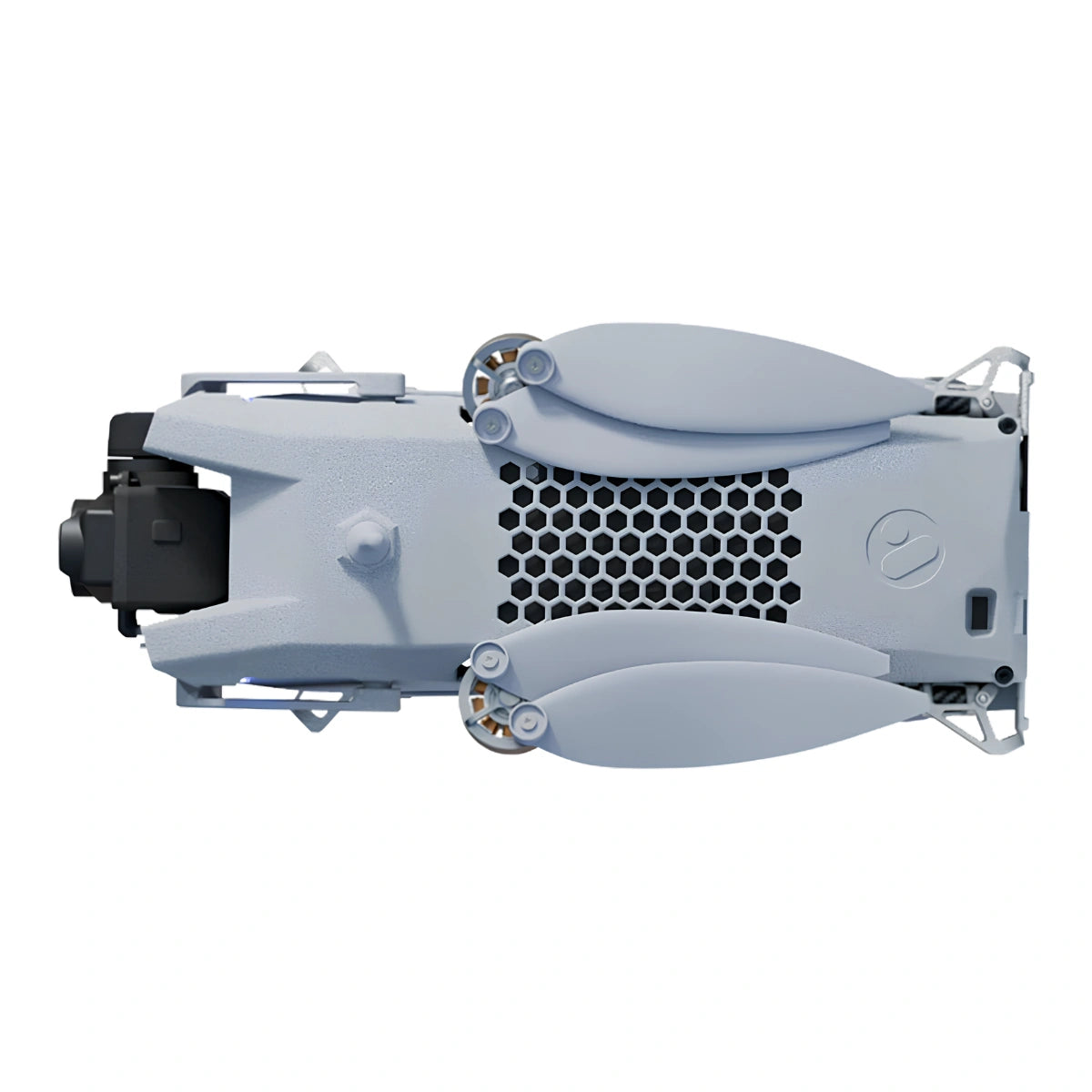

Vantage Robotics Trace UAV (2.4GHz) Public Safety Bundle

Vantage Robotics Trace UAV (2.4GHz) Public Safety Bundle

$12,599.00
$12,599.00
Sale Sold out
Shipping calculated at checkout.

S-VAN-TRACE-PS-BUN

SKU S-VAN-TRACE-PS-BUN MPN TRACE-PS-BUN
  • American-built hand-launched nano UAV, DoD Blue UAS Cleared, NDAA compliant.
  • 48MP EO camera with 25× digital zoom for precise aerial target identification.
  • Thermal imaging via 320p uncooled IR sensor for low-light and night surveillance.
  • AES-256 encrypted 6km LOS range with automatic channel hopping included.
  • Full 360° obstacle avoidance for indoor and GPS-denied environment operations.
  • Thirty-six minute flight time on Endurance Batteries included in this bundle.
  • Deploys in 30 seconds from a sub-2.2 lb IP67 waterproof field case.
  • Vision2 GCS with 7 in sunlight-readable display and 4-hour battery life.
  • Perch-and-stare capable for sustained observation without continuous flight.
  • Lightweight 153g airframe clears FAA intrinsically safe weight threshold.
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Vantage Robotics Trace UAV (2.4GHz) Public Safety Bundle: Covert Aerial Intelligence in a Pocket-Sized Platform

The Vantage Robotics Trace is a military-grade nano UAV built for field operators who need reliable aerial intelligence without the logistical burden of larger systems. Weighing just 153 grams and folding down to fit in a standard cargo pocket, Trace deploys in under 30 seconds and delivers stabilized 48MP electro-optical and 320p infrared imaging from a platform that is unseen and inaudible at 30 feet.

Designed, sourced, and built in the USA, it carries DoD Blue UAS Cleared and NDAA compliant status — a non-negotiable baseline for public safety and government operations.

Key Features and Benefits

  • 48MP EO imaging: 25× digital zoom delivers 2.7° HFOV for precise target identification.
  • Thermal imaging: 320×240 uncooled VOx IR sensor covers a 24° field of view.
  • Flight endurance: up to 30 minutes operational time on included Standard Batteries.
  • LOS range: 6 km line-of-sight with AES-256 encrypted, auto channel-hopping link.
  • 360° obstacle avoidance: laser-assisted sensing enables safe indoor and confined-space flight.
  • GPS-denied ops: visual position control with scene illumination maintains stability indoors.
  • Covert profile: platform remains unseen and inaudible at 30 feet against terrain.
  • Rapid deployment: foldable airframe deploys from field case in under 30 seconds.
  • Wind tolerance: operational in sustained winds up to 25 knots in the field.
  • Secure by design: AES-256 encryption, secure boot, and no remote data transmission.

Where conventional small drones compromise on sensor performance or operational security, Trace holds the line on both. The Wisp EO/IR gimbal provides 2-axis stabilization, 25× digital zoom, and full thermal capability in a package that fits in the palm of a hand.

With up to 30 minutes of operational flight time on the included Standard Batteries and 6 km line-of-sight range, Trace gives ground teams persistent eyes overhead without requiring a vehicle, a case, or a crew.

Operational Persistence in a Sub-200-Gram Airframe

Trace is engineered for missions where size is a liability and compromise is not an option. At 153 grams, it clears the FAA's intrinsically safe weight threshold — meaning operators can deploy it in more environments, around more people, without the risk calculus that applies to heavier platforms.

The 2-axis stabilized Wisp gimbal holds a clean image through wind and movement, and the autofocus f/1.8 lens ensures detail is preserved whether the operator is hovering at altitude or threading a narrow corridor. With AES-256 encryption on all communications and storage, and no remote data connect, mission data stays on the network it belongs to.

Compatibility and System Integration

  • Vision2 GCS: 7 in, 2,500 nit sunlight-readable display with 4-hour battery life.
  • Vantage Wisp gimbal: 2-axis EO/IR payload with 320p IR, upgradeable to 640×480.
  • Kutta KTAC and S20 TE: compatible ground control station alternatives for expanded C2.
  • Tomahawk Mimic and Grip GCS: additional compatible controller options for operator flexibility.
  • ATAK integration: supports Android Team Awareness Kit for tactical situational awareness.
  • QGC, WMI, and RAC2: compatible GCS software platforms for mission management.
  • MAVLink and RAS-A: compliant communication protocols for interoperability with existing systems.

Applications and Use Cases

  • Public safety overwatch: provides persistent aerial awareness for law enforcement operations.
  • Search and rescue: thermal and EO sensors locate subjects in low-visibility or night conditions.
  • Tactical reconnaissance: covert profile enables undetected pre-entry intelligence gathering.
  • Indoor operations: 360° obstacle avoidance supports safe flight in structures and confined spaces.
  • Perimeter security: perch-and-stare capability sustains observation without continuous flight.
  • Incident command support: real-time video feeds ATAK and GCS displays for command awareness.
  • Infrastructure inspection: 25× zoom and 4K video capture detailed imagery of hard-to-reach assets.

The Vantage Robotics Trace fills a capability gap that no other platform in its weight class reliably closes, persistent, encrypted, stabilized aerial intelligence that an operator can carry in a pocket and deploy alone in under 30 seconds. For public safety teams operating in dynamic, high-stakes environments, Trace is the platform that shows up ready.

DSLRPros has been equipping professional UAV operators for decades and understands what it takes to deploy the right tool on the right mission. When you order the Vantage Robotics Trace Public Safety Bundle through DSLRPros, you get the full system—aircraft, Wisp gimbal, Vision2 GCS, batteries, chargers, propeller guards, field case, and transport case—backed by the product knowledge and support infrastructure that keeps operators in the field.

Contact DSLRPros today to configure your Trace bundle or discuss fleet procurement.

Aircraft

  • Flight time: 36 minutes
  • Indoor/outdoor operation: Obstacle avoidance, visual position control, and scene illumination for GPS-denied environments
  • Airframe mass: 153 g takeoff weight
  • Flight speed: 52 kph (32 mph) top speed
  • Stealth: <37 dBA at 25 m
  • Visibility: Not visible at 30 ft against terrain
  • Operational wind range: Up to 25 kts
  • Operational temperature range: -20°C to 45°C
  • Ingress protection: IP53
  • Autonomous missions: Multi-constellation GPS
  • Launch: Hand or flat ground
  • Perch and stare capable

Security

  • Origin: Designed, sourced, and built in USA
  • Encryption: AES-256 on communications and data storage
  • Security compliance: DoD Blue (pending) and NDAA compliant
  • Data transmission: No remote data transmission

Control & Communications

  • LOS range: 6 km
  • NLOS range: 500 m (30 dBi attenuation)
  • Frequencies available: 2.4 GHz ISM and multi-band alternatives
  • Channels: Automatic channel hopping
  • Connection standards: MAVLink and RAS-A compliant
  • GCS software compatibility: QGC, ATAK, WMI, RAC2
  • Controller compatibility: Vantage Vision 2, Kutta KTAC, S20 TE, Tomahawk Mimic, Grip GCS

Portability

  • Launch time: Deployable in 30 seconds
  • Compact stowage: Folding arms
  • Durability in field case: IP67 waterproof case with 90 kg crush and 1 m drop resistance
  • Weight: <1000 g and 1000 cm³ with field case, 2 batteries, and Vision2 GCS
  • Transport case: Watertight, dustproof, dent-proof

Gimbal & Camera

  • Gimbal: 2-axis stabilized EO/IR gimbal
  • Gimbal pitch control: -90° to +70° user controllable
  • Sensors: EO and thermal, upgradeable to 640 × 480 thermal
  • EO camera: 48 MP
  • EO optics: f/1.8 lens with autofocus
  • Zoom: 25× digital zoom (67°–2.7° HFOV)
  • Still images: 8000 × 6000 px
  • Thermal sensor: 320×240 IR uncooled VOx sensor 24º or 57º HFOV options
  • Video recording format: 1080p or 4K MPEG-4
  • 1x Trace Aircraft (2.4GHz)
  • 1x Wisp EO/IR Gimbal 320p IR-Color Payload
  • 1x Vision2 GCS
  • 1x 2.4GHz Radio Module
  • 1x GCS Charger with Cable (USB-C)
  • 2x Spare Rotors
  • 2x Trace Standard Batteries
  • 1x Trace Propeller Guards (Pair)
  • 1x Trace Multi-Battery Charger (USB-C)
  • 1x Trace Field Case
  • 1x Transport Case
What is included in the Vantage Robotics Trace Public Safety Bundle?

The Public Safety Bundle includes the Trace aircraft (2.4GHz), Wisp EO/IR gimbal with 320p IR, Vision2 GCS, 2.4GHz radio module, two Standard Batteries, a multi-battery USB-C charger, GCS charger with USB-C cable, propeller guards, two spare rotors, an IP67 field case, and a transport case. Everything required to deploy is included in the box. No additional hardware purchases are required to begin operations.

How does the 640p thermal sensor improve on the standard 320p configuration?

The Wisp w/640p IR gimbal delivers 640×480 thermal resolution across a 48° field of view, compared to the 320×240 resolution and 24° field of view in the standard configuration.

The higher pixel count produces finer thermal detail for subject identification, heat signature differentiation, and low-light situational awareness. For public safety operations requiring positive identification or detailed thermal scene analysis, the 640p configuration provides a meaningful operational advantage over the entry-level IR option.

Is the Vantage Robotics Trace approved for government and law enforcement use?

Yes. Trace carries DoD Blue UAS Cleared status and is fully NDAA compliant, meeting the procurement and operational security requirements for federal, state, and local government agencies. It features AES-256 encryption on all communications and data storage, secure boot, and no remote data transmission.

Can the Trace operate indoors or in GPS-denied environments?

Yes. Trace is specifically designed for GPS-denied environments. It maintains full position control through downward-facing visual sensors and an integrated scene illuminator for low-light conditions. The 360° obstacle avoidance system uses laser range-finding sensors to prevent collisions in confined spaces, corridors, and structures.

What ground control software is compatible with the Trace?

Trace is compatible with QGC, ATAK, WMI, and RAC2 ground control software platforms, and supports both MAVLink and RAS-A communication protocols. The included Vision2 GCS supports multiple GCS applications and can run custom APKs. For operators already using ATAK in the field, Trace integrates directly into existing tactical workflows.

Can the Trace be flown by a single operator?

Yes. The Trace is designed for single-operator deployment. The full tactical configuration — aircraft, Vision2 GCS, field case, and two batteries — weighs under 2.2 lbs (1,000 g) and fits in a small backpack. The 30-second deployment time and hand-launch capability make it practical for solo field use without ground support equipment.
