Teledyne FLIR SIRAS Combo: Professional UAV with Thermal Imaging and Rapid Deployment
The Teledyne FLIR SIRAS Combo is a purpose-built enterprise drone designed for inspection, utilities, and public safety professionals who need secure, reliable aerial intelligence. It pairs a 16 MP visible camera with a radiometric 640×512 Boson thermal sensor, delivering both detailed color imagery and calibrated temperature data in real time. Built with IP54-rated protection, hot-swappable dual batteries, and no geofencing restrictions, SIRAS is ready to launch within minutes-ensuring critical missions aren't delayed. This combo includes the SIRAS aircraft, Vue TV128 dual-sensor payload, dual battery set, and replacement remote controller.
Rapid Deployment, Reliable Performance
SIRAS is engineered for speed and security. It powers on and takes flight in under two minutes, with no login requirements or cloud dependencies. Its top-and-bottom dual battery system provides up to 31 minutes of endurance and supports hot-swapping, allowing fresh batteries to be swapped in without shutting down the aircraft. Data security is prioritized-photos, video, and flight logs are stored only on removable SD cards, never on the cloud-making it ideal for sensitive infrastructure inspections and public safety missions.
Rugged Build, Advanced Payload
The Vue TV128 payload provides both radiometric thermal imaging and high-resolution visual detail. Operators benefit from up to 128× digital zoom on the visible side and 5× thermal zoom, with FLIR's MSX technology overlaying visible edges onto thermal images for enhanced interpretation. The aircraft itself is built to withstand real-world conditions, with IP54 protection against dust and light rain, and forward-facing radar for collision avoidance. Its modular gimbal mount supports payload swaps, future-proofing the platform as new sensors are introduced.
Key Features and Benefits
- Dual payload: 16 MP visual + 640×512 radiometric thermal sensor
- FLIR MSX technology: Thermal imagery enhanced with visual edge details
- Long endurance: 31-minute flights on dual hot-swappable batteries
- Hot-swap design: Swap batteries without powering off the system
- Geofence-free: Fly without restricted zone lockouts or unlock requests
- Secure data: Local SD card storage with no mandatory cloud services
- Rugged design: IP54 dust and rain resistance for real-world missions
- Collision avoidance: Forward radar sensors help detect nearby obstacles
- Integrated zoom: 128× visible and 5× thermal magnification
- Modular mount: Swappable payload system for future expansion
Applications and Use Cases
- Electrical inspections: Detect overheating lines, transformers, and substations
- Firefighting: Identify hotspots and track fire spread through smoke
- Search and rescue: Locate missing persons using body heat signatures
- Law enforcement: Tactical overwatch and secure surveillance operations
- Border monitoring: Wide-area patrols with no geofence restrictions
- Solar and wind farms: Inspect panels and turbines for faults efficiently
- Oil and gas: Spot leaks and overheating across large facilities
- Wildlife management: Monitor animals using thermal signatures
- Construction projects: Document progress and thermal anomalies
- Disaster response: Deliver aerial situational awareness in emergencies
The Teledyne FLIR SIRAS Combo provides professionals with a secure, rugged, and versatile platform for capturing both thermal and visible data. Its quick deployment, geofence-free operation, and advanced payload make it a reliable partner for high-stakes missions.
At DSLRPros, we provide enterprise-grade drone solutions with complete lifecycle support, including training, service, and certified equipment. As an authorized Teledyne FLIR dealer, we ensure your team has the tools and expertise for success. Order now or contact us today to integrate the SIRAS Combo into your operations.
Specifications
-
Aircraft
- Take Off Readiness: 1-minute after power ON
- Geo-Fencing: None
- Return to Home: Yes
- Disconnect Return to Home: Yes
- Hover Accuracy: ±1.5 m horizontal, ±0.5 m vertical
- Operating Environment: -10°C to 40°C
- Maximum Ground Speed: 18 m/s (40 mph)
- Default Ground Speed: 6 m/s (13.4 mph)
- Wind Resistance: 5 m/s (11.1 mph)
- Maximum Ascent Speed: 6 m/s
- Maximum Descent Speed: 4 m/s
- Ingress Protection: IP54
- Foldable Props: Yes, quick connect
- Night Flight Beacons: Yes (red and white), on/off & blink options
- Collision Avoidance:
- Front Facing Radar: up to 30 m when flying < 5 m/s
- HFOV: 100°
- VFOV: 38°
- Ground detection via underside sensors
-
Imaging & Optical
- EO Camera Resolution: 16 MP with 20 MP mapping mode, 2 MP at 32x zoom
- EO Video Speed: 1080p
- IR Camera Resolution: 640 × 512, radiometric (spot meter, isotherms, ROI)
- IR Video Frame Rate: 60 Hz
- Digital Zoom: 20x for both EO and IR
- FLIR MSX: Yes
- Gimbal:
- Maximum Control Speed: 120°/sec
- Control Range: -90° to 150°
- Control Accuracy: ±0.02°
-
Remote Controller & Transmission
- Operating Frequency: Dual Band - 2.4 GHz / 5.8 GHz
- Operating Distance: 9 km (6 miles)
- Layout: Mode 2
- Display Latency: < 1 sec
- Transmission Quality: 720p, 30 fps
- Display Brightness: 1000 lumens
- Built-in Battery: 90 minutes
-
Battery
- 20% Battery Warning: Yes, visual and audio signal
- 10% Battery RTH: Yes
- Hot Swappable Batteries: Yes
- Maximum Flight Time: 31 minutes*
- Maximum Hovering Time: 28 minutes*
- Battery Energy: 6000 mAh × 2
- Type: LiPo 4S
- Charging Temperature Range: 5°C to 50°C
- Storage Temperature & Humidity: Room temperature and < 70% recommended
- Recommended Storage Temperature: Room temperature
- Max Charging Current: 6 amps
- Charging Time: 45 minutes
-
Storage
- SD Storage: Formatted 64 GB SD card is provided with aircraft
- Internal Storage: 1 GB
-
FLIR VUE TV128 Specifications
- Thermal Resolution: 640 × 512
- Thermal Zoom: 5×
- Visible Resolution: 16 MP
- Visible Zoom: 128×
- Imaging Technology: FLIR MSX® (Multi-Spectral Dynamic Imaging)
- Software Compatibility: FLIR Thermal Studio™, Pix4D®
- Mounting: Quick connect, swappable for Teledyne FLIR SIRAS

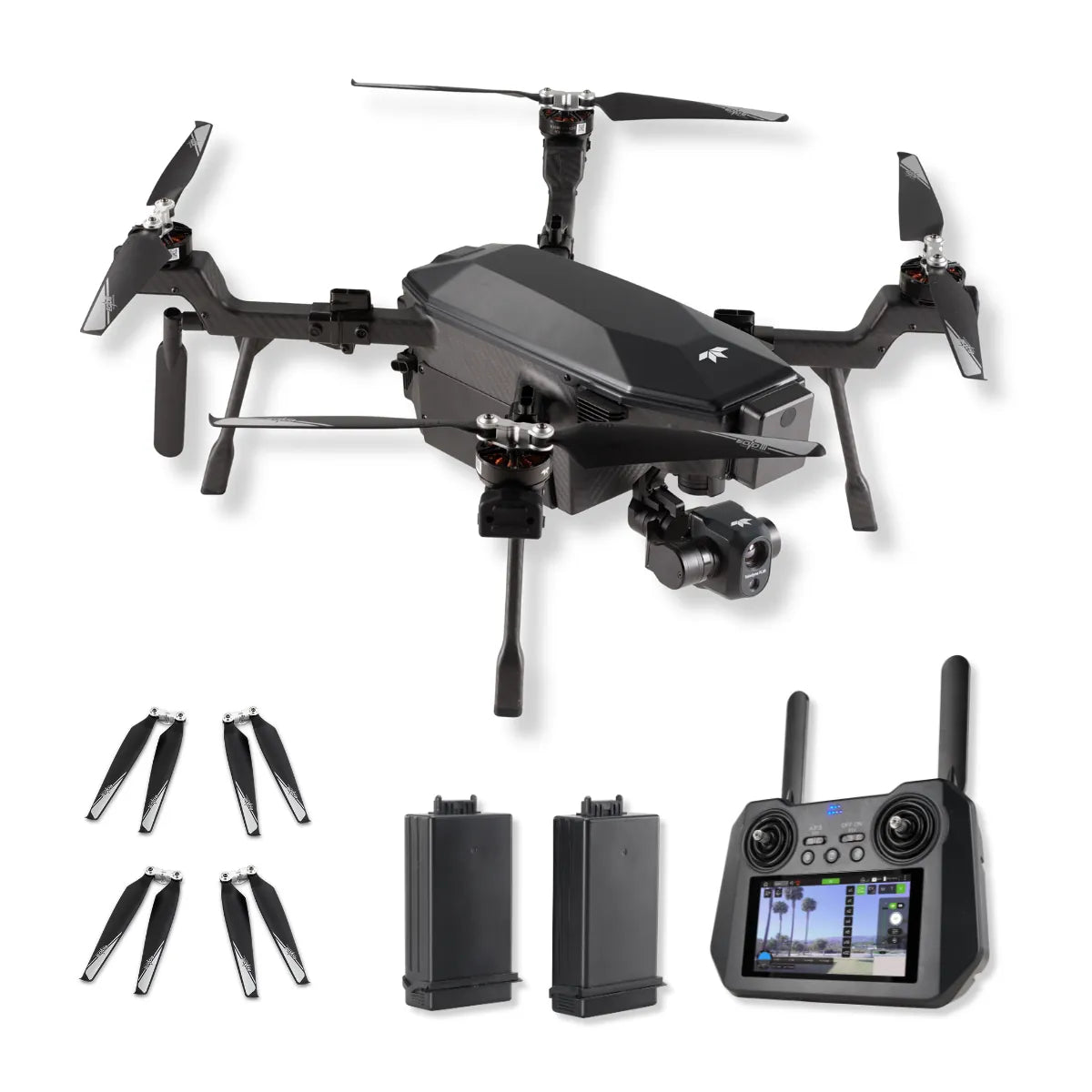

In The Box
- 1x Teledyne FLIR SIRAS aircraft only
- 1x Teledyne FLIR SIRAS batteries, 1 set (top & bottom)
- 1x Teledyne FLIR SIRAS replacement remote controller
- 1x Teledyne FLIR VUE TV128 payload
- 1x Teledyne FLIR SIRAS CCW Propeller Set (1 Pair)
- 1x Teledyne FLIR SIRAS CW Propeller Set (1 Pair)
