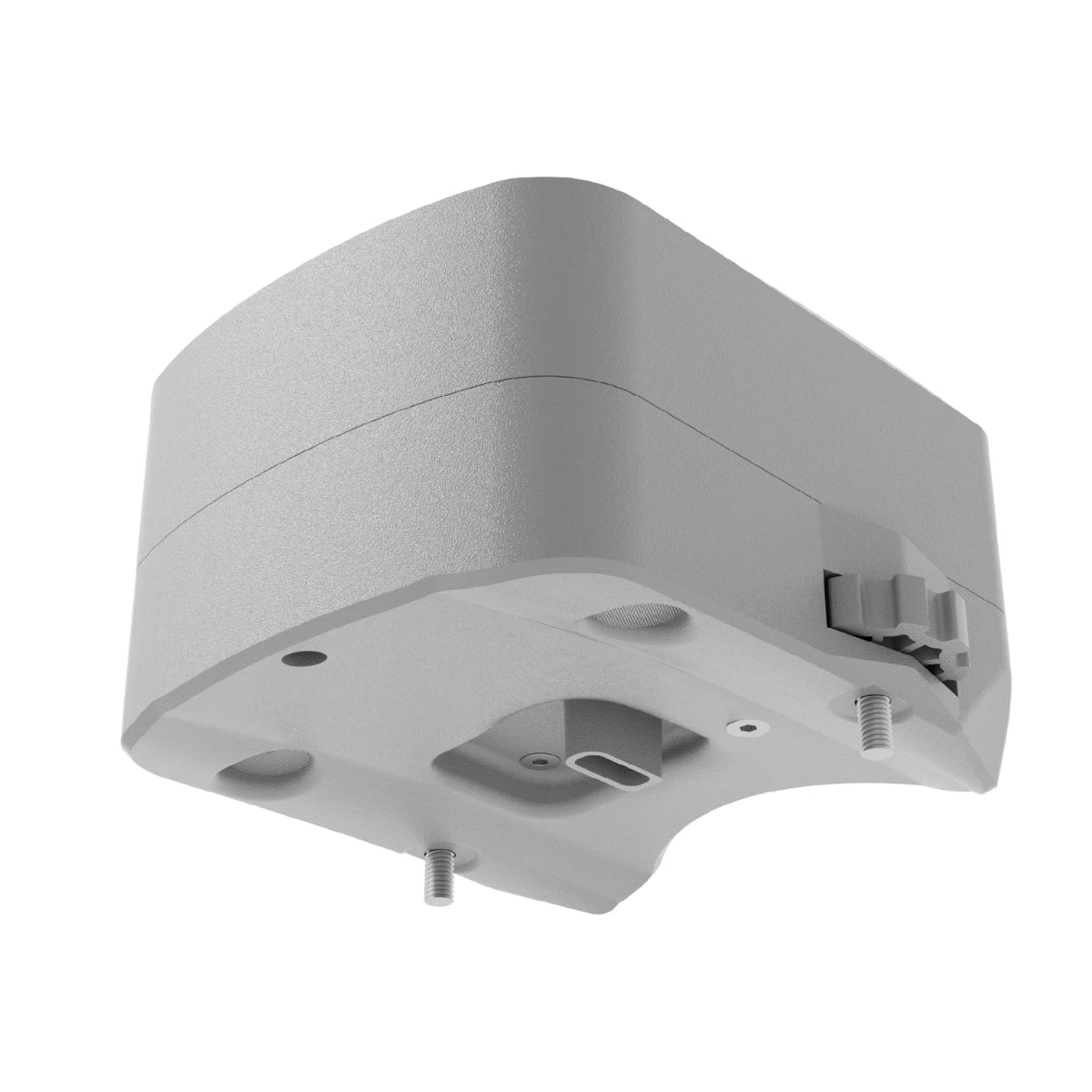

Rivabyte DPS-Y4P Parachute for Matrice 4T/4E

Rivabyte DPS-Y4P Parachute for Matrice 4T/4E: Lightweight emergency descent for compact enterprise platforms

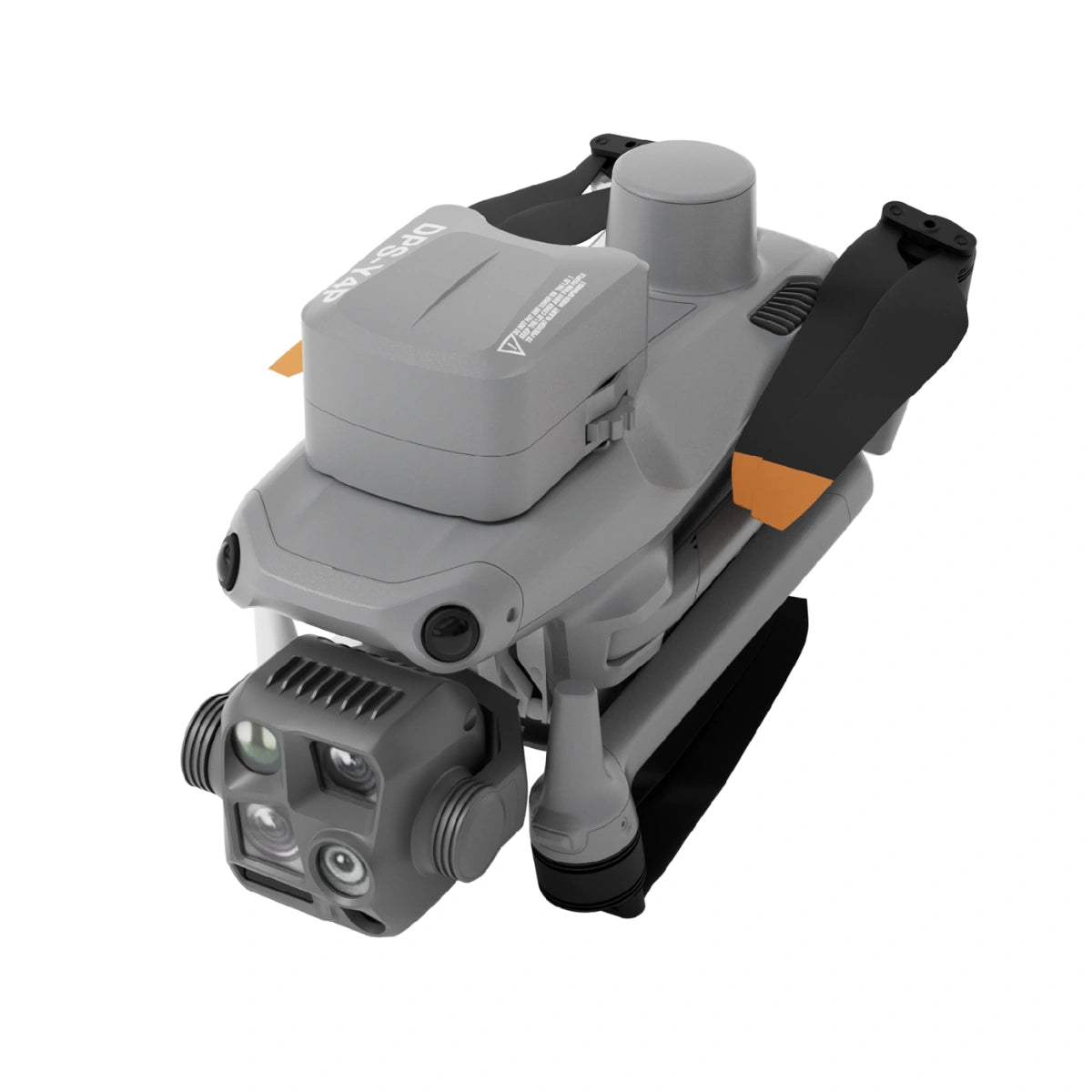

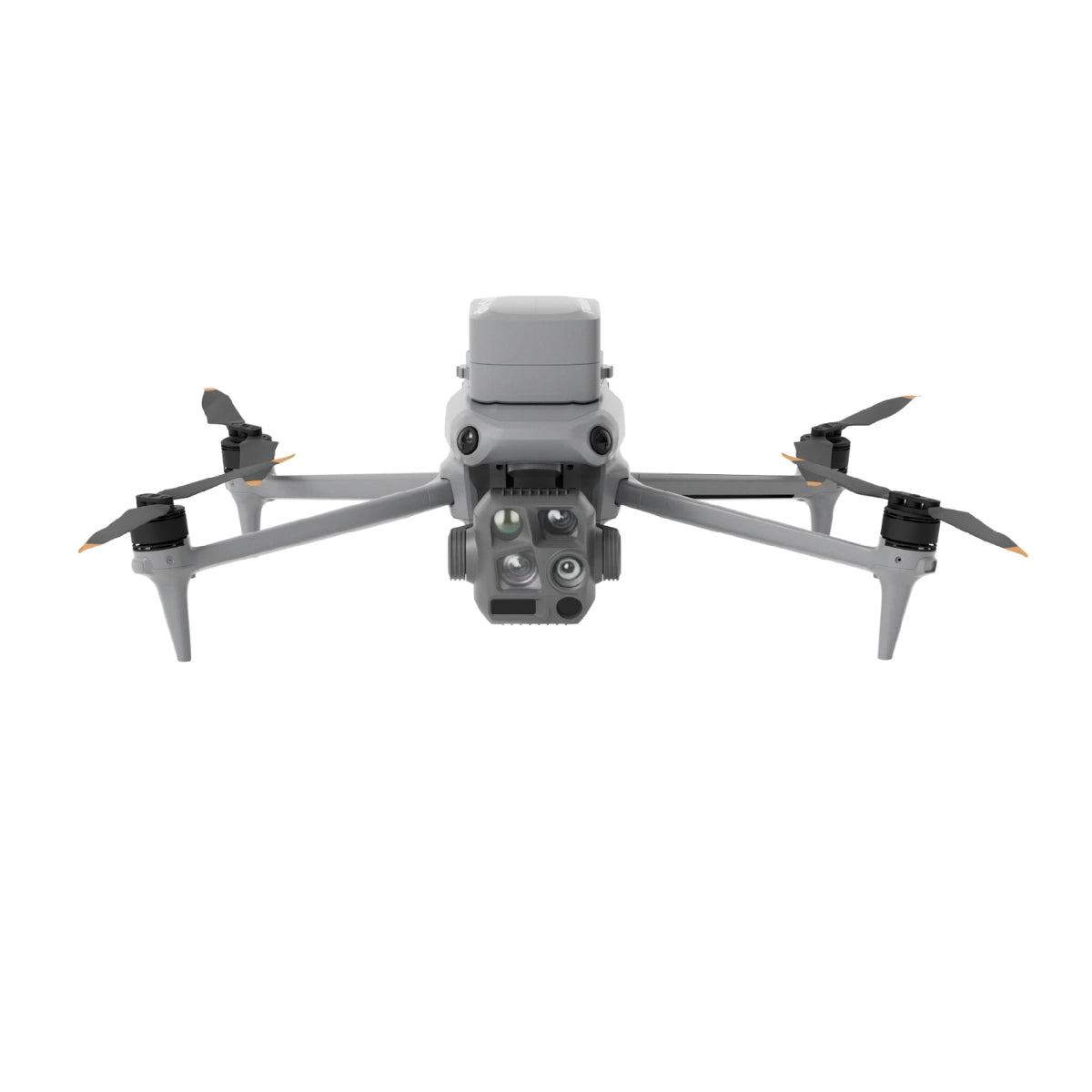

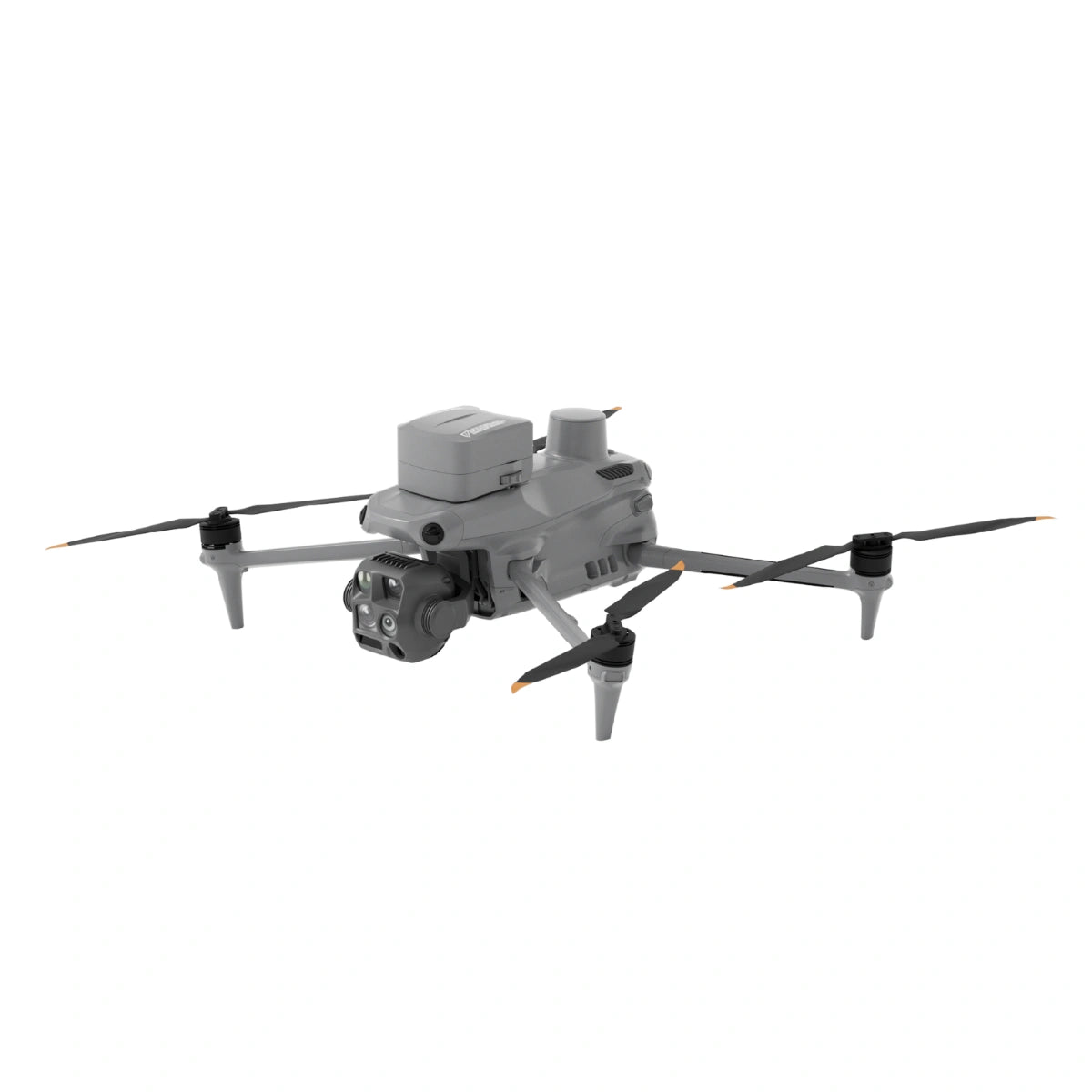

The Rivabyte DPS-Y4P Parachute is engineered for DJI Matrice 4T and 4E aircraft, offering compact, rapid-response emergency descent capability for demanding enterprise missions. Its minimalist drawer-style mounting system and top-mounted E-Port interface allow fast installation using two M3 screws, with no pre-installed kits required.

The DPS-Y4P integrates cleanly with the aircraft’s structure, delivering a reliable safety layer for operations conducted in urban, industrial, or confined environments where controlled descent is essential.

Intelligent monitoring supports timely activation during flight irregularities

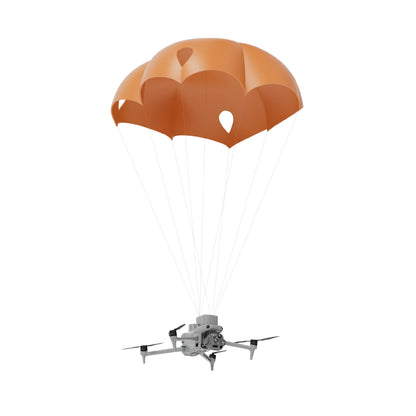

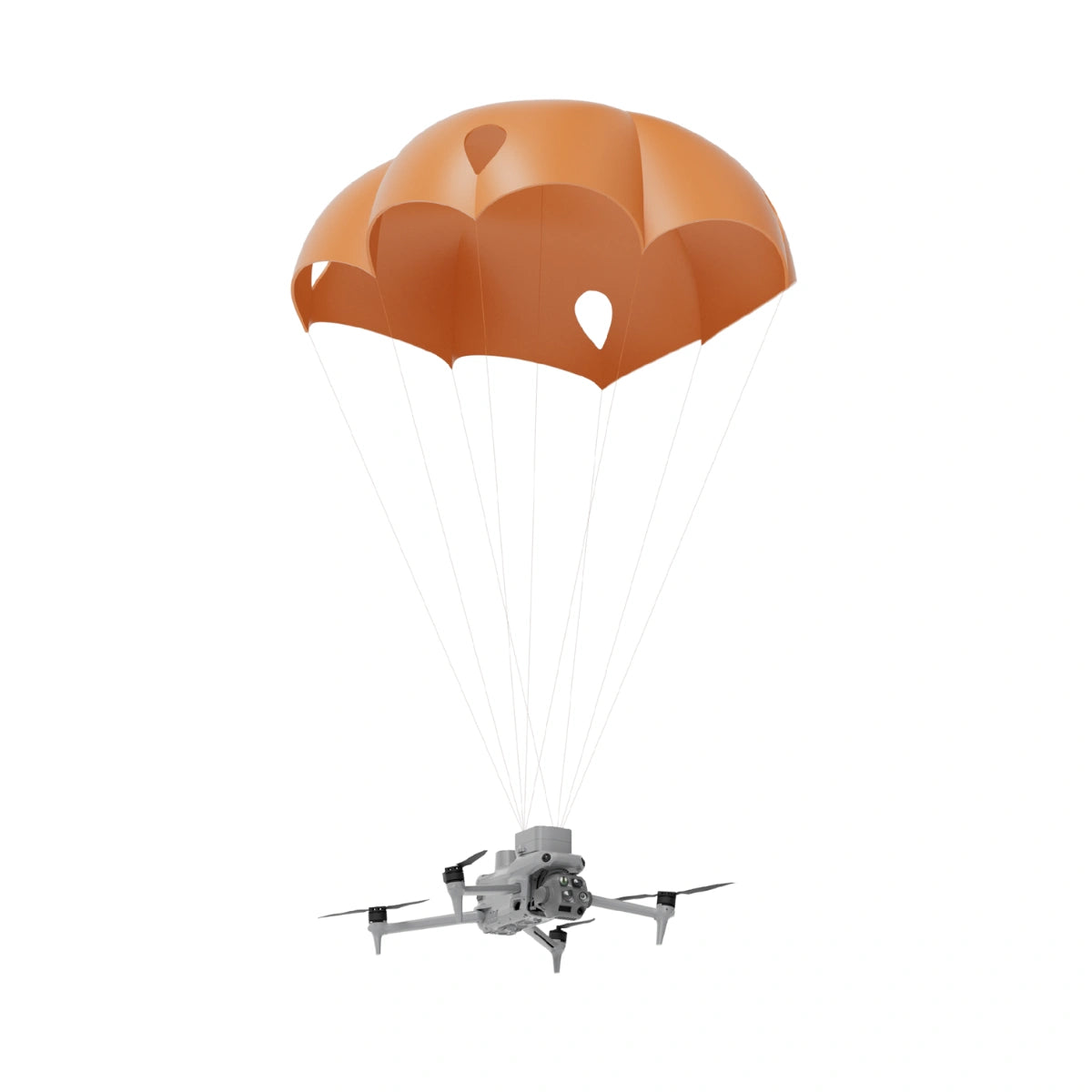

Developed through DJI PSDK, the DPS-Y4P maintains continuous telemetry communication to detect malfunction, loss of lift, or rapid descent. When a critical condition is identified, the system initiates a propeller stop and deploys the parachute automatically. Operators may also activate deployment manually via a dedicated button on the DJI controller interface.

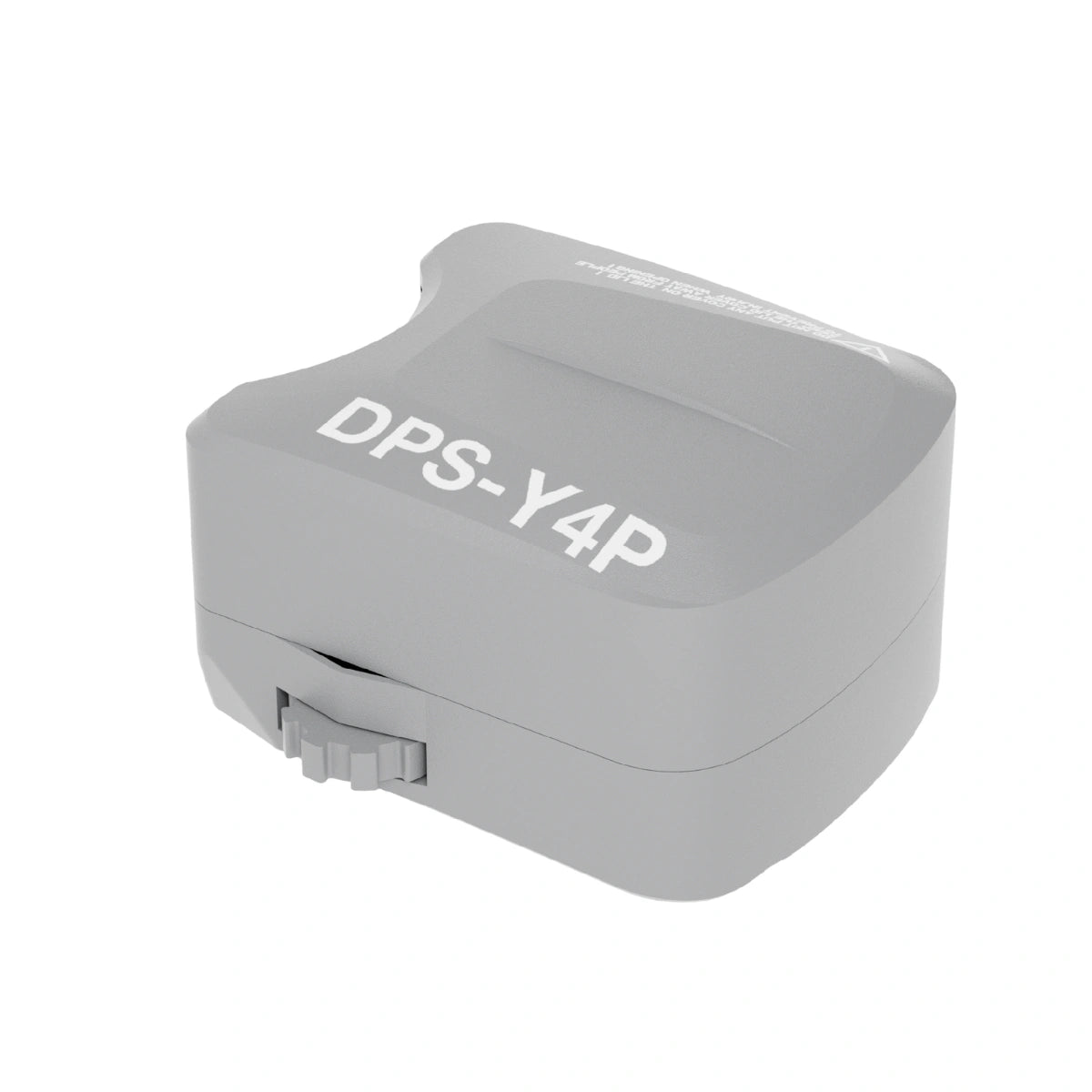

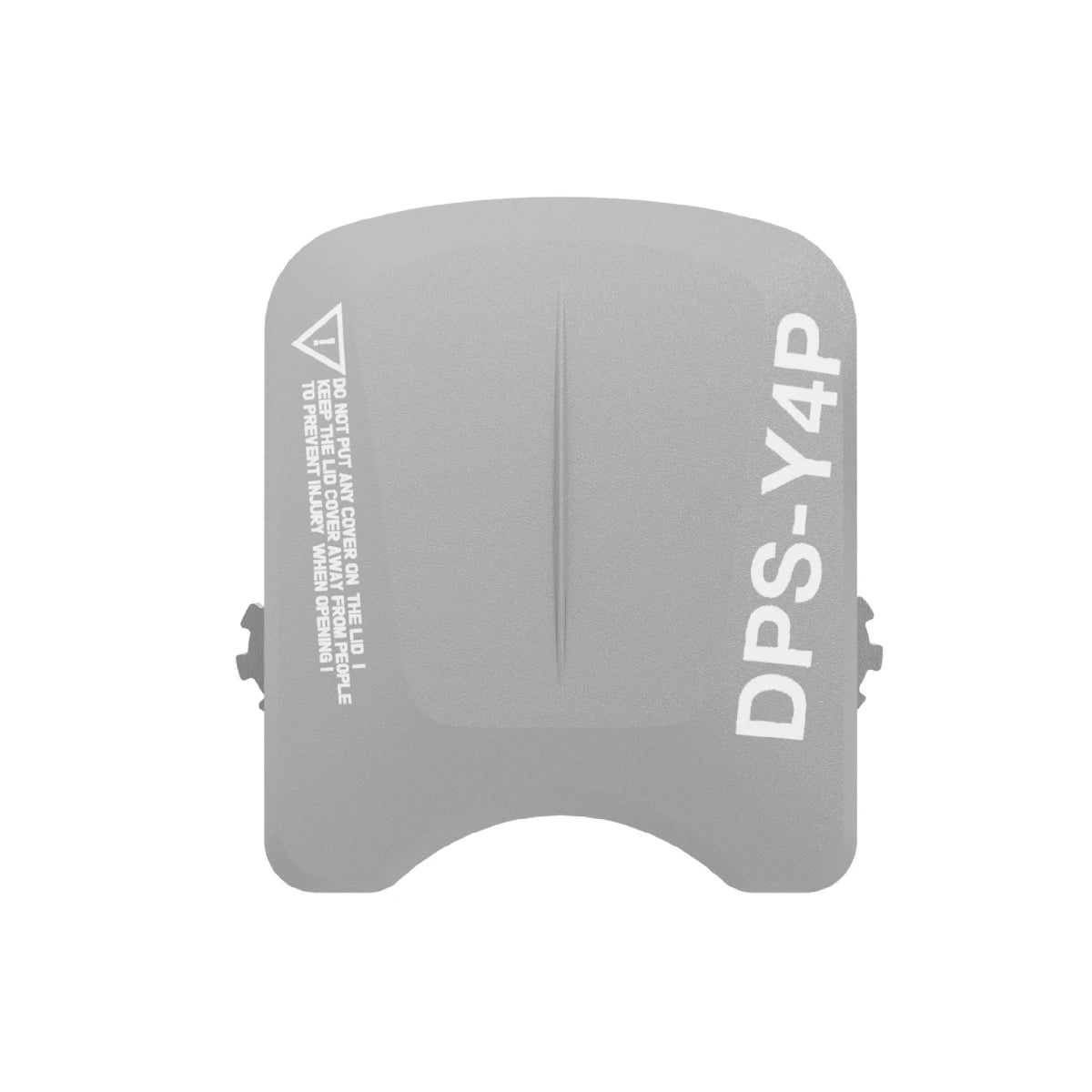

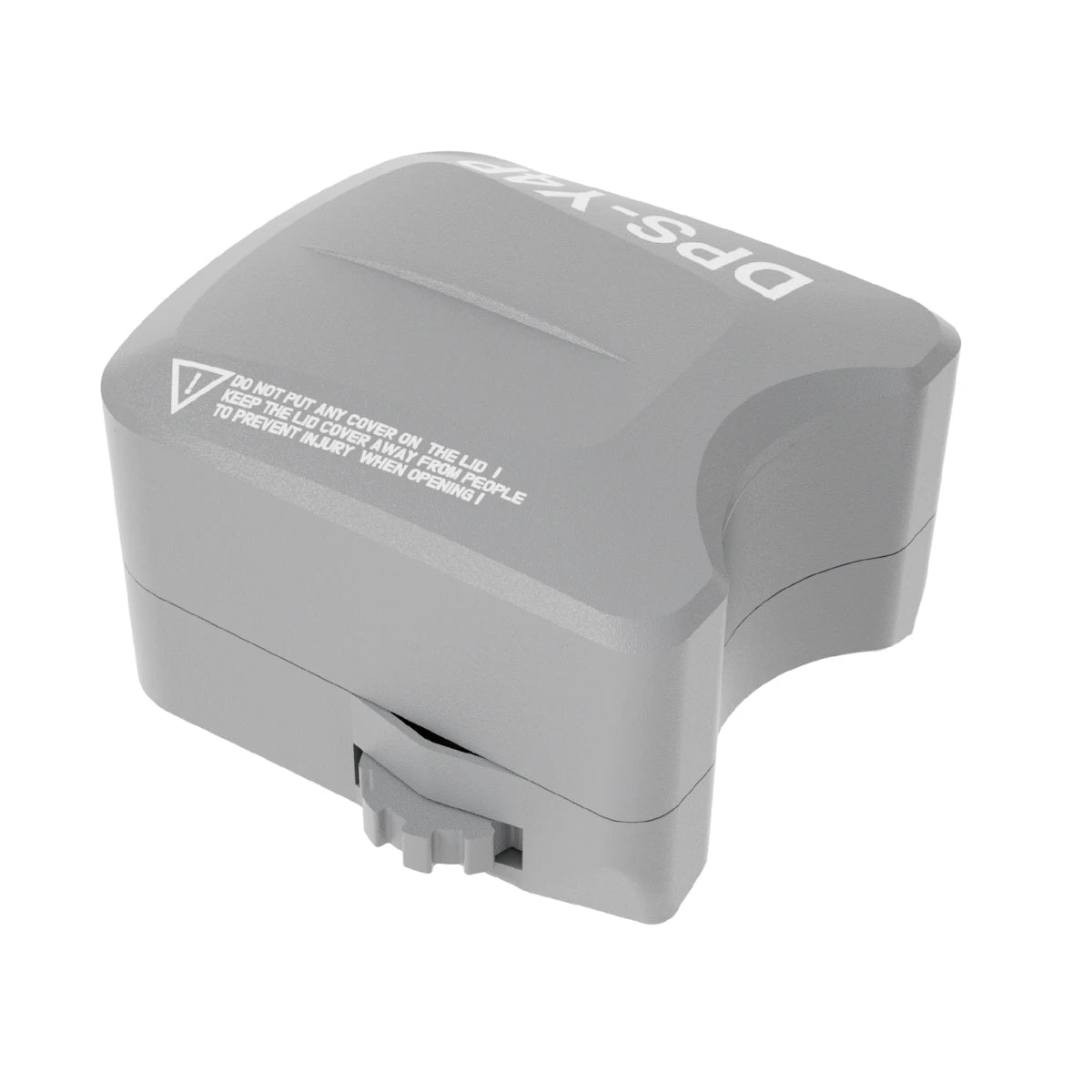

A built-in supercapacitor provides up to 10 seconds of continued function after aircraft power loss, ensuring deployment remains possible even during electrical failures. The compact 3.0 × 2.5 × 1.7 in (76 × 64 × 44 mm) module installs quickly for immediate field readiness.

Reusable design supports fast reset cycles and lower operating costs

The system’s reusable architecture allows operators to restore functionality by replacing the parachute pack kit, which includes a pre-folded parachute and propellant consumables secured with three M2×12 screws. The lightweight 3.5 oz (100 g) module supports loads up to 3.3 lb (1.5 kg) and provides a stable descent rate of 13–16 ft/s (4–5 m/s). Its wide environmental tolerance—from −4°F to 140°F (−20°C to 60°C) and −492 to 13,123 ft (−150 to 4,000 m)—makes it suitable for diverse inspection, mapping, and public safety applications.

Key performance features

• Drawer-style mount installs quickly using two M3 screws for secure attachment
• Top-mounted E-Port interface supports simple integration with Matrice 4T/4E aircraft
• Reusable parachute pack reduces replacement time and long-term operating costs
• Automatic deployment triggered by malfunction, loss of lift, or rapid descent events
• Manual deployment supported through DJI controller interface for pilot authority
• Supercapacitor maintains 10 seconds of function after aircraft power interruption
• Controlled descent maintained at 13–16 ft/s (4–5 m/s) during emergency landing
• Supports loads up to 3.3 lb (1.5 kg) on compact enterprise platforms
• Compact 3.0 × 2.5 × 1.7 in (76 × 64 × 44 mm) design minimizes aircraft impact
• Sound alarm provides audible ground warning following parachute activation

System integration and compatibility

• Compatible with DJI Matrice 4T and 4E aircraft
• Uses DJI PSDK for real-time telemetry monitoring and activation logic
• E-Port interface ensures stable communication without additional wiring
• Designed for efficient installation and removal in field environments
• Supports missions conducted from −492 to 13,123 ft (−150 to 4,000 m) altitude
• Suitable for operators requiring added redundancy for lightweight aircraft

Field-ready mission applications

• Public safety missions: controlled descent prevents impact during aircraft malfunction.
• Urban mapping flights: improves safety when operating near structures and pedestrians.
• Construction documentation: maintains stability during unexpected flight deviations.
• Search and rescue operations: supports recovery during rapid environmental changes.
• Environmental surveys: ensures safe descent across varied terrain and elevation.
• Security patrols: reduces equipment risk during sudden performance irregularities.
• Training scenarios: provides predictable failsafe behavior for developing pilots.
• Infrastructure assessments: protects payloads during unplanned flight anomalies.
• Industrial inspections: reinforces aircraft safety near sensitive assets.
• Research missions: safeguards scientific payloads when surveying restricted areas.

Built for enterprise-grade reliability

The DPS-Y4P provides a dependable recovery solution for Matrice 4T and 4E operations, combining compact design, intelligent monitoring, and reusable components for long-term professional use. Its precise activation behavior, lightweight construction, and streamlined installation workflow make it well-suited for organizations requiring consistent emergency descent protection.

The Rivabyte DPS-Y4P delivers controlled emergency descent performance for Matrice 4T and 4E missions. Its rapid activation and efficient reset workflow make it a valuable addition to enterprise UAV fleets.
