Rivabyte DPS-Y4U PRO Parachute for Matrice 4D/4TD

Rivabyte DPS-Y4U PRO Parachute for Matrice 4D/4TD: Integrated emergency descent with high-visibility lighting

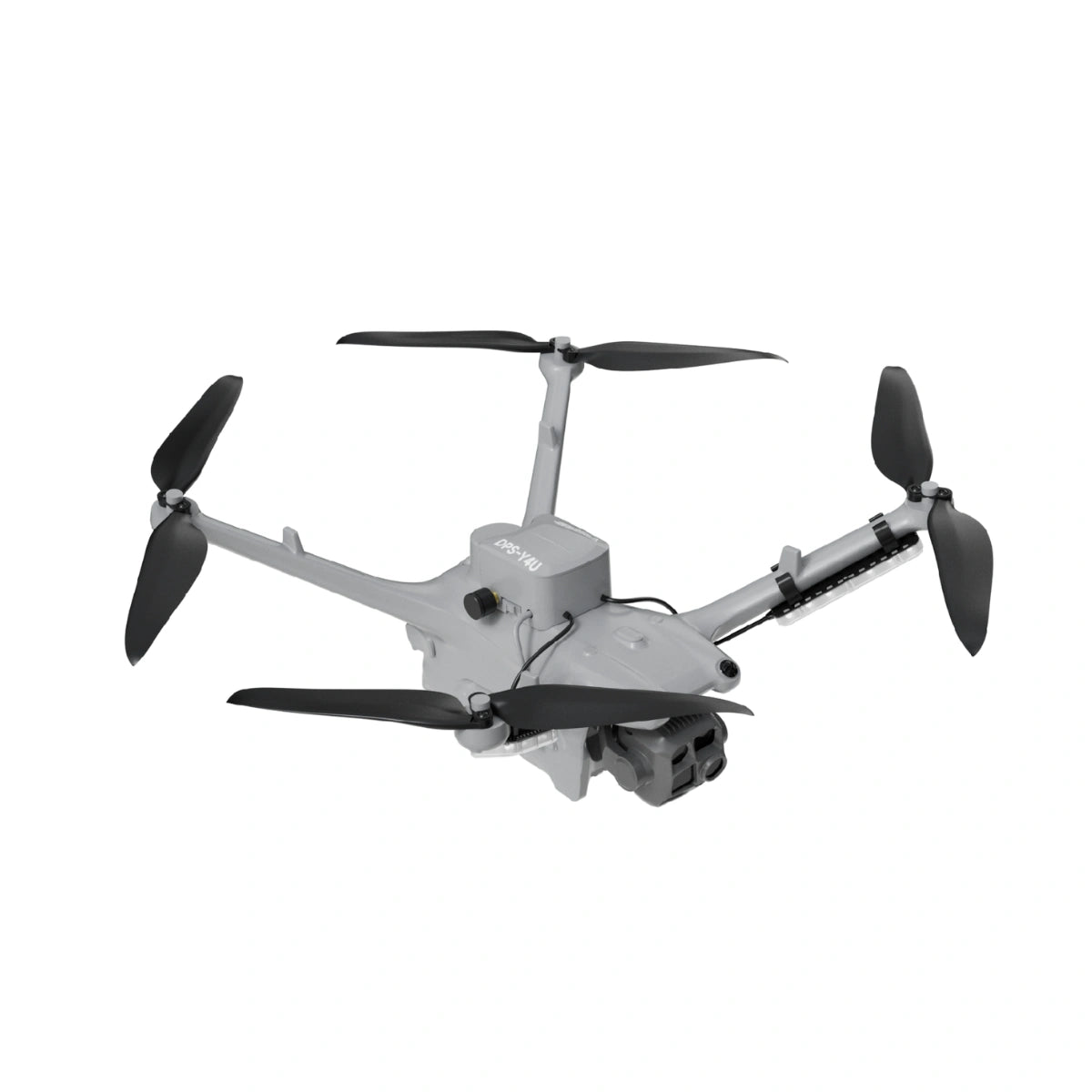

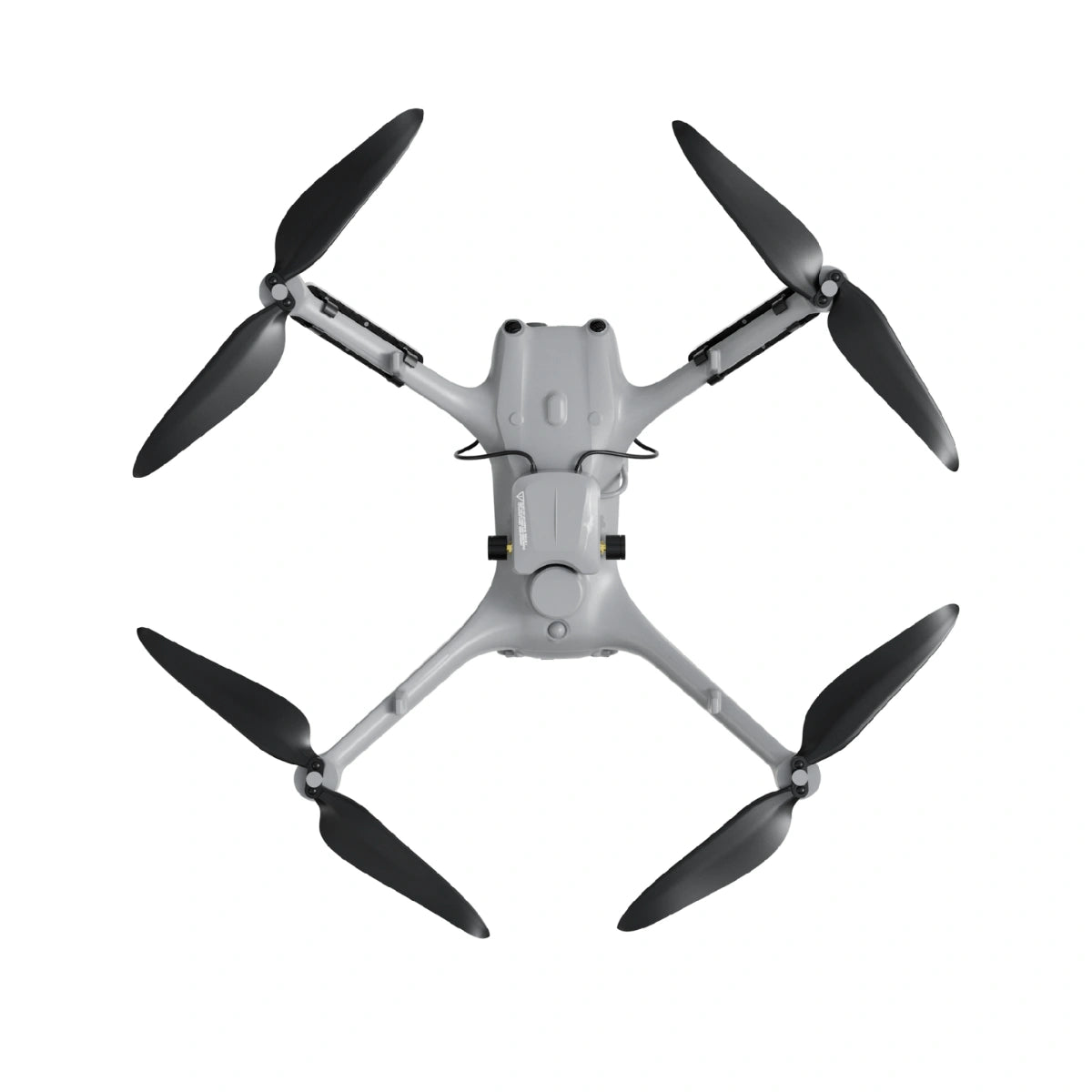

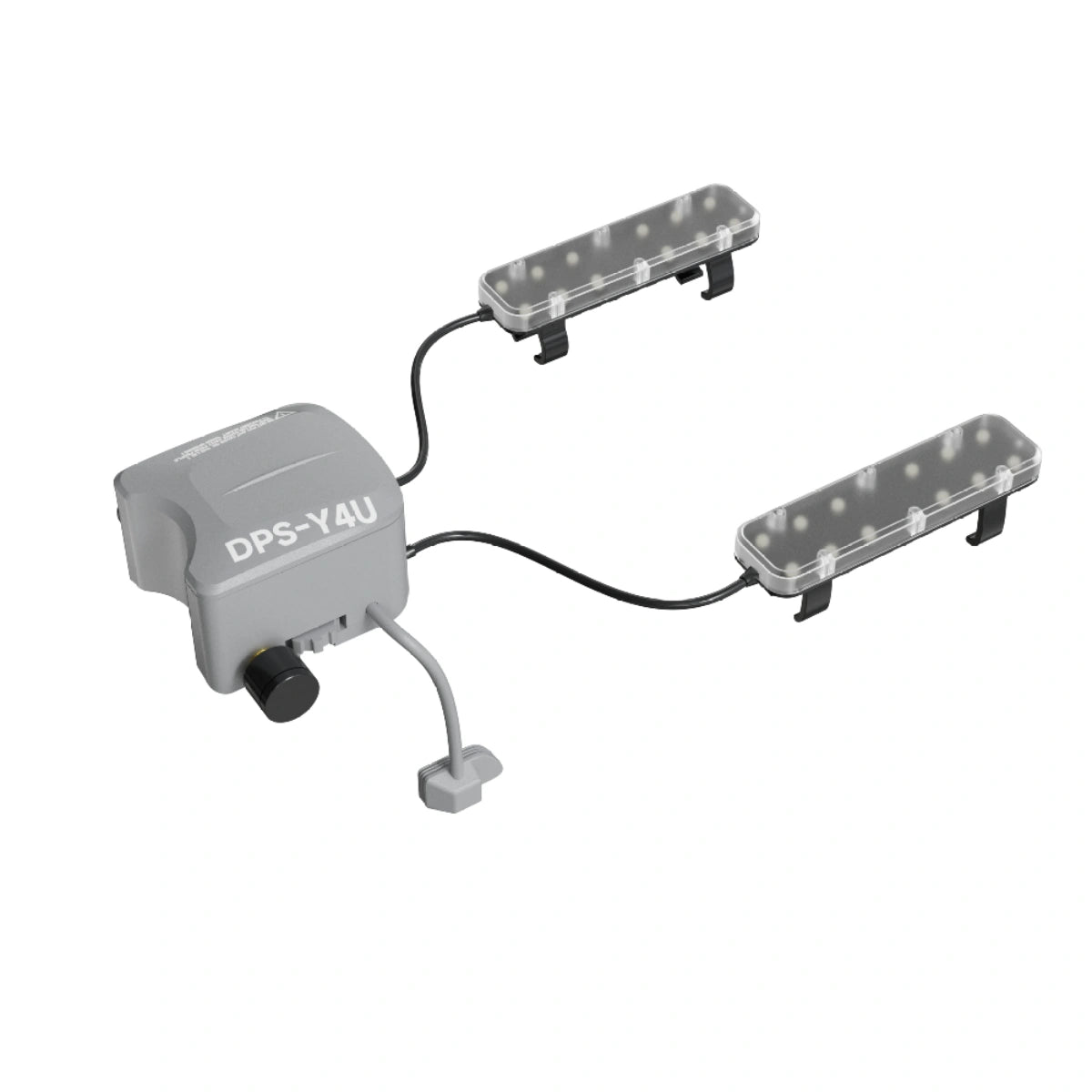

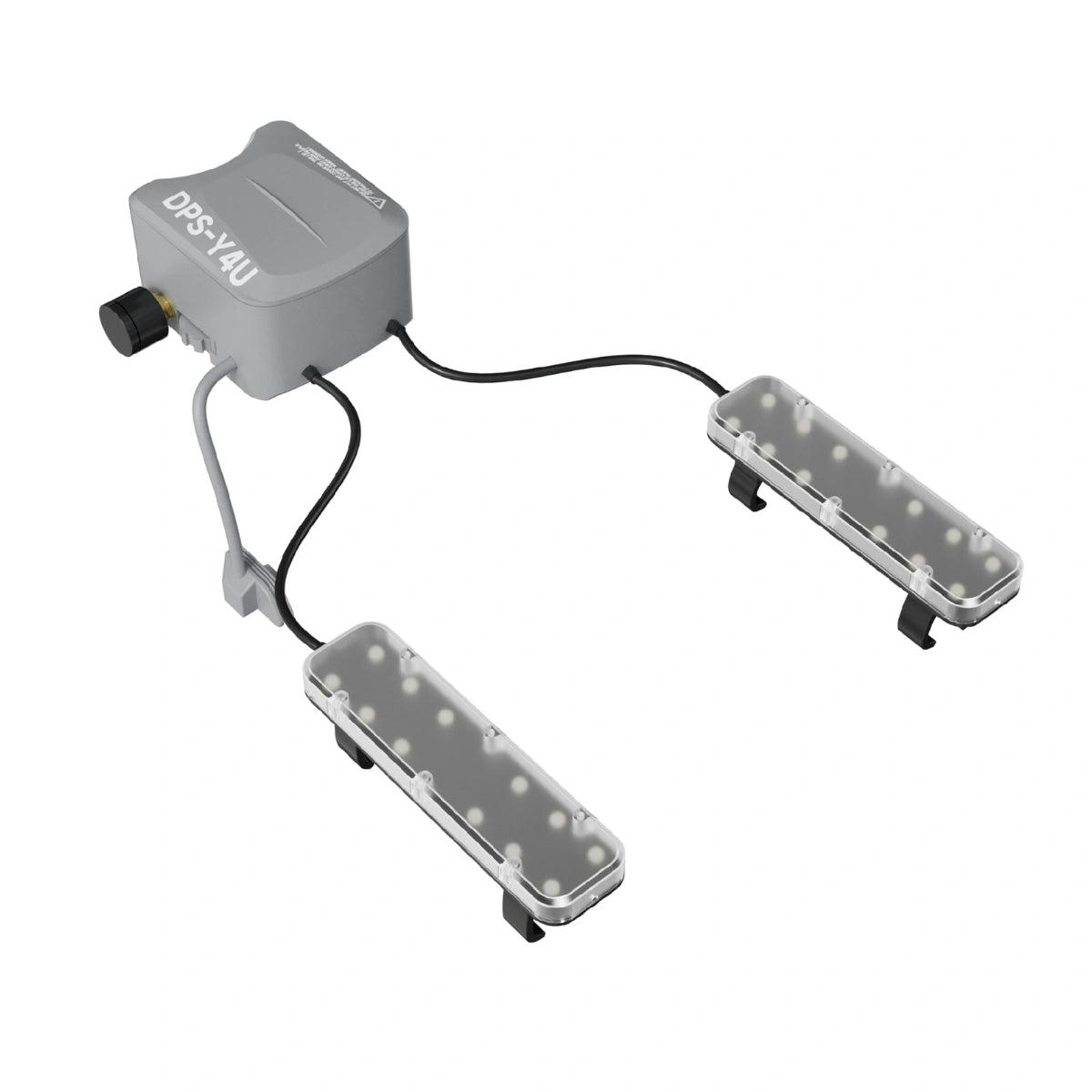

The Rivabyte DPS-Y4U PRO Parachute equips Matrice 4D aircraft with a combined emergency descent and visibility enhancement system designed for demanding enterprise missions. Its compact module mounts through an M3 thumb screw and interfaces via E-Port Lite, simplifying installation and supporting uninterrupted payload workflows.

By pairing telemetry-based fault response with arm-mounted RGB lighting, the system strengthens aircraft safety across urban, industrial, and unpredictable operating environments.

Intelligent activation logic ensures timely deployment during flight instability

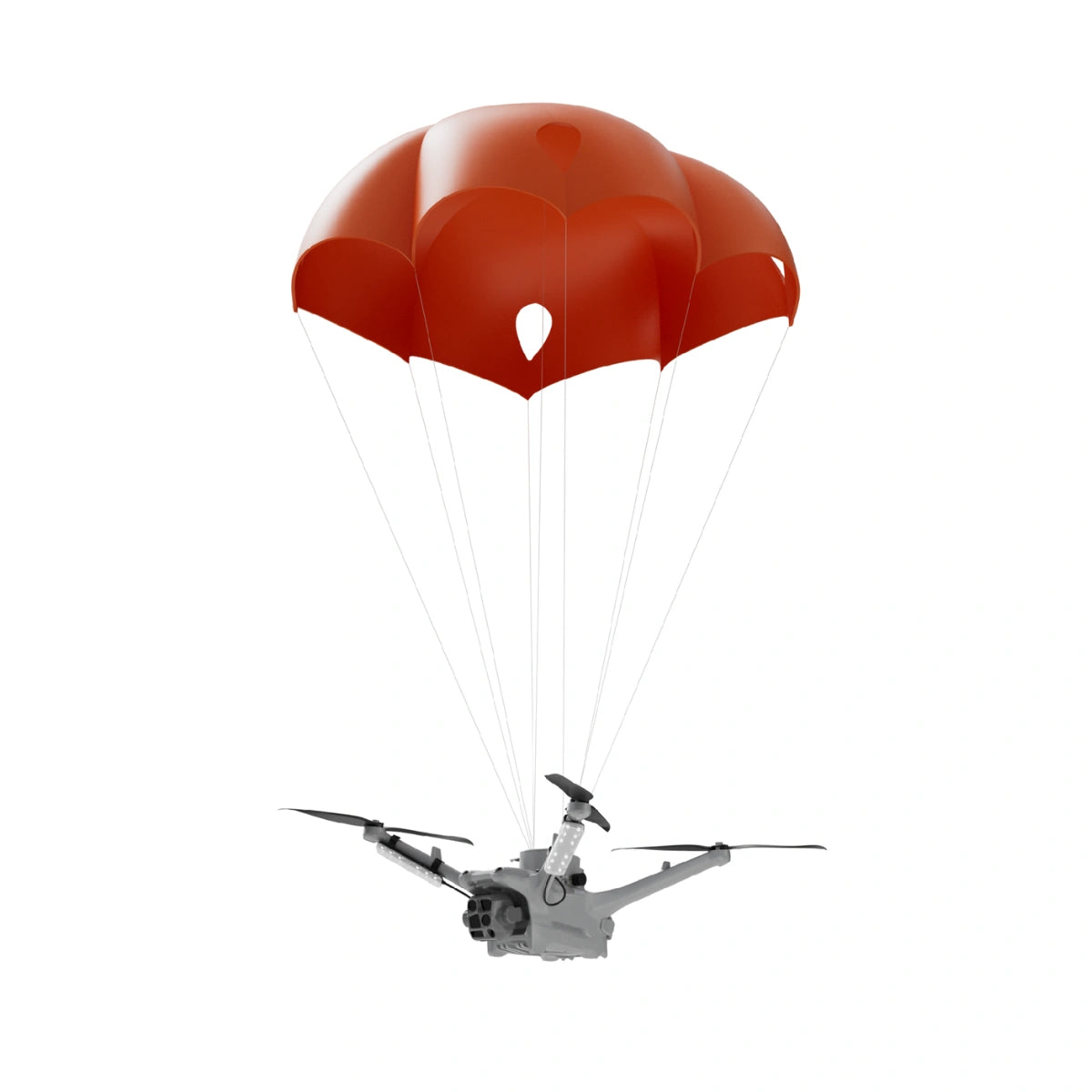

Through DJI PSDK, the DPS-Y4U PRO tracks aircraft behavior continuously, enabling rapid identification of malfunction, loss of lift, or sudden downward acceleration. Upon detecting unsafe conditions, the system triggers a propeller stop followed by parachute deployment.

A controller-mounted button offers manual activation when direct operator input is required. A built-in supercapacitor preserves up to 10 seconds of deployment capability even if the aircraft loses power, allowing the system to complete its emergency sequence under critical failure conditions.

High-visibility lighting and reusable components support operational efficiency

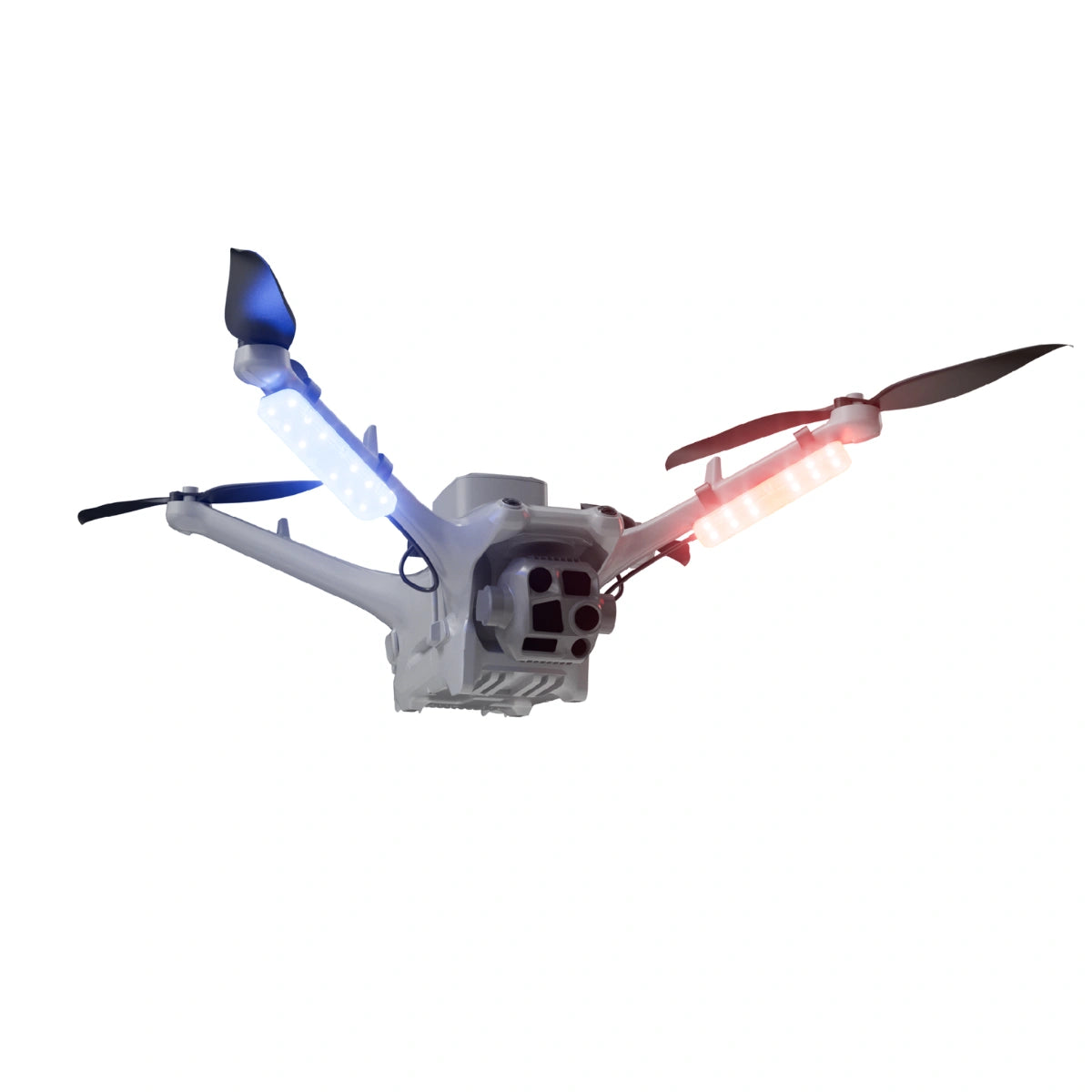

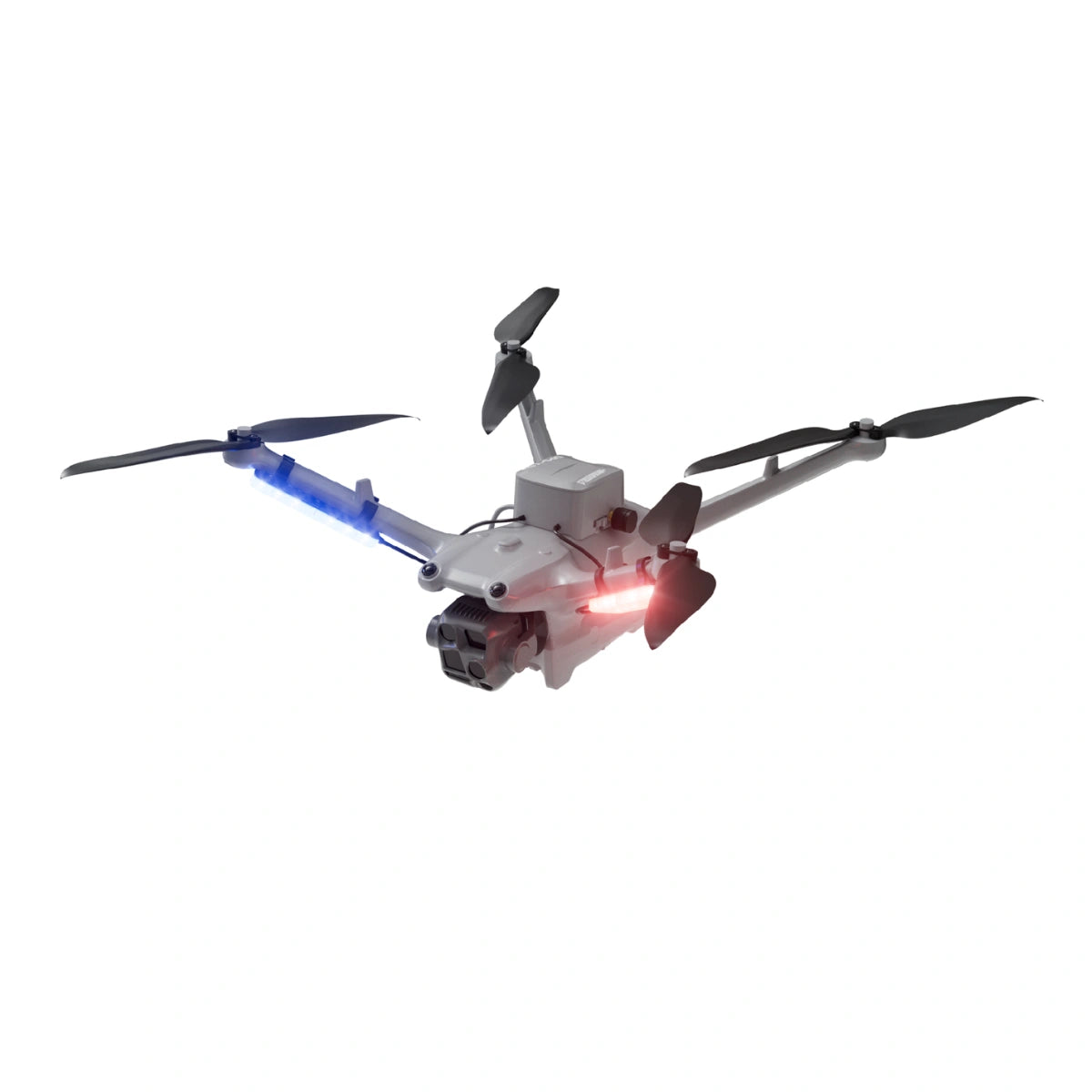

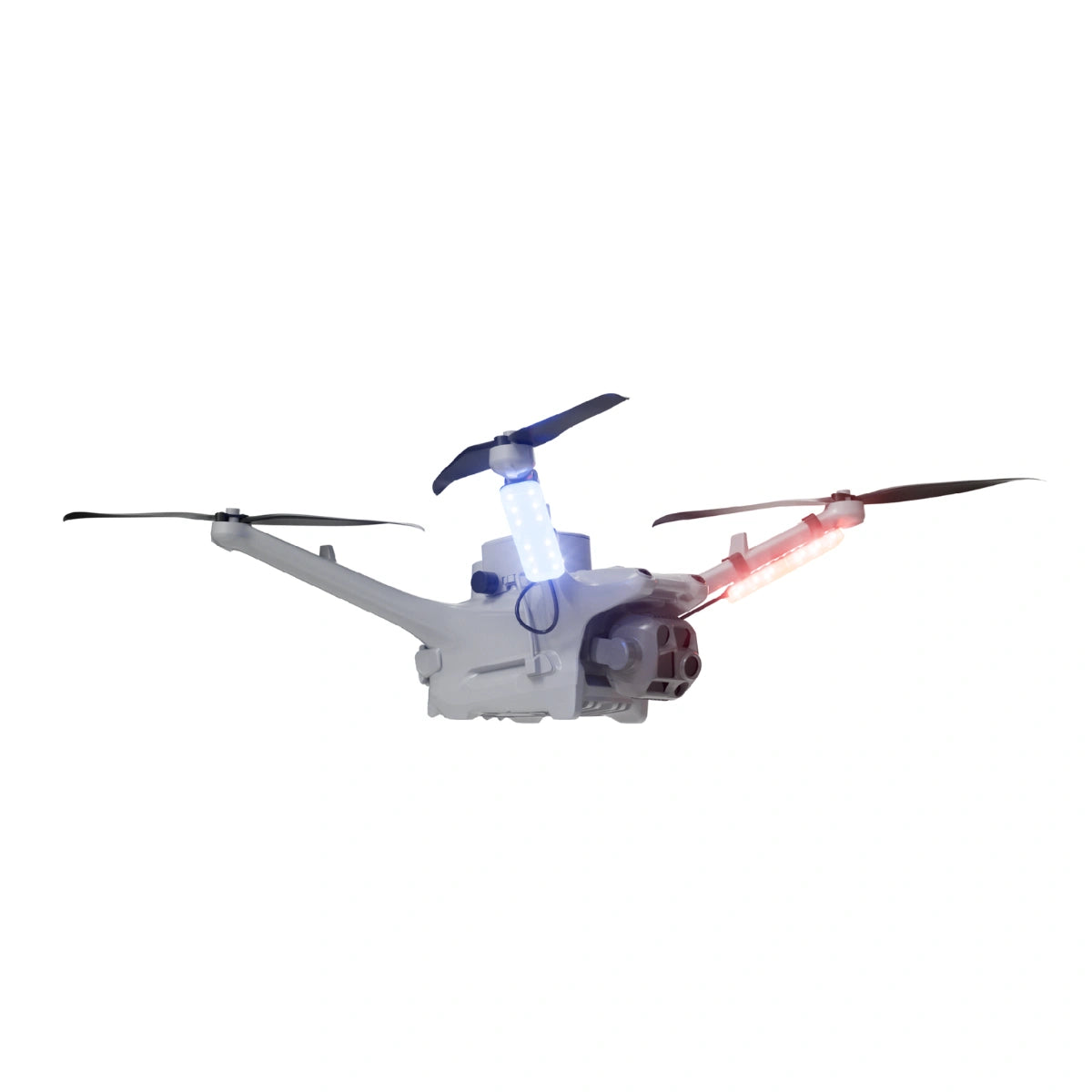

Dual RGB lights mount directly onto the aircraft arm, providing broad forward and lateral illumination visible up to 2,000 m at night with selectable 1–25 Hz frequency. After deployment, operators replace only the parachute pack, secured using three M2×12 screws.

The module’s 2.95 × 2.52 × 1.73 in (75 × 64 × 44 mm) footprint and 5.9 oz (168 g) weight support loads up to 4.4 lb (2 kg), maintaining a controlled descent of 13–18 ft/s (4–5.5 m/s). Rated for 14°F to 122°F (−10°C to 50°C) and altitudes from −492 to 13,123 ft (−150 to 4000 m), the system adapts readily to diverse field environments.

Key features at a glance

• Parachute module and arm-mounted RGB lights function as unified safety system
• E-Port Lite connection maintains compatibility with top-mounted payload accessories
• M3 thumb screw provides rapid, stable installation suitable for field conditions
• Automatic deployment triggered by malfunction, loss of lift, or rapid descent
• Manual activation supported through dedicated DJI controller interface
• Supercapacitor ensures parachute deployment remains possible after power failure
• Controlled descent stabilized at 13–18 ft/s (4–5.5 m/s) for asset protection
• Supports aircraft load requirements up to 4.4 lb (2 kg)
• RGB lights visible up to 2,000 m with selectable flash rate
• Compact design minimizes impact on payload configuration and flight handling

Compatibility and integration

• Built for Matrice 4D and 4TD aircraft using the E-Port Lite interface
• DJI PSDK integration enables deterministic deployment behavior under fault conditions
• Arm-mounted lighting increases visibility footprint for ground and air operators
• Suitable for 14°F to 122°F (−10°C to 50°C) operational temperature ranges
• Functions from −492 to 13,123 ft (−150 to 4000 m) across mission profiles
• Ideal for enterprise teams requiring integrated lighting and recovery capability

Professional applications

• Public safety flights: controlled descent reduces hazards in populated areas.
• Urban mapping: wide-angle lighting improves visibility around vertical structures.
• Construction monitoring: reliable recovery supports operations in crowded sites.
• Search and rescue: predictable descent performance benefits dynamic terrain work.
• Environmental surveys: stable recovery supports operations across varied landscapes.
• Industrial inspection: safeguards aircraft operating near complex infrastructure.
• Security patrol operations: minimizes impact risk during sudden system deviations.
• Pilot training: reinforces standardized behavior for emergency procedures.
• Infrastructure assessments: enables safer landing during flight instability.
• Research missions: protects specialized payloads during unexpected flight events.

Engineered for enterprise-grade safety

The DPS-Y4U PRO consolidates emergency descent, operator visibility, and deployment reliability into a compact, reusable system. Its telemetry-driven logic, directional lighting, and reset-friendly design offer consistent safety performance across evolving mission conditions.

The Rivabyte DPS-Y4U PRO strengthens Matrice 4D mission resilience through precise activation, clear visibility, and dependable recovery behavior.

Available now from DSLRPros. Purchase today to enhance operational safety across your fleet.
