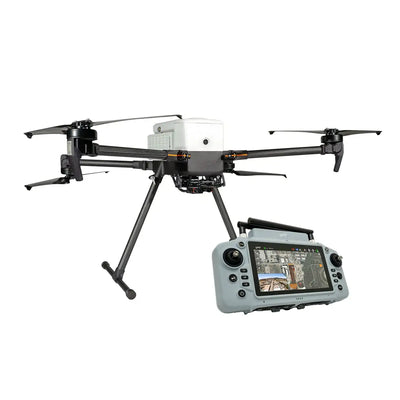

• Inspired Flight IF800 Quadcopter with GS1 Ground Control Station
  • Inspired Flight IF800 Quadcopter
  • Drone IF800 with six rotors on landing gear.

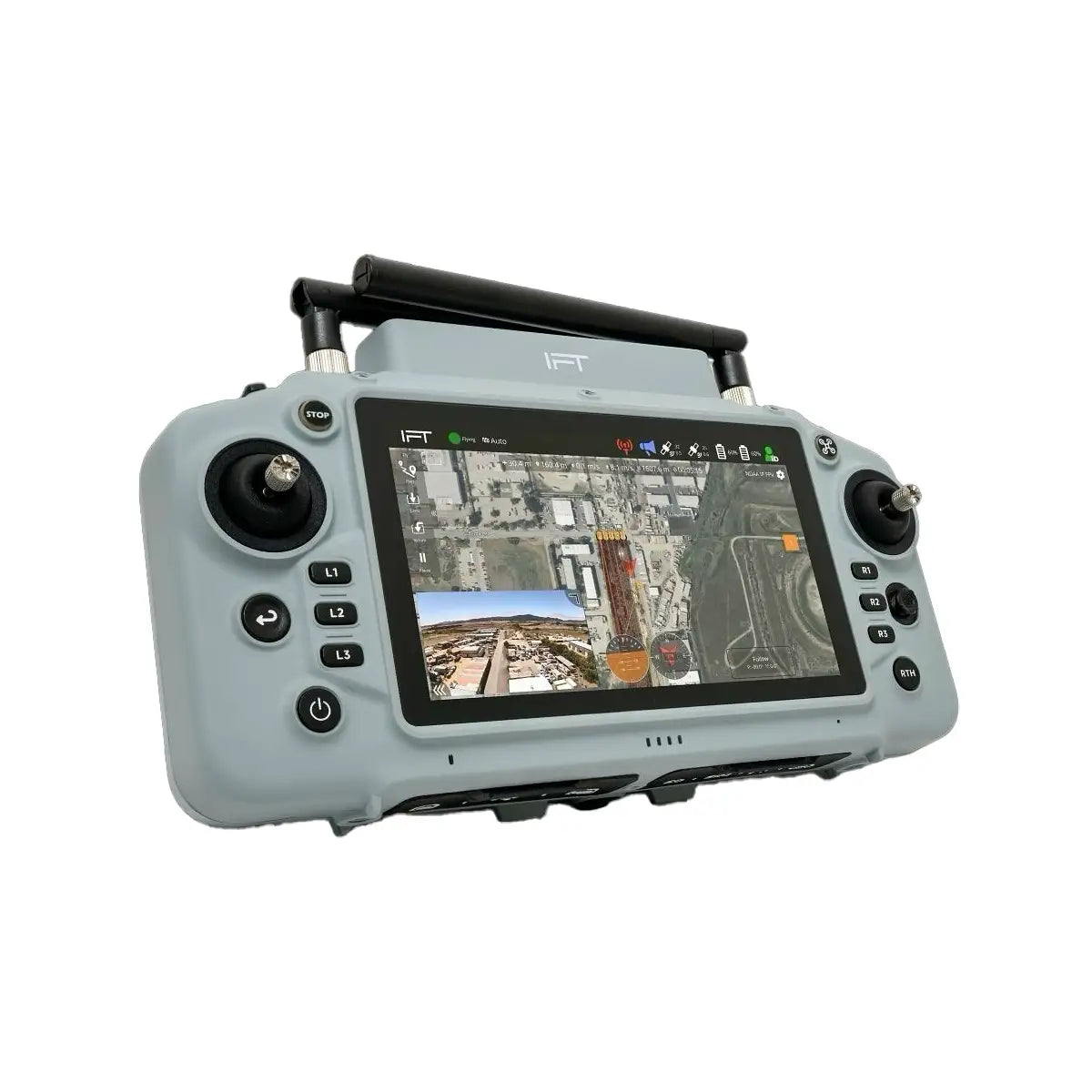

  • GS1 Ground Control Station
  • IF GS-ONE
1 5

Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station

Inspired Flight IF800 Quadcopter with GS-ONE Ground Control Station

$28,000.00
$28,000.00
Sale Sold out
Shipping calculated at checkout.

S-IF-IF800-GS1

Professional quadcopter with GS1 Ground Control Station combo

  • Flight endurance: 54 minutes with payloads up to 6.6 lbs
  • Speed & stability: 49 mph max speed, withstands winds up to 23 knots
  • Payload options: optical, EO/IR, and LiDAR sensors
  • GS1 features: bright 7" screen, IP55 durability, 5-hour runtime
  • Transmission range: up to 6 miles with reliable connectivity
  • Ideal for: mapping, inspections, public safety, and defense
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Professional drone solution for demanding missions

The Inspired Flight IF800 Tomcat bundled with the GS-ONE Ground Control Station offers a complete aerial solution that combines power, precision, and operational ease.

As an NDAA-compliant platform, it ensures security and reliability for organizations requiring uncompromising performance in the field.

Advanced flight performance

The IF800 is built to endure long missions while carrying professional-grade payloads:

  • Long flight time: Up to 54 minutes of endurance.
  • High payload capacity: 6.6 lbs (3.0 kg) for EO/IR, optical, and LiDAR sensors.
  • Fast & stable: Max speed of 49 mph with wind resistance up to 23 knots.
  • Ready-to-deploy payloads: Designed with industry-specific integrations for quick setup.

GS-ONE ground control advantages

Pilots gain unmatched control and efficiency with the GS-ONE:

  • Outdoor visibility: 7-inch touchscreen with 2,000-nit brightness.
  • Durable construction: IP55-rated housing for rugged field use.
  • Extended missions: Up to 5 hours of use with hot-swappable batteries.
  • Reliable command range: Up to 6 miles of secure connectivity.

NDAA-Compliant and Blue UAS-Approved

The Inspired Flight IF800’s NDAA compliance and Blue UAS listing give it a significant edge for organizations that prioritize security and procurement reliability.

Because the drone is built with approved, non-adversarial components, government agencies and contractors can confidently deploy it for sensitive operations without worrying about data vulnerability or restricted parts.

NDAA-compliant IF800

Its inclusion in the Blue UAS Cleared List also streamlines acquisition, since it removes much of the administrative friction usually required for federal approval. Beyond security, its Blue UAS status signals a high standard of performance and trustworthiness.

Industry-specific use cases

This aerial solution is designed for professionals across sectors:

  • Defense & government: Reconnaissance, surveillance, and tactical support.
  • Surveying & mapping: Data collection for agriculture, land planning, and construction.
  • Infrastructure & utilities: Safer, faster inspection of critical assets.
  • Public safety: Search and rescue, disaster response, and firefighting support.

With the IF800 Tomcat and GS-ONE Ground Control Station, Inspired Flight delivers a rugged, flexible, and professional-grade drone ecosystem.

This powerful pairing is designed to maximize efficiency, ensure mission success, and provide long-term reliability for industries that rely on aerial data.

Performance

  • Max Ascent Speed: 5 m/s
  • Max Descent Speed: 3 m/s
  • Max Air Speed: 22 m/s
  • Max Wind Resistance: 10 m/s, 12 m/s gusts
  • Max Tilt Angle: 30°
  • Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
  • Operating Temperature: -20°C ~ 45°C
  • Operating Humidity: IP43 5% ~ 99%

Physical Features

  • Diagonal Size (propeller center to center): 905 mm
  • Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm
  • Folded Size (stow, WxLxH): 36 x 44 x 20 cm
  • Empty Weight (w/o batteries): 4.2 kg
  • Weight w/ Batteries: 8.5 kg
  • Max Gross Takeoff Weight: 11.5 kg
  • Max Payload Capacity: 3.0 kg
  • Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm
  • Transport Case Weight (w/ aircraft & GCS): 18 kg

Flight Stack

  • Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
  • GNSS / Compass: Dual CubePilot Here4 Blue
  • Downward Ground Sensor: LightWare SF000/B
  • Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
  • Payload Interface: IF800 Universal Payload Interface
  • Operating Software: Copter by Ardupilot

Flight Modes

  • Position Hold: Automatically holds altitude and position, manually change position
  • Loiter: Holds altitude and position, precision manual movements using GPS
  • Auto: Executes pre-defined waypoint mission
  • RTL: Auto returns to takeoff location and lands
  • Land: Auto land while maintaining horizontal position
  • Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
  • 1x Inspired Flight IF800 Quadcopter
  • 1x GS-ONE Ground Control Station
Which industries use Inspired Flight drones?

Industries like public safety, utilities, surveying, construction, and environmental monitoring trust Inspired Flight for reliable, heavy-lift performance and advanced sensor integration.

Can Inspired Flight drones carry LiDAR payloads?

Absolutely. Both the IF800 and IF1200A support modular payloads, including LiDAR sensors, photogrammetry cameras, thermal imaging systems, and other specialized equipment for advanced mapping and inspection tasks.

Can the IF800 operate in the rain?

It has an IP43 rating, meaning it’s resistant to light rain and dust, but not fully waterproof.

Can I use third-party cameras and sensors with the IF800?

Yes, through its universal payload interface.

What kind of payloads can the IF800 carry?

The IF800 supports a wide range of enterprise payloads, including EO/IR sensors, LiDAR, mapping cameras, and custom tools up to ~1.5 kg.

Is the IF800 NDAA-compliant and Blue UAS approved?

Yes. It meets all NDAA requirements and is listed on the official DoD Blue UAS Cleared List, making it eligible for federal use and grant-funded programs.
