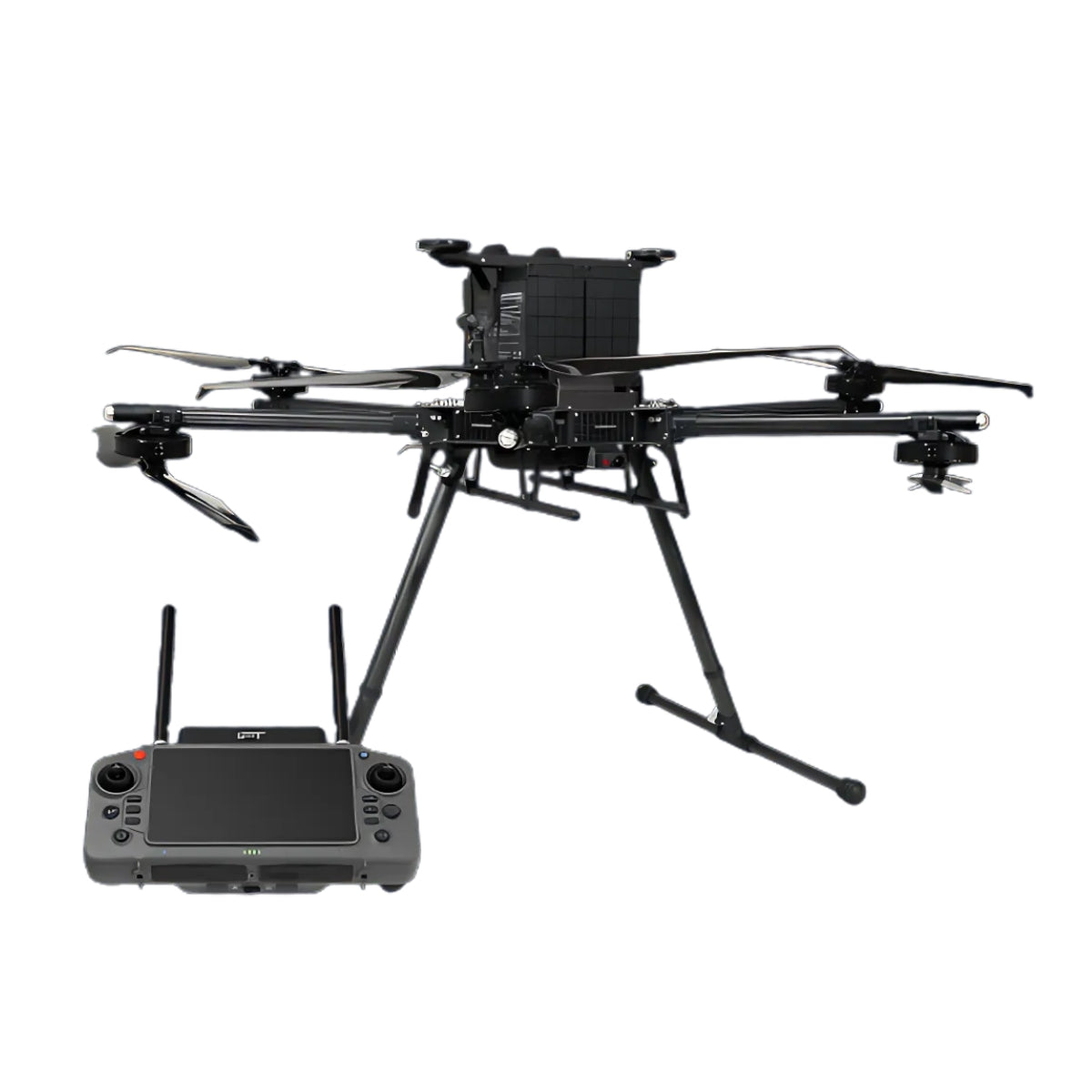

Inspired Flight IF1200A Hexacopter, GS1 And Ground Control Station

Inspired Flight IF1200A Hexacopter: Mission-Ready Power for Industrial and Government Operations

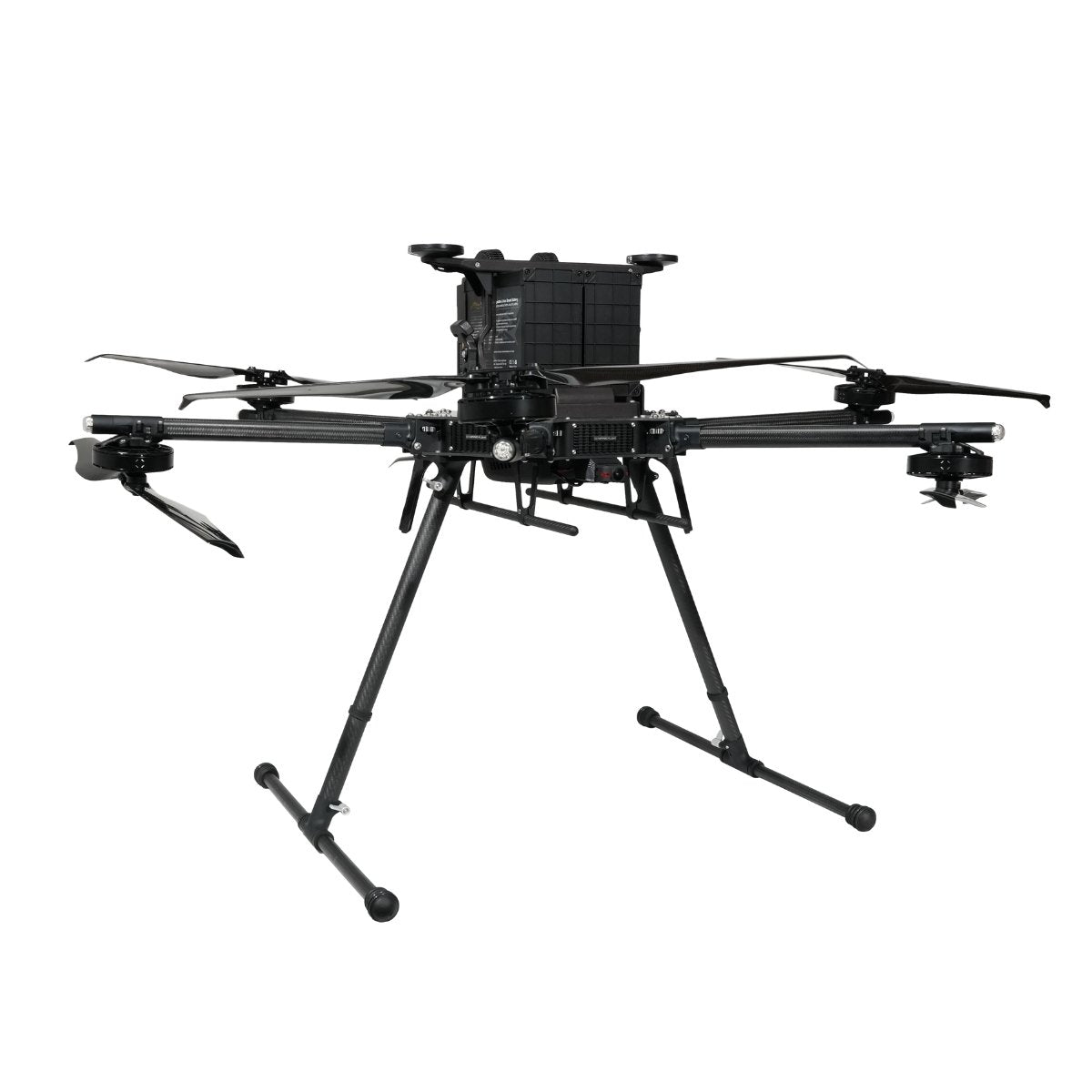

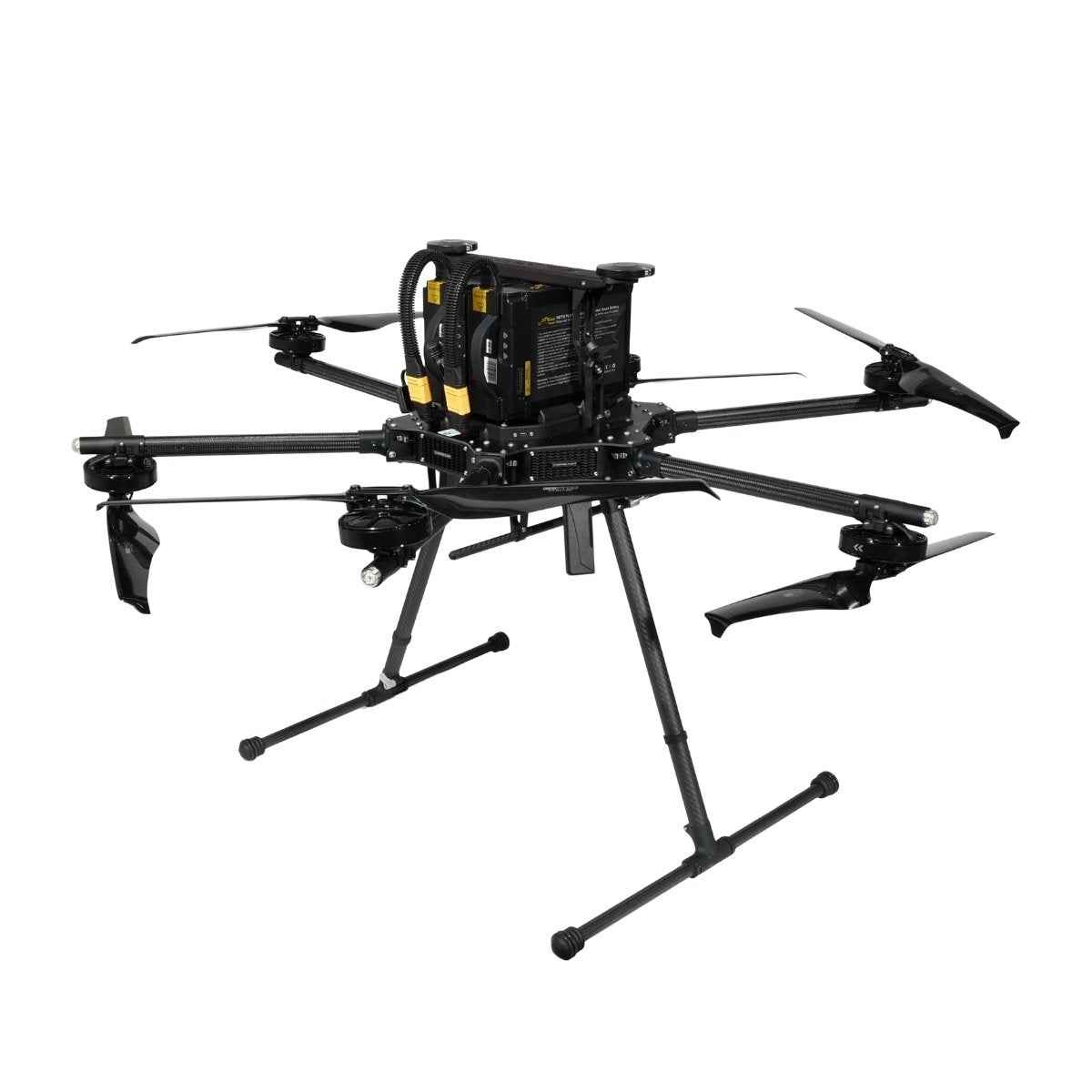

The Inspired Flight IF1200A is a heavy-lift commercial hexacopter engineered to meet the demands of high-stakes aerial missions. Whether you're conducting utility inspections, emergency response, or defense reconnaissance, this NDAA-compliant drone delivers elite performance in a compact, durable frame. With up to 43 minutes of flight time, a 19.1 lb payload capacity under Part 107, and wind resistance up to 23 knots, the IF1200A is one of the most capable platforms available for mission-critical operations.

At the heart of the IF1200A is its SAFE drone system, which provides advanced flight redundancy. In the event of a motor failure, the drone transitions seamlessly into a safe manual mode and alerts the pilot to land. Built-in dual GPS, real-time FPV, and multiple flight modes-including Position Hold, Loiter, Auto, and Return-to-Launch-ensure precise control in even the most dynamic environments. Its payload interface supports a wide variety of EO/IR, LiDAR, and optical imaging sensors, allowing seamless integration for specialized field applications.

With its combination of powerful hardware and intuitive control, the IF1200A maximizes productivity, safety, and adaptability. It's the go-to solution for agencies and operators who demand endurance, capacity, and compliance in one streamlined platform.

Key Features

• 43-minute max flight time using 16000mAh batteries
• SAFE drone system enables safe landing during motor failure
• Blue UAS and NDAA compliant for federal agency deployment
• Dual GPS and FPV camera for real-time situational awareness
• Supports a wide variety of payloads including EO/IR and LiDAR
• Top speed of 56 mph with wind resistance up to 23 knots
• Manufactured and supported in California, USA

Applications

• Utility and powerline inspections
• Government surveillance and reconnaissance
• High-resolution LiDAR scanning and mapping
• Emergency medical delivery and disaster response
• Precision photogrammetry and geospatial modeling
• Infrastructure, telecom, and bridge assessment

Why Buy from DSLRPros

DSLRPros is a trusted leader in enterprise drone solutions. When you purchase the IF1200A from us, you gain access to a team of UAS specialists who provide consultation, training, and support throughout the lifecycle of your system. We help you configure your payloads, optimize flight performance, and ensure full mission readiness from day one.

Specifications

• Performance
  • Max Ascent Speed: 5 m/s (16 ft/s)
  • Max Descent Speed: 2.5 m/s (8.2 ft/s)
  • Max Air Speed: 25 m/s (56 mph)
  • Max Wind Resistance: 12 m/s (23 knots), 15 m/s gusts (29 knots)
  • Max Tilt Angle: 30°
  • Max Angular Velocity: Tilt: 300°/s, Yaw: 45°/s
  • Operating Temperature: -20°C to 45°C (-4°F to 113°F)
  • Operating Humidity: 10% to 95%
  • Service Ceiling (with payload):
    • 3.9 km (12,800 ft) with 4 kg
    • 2.2 km (7,200 ft) with 8.7 kg
• Physical Features
  • Diagonal Size: 1,025 mm (40.4 in)
  • Unfolded Size (WxLxH): 165.5 x 154 x 76.5 cm (65.1 x 60.6 x 30.2 in)
  • Folded Size (WxLxH): 47.5 x 49.5 x 47 cm (18.7 x 19.5 x 18.5 in)
  • Empty Weight (without batteries): 7.8 kg (17.2 lbs)
  • Weight with Batteries: 16.3 kg (35.9 lbs)
  • Max Gross Takeoff Weight: 25 kg (55 lbs)
  • Max Payload Capacity: 8.7 kg (19.1 lbs)
  • Transport Case Size (WxLxH): 64.8 x 64.8 x 58.4 cm (25.5 x 25.5 x 23.0 in)
  • Transport Case Weight (with aircraft): 29 kg (64 lbs)
• Flight Stack
  • Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMUs
  • GNSS / Compass: Dual CubePilot Here3 M8P
  • Payload Power Rails: 12s Battery Voltage; 5V, 12V/15V, 18V, 44.4V
  • Payload Interface: IF1200A Universal Payload Interface
  • Operating Software: Copter by Ardupilot
• Flight Modes
  • Position Hold: Holds altitude and position; manually change position
  • Loiter: Holds altitude and position; allows precise manual movements via GPS
  • Auto: Executes predefined waypoint mission
  • RTL (Return to Launch): Returns to takeoff point and lands automatically
  • Land: Auto landing while maintaining horizontal position
  • Altitude Hold: Maintains altitude only; used as failsafe if GPS signal is lost
