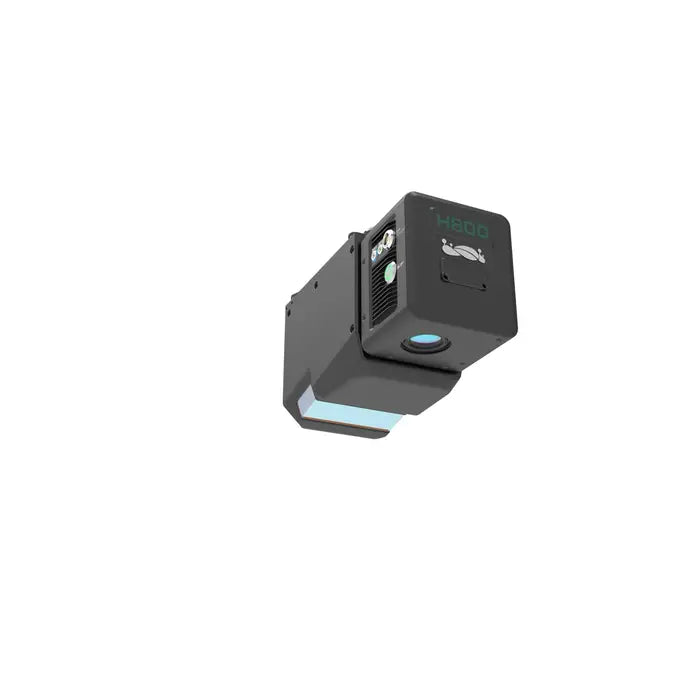

Advanced LiDAR for comprehensive surveying

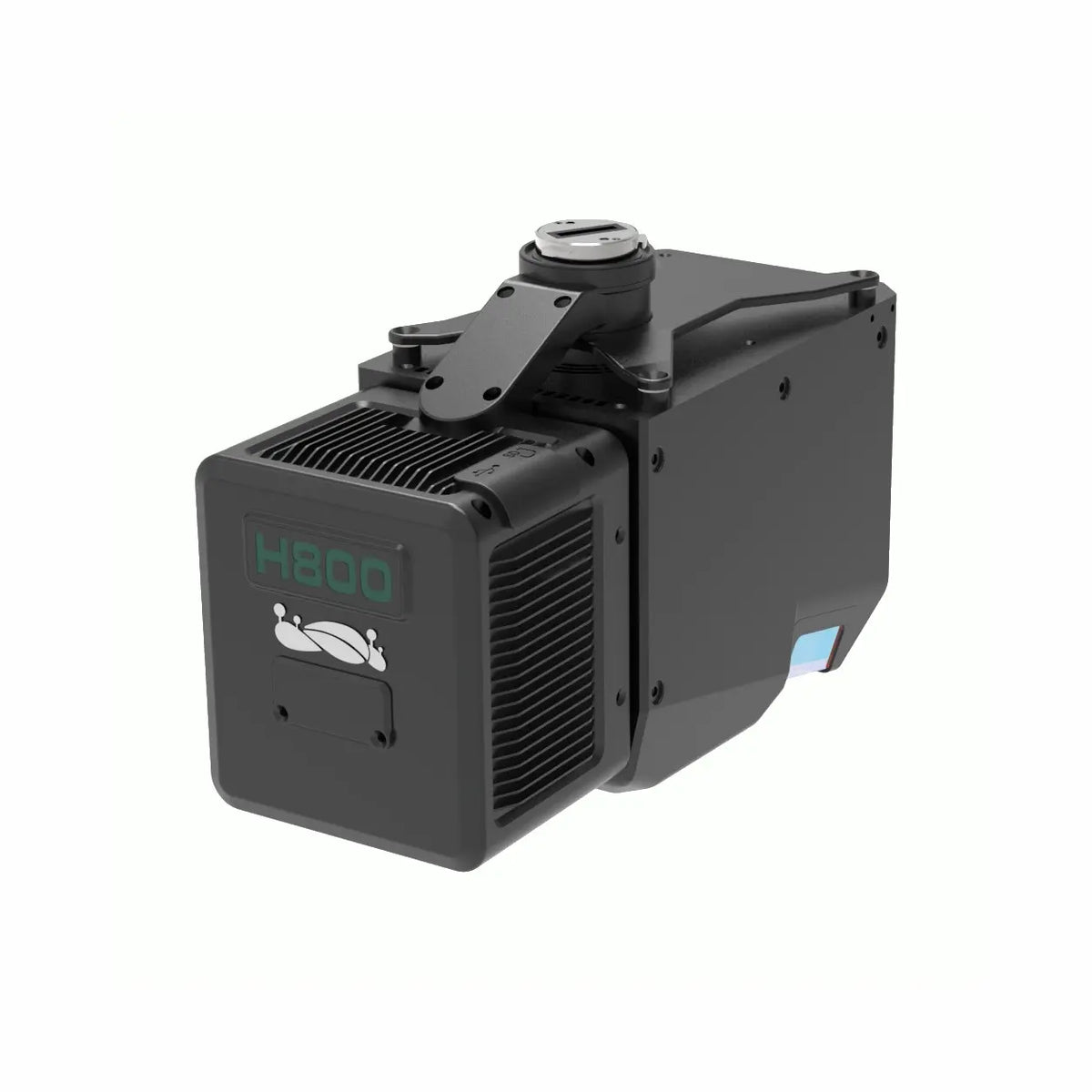

The GreenValley LiAir H800 is a state-of-the-art medium-to-long-range UAV LiDAR system developed to address the needs of professionals in industries such as power line inspection, forest monitoring, emergency disaster assessment, and detailed mapping and surveying.
This next-generation system integrates lightweight LiDAR, a high-performance navigation system, and a high-resolution camera, providing a versatile and powerful tool for precise data collection.
Lightweight and efficient design
Weighing just 2.25 kg, the device is both portable and powerful, easily fitting onto UAV platforms like the M350 and M300 RTK.
The system operates on 18 to 24 volts and consumes only 61 watts of power, making it highly efficient for long missions. It includes a 256GB TF card, offering substantial onboard storage for extensive data collection during flights.
Superior detection range and accuracy
This LiDAR payload is capable of detecting objects up to 1000 meters away under optimal conditions, making it highly effective for large-scale surveys. It can detect up to 350 meters at just 10% reflectance, 790 meters at 50% reflectance, and 1000 meters at 80% reflectance.
This range, combined with a vertical accuracy of ±5 centimeters, ensures you capture highly detailed and precise data, even in complex terrains.
High-resolution imaging capabilities
The LiAir H800's 26-megapixel camera delivers exceptional image quality, allowing for detailed analysis and mapping.
With a resolution of 6252 x 4168 pixels and the choice between 16mm or 24mm focal lengths, the camera captures vivid and clear images that enhance the quality of your color point clouds and orthophotos.
This high-level detail is critical for applications that require accurate visual data, such as urban planning and environmental monitoring.
Wide field of view and adaptive scanning
Offering a 100-degree field of view, the camera covers extensive areas with each flight. Its adaptive scan speed, with data frequencies ranging from 100 to 1000 kHz, ensures that point clouds are evenly distributed, making your 3D models and maps more accurate.
This feature is particularly beneficial when surveying areas with varying terrain or vegetation density.
Precision navigation and smart flight controls
The LiDAR system equipped with a sophisticated inertial navigation system that uses GPS, GLONASS, Galileo, and BD satellites to maintain precise positioning. With azimuth accuracy of 0.019 degrees and attitude accuracy of 0.006 degrees, the system ensures consistent data collection throughout your flight.
The intelligent flight control feature automates the data collection process, minimizing redundancies and ensuring you collect only the most relevant data.
Built for diverse environments
Designed to perform in a wide range of conditions, this UAV payload can operate in temperatures from -20°C to 50°C and be stored safely between -30°C and 60°C.
This robustness ensures that the system can handle the demands of different environments, whether you're surveying in tropical climates or colder regions.
Key Features and Benefits
- Extended Detection Range: Up to 1000 meters under optimal conditions, enabling large-area coverage.
- Exceptional Accuracy: ±5 cm vertical accuracy for precise survey results.
- High-Resolution Camera: 26MP stills and detailed orthophotos for enhanced mapping outputs.
- Versatile Mounting: Compatible with UAVs like the DJI M350 and M300 RTK.
- Energy Efficient: Low 61W power draw supports extended flight operations.
- Wide Field of View: 100° FOV captures more data per pass.
- Adaptive Scanning: Variable scan speeds ensure uniform point cloud density.
- Rugged Build: Operates in -20°C to 50°C environments for all-season performance.
- Intelligent Navigation: Multi-GNSS support for reliable positioning in challenging conditions.
- Scalable Software Support: Optional LiDAR360 and LiPowerline for advanced analytics.
Applications and Use Cases
- Power Line Inspection: Detect structural faults, vegetation encroachment, and thermal anomalies.
- Forest Monitoring: Assess canopy density, biomass, and environmental health over large areas.
- Disaster Response: Map landslides, floods, and earthquake zones with high precision.
- Urban Planning: Generate accurate 3D models for infrastructure and zoning projects.
- Environmental Studies: Monitor coastal erosion, habitat changes, and ecological patterns.
- Mining and Quarrying: Create volumetric analyses for resource estimation.
- Agriculture: Perform precision field mapping for crop health and irrigation planning.
- Topographic Surveying: Produce detailed contour maps for engineering and construction.
Frequently Asked Questions (FAQ)
What UAVs are compatible with the LiAir H800?
It is compatible with professional UAVs like the DJI M350 and M300 RTK.
How accurate is the LiDAR data?
The LiAir H800 offers vertical accuracy of ±5 cm, ensuring highly reliable survey outputs.
Can it operate in extreme weather conditions?
Yes, it is rated to operate from -20°C to 50°C and can be stored from -30°C to 60°C.
Does it support post-processing software?
Yes, it is compatible with LiDAR360 and LiPowerline for advanced data analysis.
What is the maximum detection range?
Up to 1000 meters at 80% reflectance under optimal conditions.
Is it suitable for mapping dense vegetation?
Yes, its adaptive scanning and powerful detection range make it ideal for forestry and vegetation analysis.
Why Buy From DSLRPros
At DSLRPros, we do more than sell equipment-we deliver mission-ready solutions. Every LiAir H800 is tested, configured, and optimized for your workflow, backed by expert guidance, tailored packages, and responsive support. From training your team to troubleshooting in the field, we ensure you get the performance, precision, and reliability professionals demand.
Optional post-processing software for enhanced analysis
To fully leverage the capabilities of the LiAir H800, optional post-processing software like LiDAR360 and LiPowerline is available.
These programs offer advanced tools for managing, processing, and analyzing the data collected by the LiDAR system, transforming raw data into valuable insights.
Whether you're involved in power line inspection, forest management, or disaster assessment, this software enhances your ability to make informed decisions based on accurate data.
Enhance your UAV LiDAR operations-order the LiAir H800 today at DSLRPRos!
Specifications
System Parameters
-
Detection Range:
- 350 m @ 10% reflectivity
- 790 m @ 50% reflectivity
- 1000 m @ 80% reflectivity
- Accuracy (Vertical): ±5 cm
- Weight: 2.25 kg
- Memory: 256 GB TF Card
- Voltage: 18~24 V
- Storage Temperature: -30~60 ℃
- Power Consumption: 61 W
- Operating Temperature: -20~50 ℃
- Communication: WIFI
LiDAR Unit
- Wavelength: 1535 nm
- Repeatability Accuracy: 3 mm @ 100 m
- FOV: 100°
- Data Frequency: 100~2000 kHz
- Number of Returns: Unlimited Waveform Returns[1]
Inertial Navigation System
- GNSS: GPS, GLONASS, Galileo, BD
- Azimuth Accuracy: 0.019°
- IMU Data Frequency: 1000 Hz
- Attitude Accuracy: 0.006°
Camera
- Pixels: 26 MP
- Focal Length: 16 mm / 24 mm (Equiv. Focal Length)
- Point Cloud Formats: 6252×4168
Software
- Control Software: GreenValley
- Pre-processing: LiGeoreference
- Post-Processing: LiDAR360 / LiPowerline (Optional)
Note: [1] The theoretical maximum number of returns can only be achieved under specific conditions and is constrained by the actual test scenario.
In the Box
- 1x GreenValley LiAir H800 UAV LiDAR System
