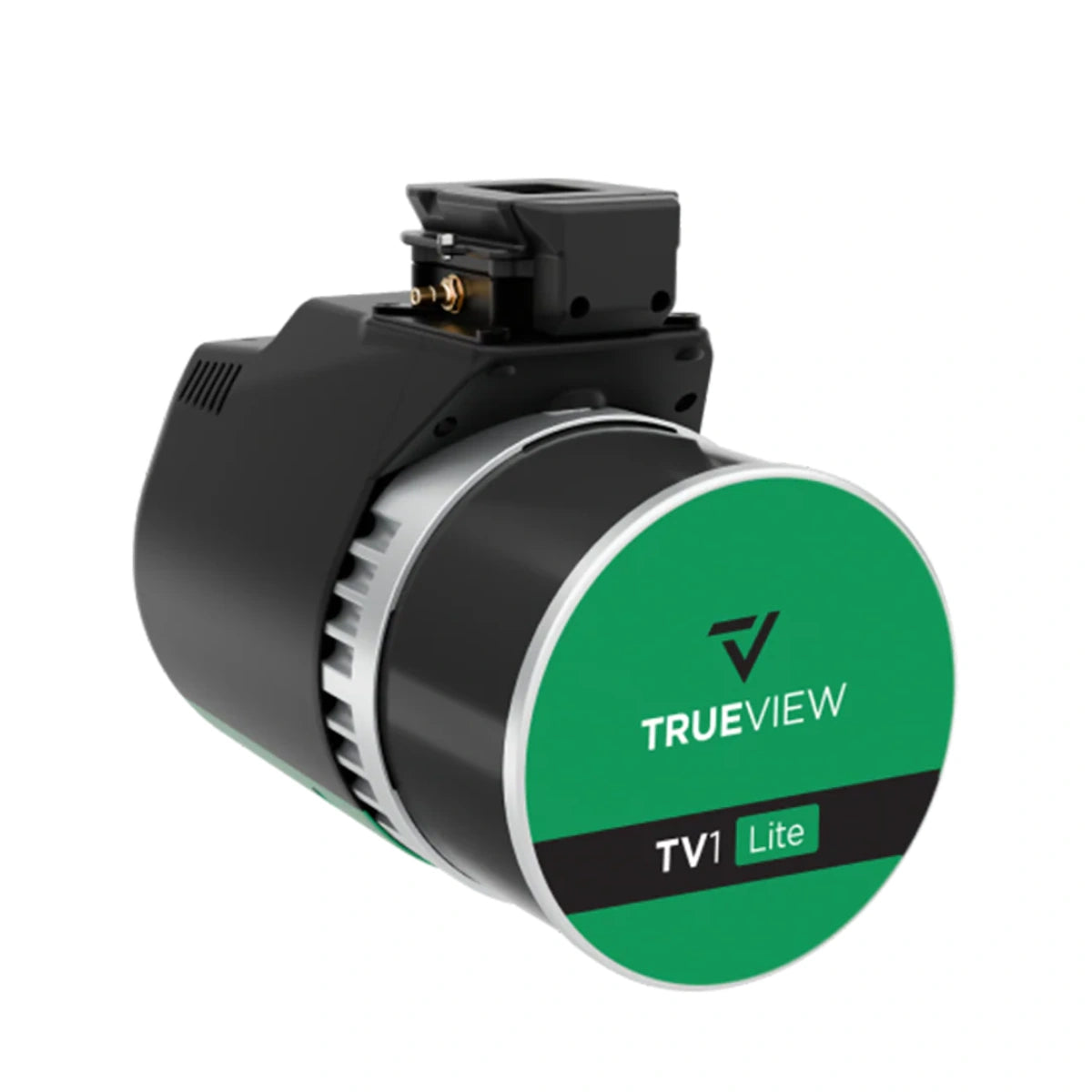

GeoCue TrueView 1 Lite LiDAR Sensor

GeoCue TrueView 1 Lite LiDAR Sensor

$20,890.00
$20,890.00
Sale Sold out
Shipping calculated at checkout.

S-GEO-TV1L

SKU S-GEO-TV1L MPN PLD1001836A00T
  • Integrated dual-return laser scanner captures 640,000 points per second
  • Lightweight 1.4 kg design maximizes flight endurance on enterprise drones
  • Integrated 5MP global shutter camera provides distortion-free colorization data
  • Includes one year of professional LP360 Drone processing software
  • TrueNav GNSS and IMU system ensure reliable survey-grade accuracy
  • Designed and assembled in the USA for superior build quality
  • Native mounting support for Inspired Flight and Freefly platforms
  • Comprehensive support package includes two days of professional training
  • Scalable software options allow for advanced ground classification add-ons
  • Rugged sensor hardcase included for secure field transport and storage
  • Compatible with Freefly and Inspired Flight platforms
  • Compatible with Matrice 300/350/400; mounting kit sold separately

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

GeoCue TrueView 1 Lite: Accessible survey-grade LiDAR solution

The GeoCue TrueView 1 Lite is a sophisticated yet budget-friendly aerial LiDAR sensor designed to provide high-quality geospatial data without the complexity of high-end payloads. Weighing only 1.4 kg, this compact system integrates a Hesai XT-32 dual-return laser scanner with a 5MP global shutter camera to deliver precise point clouds and colorized imagery. It is engineered for professionals who need reliable accuracy for topographic surveys and infrastructure assessments on a strict budget.

By utilizing the TrueNav GNSS and IMU system, the TrueView 1 Lite ensures dependable positioning and orientation for every mission. This payload serves as the perfect entry point for organizations looking to adopt professional LiDAR technology while maintaining operational simplicity and efficiency.

TrueView 1 Lite core features and advantages

  • High-resolution scanning: Captures 640,000 points per second in a single return for detailed modeling
  • Dual return technology: Features a Hesai XT-32 scanner to penetrate vegetation and complex structures
  • Distortion-free imaging: Integrated FLIR 5MP global shutter camera ensures clear colorization at speed
  • Lightweight chassis: Minimal 1.4 kg mass facilitates longer flight times and easier aircraft integration
  • Integrated positioning: Features the TrueNav system combining a custom GNSS receiver and IMU
  • Professional processing: Includes one full year of LP360 Drone software for complete workflow management
  • American engineering: Designed and assembled in the USA with dedicated hardware and software support
  • Wide field of view: 90-degree camera FOV provides excellent coverage for orthomosaic mapping
  • Scalable licensing: Affordable annual renewal plans provide continued access to updates and support

Precision geospatial data and budget efficiency

The GeoCue TrueView 1 Lite delivers survey-grade results by focusing on core technical performance and streamlined workflows. The system's 640,000-point rate provides the density required for professional engineering and environmental studies, while the dual-return capability allows for accurate ground classification even in forested areas.

The bundled LP360 Drone software simplifies the transition from raw data to professional-grade .las files, providing a complete "sensor-to-software" ecosystem. This integration reduces the learning curve for new operators, making it possible to achieve high-accuracy results without a massive initial investment in specialized hardware or third-party processing tools.

Compatible platforms and systems

  • Native aircraft support: Optimized for Inspired Flight IF800 and Freefly Astro Max platforms
  • Enterprise integration: Compatible with DJI M300 and M350 RTK via separate mounting kits
  • Software ecosystem: Fully integrated with LP360 Drone point cloud imaging software
  • Export flexibility: Designed to generate industry-standard .las files for use in various GIS packages
  • Training included: Purchase comes with two days of in-person training in Huntsville, Alabama
  • Maintenance support: Includes one year of comprehensive hardware and software maintenance

Applications and use cases

  • Topographic surveying: Create high-accuracy digital elevation models for land development
  • Infrastructure assessment: Conduct detailed inspections of bridges, dams, and utility corridors
  • Environmental studies: Monitor vegetation growth and coastal erosion with dual-return precision
  • Construction monitoring: Track site progress and volumetric changes with consistent 3D data
  • Forestry management: Analyze canopy height and sub-canopy terrain through dense foliage
  • Archaeological mapping: Discover hidden structures beneath vegetation using LiDAR penetration
  • Disaster response: Rapidly map affected areas to assess damage to buildings and roads

Designed for system integration

The TrueView 1 Lite removes the traditional barriers to LiDAR adoption by combining high-performance hardware with an intuitive, all-in-one software workflow. Its streamlined design ensures that your team can move from deployment to data delivery with minimal technical friction, maximizing the utility of every flight.

This system provides a scalable foundation for geospatial professionals, allowing you to deliver survey-grade products with the confidence of USA-based support and manufacturing.

DSLRPros specializes in integrating professional LiDAR solutions into your existing fleet to ensure immediate operational impact and long-term data accuracy. We provide the technical depth and lifecycle support required to help your organization transition into high-precision aerial mapping.

Enable survey-grade capabilities for your drone program by choosing the GeoCue TrueView 1 Lite from DSLRPros.

  • LiDAR Scanner: Hesai XT-32 (32 channels)
  • Laser Returns: Dual return (critical for mapping terrain through vegetation)
  • Point Rate: 640,000 points per second (up to 1.28 million with dual returns)
  • Operating Range: 80m recommended (120m maximum)
  • LiDAR Accuracy: ±1 cm range accuracy / 0.5 cm precision
  • Camera: Integrated 5 MP FLIR Global Shutter (80° Field of View)
  • Weight: 1.4 kg (3.1 lbs)
  • Positioning: Integrated TrueNav GNSS/IMU system for survey-grade results
  • Drone Compatibility: DJI Matrice 300/350/400, Freefly Astro, Inspired Flight IF800/1200
  • Software Included: 1-year subscription to LP360 Drone for processing and colorization
  • Training: 2 days of professional instruction at GeoCue HQ (Huntsville, AL) or remote
  • Support: 1 year of hardware and software technical support
  • Storage: Data logged via included USB thumb drive
  • 1x TV1 Lite Sensor
  • 1x USB thumb drive
  • 1x Sensor hardcase
  • 1 Year of LP360 drone subscription
  • 1 year of hardware and software support
  • 2 days of included training at our Huntsville, AL office
Can the TrueView 1 Lite be used on a DJI M350 RTK?

Yes, the TrueView 1 Lite is compatible with the DJI Matrice 350 and 300 RTK platforms, and even the latest DJI Matrice 400. However, unlike the Inspired Flight or Freefly platforms that have integrated mounting, the DJI aircraft require a separate antenna and hardware mounting kit. These kits are sold separately and ensure the sensor is properly positioned for optimal data collection.

What is included in the first year of software access?

Your purchase includes one full year of TV1 Lite Annual Processing. This provides the essential tools within the LP360 Drone software to perform PPK processing, generate trajectories, and export professional-grade .las files. It also includes comprehensive hardware and software support, as well as any available firmware or software updates during that year.

Is the camera resolution high enough for orthomosaics?

The integrated 5MP global shutter camera is primarily designed for point cloud colorization, but it can also be used for orthomosaic mapping. If your primary mission requires high-resolution photogrammetry (26MP to 61MP), we recommend looking at higher-tier TrueView models that feature larger sensor cameras.

Where do I go for the included training?

The purchase of a TrueView 1 Lite includes two days of training located at the GeoCue office in Huntsville, Alabama. This training is designed to get your team up to speed on both the hardware operation and the software workflow, ensuring you can begin producing professional results immediately after deployment. All travel-related expenses are the responsibility of the attendee.

What happens after the first year of software access?

After the first year, you can choose to renew your TV1 Lite Annual Processing subscription. This renewal is required to maintain access to the processing tools, receive technical support, and download the latest software updates. This subscription model ensures you always have the most current tools for your LiDAR data processing.
