All about the

Freefly LR1 Thermal Upgrade

Product Details & Specifications

Description

Freefly LR1 Thermal Upgrade: Dual-sensor precision with FLIR Boson 640 LWIR

The Freefly LR1 Thermal Upgrade transforms the LR1 Payload into a dual-purpose imaging system, adding radiometric longwave infrared (LWIR) thermal capability to the Astro and Astro Max platforms. Built around the FLIR Boson 640R sensor, this add-on module provides 640 × 512 resolution thermal imagery with geotagging, spot metering, and temperature data capture for industrial, inspection, and public safety missions.

Advanced thermal integration for enterprise operations

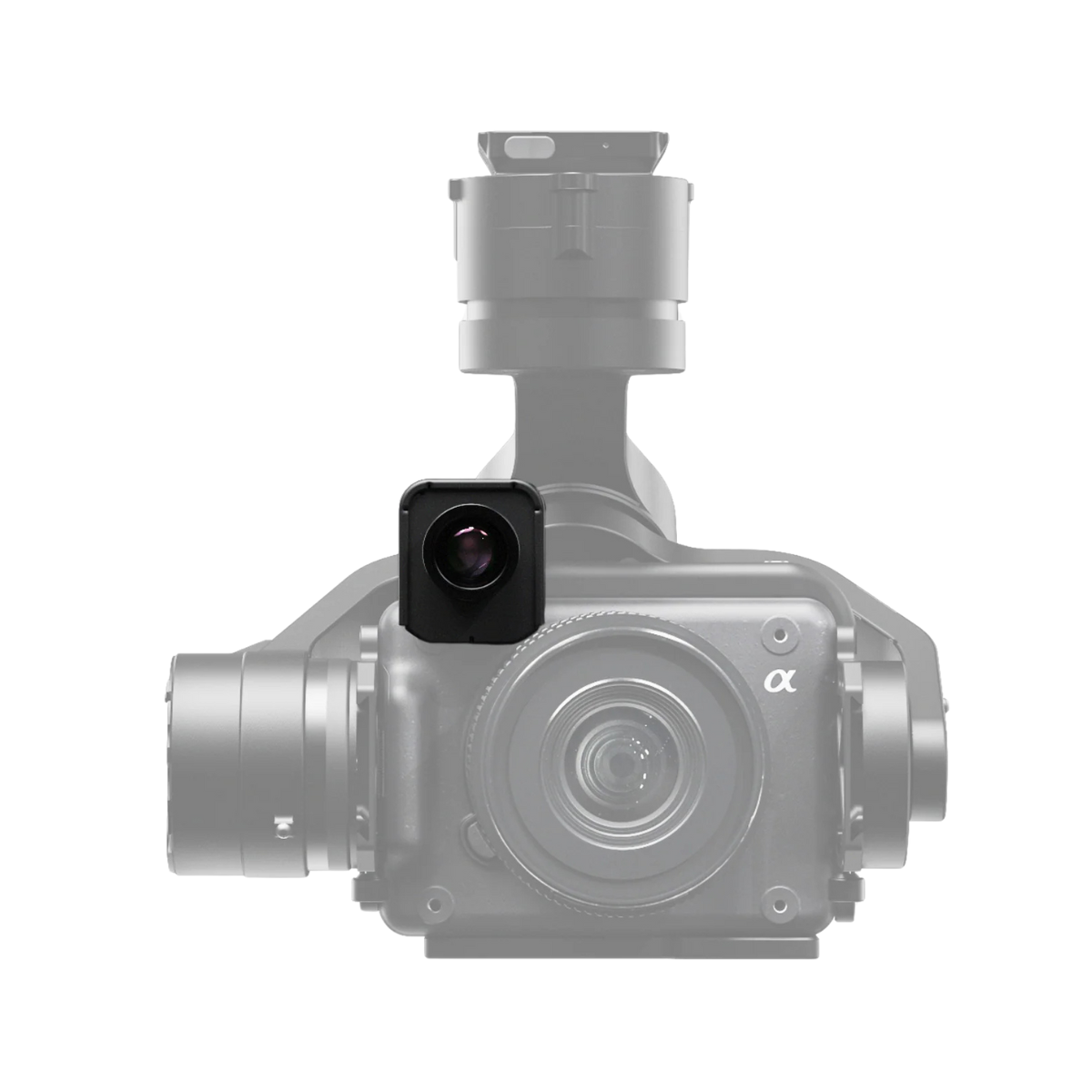

Designed for seamless compatibility with the Freefly LR1 Payload, this user-installable module mounts directly using four camera screws and three counterweight screws, plugging into the LR1 expansion port for power and data. Once installed, operators can switch between the LR1's RGB camera and the thermal view via Astro's live video feed. The 13.6 mm (63 mm full-frame equivalent) lens provides accurate field coverage for aerial thermography, while the 92 g installed weight preserves optimal flight balance.

Real-time temperature intelligence and mapping

The FLIR Boson 640R delivers radiometric imaging that allows operators to measure temperature variation across any surface in frame. Each image is geotagged for seamless integration with mapping software, enabling thermal overlays and analytics. When combined with the optional LR1 Laser Range Finder Upgrade, users can achieve precise distance and temperature correlation within the same payload setup, expanding the Astro's mission capability into powerline, infrastructure, and environmental monitoring.

Key Features and Benefits

  • FLIR Boson 640R sensor: 640 × 512 radiometric LWIR resolution
  • Adds thermal imaging capability to the LR1 Payload system
  • 13.6 mm lens (63 mm full-frame equivalent) for accurate coverage
  • 92 g installed weight maintains Astro's balance and performance
  • User-installable module: mounts with 4 + 3 screws to LR1 payload
  • Connects to LR1 expansion port for plug-and-play setup
  • Supports geotagged thermal imagery for mapping integration
  • Spot metering provides precise surface temperature readings
  • Switch between RGB and thermal feeds in Astro live view
  • Compatible with LR1 Laser Range Finder Upgrade for dual operation

Applications and Use Cases

  • Powerline and substation inspection: Detect heat anomalies and equipment faults
  • Building and infrastructure monitoring: Identify insulation gaps and water intrusion
  • Solar farm maintenance: Locate defective or underperforming panels
  • Pipeline and utility inspection: Spot leaks or pressure irregularities
  • Search and rescue operations: Locate heat signatures in low visibility
  • Environmental research: Measure land surface or vegetation temperature trends
  • Industrial asset monitoring: Identify overheating or energy inefficiency
  • Public safety and emergency response: Enhance situational awareness at night

The Freefly LR1 Thermal Upgrade enables advanced thermal and RGB imaging in a compact, field-installable package. With radiometric precision and seamless Astro integration, it brings true dual-sensor capability to the LR1 Payload for professional-grade operations.

DSLRPros provides official Freefly payloads, accessories, and technical support for enterprise UAS operators. Order your LR1 Thermal Upgrade today to expand your Astro's operational versatility.

Key Features
  • FLIR Boson 640R module adds thermal imaging to LR1 Payload
  • 640 × 512 LWIR radiometric sensor with temperature measurement
  • 13.6 mm lens delivers accurate wide-field thermal coverage
  • Switch between RGB and thermal views through Astro live feed
  • User-installable design with included screws and counterweight
  • Geotagged image support for mapping and thermal analytics
  • Compatible with LR1 Laser Range Finder for dual upgrades
  • Lightweight 92 g install maintains flight balance and stability
  • Designed and assembled in the United States
Specifications
  • FLIR Boson 640

    Resolution: 640 × 512 pixels
    Type: Radiometric LWIR (Long-Wave Infrared) camera
    Lens: 13.6 mm (63 mm full-frame equivalent)
  • Installed Weight: 92 g
  • Geotagged Images: Supported
  •  Spot Metering: Supported
What's in the Box?

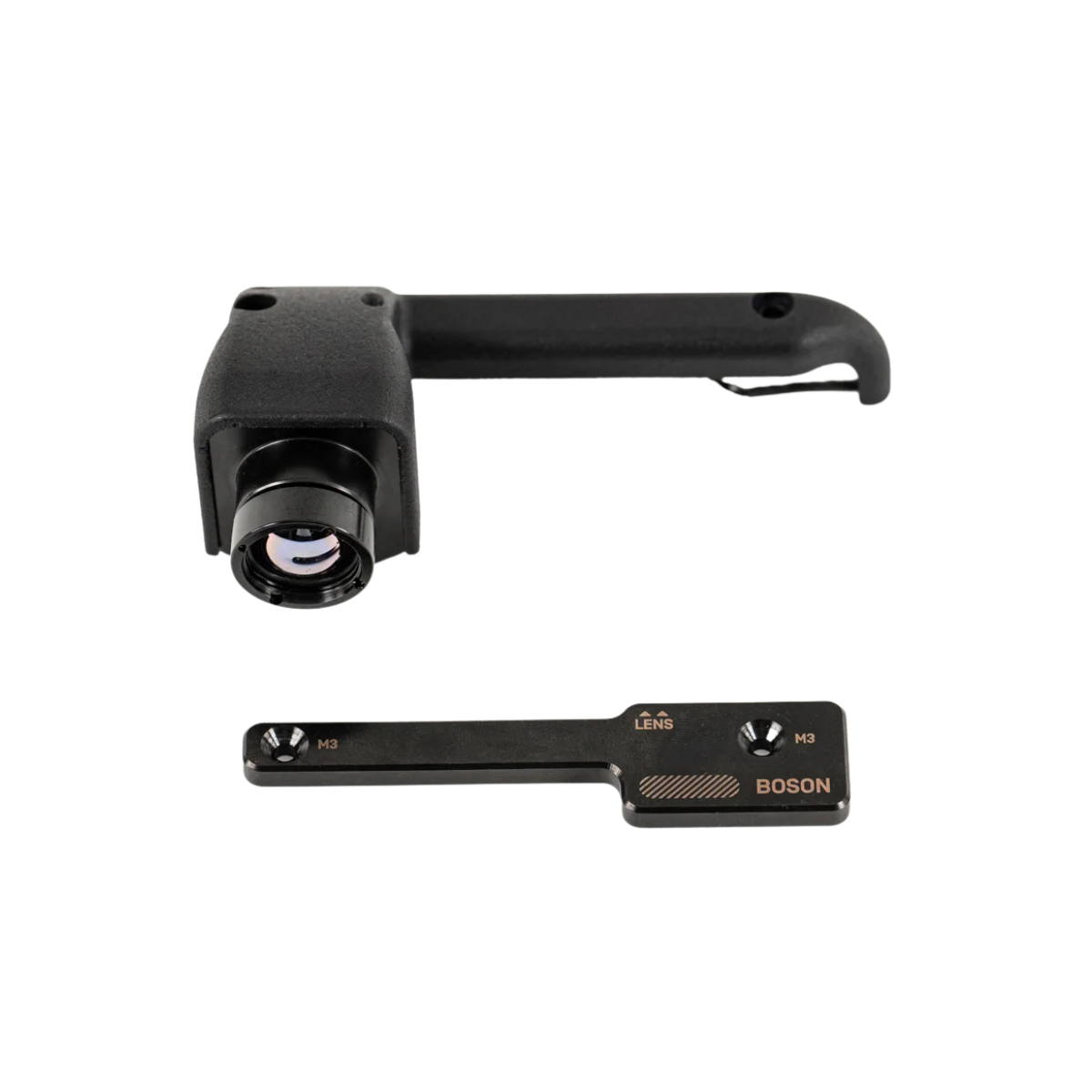

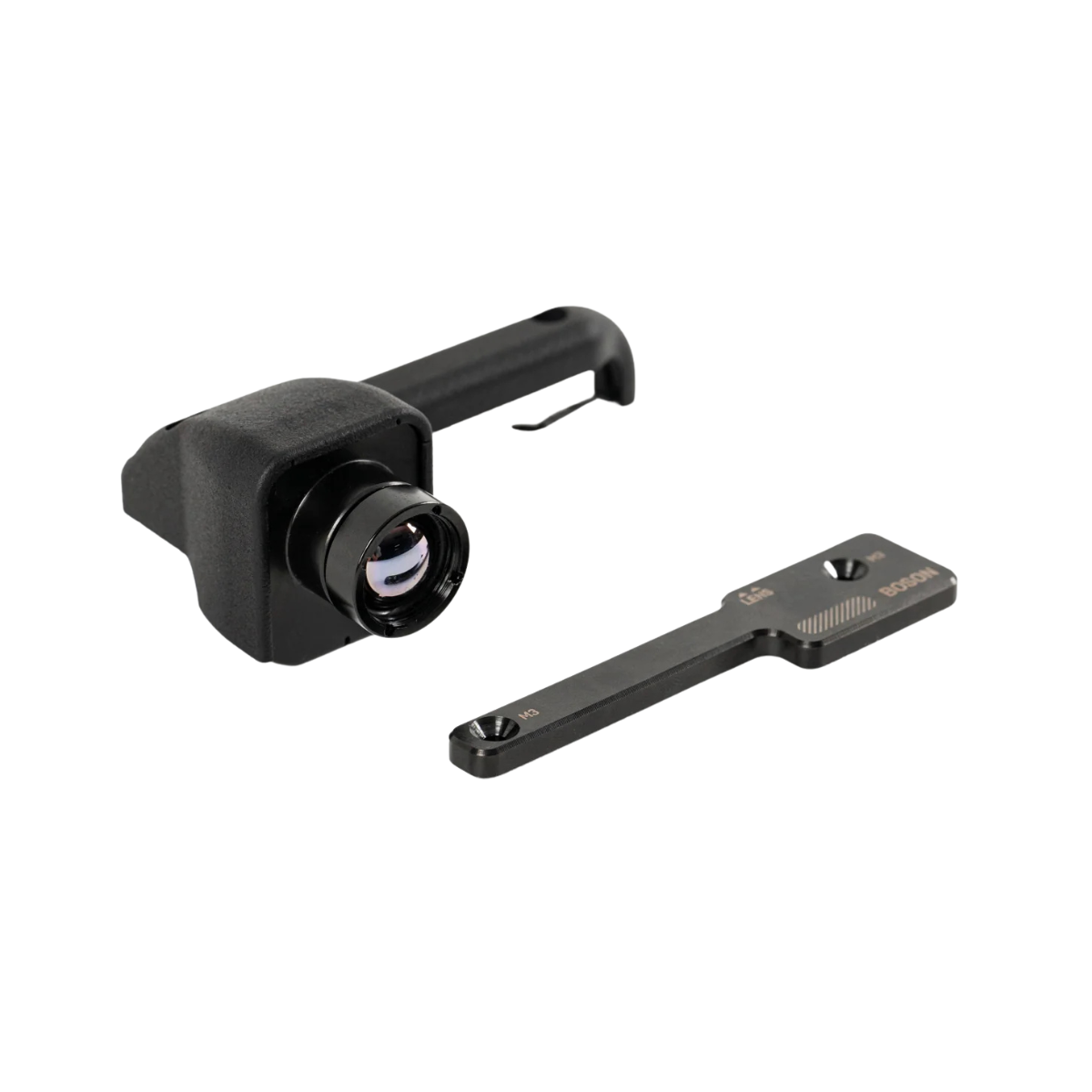

  • 1x Thermal Module for LR1 (FLIR Boson 640R)
  • 4x Camera Mounting Screws (M3 × 10 SHCS)
  • 3x Counterweight Mounting Screws (M3 × 8 FHCS)
  • 1x Thermal Module Counterweight
  • 1x Counterweight for Use with LRF

Frequently Asked Questions

More questions? Speak with an Expert.

What does the LR1 Thermal Upgrade add to my payload?

It adds FLIR Boson 640R thermal imaging capability to the LR1 Payload for dual RGB + thermal operation.

Can I install the module myself?

Yes. It’s a user-installable upgrade that mounts with included screws and plugs into the LR1 expansion port.

What thermal resolution does the module capture?

640 × 512 pixels, radiometric, using the FLIR Boson 640R LWIR sensor.

Can I use the Thermal Upgrade with the Laser Range Finder?

Yes. Both upgrades can be used together using the included larger counterweight.

Does it record geotagged thermal images?

Yes. All captured images are geotagged for mapping and post-processing.

What lens is included in the thermal module?

A 13.6 mm lens (≈63 mm full-frame equivalent).
