Freefly Astro Max Aircraft

Freefly Astro Max Aircraft

$20,000.00
$20,000.00
Sale Sold out
Shipping calculated at checkout.

S-FF-ASTRO-MAX

SKU S-FF-ASTRO-MAX MPN 950-00186
  • Compact industrial drone platform with 3 kg payload capacity
  • Up to 43 minutes flight time with no payload installed
  • 7010 motors and 21-inch propellers for maximum efficiency
  • Dual SL8 Air batteries provide endurance and redundancy in flight
  • Foldable carbon-fiber frame simplifies storage and field transport
  • Smart Dovetail interface enables quick payload swap without tools
  • RTK-ready positioning delivers centimeter-level survey accuracy
  • Pilot Pro controller offers precise control and secure telemetry
  • Open-payload ecosystem supports mapping, thermal, and LiDAR sensors
  • Designed and assembled in the USA for professional operations
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

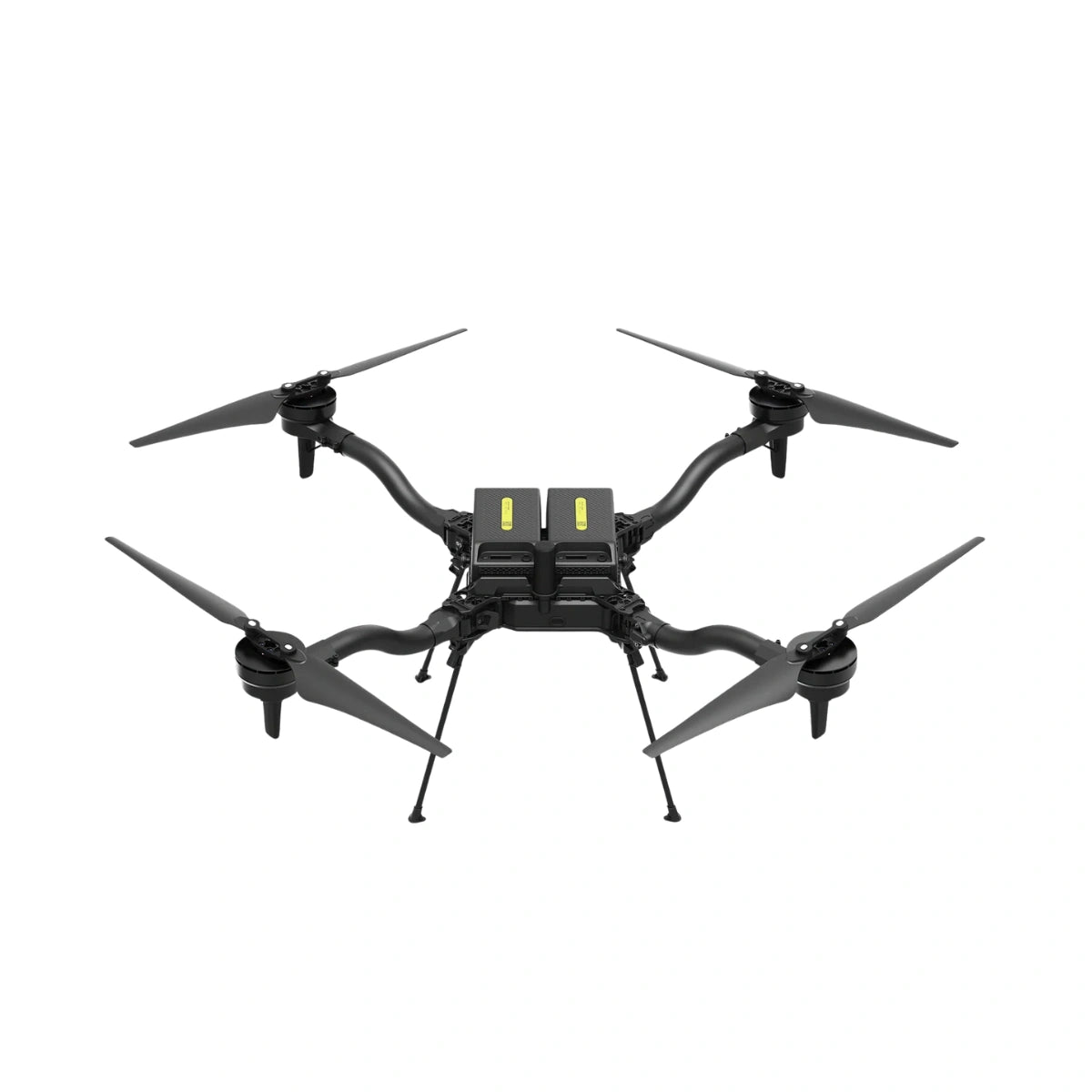

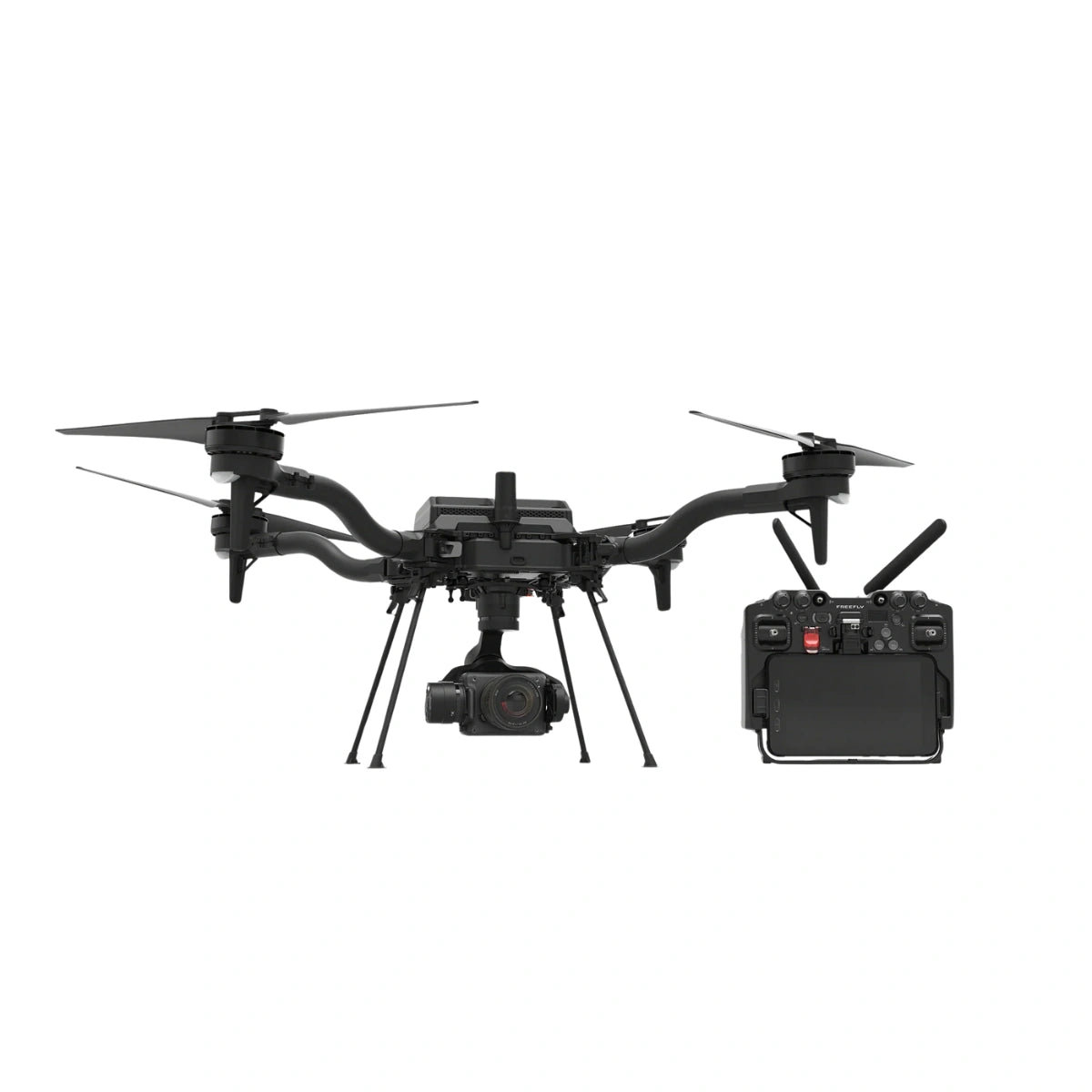

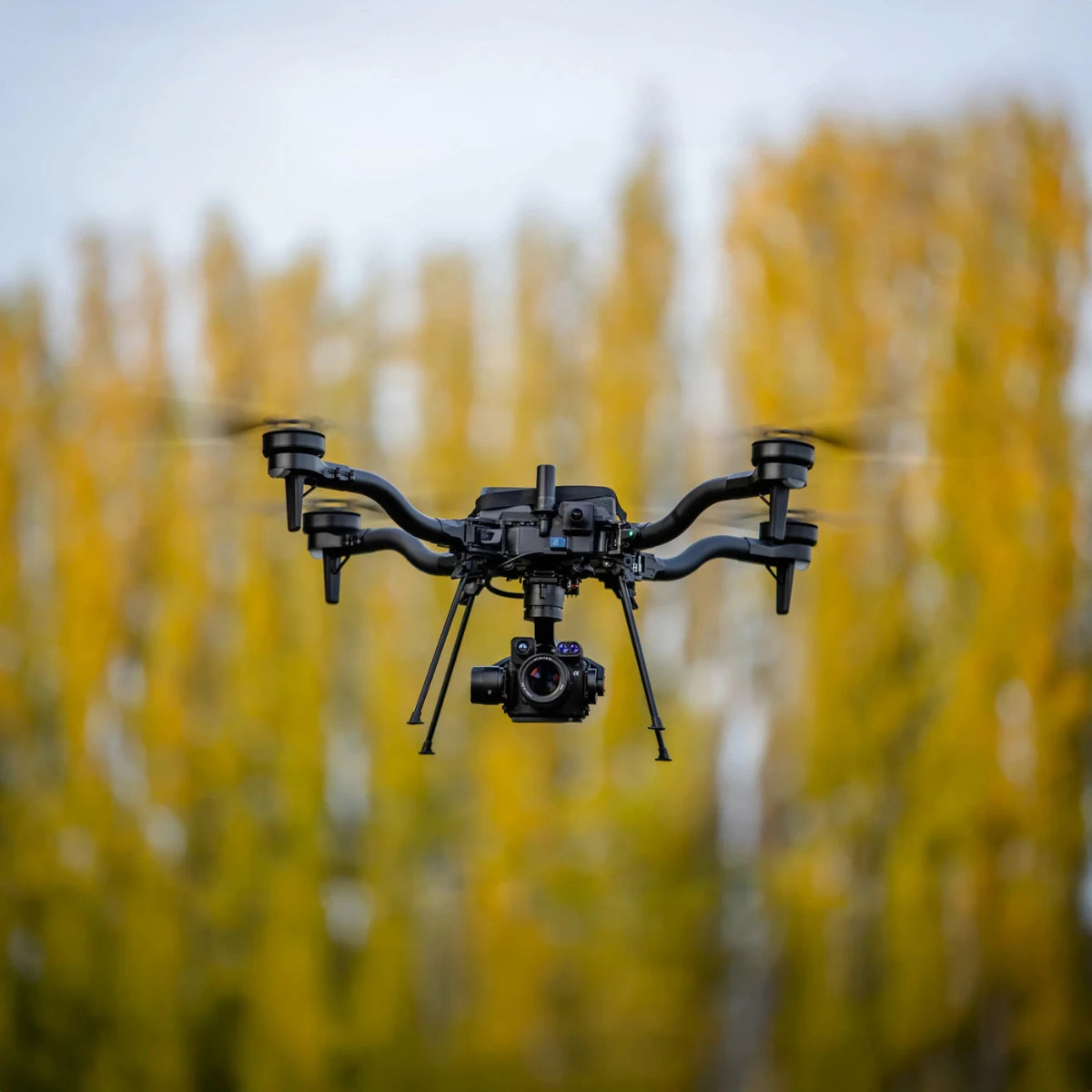

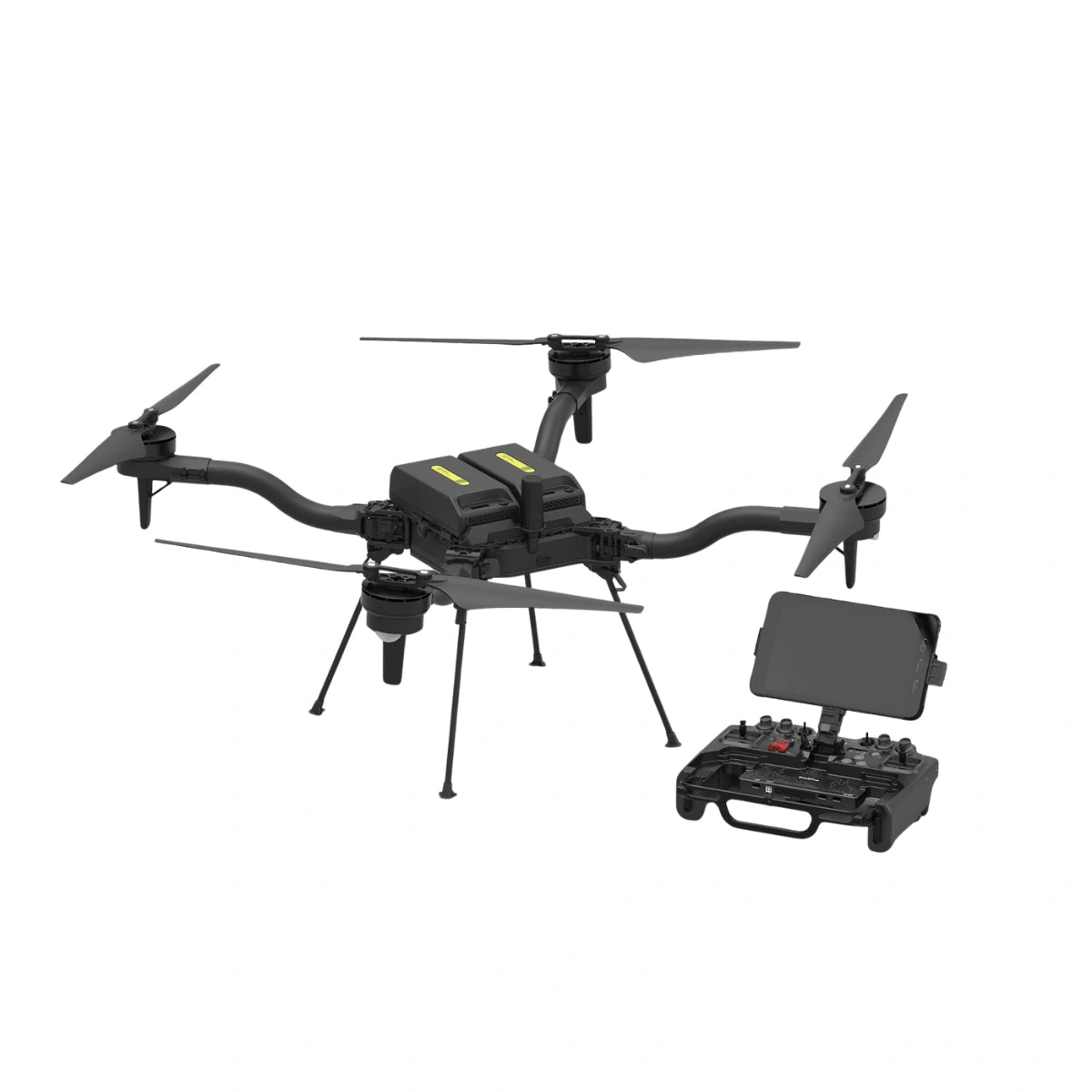

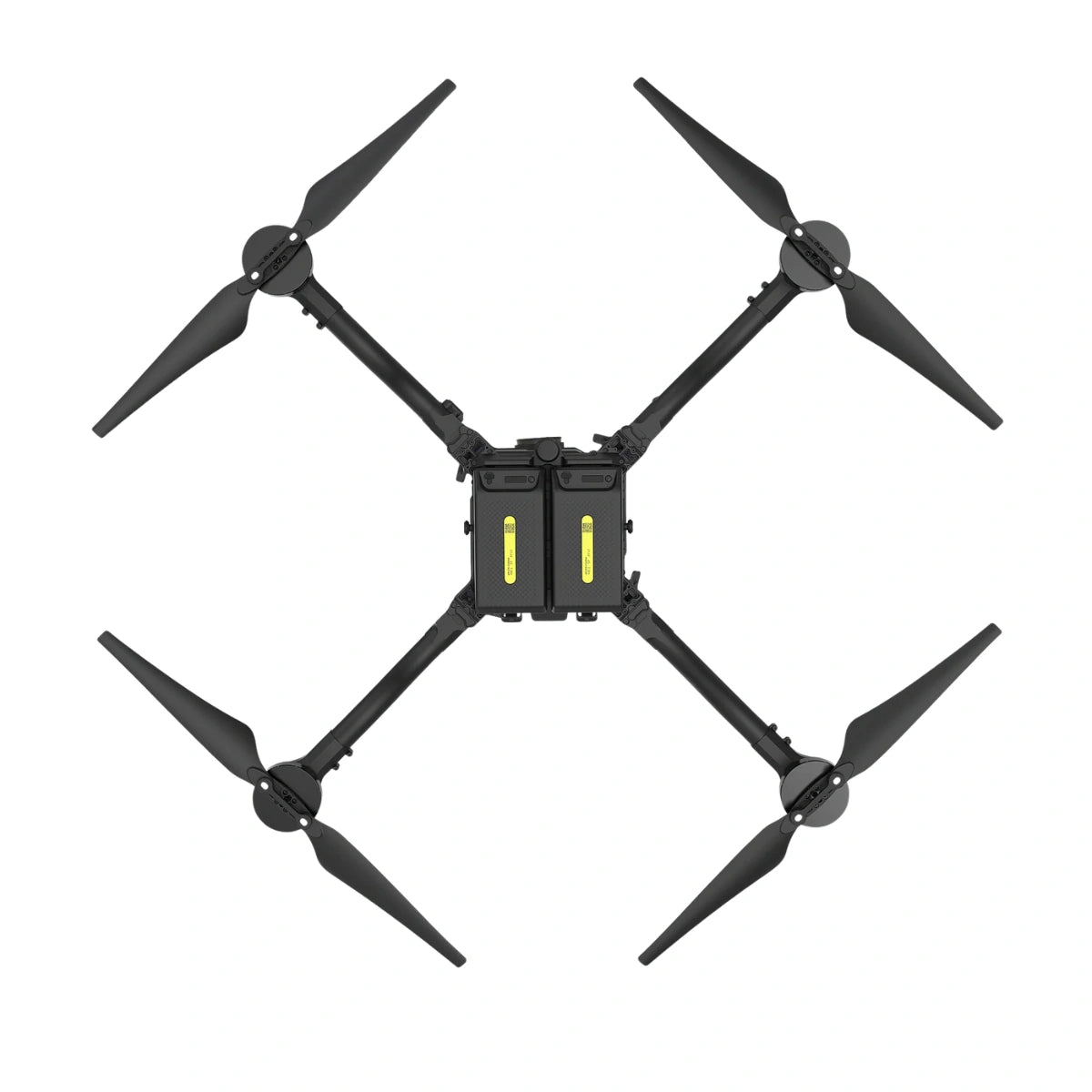

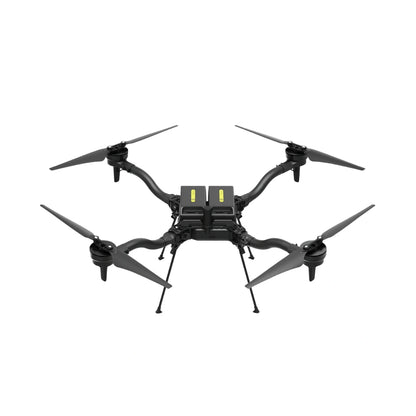

Freefly Astro Max Aircraft: Compact industrial drone platform for professional operations

The Freefly Astro Max is a compact industrial drone platform built to deliver exceptional performance, reliability, and flexibility for demanding professional missions. It supports up to a 3 kg payload and achieves a maximum flight time of 43 minutes with no payload. Designed around Freefly's advanced propulsion and flight-control architecture, the Astro Max offers a balance of endurance and stability in a rugged, foldable airframe that's ideal for transport and field deployment.

Industrial power in a compact form

Powered by high-efficiency 7010 motors and 21-inch propellers, the Astro Max delivers increased thrust and flight efficiency over previous Astro models. The airframe folds to half its flight diameter for easier packing and rapid setup. With an open payload ecosystem and Smart Dovetail quick-release interface, users can mount professional sensors for a range of aerial tasks-from imaging to survey-grade data collection-without tools or recalibration.

Designed for dependability and ease of use

The Astro Max is equipped with a dual-battery system supporting Freefly SL8 Air smart batteries and features integrated RTK-ready positioning for centimeter-level accuracy. The included Pilot Pro controller provides responsive flight control, live telemetry, and real-time mission data. Built with professional users in mind, the Astro Max delivers consistent performance and precise handling in industrial, creative, or research environments.


Key Features and Benefits

  • 7010 motors and 21-inch propellers: Increased thrust and flight efficiency
  • 3 kg maximum payload: Handles heavier sensors and accessories
  • Up to 43 minutes flight time: Extended endurance without payload
  • Foldable carbon-fiber frame: Compact, lightweight, and travel-ready design
  • Smart Dovetail payload interface: Quick, tool-free sensor mounting
  • RTK-ready precision: Supports centimeter-level positioning accuracy
  • Dual SL8 Air battery compatibility: Enhanced flight reliability and endurance
  • Pilot Pro controller: Real-time telemetry and mission data access
  • Rugged travel case: Protects gear during field operations
  • Open payload ecosystem: Compatible with mapping and imaging sensors

Applications and Use Cases

  • RTK mapping: High-accuracy aerial data acquisition for survey projects
  • Industrial inspection: Visual or thermal assessment of structures and utilities
  • Film and media production: Stable aerial footage with professional payloads
  • Research and environmental work: Reliable platform for scientific imaging
  • Infrastructure monitoring: Repeatable data collection over large assets
  • Public safety operations: Compact system for rapid field deployment
  • LiDAR missions: Supports precision scanning and data-mapping tools
  • Photogrammetry: Generates detailed 3D reconstructions and orthomosaics
  • Construction documentation: Captures aerial records for progress tracking

The Freefly Astro Max combines compact portability with professional-grade flight performance. Its robust build, versatile payload options, and long-duration capability make it an ideal choice for organizations requiring reliable, high-end aerial data capture.

DSLRPros delivers expert configuration, payload setup, and ongoing technical support to help you get the most out of your Astro Max. Purchase today to deploy this advanced industrial platform in your operations.

Astro Max

  • Up to 43 minutes flight time
  • 31 minutes with LR1 Payload
  • 20 minutes with max payload (3kg)
  • See Wiki for additional details
  • 3kg max payload
  • Booms fold up to ½ the diameter
  • Pre-installed Astro Isolator for quick-release powered payload attachment
  • Alternate payload attachments sold separately: Integrator Vibration Isolator (non-electronic), Freefly Smart Dovetail Kit (hard mount), Astro Max Isolator (50A & 70A options for payloads over 1.5 KG / 3.3 lbs)

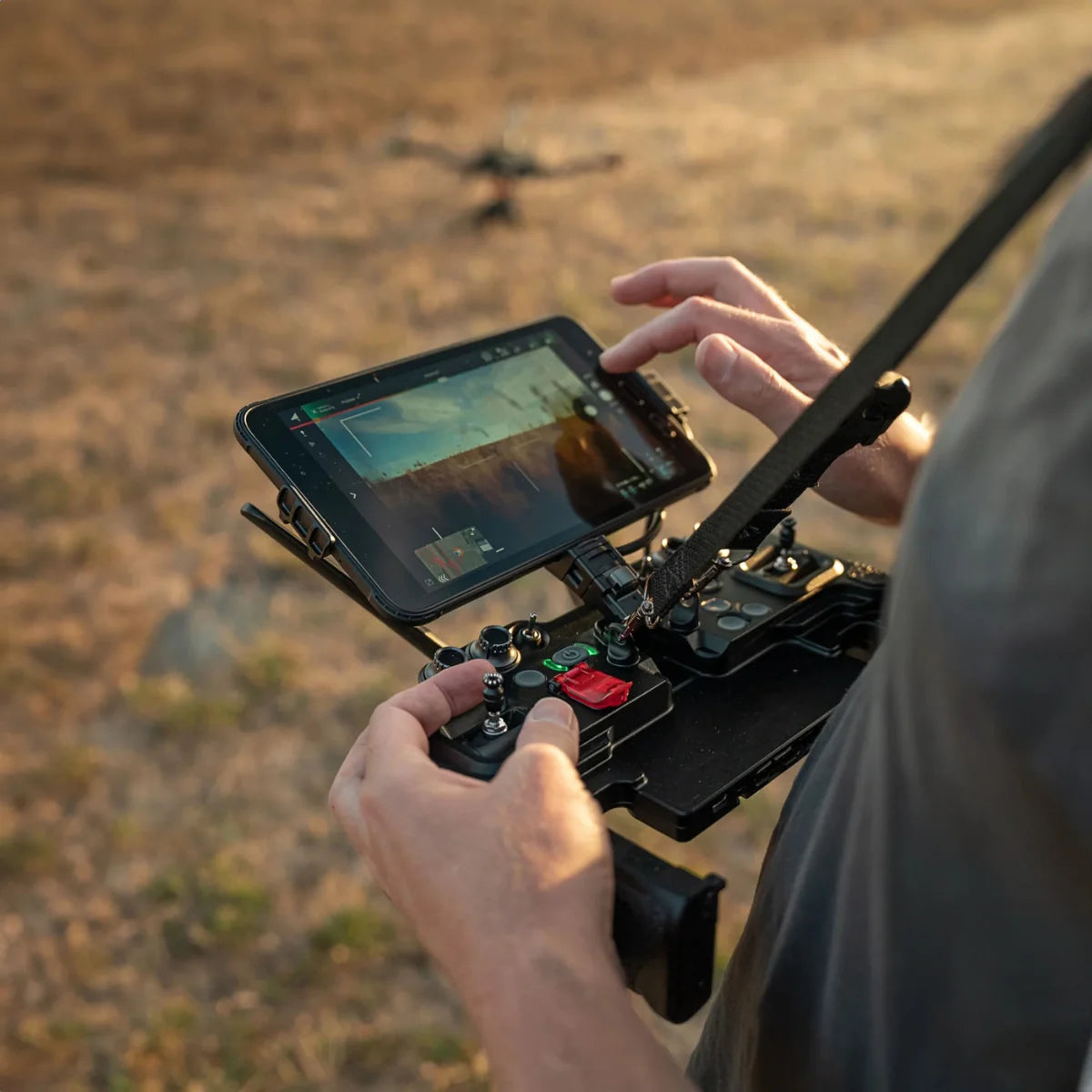

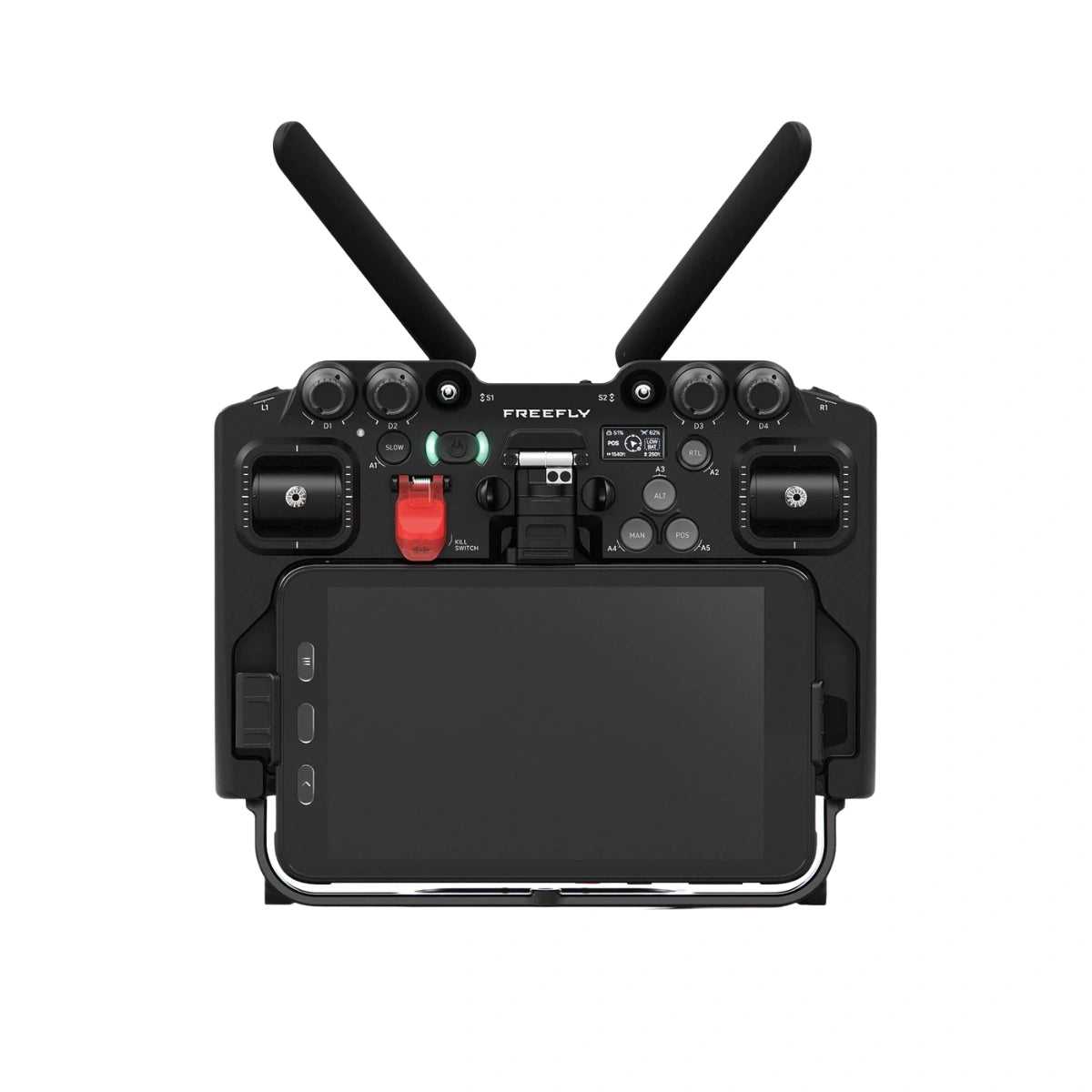

Pilot Pro Controller

  • High resolution rockers for precise camera / gimbal control
  • Configured with robust long-range radio hardware: Herelink 1.1 Radio (2.4 GHz)
  • Internal battery with external power inputs to support hot-swapping for maximum uptime
  • Emergency kill-switch
  • Discreet physical buttons for all key user actions
  • Includes custom configured, pre-installed 8" Samsung Galaxy Tablet Active5 tablet
  • Realtime drone and gimbal speed limits
  • Custom padded neck strap

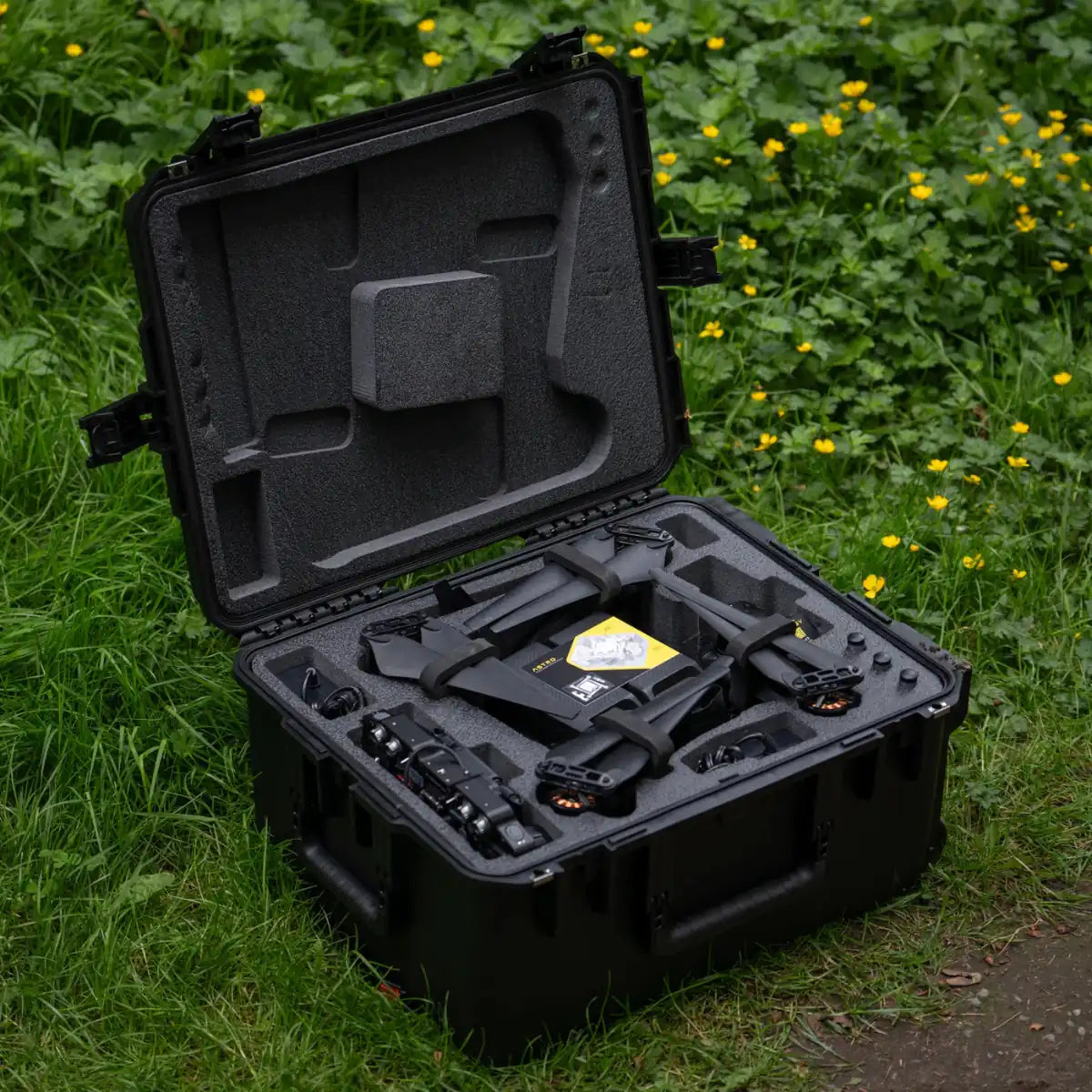

Astro Compact Travel Case

  • Holds everything needed to fly Astro
  • Astro with 2 SL8 batteries* installed and legs folded
  • Pilot Pro radio controller
  • LR1 Payload (sold separately)
  • Pair of SL8 Chargers
  • Set of spare props (1 each CW & CCW)
  • Basic tools
  • Custom cut foam, tested to protect against drops from 1 meter
  • Submersible and dust tight (MIL-STD 810G)
  • Airline checkable
  • SKB Rolling Case - 3i-2217-10
  • Case dimensions: 24.52" x 19.5" x 12.22" / 62.28 x 49.53 x 31.04 cm
  • Weight of Astro in case: As shipped/checked (no SL8s): 36.16 lbs / 16.40 kg; Full kit (with two SL8s*): 40.66 lbs / 18.44 kg

Batteries

  • SL8-Air Batteries*
  • Astro uses two SL8-Air batteries per flight
  • Voltage: 21.6 V (6S)
  • Capacity: 7.3 Ah, 157 Wh
  • Weight: 2.25 lbs
  • Chemistry: Lithium-Ion
  • Auxiliary output: USB-C Power Delivery

Chargers

  • SL8 Fast Charger*
  • One charger charges one Freefly SL8-Air battery at a time
  • Approximate charge time for one SL8-Air battery, from 0%: 90 mins
  • Input: 100 / 240 VAC
  • Output: 200 Watts
  • Supplied with North America power cable (NEMA 1-15 ungrounded, Type A)
  • Power cable is replaceable (IEC320 connector)
  • Designed and Assembled in USA

*Batteries and chargers needed for flight not included, sold separately.

  • 1x Astro Max (with folding landing gear, high efficiency props, and Astro Isolator)*
  • 1x Astro compact travel case
  • 1x each hex driver (1.5 mm, 2 mm, 2.5 mm)
  • 4x Proptectors
  • Spare parts:
  • 1x Extra Proptector
  • 4x Spare isolator balls
  • 2x Rubber hole grommet
  • 1x Pilot Pro controller
  • 1x Samsung Active Tab (pre-configured and installed into controller)
  • 1x Herelink 1.1 RF (2.4 GHz)
  • 1x Custom padded neck strap
How long can the Freefly Astro Max fly?

The Astro Max achieves up to 43 minutes of flight time with no payload, as listed by Freefly.

What is the maximum payload capacity of the Astro Max?

It supports a maximum payload of 3 kg (6.6 lb) at take-off.

How much does the Astro Max weigh without batteries or payload?

The aircraft weighs 3,523 g (7.77 lb) without batteries or payload installed.

What propulsion system does the Astro Max use?

It features 7010 motors paired with 21-inch propellers, providing higher thrust and flight efficiency.

Can the Astro Max fold for easier transport?

Yes. The aircraft folds to half its flight diameter for compact travel and quick setup.

What batteries are compatible with the Astro Max?

The Astro Max supports Freefly SL8 Air smart batteries in a dual-battery configuration.

Which payloads or sensors can the Astro Max carry?

It is compatible with multiple professional payloads—mapping cameras, LiDAR, and thermal modules—via its Smart Dovetail quick-release mount.
