• DSLRPros Inspired Flight IF800 Public Safety Package
  • Inspired Flight IF800 Quadcopter with Blue Herelink GCS, 2 batteries, charging set, and rugged case
  • Inspired Flight IF800 Quadcopter
  • Drone IF800 with six rotors on landing gear.
1 6

DSLRPros Inspired Flight IF800 Public Safety Package

DSLRPros Inspired Flight IF800 Public Safety Package

$33,000.00
$33,000.00
Sale Sold out
Shipping calculated at checkout.

B-NB-IF800-PS

  • Blue UAS–approved Inspired Flight IF800 quadcopter
  • NDAA-compliant, U.S.-designed and manufactured platform
  • Inspired Flight Gremsy VIO EO/IR payload with laser rangefinder
  • 4K visual camera with high-power zoom capability
  • Radiometric thermal sensor for heat detection and analysis
  • Encrypted command, control, and video transmission
  • Herelink Ground Control Station integration
  • Long flight endurance for extended public safety missions
  • Multi-sensor situational awareness in a single payload
  • Suitable for law enforcement, fire response, SAR, and disaster operations
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DSLRPros Inspired Flight IF800 Public Safety Package

The DSLRPros Inspired Flight IF800 Public Safety Package is a secure, mission-ready aerial solution built for first responders, law enforcement agencies, and emergency management teams operating in high-risk, time-sensitive environments.

Key Features at a Glance

  • Blue UAS–approved, NDAA-compliant UAS platform
  • Up to 40 minutes of flight time with operational payloads
  • Encrypted command, control, and video via Herelink GCS
  • Lightweight, foldable carbon-fiber quadcopter design
  • Integrated EO/IR and laser sensing with Gremsy VIO Payload
  • Radiometric thermal imaging for heat detection and analysis
  • Long-range laser distance measurement for scene assessment
  • U.S.-based manufacturing, support, and integration expertise

Built around the Blue UAS–approved Inspired Flight IF800 quadcopter, this package is paired with the Inspired Flight Gremsy VIO Payload. Together, they provide reliable situational awareness through encrypted communications, extended flight endurance, and advanced multi-sensor imaging.

This NDAA-compliant drone platform is designed and manufactured in the United States, purpose-built for public safety missions. It supports operations that require strong data security, flexible payload integration, and dependable field performance—without reliance on cloud-connected systems.

Inspired Flight IF800: Secure Aerial Platform for Public Safety

The Inspired Flight IF800 quadcopter is engineered for professionals who operate in environments where reliability and data security are critical.

As a Blue UAS–listed aircraft, it meets strict federal requirements for government and public safety use, making it suitable for agencies that require compliance with NDAA and DoD standards.

Its lightweight, foldable airframe allows for rapid deployment from vehicles or cases, while high endurance supports extended overwatch and response missions.

Full integration with the Herelink Ground Control Station enables encrypted, long-range communication and real-time video without dependence on third-party cloud infrastructure.

  • Blue UAS certification: Approved for federal, state, and critical infrastructure operations
  • Extended endurance: Supports prolonged missions with typical public safety payloads
  • Encrypted communications: Secure command, control, and video links
  • Payload flexibility: Designed to carry EO/IR and specialized sensor systems
  • GNSS-denied capability: Supports navigation in GPS-restricted environments

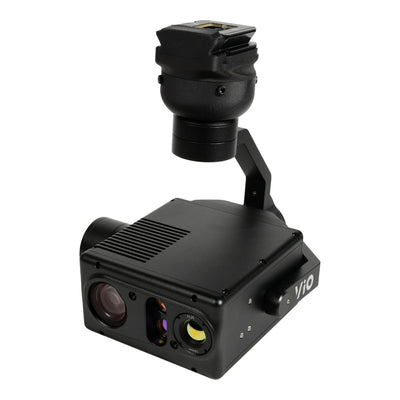

Gremsy VIO: Multi-Sensor Awareness from a Single System

The Inspired Flight Gremsy VIO Payload enhances the IF800’s public safety capabilities by combining high-resolution visual imaging, radiometric thermal sensing, and laser rangefinding into one compact, stabilized payload. This all-in-one approach reduces operational complexity while delivering critical data for decision-making in the field.

The EO camera provides detailed 4K video and powerful optical zoom for stand-off observation, while the thermal sensor detects heat signatures that are invisible to the naked eye. Integrated laser ranging adds precise distance measurement, improving spatial awareness during response and assessment missions.

  • 4K EO camera with up to 20× optical and 30× enhanced zoom
  • 640 × 512 radiometric thermal sensor for temperature measurement
  • High thermal sensitivity for detecting subtle heat differences
  • Laser rangefinder with long-distance measurement capability
  • 3-axis stabilized gimbal for clear imagery during flight

Public Safety Applications

Together, the IF800 and Gremsy VIO Payload form a versatile aerial toolset for a wide range of public safety missions. Secure communications, multi-sensor imaging, and long endurance allow teams to gather actionable intelligence while maintaining safe stand-off distances.

  • Search and rescue: Detect heat signatures and locate individuals in low-visibility conditions
  • Law enforcement overwatch: Maintain visual and thermal awareness during operations
  • Fire response: Identify hotspots and monitor fire spread using radiometric thermal data
  • Disaster response: Assess damaged structures, flooded areas, or hazardous zones
  • Scene management: Measure distances and maintain situational awareness from above

A Turnkey, Compliance-Ready Public Safety Solution

The DSLRPros Inspired Flight IF800 Public Safety Package is built for agencies that require secure, compliant, and adaptable UAS capabilities.

By pairing a Blue UAS–approved aircraft with a compact, multi-sensor EO/IR payload, this package supports faster response, better situational awareness, and safer operations in the field.

Backed by DSLRPros’ enterprise integration expertise and U.S.-based support, this solution is ready to be deployed as part of a complete public safety drone program—tailored to your mission requirements.

Request a quote or speak with a UAS specialist today to configure your IF800 Public Safety Package.

Performance

  • Max Ascent Speed: 5 m/s (16 ft/s)
  • Max Descent Speed: 3 m/s (10 ft/s)
  • Max Air Speed: 22 m/s (49 mph)
  • Max Wind Resistance: 10 m/s, 12 m/s gusts (19 knots, 23 knot gusts)
  • Max Tilt Angle: 30°
  • Max Angular Velocity: Tilt: 300°/s, Yaw: 120°/s
  • Operating Temperature: -20°C to 45°C (-4°F to 113°F)
  • Operating Humidity: IP43, 5% to 99%

Physical Features

  • Diagonal Size (propeller center to center): 905 mm (35.6 inches)
  • Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm (51.8 x 44.8 x 20.3 inches)
  • Folded Size (stow, WxLxH): 36 x 44 x 20 cm (14.2 x 17.4 x 7.8 inches)
  • Empty Weight (without batteries): 4.2 kg (9.2 lbs)
  • Weight with Batteries: 8.5 kg (18.7 lbs)
  • Max Gross Takeoff Weight: 11.5 kg (25.3 lbs)
  • Max Payload Capacity: 3.0 kg (6.6 lbs)
  • Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm (20.8 x 31.8 x 12.5 inches)
  • Transport Case Weight (with aircraft & GCS): 18 kg (40 lbs)

Flight Stack

  • Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
  • GNSS / Compass: Dual CubePilot Here4 Blue
  • Downward Ground Sensor: LightWare SF000/B
  • Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
  • Payload Interface: IF800 Universal Payload Interface
  • Operating Software: Copter by Ardupilot

Flight Modes

  • Position Hold: Automatically holds altitude and position, manually change position
  • Loiter: Holds altitude and position, precision manual movements using GPS
  • Auto: Executes pre-defined waypoint mission
  • RTL (Return to Launch): Auto returns to takeoff location and lands
  • Land: Auto land while maintaining horizontal position
  • Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost
  • 1x Inspired Flight IF800 Quadcopter with Blue Herelink GCS
  • 1x Inspired Flight IF800 Charger
  • 1x Inspired Flight IF800 Battery Set (2x Batteries)
  • 1x Inspired Flight Gremsy VIO Payload for IF800 & IF1200
What’s the difference between the Inspired Flight IF800 and IF1200A?

The IF1200A is engineered for heavy-lift missions, offering higher payload capacity and longer endurance, making it suitable for large-scale mapping and utility projects. The IF800 is a versatile, mid-sized platform, ideal for urban missions and applications where a balance of portability and payload capability is essential.

Can I use third-party cameras and sensors with the IF800?

Yes, through its universal payload interface.

Can the IF800 operate in the rain?

It has an IP43 rating, meaning it’s resistant to light rain and dust, but not fully waterproof.

Does this IF800 bundle come with a controller?

Yes.

What kind of payloads can the IF800 carry?

The IF800 supports a wide range of enterprise payloads, including EO/IR sensors, LiDAR, mapping cameras, and custom tools up to ~1.5 kg.

Is the IF800 NDAA-compliant and Blue UAS approved?

Yes. It meets all NDAA requirements and is listed on the official DoD Blue UAS Cleared List, making it eligible for federal use and grant-funded programs.

How is the Gremsy VIO F1 installed on a drone like the IF800 Tomcat?

The Gremsy VIO F1 is installed using its quick-release mounting system, ensuring a secure and straightforward attachment. Simply follow the user manual for proper setup to ensure optimal gimbal performance.

Can the IF800 Tomcat and Gremsy VIO F1 be used for public safety or search-and-rescue missions?

Yes, this combination is ideal for public safety and search-and-rescue operations. The thermal imaging capabilities allow for locating individuals or heat-emitting objects in low-visibility environments, such as at night or during adverse weather conditions.

What industries benefit most from the IF800 Tomcat and Gremsy VIO F1 integration?

Industries such as energy and utilities, agriculture, public safety, and environmental monitoring benefit greatly from the combined precision and imaging capabilities of the IF800 Tomcat and Gremsy VIO F1.

How does the Gremsy VIO F1 improve thermal imaging capabilities for the IF800 Tomcat?

The Gremsy VIO F1 provides stable, high-resolution thermal imagery, ensuring accurate temperature readings and detailed heat maps, even during dynamic flight conditions.

What support and maintenance services are available for the Gremsy VIO F1 and IF800 Tomcat?

Both Inspired Flight and Gremsy offer comprehensive customer support, including firmware updates, troubleshooting assistance, and repair services to keep your equipment operating at peak performance.

What are the maximum payload capacity and flight time for the IF800 Tomcat when using the Gremsy VIO F1?

The IF800 Tomcat can support payloads up to 6.6 lbs (3 kg) and offers a maximum flight time of up to 40 minutes, depending on the payload weight and environmental factors.

What industries benefit most from the IF800 Tomcat and Gremsy VIO F1 integration?

Industries such as energy and utilities, agriculture, public safety, and environmental monitoring benefit greatly from the combined precision and imaging capabilities of the IF800 Tomcat and Gremsy VIO F1.

What are the maximum payload capacity and flight time for the IF800 Tomcat when using the Gremsy VIO F1?

The IF800 Tomcat can support payloads up to 6.6 lbs (3 kg) and offers a maximum flight time of up to 40 minutes, depending on the payload weight and environmental factors.

Does the Gremsy VIO F1 support radiometric thermal measurements?

Yes. The thermal camera provides radiometric data for temperature analysis.

What zoom capabilities does the Gremsy VIO F1 offer?

The EO camera supports 20× optical zoom, 30× super resolution zoom, and up to 240× combined zoom.

What is the maximum laser range of the Gremsy VIO F1 Payload?

The laser rangefinder measures distances up to 2400 m at a 1 Hz update rate.

What sensors are included in the Inspired Flight Gremsy VIO F1 Payload?

The payload includes a 4K zoom camera, a 640 × 512 radiometric thermal camera, and an integrated laser rangefinder.

How does the Gremsy VIO F1 enhance flight performance for drones?

The Gremsy VIO F1 minimizes vibrations and stabilizes imaging equipment, allowing for high-quality data collection even during high-speed flights or challenging environmental conditions.

What are the key features of Gremsy VIO F1?

The Gremsy VIO F1 is an advanced gimbal payload designed to integrate seamlessly with professional drones for thermal imaging and inspection tasks. Its features include:

  • Lightweight design for extended flight times.
  • High-precision stabilization for smooth, jitter-free imaging.
  • Compatibility with thermal cameras like the FLIR Vue series.
What kind of gimbal stabilization technology does the Gremsy VIO F1 use?

The Gremsy VIO F1 features a 3-axis gimbal stabilization system, delivering smooth and precise control for professional-grade imagery.

How is the Gremsy VIO F1 installed on a drone like the IF800 Tomcat?

The Gremsy VIO F1 is installed using its quick-release mounting system, ensuring a secure and straightforward attachment. Simply follow the user manual for proper setup to ensure optimal gimbal performance.

What are the main applications of the Gremsy VIO F1?

The Gremsy VIO F1 is ideal for:

  • Thermal inspections in infrastructure and utilities.
  • Precision agriculture for crop health analysis.
  • Search-and-rescue missions.
  • Public safety operations, such as firefighting and disaster management.
