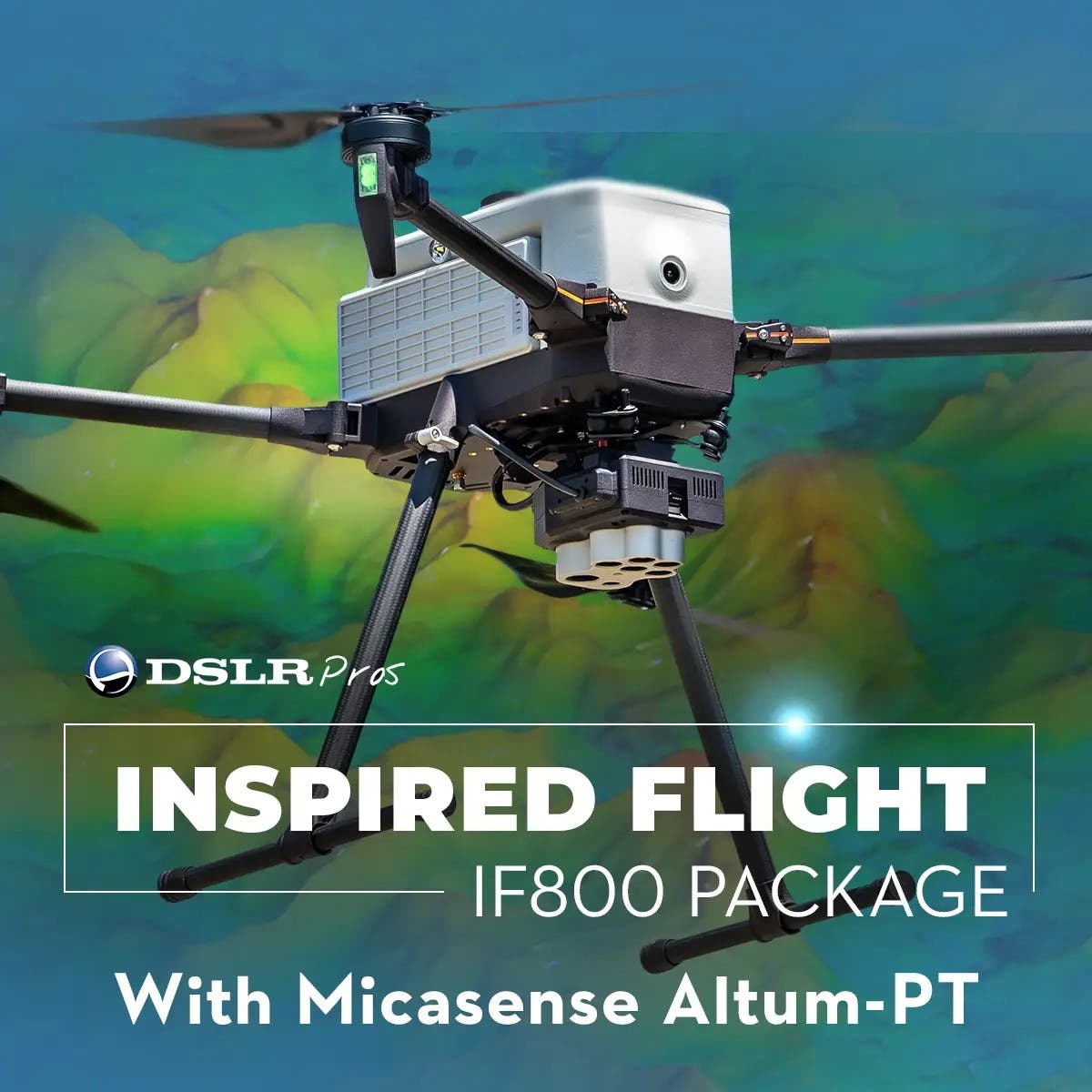

• DSLRPros Inspired Flight IF800 MicaSense Altum PT Combo overview graphic
1 1

DSLRPros Inspired Flight IF800 MicaSense Altum PT Combo

DSLRPros Inspired Flight IF800 MicaSense Altum PT Combo

$39,490.00
$39,490.00
Sale Sold out
Shipping calculated at checkout.

B-IF-IF800-ALT-PT

  • NDAA-compliant and Blue UAS-approved IF800 Quadcopter with Blue Herelink Ground Control Station
  • Includes MicaSense Altum PT sensor and Altum-PT Integration
  • Dual hot-swappable batteries, 54-minute flight time
  • Optional: Battery Kit, Battery Set, Spare Propeller Set, Spare Part Kit
  • Optional: PIX4Dfields - Perpetual License
  • Firmware Upgrade Service included
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Advanced Aerial Imaging and Precision Agriculture with IF800 + MicaSense Altum-PT

The IF800-MicaSense Altum-PT Combo is the ultimate package for advanced aerial imaging and precision agriculture.

This comprehensive combo includes the IF800 Quadcopter equipped with the advanced Blue Herelink Ground Control Station, the Inspired Flight MicaSense Altum-PT Integration, and the high-performance MicaSense Altum PT sensor.

IF800 Core Features

The IF800 is built to endure long missions while carrying professional-grade payloads:

  • NDAA-compliant and Blue UAS-approved:Β Highly trusted platform for government, defense, and critical-infrastructure operations
  • Long flight time: Up to 54 minutes of endurance.
  • High payload capacity: 6.6 lbs (3.0 kg) for EO/IR, optical, and LiDAR sensors.
  • Fast & stable: Max speed of 49 mph with wind resistance up to 23 knots.
  • All-weather reliability: IP55-rated design protects against dust and water spray.
  • Uninterrupted operations: Hot-swappable batteries allow up to 5 hours of runtime.
  • Extended reach: Maintain control and data transmission up to 6 miles.

The IF800 Quadcopter is known for its lightweight, foldable frame, dual hot-swappable smart batteries, and up to 54 minutes of flight time, making it ideal for extended agricultural missions.

The MicaSense Altum-PT Advantage

Built for professionals who demand accuracy and efficiency, the Altum-PT combines thermal, multispectral, and panchromatic sensors in one streamlined payload.

From scientific trials to commercial agriculture, these features enable powerful insights in fewer flights.

  • Triple-sensor power in one payload: Capture multispectral, thermal, and panchromatic data in a single pass, with 12 MP pan-sharpened detail.
  • Global shutter and synchronized capture: All bands use a global shutter for pixel-aligned, distortion-free imagery during fast or low-altitude flights.
  • Radiometric thermal imaging: A FLIR thermal sensor provides calibrated temperature data for crop stress and irrigation insights.
  • Flexible integration: Works with many DJI drones and planning software like Pix4D and Agisoft, with full RAW data access.
  • Integrated RTK support: Supports external RTK systems for centimeter-level geotagging without ground control points

The MicaSense Altum PT sensor captures high-resolution multispectral and thermal imagery, providing detailed data for agricultural and environmental applications.

The Altum-PT Integration ensures seamless mounting and optimal performance, making it perfect for precise data collection and analysis.

Other Benefits and Optional Add-Ons

This package also includes a Firmware Upgrade Service to keep your system up-to-date with the latest features and improvements.

Optional items include the IF800 Battery Kit, IF800 Battery Set, IF800 Spare Propeller Set, IF800 Spare Part Kit, and the PIX4Dfields - Perpetual License for advanced mapping software.

The IF800 MicaSense Altum-PT Combo is a comprehensive solution that enhances your drone operations with precision, advanced technology, and continuous support.

    IF800 Specs

    Performance

    • Max Ascent Speed: 5 m/s
    • Max Descent Speed: 3 m/s
    • Max Air Speed: 22 m/s
    • Max Wind Resistance: 10 m/s, 12 m/s gusts
    • Max Tilt Angle: 30Β°
    • Max Angular Velocity: Tilt: 300Β°/s, Yaw: 120Β°/s
    • Operating Temperature: -20Β°C ~ 45Β°C
    • Operating Humidity: IP43 5% ~ 99%

    Physical Features

    • Diagonal Size (propeller center to center): 905 mm
    • Unfolded Size (flight ready, WxLxH): 132 x 114 x 52 cm
    • Folded Size (stow, WxLxH): 36 x 44 x 20 cm
    • Empty Weight (w/o batteries): 4.2 kg
    • Weight w/ Batteries: 8.5 kg
    • Max Gross Takeoff Weight: 11.5 kg
    • Max Payload Capacity: 3.0 kg
    • Transport Case Size (WxLxH): 52.8 x 80.7 x 31.7 cm
    • Transport Case Weight (w/ aircraft & GCS): 18 kg

    Flight Stack

    • Flight Controller: CubePilot Cube Blue H7, Triple Redundant IMU
    • GNSS / Compass: Dual CubePilot Here4 Blue
    • Downward Ground Sensor: LightWare SF000/B
    • Payload Power Rails: 6s Battery Voltage 5v, 12v, 18v
    • Payload Interface: IF800 Universal Payload Interface
    • Operating Software: Copter by Ardupilot

    Flight Modes

    • Position Hold: Automatically holds altitude and position, manually change position
    • Loiter: Holds altitude and position, precision manual movements using GPS
    • Auto: Executes pre-defined waypoint mission
    • RTL: Auto returns to takeoff location and lands
    • Land: Auto land while maintaining horizontal position
    • Altitude Hold: Holds altitude only, failsafe mode if GPS signal lost

    MicaSense Altum-PT Specs

    Imaging Sensors

    • Multispectral Sensor Resolution: 2064 x 1544 (3.2 MP per band)
    • Panchromatic Sensor Resolution: 4112 x 3008 (12 MP)
    • Thermal Sensor Resolution: 320 x 256
    • Pixel Size:
    • Multispectral: 3.45 ΞΌm
    • Panchromatic: 3.45 ΞΌm
    • Thermal: 12 ΞΌm
    • Aspect Ratio:
    • Multispectral: 4:3
    • Panchromatic: 6:5
    • Thermal: 5:4
    • Sensor Size:
    • Multispectral: 7.12 x 5.33 mm
    • Panchromatic: 14.18 x 10.37 mm
    • Thermal: 3.84 x 3.07 mm
    • Focal Length:
    • Multispectral: 8 mm
    • Panchromatic: 16.3 mm
    • Thermal: 4.5 mm
    • Field of View:
    • Multispectral: 48Β° H x 36.8Β° V
    • Panchromatic: 46Β° H x 35Β° V
    • Thermal: 48Β° H x 39Β° V
    • Thermal Sensitivity: < 60 mK
    • Thermal Accuracy: Β±5 K
    • Output Bit Depth:
    • Multispectral & Panchromatic: 12-bit
    • Thermal: 16-bit

    Performance Metrics

    • Ground Sample Distance (GSD) at 120 m:
    • Multispectral: 5.28 cm/pixel
    • Panchromatic and Pan-sharpened: 2.49 cm/pixel
    • Thermal: 33.5 cm/pixel
    • GSD at 60 m:
    • Multispectral: 2.64 cm/pixel
    • Panchromatic and Pan-sharpened: 1.24 cm/pixel
    • Thermal: 16.75 cm/pixel

    Connectivity & Power

    • External Power Input: 7.0 V - 25.2 V
    • Power Consumption:
    • Continuous: 10 W
    • Peak: 12 W
    • Connectors:
    • Power: JST-GH BM04B-GHS-TBT
    • Data (Serial & Ethernet): JST-GH BM15B-GHS-TBT
    • Downwelling Light Sensor (DLS): JST-GH GHR-06V-S
    • Power Supply Requirements: Must be capable of 12 W peak, recommend connection of both Power and Ground pins for minimal voltage drop.

    Physical Dimensions

    • Size:
    • Length: 110 mm
    • Width: 80 mm
    • Height: 69 mm
    • Weight: 460 g (including camera and DLS2)

    Operational Features

    • Capture Rate: Up to 2 captures per second (2 Hz)
    • Operational Modes:
    • Overlap
    • Timer
    • External Trigger (PWM or edge-triggering)

    API Support: HTTP API via Ethernet or Wi-Fi, MAVLink over serial

    1x Inspired Flight IF800 Quadcopter with Blue Herelink GCS

    • 1x IF800 Quadcopter
    • 1x Blue Herelink Ground Control Station
    • 1x Rugged Transport Case
    • 1x Charger Set
    • 2x Flight Batteries

    1x Inspired Flight MicaSense Altum-PT and Integration Kit Bundle

    • Altum-PT sensor
    • DLS 2 (with GPS)
    • CRP 2 panel
    • Wi-Fi dongle
    • CFexpress card
    • Cables and mounting hardware
    • Carrying case
    • Nadir mounting solution
    • Smart Dovetail interface
    • DLS mounting hardware
    What’s the difference between the Inspired Flight IF800 and IF1200A?

    The IF1200A is engineered for heavy-lift missions, offering higher payload capacity and longer endurance, making it suitable for large-scale mapping and utility projects. The IF800 is a versatile, mid-sized platform, ideal for urban missions and applications where a balance of portability and payload capability is essential.

    Can I use third-party cameras and sensors with the IF800?

    Yes, through its universal payload interface.

    Can the IF800 operate in the rain?

    It has an IP43 rating, meaning it’s resistant to light rain and dust, but not fully waterproof.

    Does this IF800 bundle come with a controller?

    Yes.

    What kind of payloads can the IF800 carry?

    The IF800 supports a wide range of enterprise payloads, including EO/IR sensors, LiDAR, mapping cameras, and custom tools up to ~1.5 kg.

    Is the IF800 NDAA-compliant and Blue UAS approved?

    Yes. It meets all NDAA requirements and is listed on the official DoD Blue UAS Cleared List, making it eligible for federal use and grant-funded programs.

    How do I transfer and analyze data collected from the MicaSense Altum-PT?

    Data can be transferred via an SD card or downloaded directly through the camera’s web interface. Once transferred, use software like Pix4Dmapper or Agisoft Metashape to analyze and visualize the collected data for actionable insights.

    What drones are compatible with the MicaSense Altum-PT?

    The Altum-PT is compatible with professional UAVs that support Skyport, quick-mount, or custom gimbal integration. The MicaSense Altum-PT Multispectral Kit supports DJI Matrice 400, DJI Matrice 350, and Inspired Flight IF800 and IF1200 with appropriate integration hardware.

    What kind of support does DSLRPros offer for the MicaSense Altum PT?

    We offer payload consultation, integration support, and flight planning guidance. Whether you're outfitting a single drone or building out a fleet, our U.S.-based team ensures the Altum PT works flawlessly with your DJI M350 system.

    What kind of data can the MicaSense Altum PT payload collect?

    The Altum PT captures multispectral, thermal, and panchromatic data simultaneously, making it ideal for advanced crop analysis, plant health monitoring, and research applications.

    What MicaSense sensors require the DLS 2?

    The DLS 2 is typically paired with MicaSense RedEdge-P and Altum-PT sensors for ambient light correction during multispectral flights.

    What vegetation indices can be generated with MicaSense sensors?

    MicaSense cameras support NDVI, NDRE, GNDVI, SAVI, and moreβ€”allowing users to analyze crop vigor, nutrient levels, and species differentiation across fields.
