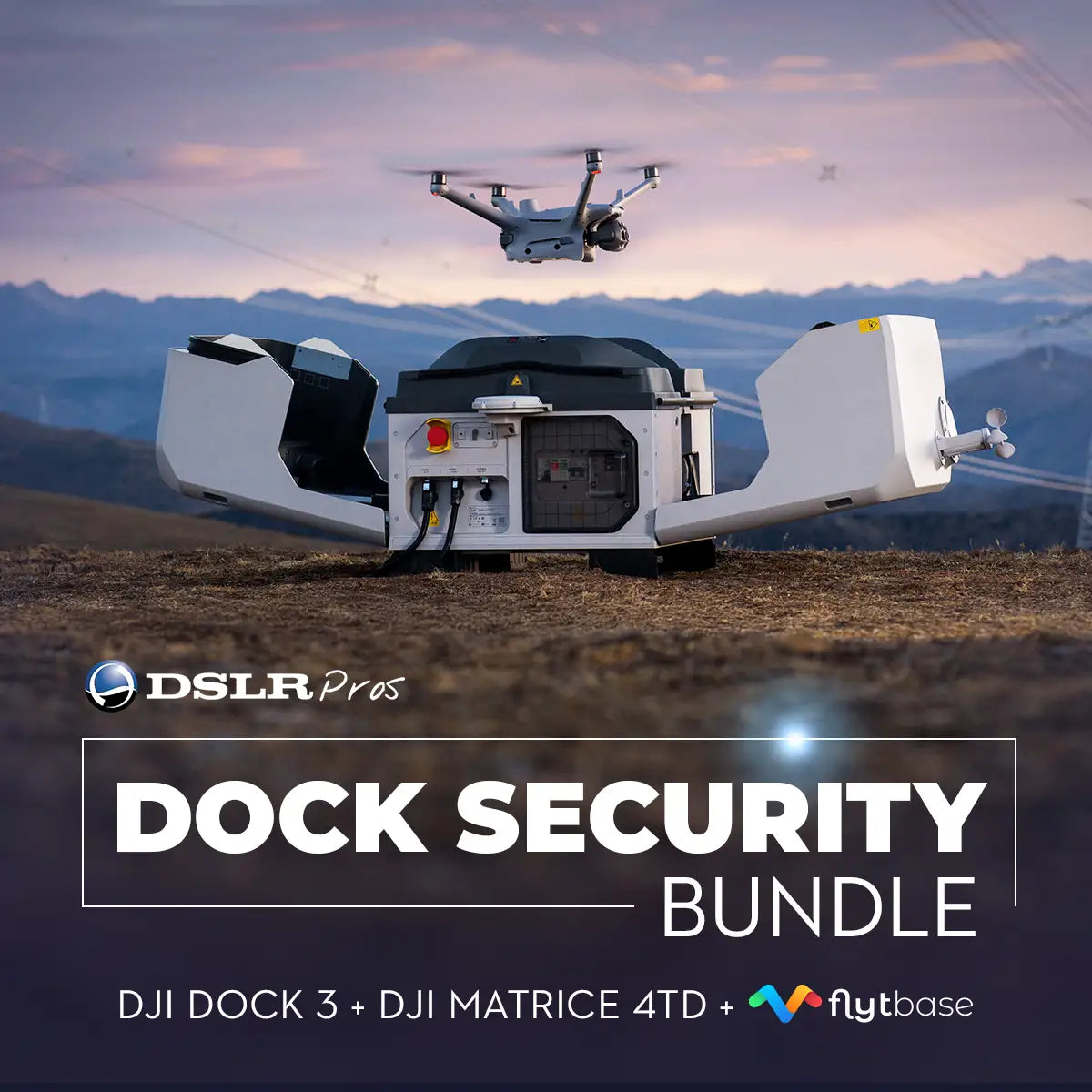

DSLRPros Dock Security Bundle

DSLRPros Dock Security Bundle

Regular price $30,616.99
Regular price Sale price $30,616.99
Sale Sold out
Shipping calculated at checkout.

SKU:B-NB-DOCK3-SB

  • Rapid, weather-resistant deployment and retrieval for 24/7 operations
  • Detail capture of thermal and visual footage for enhanced situational awareness
  • Automation of patrols, alarms, and mission triggers via FlytBase
  • Seamlessly connects with existing security infrastructures
  • Remote access to live HD and thermal video feeds
  • Optional hardware-in-the-loop AI for real-time detection of personnel and vehicles
  • Compliance with SOC-2 Type II, ISO 27001, and GDPR standards for top-tier data protection
  • Manage up to 3 sites, with options to expand video minutes, storage, and operational capabilities.
  • Bundle main inclusions: DJI Dock 3, DJI Matrice 4TD, and FlytBase Enterprise Base Package
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DSLRPros Dock Security Bundle: Autonomous surveillance solution for modern security needs

The DSLRPros Dock Security Bundle delivers an end-to-end autonomous surveillance platform designed to strengthen perimeter protection, enhance situational awareness, and streamline incident response. Combining the DJI Dock 3, the DJI Matrice 4TD, and FlytBase Enterprise Software, this system provides continuous aerial monitoring with automated launch, landing, and recharging.

Built for organizations that require reliable, real-time visibility, the bundle supports round-the-clock oversight of campuses, industrial facilities, logistics hubs, and critical infrastructure, helping security teams detect, verify, and respond to events with greater speed and confidence.

DJI Dock 3 key features

  • IP56-rated enclosure designed for demanding outdoor environments
  • Operating temperature range from –30 °C to 50 °C for year-round deployment
  • Precision cradle landing for reliable automated recoveries
  • Approximately 27-minute Ready-to-Fly charging cycle from 15% to 95%
  • Vehicle-mountable configuration for mobile or multi-site operations
  • Compatible with DJI FlightHub 2 for automated mission scheduling
  • Supports alarm-triggered launches and autonomous patrol routines

DJI Matrice 4TD key features

  • Up to 47 minutes of flight time for extended patrol missions
  • IP55 protection suitable for outdoor and industrial surveillance
  • 48 MP tele camera with up to 80° upward tilt for elevated inspections
  • UHR thermal imaging up to 1280 × 1024 for detection of heat signatures and intruders
  • NIR auxiliary lighting and Night Scene mode for low-light surveillance
  • Rotating LiDAR and mm-wave radar capable of detecting 12 mm wires
  • Airborne relay functionality to extend transmission across large sites
  • O4 Enterprise transmission for robust long-range connectivity

FlytBase Enterprise Software key features

  • One-year software support for mission automation and system updates
  • 150,000 annual video viewer minutes for continuous remote oversight
  • 500 GB cloud storage for secure retention of mission and video data
  • Enterprise-grade security with SOC-2 Type II, ISO 27001, and GDPR compliance
  • Alarm-triggered flights, intelligent routing, and real-time video feeds
  • Multi-user access with advanced permission controls
  • Integration compatibility with existing security and VMS systems

Automation designed for evolving security operations

As security demands grow more complex, the DSLRPros Dock Security Bundle enables teams to automate patrol routes, respond instantly to alarms, and maintain consistent aerial surveillance. The DJI Dock 3 offers IP56 environmental protection and automated flight readiness across a wide temperature range, while the Matrice 4TD delivers long flight endurance and multi-sensor imaging for day and night operations.

FlytBase Enterprise adds cloud-based mission planning, automated triggers, and centralized fleet visibility, allowing operators to manage multiple sites from a single dashboard without requiring on-site pilots.

Proactive surveillance powered by advanced imaging

With UHR thermal imaging, long-range zoom optics, and low-light enhancements, the Matrice 4TD can detect intruders, vehicles, heat signatures, and perimeter breaches even in darkness or challenging conditions. Automated responses and intelligent routing allow drones to dispatch themselves immediately when alarms, video analytics, or sensor alerts occur.

The Dock 3’s rapid charging cycle minimizes downtime between missions, enabling continuous oversight throughout the day and night. This bundle creates a proactive, high-efficiency surveillance system that improves response times and strengthens situational awareness across large properties.

Compatibility and integration

  • Works with DJI FlightHub 2 and FlytBase Enterprise for cloud-based scheduling
  • Secure networking compatible with enterprise IT infrastructure
  • Thermal and visual data exportable to analytics and security platforms
  • Flexible configurations for facilities, large campuses, and industrial environments

Security-focused applications and use cases

  • Autonomous perimeter patrols: Continuous surveillance of fences, entry points, and boundaries
  • Rapid incident response: Launches automatically when alarms or sensors are triggered
  • Intrusion and threat detection: Thermal imaging identifies movement and heat signatures
  • Facility monitoring: Inspect rooftops, parking areas, loading zones, and access roads
  • Crowd and event monitoring: Provide aerial oversight at gatherings or critical events
  • Vehicle tracking: Monitor suspicious vehicles across large properties
  • Emergency support: Assist responders with aerial views of active incidents
  • Remote site management: Monitor remote yards, substations, or isolated assets
  • Nighttime surveillance: Detect activity in low-light or no-light environments
  • Evidence and documentation: Record events for investigation and reporting

The DSLRPros Dock Security Bundle is engineered for organizations seeking dependable autonomous aerial surveillance. Its rugged dock, long-endurance aircraft, and intelligent automation software reduce manual workload while expanding situational awareness.

Automated patrols and alarm-based missions give security teams faster response times, better verification capabilities, and continuous visibility across large or complex environments. With cloud-based management, secure data storage, and multi-user support, this bundle integrates seamlessly into modern security ecosystems.

The DSLRPros Dock Security Bundle delivers an advanced, ready-to-deploy surveillance solution that enhances security operations with continuous monitoring, automated responses, and high-resolution imaging. Order from DSLRPros today and elevate your organization’s security with reliable, fully autonomous aerial oversight.

Ready to transform your security operations? Contact DSLRPros today. Call us at 877-299-1075 to speak with one of our experts and customize your Dock Security Bundle.

Dock – General

  • Product Name: DJI Dock 3
  • Total Weight: 55 kg (without aircraft)
  • Dimensions (Cover Opened): 1760×745×485 mm (L×W×H)
  • Dimensions (Cover Closed): 640×745×770 mm (L×W×H)
  • Input Voltage: 100-240 V AC, 50/60 Hz
  • Input Power: Max 800 W
  • Operating Temperature: -30° to 50° C
  • Ingress Protection Rating: IP56
  • Number of Drones Accommodated: 1
  • Max Allowable Landing Wind Speed: 12 m/s
  • Max Operating Altitude: 4500 m

Dock – RTK Base Station

  • Receiving Frequency (GPS): L1 C/A, L2, L5
  • Receiving Frequency (BeiDou): B1l, B2l, B3l, B2a, B2b, B1C
  • Receiving Frequency (GLONASS): F1, F2
  • Receiving Frequency (Galileo): E1, E5a, E5b, E6
  • Receiving Frequency (QZSS): L1, L2, L5
  • Positioning Accuracy – Horizontal: 1 cm + 1 ppm (RMS)
  • Positioning Accuracy – Vertical: 2 cm + 1 ppm (RMS)

Dock – Charging Performance

  • Output Voltage: 35 V DC
  • Charging Time: 27 minutes (from 15% to 95% at 25° C)

Dock – Video Transmission

  • Operating Frequency: 2.400–2.4835 GHz; 5.150–5.250 GHz; 5.725–5.850 GHz
  • Antenna: Built-in 9 antennas, 2T4R configuration
  • Transmitter Power (EIRP) 2.4 GHz: <33 dBm FCC, <20 dBm CE/SRRC/MIC
  • Transmitter Power (EIRP) 5.2 GHz: <23 dBm (FCC/CE)
  • Transmitter Power (EIRP) 5.8 GHz: <33 dBm FCC; <14 dBm CE; <30 dBm SRRC

Dock – Air Conditioning System

  • Operating Voltage: 48 V DC
  • Type: Compressor-based air-conditioning

Dock – Backup Battery

  • Battery Capacity: 12 Ah
  • Output Voltage: 12 V
  • Battery Type: Lead-acid
  • Battery Life: Over 4 hours (at 25° C)

Dock – Network Access

  • Ethernet Access: 10/100/1000 Mbps adaptive port
  • 4G Access: Requires DJI Cellular Dongle 2 (sold separately; availability varies by region)

Dock – Sensors

  • Wind Speed Sensor: Supported
  • Rainfall Sensor: Supported
  • Ambient Temperature Sensor: Supported
  • Water Immersion Sensor: Supported
  • In-Cabin Temperature Sensor: Supported
  • In-Cabin Humidity Sensor: Supported

Dock – Security Cameras

  • External Camera: 1920×1080 resolution, 151° FOV, white auxiliary light
  • Internal Camera: 1920×1080 resolution, 151° FOV, white auxiliary light

Dock – Lightning Protection

  • AC Power Port: 20 kA (EN 61643-11 Type 2 / IEC 61643-1 Class II)
  • Ethernet Port: 10 kA (EN/IEC 61643-21 Category C)

Dock – Supported Software

  • DJI Enterprise App
  • FlightHub 2
  • FlightHub 2 On-Premises
  • FlightHub 2 FlightHub Sync
  • DJI Cloud API

Dock – Expansion Capability

  • Edge computing: supports data communication with external switches

General Specifications (DJI Matrice 4D & 4TD)

  • Weight (Matrice 4D): 1850 g (includes battery, propellers, microSD card; excludes third-party payloads; actual weight may vary).
  • Max takeoff weight: 2090 g.
  • Dimensions (Matrice 4D): 377.7 × 416.2 × 212.5 mm (without propellers).
  • Wheelbase: Diagonal 498.5 mm; front motor L–R 383.0 mm; rear motor L–R 343.0 mm; front–rear 341.6 mm.
  • Max ascent speed: 6 m/s (Normal) / 10 m/s (Sport).
  • Max descent speed: 6 m/s (Normal) / 8 m/s (Sport).
  • Max horizontal speed (Normal): 15 m/s forward, 12 m/s backward, 10 m/s sideways (sea level, no wind).
  • Max horizontal speed (Sport): 21 m/s forward, 19 m/s backward, 15 m/s sideways.
  • Only Normal mode supported when used with DJI Dock.
  • Max wind resistance: 12 m/s (operation and takeoff/landing).
  • Max takeoff altitude: 6500 m.
  • Max flight time: 54 minutes (under controlled conditions; actual use may vary).
  • Max hovering time: 47 minutes (under controlled conditions; actual use may vary).
  • Max operating radius: 10 km (tested at ~25°C, 15% safe battery, windless, ~15 m/s flight speed; actual use may vary).
  • Max flight distance: 43 km (at 16 m/s, 20 m ASL, windless; results vary).
  • Max pitch angle: 25° (Normal), 30° (Sport).
  • Max angular velocity: 200°/s.
  • GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS & GLONASS supported only with RTK module enabled).
  • Hover accuracy vertical: ±0.1 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK).
  • Hover accuracy horizontal: ±0.3 m (vision), ±0.5 m (GNSS), ±0.1 m (RTK).
  • Operating temperature: –20° to 50° C (–4° to 122° F).
  • Ingress protection: IP55.
  • Motor model: 2611.
  • Propeller model: 1364F foldable low-noise anti-ice propellers.
  • RTK module: Integrated on the aircraft.
  • Beacon: Integrated on the aircraft.

Aircraft Cameras – DJI Matrice 4D

  • Wide-angle camera sensor: 4/3 CMOS, 20 MP.
  • Medium tele camera sensor: 1/1.3″ CMOS, 48 MP.
  • Tele camera sensor: 1/1.5″ CMOS, 48 MP.
  • Wide-angle lens: FOV 84°, 24 mm equivalent; aperture f/2.8-f/11; focus 1 m to ∞.
  • Medium tele lens: FOV 35°, 70 mm equivalent; aperture f/2.8; focus 3 m to ∞.
  • Tele lens: FOV 15°, 168 mm equivalent; aperture f/2.8; focus 3 m to ∞.
  • Lens defogging supported on all three cameras.
  • ISO range (normal mode): ISO 100-25600.
  • Night scene ISO: wide-angle ISO 100-204800; medium tele ISO 100-409600; tele camera ISO 100-409600.
  • Shutter speed: wide-angle 2-1/8000 s electronic, 2-1/2000 s mechanical; medium tele 2-1/8000 s; tele 2-1/8000 s.
  • Max image size: wide-angle 5280×3956; medium tele 8064×6048; tele 8192×6144.
  • Minimum photo interval: 0.5 s.
  • Still photography modes — wide: single 20 MP; timed 20 MP; JPEG intervals 0.5/0.7/1/2/3/5/7/10/15/20/30/60 s; JPEG+RAW intervals 2/3/5/7/10/15/20/30/60 s; Smart Capture 20 MP; panorama 20 MP raw, 100 MP stitched.
  • Still modes — medium tele: single 12/48 MP; timed 12/48 MP; JPEG intervals 0.5–60 s; Smart Capture 12 MP.
  • Still modes — tele: single 12/48 MP; timed 12/48 MP; JPEG intervals 0.5–60 s; Smart Capture 12 MP.
  • Photo formats — wide: JPEG/DNG (RAW); medium tele JPEG; tele JPEG.

Aircraft Cameras – DJI Matrice 4TD

  • Wide-angle camera sensor: 1/1.3″ CMOS, 48 MP.
  • Medium tele camera sensor: 1/1.3″ CMOS, 48 MP.
  • Tele camera sensor: 1/1.5″ CMOS, 48 MP.
  • Wide-angle lens: FOV 82°, 24 mm equivalent; aperture f/1.7; focus 1 m to ∞.
  • Medium tele lens: FOV 35°, 70 mm equivalent; aperture f/2.8; focus 3 m to ∞.
  • Tele lens: FOV 15°, 168 mm equivalent; aperture f/2.8; focus 3 m to ∞.
  • Lens defogging supported.
  • ISO range (normal): ISO 100-25600.
  • Night scene ISO: wide 100-409600; medium tele 100-409600; tele 100-819200.
  • Shutter speed: 2-1/8000 s for all cameras.
  • Max image size: wide 8064×6048; medium 8064×6048; tele 8192×6144.
  • Minimum photo interval: 0.7 s.
  • Still modes — wide: single 12/48 MP; timed 12/48 MP; JPEG intervals 0.7/1/2/3/5/7/10/15/20/30/60 s; Smart Capture 12 MP; panorama 12 MP raw, 100 MP stitched.
  • Still modes — medium tele: same structure as above.
  • Still modes — tele: same structure as above.
  • Photo format (all): JPEG.

Video Capture (DJI Matrice 4D & 4TD)

  • Codec: H.264 / H.265.
  • Encoding: CBR and VBR.
  • Resolution: 4K 3840×2160 @30fps; FHD 1920×1080 @30fps.
  • Bitrate H.264: 60 Mbps.
  • Bitrate H.265: 40 Mbps.
  • File system: exFAT.
  • Video format: MP4 (MPEG-4 AVC/H.264).
  • Digital zoom (tele camera): 16× with 112× hybrid zoom.

FlytBase Enterprise Base Package for Dock

  • 150,000 Video Viewer Minutes: Enjoy ample streaming time for real-time insights.
  • 500 GB Cloud Storage: Reliable and secure storage for critical data.
  • Unlimited User Access: Simplify team management with unlimited seats.
  • Three-Site Coverage: Organize and monitor multiple operational sites.
  • Data Security & Compliance: SOC-2 Type II, ISO 27001, GDPR certified.
  • Unlimited Guest Sharing: Collaborate effortlessly with SecureGuestShare.
  • Two Alarm Inputs: For critical alert customization.
  • Live Stream & 4G LTE: Keep operations connected anytime, anywhere.
  • 1x Dock 3
  • 1x Matrice 4TD Aircraft Only
  • 1x FlytBase Enterprise Base Package for Dock 2
