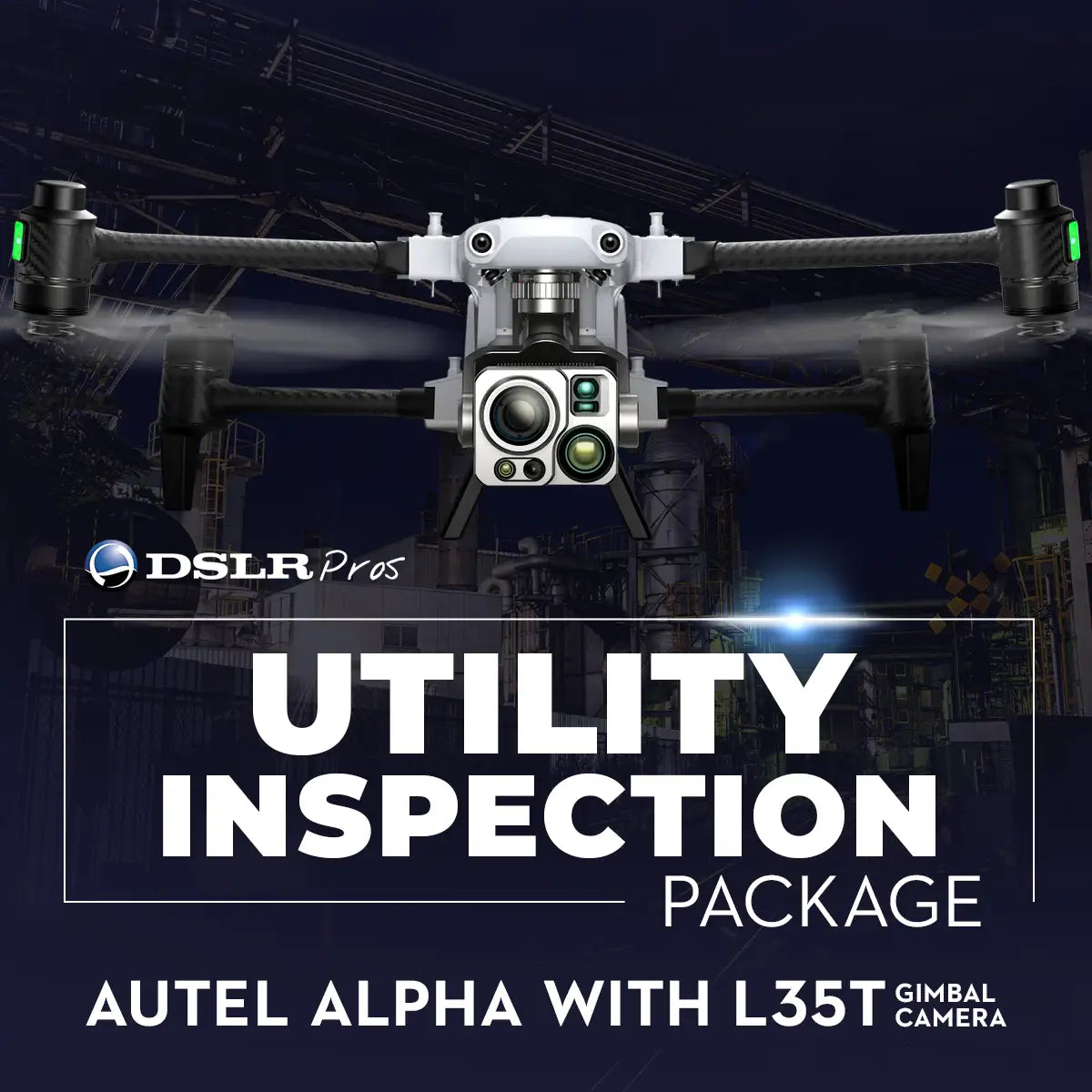

DSLRPros Autel Alpha with L35T Gimbal Utility Inspection Package

DSLRPros Autel Alpha with L35T Gimbal Utility Inspection Package

$22,752.00
$22,752.00
Sale Sold out
Shipping calculated at checkout.

B-NB-ALPHA-UI

  • Autel Alpha drone with L35T gimbal integrating zoom, wide, thermal, and laser sensors
  • 35× optical and 560× hybrid zoom for close inspection from a safe distance
  • Dual thermal sensors to detect overheating components or hidden faults
  • Laser rangefinder up to 2 km for verifying measurements and clearances
  • Three hot-swappable batteries to maximize flight endurance in the field
  • Rugged Alpha case for safe transport and long-term protection
  • Landing pad for stable takeoffs and landings on rough terrain
  • AirData Enterprise + Live Streaming trial for remote oversight of inspections
  • IP55-rated airframe for dependable performance in outdoor environments

Full obstacle avoidance system for safe operation near infrastructure

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel Alpha with L35T Gimbal Utility Inspection Package: Precision UAV System for Infrastructure Monitoring

The DSLRPros Autel Alpha with L35T Gimbal Utility Inspection Package is a complete drone solution built for utilities, engineering firms, and infrastructure operators. Featuring the Autel Alpha aircraft with the advanced L35T gimbal, this package combines long-range zoom, thermal detection, and distance measurement with the accessories needed to keep inspection teams productive in the field. With extended flight time, rugged transport, and live-streaming capability, this package provides an end-to-end solution for aerial inspection programs.

Advanced multi-sensor payload for inspection clarity

The L35T gimbal integrates a 4K zoom camera with 35× optical and up to 560× hybrid zoom, a 48MP wide-angle camera for context, dual thermal sensors for both close and long-range detection, and a laser rangefinder accurate up to 2 km. This combination allows inspectors to capture sharp detail from a distance, verify anomalies with thermal imaging, and confirm measurements-all in a single flight.

Reliable performance for demanding operations

With up to 40 minutes of flight time per cycle and hot-swappable dual batteries, the Autel Alpha minimizes downtime between missions. Its 20 km video transmission, IP55 weather rating, and 720° obstacle avoidance provide confidence in complex, real-world environments. A rugged hard case protects the system in transit, while the included landing pad ensures safe, consistent deployment on varied terrain. AirData Enterprise live streaming adds secure video sharing, giving inspection managers real-time visibility into ongoing operations.

Key Features and Benefits

  • L35T multi-sensor gimbal: zoom, wide, thermal, and laser rangefinder in one system
  • 35× optical / 560× hybrid zoom: inspect towers, bridges, and lines from safe distances
  • Dual thermal cameras: detect overheating components or hidden faults
  • Laser rangefinder up to 2 km: confirm clearances and precise measurements
  • Up to 40 minutes flight time: longer inspection cycles per mission
  • Hot-swappable batteries: minimize downtime and extend operational windows
  • 20 km transmission range: stable video feeds from challenging locations
  • IP55 weather resistance: perform inspections in varied outdoor conditions
  • 720° obstacle avoidance: enhanced safety in cluttered infrastructure environments

Applications and Use Cases

  • Powerline and utility inspection: assess poles, towers, and substations without shutdowns
  • Bridge and structure surveys: capture detailed imagery from safe stand-off distances
  • Wind and solar farm monitoring: detect thermal anomalies or mechanical issues
  • Pipeline and facility assessments: monitor for leaks, faults, or heat loss
  • Construction and engineering: provide aerial data to support progress and safety checks

Inclusions

This bundle includes the following:

  • 1× Autel Alpha with L35T Gimbal Camera
  • 3× Autel Alpha Batteries (two standard + one extra)
  • 1× Autel Alpha Case
  • 1× Drone Landing Pad
  • 1× AirData Enterprise + Live Streaming trial (1 drone, 1 user, 20 hours for 1 month)

This package can be customized to fit your team's unique requirements-just talk to the drone experts at DSLRPros to configure the right solution for your inspection program.

Since 2012, DSLRPros has equipped organizations with reliable UAV solutions across public safety, inspection, agriculture, and mapping. From consultation and training to lifecycle support, we provide the expertise needed to keep your drone operations running smoothly. Contact us today to deploy the Autel Alpha Utility Inspection Package.

Aircraft

  • Weight (Battery and gimbal included): 6340g
  • Max. takeoff weight: 8400g
  • Dimensions:

    1205×980×278mm (unfolded, incl. propellers)
    780×568×278mm (unfolded, excl. propellers)
    455×263×248mm (folded, excl. propellers)

  • Diagonal Wheelbase: 814mm
  • Max Flight Time (windless): 40mins
  • Max Hovering Time (windless): 38mins
  • Max Horizontal Speed (windless near sea level): 25m/s
  • Max Wind Resistance: 12m/s
  • Hovering Accuracy:

    Vertically:

    ±0.1 m (vision systems working normally)
    ±0.3 m (GNSS working normally)
    ±0.1 m (RTK fix)


    Horizontally:

    ±0.15 m (vision systems working normally)
    ±0.3 m (GNSS working normally)
    ±0.1 m (RTK fix)



  • IP Rating: IP55
  • Operating Temperature: -4°F to 122°F (-20℃ to 50℃)
  • GNSS: GPS + GLONASS + BeiDou + Galileo

DG-L35T

Autel Alpha Wide Camera

  • Sensor: 1/2 CMOS, Effective pixels: 48M
  • Lens:

    Equivalent Focal Length: 24 mm
    Aperture: f/2.8
    Focusing Distance: 5m ~ ∞

  • ISO Range: ISO100~ISO3200

Autel Alpha Zoom Camera

  • Sensor: 1/1.8" CMOS
  • Zoom Range:

    Optical Zoom: 1.4~35 times
    Hybrid Zoom: 35~560 times

  • ISO Range:

    Auto: ISO100~ISO25600
    Photo: ISO100~ISO160000

  • Photo:

    Format: 8bit JPG，12bit DNG
    Resolution: 3840×2160

  • Video:

    Format: MP4/MOV
    Max Resolution: 3840×2160 P30

Autel Alpha Thermal Camera (Wide)

  • Sensor: Uncooled VOx Microbolometer
  • Lens:

    FOV: 42°
    Focal length: 13mm
    Aperture: f/1.2

  • Resolution: 640×512 P25
  • Temperature Measurement Range: -20℃ to +150℃, 0℃ to +550℃
  • Temperature Measurement Accuracy: 3℃ or ±3% of reading (whichever is larger) @ ambient temperature -4°F to 140°F (-20℃ to 60℃)

Autel Alpha Thermal Camera (Tele)

  • Sensor: Uncooled VOx Microbolometer
  • Lens:

    FOV: 12.3°
    Focal length: 45mm
    Aperture: f/1.2

  • Zoom Range:

    Wide Digital Zoom: 1~3.5 times
    Tele Digital Zoom: 3.5~56 times

  • Resolution: 640×512 P25
  • Temperature Measurement Range: -20℃ to +150℃, 0℃ to +550℃
  • Temperature Measurement Accuracy: 3℃ or ±3% of reading (whichever is larger) @ ambient temperature -4°F to 140°F (-20℃ to 60℃)

Autel Alpha Laser Rangefinder

  • Measuring Range: 10-2000m
  • Measurement Accuracy: ± (1m + D×0.3%)
    *D is the distance to a vertical surface
  • 1× Autel Alpha with L35T Gimbal Camera
  • 3× Autel Alpha Batteries (two standard + one extra)
  • 1× Autel Alpha Case
  • 1× Drone Landing Pad
  • 1× AirData Enterprise + Live Streaming trial (1 drone, 1 user, 20 hours for 1 month)
What imaging capabilities does the Autel Alpha with L35T Gimbal Utility Inspection Package offer for infrastructure inspections?

The L35T gimbal integrates a 4K zoom camera with 35× optical and up to 560× hybrid zoom, a 48 MP wide-angle camera, dual thermal sensors for close and long-range heat detection, and a laser rangefinder accurate up to 2 km. This allows inspectors to capture detailed visuals, verify thermal anomalies, and confirm measurements in a single flight.

How long can the Autel Alpha in the Utility Inspection Package fly, and does it support hot-swappable batteries?

The Autel Alpha supports up to 40 minutes of flight time per cycle and uses hot-swappable dual batteries to reduce downtime. The package includes three batteries to support longer field operations.

What transmission capabilities does the Autel Alpha with L35T Gimbal Utility Inspection Package provide for remote inspection work?

The aircraft supports up to 20 km video transmission, offering stable, low-latency feeds for long-distance infrastructure assessment. This range enables operators to inspect large sites while maintaining clear visual communication.

What environmental durability and safety features come with the Autel Alpha Utility Inspection Package?

The Autel Alpha has an IP55 weather resistance rating for outdoor operation in varied conditions and features 720° obstacle avoidance using its radar and vision sensors, helping to maintain safety in complex infrastructure environments.

What types of inspection scenarios is the Autel Alpha with L35T Gimbal Utility Inspection Package designed to support?

This package supports powerline and utility inspections, bridge and structure surveys, wind and solar farm monitoring, pipeline and facility assessments, and construction or engineering documentation. Its zoom, thermal, and rangefinding capabilities enable safe evaluation of assets from a distance.
