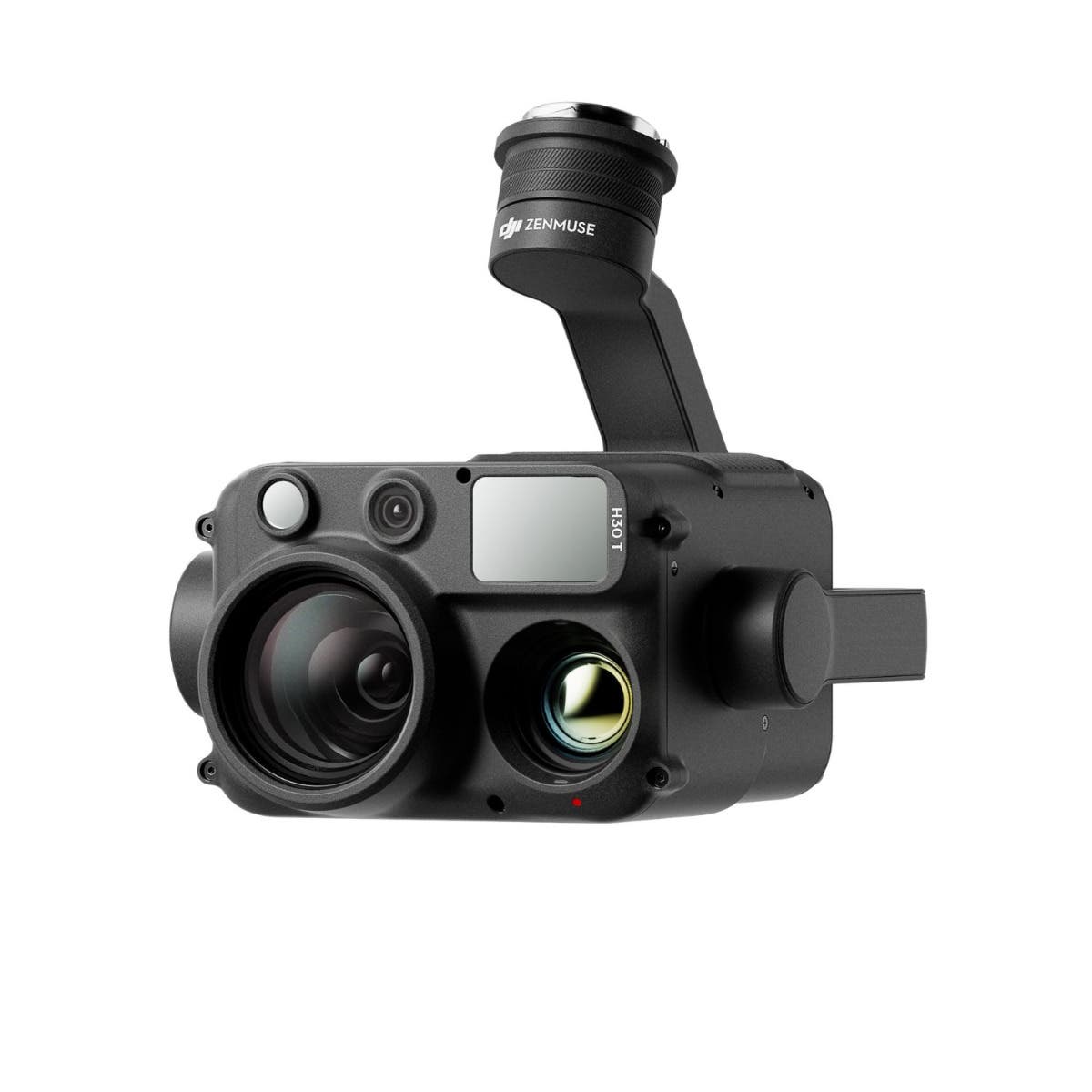

• Front view of DJI Zenmuse H30T camera with thermal and zoom lenses for aerial inspections
  • Close-up of DJI Zenmuse H30T camera showing zoom and infrared sensors for precision imaging
  • Angled view of DJI Zenmuse H30T camera with thermal and zoom lens system
1 4

DJI Zenmuse H30T

DJI Zenmuse H30T

$11,899.00
$11,899.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-ZH30T

SKU S-DJI-ZH30T MPN CP.EN.00000529.01 EAN 6941565983091
  • 40 MP zoom camera supports 34× optical and 400× digital zoom
  • 1280 × 1024 thermal sensor delivers detailed infrared analysis
  • Laser rangefinder measures targets up to 9,842 ft accurately
  • 48 MP wide-angle camera captures high-resolution situational awareness
  • IP54-rated payload operates in harsh industrial environments
  • Thermal measurement supports temperatures up to 2,912 °F
  • Compatible with Matrice 300 RTK, 350 RTK, and 400 RTK

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Zenmuse H30T: Multi-sensor thermal intelligence for mission-critical operations

The DJI Zenmuse H30T is a multi-sensor enterprise payload engineered for aerial missions that require precise visual detail, thermal measurement, and long-range targeting.

Designed for public safety, utilities, and industrial inspection teams, it combines key tools in one stable platform. It includes a 40 MP zoom camera and a 48 MP wide-angle camera. It also includes a 1280 × 1024 infrared thermal sensor. It has a laser rangefinder and an NIR auxiliary light.

Compatible with Matrice 300 RTK, Matrice 350 RTK, and Matrice 400 RTK aircraft, the H30T delivers reliable performance across harsh environments.

Sensor and imaging system overview

  • 40 MP zoom camera: supports 34× optical and up to 400× digital zoom.
  • 48 MP wide-angle camera: captures 24 mm equivalent imagery with 82.1° DFOV.
  • 1280 × 1024 thermal sensor: enables detailed infrared observation and analysis.
  • Laser rangefinder: measures targets from 9.8–9842 ft (3–3000 m).
  • Thermal sensitivity: ≤50 mK NETD supports detection of subtle temperature differences.
  • IP54-rated enclosure: resists dust and water exposure in field operations.
  • Wide operating range: functions from -4 to 122 °F (-20 to 50 °C).

Built for reliable data capture in demanding environments

The Zenmuse H30T is engineered to maintain image clarity and measurement consistency in challenging conditions. Its 3-axis gimbal stabilizes imagery to ±0.002° during hover and ±0.004° in flight, supporting precise inspections.

The zoom camera’s 7.1–172 mm focal range (33.4–809.3 mm equivalent) enables safe stand-off observation, while the thermal camera’s multiple gain modes support accurate temperature measurement from -4 to 1112 °F (-20 to 600 °C), or up to 2912 °F (1600 °C) with an infrared density filter.

Field performance for inspection and response missions

In real-world deployments, the Zenmuse H30T delivers actionable intelligence without requiring close proximity to hazards. The laser rangefinder provides distance accuracy of ±1.0 m beyond 1640 ft (500 m), supporting precise localization.

Thermal tools, including spot, area, and center-point measurements, improve assessment speed. Night Scene, NIR illumination, and UHR infrared imaging ensure visibility in low or no light.

Platform compatibility

  • DJI Matrice 400 RTK: latest enterprise aircraft platform from DJI.
  • DJI Matrice 350 RTK: fully compatible for inspection and response missions.
  • DJI Matrice 300 RTK: supported when used with DJI RC Plus.
  • DJI Pilot 2 app: primary interface for imaging and mission execution.
  • DJI Terra software: supported for mapping and inspection workflows.
  • DJI FlightHub 2: enables cloud-based fleet and mission management.

Operational use cases across industries

  • Search and rescue operations: detect human heat signatures using 1280 × 1024 thermal imaging.
  • Firefighting support: identify hotspots measuring up to 2912 °F safely.
  • Power line inspection: inspect components using 40 MP zoom and 400× magnification.
  • Solar farm analysis: identify underperforming panels through thermal differentials.
  • Industrial facility monitoring: assess equipment temperatures from safe distances.
  • Law enforcement overwatch: maintain situational awareness using hybrid optical zoom.
  • Environmental monitoring: observe wildlife with low-noise thermal sensitivity.
  • Disaster assessment: evaluate damage while minimizing personnel exposure.

Designed for enterprise integration

The Zenmuse H30T integrates cleanly into professional UAS programs through DJI SkyPort mounting, DJI Pilot 2 control, and compatibility with DJI enterprise software. Its clearly defined performance specifications support predictable deployment across mixed fleets.

The thermal camera delivers advanced multi-sensor intelligence backed by measurable performance. It is built for organizations that rely on accurate data in critical environments.

Available now from DSLRPros, supporting enterprise operators with proven deployment expertise and long-term UAS support.

General

  • Product Name: Zenmuse H30 Series
  • Dimensions: 170 × 145 × 165 mm (L × W × H)
  • Weight: 920 ±5 g
  • Power Consumption: H30 26 W; H30T 28 W
  • Ingress Protection Rating: IP54 (IEC 60529; effectiveness may reduce with wear)
  • Supported Aircraft: Matrice 400; Matrice 350 RTK; Matrice 300 RTK (requires DJI RC Plus)

Environment

  • Operating Temperature: −20°C to 50°C (−4°F to 122°F)
  • Storage Temperature: −20°C to 60°C (−4°F to 140°F)

Gimbal

  • Stabilization System: 3-axis (tilt, roll, pan)
  • Angular Vibration Range: Hover ±0.002°; Flight ±0.004°
  • Mounting: Detachable DJI SKYPORT
  • Mechanical Range (structural): Tilt −132.5° to +73°; Roll ±60°; Pan ±328°
  • Controllable Range: Tilt −120° to +60°; Pan ±320°
  • Operation Modes: Follow, Free, Re-center

Zoom Camera

  • Sensor: 1/1.8-inch CMOS, 40 MP
  • Lens: 7.1–172 mm (equiv. 33.4–809.3 mm); f/1.6–f/5.2
  • DFOV: 66.7°–2.9°
  • Focus Modes: MF, AFC, AFS
  • Exposure Modes: Manual, Auto; Exposure Compensation ±3.0 (1/3 steps)
  • Metering: Spot, Average; AE Lock supported
  • Electronic Shutter: 1/8000–2 s
  • ISO: Single Shot 100–25600; Night Scene 100–819200
  • Video Resolution: 4K 3840×2160@30fps; FHD 1920×1080@30fps; Night Scene FHD @25/15/5fps
  • Video Format: MP4; Subtitles supported
  • Codec/Bitrate: H.264, H.265; CBR, VBR
  • Max Photo Size: 7328×5496; 3664×2748
  • Photo Format: JPG

Wide-Angle Camera

  • Sensor: 1/1.3-inch CMOS, 48 MP
  • Lens: 6.72 mm (equiv. 24 mm); f/1.7; DFOV 82.1°
  • Focus Modes: MF, AFC, AFS
  • Exposure Modes: Manual, Auto; Exposure Compensation ±3.0 (1/3 steps)
  • Metering: Spot, Average; AE Lock supported
  • Electronic Shutter: 1/8000–2 s
  • ISO: Single Shot 100–25600; Night Scene 100–409600
  • Video Resolution: 4K 3840×2160@30fps; FHD 1920×1080@30fps; Night Scene FHD @25/15/5fps
  • Video Format: MP4; Subtitles supported
  • Codec/Bitrate: H.264, H.265; CBR, VBR
  • Max Photo Size: 8064×6048; 4032×3024
  • Photo Format: JPG

Infrared Thermal Camera (H30T)

  • Thermal Imager: Uncooled VOx microbolometer
  • Lens: 24 mm (equiv. 52 mm); f/0.95; DFOV 45.2°
  • Digital Zoom (equiv.): 32×
  • Video Resolution: 1280×1024@30fps; MP4; Subtitles supported
  • Codec/Bitrate: H.264, H.265; CBR, VBR
  • Photo Resolution/Format: 1280×1024; R-JPEG
  • Pixel Pitch: 12 μm; Spectral Band: 8–14 μm
  • NETD: ≤50 mK @ f/1.0
  • Temperature Measurement: Spot, Area, Center Point
  • Measurement Range: High Gain −20° to 150°C; −20° to 450°C (with IR density filter); Low Gain 0° to 600°C; 0° to 1600°C (with IR density filter)
  • Temperature Alert: Supported; Sun Burn Protection: Supported
  • FFC: Auto, Manual
  • Palettes: White Hot, Black Hot, Tint, Iron Red, Rainbow 1/2, Medical, Arctic, Fulgurite, Hot Iron

Laser Range Finder

  • Wavelength: 905 nm
  • Measurement Range: 3–3000 m (varies by target and conditions)
  • Typical Ranges: Grasslands 2000 m; Woodlands 1900 m; Road surfaces 1700 m
  • Accuracy: ≤500 m ±(0.2 m + distance × 0.15%); >500 m ±1.0 m
  • Laser Spot Size: @100 m ≈ 50×450 mm; @1000 m ≈ 450×4500 mm
  • Safety Class: Class 1; AEL 260 nJ
  • Reference Aperture: 18 mm
  • Max Pulse Emission (≤5 ns): 52 W

NIR Auxiliary Light

  • Wavelength: 850 nm
  • FOV: 4.6° ±0.6° (round)
  • Safety Class: Class 1
  • Illumination Range: @100 m ≈ 8 m diameter

Special Features

  • Hybrid Optical Zoom: 34×; Max Zoom: 400×
  • Link Zoom; Click to Aim
  • High-Res Grid Photo; Night Scene
  • Timestamp; Smart Capture
  • Video Pre-Recording; UHR Infrared Image

Data Storage

  • Supported microSD Cards: U3/Class 10/V30 or above
  • File System: exFAT
  • Recommended Cards: Lexar 1066x V30 A2 (64–512 GB); Kingston CANVAS GO! Plus V30 A2 (64–512 GB)
  • Security Code: Supported (encryption via DJI Pilot 2; decrypt with DJI Decrypt Tool on Windows)

Post-Processing Software

  • Mapping Software: DJI Terra; DJI FlightHub 2
  • Infrared Analysis Software: DJI Thermal Analysis Tool 3
  • 1x Zenmuse H30T Gimbal Camera
  • 1x Storage Case
  • 1x Cleaning Cloth
What makes the Zenmuse H30T valuable for public safety missions?

The Zenmuse H30T integrates wide, zoom, thermal, laser, and NIR imaging into one stabilized payload, giving responders multi-layered visibility for search and rescue, fire assessment, and law enforcement operations.

Is the H30T NDAA-compliant?

No. Like other DJI products, the H30T is not NDAA-compliant. If compliance is required, consider payloads from Teledyne FLIR or Autel platforms.

Can I use the H30T for nighttime operations?

Absolutely. Its enhanced low-light mode and NIR assist enable imaging in near-total darkness, ideal for surveillance and SAR.

Does the H30T support radiometric thermal data?

Yes. The thermal sensor outputs radiometric JPEGs and supports accurate temperature measurement at the pixel level.

How does the H30T compare to the H20T?

The H30T offers higher-resolution thermal (1280×1024 vs. 640×512), longer-range zoom, and the addition of an NIR illuminator for night operations.

Is the H30T compatible with the DJI M350 RTK out of the box?

Yes. The H30T is fully compatible with both the DJI Matrice 300 and 350 RTK platforms using SkyPort integration.
