Next-Generation Visibility for Critical Operations
Engineered for public safety, infrastructure, and remote inspections, the DJI Matrice 4TD offers unmatched situational awareness with a built-in thermal and telephoto imaging suite. This workhorse drone delivers up to 47 minutes of flight time and features a cutting-edge obstacle sensing system designed to function even at high speeds. Built for mission reliability, the Matrice 4TD thrives in low-visibility, high-stakes conditions.
Its unique 80-degree upward tilting camera provides the vantage point needed to assess bridge undersides or high-rise structures with unprecedented clarity. Combined with IP55-rated weather protection and 12mm wire detection, it's the go-to solution for inspections where precision matters.
Thermal Meets Telephoto for Real-World Results

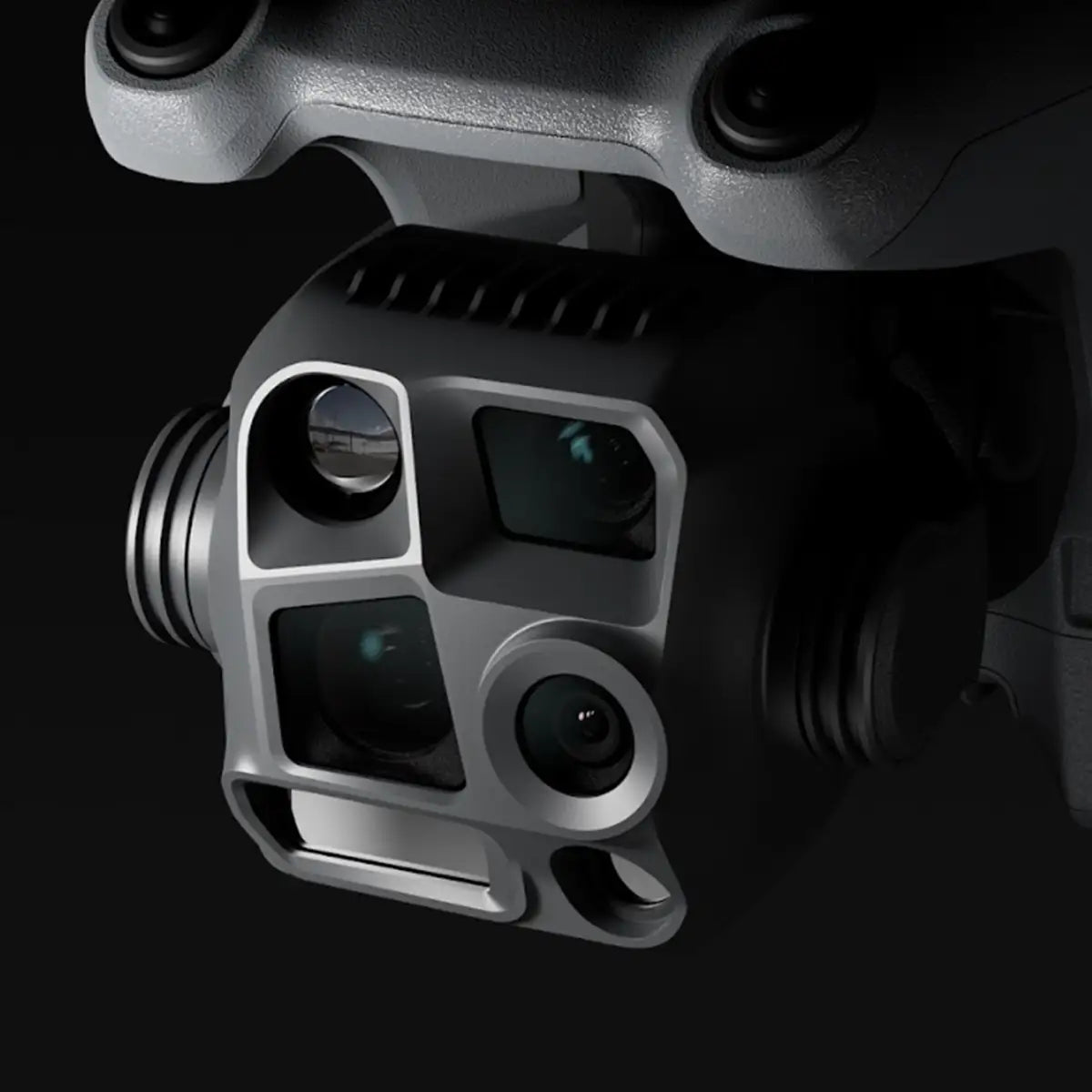

Equipped with a 48MP telephoto camera and ultra-high resolution infrared thermal sensor, the Matrice 4TD enables professionals to spot structural issues or heat anomalies from hundreds of meters away. The integrated relay function allows one aircraft to maintain communication while another executes the mission-ideal for operations beyond cellular range.

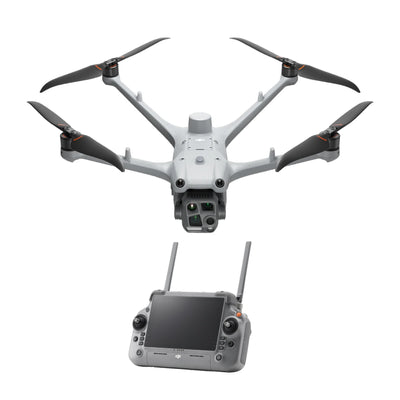

The included DJI RC Plus 2 Enhanced Controller offers SDR and 4G hybrid video transmission through a high-bright display, allowing clear visuals in sunlight and remote areas alike.
Key Features
- 48MP telephoto camera with 250m zoom and 80° upward tilt
- Ultra-high resolution thermal imaging (1280 × 1024)
- Up to 47 minutes of flight time; 18 minutes at 10 km range
- IP55 protection for dust, rain, and field conditions
- Detects wires as small as 12mm while flying at 15 m/s
- Onboard relay mode extends range via a second drone
- RC Plus 2 Controller with 7" high-bright display
- NIR auxiliary light and Night Scene Mode for 24/7 ops
Applications
- Powerline and substation inspections with advanced LiDAR support
- Disaster response and search-and-rescue in difficult terrain
- Thermal scanning of rooftops, industrial sites, or farmlands
- Orthophoto and oblique mapping with terrain-follow flight paths
- Bridge, tower, and building assessments via telephoto tilt
DSLRPros offers expert configuration and post-sale support to help you unlock the full potential of your Matrice 4TD. With years of experience outfitting government agencies and industrial teams, we provide tailored solutions that work straight out of the box.
Talk to our specialists today for mission-ready configuration and expert guidance.
Specifications
- Model: Matrice 4TD
- Number of Rotors: 4
- Configuration: Drone with Camera
- Edition: Standard
- FAA Registration: Required for Non-Commercial Use
- Features: Camera Included
- Kit Style: Base
- Skill Level: Enterprise
- Color: White
- Maximum Flight Time: 54 minutes
- Takeoff Weight: Up to 4.6 lbs (2.0 kg)
- Max Ascent Speed: 6 m/s (Normal), 10 m/s (Sport)
- Max Descent Speed: 6 m/s (Normal), 8 m/s (Sport)
-
Max Horizontal Speed:
- Normal Mode: 15 m/s forward, 12 m/s backward, 10 m/s sideways
- Sport Mode: 21 m/s forward, 19 m/s backward, 15 m/s sideways
- Max Wind Resistance: 12 m/s
- Max Takeoff Altitude: 21325 ft (6500 m)
- Max Hover Time: 47 minutes
- Max Pitch Angle: 25° (Normal), 30° (Sport)
- Max Flight Distance: 43 km
- Max Angular Velocity: 200°/s
- GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS
-
Hovering Accuracy:
- Vertical: ±0.1 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
- Horizontal: ±0.3 m (Vision), ±0.5 m (GNSS), ±0.1 m (RTK)
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Ingress Protection Rating: IP55
-
Recommended microSD Cards:
- U3/Class 10/V30 or above (exFAT format)
- Lexar 1066x: 64GB to 512GB
- Kingston Canvas Go! Plus: 64GB to 512GB
- Remote Controller: RC Plus 2 Enterprise
- RC Operating Temperature: -4°F to 122°F (-20°C to 50°C)
-
Camera Still Resolution:
- Wide-Angle: 20 MP
- Medium Tele: 12/48 MP
- Tele: 12/48 MP
- Video Resolution: 4K: 3840×2160@30fps, FHD: 1920×1080@30fps
-
Image Sensor:
- Wide: 1/1.3" CMOS, 48 MP
- Medium Tele: 1/1.3" CMOS, 48 MP
- Tele: 1/1.5" CMOS, 48 MP
-
Lens:
- Wide: 82° FOV, 24 mm, f/1.7, Focus: 1 m-∞
- Medium Tele: 35° FOV, 70 mm, f/2.8, Focus: 3 m-∞
- Tele: 15° FOV, 168 mm, f/2.8, Focus: 3 m-∞
- Digital Zoom: Tele Camera: 16x (112x hybrid)
- ISO Range: Up to 409600 (Tele: 819200)
- Shutter Speed: 2 - 1/8000 s
- Still Photo Modes: Single, Timed, Smart Capture, Panorama
- Photo Format: JPEG
- Video Format: MP4 (H.264)
- Max Video Bitrate: H.264: 60 Mbps, H.265: 40 Mbps
- File System: exFAT
-
Gimbal:
- 3-axis mechanical (tilt, roll, pan)
- Controllable Tilt: -90° to +90°
- Angular Vibration: ±0.005°
- Sensing System: Omnidirectional binocular vision + 3D infrared
-
Obstacle Detection:
- Forward/Backward: 0.5-20 m
- Lateral: 0.5-16 m
Upward: 0.5-20 m
-
- Downward: 0.5-16 m
- Video Transmission: DJI O4+ Enterprise
- Live View: 720p/30fps or 1080p/30fps
- Frequencies: 2.4GHz / 5.1GHz / 5.8GHz
-
Max Transmission Distance:
- FCC: 25 km
- CE/SRRC/MIC: 12 km
- With interference: 1.5-25 km
- Latency: 100 ms (aircraft to dock, dependent on network)
-
Battery:
- Capacity: 6768 mAh
- Voltage: 22.14 V
- Type: LiNiMnCoO2
- Energy: 149.9 Wh
- Quantity: 1
- Dimensions: 37.77 × 41.62 × 21.25 cm (no propellers)
- Weight: Approx. 1.85 kg (4.07 lbs)

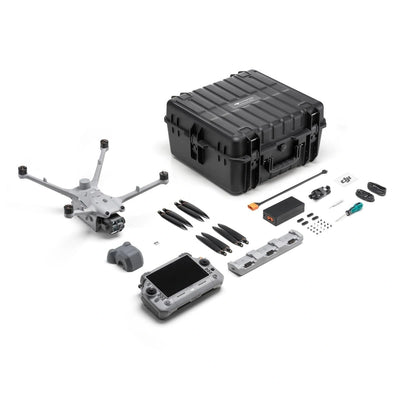

In The Box
- 1x DJI Matrice 4TD Aircraft
- 1x DJI RC Plus 2 Enterprise Controller
- 1x DJI Matrice 4 Series 240W Charging Hub
- 1x DJI 240W USB-C Power Adapter
- 3x DJI Matrice 4TD Propellers (Pair)
- 1x USB-C to USB-C Cable
- 1x USB-A to USB-C Cable
- 1x Gimbal Cover
- Screwdriver & Screws
- 1x microSD Card 64GB
- 1x DJI Matrice 4TD Hard Case
