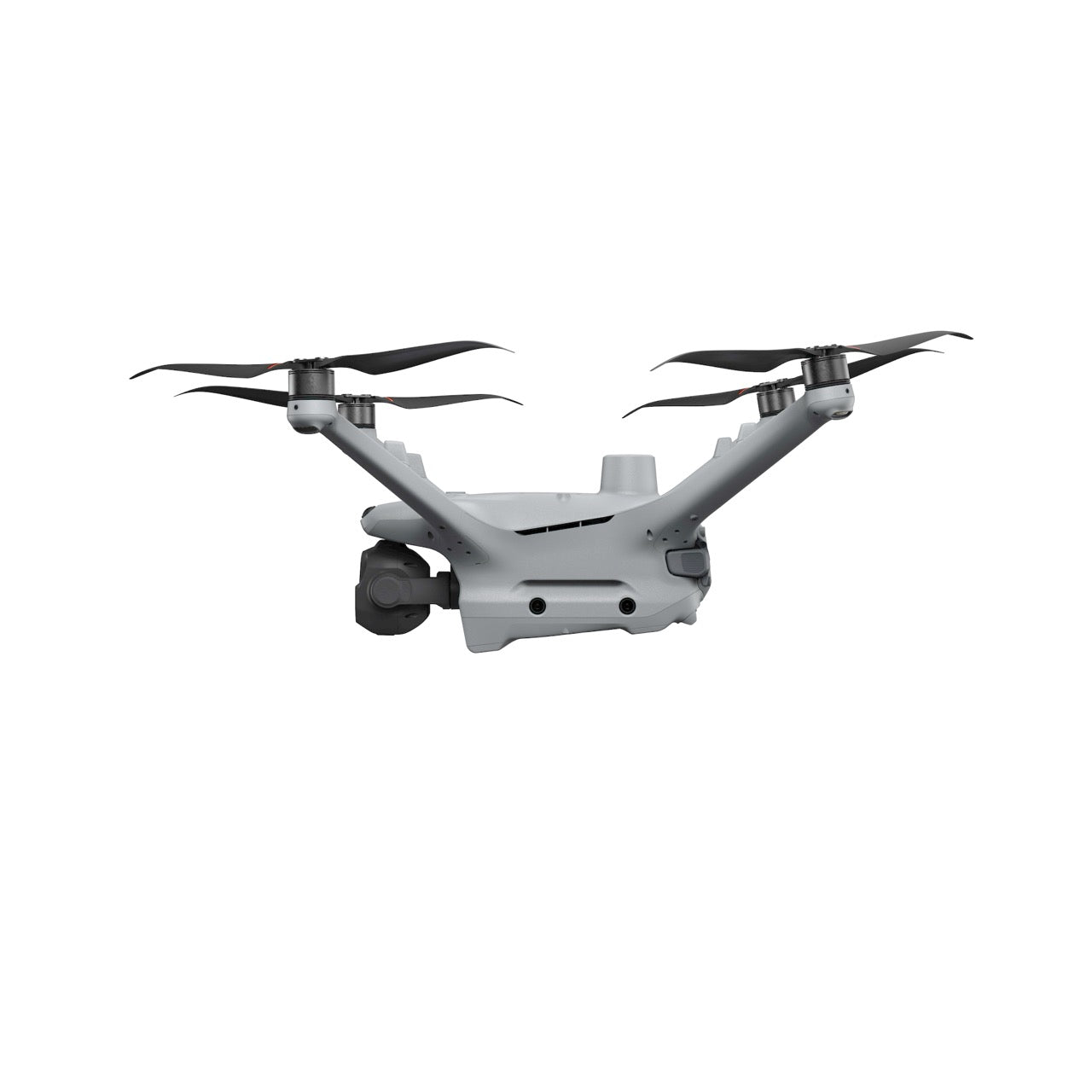

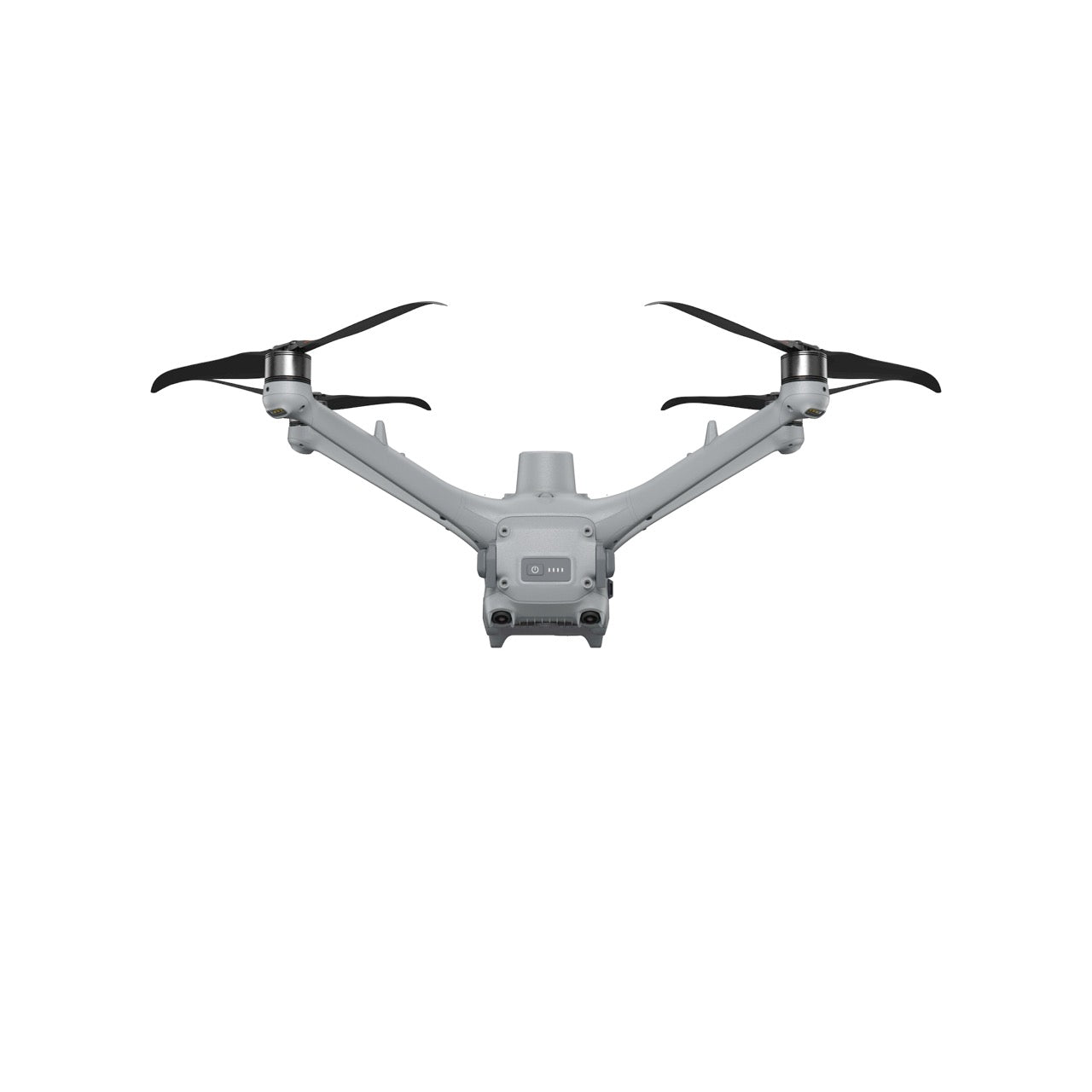

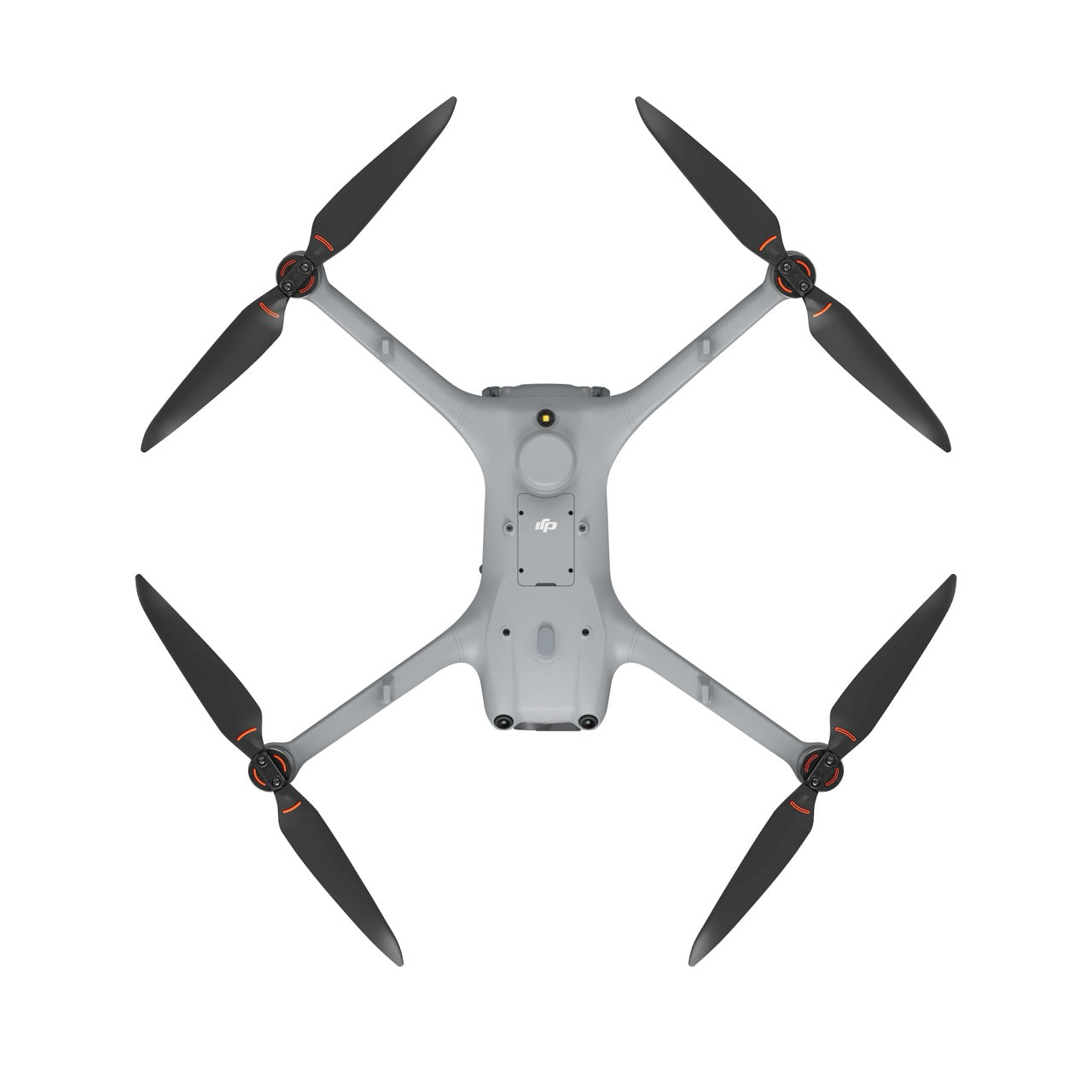

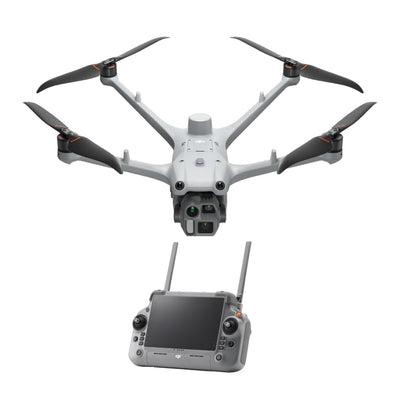

DJI Matrice 4D with RC Plus 2 Enhanced Controller (Standalone Unit)

DJI Matrice 4D with RC Plus 2 Enhanced Controller (Standalone Unit)

$7,040.00
$7,040.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-M4D-STN

  • 20 MP wide camera with mechanical shutter supports accurate mapping workflows
  • Dual 48 MP tele cameras enable detailed long-range inspections
  • Laser range finder measures distances up to 1,800 meters
  • Flight time reaches up to 47 minutes, 54 minutes forward
  • LiDAR and radar detect 12 mm wires near infrastructure
  • IP55-rated airframe supports rain, dust, and fog operations
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 4D with RC Plus 2 Enhanced Controller: precision imaging for demanding field operations

The DJI Matrice 4D is an enterprise aerial platform engineered for professionals who require accuracy, durability, and reliable imaging in complex environments. Designed to operate as a standalone aircraft or within Dock 3 workflows, the Matrice 4D integrates a multi-camera visual system, laser range finder, obstacle sensing technologies, and all-weather protection into a single IP55-rated platform. This configuration includes the DJI RC Plus 2 Enhanced Controller, delivering a rugged, high-visibility control solution for extended field deployment.

Core features at a glance

  • 20 MP wide-angle camera with 4/3 CMOS sensor and mechanical shutter.
  • Dual 48 MP medium tele and tele cameras for detailed inspection tasks.
  • Integrated laser range finder measures distances up to 1,800 m.
  • Maximum flight time up to 47 minutes, extending to 54 minutes forward.
  • LiDAR and millimeter-wave radar support 12 mm wire detection.
  • IP55-rated airframe supports operation in rain, fog, and dust.
  • Anti-ice propellers support cold-weather flight conditions.
  • Night Scene mode supported using low-light vision system.

Multi-camera visual imaging built for inspection and mapping workflows

The Matrice 4D features a three-camera visual imaging system designed to support precision mapping, inspection, and observation tasks. A 20 MP wide-angle camera with a 4/3 CMOS sensor and mechanical shutter supports accurate image capture, while 48 MP medium tele and tele cameras enable detailed inspection at distance. An integrated laser range finder provides distance measurement up to 1,800 m, supporting situational awareness and spatial assessment during complex operations.

Durability, endurance, and safety in adverse environments

With a maximum flight time of up to 47 minutes, extending to 54 minutes during forward flight, the Matrice 4D supports long-duration missions with fewer interruptions. The aircraft is rated IP55 when operated under specified conditions, allowing use in rain, fog, and dusty environments. Obstacle sensing systems using LiDAR and millimeter-wave radar support detection of wires as small as 12 mm, enhancing operational safety near infrastructure. Anti-ice propellers support continued operation in cold environments.

Platform compatibility and system integration

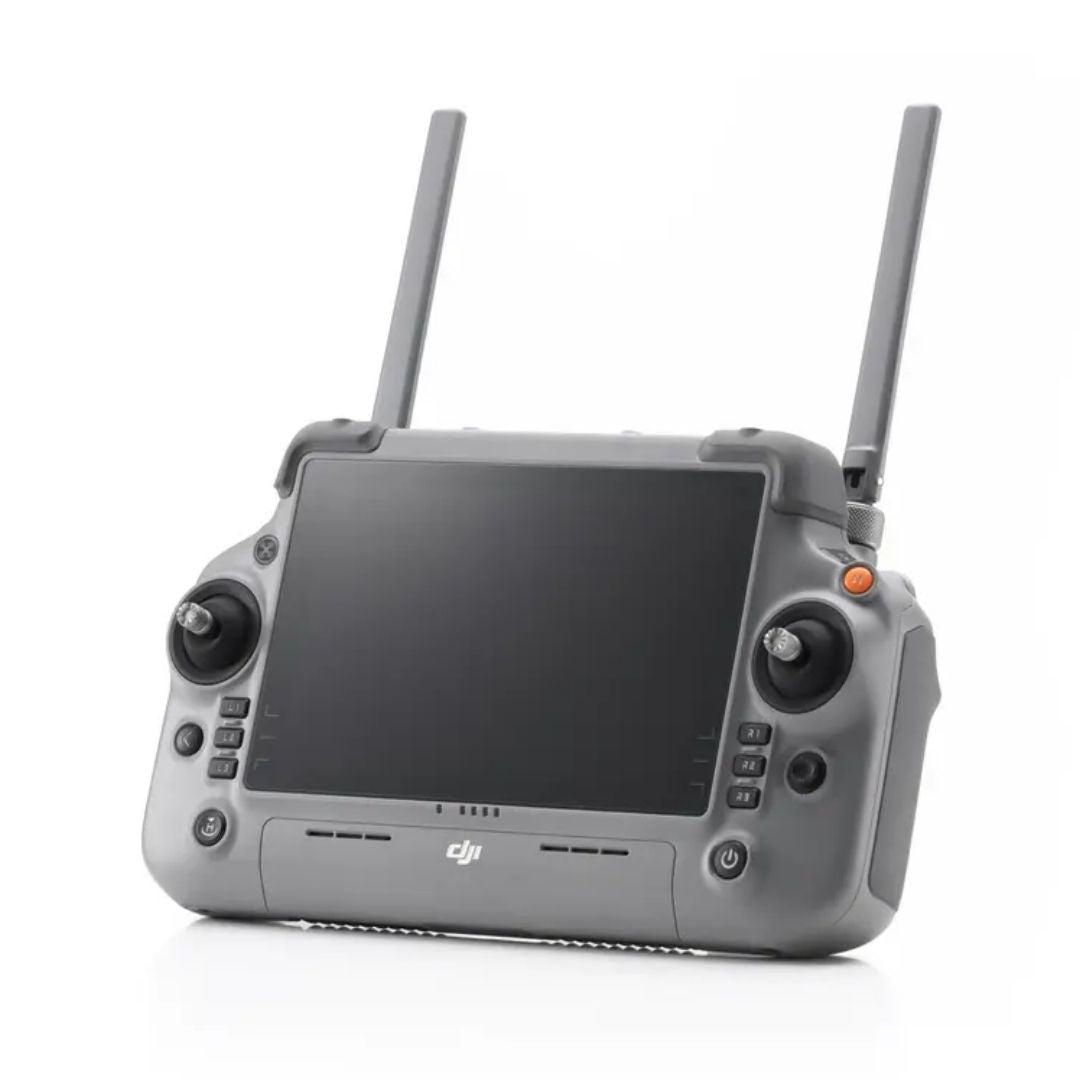

  • Operated using the included DJI RC Plus 2 Enhanced Controller.
  • O4 Enterprise transmission supports stable aircraft-to-controller communication.
  • RC Plus 2 controller rated IP54 for field operation durability.
  • Compatible with DJI Dock 3 for automated deployments when required.

Professional applications

  • Infrastructure inspection: visual assessment of bridges, towers, and transportation assets safely.
  • Energy inspections: mapping and inspection of substations and utility infrastructure.
  • Mapping and surveying: mechanical shutter imaging for accurate orthophoto generation.
  • Public safety response: situational awareness during emergency and disaster operations.
  • Industrial monitoring: documentation of facilities in weather-affected environments.
  • Environmental observation: long-duration monitoring missions across large geographic areas.
  • Transportation assessment: inspection of roads, railways, and elevated structures.
  • Perimeter patrol: extended aerial observation for secured facilities and sites.

Designed for enterprise reliability

The Matrice 4D is engineered for consistent performance where environmental exposure, imaging accuracy, and operational safety are critical. Its integrated visual imaging system and sensing technologies reduce payload complexity while expanding mission flexibility. Combined with the RC Plus 2 Enhanced Controller, the platform supports dependable deployment across demanding enterprise scenarios.

The DJI Matrice 4D with RC Plus 2 Enhanced Controller delivers precision imaging, extended endurance, and all-weather reliability for professional teams. DSLRPros provides expert configuration and post-sale support to help ensure mission-ready deployment.

Available now from DSLRPros. Purchase today to equip your team with proven enterprise capability.

Aircraft

  • Takeoff Weight (with propellers): 4 lbs
  • Maximum Takeoff Weight: 406 lbs
  • Dimensions: 1.24 × 1.37 × 0.7 ft (L × W × H, without propellers)
  • Diagonal Wheelbase: 1.64 ft
  • Maximum Ascent Speed: 19.7 ft/s (Normal Mode), 32.8 ft/s (Sport Mode)
  • Maximum Descent Speed: 19.7 ft/s (Normal Mode), 26.25 ft/s (Sport Mode)
  • Maximum Horizontal Speed (sea level, no wind): Normal Mode—49.2 ft/s forward, 39.4 ft/s backward, 32.8 ft/s sideways; Sport Mode—68.9 ft/s forward, 62.6 ft/s backward, 49.2 ft/s sideways
  • Maximum Wind Resistance: 39.3 ft/s (operation and takeoff/landing)
  • Maximum Takeoff Altitude: 21,325.5 ft
  • Operating Temperature: −4°F to 122°F
  • Ingress Protection Rating: IP55
  • Maximum Flight Time (no wind): 54 minutes
  • Maximum Hover Time (no wind): 47 minutes
  • GNSS: GPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS supported only with RTK enabled)
  • RTK Module: Built-in, no installation required
  • Cellular Dongle 2 Compartment: Supported

AI

  • AI Detection: Supported

Wide-Angle Camera

  • Image Sensor: 4/3-inch CMOS, 20 MP effective pixels
  • Lens: 84° FOV, 24 mm equivalent focal length, f/2.8–f/11 aperture
  • Focus Range: 3.3 ft to infinity
  • Night Scene Mode: Full-color night scene
  • ISO Range: 100–25600 (Night Scene: 100–204800)
  • Shutter Speed: Electronic 2–1/8000 s; Mechanical 2–1/2000 s
  • Maximum Photo Size: 5280 × 3956
  • Still Photography Modes: Single, Timed, Smart Low-Light, Panorama
  • Minimum Photo Interval: 0.5 s
  • Video Resolution: 4K 3840×2160@30fps; FHD 1920×1080@30fps
  • Photo Format: JPEG / DNG (RAW)
  • Video Format: MP4 (H.264)

Medium Tele Camera

  • Image Sensor: 1/1.3-inch CMOS, 48 MP effective pixels
  • Lens: 35° FOV, 2.75 in equivalent focal length, f/2.8 aperture
  • Focus Range: 9.8 ft to infinity
  • Night Scene Mode: Full-color night scene
  • ISO Range: 100–25600 (Night Scene: 100–409600)
  • Shutter Speed: Electronic 2–1/8000 s
  • Maximum Photo Size: 8064 × 6048
  • Still Photography Modes: Single, Timed, Smart Capture
  • Video Resolution: 4K 3840×2160@30fps; FHD 1920×1080@30fps
  • Photo Format: JPEG
  • Video Format: MP4 (H.264)

Tele Camera

  • Image Sensor: 1/1.5-inch CMOS, 48 MP effective pixels
  • Lens: 15° FOV, 6.6 in equivalent focal length, f/2.8 aperture
  • Focus Range: 9.8 ft to infinity
  • Night Scene Mode: Full-color night scene
  • ISO Range: 100–25600 (Night Scene: 100–409600)
  • Shutter Speed: Electronic 2–1/8000 s
  • Maximum Photo Size: 8192 × 6144
  • Digital Zoom: 16× (up to 112× hybrid zoom)

Laser Module

  • Normal Incidence Range: 5905.5 ft (1 Hz)
  • Oblique Incidence Range (1:5): 1968.5 ft (1 Hz)
  • Blind Zone: 3.3 ft
  • Measurement Accuracy (3.3–9.8 ft): System error <0.9 ft; random error <3.9 in @1σ
  • Measurement Accuracy (other distances): ±(0.2 + 0.0015D), D in meters

Sensing

  • Sensing System: Omnidirectional binocular vision with bottom 3D infrared sensor

Video Transmission

  • Transmission System: DJI O4+ Enterprise
  • Live View Quality: Up to 1080p/30fps depending on controller or dock
  • Operating Frequency: 2.4 GHz, 5.1 GHz, 5.8 GHz (region dependent)
  • Maximum Transmission Distance (FCC): 15.5 miles (unobstructed)
  • Maximum Transmission Distance (CE/SRRC/MIC): 7.5 miles
  • Maximum Download Speed: 20 MB/s
  • Latency: Approximately 100 ms (environment dependent)
  • Antenna Configuration: 8 antennas, 2T4R

Other

  • DJI Cellular Dongle 2: Supported
  • DJI Matrice 4D
  • RC Plus 2 Enhanced Controller
What cameras are included on the DJI Matrice 4D?

The aircraft includes a 20 MP wide-angle camera, two 48 MP tele cameras, and a laser range finder.

What is the maximum flight time of the DJI Matrice 4D?

The Matrice 4D supports up to 47 minutes of flight time, extending to 54 minutes during forward flight.

Is the DJI Matrice 4D suitable for adverse weather conditions?

Yes, the aircraft is rated IP55 when operated under specified conditions and supports operation in rain, fog, and dust.

What obstacle sensing technologies does the DJI Matrice 4D use?

It uses LiDAR and millimeter-wave radar to support detection of obstacles, including small wires.

Does the DJI Matrice 4D require DJI Dock 3 to operate?

No, the aircraft can be operated manually using the RC Plus 2 Enhanced Controller, with Dock 3 optional.
