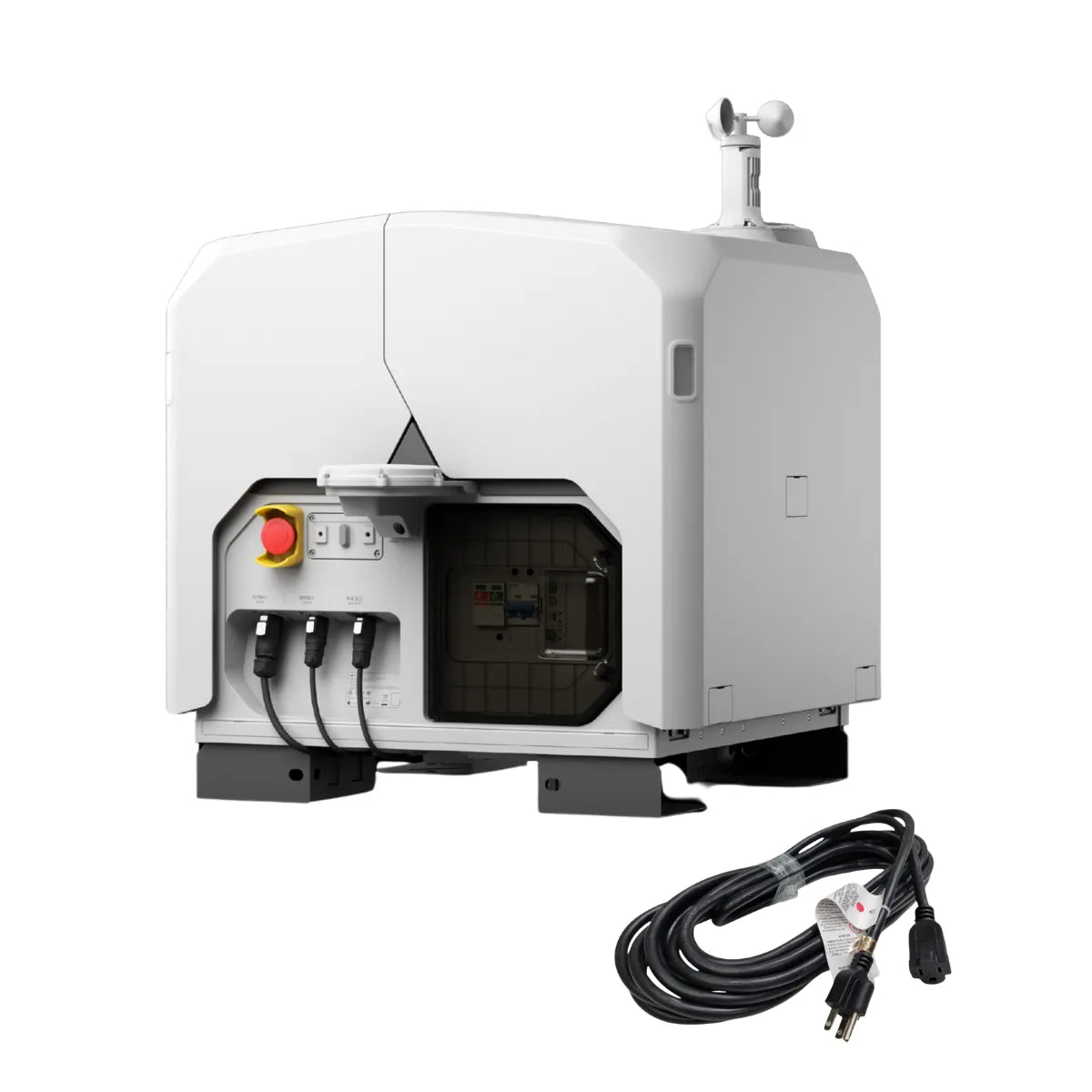

DJI Dock 3 + 25 ft 14/3 Gauge Power Extension Cord: Reliable autonomous deployment with extended power reach
The DJI Dock 3 is an all-weather, fully autonomous charging and deployment station for DJI Matrice 4D series aircraft (drone not included). Paired with a 25-foot 14/3-gauge power extension cord, this configuration ensures reliable power delivery even when outlets are positioned away from optimal installation points. Engineered for 24/7 operation, the Dock 3 supports rapid turnaround, integrated self-heating and cooling, and IP56-rated weather protection for dependable uptime in demanding field conditions.
Extended power and performance for remote operations
Built for extreme operational demands, the Dock 3 withstands winds up to 12 m/s and operates between -30 °C and 50 °C. The included heavy-duty 25-ft extension cord enhances installation flexibility, allowing safe placement of power sources while maintaining stable voltage over distance. Supporting 100-240 V AC input and up to 800 W draw, the Dock 3 delivers dependable charging and data operations for continuous, mission-critical workflows.
Designed for autonomous reliability
Every element of this setup is optimized for real-world durability and safety. The Dock 3's smart environmental controls and backup systems reduce downtime, while the 14/3-gauge cord ensures current stability under sustained load. Together they provide seamless, automated operation for enterprise drone fleets across utilities, public safety, and infrastructure monitoring-maximizing uptime with minimal oversight.
Key features and benefits
- Automates Matrice 4D series launch and recovery (drone not included)
- Resists dust, rain, and debris for field reliability (IP56 rating)
- Operates reliably from -30 °C to 50 °C in extreme conditions
- Enables safe landings in up to 12 m/s winds
- Extends power access for flexible site placement (25-ft cord)
- Maintains voltage stability across long runs (14/3 gauge)
- Supports up to 800 W system load
- Accepts 100-240 V AC input for worldwide use
- Resists abrasion and moisture exposure with durable insulation
- Connects directly to Dock 3 power input for quick setup
Applications and use cases
- Performs automated patrols along power lines and substations
- Provides continuous aerial situational awareness for public safety
- Automates progress documentation on large construction sites
- Conducts environmental monitoring in remote ecosystems
- Executes routine flights around secured perimeters
- Performs visual and thermal infrastructure inspections
- Captures agricultural crop and soil data through repeat flights
- Supports rapid aerial assessment for disaster response
- Monitors bridges, highways, and transportation networks
- Executes mapping missions with minimal operator oversight
This bundle delivers a rugged, flexible foundation for continuous aerial operations. The DJI Dock 3 and 25-ft power extension cord offer installation versatility and reliable power transfer for industrial and remote deployments.
DSLRPros provides enterprise-grade solutions and dedicated after-purchase support for DJI Dock 3 systems. Order today to equip your fleet for autonomous operation.
Specifications
- Dock - General
- Product Name: DJI Dock 3
- Total Weight: 55 kg (without aircraft)
The actual product weight may vary due to differences in batch materials and external factors. - Dimensions:
- Dock Cover Opened: 1760×745×485 mm (L×W×H)
- Dock Cover Closed: 640×745×770 mm (L×W×H)
- Input Voltage: 100-240 V (AC), 50/60 Hz
- Input Power: Max 800 W
- Operating Temperature: -30° to 50° C (-22° to 122° F)
- Ingress Protection Rating: IP56
- Number of Drones Accommodated: 1
- Max Allowable Landing Wind Speed: 12 m/s
- Max Operating Altitude: 4500 m
- Receiving Frequency of RTK Base Station Satellite:
- GPS: L1 C/A, L2, L5
- BeiDou: B1l, B2l, B3l, B2a, B2b, B1C
- GLONASS: F1, F2
- Galileo: E1, E5a, E5b, E6
- QZSS: L1, L2, L5
- Positioning Accuracy of RTK Base Station:
- Horizontal: 1 cm + 1 ppm (RMS)
- Vertical: 2 cm + 1 ppm (RMS)
- Dock - Charging Performance
- Output Voltage: 35 V DC
- Charging Time: 27 minutes
The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.
- Dock - Video Transmission
- Operating Frequency:
- 2.400-2.4835 GHz
- 5.150-5.250 GHz (CE: 5.170-5.250 GHz)
- 5.725-5.850 GHz
- Antenna: Built-in 9 antennas, 2T4R, supports intelligent switching
- Transmitter Power (EIRP):
- 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
- 5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE)
- 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)
- Operating Frequency:
- Dock - Air Conditioning System
- Operating Voltage: 48 V DC
- Air Conditioning Type: Compressor-based air conditioning
- Dock - Backup Battery
- Battery Capacity: 12 Ah
- Output Voltage: 12 V
- Battery Type: Lead-acid battery
- Battery Life: > 4 hours
Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.
- Dock - Network Access
- Ethernet Access: 10/100/1000Mbps adaptive Ethernet port
- 4G Access: Requires DJI Cellular Dongle 2
Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
- Dock - Sensor
- Wind Speed Sensor: Supported
- Rainfall Sensor: Supported
- Ambient Temperature Sensor: Supported
- Water Immersion Sensor: Supported
- In-Cabin Temperature Sensor: Supported
- In-Cabin Humidity Sensor: Supported
- Dock - Security Camera (External)
- Resolution: 1920×1080
- Field of View (FOV): 151°
- Auxiliary Light: Auxiliary White Light
- Dock - Security Camera (Internal)
- Resolution: 1920×1080
- FOV: 151°
- Auxiliary Light: Auxiliary White Light
- Dock - Lightning Protection
- AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements
- Ethernet Port: 10 kA (Itotal), meets EN/IEC 61643-21 Category C protection level requirements
- Dock - Supported Software
- Applications: DJI Enterprise app (used with Android phones for deployment and commissioning)
- Cloud Platform:
- FlightHub 2
- FlightHub 2 On-Premises Version
- FlightHub 2 FlightHub Sync
- DJI Cloud API
- Dock - Expansion Capability
- Edge Computing: Supports data communication with external switches
In The Box
- 1x Dock Body (incl. Ground Wire)
- 1x Wind Speed Gauge Module
- 4x Expansion Bolt
- 1x Ethernet Cable Connector
- 1x Power Cable Connector
- 1x Wire Ferrule
- 1x Screws and Tools
- 1x Manuals
- 1x DJI Dock 3 + 25 ft 14/3 Gauge Power Extension Cord (for DJ Dock)
