CHCNAV X500 Professional Multirotor Drone

CHCNAV X500 Professional Multirotor Drone

$12,699.00
$12,699.00
Sale Sold out
Shipping calculated at checkout.

S-CHC-X500

  • Supports certified CHCNAV payloads up to 5 kg capacity
  • Up to 58 minutes flight time without payload installed
  • Dual hot-swappable intelligent batteries reduce operational downtime
  • IP55-rated airframe for adverse weather field operations
  • Forward obstacle detection with visual SLAM positioning system
  • Redundant GNSS, IMU, and flight control architecture
  • Long-range HD video transmission up to 20 km
  • SmartGo software enables terrain-following and automated missions
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

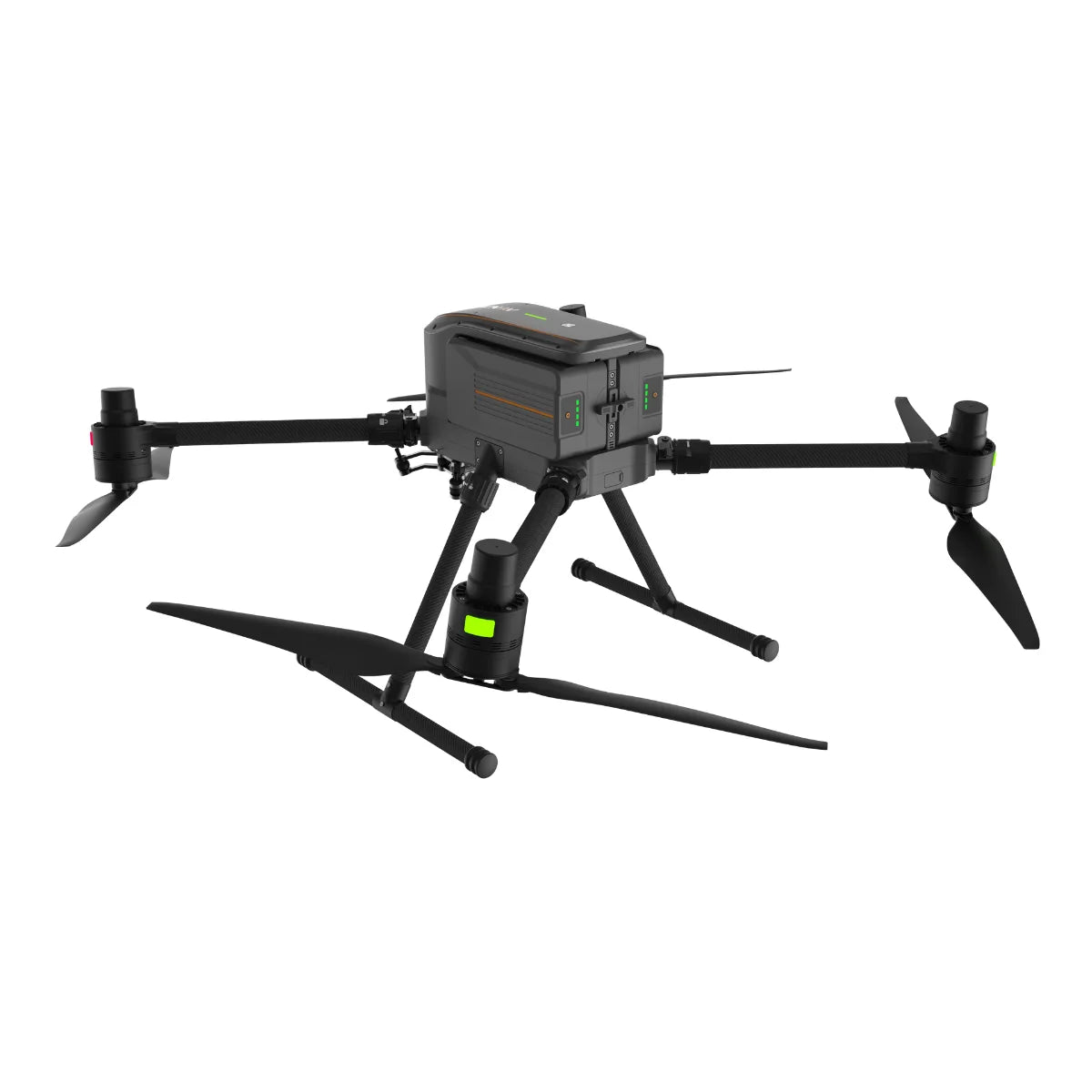

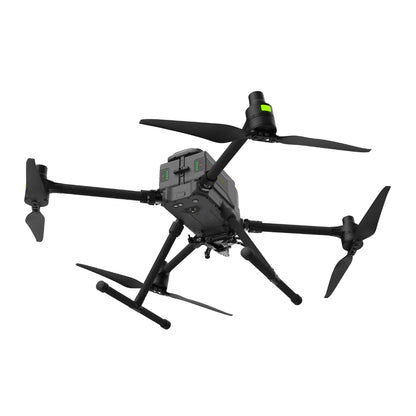

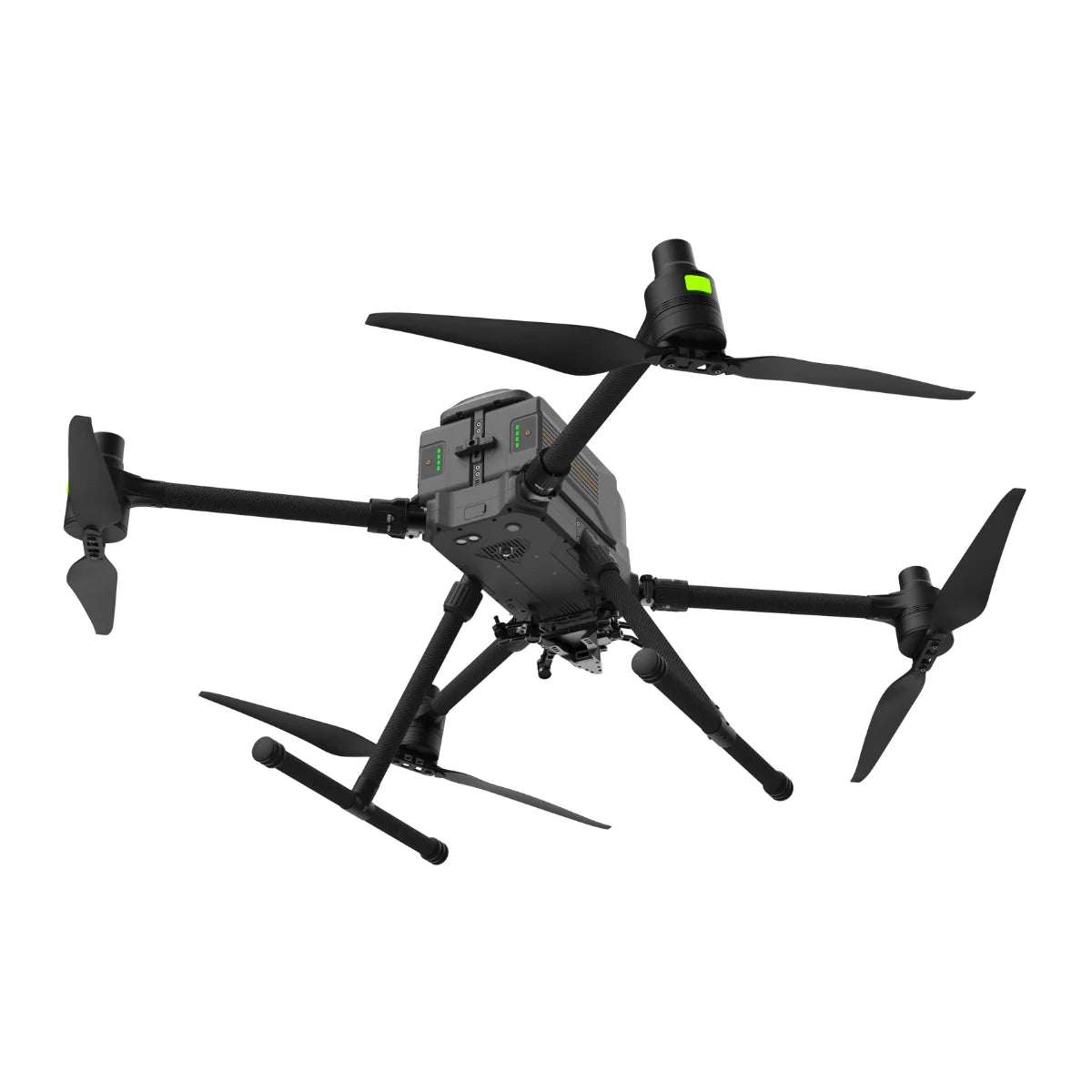

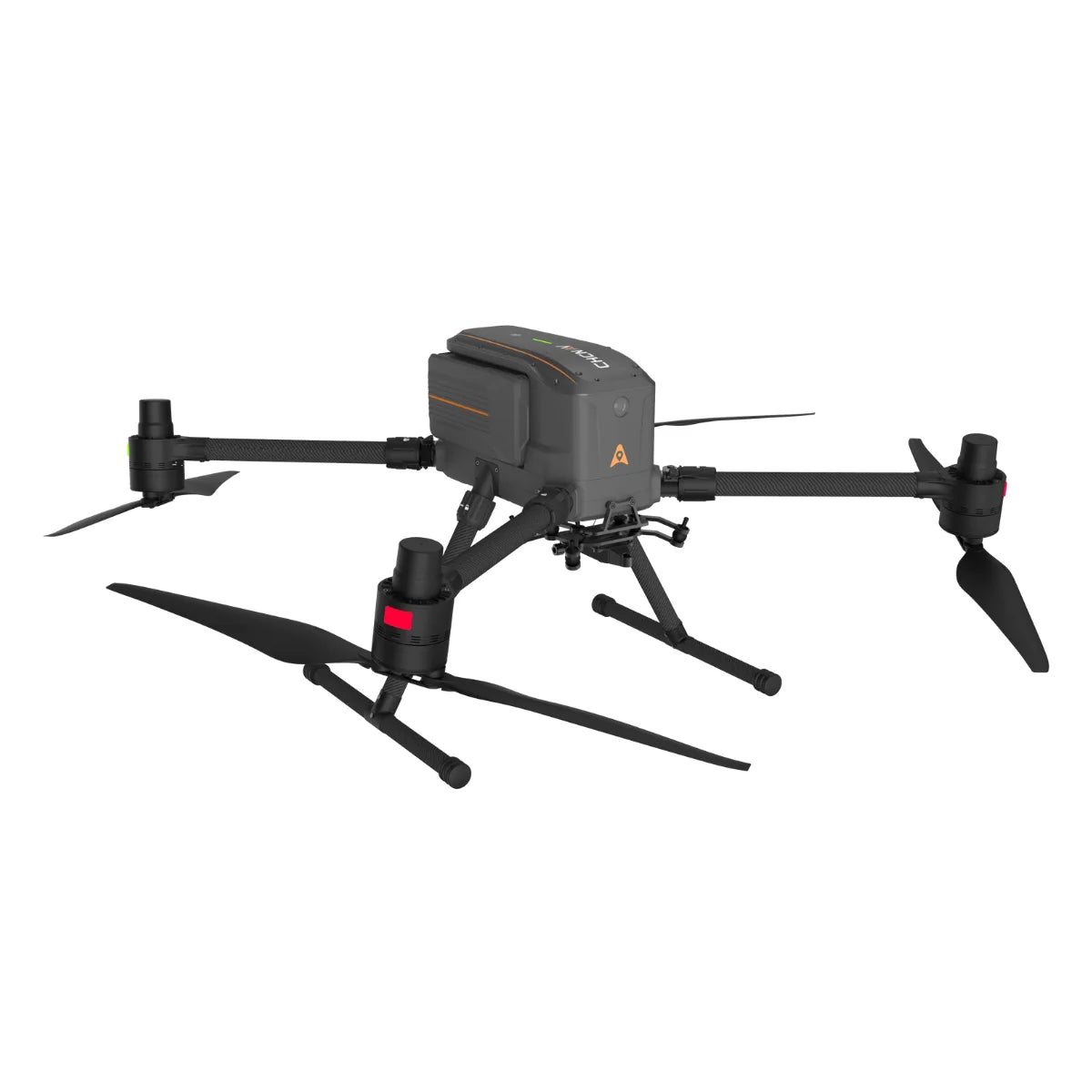

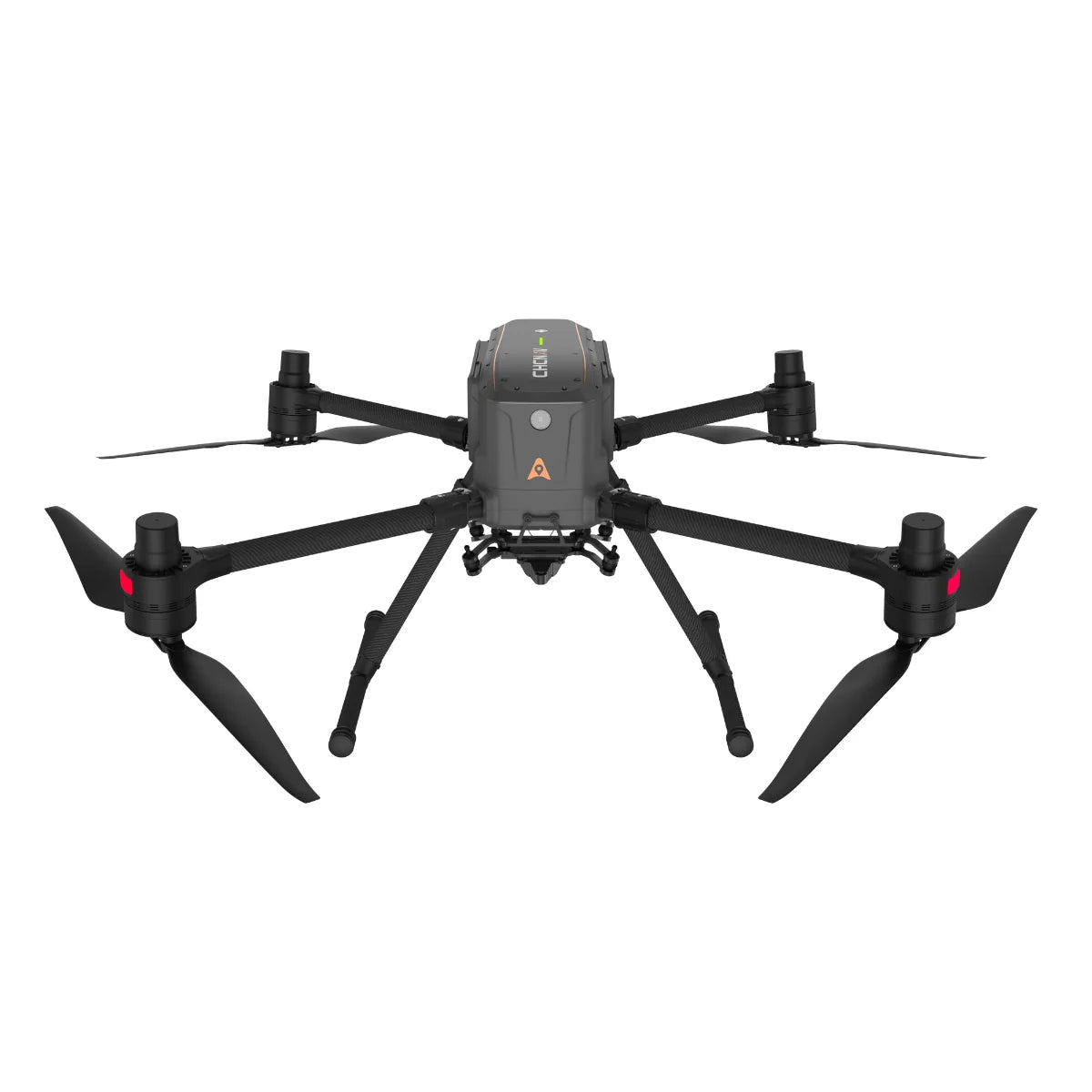

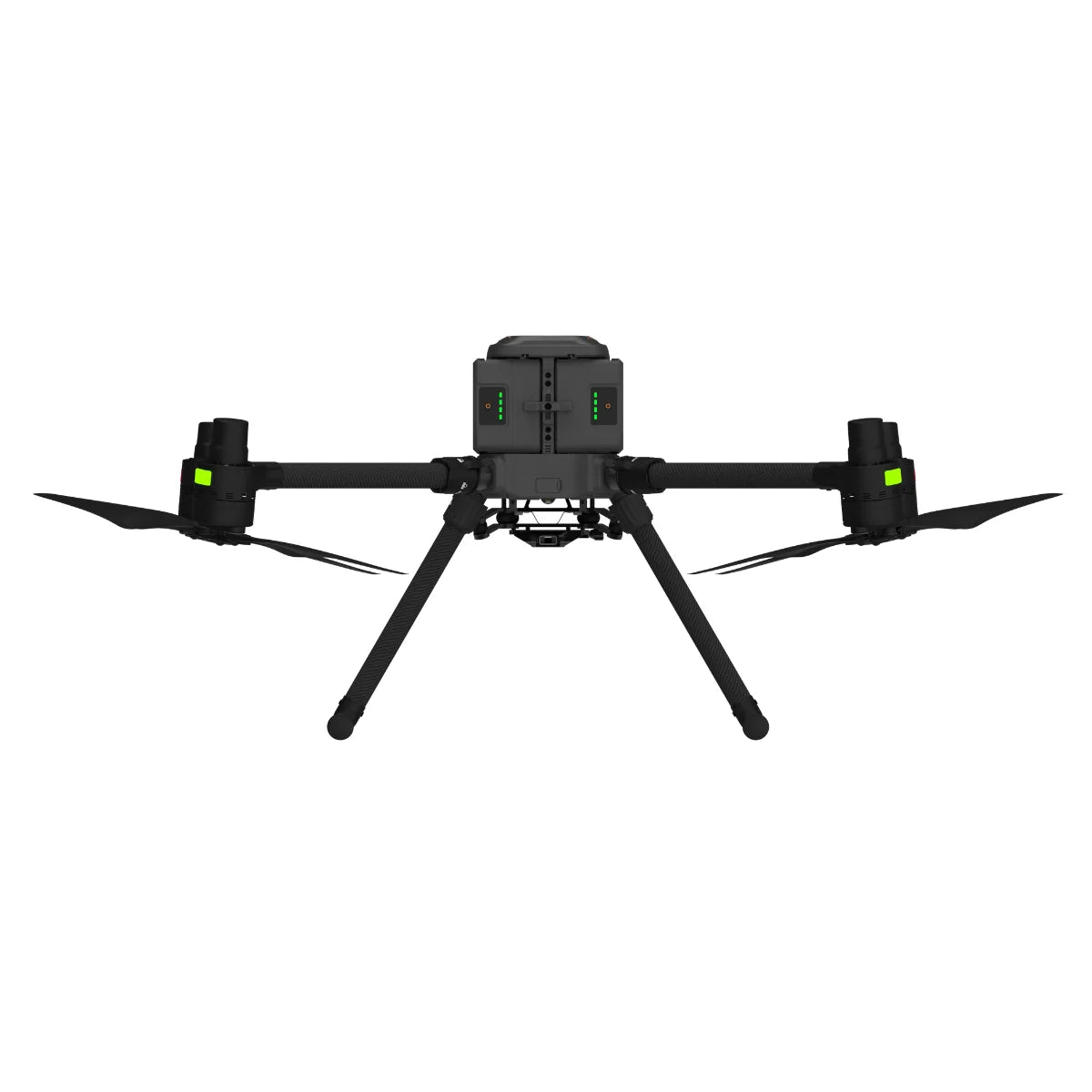

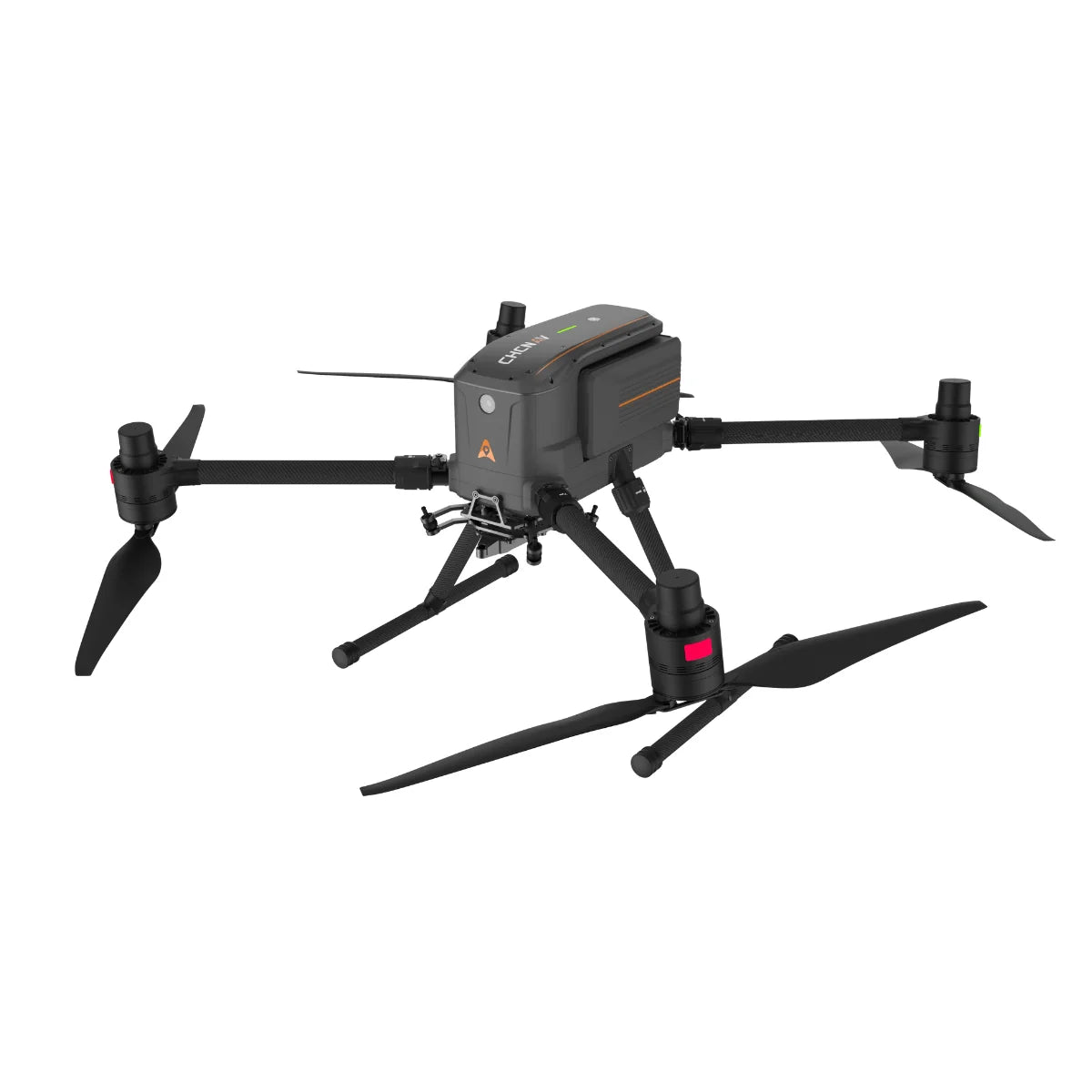

CHCNAV X500 Professional Multirotor Drone: heavy-lift, long-endurance enterprise UAV

The CHCNAV X500 Professional Multirotor Drone is a heavy-lift enterprise UAV designed for demanding field operations that require high payload capacity, long endurance, and operational reliability. Built around a carbon-fiber airframe with redundant flight systems, the X500 supports certified CHCNAV LiDAR and imaging payloads up to 5 kg while delivering up to 58 minutes of flight time with no payload.

Integrated visual SLAM positioning, forward obstacle detection, and terrain-following flight enable safe operation in complex environments, making the platform well-suited for surveying, inspection, emergency response, and disaster operations.

Key flight systems and operational advantages

  • Payload capacity: Supports up to 5 kg certified CHCNAV payloads
  • Flight endurance: Up to 58 minutes without payload, 52 minutes with 2 kg
  • Redundant navigation: Dual GNSS, triple IMU, dual flight controllers
  • Environmental protection: IP55-rated airframe for rain and dust resistance
  • Obstacle detection: Forward vision sensor detects obstacles up to 80 meters
  • Visual positioning: vSLAM enables precision flight in GNSS-challenged environments
  • Power continuity: Dual hot-swappable intelligent batteries minimize downtime
  • Field charging: BS10 station charges two batteries simultaneously in 40 minutes
  • Long-range control: Up to 20 km HD video transmission capability

Redundant control architecture with visual SLAM and obstacle awareness

The X500 integrates multiple layers of redundancy across its navigation, sensing, and control systems to ensure stable flight in complex operational conditions. Dual GNSS modules and triple IMUs provide continuous positioning reliability, while dual flight controllers enable fault tolerance during abnormal events.

Visual SLAM positioning improves accuracy during low-altitude or signal-degraded operations, supporting precise takeoff and landing scenarios. A forward obstacle detection sensor actively identifies structures such as trees, towers, and buildings, reducing collision risk during automated and manual missions.

Heavy-lift performance supported by intelligent energy and payload systems

Designed to carry certified CHCNAV LiDAR and imaging payloads, the X500 enables extended data-collection missions without compromising flight stability. Dual B10 intelligent batteries support hot-swap replacement, allowing continuous operations without powering down the aircraft.

The BS10 intelligent battery station supports six batteries and rapid charging cycles, enabling sustained field deployment. Combined with terrain-following flight modes, SmartGo mission planning, and long-range HD video transmission, the X500 delivers reliable performance for time-critical enterprise missions.

Certified payload compatibility and system integration

  • Supported RGB cameras: CHCNAV C5 and C30 imaging payloads
  • Supported LiDAR systems: CHCNAV AU20, AA15, AA10, and AA9
  • Payload configurations: Single downward, single upward, dual downward
  • Combined payload setup: Single downward plus single upward configuration
  • Maximum payload count: Up to three certified payloads simultaneously
  • Third-party devices: Supported only through certified CHCNAV SDK integration

Enterprise mission profiles and operational use cases

  • Geospatial surveying: High-accuracy aerial data collection across varied terrain
  • Infrastructure inspection: Powerlines, bridges, towers, and industrial facilities
  • Emergency scouting: Rapid situational awareness for first responders
  • Disaster relief: Damage assessment and operational planning support
  • Urban surveillance: Persistent monitoring with obstacle-aware flight systems
  • Mine surveying: Large-area mapping in harsh and dusty environments
  • Environmental monitoring: Long-endurance data capture in remote locations
  • Construction oversight: Progress tracking with certified imaging payloads

Designed for enterprise integration and field reliability

The CHCNAV X500 is engineered for professional operations requiring reliability, repeatability, and system interoperability. Its redundant architecture, certified payload ecosystem, and SmartGo ground control software support standardized workflows across enterprise teams. With IP55 protection, wide operating temperatures, and rapid battery logistics, the platform is well-suited for sustained deployment in demanding field environments.

The X500 delivers a balanced combination of payload capacity, endurance, and safety systems for organizations that require dependable aerial platforms. Its modular payload support and intelligent power management make it adaptable across multiple enterprise missions.

Available now from DSLRPros. Equip your operation with a proven heavy-lift UAV platform backed by enterprise expertise and long-term support.

Airframe and Design

  • Aircraft type: Quadcopter with four propellers
  • Structure: Carbon fiber, quick-release design
  • Dimensions (unfolded, without propellers): 770 × 804 × 450 mm (30.3 × 31.7 × 17.7 in)
  • Dimensions (folded, with propellers): 485 × 490 × 450 mm (19.1 × 19.3 × 17.7 in)
  • Diagonal wheelbase: 1000 mm
  • Transport container dimensions: 792 × 520 × 313 mm (31.2 × 20.5 × 12.3 in)

Weights and Payload Capacity

  • Empty weight: Approx. 4.4 kg (without batteries)
  • Empty weight (with single downward gimbal): Approx. 8.9 kg (with two batteries)
  • Maximum payload: 5 kg
  • Maximum takeoff weight: 13.9 kg

Positioning and Hover Accuracy

  • Hovering accuracy (GNSS): Vertical ±0.5 m; Horizontal ±1.5 m
  • Hovering accuracy (RTK): Vertical ±0.1 m; Horizontal ±0.1 m
  • RTK accuracy (RTK FIX): Horizontal 1 cm ±1 ppm; Vertical 1.5 cm ±1 ppm
  • GNSS systems: GPS, GLONASS, BeiDou, Galileo

Flight Performance

  • Maximum ascent speed: 8 m/s
  • Maximum descent speed: 6 m/s
  • Maximum flight speed: 23 m/s
  • Maximum flight time (no payload): 58 minutes
  • Maximum flight time (2 kg payload): 52 minutes
  • Maximum flight time (4 kg payload): 40 minutes

Obstacle Avoidance and Landing Accuracy

  • Ingress protection rating: IP55
  • Obstacle avoidance: Forward obstacle detection sensor
  • Obstacle detection range: 80 m
  • Landing deviation: ≤10 cm (vision positioning); ≤8 cm (RTK fixed)

Environmental Specifications

  • Operating temperature: −20° to 50°C (−4° to 122°F)
  • Storage temperature: −40° to 70°C (−40° to 158°F)

Remote Controller (EC10)

  • Model: EC10
  • Screen: 10.1-inch touchscreen
  • Resolution: 1920 × 1200
  • Maximum brightness: 1000 nits
  • Weight: Approx. 1.5 kg
  • Built-in battery: Li-ion
  • Operating time: Approx. 5 hours
  • Operating temperature: −20° to 50°C (−4° to 122°F)
  • Operating frequency: 2.4015–2.4814 GHz
  • Maximum transmission distance: Up to 20 km (moderate or no wind)

Intelligent Battery (B10)

  • Model: B10
  • Battery type: Li-ion (10000 mAh @ 47.04 V)
  • Energy: 470.4 Wh
  • Weight: Approx. 2.25 kg
  • Operating temperature: −20° to 50°C (−4° to 122°F)
  • Ideal storage temperature: 22° to 30°C (71.6° to 86°F)
  • Charging temperature: −20° to 40°C (−4° to 104°F)
  • Charging time: Approx. 70 minutes (full); approx. 40 minutes (20% to 90%)

Payload Support and Integration

  • Supported payload configurations: Single downward, single upward, dual downward, downward + upward
  • Supported CHCNAV RGB cameras: C5, C30
  • Supported CHCNAV LiDAR payloads: AU20, A15, AA10, AA9
  • Third-party payloads: Supports certified payloads developed using the CHCNAV SDK

Intelligent Battery Station (BS10)

  • Model: BS10
  • Size: 576 × 372 × 302 mm (22.7 × 14.6 × 11.9 in)
  • Net weight: Approx. 9.9 kg
  • Compatible stored items: Six B10 intelligent flight batteries
  • Input voltage: 100–120 VAC or 220–240 VAC, 50–60 Hz
  • Maximum input power: 1200 W
  • Output power: 1000 W
  • Operating temperature: −20° to 40°C (−4° to 104°F)
  • 1x X500 Airframe
  • 1x EC10 Remote Controller
  • 1x Landing Gear
  • 1x Extra Propeller Set
  • 2x B10 Intelligent Batteries
  • 1x BS10 Battery Charging Station
  • 1x Transport Case
What payloads are compatible with the CHCNAV X500 Professional Multirotor Drone?

The CHCNAV X500 supports certified CHCNAV payloads including C5, C30, AU20, AA15, AA10, and AA9. Third-party payloads must be developed and certified through the CHCNAV SDK.

How long can the CHCNAV X500 Professional Multirotor Drone fly?

The X500 offers up to 58 minutes of flight time without payload, 52 minutes with a 2 kg payload, and 40 minutes with a 4 kg payload.

Does the CHCNAV X500 Professional Multirotor Drone support hot-swap batteries?

Yes. The aircraft uses dual B10 intelligent batteries that support hot-swap replacement without powering down.

Is the CHCNAV X500 Professional Multirotor Drone weather resistant?

The X500 features an IP55 protection rating and operates in temperatures from −20 °C to 50 °C.

What software controls the CHCNAV X500 Professional Multirotor Drone?

The drone is operated using CHCNAV SmartGo ground control software, supporting automated routes, terrain following, and real-time telemetry.
