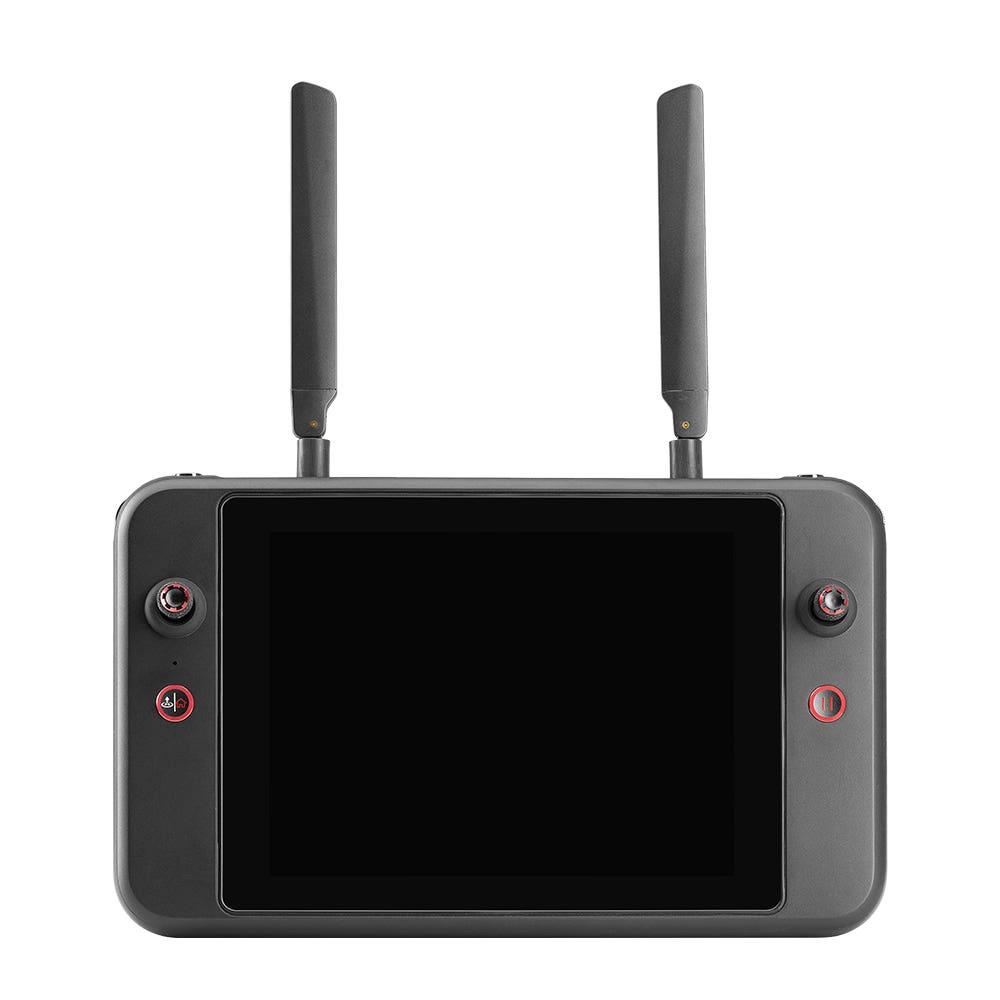

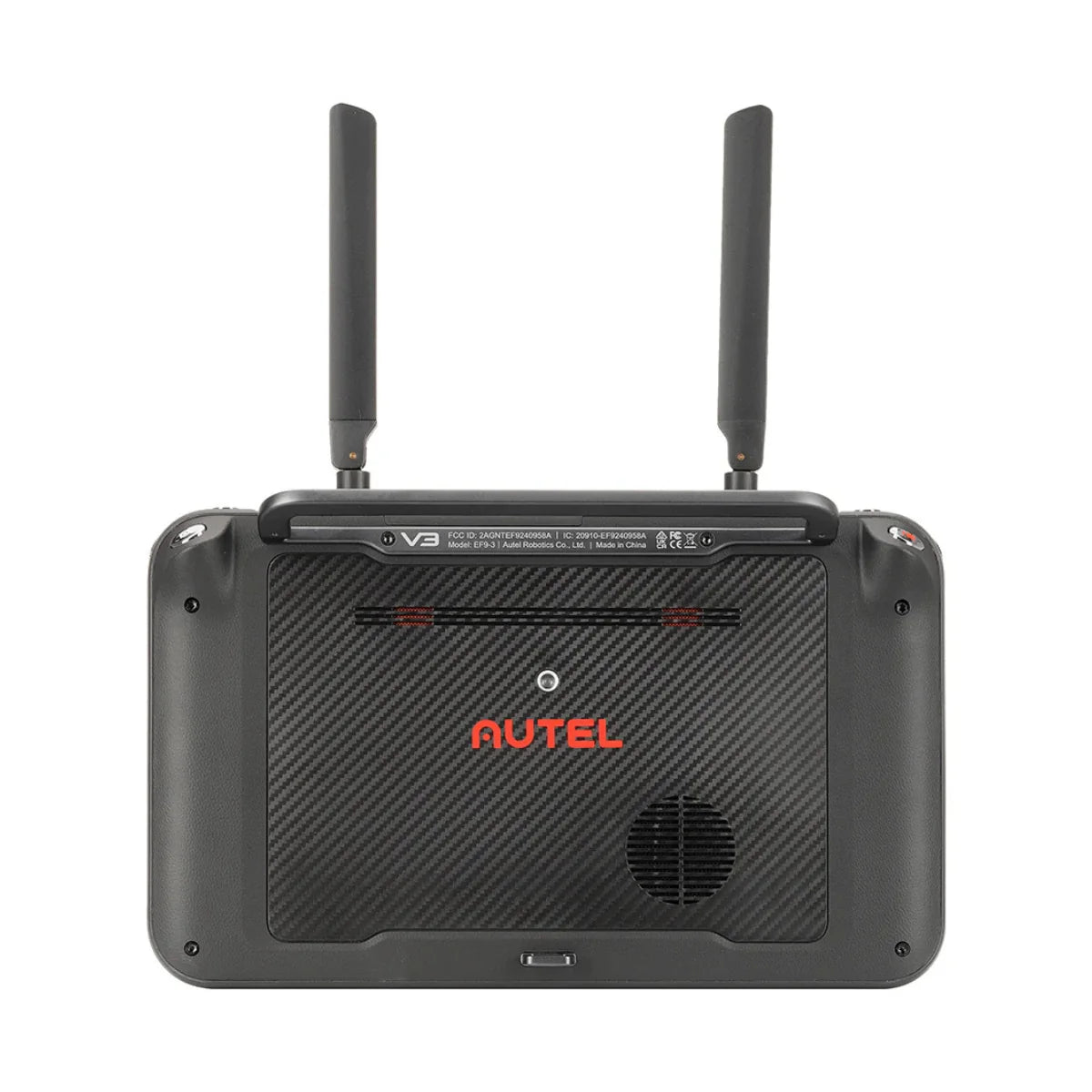

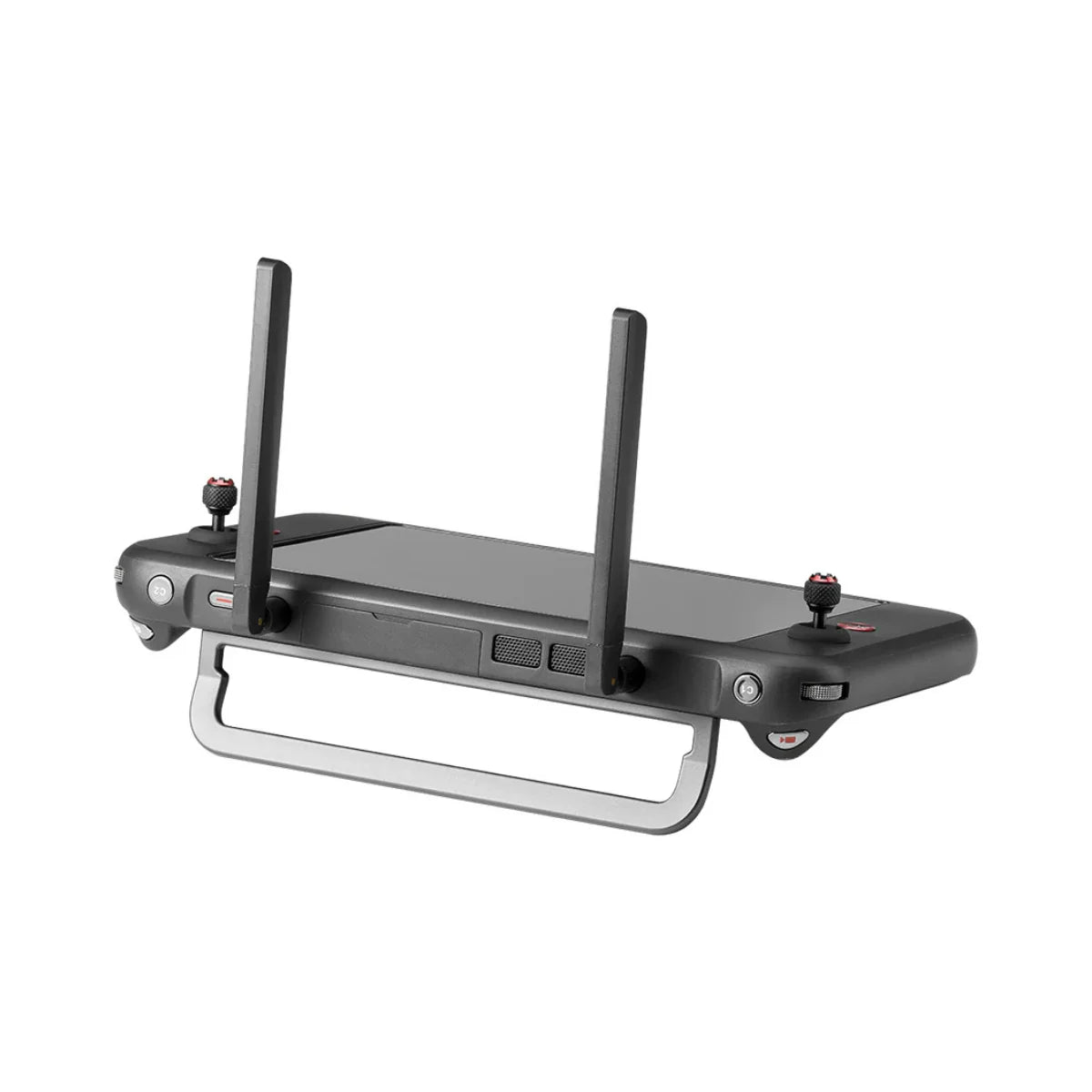

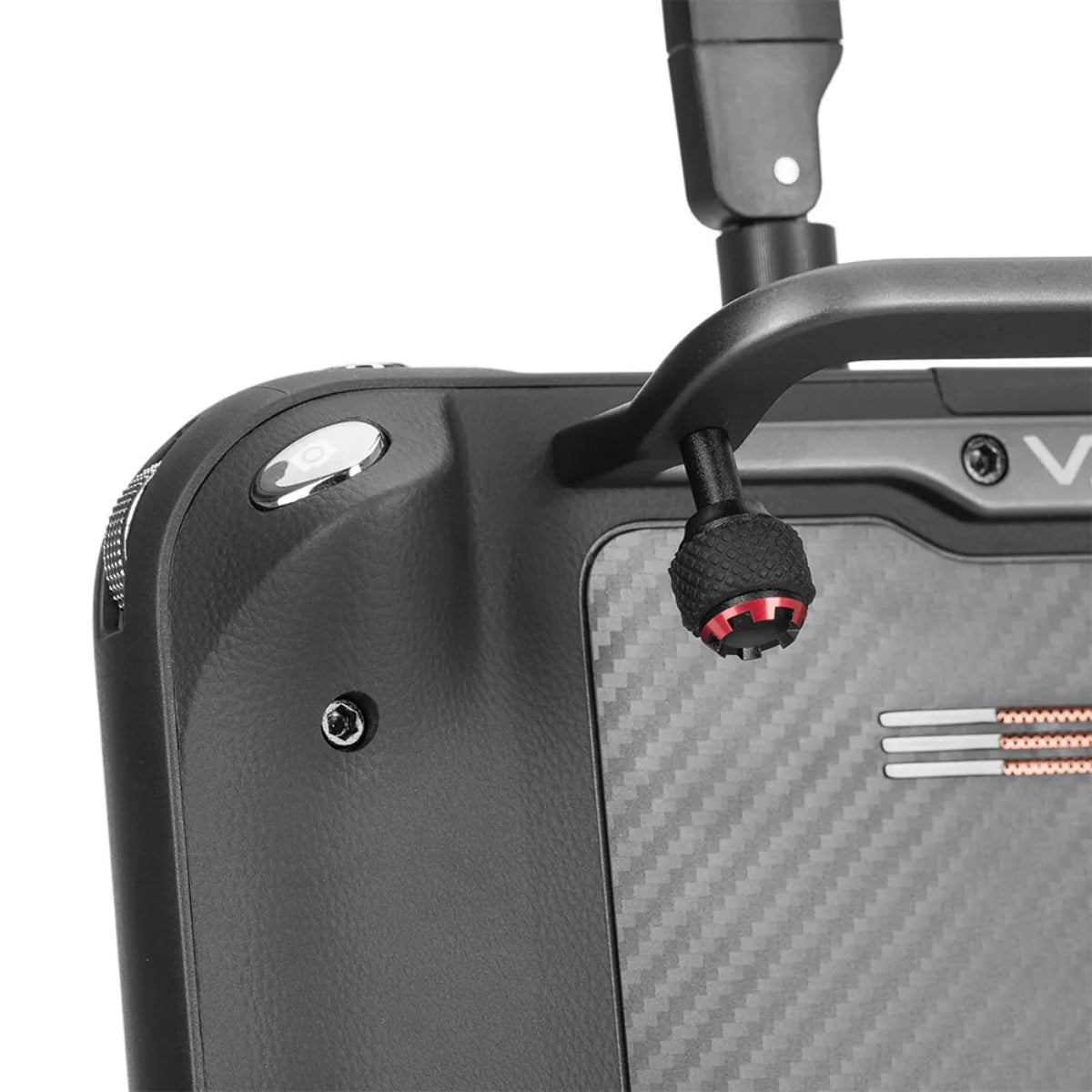

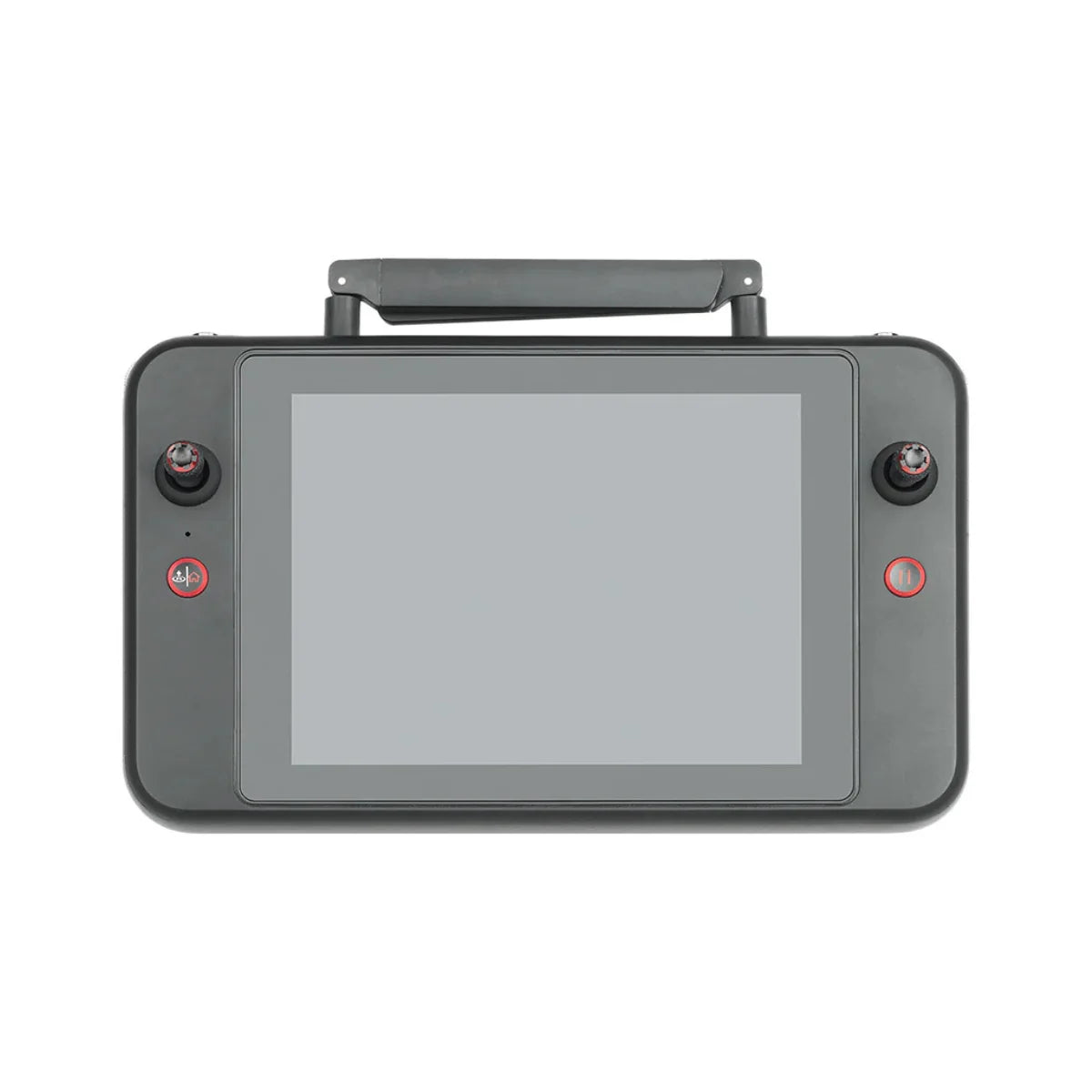

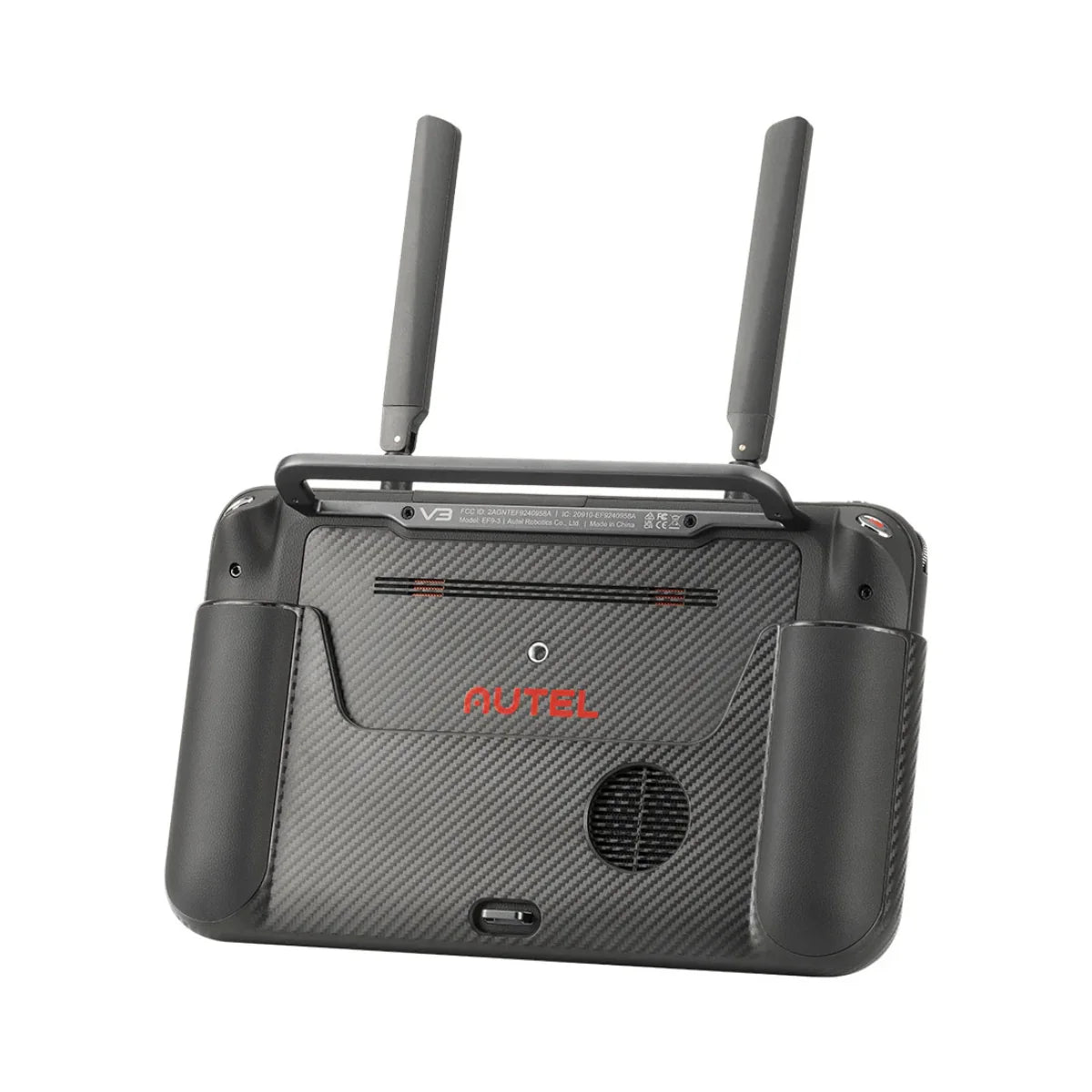

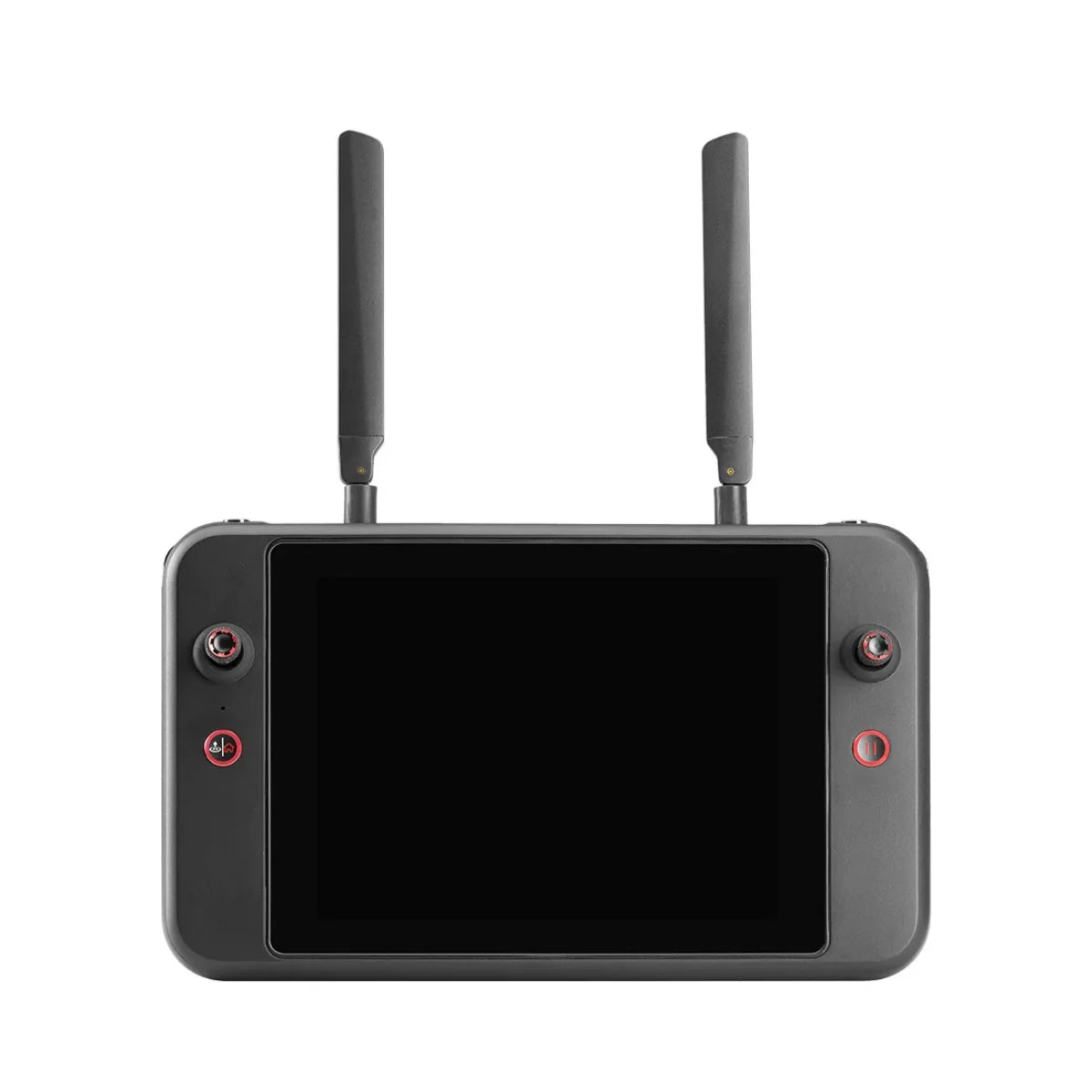

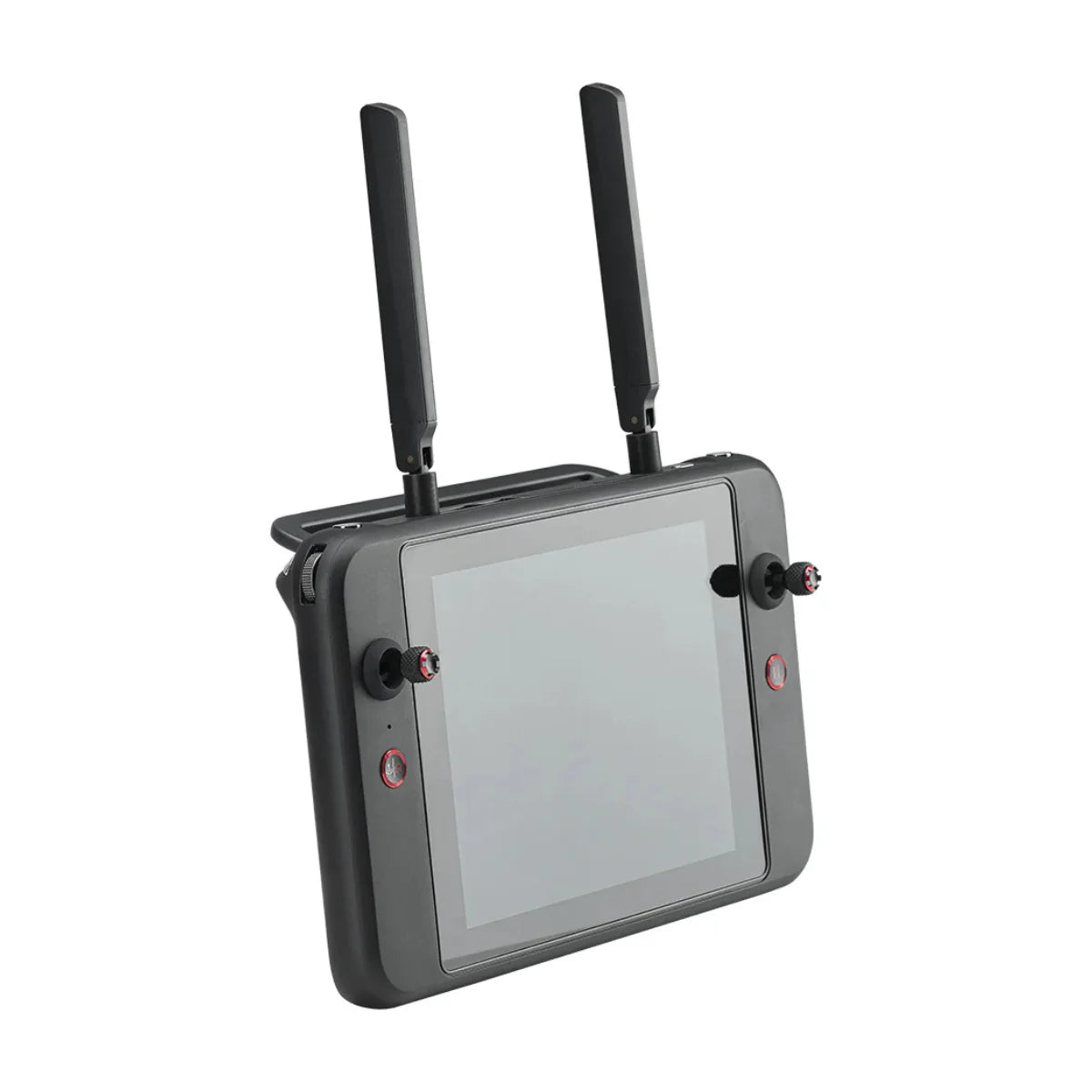

Autel 7.9inch Smart Controller for EVO II V3 Drones

Autel 7.9inch Smart Controller for EVO II V3 Drones

$1,199.00
$1,199.00
Sale Sold out
Shipping calculated at checkout.

S-AR-SC-79

SKU S-AR-SC-79 MPN 102001507 EAN 0889520013949
  • 7.9-inch QHD display delivers up to 2,000 nits brightness
  • SkyLink 2.0 transmission supports adaptive multi-band communication
  • Compatible with Autel EVO II V3 enterprise aircraft
  • Qualcomm 8-core processor supports smooth 4K video playback
  • Customized Android OS supports third-party enterprise workflows
  • 128 GB internal storage manages flight logs and media
  • Detachable SMA antennas support upgraded transmission configurations
  • Up to four hours operating time at reduced brightness
  • IP43-rated enclosure supports demanding outdoor operations

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel 7.9-inch Smart Controller for EVO II V3 Drones: ultra-bright enterprise control for precision Autel operations

The Autel 7.9-inch Smart Controller for EVO II V3 Drones is a high-performance remote controller designed to deliver reliable control, visibility, and workflow flexibility for professional Autel EVO II enterprise missions. Built around an ultra-bright QHD display, SkyLink 2.0 video transmission, and a customizable Android operating system, the controller enables stable long-range flight operations in demanding environments. Its rugged construction, detachable antennas, and multi-port connectivity support inspection, mapping, and public safety workflows where situational awareness and system responsiveness are critical.

System highlights

  • 7.9-inch QHD touchscreen: delivers clear visual feedback during enterprise missions
  • 2000-nit maximum brightness: maintains visibility under direct sunlight conditions
  • 2048 × 1536 resolution: provides sharp, detailed imagery at 60 Hz
  • SkyLink 2.0 transmission: supports multi-band adaptive frequency hopping
  • Qualcomm 8-core processor: enables smooth 4K video playback and system performance
  • Customized Android OS: supports third-party apps and flexible workflows
  • 128 GB internal storage: stores flight logs and media without external cards
  • Detachable dual antennas: allow replacement or upgraded antenna configurations

Ultra-bright QHD display built for direct-sunlight operations

The Smart Controller features a 7.9-inch Ultra-HD touchscreen with a native resolution of 2048 × 1536 and a maximum brightness of 2000 nits. Anti-glare coatings and integrated True Tone technology dynamically adjust white balance to improve readability across changing lighting conditions. This display performance allows pilots to maintain clear visual awareness during inspections, mapping flights, and public safety operations conducted under intense sunlight.

SkyLink 2.0 video transmission with adaptive frequency hopping

SkyLink 2.0 supports transmission across 900 MHz, 2.4 GHz, 5.1 GHz, 5.7 GHz, and 5.8 GHz bands, automatically hopping frequencies to minimize interference. The system delivers 2.7K video at up to 0.6 miles (1 km) and maintains 1080p HD video across longer ranges up to approximately 9+ miles (15 km, FCC) in unobstructed environments. This adaptive transmission design supports stable video and control links in complex RF environments.

Flexible Android platform with enterprise connectivity options

Running on a customized Android operating system, the Smart Controller supports third-party applications and workflow customization beyond standard flight control. HDMI, USB-A, and USB-C ports enable live streaming and data connectivity, while SMA antenna connectors allow operators to upgrade antennas as needed. Integrated Wi-Fi and Bluetooth support additional peripherals and network-based workflows for enterprise teams.

Battery endurance and rugged field-ready construction

The controller is powered by a 5800 mAh lithium battery, delivering up to approximately four hours of operation at 50 percent screen brightness and around 2.5 hours at maximum brightness. Fast charging completes in roughly two hours. Reinforced composite materials, laser-engraved texturing, and an IP43 protection rating support durability in real-world field conditions. The controller operates reliably in temperatures from -4°F to 104°F (-20°C to 40°C).

Supported Autel aircraft platforms

  • Autel EVO II Pro V3
  • Autel EVO II Dual 640T V3
  • Autel EVO II RTK Series V3
  • Autel EVO II Enterprise V3

Professional enterprise mission scenarios

  • Infrastructure inspection: maintain visual clarity during detailed asset assessments
  • Public safety response: support situational awareness in dynamic environments
  • Mapping and surveying: execute precise missions with stable telemetry visibility
  • Thermal inspections: monitor infrared and visual feeds simultaneously
  • Industrial site monitoring: manage operations across large facilities efficiently
  • Environmental analysis: collect data under variable lighting conditions
  • Search and rescue operations: maintain control visibility during extended missions
  • Utility inspections: operate reliably along linear asset corridors

Designed for dependable Autel enterprise deployment

The Autel 7.9-inch Smart Controller is engineered to support professional EVO II V3 operations requiring high display performance, adaptive transmission, and workflow flexibility. Its combination of brightness, processing power, and connectivity options reduces operational friction during complex missions.

The Autel 7.9-inch Smart Controller provides a reliable control interface for enterprise Autel drone operations. DSLRPros supports professional teams with practical guidance and deployment experience, helping integrate this controller into EVO II V3 workflows with confidence—purchase today to support precision aerial missions.

Image Transmission

  • Antenna: Dual antennas, 1T2R, detachable design
  • Operating Frequency (900 MHz): 902–928 MHz (FCC/ISED only)
  • Operating Frequency (2.4 GHz): 2.400–2.476 GHz (SRRC only); 2.400–2.4835 GHz
  • Operating Frequency (5.8 GHz): 5.725–5.829 GHz (SRRC only); 5.725–5.850 GHz
  • Maximum Transmission Distance (unobstructed): 15 km (FCC); 8 km (CE/SRRC)
  • EIRP (900 MHz): ≤30 dBm (FCC/ISED)
  • EIRP (2.4 GHz): ≤30 dBm (FCC/ISED); ≤20 dBm (CE/SRRC/UKCA)
  • EIRP (5.8 GHz): ≤30 dBm (FCC/ISED/SRRC); ≤14 dBm (CE/UKCA)

Wi-Fi

  • Protocol: 802.11 a/b/g/n/ac
  • MIMO Support: 2×2 MIMO
  • Operating Frequency (2.4 GHz): 2.400–2.476 GHz (SRRC only); 2.400–2.4835 GHz
  • Operating Frequency (5.8 GHz): 5.725–5.829 GHz (SRRC only); 5.725–5.850 GHz
  • EIRP (2.4 GHz): ≤30 dBm (FCC/ISED); ≤20 dBm (CE/SRRC/UKCA)
  • EIRP (5.8 GHz): ≤30 dBm (FCC/ISED/SRRC); ≤14 dBm (CE/UKCA)

Bluetooth

  • Protocol: Bluetooth 5.0
  • Operating Frequency: 2.400–2.4835 GHz
  • EIRP: ≤20 dBm

Screen

  • Resolution: 2048 × 1536
  • Display Size: 7.9 inches
  • Frame Rate: 60 Hz
  • Maximum Brightness: 2000 nits
  • Touchscreen: 10-point multi-touch

Battery

  • Type: Li-Po 3S
  • Rated Capacity: 5800 mAh
  • Nominal Voltage: 11.55 V
  • Energy: 67 Wh
  • Operating Time: Approx. 2.5 hours (max brightness); approx. 4 hours (50% brightness)
  • Charging Time: Approx. 120 minutes
  • Charging Temperature: 5°C to 45°C (41°F to 113°F)

General Specifications

  • Internal Storage: 128 GB ROM
  • Video Output Port: HDMI
  • USB-A Port: Charging 5 V/2 A; Data USB 2.0
  • Operating Temperature: −20°C to 40°C
  • Storage Temperature: 15°C to 25°C (within 1 year); 0°C to 30°C (within 3 months); −20°C to 45°C (within 1 month)
  • Ingress Protection Rating: IP43
  • Dimensions (antennas folded): 269 × 189 × 66 mm
  • Dimensions (antennas unfolded): 269 × 302 × 87 mm
  • Weight: 1194 g (2.63 lb) without protective case; 1365 g (3.0 lb) with protective case
  • GNSS: GPS + Galileo + BeiDou + GLONASS

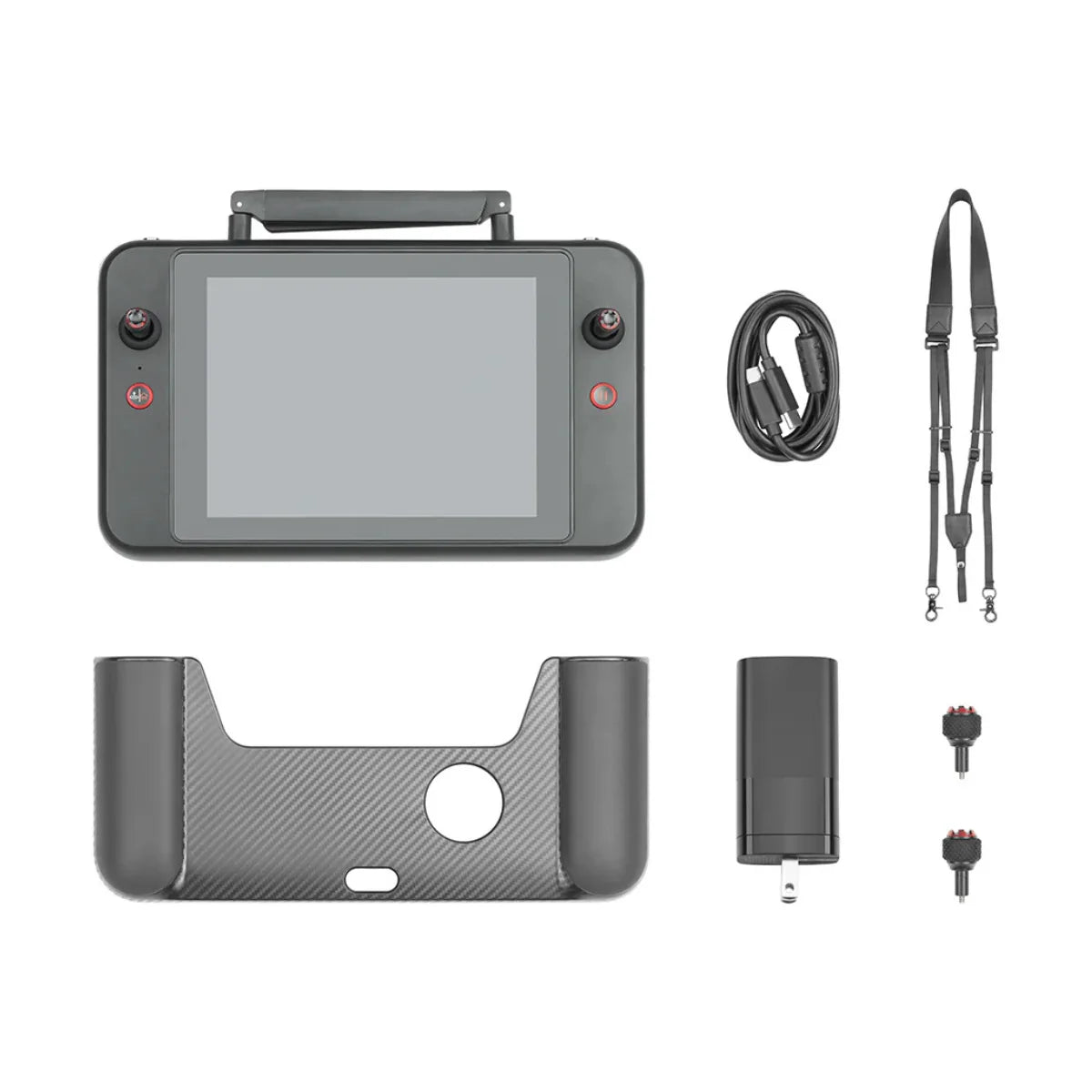

  • 1x Autel Smart Controller V3 for EVO II V3 Drones
  • 1x Protective Case
  • 1x Limited 1-Year Manufacturer Warranty
What aircraft are compatible with the Autel 7.9-inch Smart Controller?

The controller supports Autel EVO II Pro V3, EVO II Dual 640T V3, EVO II RTK Series V3, and EVO II Enterprise V3 aircraft.

How bright is the Autel Smart Controller display?

It features a 7.9-inch QHD touchscreen with a maximum brightness of 2000 nits.

What video transmission system does the controller use?

It uses SkyLink 2.0 with adaptive frequency hopping across multiple bands.

How long does the battery last during operation?

It supports up to approximately four hours at 50 percent brightness and around 2.5 hours at maximum brightness.

Is the Autel Smart Controller suitable for outdoor environments?

Yes. It operates from -4°F to 104°F and features an IP43 protection rating.
