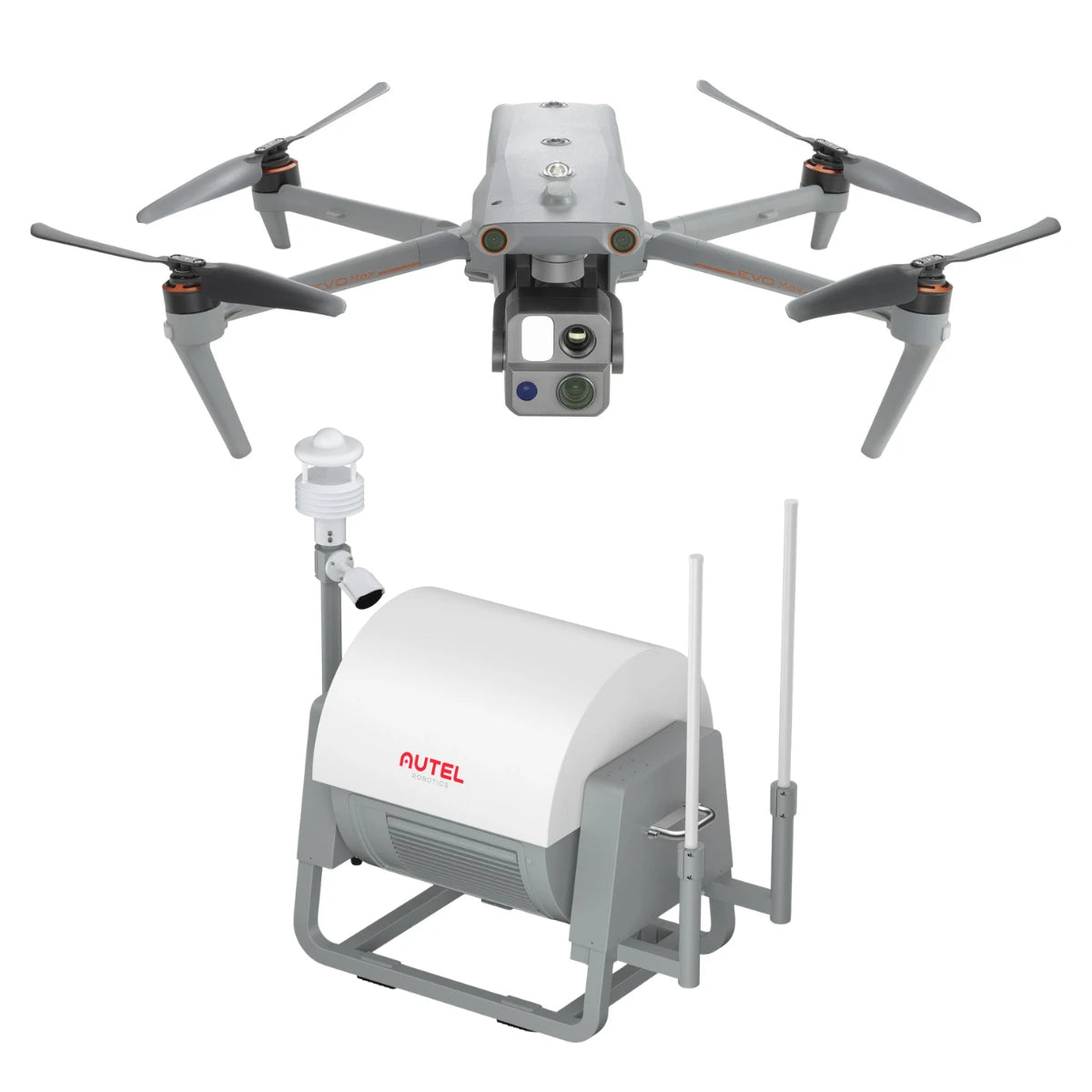

Autel EVO Nest + EVO Max 4T XE

Autel EVO Nest + EVO Max 4T XE

$31,037.99
$31,037.99
Sale Sold out
Shipping calculated at checkout.

B-AR-MAX-NEST

Autel EVO Max 4T XE (Nest Version)

  • Multi-sensor gimbal with zoom, wide, thermal, and laser payloads
  • 8K stills, 4K video, and long-range hybrid zoom capability
  • AI recognition and autonomous 3D pathfinding engine
  • 720° obstacle detection and radar-assisted safety
  • 42-minute flight time with hot-swappable batteries

Autel EVO Nest

  • Automated launch, recovery, and recharging station
  • Rugged IP55 housing with all-weather reliability
  • Integrated SkyCommand cloud mission planning tools
  • Supports wired, 4G, and 5G connections
  • Portable, deployable base for long-term remote operations
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

Autel EVO Nest + EVO Max 4T XE: Fully Automated Remote Drone Operations

The EVO Max 4T XE with EVO Nest brings together advanced drone imaging and autonomous base station technology, creating a truly remote-ready aerial system. With this bundle, operators can conduct high-resolution inspections, surveys, and critical missions while reducing personnel costs and risk.

The EVO Max 4T XE delivers unmatched imaging and autonomy, while the EVO Nest automates deployment, charging, and mission scheduling in all weather conditions. Together, they create a field-proven solution for 24/7 mission readiness.

Key Features and Benefits

Autel EVO Max 4T XE (Nest Version)

  • FusionLight gimbal: zoom, wide-angle, thermal, and laser rangefinder
  • 8K stills, 4K video, and hybrid 160x zoom capability
  • Thermal imaging with 640×512 resolution and 16× zoom
  • Laser rangefinder for accurate distance and coordinate capture
  • AI object recognition and high-altitude tracking functions
  • 720° dual-vision obstacle avoidance with radar detection
  • A-Mesh networking for fleet communication and BVLOS operation
  • Anti-interference systems to counter jamming and spoofing
  • SkyLink 3.0 transmission with 12.4-mile range and encrypted feeds

Autel EVO Nest

  • Automated takeoff, landing, and recharging station
  • IP55-rated weather and dust resistance
  • Operates between -22°F and 131°F
  • Integrated weather monitoring for safe flight planning
  • Rapid recharge from 10–90% in ~30 minutes
  • Wired, 4G, or 5G network connectivity options
  • Cloud-based SkyCommand for remote mission management
  • Compact design transportable by two operators
  • Expandable network with multiple Nests for regional coverage

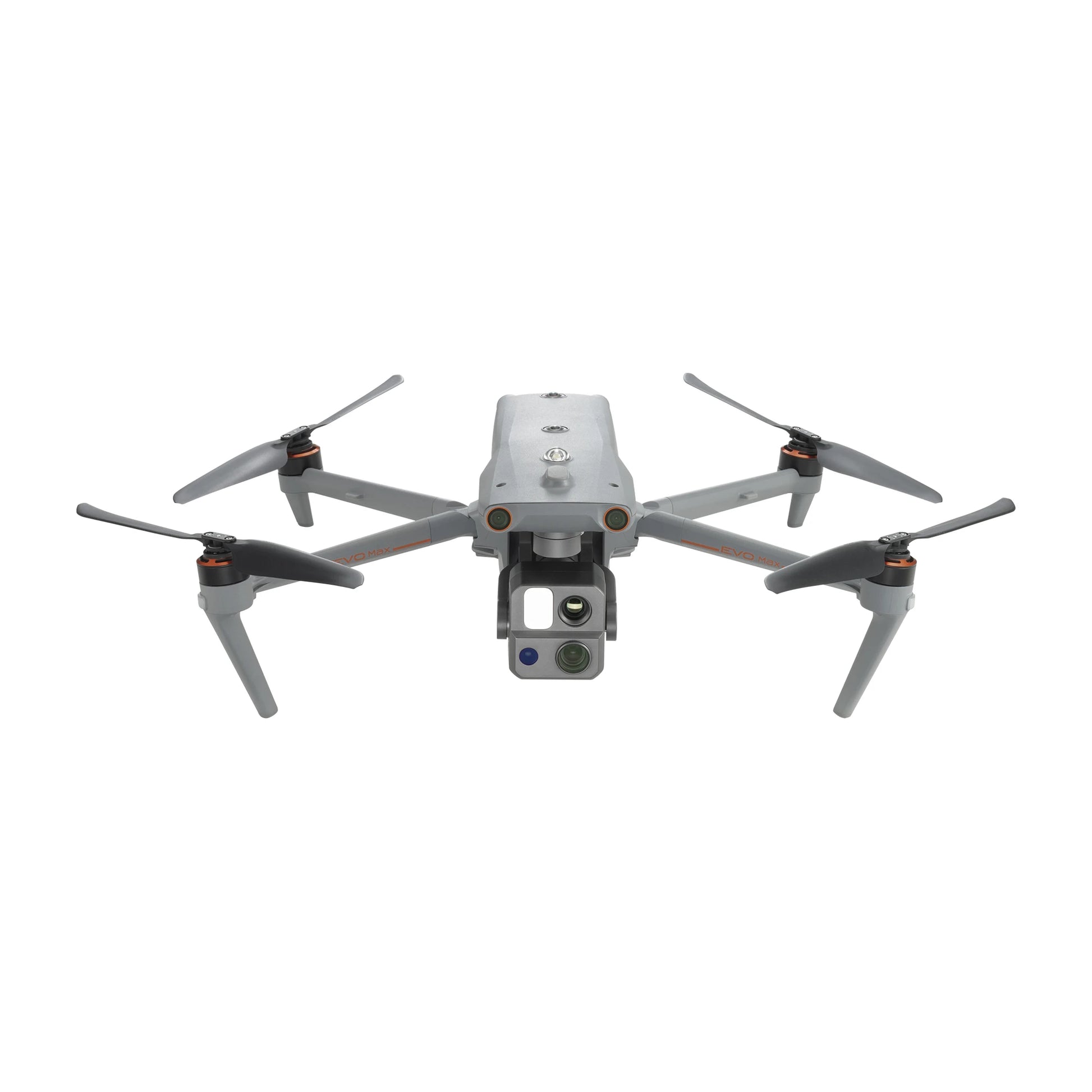

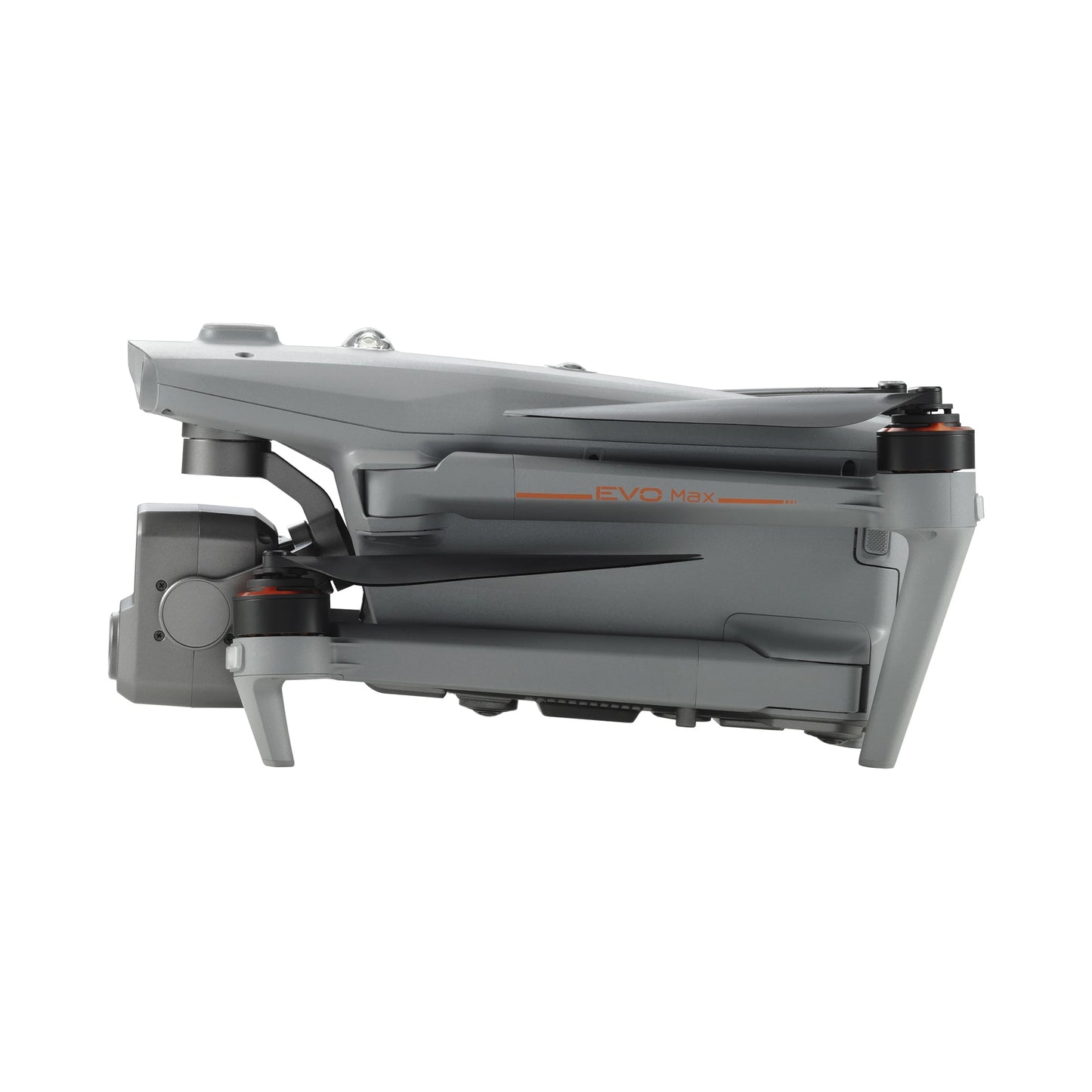

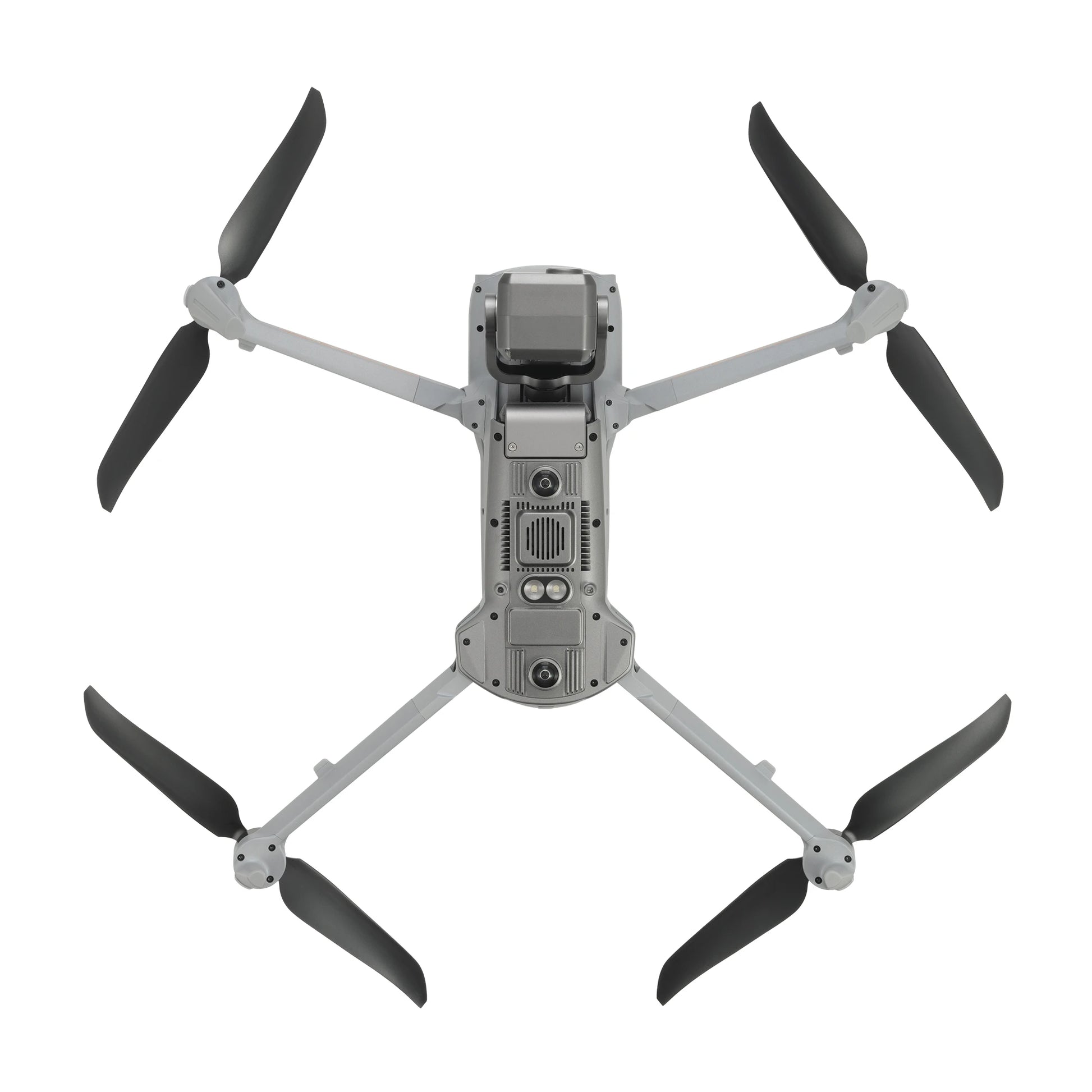

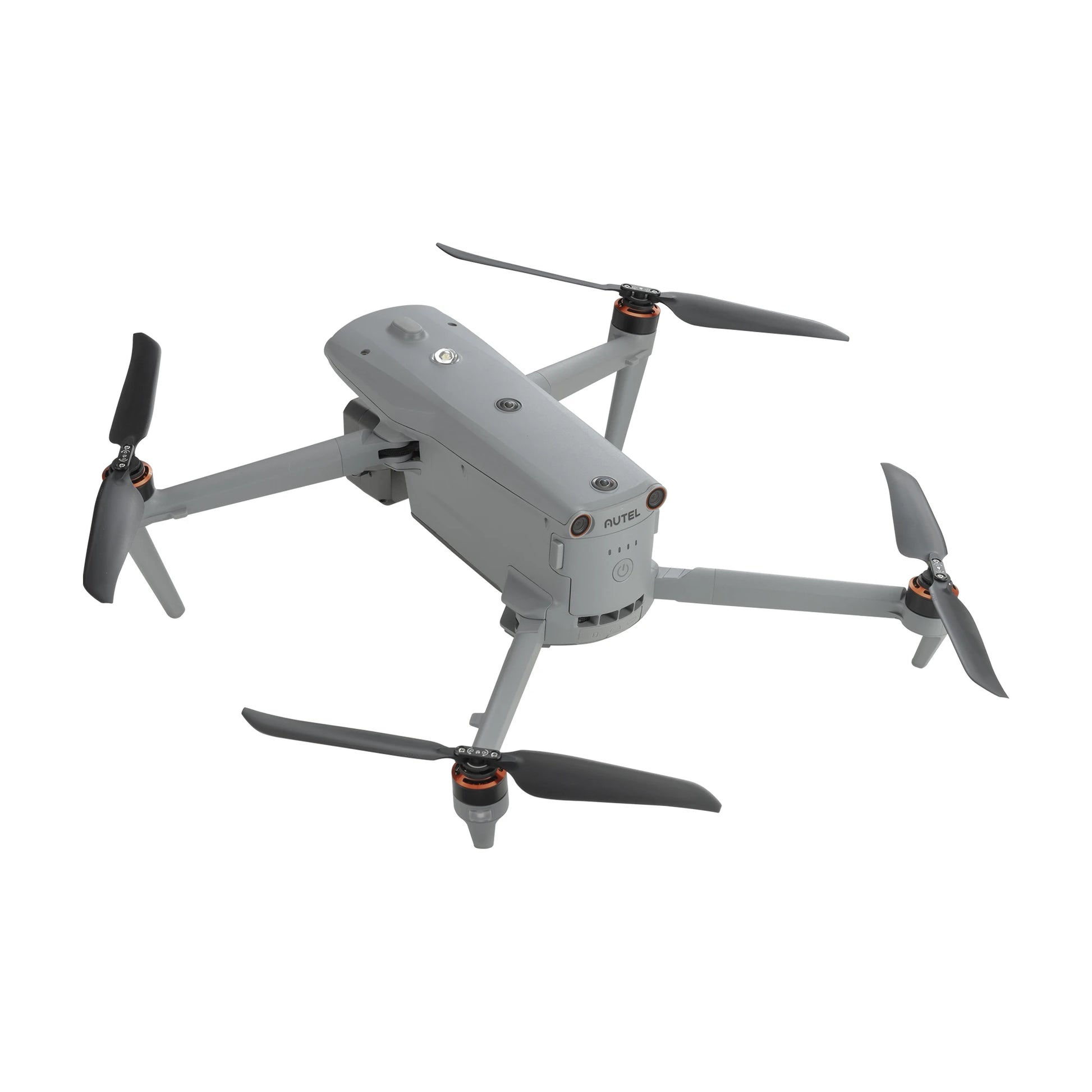

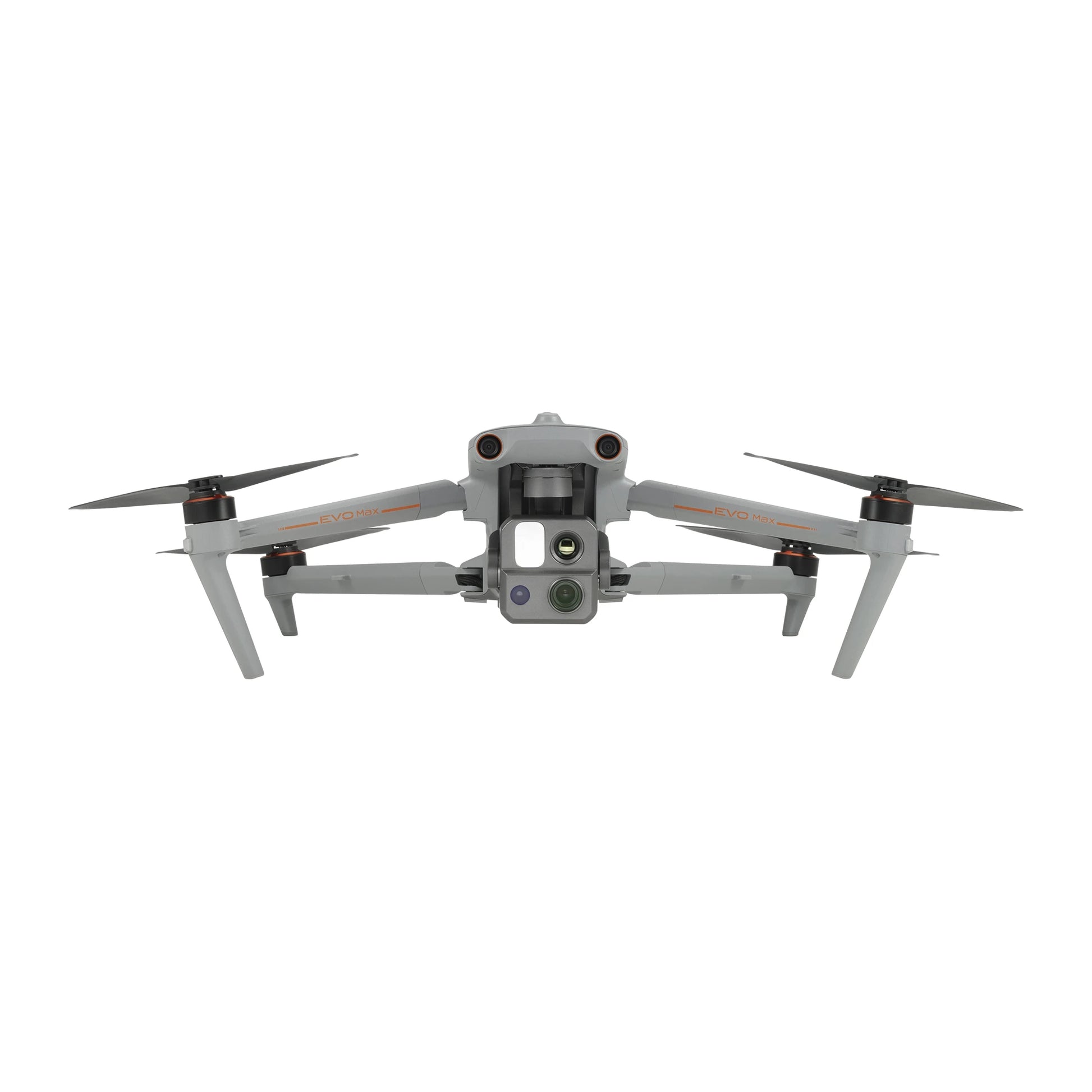

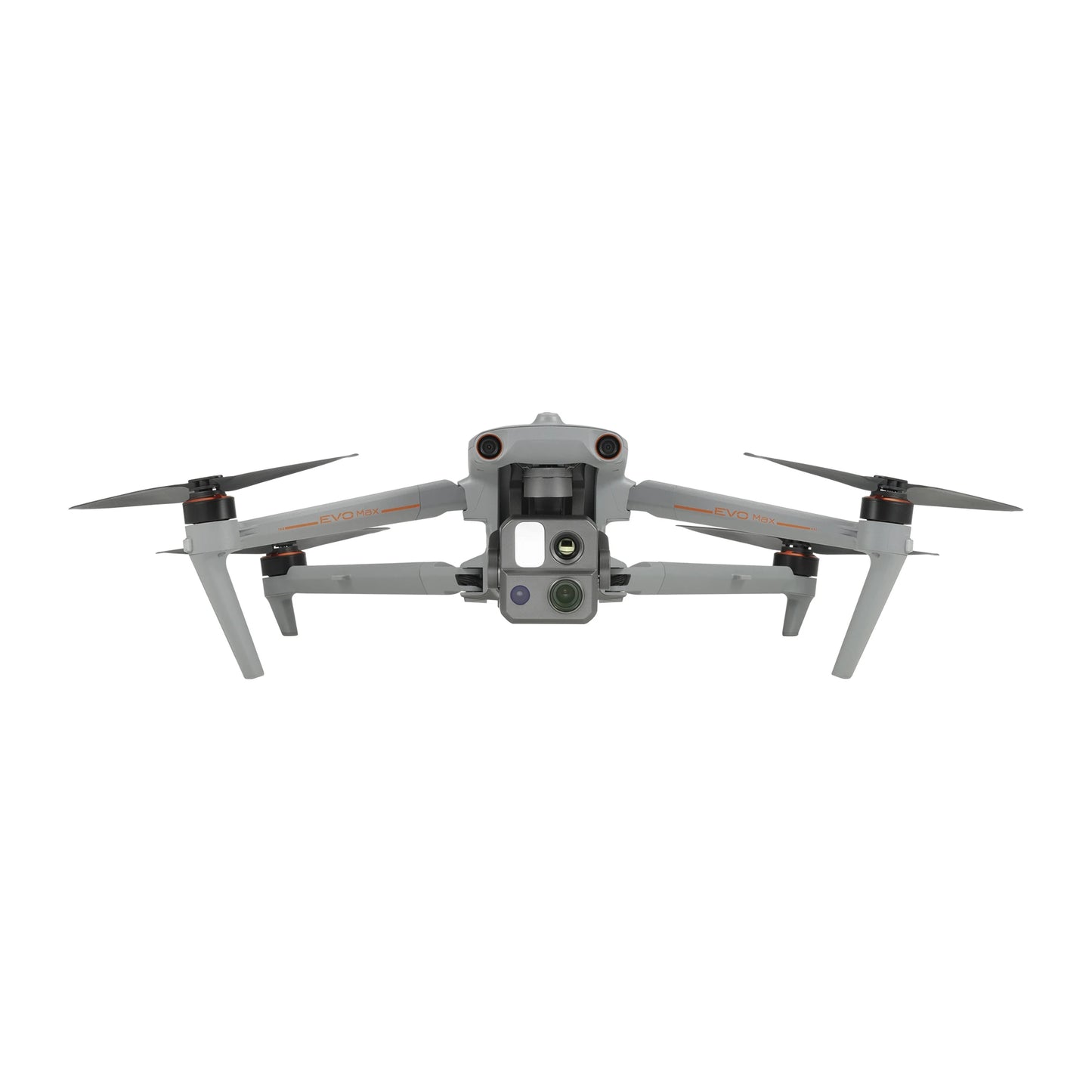

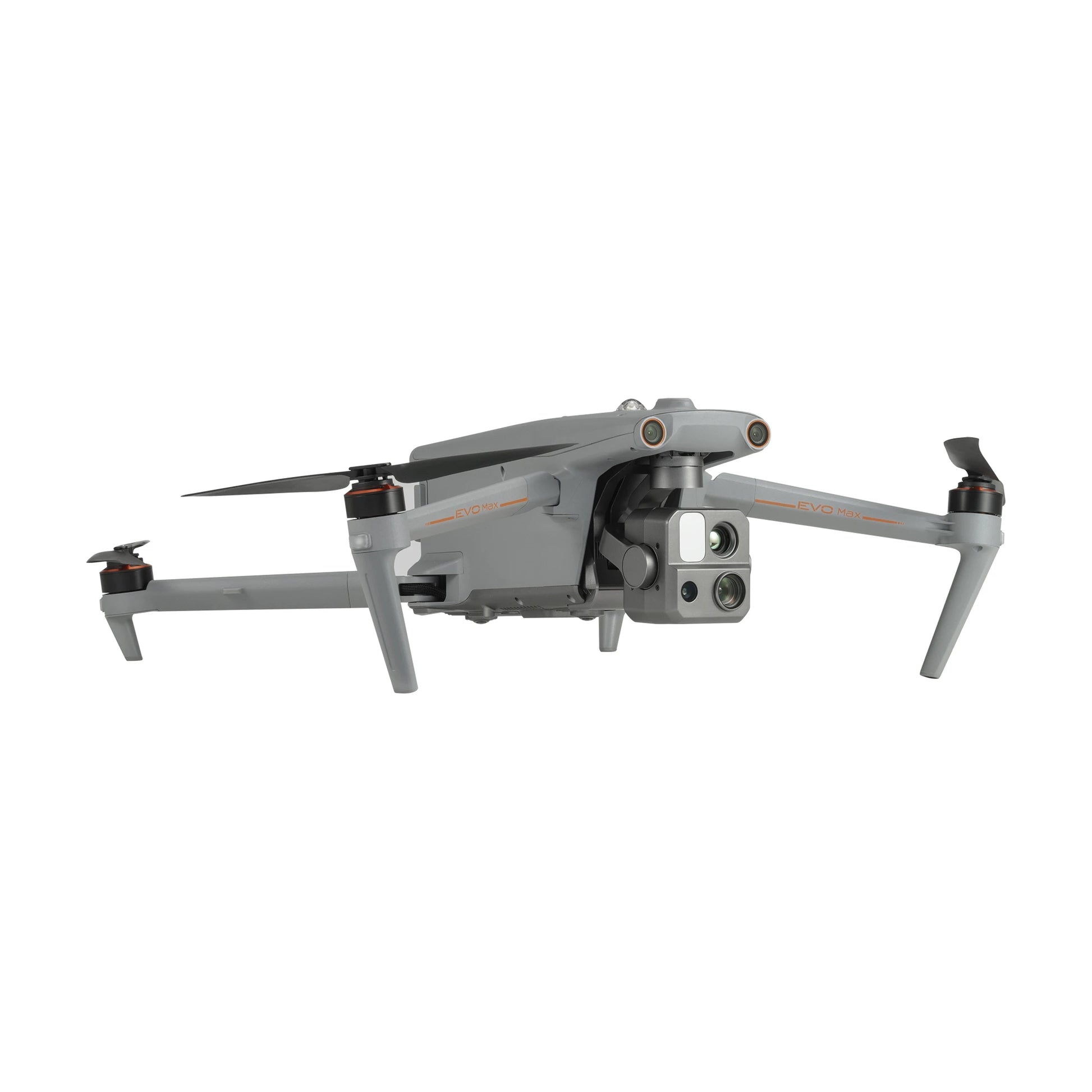

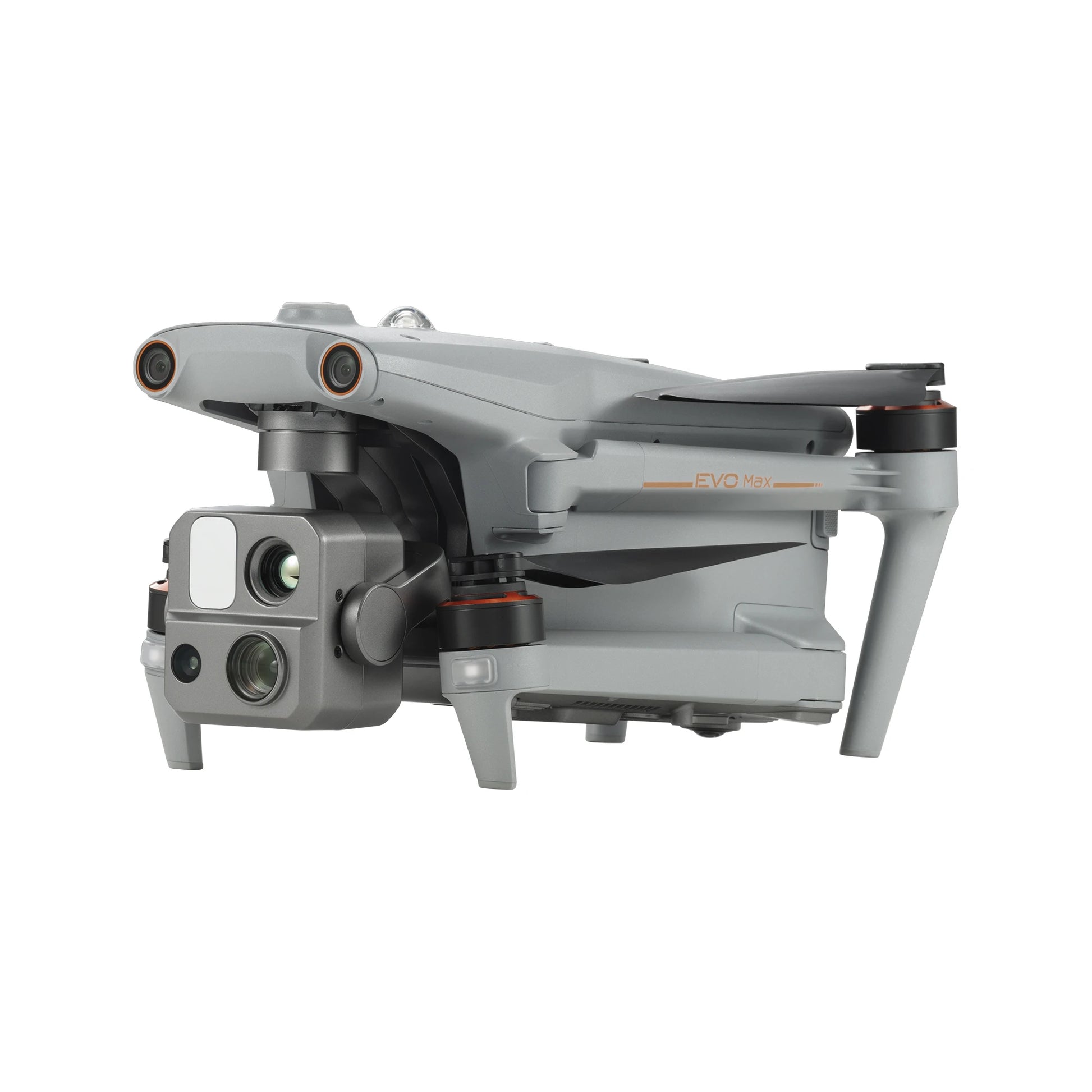

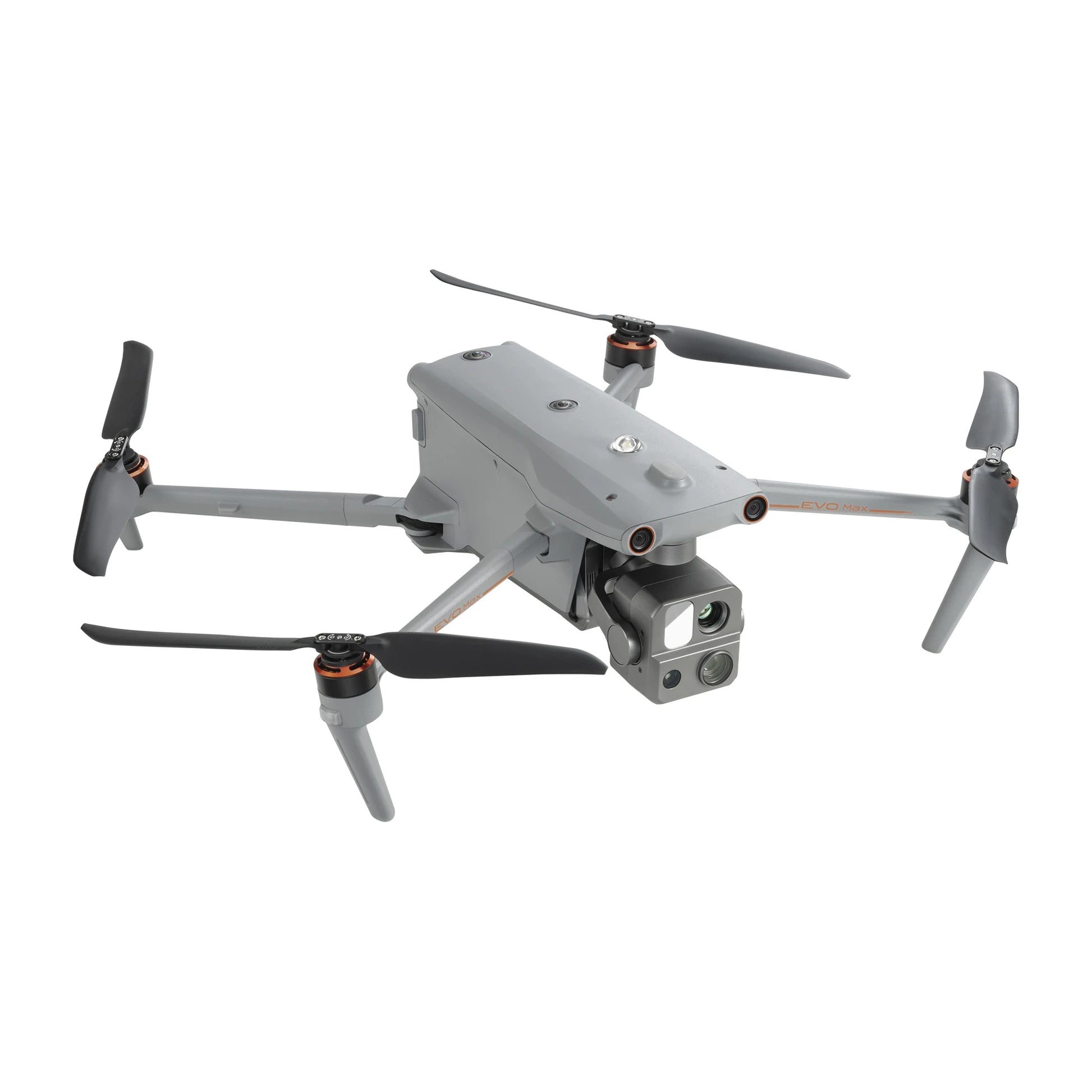

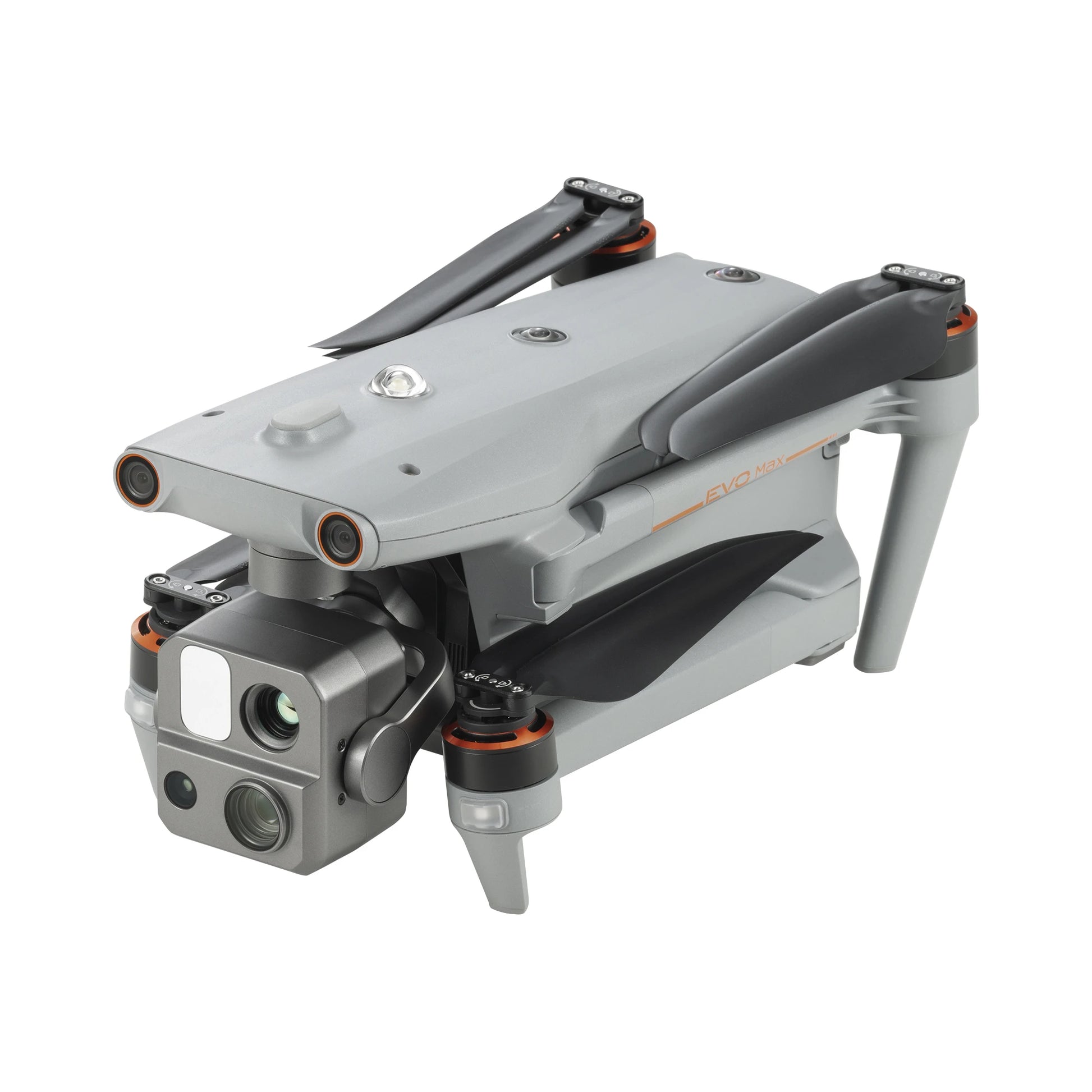

EVO Max 4T XE: Multi-Sensor Power and Autonomous Flight

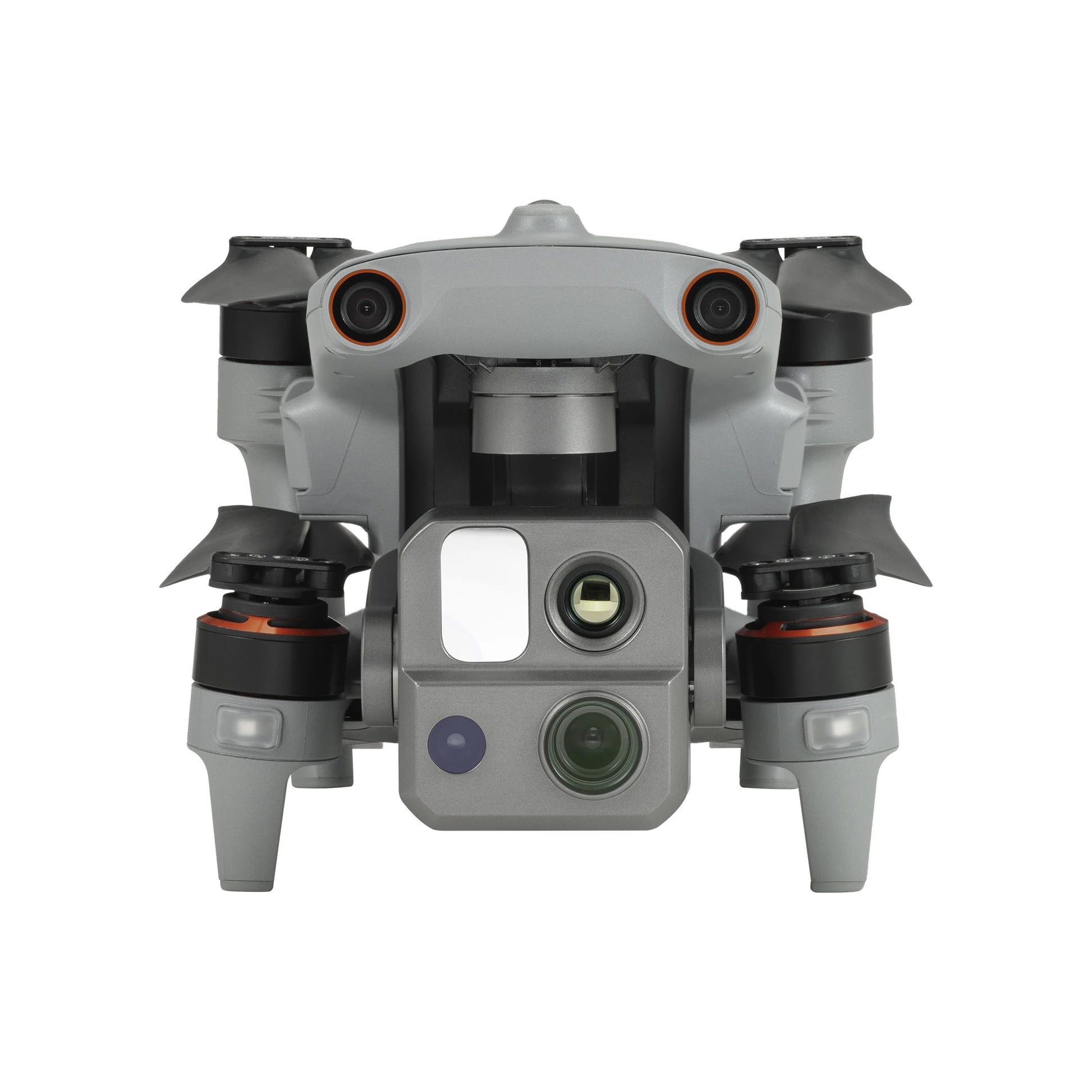

At the heart of the system is the EVO Max 4T XE, equipped with the FusionLight gimbal. This advanced payload combines a zoom camera capable of 8K stills and 4K video with 10x optical and 160x hybrid zoom, a wide-angle camera for expansive mapping, a thermal imaging sensor for heat detection, and a laser rangefinder for precise distance and coordinate capture.

Supporting the camera is a full autonomy suite: 720° obstacle avoidance, AI object recognition, and global path planning for safe navigation through complex environments. With A-Mesh drone-to-drone communication, fleets can coordinate beyond line of sight, while anti-interference systems and SLAM visual navigation ensure reliability even in GNSS-denied conditions.

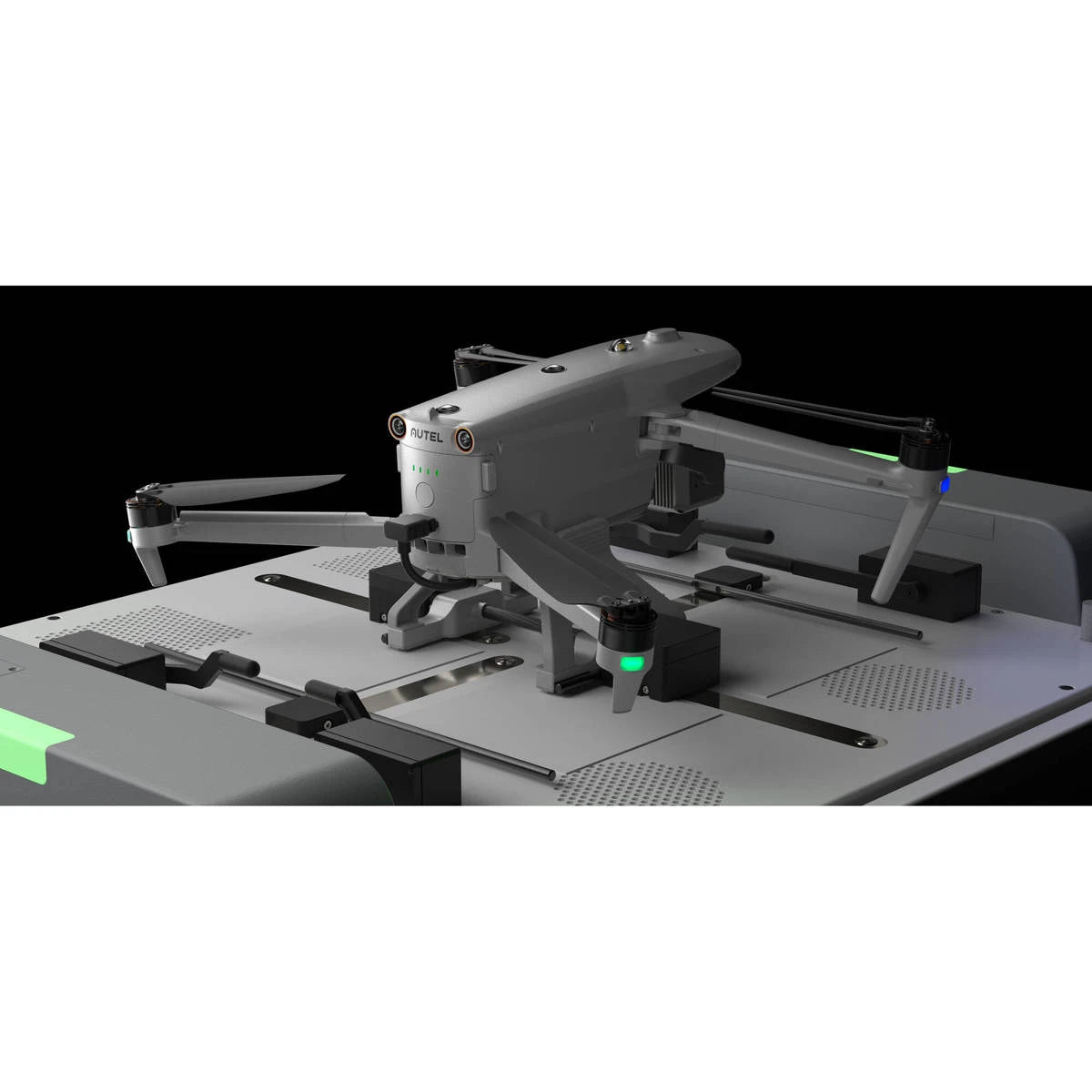

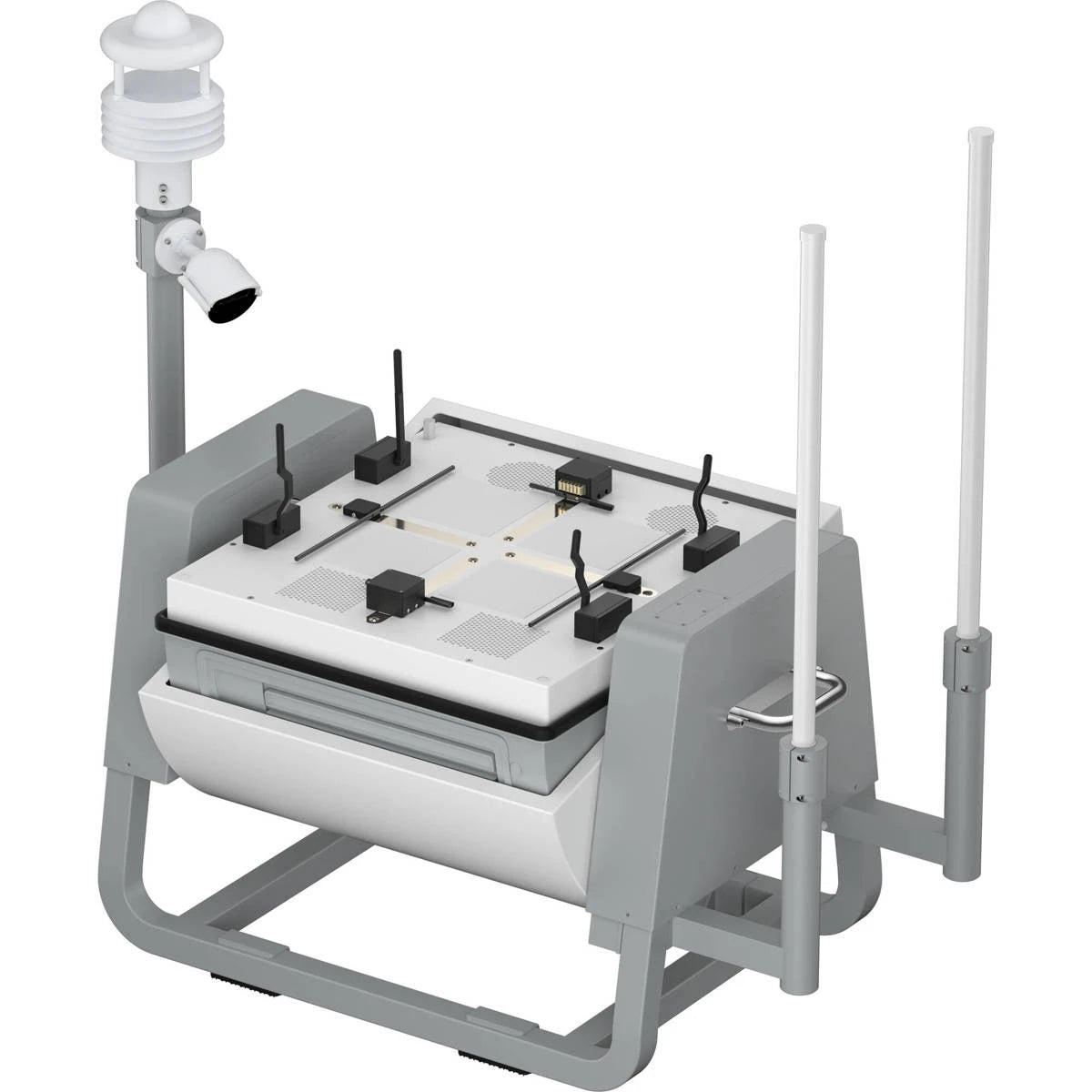

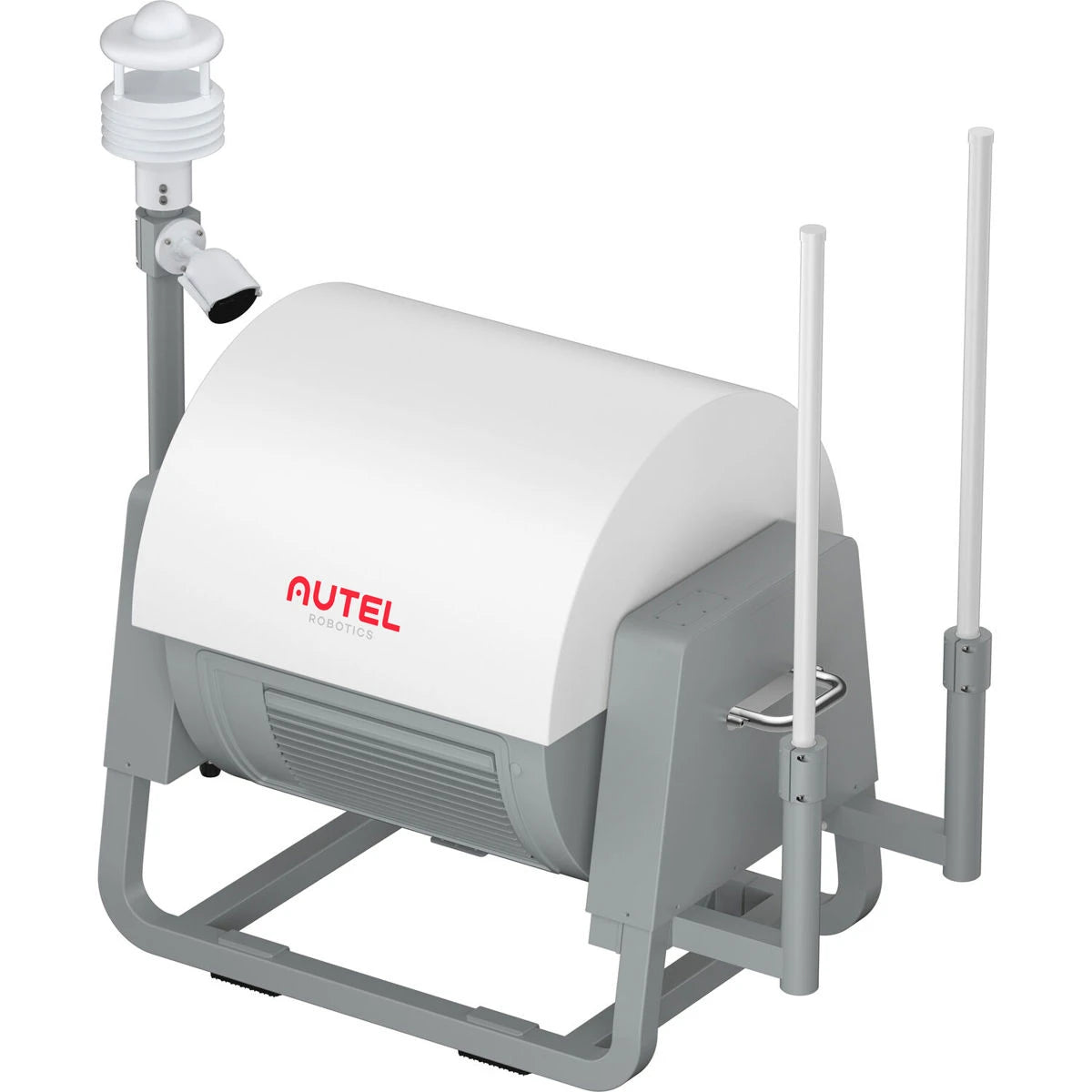

EVO Nest: Automated Deployment and Rugged Reliability

The EVO Nest transforms the EVO Max 4T XE into a fully automated asset. Acting as a remote base station, the Nest can launch, recover, and recharge the drone autonomously, reducing the need for human operators in difficult-to-access areas.

With an IP55-rated enclosure, integrated weather monitoring, and temperature resistance from -22°F to 131°F, the Nest enables continuous operations in nearly any environment. SkyCommand cloud integration allows for mission scheduling and data management from anywhere, while fast charging brings the EVO Max back online in just 30 minutes.

Portable enough for two people to carry yet strong enough for long-term deployments, the EVO Nest makes sustained remote operations a reality.

System components and platform integration

  • EVO Max 4T XE (Nest Model) designed specifically for EVO Nest deployment
  • EVO Nest houses, charges, and protects compatible EVO Max Nest series drones
  • Autel SkyCommand provides cloud-based mission scheduling and fleet management
  • Supports wired, 4G, or 5G connectivity for remote command access
  • SkyLink 3.0 links drone to Smart Controller V3 with encrypted HD video
  • A-Mesh 1.0 enables multi-drone communication and BVLOS relay operations
  • AES-256 encryption and ISO27001 protocols protect video and mission data
  • Autel SDK and API allow customization for industry-specific workflows

Operational roles and deployment scenarios

  • Search & rescue: Remote deployments with thermal imaging and AI tracking
  • Infrastructure inspection: Gather precise data with zoom and laser support
  • Agriculture monitoring: Automate crop surveys using scheduled missions
  • Utility inspection: Deploy regional Nests for automated powerline checks
  • Emergency response: Launch multiple drones instantly from distributed Nests
  • Industrial monitoring: Perform routine perimeter patrols without onsite crews
  • Environmental observation: Capture heat signatures and wide-area imagery
  • Construction oversight: Record project progress with repeatable mission routes
  • Public safety overwatch: Maintain long-range visibility during patrol operations
  • Remote site surveillance: Monitor isolated assets through autonomous flight cycles

Engineered for autonomous enterprise operations

The EVO Max 4T XE and EVO Nest are built to deliver continuous, automated mission capability across diverse industrial and public safety sectors. With rugged enclosure protection, autonomous navigation, encrypted communication, and all-weather tolerance, the system ensures reliable performance in remote or hazardous areas. A-Mesh networking, SLAM navigation, and FusionLight imaging provide multi-layered intelligence from launch to recovery. Combined with cloud-based SkyCommand and rapid charging, the system supports long-duration, repeatable workflows with minimal human intervention.

Since 2012, DSLRPros has empowered organizations with advanced UAV solutions that extend far beyond hardware. We provide the training, integration, and lifecycle support needed to maximize mission effectiveness. Purchasing the EVO Nest + EVO Max 4T XE bundle from DSLRPros means you’re backed by experts who understand the demands of mission-critical operations. From planning to deployment, DSLRPros ensures your investment translates to operational success. Take control of remote operations with the power of automation and advanced aerial intelligence.

    Autel EVO Nest

    • Compatibility: Autel Robotics EVO MAX
    • Operating Voltage: AC 110V / 220V

    Physical Details

    • Dimensions (Hatch closed): 36.77 x 25.24 x 30.51" (93.39 x 64.10 x 77.49 cm)
    • Dimensions (Hatch open): 36.77 x 25.24 x 21.57" (93.39 x 64.10 x 54.78 cm)
    • Weight: 132 lbs (59.87 kg)

    Other

    • UPC Code: 889520204477

    Autel EVO Max 4T XE

    General

    • Number of Rotors: 4
    • Configuration: Drone with Camera
    • Edition: Standard
    • FAA Registration: Required
    • Features: Camera Included
    • Kit Style: Base
    • Model: EVO Max 4T XE
    • Skill Level: Pro

    Aircraft

    • Color: Gray
    • Maximum Flight Time: 42 mins
    • Takeoff Weight: 4.41 lbs (1.9 kg)
    • Max Ascent Speed: 8 m/s
    • Max Descent Speed: 6 m/s
    • Max Horizontal Speed: 22 m/s
    • Max Wind Resistance: 27 mph
    • Max Hovering Time: 40 mins
    • Max Pitch Angle: 300°
    • Max Tilt Angle: 35°
    • Max Flight Distance: FCC: 20 km, CE: 7 km
    • Max Angular Velocity: Pitch: 300°/s; Yaw: 120°/s
    • GNSS: GPS + GLONASS + Galileo + Beidou
    • Hovering Accuracy: ±0.1 m (Vision), ±0.3 m (GPS), ±0.15 m (RTK); Horizontal: ±0.15 m (Vision), ±0.3 m (GPS)
    • Operating Temperature: -4°F to 122°F (-20°C to 50°C)
    • IP Rating: IP43
    • Internal Storage: 128 GB

    Camera

    • Video Resolution: Zoom: 7680×4320, Wide: 3840×2160, Thermal: 640×512
    • Image Sensor: Zoom: 1/2" CMOS, 48 MP; Wide: 1/1.28 CMOS, 50 MP
    • Lens: Zoom: 11.8–43.3 mm (64–234 mm equiv.), f/2.8–f/4.8; Wide: DFOV 85°, 4.5 mm (23 mm equiv.), f/1.9; Thermal: DFOV 64°, 13 mm, f/1.2
    • ISO Range: Zoom: Auto 100–6400, Manual Photo 100–12800, Video 100–6400; Wide: Auto Photo 100–6400, Video up to 64000 (night mode)
    • Shutter Speed: Zoom: Photo 8s–1/8000s, Video 1s–1/8000s; Wide: Photo 8s–1/8000s, Video 1s–1/8000s
    • Max Image Size: Zoom: 8000×6000; Wide: 8192×6144, 4096×3072; Thermal: 640×512

    Gimbal

    • Stabilization: 3-axis mechanical (pitch, tilt, roll)
    • Mechanical Range: Pan -135° to 45°, Tilt -45° to 45°, Roll -100° to 100°
    • Controllable Range: -90° to 45°
    • Max Tilt Speed: 200°/s
    • Angular Vibration: <0.005°

    Sensing

    • Type: 60G millimeter-wave radar
    • Forward: 0.3 m
    • Backward: 50 m
    • Upward: 0.3–20 m
    • Downward: 0.15–80 m
    • Environment: 60 GHz: All-weather, glass, water, wires, trees; 24 GHz: Downward sensing varies by surface

    Video Transmission

    • Frequencies: 2.4G / 5.2G / 5.8G / 900 MHz
    • Transmitter Power (EIRP): 2.4 GHz <33 dBm (FCC), 20 dBm (CE); 5.8 GHz: 33 dBm (FCC), <30 dBm (SRRC); 5.15–5.35 GHz: <30 dBm
    • Max Distance: 20 km

    Battery

    • Capacity: 8070 mAh
    • Voltage: 14.88 V
    • Material: LiPo 4S
    • Energy: 120 Wh
    • Quantity: 1

    Remote Controller

    • Display: 7.9-inch smart controller
    • Battery Life: 3 hrs (max brightness), 4.5 hrs (50%)
    • Operating Temperature: -4°F to 104°F (-20°C to 40°C)

    Physical

    • Dimensions: Folded w/ props: 22.6×25.9×5.8", Folded no props: 13.3×16×5.8", Unfolded: 10.1×5.3×5.23"
    • Weight: 3.5 lbs (1.6 kg)

    Other

    • UPC Code: 889520217996

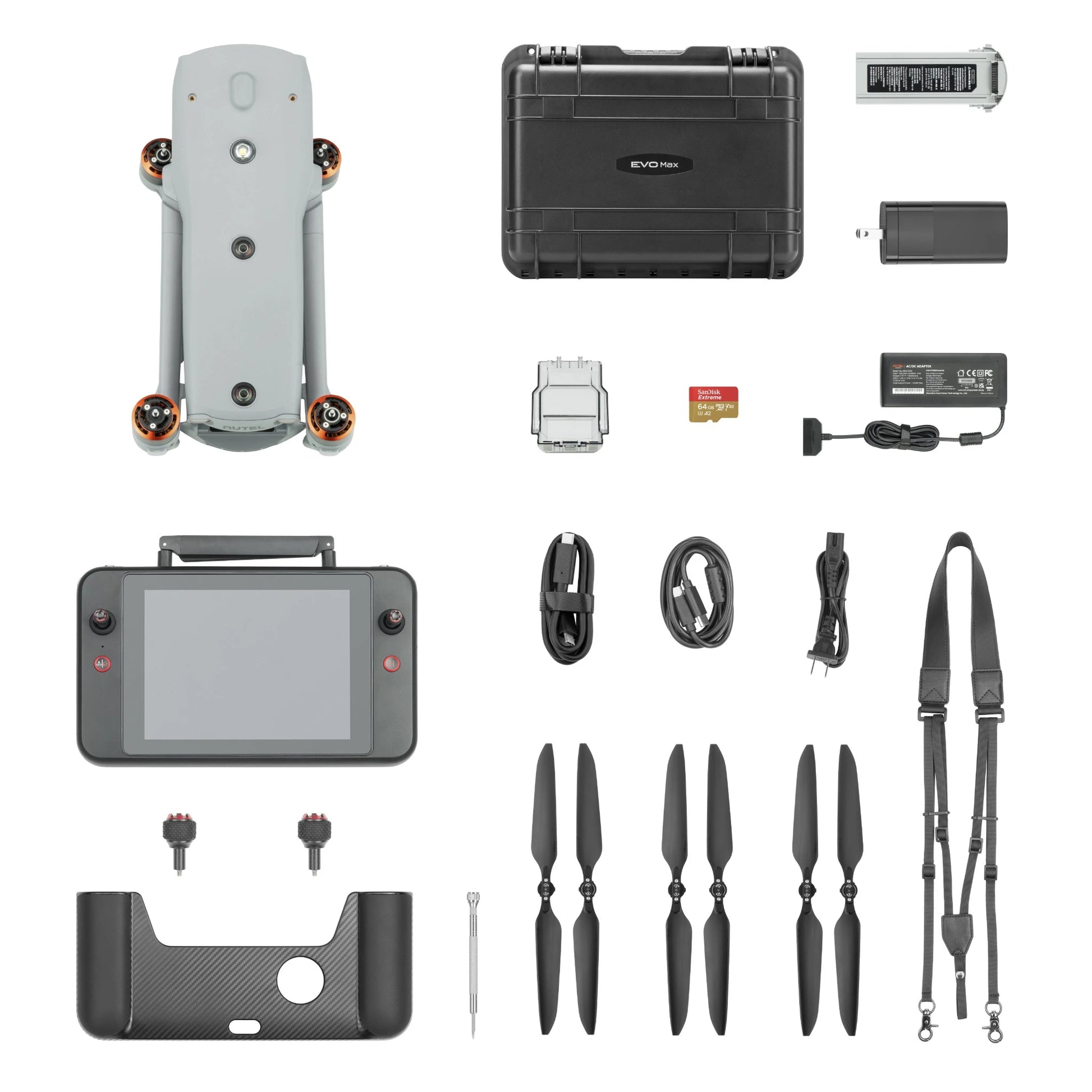

    • 1× Autel Robotics EVO Max 4T XE Bundle for EVO Nest
    • 1× FusionLight 4T XE Gimbal Camera
    • 1× Stand for EVO Nest
    • 1× Smart Controller V3
    • 1× Rugged Case
    • 1× Pair of Spare Propellers
    • 1× Flight Battery
    • 1× Battery Charger
    • 1× RC Charger
    • 1× 64GB SD Card
    • 1× Gimbal Cover
    • 1× Data Cable
    • 1× RC Charging Cable
    • 1× Smart Controller Cover
    • 1× Pair of Spare Smart Controller Joysticks
    • 1× Smart Controller Lanyard
    • 1× Limited 1-Year Manufacturer Warranty
    • 1× Autel Robotics EVO Nest Automatic Charging Station
    • 1× Cables
    • 1× Tools
    • 1× Autel Robotics 1 Year Limited Warranty
    What benefits does the Autel EVO Nest + EVO Max 4T XE provide for remote operations?

    It supports fully automated launch, landing, and charging via the Nest, while the EVO Max 4T XE delivers multi-sensor imaging and autonomous navigation.

    How weather-resistant is the Autel EVO Nest + EVO Max 4T XE system?

    The Nest offers IP55 protection and a -22°F to 131°F operating range, while the drone includes radar-assisted obstacle avoidance and all-weather navigation support.

    Can the Autel EVO Nest + EVO Max 4T XE operate without GPS?

    Yes. SLAM visual navigation and radar-based sensing keep the aircraft stable in tunnels, indoors, dense forests, and GNSS-denied spaces.

    What is the communication capability of the Autel EVO Nest + EVO Max 4T XE?

    SkyLink 3.0 supports up to 12.4 miles of encrypted 1080p60 real-time transmission.

    Does the Autel EVO Nest + EVO Max 4T XE support multi-drone coordination?

    Yes. A-Mesh enables drones to relay signals, operate beyond line of sight, and maintain communication as a self-organizing network.
