ACSL SOTEN Thermal Package with TAITEN Smart Controller & SAMO Payload: Secure Imaging with Visible and Thermal Options
The ACSL SOTEN Thermal Package with TAITEN Smart Controller provides professionals with secure, flexible imaging for inspection, utilities, and public safety. Compact, foldable, and NDAA-compliant, SOTEN integrates dual-band encrypted connectivity with a rugged IP43-rated airframe. This package includes two swappable payloads-the Standard 20MP visible camera and the NDAA-compliant SAMO Thermal Payload-giving operators the ability to choose the right sensor for each mission. The TAITEN Smart Controller adds a daylight-readable 7″ display, IP54 protection, and up to 8 hours of runtime, ensuring reliable field performance.
Swappable Payloads for Mission Flexibility
The included 20MP visible camera delivers sharp, survey-ready imagery with a 1″ sensor and mechanical shutter. When thermal capability is required, the SAMO payload powered by Teledyne FLIR Hadron 640R provides 640×512 radiometric thermal imaging with <20 mK sensitivity and ±5 °C accuracy, plus a 64 MP visible channel for contextual clarity. Operators can swap between payloads in seconds, tailoring the aircraft to mapping, inspection, or emergency response missions.
Rugged, Secure, and Field-Ready
SOTEN's swappable design, NDAA compliance, and AES-256 encrypted Fides-Link architecture ensure secure operations in sensitive environments. The TAITEN Smart Controller integrates the ACSL TAKEOFF app on Android 13 for smooth control and camera management, with dual-band 2.4/5.8 GHz links, optional LTE, and offline maps supporting reliable connectivity even in remote areas. With five included smart batteries and a rugged transport case, the package is built for extended field deployment.
Key Features and Benefits
- NDAA-compliant platform with AES-256 encrypted communication
- Includes 20MP visible camera with 1″ sensor and mechanical shutter
- Includes SAMO Thermal Payload: 640×512 radiometric thermal + 64 MP visible
- Thermal sensitivity <20 mK, accuracy ±5 °C for inspection precision
- Compact 1.7 kg foldable aircraft with IP43 chassis durability
- One-touch swappable payload system for rapid mission reconfiguration
- TAITEN Smart Controller: 7″ 1500-nit daylight display, IP54 ruggedness
- Up to 8-hour runtime, USB-C extendable power, Android 13 platform
- Dual-band 2.4/5.8 GHz radios, optional LTE, and offline maps
- FAA Remote ID compliant and ISO/IEC 15408 secure architecture
Applications and Use Cases
- Utility inspections: Identify faults in power lines, substations, and pipelines
- Public safety: Day/night thermal and visible imaging for SAR and policing
- Fire response: Detect hotspots and track fire spread in real time
- Infrastructure surveys: Inspect bridges, towers, and industrial sites securely
- Environmental monitoring: Record anomalies across land, water, and habitats
- Construction projects: Document progress with visible and thermal imagery
- Disaster response: Provide situational awareness in emergencies
- Training workflows: Multi-operator support with up to three controllers
The ACSL SOTEN Thermal Package with TAITEN Smart Controller & SAMO Payload gives teams both thermal and visible imaging options in one secure, mission-ready system. Lightweight, encrypted, and built for endurance, it's designed for survey, inspection, and safety professionals who cannot compromise on reliability.
As an authorized ACSL dealer, DSLRPros provides expert lifecycle support from deployment to training, integration, and dedicated after-purchase care. Equip your team with the SOTEN Thermal Package today and gain confidence in every mission.
Specifications

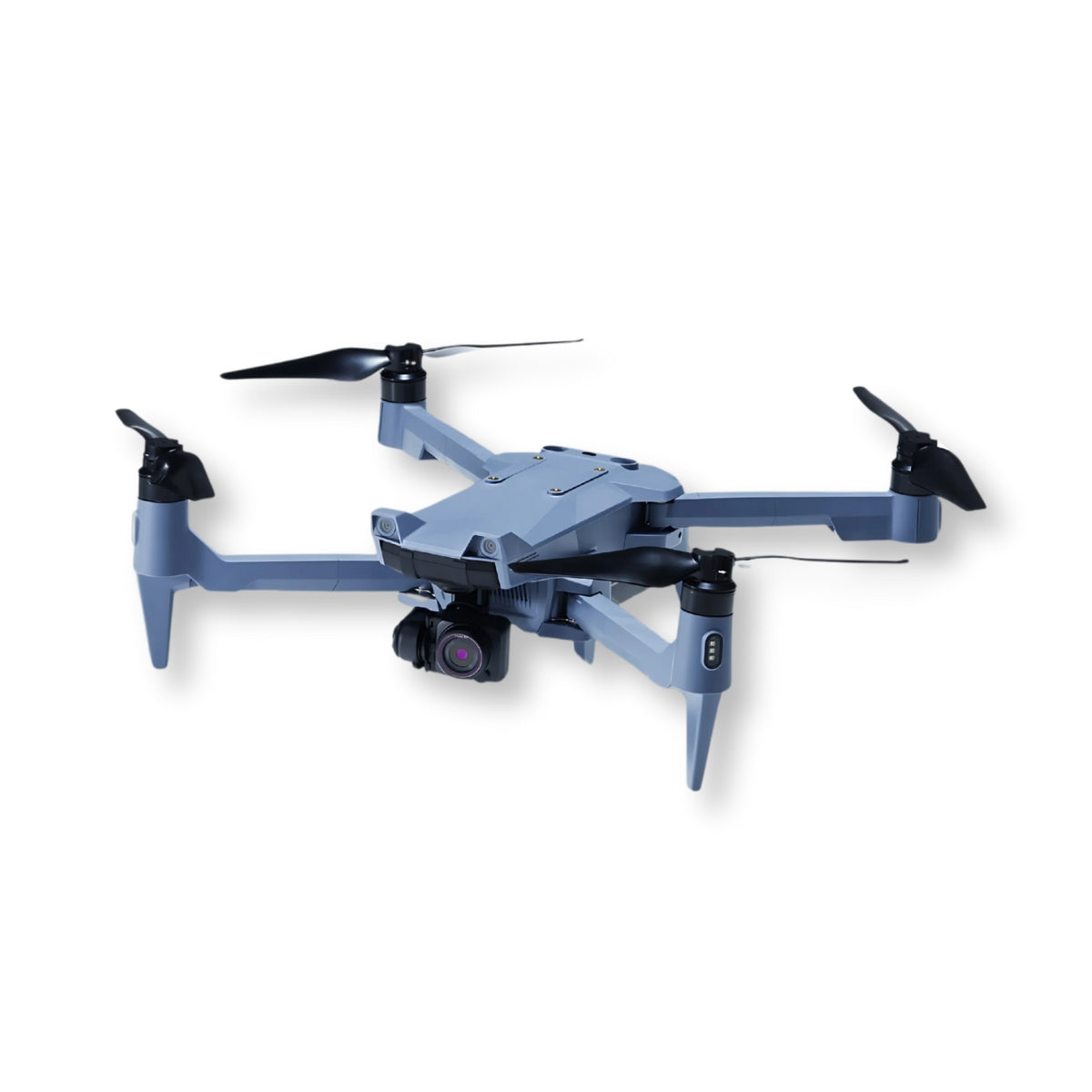

Aircraft
- Dimensions:
- Unfolded: 637 × 560 mm (including propellers)
- Folded: 162 × 363 mm
- Height (Unfolded): 153 mm
- Weight: 1,720 g (with standard camera and battery)
- Rotor Blades: 4
- Battery: Lithium-ion, 94 Wh
- Operating Frequency: Dual-band 2.4 GHz + 5.8 GHz
- Hovering Accuracy:
- Vision: Vertical ±0.1 m, Horizontal ±0.3 m
- GNSS: Vertical ±0.5 m, Horizontal ±1.5 m
- Max Pitch Angle: 30°
- Max Angular Velocity: Pitch 80°/s, Yaw 45°/s
- Max Ascent Speed: 3 m/s
- Max Descent Speed: 2 m/s
- Max Takeoff Weight: 2,000 g
- Max Speed (No Wind): 15 m/s
- Operational Altitude Limit: 2,000 m
- Max Flight Time:
- With camera: 25 min (wind 8 m/s)
- Without camera: 29 min (wind 8 m/s)
- Optional Cameras: EO/IR, Multispectral, Optical Zoom
- Ingress Protection: IP43 (with camera, gimbal, battery)
- GNSS: GPS + QZSS + GLONASS + SLAS
- Operating Temperature: 0°C to 40°C
- Optional Items: LTE Comms Module, Spare Battery
Vision System
- Obstacle Detection Range: Forward 10 m, Up 5 m, Down 5 m
- Detection Angle: 70° horizontal, 40° vertical
- Detection Frequency: 10 Hz (all directions)
- Environment: Adequate lighting and clear textures
Infrared Sensor
- Obstacle Detection Range: Up 2 m, Down 12 m
- Detection Angle: Up 27°, Down 2°
- Detection Frequency: 50 Hz (up/down)
- Environment: Large, diffuse, or reflective objects

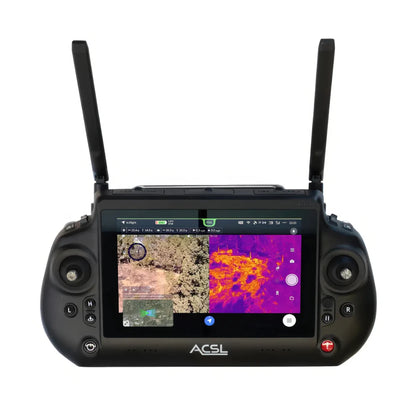

TAITEN Smart Controller
- Display: 7 in, 1200×1920, 1500 nits
- Operating Bands: 2.4 GHz + 5.8 GHz (ACSL Fides-Link)
- Range: 6+ miles (unobstructed, low-interference)
- Wireless: Wi-Fi
- Encryption: AES-256
- Pairing: Up to 3 controllers per aircraft
- Runtime: Up to 8 hours (USB-C powered)
- Environmental:
- IP Rating: IP54
- Operating Temp: 20–60°C (68–140°F)
- Storage Temp: 20–50°C (68–122°F)
- Charging Temp: 0–45°C (32–113°F)
- Controls: 2-axis sticks, 2 gimbal wheels, mode switch (AUT/POS/MAN), Go-Home, Land, Emergency, Power
- Custom Inputs: 3-state switch, 8 buttons, 2 wheels, 5-way hat
- Indicators & Sensors: Connection LED, Battery LED, Vibration motor, GNSS module, Light sensor, Microphone
- Interfaces: HDMI, USB-C, USB-A 2.0, microSD, Ethernet, 3.5 mm audio, Tripod mount
- System: Android 13 with ACSL TAKEOFF app, Remote ID & NDAA compliant
- Physical: 10.6 × 6.5 × 2.7 in, ≈3.2 lb

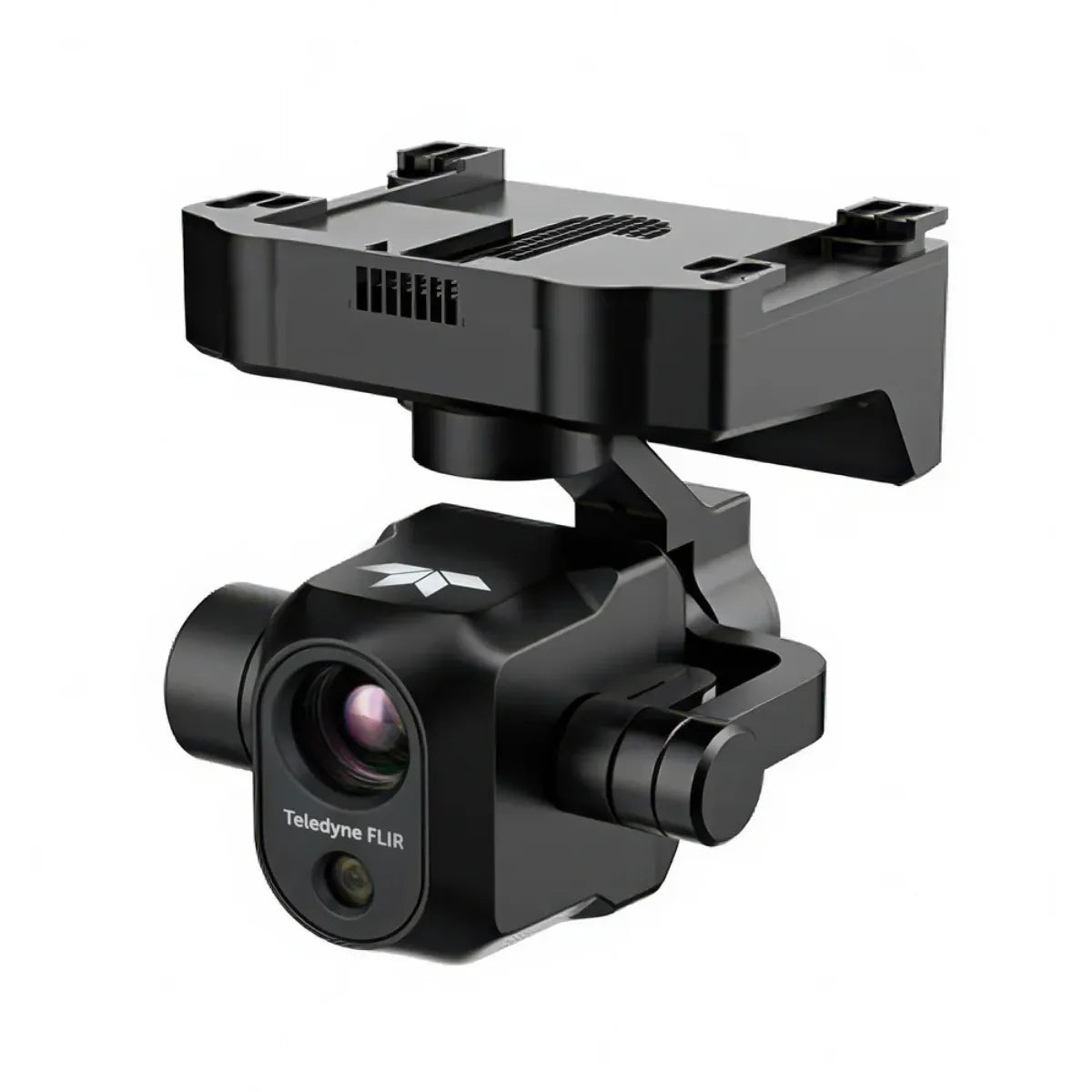

SAMO Thermal Camera
- Thermal Camera: Teledyne FLIR Boson® 640×512 (radiometric), 12 µm
- Visible Camera: 64 MP, 67° HFOV wide, 20× optical zoom
- Fusion: MSX® thermal-visible overlay
- IMU: ICM20602 (I²C/SPI selectable)
- Thermal Optics: 13.6 mm F/1.0, ≈32° HFOV
- Visible Optics: 4.8 mm, ≈67° HFOV
- Thermal Sensitivity (NETD): <20 mK typical, <40 mK max
- Temp Accuracy: ±5°C (0–100°C range)
- Frame Rate: 60/30 Hz full resolution (export limits may apply)
- Data I/O: MIPI CSI (Thermal: 2-lane; Visible: 4-lane), I²C
- Software: FLIR Prism™ libraries (enhancement, detection, etc.)
- Integration: ACSL SOTEN, TAKEOFF GCS, TAITEN controller
- Power: 5V input, ~1.8W typical, ≤2.9W max
- Ingress Protection: IP54 (sealed module)
- Temp Range: −20°C to +60°C (operation and storage)
- Dimensions: ≈50 × 36 × 43 mm
- Weight: ≈56 g
- Compliance: NDAA, ITAR-free, FCC Part 15 Class B

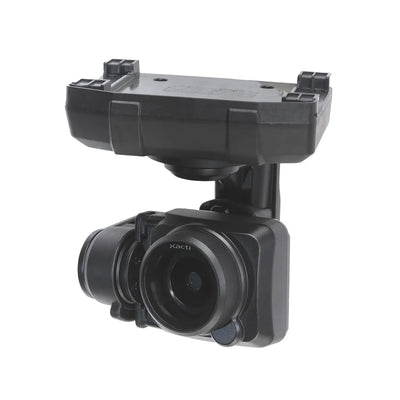

Standard Visible Camera
- Effective Pixels: 20 MP
- Image Format: JPEG / DNG / JPEG+DNG
- Image Quality: Superfine / Fine / Normal
- Resolution Options: 20 MP / 15 MP / 10 MP
- Video Format: MOV / H.264
- Video Quality:
- 4K: 30 fps
- 2.7K: 60 / 30 fps
- Full HD: 120 / 60 / 30 fps
- HD: 60 / 30 fps
- nHD: 240 / 120 / 60 / 30 fps
- Video Recording Time: 60 min; Auto-split OFF / 1 / 3 / 5 / 10 min (FAT32: 4 GB limit)
- Sensor Size: 1 inch
- Shutter: Mechanical
- Focus: Single AF / Continuous AF / MF (Multi AF / Spot AF)
- Exposure Compensation: −2 EV to +2 EV (1/3 EV steps)
- Media: microSD (UHS ≥ U3 or V30, Video class ≥ V30)
- Security: On-media encryption toggle
Camera Gimbal
- Mechanism: 3-axis
- Operable Range: Pan ±85°, Tilt −115° to 45°
- Max Speed: Pan 60°/s, Tilt & Roll 100°/s
- Control Accuracy: ±0.02°
- Switching Method: One-touch camera switching
Optional EO/IR Camera Accessory
- Visible Camera: 12 MP
- Infrared Camera: 81,920 pixels
- Temperature Resolution: <60 mK
- Dynamic Range: Up to +140°C (high gain)
- Still Image Quality: Superfine / Fine / Normal
- Video Format: MOV / H.264
- Video Quality: Full HD / HD
- Video Recording Time: 60 min; Auto-split OFF / 1 / 3 / 5 / 10 min
- Media: microSD (UHS ≥ U3 or V30, Video class ≥ V30)
- Security: Encrypted recording supported; toggle enable/disable

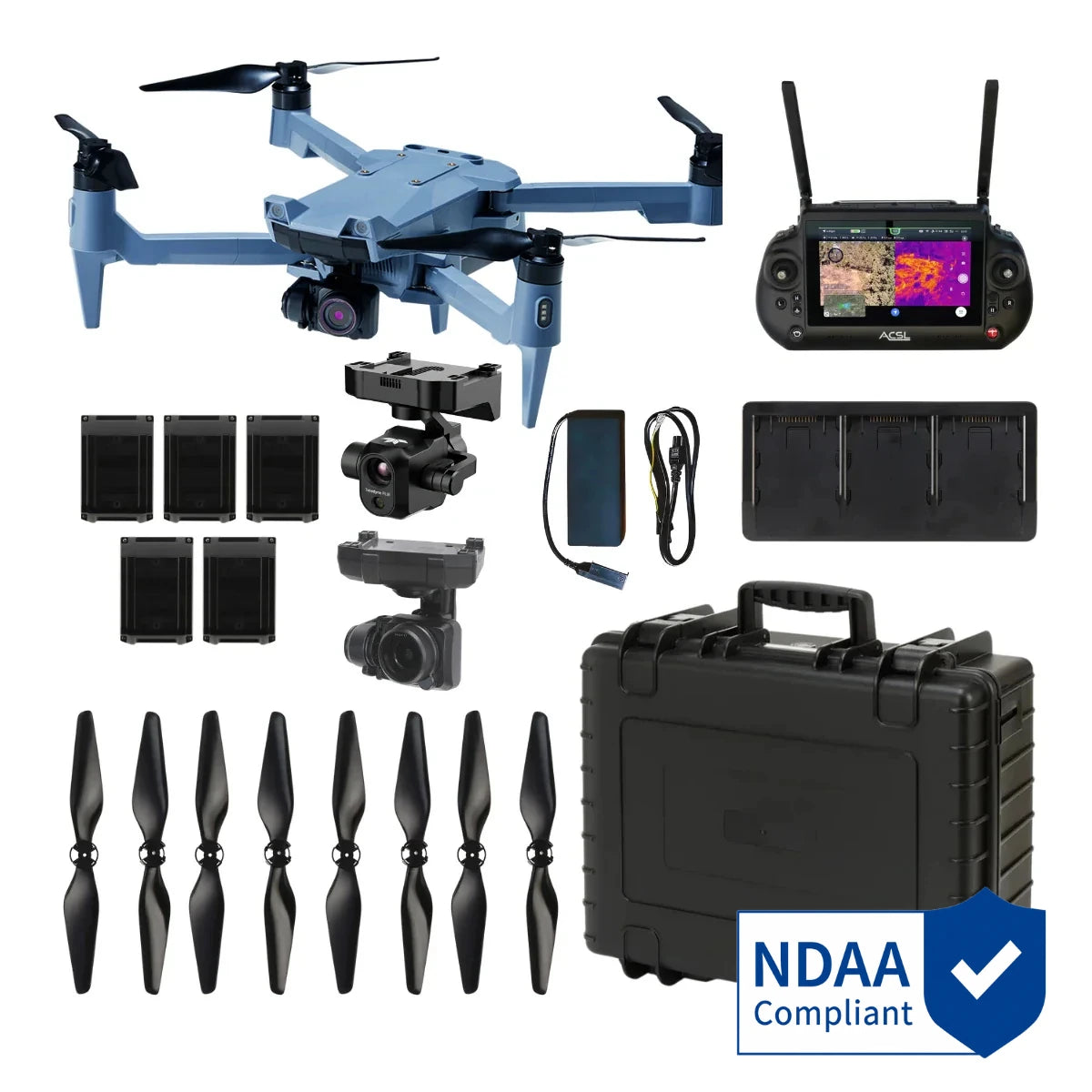

In The Box
- 1x SOTEN dual-band airframe
- 1x TAITEN smart controller
- 1x Battery charger
- 1x Propeller set CCW
- 1x Propeller set CW
- 5x Smart battery
- 1x SAMO payload - 640x512 radiometric + 64MP
- 1x Standard CX-GB100 20MP camera
- 1x Hard case
- 1x Triple cradle charger
