ACSL SOTEN Inspection Package - Built for Industrial Insight
Precision and Control for the Real World
The ACSL SOTEN Inspection Package delivers a secure, NDAA-compliant drone platform designed for infrastructure, energy, and industrial inspection professionals. Equipped with the high-resolution ACSL SOTEN Standard Camera and the rugged, field-tested TENSO Smart Controller, this package is purpose-built to capture actionable visual data across complex sites and harsh environments.
Designed to Perform in Demanding Conditions
With a 20MP mechanical-shutter camera and a bright, IP43-rated controller, this system is ideal for up-close inspection work. The TENSO Smart Controller features a 5" 1080p daylight-readable screen, real-time exposure control, and secure AES256 communication-all critical for precise data collection. Combined with LTE-based long-range connectivity and SOTEN's one-touch camera swapping, this package is engineered to help you spot issues early and document every detail.
Key Features
This bundle delivers clear, stable visual data and secure control-perfect for inspection workflows that can't tolerate guesswork.

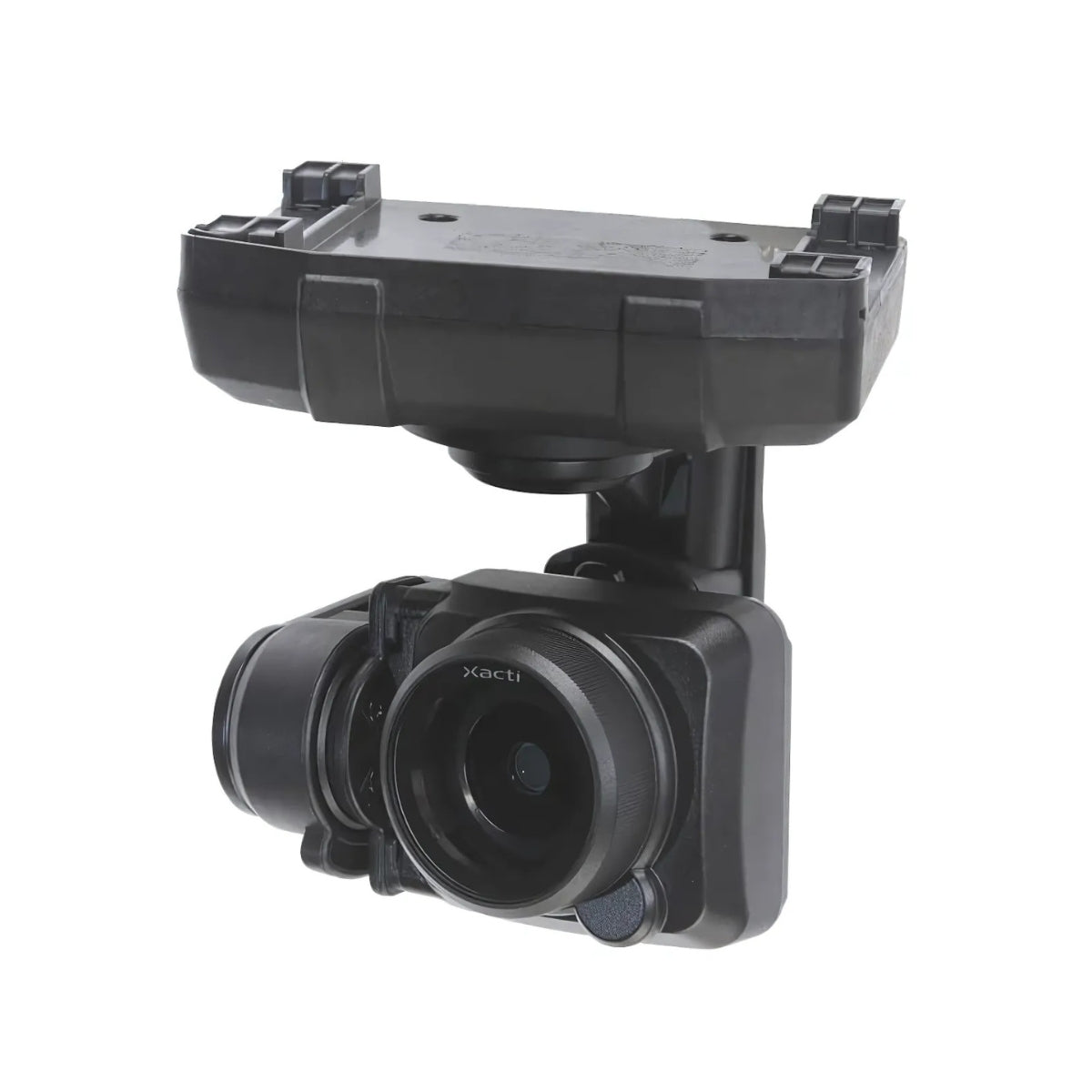

- Includes ACSL SOTEN Standard Camera: 20MP, 1" RGB sensor, mechanical shutter
- TENSO Smart Controller with 5" HD screen, IP43 rating, 3-hour battery life
- AES256-encrypted comms for secure flight and data transmission
- LTE/WiFi connectivity with 2.5-mile operational range
- Direct exposure controls for imaging in bright or high-contrast environments
- One-touch swappable payload bay for future camera upgrades
- Foldable 1.7 kg drone with 25-minute flight time
- Multi-directional obstacle avoidance sensors
- FAA Remote ID ready and ISO15408-compliant
Applications
Tailored for visual inspection teams working across utility, industrial, and critical infrastructure sectors:
- Powerline and substation inspection
- Oil and gas infrastructure assessments
- Cell tower and rooftop surveys
- Wind turbine and solar panel inspections
- Construction progress tracking
- Dam, bridge, and railway inspections
- Factory and site facility flyovers
Why Buy from DSLRPros
At DSLRPros, we help inspection teams move faster, spot problems earlier, and operate more securely. We've worked with engineering firms, utilities, and industrial contractors nationwide, helping them integrate drone systems into field inspection workflows that demand results.
With the ACSL SOTEN Inspection Package, you get more than just hardware-you get real-world guidance, expert support, and a system that's ready to fly from day one. From camera optimization to LTE activation, we make sure your team gets up and running without guesswork.
Order the ACSL SOTEN Inspection Package from DSLRPros and bring clarity, consistency, and control to your inspections.
Specifications
- Dimensions: Unfolded: 637mm x 560mm (including propellers), Folded: 162mm x 363mm
- Height: Unfolded 153mm (including propellers)
- Weight: 1,720g (including standard camera and battery)
- Number of rotor blades: 4
- Intelligent battery: Lithium-ion battery 94Wh, 1 pc
- Operating frequency: 2.412 - 2.477 GHz
- Hovering accuracy (using vision positioning): Vertical: ±0.1m, Horizontal: ±0.3m
- Hovering accuracy (GNSS): Vertical: ±0.5m, Horizontal: ±1.5m
- Maximum pitch angle: 30°
- Maximum angular velocity: Pitch: 80°/s, Yaw: 45°/s
- Maximum ascent speed: 3m/s
- Maximum descent speed: 2m/s
- Maximum takeoff weight: 2,000g
- Maximum speed (no wind): 15m/s
- Operational limit altitude: 2000m
- Maximum airspeed: 15m/s
- Max flight time: With standard camera, wind speed 8m/s: 25min; Without standard camera, wind speed 8m/s: 29min
- Optional Camera: Infrared camera + visible camera, Multispectral camera, Optical zoom camera
- Ingress protection: IP43 (with camera, gimbal, and battery)
- GNSS: GPS + QZSS + GLONASS + SLAS
- Operating temperature: 0°C to 40°C
- Optional items: LTE Comms Module, Spare Battery
- Obstacle detection range: Forward: 10m, Up: 5m, Down: 5m
- Obstacle detection angle: 70° horizontal, 40° vertical
- Obstacle detection freq.: Forward: 10Hz, Up: 10Hz, Down: 10Hz
- Operating environment: Adequate lighting and clear texture
- Infrared Sensor - Obstacle detection range: Up: 2m, Down: 12m
- Infrared Sensor - Obstacle detection angle: Up: 27°, Down: 2°
- Infrared Sensor - Obstacle detection freq.: Up: 50Hz, Down: 50Hz
- Infrared Sensor - Operating environment: Large, diffuse or reflective obstacles
- Remote Controller - Operating frequency: 2.412 to 2.477 GHz
- Remote Controller - Maximum distance: 4km (without obstructions or radio interference)
- Remote Controller - Battery life: Up to 4 hours
- Remote Controller - Operating temperature: 0°C to 40°C
- Remote Controller - Security: AES encryption method
- Remote Controller - Multiple operations: Control can be transferred between two radio controllers
- Supported Mobile Devices - OS: Android™ 4.1 or higher
- Supported Mobile Devices - Terminal: USB Type-C
- Supported Mobile Devices - Confirmed models: Sony Xperia™ 5, 10 III
- Visible Camera - Effective pixels: 20 megapixels
- Visible Camera - Still image shooting method: JPEG / DNG / JPEG+DNG
- Visible Camera - Image quality: Superfine / Fine / Normal; Resolution: 20MP / 15MP / 10MP
- Visible Camera - Video method: MOV / H.264
- Visible Camera - Video quality: 4K: 30fps; 2.7K: 60/30fps; Full HD: 120/60/30fps; HD: 60/30fps; nHD: 240/120/60/30fps
- Visible Camera - Video recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Visible Camera - Sensor size: 1 inch
- Visible Camera - Shutter system: Mechanical
- Visible Camera - Focus mode: Single AF / Continuous AF / MF; Area: Multi AF / Spot AF
- Visible Camera - Exposure compensation: -2EV to +2EV (step of 1/3EV)
- Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Visible Camera - Security: Data encryption can be enabled/disabled
- Camera Gimbal - Mechanism: 3-axis
- Camera Gimbal - Operable range: Pan: ±85°; Tilt: -115° to 45°
- Camera Gimbal - Max speed: Pan: 60°/s; Tilt and roll: 100°/s
- Camera Gimbal - Control accuracy: ±0.02°
- Camera Gimbal - Switching method: One-touch camera switching
- Infrared + Visible Camera - Effective pixels: Visible: 12MP; Infrared: 81,920 pixels
- Infrared + Visible Camera - Temperature resolution: <60mK
- Infrared + Visible Camera - Dynamic range: Up to +140°C (high gain)
- Infrared + Visible Camera - Image quality: Superfine / Fine / Normal
- Infrared + Visible Camera - Video method: MOV / H.264
- Infrared + Visible Camera - Video quality: Full HD / HD
- Infrared + Visible Camera - Recording time: 60 min; Auto-split: OFF / 1 / 3 / 5 / 10 min (Split by 4GB in FAT32)
- Infrared + Visible Camera - Recording media: microSD UHS speed class: ≥ U3 or V30; Video class: ≥ V30
- Infrared + Visible Camera - Security: Encrypted data can be recorded; Encryption can be enabled/disabled

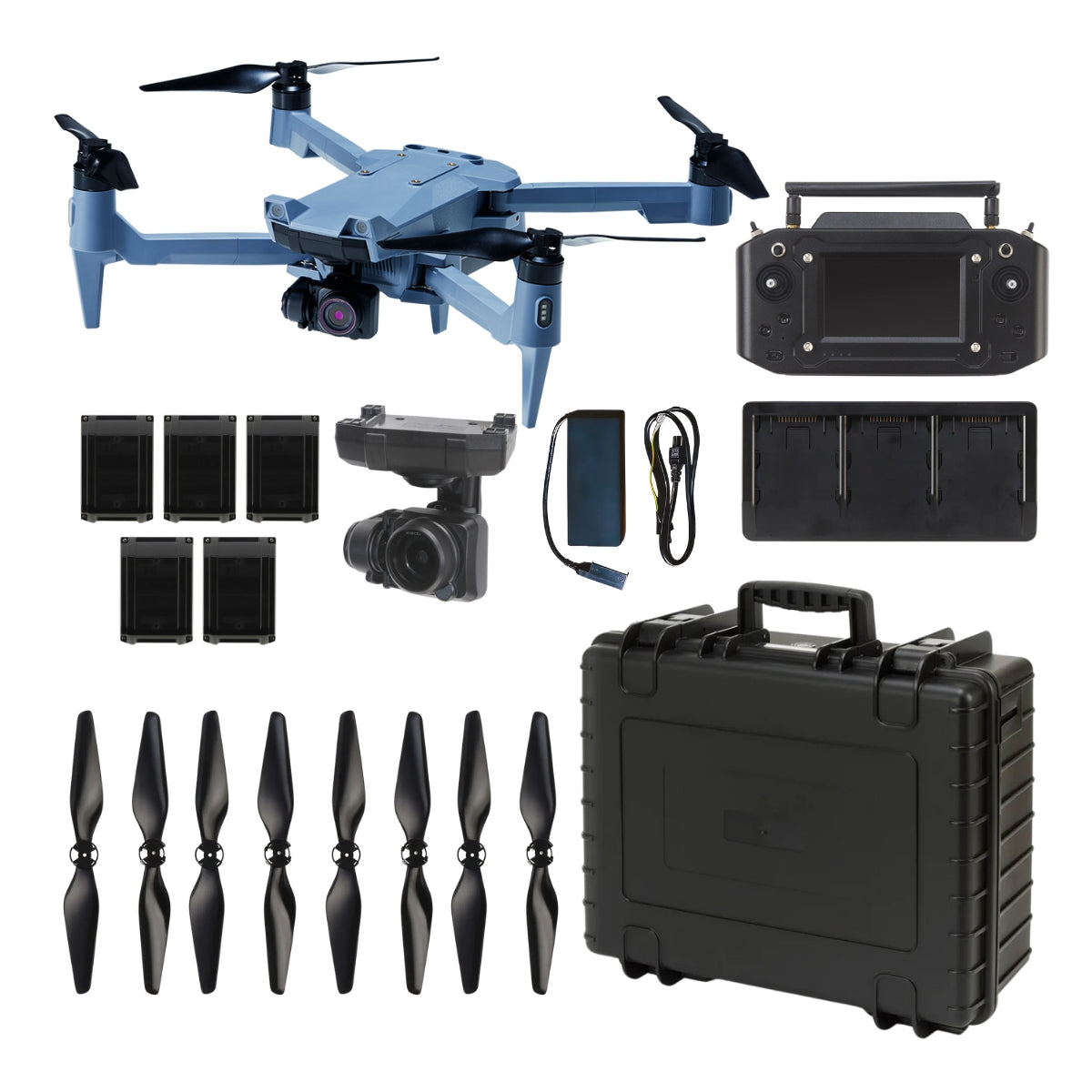

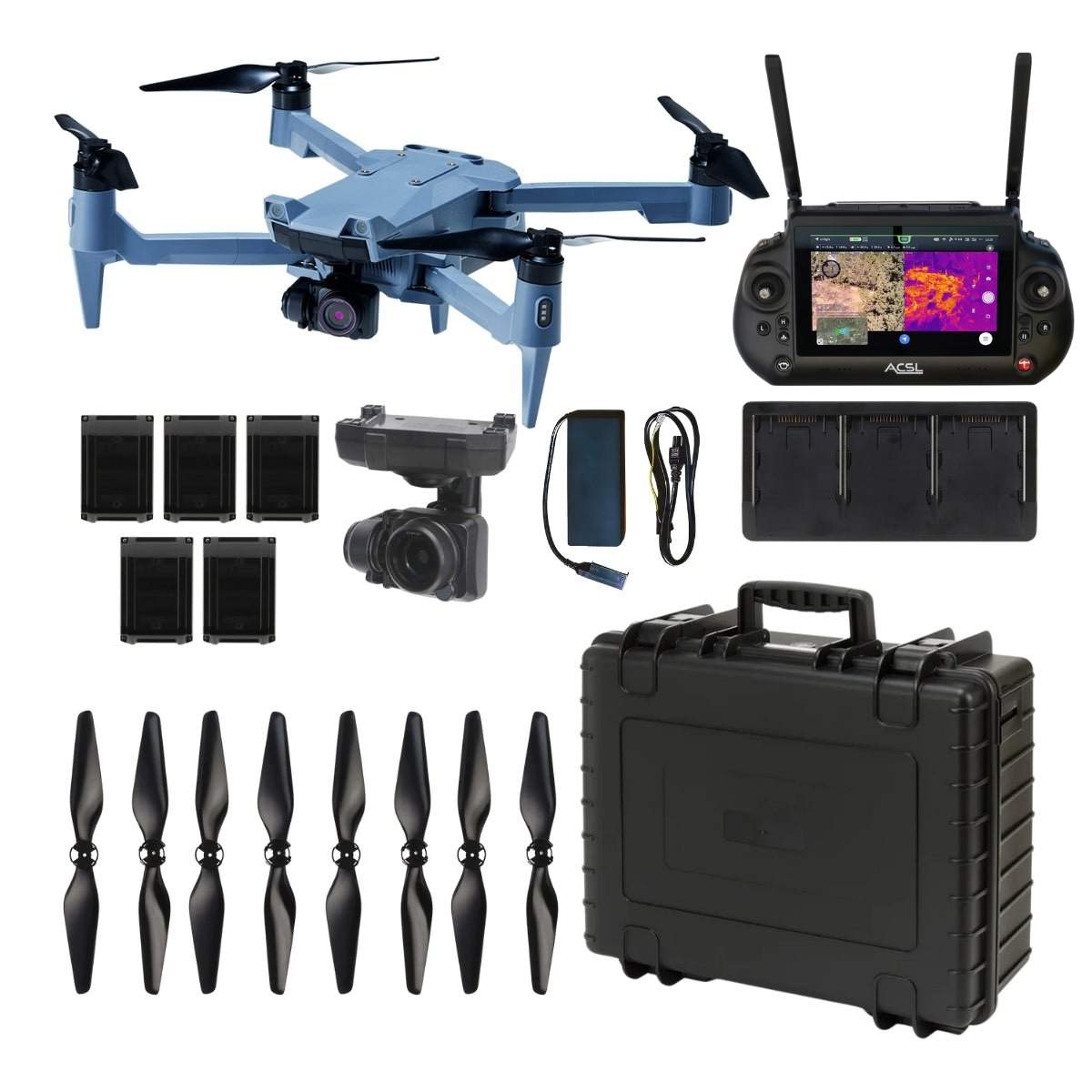

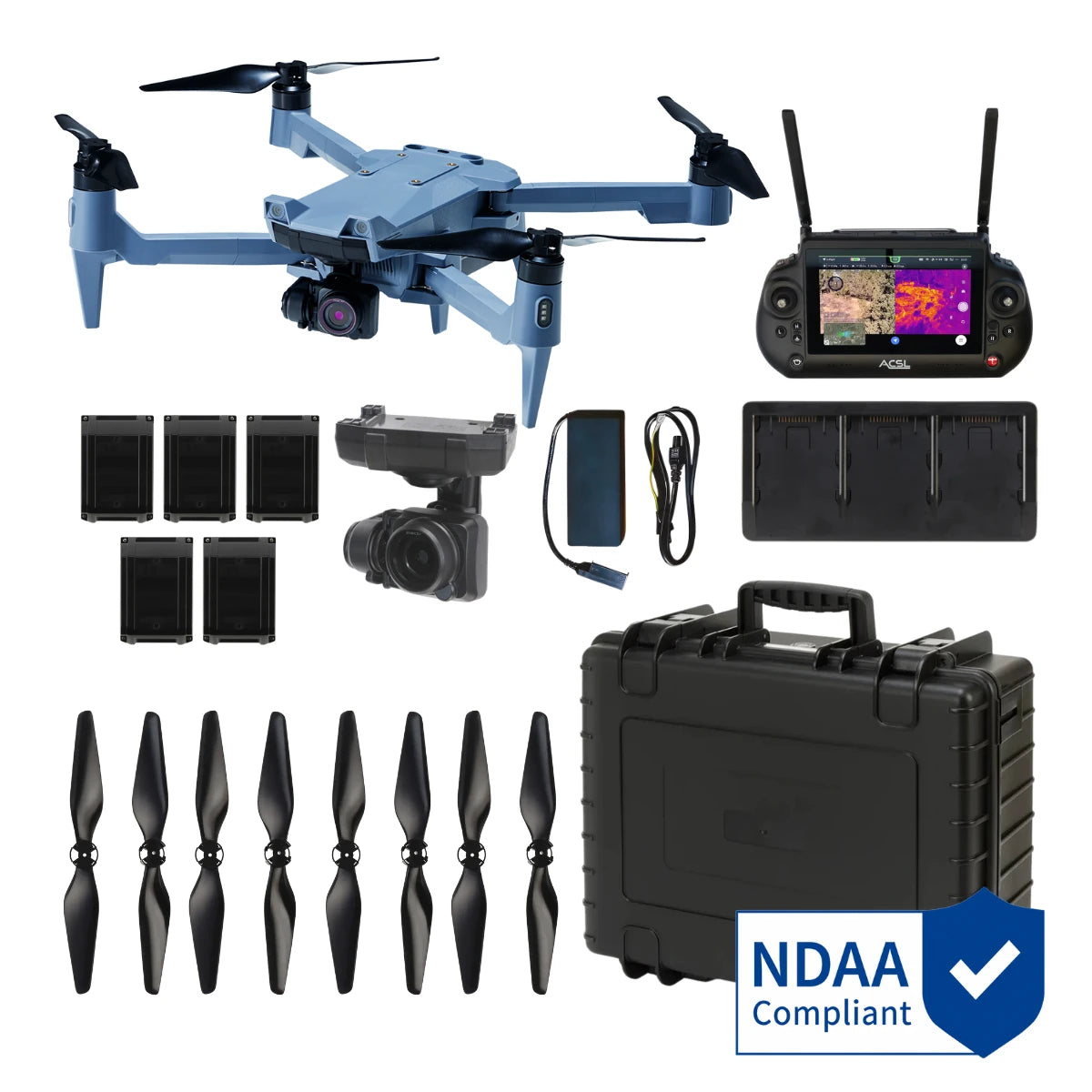

In The Box
- 1x SOTEN Airframe
- 1x TENSO Smart Controller
- 1x Battery Charger
- 1x Triple Battery Charger
- 5x Smart Batteries
- 2x CW Propeller Set
- 2x CCW Propeller Set
- 1x Standard 20MP Camera
- 1x Hard Storage Case
