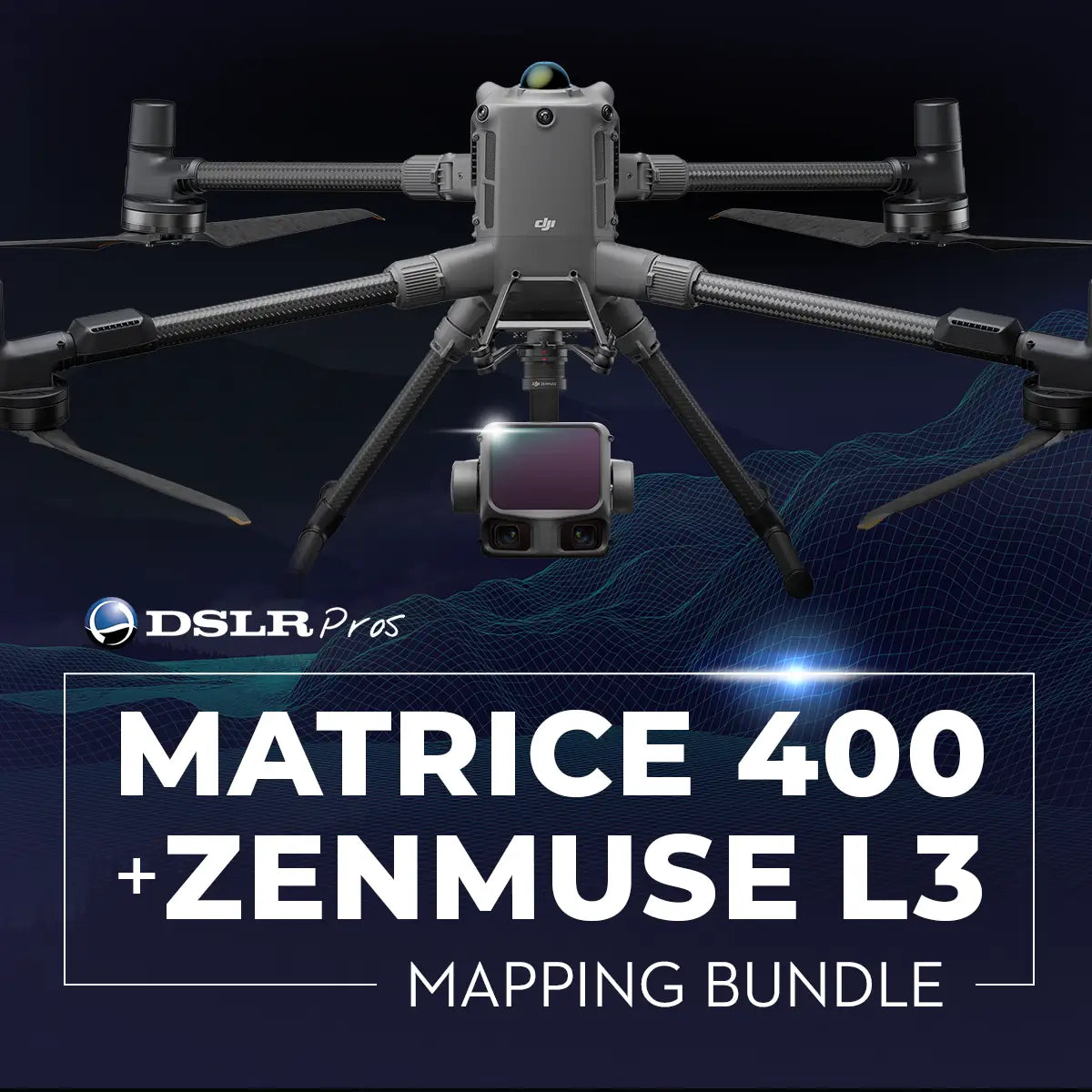

DSLRPros Matrice 400 + Zenmuse L3 Mapping Bundle: Complete Enterprise LiDAR Survey Solution
The DSLRPros Matrice 400 + Zenmuse L3 Mapping Bundle is a complete aerial mapping system built for professionals who require accuracy, efficiency, and reliability in every mission. Combining the power of the Matrice 400 RTK with the precision of the Zenmuse L3’s long-range LiDAR and dual 100 MP RGB cameras, this bundle provides survey-grade results across wide areas with minimal setup. It includes the BS100 Battery Station and two spare TB100 batteries to keep operations running all day—supported by DSLRPros’ enterprise-level integration and after-sales assistance.
What This Bundle Delivers
- Complete mapping kit: includes aircraft, payload, battery station, and spares.
- Zenmuse L3 LiDAR: 950 m @ 10 % (100 kHz) range, 2–4 cm accuracy, 16 returns.
- Dual 100 MP cameras: capture orthophotos and colorized 3D point clouds.
- Matrice 400 RTK: centimeter-level positioning for consistent survey data.
- RTK/PPK integration: delivers precise georeferencing in every flight.
- BS100 Battery Station: charge and manage multiple TB100 batteries efficiently.
- Two spare TB100 batteries: extend flight time for continuous coverage.
- Real-time point-cloud preview: measure and validate onsite in DJI Pilot 2.
- Rugged IP54 payload: operates from –20 °C to +50 °C for field reliability.
- DSLRPros support: enterprise training and technical assistance included.
Integrated Power and Precision for Aerial Surveying
The Matrice 400 RTK offers robust propulsion, long flight times, and RTK positioning accuracy within centimeters. It supports the Zenmuse L3’s 1.6 kg payload and ensures stable, consistent data capture in complex environments. The Zenmuse L3 extends LiDAR range up to 950 m @ 10 % reflectivity (100 kHz) and 700 m @ 10 % (350 kHz) while maintaining 2–4 cm measurement accuracy. The combination of DJI’s latest flight platform and advanced sensor technology delivers unmatched reliability for mapping, inspection, and modeling missions.
Optimized for Efficiency, Reliability, and End-to-End Workflow
Equipped with a 1535 nm Class 1 laser and dual 100 MP Micro 4/3 cameras, the Zenmuse L3 produces detailed point clouds, orthophotos, and 3D models in a single flight. Adjustable scan rates (100 kHz – 2 MHz) and up to 16 returns enable clear ground readings even through vegetation. The payload’s compact 192 × 162 × 202 mm build, IP54 protection, and 64 W typical power draw make it efficient and field-ready. Seamless integration with DJI Terra and Modify ensures smooth data processing from acquisition to final output.
System Components and Integration
- Supported platform: DJI Matrice 400 RTK.
- Payload: DJI Zenmuse L3 LiDAR + dual camera system.
- Positioning: RTK and PPK fusion for survey-grade accuracy.
- Software: DJI Terra for processing, DJI Modify for data refinement.
- Power system: DJI BS100 Battery Station with TB100 compatibility.
- Workflow: unified DJI ecosystem from mission planning to output.
Field-Ready Applications
- Topographic and engineering mapping: generate accurate DEM and 3D models.
- Infrastructure inspection: analyze bridges, dams, and power transmission assets.
- Mining and terrain surveying: measure volumes and elevation changes.
- Forestry and vegetation mapping: capture ground data through dense canopy.
- Urban planning and digital twin creation: model construction sites and cities.
- Environmental research: support hydrology, erosion, and biomass studies.
- Emergency response: produce situational maps and volume assessments on demand.
Configured for Professional Deployment
The DSLRPros Matrice 400 + Zenmuse L3 Mapping Bundle streamlines every step of enterprise mapping. From flight execution to data processing, it provides a unified workflow through DJI Terra, Modify, Pilot 2, and FlightHub 2. With DSLRPros’ proven integration experience, field training, and dedicated after-sales support, this bundle is built to deliver dependable, survey-grade performance for real-world operations.
The DSLRPros Matrice 400 + Zenmuse L3 Mapping Bundle enables professionals to capture precise, high-density data with greater efficiency and confidence. Contact DSLRPros today to request a quote or schedule a live demo with our enterprise specialists.
Matrice 400 Specifications
Aircraft
- Takeoff Weight (with propellers): Without Batteries: 5020±20 g | With Batteries: 9740±40 g
- The actual product weight may vary due to differences in batch materials and external factors.
- Max Takeoff Weight: 15.8 kg
- Dimensions: Unfolded: 980×760×480 mm (L×W×H); Folded: 490×490×480 mm (with landing gear and gimbal)
- Maximum dimensions excluding propellers. Aircraft carrying case dimensions: 779×363×528 mm (L×W×H)
- Max Payload: 6 kg (measured at third gimbal connector under sea level conditions)
- Payload capacity decreases as altitude increases. Refer to the official user manual for details.
- Propeller Size: 25 inches
- Diagonal Wheelbase: 1070 mm
- Max Ascent Speed: 10 m/s
- Max Descent Speed: 8 m/s
- Max Horizontal Speed: 25 m/s (at sea level, no wind)
- Max Takeoff Altitude: 7000 m
- Max Flight Time (no wind): 59 minutes (measured at 10 m/s forward flight with H30T payload)
- Max Hover Time (no wind): 53 minutes (with H30T payload)
- Max Flight Distance (no wind): 49 km (constant 17 m/s flight speed)
- Max Wind Speed Resistance: 12 m/s (takeoff and landing)
- Max Yaw Angular Velocity: 100°/s
- Max Pitch Angle: 35°
- Operating Temperature: −20° to 50° C (−4° to 122° F) without solar radiation
- GNSS: GPS + Galileo + BeiDou + GLONASS*
- *GLONASS supported only when RTK module is enabled. Equipped with standard airborne ADS-B In receiver and dual antennas supporting reception up to 20 km.
- Hovering Accuracy Range (moderate or no wind): Vertical ±0.1 m (vision), ±0.5 m (satellite), ±0.1 m (RTK); Horizontal ±0.3 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
- RTK GNSS Accuracy: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)
- RTK Heading: Accuracy better than 2°
- Airborne ADS-B In: Standard receiver and dual antennas, 20 km reception range
- Internal Storage: N/A
- Ports: USB-C Debug Port ×1 (USB 2.0), E-Port V2 ×4 (120W each), Cellular Dongle 2 Interface ×2 (underside)
- Propeller Model: 2510F
- Beacon: Built into the aircraft
- Ingress Protection Rating: IP55 (may decrease with wear)
- Motor Model: 7510
Gimbal
- Max Payload (Single Connector): 1400 g (over 950 g reduces damper lifespan from 1000 h to 400 h)
- Max Payload (Dual Connector): 950 g
- Max Payload (Third Connector): 3 kg (quick-release) / 6 kg (screw lock)
- Max Payload (Zenmuse L3 Connector): 2100 g (over 1600 g reduces damper lifespan to 400 h)
Sensing
- Type: Omnidirectional binocular vision with horizontal rotating LiDAR, upper LiDAR, downward 3D IR sensor, and six-direction mmWave radar
- Forward: Range 0.4–21 m, Detection 0.4–200 m, FOV 90°×90°
- Backward: Range 0.4–21 m, Detection 0.4–200 m, FOV 90°×90°
- Lateral: Range 0.6–21 m, Detection 0.5–200 m, FOV 90°×90°
- Downward: Range 0.5–19 m, FOV 160° front/rear, 105° left/right
- Operating Environment: Surfaces with rich texture and adequate light; ground reflectivity >20%
- Rotating LiDAR: Range 0.5–100 m @ 100,000 lux (10% reflectivity), FOV 360°×58°, 520,000 pts/s, 905 nm, Class 1 eye-safe
- Upper LiDAR (3D ToF): 0.5–25 m at night (reflectivity >10%), FOV 60° up/down and left/right
- Downward 3D Infrared Sensor: Range 0.3–8 m (reflectivity >10%), FOV 60° front/rear and left/right
- mmWave Radar: Range 36 m (12.5 mm wire), 50 m (21.6 mm wire), FOV ±45° (H/V); unavailable in some regions
FPV Camera
- Resolution: 1080p
- FOV: DFOV 150°, HFOV 139.6°, VFOV 95.3°
- Frame Rate: 30 fps
- Night Vision: Starlight grade
Video Transmission
- System: DJI O4 Enterprise Enhanced Video Transmission
- Live View: 3-channel 1080p/30fps (remote controller)
- Frequencies & Power: 902–928 MHz (<30 dBm FCC), 1.43–1.444 GHz (<35 dBm SRRC), 2.4 GHz (<33 dBm FCC), 5.15–5.85 GHz (<33 dBm FCC)
- Max Transmission Distance: 40 km (FCC), 20 km (CE/SRRC/MIC)
- Max Transmission Distance (with interference): Strong 1.5–6 km, Medium 6–15 km, Weak 15–40 km
- Max Download Speed: 80 Mbps (standard), <25 MB/s playback, ≤12 Mbps per channel
- Antenna: WLAN ×8 (6 vertical, 2 horizontal), sub2G ×2, 4G ×4, 2T4R mode
Others
- Supports Dual Control Mode and 2-channel Cellular Dongle 2
Zenmuse L3 Specifications
- Product Name: Zenmuse L3
- Point Cloud System Accuracy: At 120 m flight altitude – Vertical 3 cm (RMSE), Horizontal 4 cm (RMSE); At 300 m flight altitude – Vertical 5 cm (RMSE), Horizontal 7.5 cm (RMSE)
- Point Cloud Thickness: 1.2 cm @ 120 m (1σ); 2 cm @ 300 m (1σ)
- Combined Horizontal FOV (Dual RGB Mapping Cameras): 107°
- RGB Ground Sampling Distance (GSD): 3 cm @ 300 m nadir flight altitude
- Weight: 1.60 kg (without single gimbal connector); connector 145 g
- Dimensions: 192 × 162 × 202 mm (L × W × H)
- Power: 64 W (typical), 100 W (max)
- Supported Aircraft: DJI Matrice 400 RTK (with Zenmuse L3 single gimbal connector)
- Ingress Protection Rating: IP54
- Operating Temperature: −20 °C to +50 °C (−4 °F to +122 °F)
- Storage Temperature: −40 °C to +70 °C (−40 °F to +158 °F)
LiDAR
- Laser Wavelength: 1535 nm (Class 1 eye-safe)
- Beam Divergence: 0.25 mrad (1/e²)
- Spot Size: Φ 41 mm @ 120 m; Φ 86 mm @ 300 m (1/e²)
- Detection Range: 700 m @ 10% (350 kHz); 950 m @ 10% (100 kHz); 2000 m @ 80% (100 kHz)
- Wire Detection Range: 21.6 mm steel wire 300 m @ 100 klx (350 kHz); 18.4 mm PVC wire 100 m @ 100 klx (350 kHz)
- Ranging Accuracy: ±10 mm absolute; < 5 mm repeatability (1σ)
- Minimum Effective Detection Distance: 10 m
- Pulse Emission Frequencies: 100 / 350 / 1000 / 2000 kHz (recommended altitudes < 500 / 300 / 100 / 50 m)
- Number of Returns: 16 (100 / 350 kHz), 8 (1000 kHz), 4 (2000 kHz)
- Scanning Modes & FOV: Linear 80 × 3°, Star-shaped 80 × 80°, Non-repetitive 80 × 80°
RGB Mapping Camera
- Sensor: 4/3 CMOS (100 MP)
- Lens: 28 mm eq focal length; FOV 73.3° diag / 62° hor / 41.2° vert; Aperture f/2.0–f/11
- Shutter: Mechanical 2–1/1500 s (f/2.0) to 1/2000 s (f/2.8–f/11); Electronic 2–1/16000 s
- Photo Sizes: 100 MP (12288×8192); 25 MP (6144×4096)
- Min Photo Interval: 0.5 s (25 MP JPEG); 1 s (100 MP JPEG); 1.2 s (RAW or JPEG + RAW)
- Video: MP4 (H.265) 4K 30 fps / FHD 30 fps
Position and Orientation System (POS)
- GNSS Update Rate: 5 Hz | POS Update Rate: 200 Hz
- Attitude Error: Yaw 0.02° (1σ) | Pitch/Roll 0.01° (1σ)
- Positioning Accuracy: Horizontal 1.0 cm + 1 ppm | Vertical 1.5 cm + 1 ppm (RTK fix)
- Supported PPK Formats: DAT, RINEX v2.1x/v3.0x, RTCM v3.0–3.3 (MSM3–7), OEM4/6
Gimbal
- Degrees of Freedom: 3-axis (pitch, roll, yaw)
- Angular Accuracy: ±0.01°
- Controllable Range: Pitch −120° to +60° | Yaw −80° to +80° | Roll for stabilization only
- Mounting: Detachable DJI SkyPort (single gimbal connector)
Data Storage
- Data Types: Photo, IMU, Point Cloud, GNSS, Calibration files
- Media: CFexpress Type B (≥1500 MB/s write)
- Card Reader: ≥900 MB/s read/write
Software Ecosystem
- Data Collection: DJI Pilot 2
- Data Processing: DJI Terra (export formats: PNTS, LAS, LAZ, PLY, PCD, S3MB)
- Data Application: DJI Modify (import LAS)
- Cloud Application: DJI FlightHub 2
TB100 and BS100 Specifications
Battery
- Model: TB100
- Capacity: 20254 mAh
- Standard Voltage: 48.23 V
- Max Charging Voltage: 54.6 V
- Cell Type: Li-ion 13S
- Energy: 977 Wh
- Weight: 4720 ± 20 g
- Charging Temperature: 5° to 45° C (41° to 113° F)
- Discharging Temperature: −20° to 75° C (−4° to 167° F)
- Battery Heating: Supported (single battery, onboard, and battery station)
- Discharge Rate: 4C
- Max Charging Power: 2C
- Low-Temperature Charging: Supports low-temperature self-heating charging
- Cycle Count: 400
Intelligent Battery Station
- Model: BS100
- Net Weight: 11.8 kg
- Dimensions: 605×410×250 mm (L×W×H)
- Supported Batteries: TB100 Intelligent Flight Battery, TB100C Tethered Battery, WB37 Battery
- Operating Temperature: −20° to 40° C (−4° to 104° F)
- Input: 100–240 V (AC), 50–60 Hz, 10 A
- Output:
TB100 Battery Interface — 100–110 V: Approx. 1185 W; 110–180 V: Approx. 1474 W; 180–240 V: Approx. 2184 W
- WB37 Battery Interface — 100–240 V: Approx. 52 W
- USB-C Output — 5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A
- Number of Charging Channels: Three TB100 and two WB37 batteries
- Charging Mode: Ready-to-Fly Mode 90%; Standard Mode 100%; supports Fast and Silent Modes
- Charging Time (TB100/TB100C from 0–100%):
220 V: 45 min (Fast Mode), 110 min (Silent Mode); 110 V: 70 min (Fast Mode), 110 min (Silent Mode)
- Measured in a test environment at 25° C.
