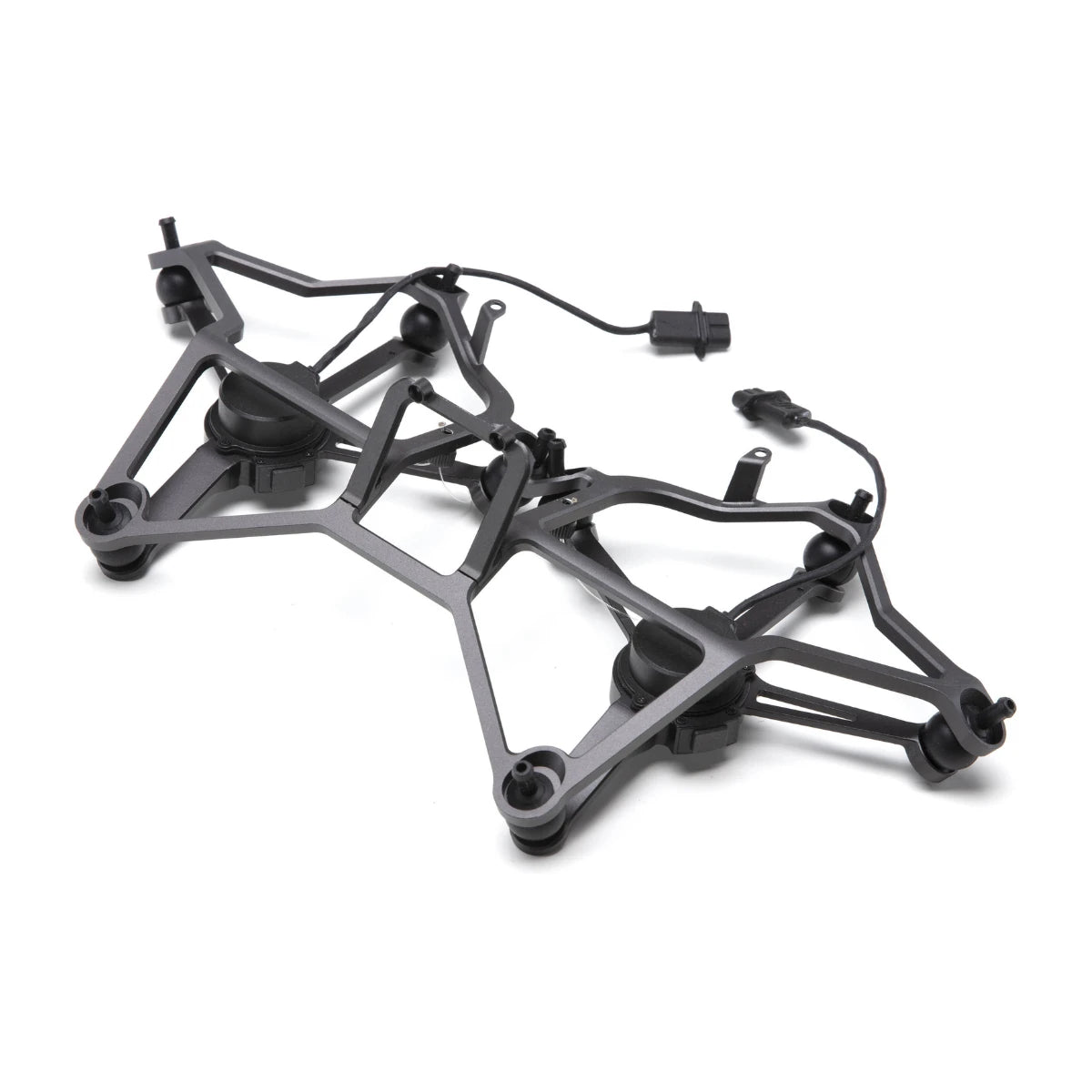

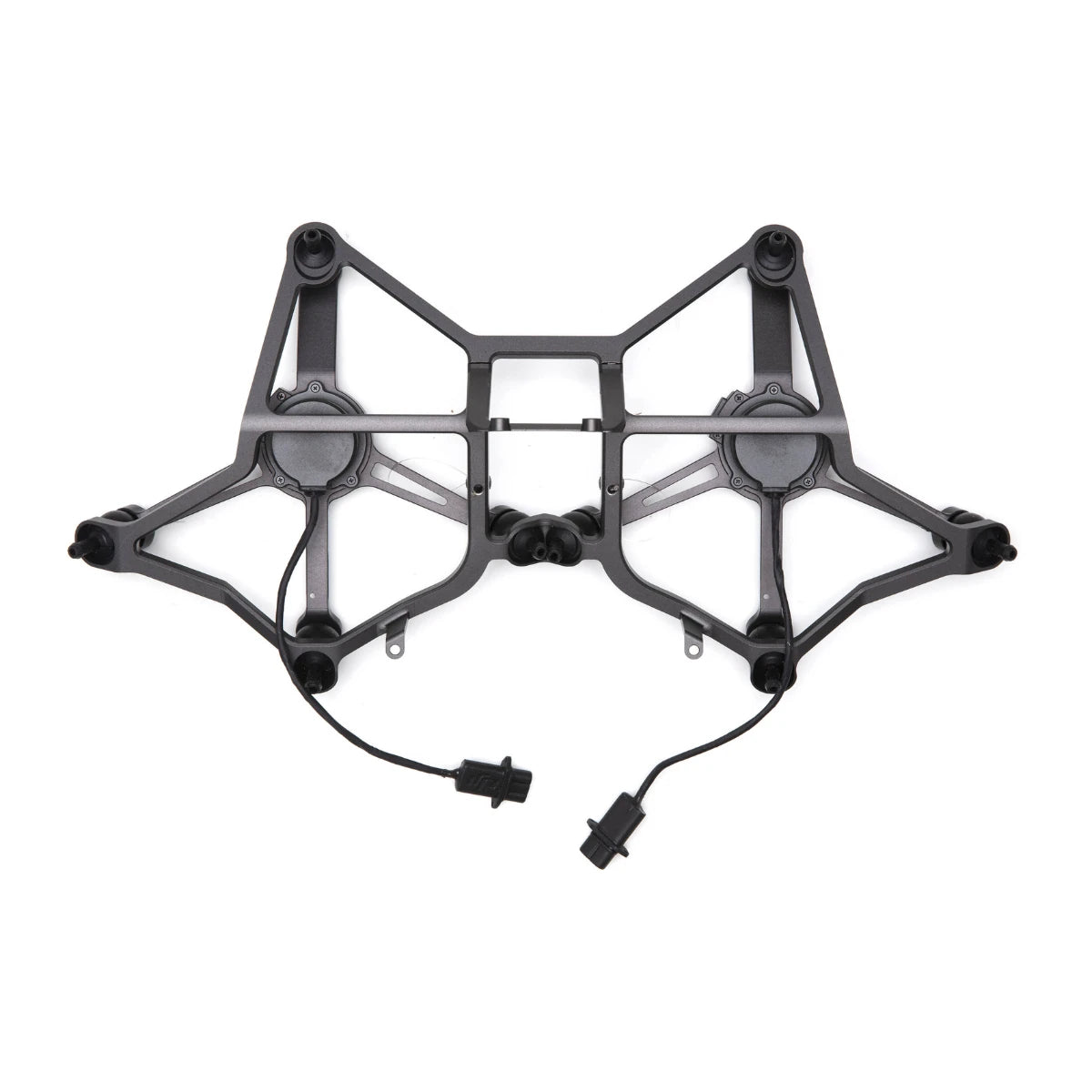

DJI Matrice 300/350 RTK Dual Gimbal Connector (Part No.10)

DJI Matrice 300/350 RTK Dual Gimbal Connector (Part No.10)

$255.00
$255.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-M300-DGC

SKU S-DJI-M300-DGC MPN CP.EN.00000265.01 EAN 6958265125607
  • Simultaneous dual-payload operation for optimized multi-sensor data collection workflows.
  • Rated IP44 ingress protection for reliable performance in adverse weather.
  • Supports maximum total drone payload capacity of up to 2.7 kg.
  • Independent USB-C interfaces for advanced PSDK and OSDK hardware integration.
  • Comprehensive kit includes assembly, 8 backup dampers, and repair toolkit.
  • Compatible with DJI Matrice 300 RTK and Matrice 350 RTK platforms.
  • Integrated damping system prevents image distortion and high-frequency sensor errors.
  • Specific port allocation support for thermal sensors like the Zenmuse XT2.
  • Strategic bottom-mount design for unobstructed downward sensor fields of view.

Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Matrice 300/350 Dual Gimbal Connector: Professional Multi-Sensor Integration

The DJI Matrice 300/350 Dual Gimbal Connector is a mission-critical expansion module designed to maximize the operational versatility of your enterprise drone platform. This bottom-mounted assembly allows the Matrice 300 RTK or Matrice 350 RTK to carry two stabilized payloads simultaneously, facilitating the collection of diverse data sets in a single flight. With an IP44 ingress protection rating, this connector maintains the ruggedized performance of your aircraft when paired with waterproof sensors. It is a vital component for professionals in public safety, industrial inspection, and surveying who require integrated multi-sensor workflows to increase efficiency and data density.

DJI Matrice 300 Dual Gimbal Connector core features and advantages

  • Dual-payload capability: enables the simultaneous operation of two compatible downward-facing gimbal cameras.
  • Ruggedized protection: provides IP44-rated dust and splash resistance for demanding field environments.
  • High load capacity: supports a maximum total payload on the aircraft of up to 2.7 kg.
  • Precision damping: includes eight backup absorber balls to eliminate vibration and video jello effects.
  • Universal connectivity: utilizes independent USB-C ports for seamless Payload SDK and Onboard SDK support.
  • Wide compatibility: supports professional Zenmuse series sensors including the H20 and H20T models.
  • Balanced architecture: bottom-mounted design ensures optimal sensor positioning and airframe stability during flight.
  • Field maintenance: supplied with a repair toolkit for rapid installation and service in the field.

The DJI Matrice 300 Dual Gimbal Connector is the definitive solution for consolidating multi-sensor sorties into a single, efficient mission. It eliminates the need for repeated flights by allowing operators to deploy complementary sensors side-by-side for comprehensive aerial analysis. This professional-grade hardware delivers the long-term reliability and adaptability required for complex enterprise UAV operations.

The DSLRPros team is dedicated to providing specialized hardware that scales with your growing operational needs. We focus on delivering verified technical components that ensure your specialized sensors perform exactly as expected during critical infrastructure or public safety missions. Maximize your field productivity and sensor array by securing your DJI Matrice 300 Dual Gimbal Connector from DSLRPros.

  • Ingress Protection: Rated at IP44 (dust and splash resistant) when used with waterproof payloads.
  • Weight: The assembly itself weighs approximately 0.4 kg (0.88 lbs).
  • Payload Support: It can carry two compatible gimbals simultaneously, with a maximum total payload capacity on the drone of up to 2.7 kg.
  • Mounting Position: Bottom-mounted on the aircraft.
  • Connectivity: Each gimbal port connects independently via a USB-C interface to the aircraft, supporting both Payload SDK (PSDK) and Onboard SDK (OSDK).
  • 1x Dual Gimbal Connector
  • 8x Backup Absorber Balls
  • 1x Repair Toolkit
Which aircraft are compatible with this dual gimbal connector?

This assembly is designed specifically for the DJI Matrice 300 RTK and is also fully compatible with the Matrice 350 RTK platform. It serves as a direct upgrade to the single downward connector, allowing you to maximize the payload potential of these enterprise drones.

What is the maximum weight each gimbal port can handle?

While the aircraft can carry a total of 2.7 kg, each individual gimbal damper is specifically limited to a maximum payload of 930 g. Exceeding this limit for a single sensor can compromise stabilization and increase the rate of wear on the damping system.

Is this connector water and dust resistant?

The connector itself adds IP44-rated water and dust resistance to the aircraft's payload interface. This rating is only maintained if the attached payloads also carry their own water and dust resistance ratings. This makes the assembly suitable for operations in light rain or dusty industrial sites.

Are there specific rules for where I mount my cameras?

Yes, certain sensors have placement restrictions to ensure proper communication and performance. For example, if you are using the Zenmuse XT2 thermal camera, it must be mounted specifically on the first gimbal port, which is the left side. Always check the manual for your specific sensor combination.

How do I maintain the damping system for clear video?

The kit includes eight backup absorber balls to replace worn dampers as part of regular maintenance. You should inspect these rubber balls frequently for any cracks or loss of elasticity. Worn dampers can cause a visible jello effect in your footage or lead to sensor performance errors.
