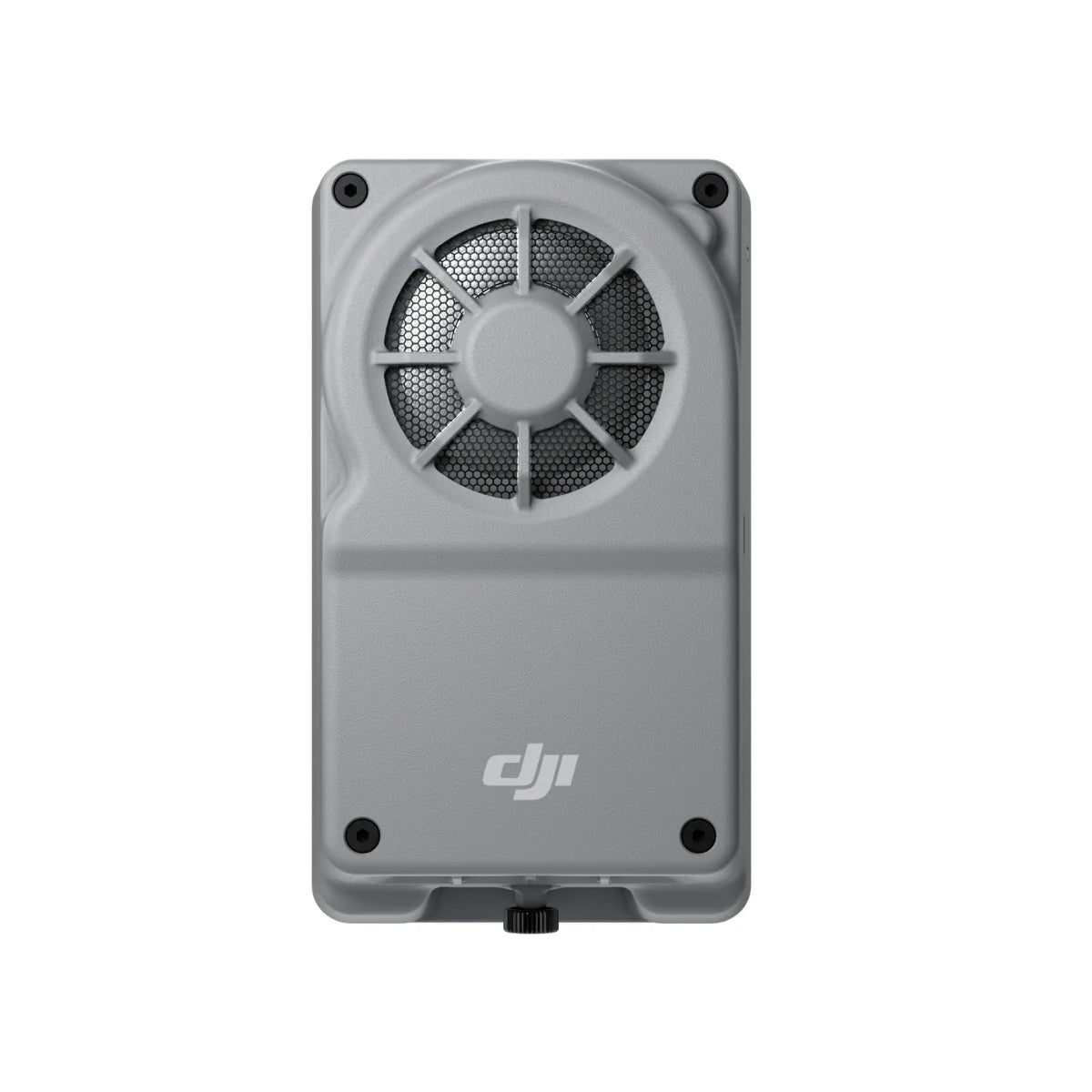

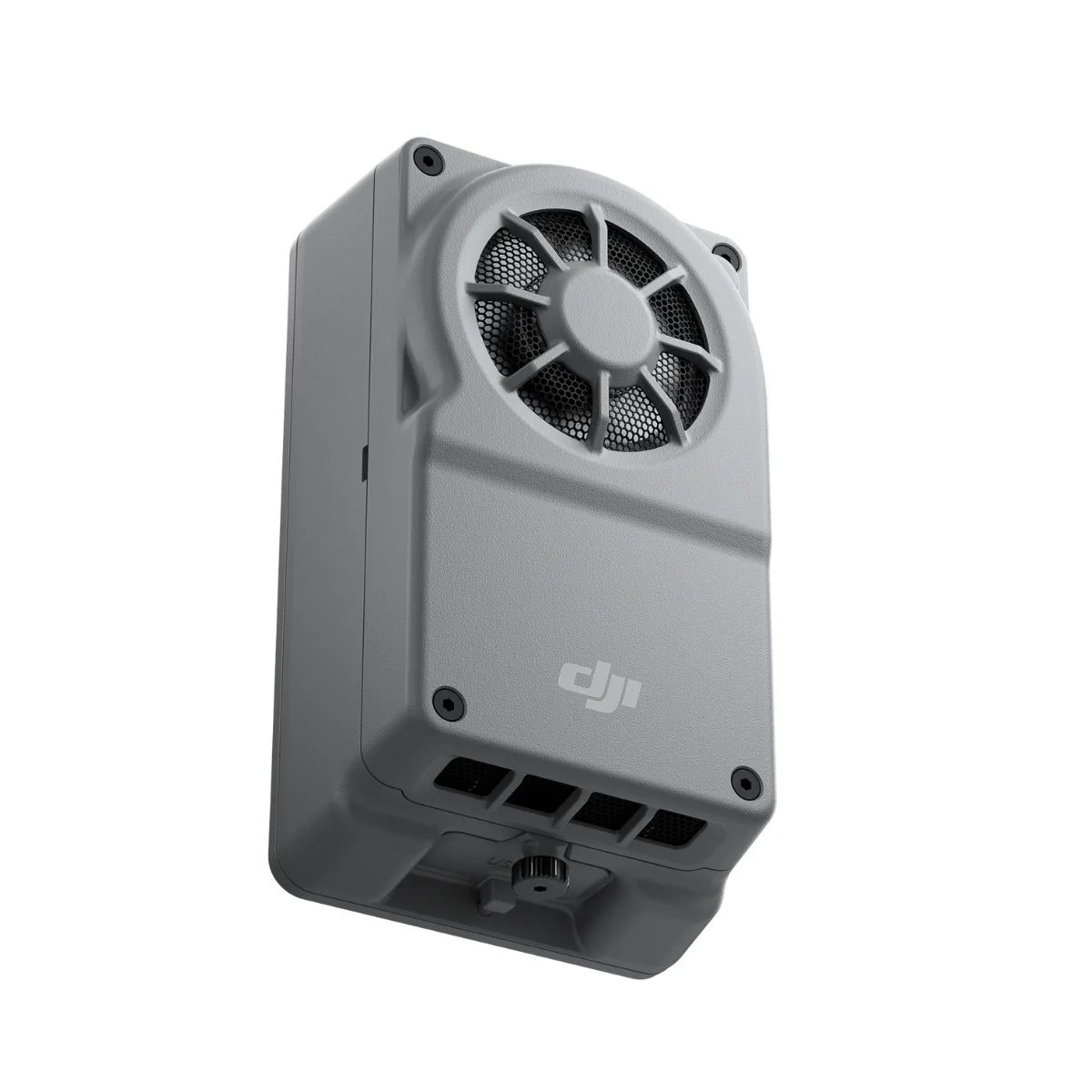

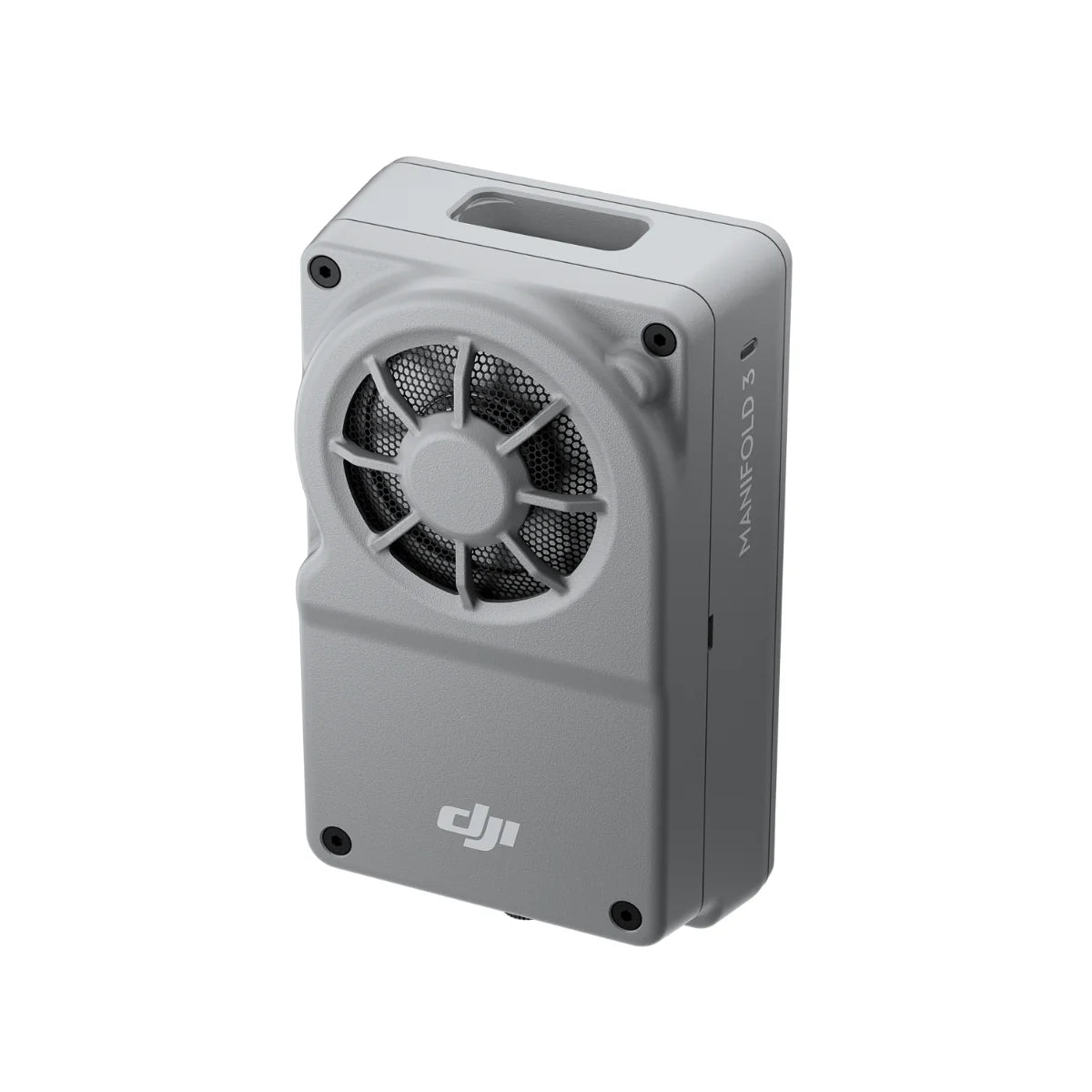

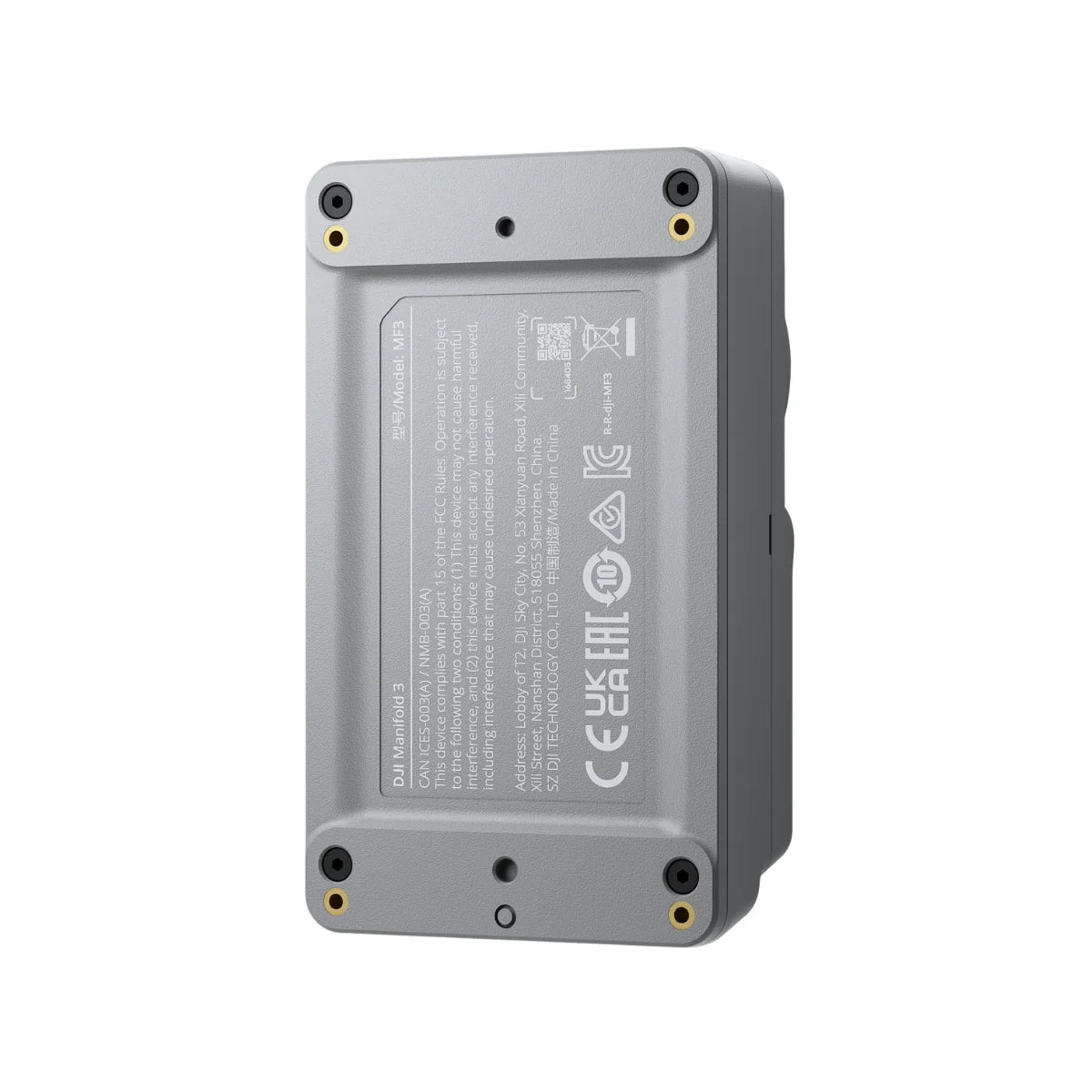

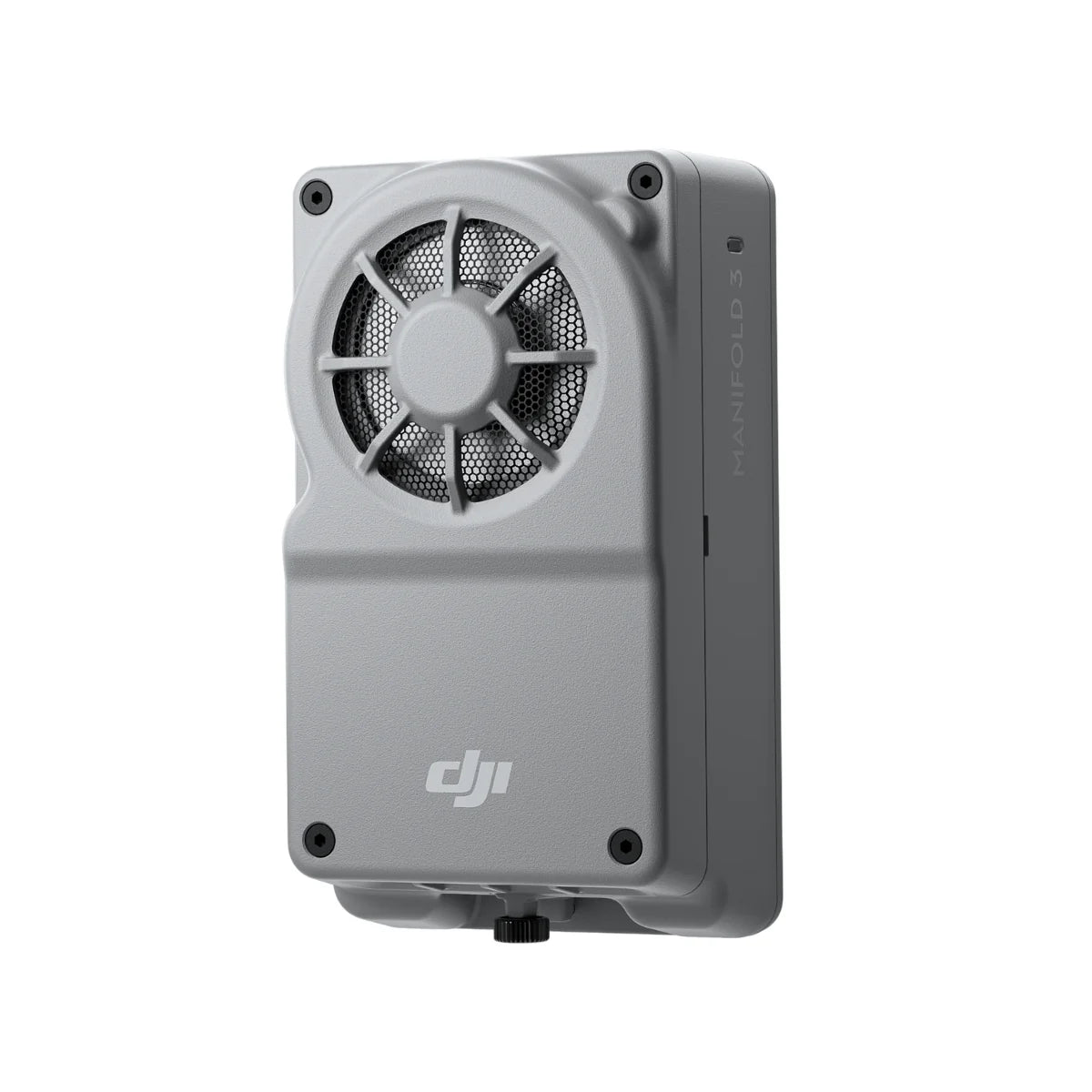

DJI Manifold 3 (Matrice 4 Series)

DJI Manifold 3 (Matrice 4 Series)

$1,599.00
$1,599.00
Sale Sold out
Shipping calculated at checkout.

S-DJI-MANIFOLD-3

SKU S-DJI-MANIFOLD-3 MPN CP.EN.00000637.01
  • Integrates with Matrice 4 Series via E-Port V2 connection
  • Provides 100 TOPS (INT8) computing for in-flight operations
  • Supports DJI Onboard SDK v5.0 and Payload SDK v3.6
  • Lightweight (~120 g) for balanced installation
  • Operates from –20 °C to 60 °C in field conditions
  • Draws up to 33 W under typical load
  • Built on NVIDIA Jetson AGX Orin architecture
  • Includes USB 3.2, Ethernet, CAN, UART, and HDMI ports
  • Features 16 GB RAM and 256 GB SSD storage (region specific)
  • Enterprise-grade hardware for DJI SDK integration
Request Info / Quote ☎︎ 1 (213) 262-9436
View full details
  • Description
  • Specifications
  • In the Box
  • FAQ

DJI Manifold 3 (Matrice 4 Series): High-Performance Onboard Computing for Advanced Operations

The DJI Manifold 3 is a high-performance onboard computer engineered to expand the capabilities of the Matrice 4 Series. It enables real-time data processing and the deployment of custom applications directly on the aircraft. Built for enterprise reliability and developer flexibility, it provides the foundation for efficient aerial workflows and mission automation.

Seamless Integration with the Matrice 4 Series

Designed specifically for DJI enterprise platforms, the Manifold 3 connects through the E-Port V2 interface to deliver stable communication and power integration. Supporting DJI Onboard SDK v5.0 and Payload SDK v3.6, it provides an open environment for developers to design and execute applications that enhance aircraft capability and streamline field operations.

Reliable Computing in Compact Form

Weighing only about 120 g, the Manifold 3 delivers up to 100 TOPS (INT8) of processing performance within a passively cooled enclosure. Operating from –20 °C to 60 °C and consuming up to 33 W under load, it maintains consistent performance in demanding environments. With integrated storage, multiple interfaces, and an NVIDIA Jetson AGX Orin architecture, it ensures fast and dependable data processing in every mission.

Key Features and Benefits

  • High-performance onboard computer for DJI enterprise drones
  • Matrice 4 Series compatibility via E-Port V2 (E1/E2/E3)
  • 100 TOPS (INT8) computing capability for in-flight processing
  • Supports DJI Onboard SDK v5.0 and Payload SDK v3.6
  • Lightweight (~120 g) for balanced payload integration
  • Power draw up to 33 W at 40 °C ambient operation
  • Operational range –20 °C to 60 °C for field reliability
  • Interfaces: USB 3.2, HDMI, Ethernet, UART, and CAN
  • Passive cooling ensures stable thermal performance
  • Integrated 16 GB LPDDR5 RAM and 256 GB SSD (storage may vary by region)

Compatibility and Integration

  • Compatible with Matrice 4 Series, Matrice 400 RTK, Matrice 350 RTK, and Matrice 300 RTK
  • Connects via E-Port V2 (E1/E2/E3) for power and data transfer
  • Supports DJI Onboard SDK v5.0 and Payload SDK v3.6 for custom apps
  • Designed for DJI Pilot 2 and FlightHub 2 ecosystem integration
  • Enables real-time data handling and application deployment

Applications and Use Cases

  • In-flight data processing for enterprise operations
  • Custom application deployment through DJI SDK frameworks
  • Research and testing for academic or industrial development
  • Automated inspection and survey workflows
  • Mapping and survey missions requiring onboard computation
  • Communication gateway via E-Port V2 link
  • Expanded payload functionality through Payload SDK
  • Multi-sensor coordination and data fusion
  • Field data management in dynamic conditions
  • Custom enterprise workflow integration

Designed for Enterprise Integration

The DJI Manifold 3 is engineered for enterprise developers and organizations that need stable onboard computing performance. Its compact design minimizes payload weight while maintaining power and communication integrity with the aircraft. By supporting both Payload SDK and Onboard SDK, it provides a reliable platform for integrating custom software and expanding the operational capabilities of the Matrice 4 Series.

The DJI Manifold 3 equips Matrice 4 Series operators with a powerful computing core for real-time data processing and mission efficiency.

Buy now at DSLRPros to enhance your enterprise drone system with official DJI onboard computing technology.

  • Product Name: Manifold 3
  • Weight: 120±5 g
  • Dimensions: 98×57×36 mm (L×W×H)
  • Rated Power: 33 W
  • Supported Models: DJI Matrice 400, Matrice 4 Series, Matrice 4D Series
  • Processor: NVIDIA Jetson Orin NX (ARM Cortex-A78AE 64-bit)
  • RAM: 16 GB LPDDR5
  • Internal Storage: 256 GB SSD
  • Computing Power: Up to 100 TOPS (INT8 precision, sparse model)
  • E-Port Interface: Supports DJI Matrice 400 E-Port V2 (E1, E2, E3; E3 recommended)
  • USB-C Interface: USB 3.2 Gen 1, up to 5 Gbps
  • Operating Temperature: -20° to 50°C (-4° to 122°F)
  • Storage Temperature: -20° to 60°C (-4° to 140°F)
  • Ingress Protection Rating: IP55 (under controlled conditions)
  • Power Supply (E-Port): 24V input via Matrice 400 E-Port V2
  • USB Power Delivery: PD protocol supported via USB-C
  • 1x DJI Manifold 3 (Matrice 4 Series)
What is the DJI Manifold 3?

It’s a high-performance onboard computer that processes data and runs applications directly on DJI enterprise aircraft.

Which drones are compatible with the DJI Manifold 3?

Matrice 4 Series, Matrice 400 RTK, Matrice 350 RTK, and Matrice 300 RTK.

Which SDKs are supported?

DJI Onboard SDK v5.0 and Payload SDK v3.6 for custom application development.

What is its power consumption?

Up to 33 W under normal operation at 40 °C.

What is its operating temperature range?

Approximately –20 °C to 60 °C depending on region and environment.
