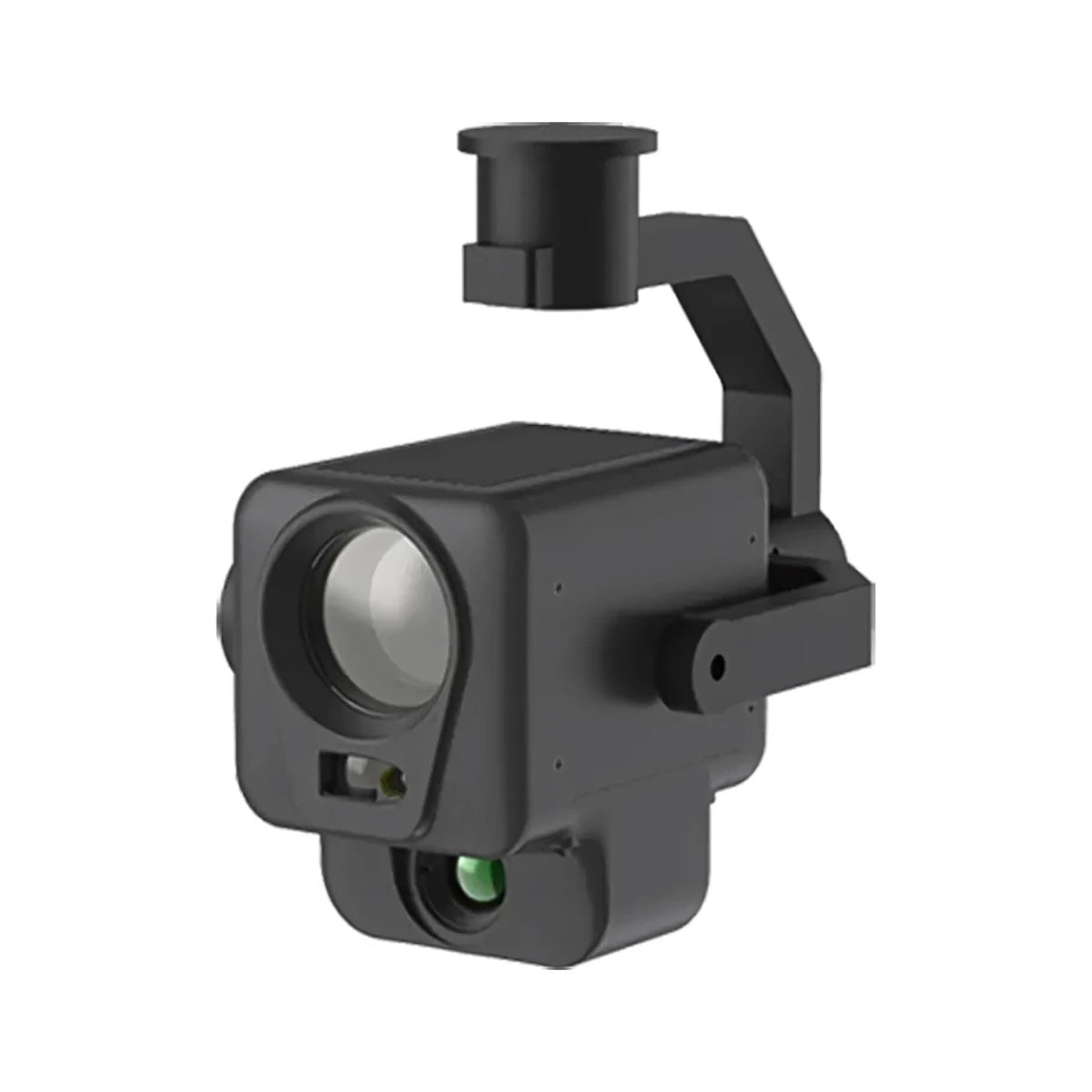

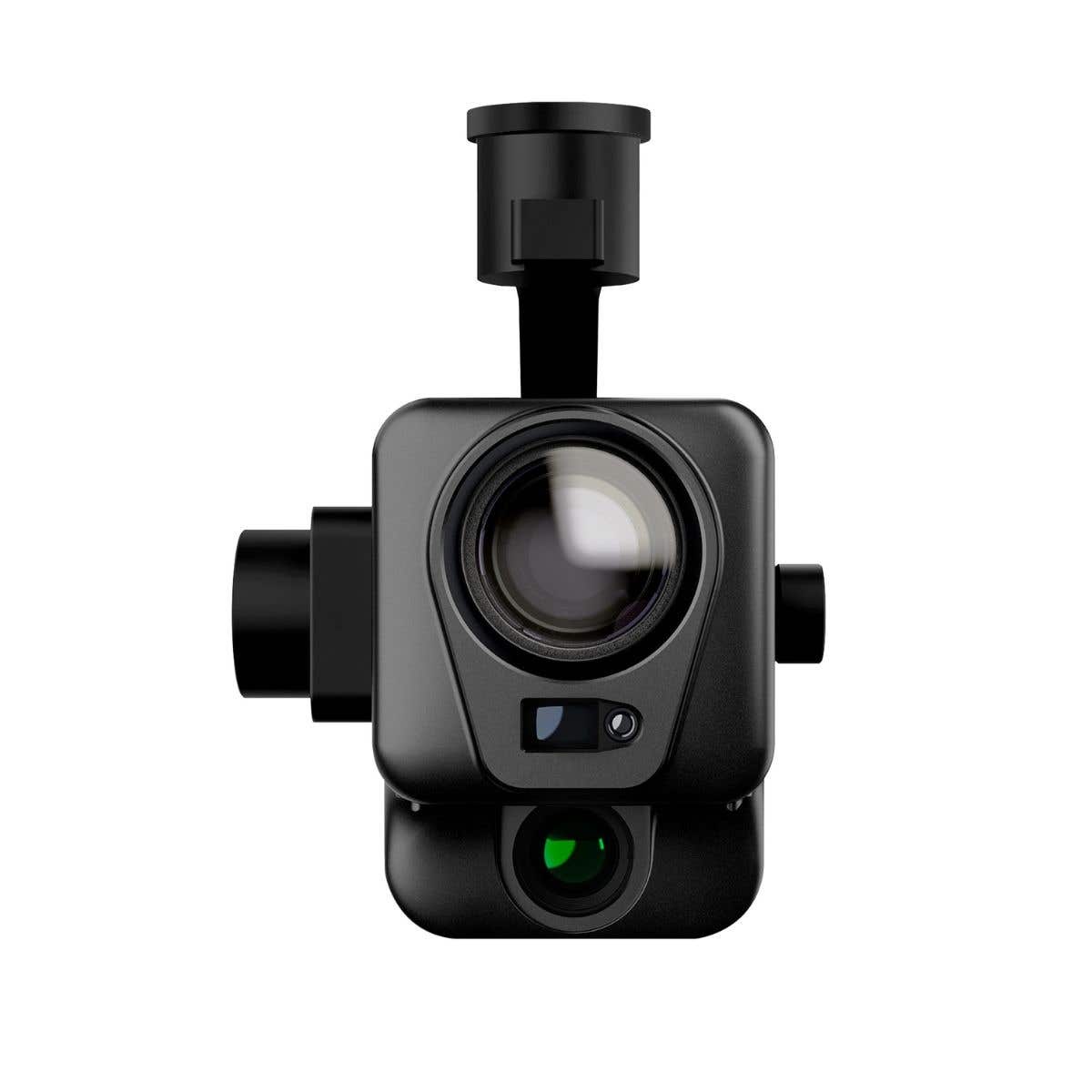

Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera for Matrice 350 / Matrice 400

Deepthink S3: Integrated Night and Thermal Awareness for Enterprise Missions

The Deepthink S3 Tri-Sensor Night Vision Thermal Imaging Camera is a professional payload engineered for complex night and low-visibility operations. It integrates a full-color starlight zoom camera, a radiometric thermal imager, and a laser rangefinder into a single stabilized system.

Designed for DJI enterprise aircraft, the S3 supports Matrice 350 RTK and Matrice 400. This unified payload allows operators to retain visual context, thermal awareness, and distance measurement simultaneously during demanding field missions.

Key system features and capabilities

• Full-color night vision: Super-starlight CMOS imaging down to 0.0001 lux
• High-magnification zoom: 30× optical zoom, up to 160× hybrid zoom
• Radiometric thermal imaging: 640 × 512 VOx sensor with 12 µm pixel pitch
• Integrated laser rangefinder: 905 nm LRF measuring distances up to 1500 m
• Three-axis stabilization: Precision gimbal with ±0.008° angular jitter
• Rugged environmental design: IP55-rated housing for harsh weather operations
• AI-assisted image processing: AI-ISP enhances contrast in smoke and low visibility
• Unified tri-sensor payload: EO, thermal, and ranging integrated in one system

Advanced night imaging performance

The S3’s night vision system uses a super-starlight CMOS sensor paired with AI-assisted image signal processing to deliver full-color imagery at illumination levels as low as 0.0001 lux. This capability allows operators to visually identify terrain, structures, and targets without relying solely on thermal contrast.

Optical zoom enables detailed inspection from safe distances, while stabilized gimbal control preserves clarity during flight. Together, these features provide dependable visual awareness during nighttime operations where conventional cameras are ineffective.

Thermal sensing and ranging intelligence

The thermal camera employs a 640 × 512 uncooled VOx sensor with a 12 μm pixel pitch, supporting accurate heat detection across a wide temperature range. Operators can assess hotspots, thermal anomalies, and evolving hazards in real time.

An integrated 905 nm laser rangefinder measures distances from 5 to 1500 meters with ±1 meter accuracy, adding critical spatial context. Combined thermal and ranging data improves situational understanding for emergency response, inspection, and public safety missions.

Aircraft compatibility and system integration

• DJI Matrice 350 RTK and Matrice 400 supported

• DGC 2.0 gimbal protocol enables responsive payload control
• Onboard microSD storage supports recording up to 128 GB
• Over-the-air firmware updates supported for system maintenance

Professional operational scenarios

• Public safety response: Maintain situational awareness during low-light emergency operations
• Firefighting missions: Identify hotspots and elevated temperatures through smoke
• Search and rescue: Locate missing persons using thermal contrast and zoom
• Infrastructure inspection: Perform nighttime asset assessments with stabilized imaging
• Disaster response: Operate effectively during power outages and poor visibility
• Security monitoring: Conduct long-range perimeter surveillance after dark
• Environmental monitoring: Observe wildlife activity without artificial illumination
• Law enforcement support: Assist coordinated night operations with aerial overwatch

Built for enterprise mission reliability

The Deepthink S3 is engineered for organizations that require dependable night vision, thermal sensing, and ranging in a single integrated payload. Its IP55-rated housing, precision gimbal stabilization, and SkyPort-based integration support consistent deployment in challenging environments.

Forward-compatible design considerations allow teams to adopt newer aircraft platforms without replacing payload infrastructure. This approach helps agencies standardize night operations while maintaining reliability, safety, and operational efficiency across diverse mission profiles.

The Deepthink S3 delivers integrated night vision, thermal imaging, and ranging for DJI enterprise operations.

Available now from DSLRPros. Equip your fleet with proven night-operation intelligence backed by professional support.
