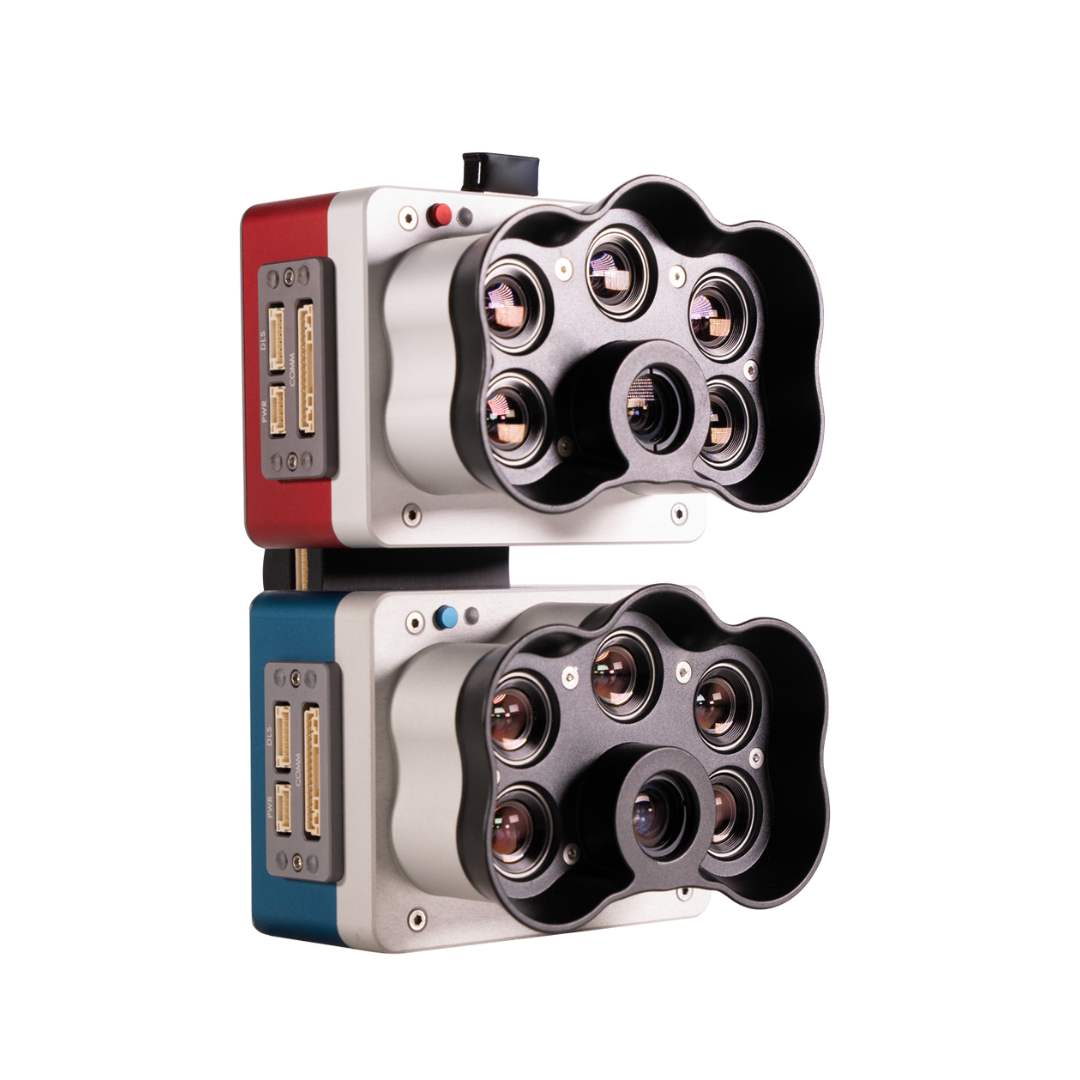

Unmatched Clarity, Dual Sensor Power
The MicaSense RedEdge-P Dual Multispectral Kit offers unparalleled multispectral imaging capabilities by combining two five-band sensors in a single, streamlined payload. Designed for agricultural professionals, researchers, and agronomists, this kit delivers synchronized outputs across 10 distinct spectral bands, including RGB and Near-Infrared (NIR).
Whether you're analyzing plant health, measuring chlorophyll content, or generating high-resolution orthomosaics, the RedEdge-P Dual gives you the precision and flexibility to do it all in one flight.
Key Features of the MicaSense RedEdge-P Dual Multispectral Kit
- 10 Spectral Bands, One Seamless Capture: Combines the power of two RedEdge-P sensors—each with five bands—capturing RGB, Red, Green, Blue, NIR, and five narrow multispectral bands for comprehensive analytics.
- Synchronized Dual-Camera Output: Automatically stitches calibrated, co-aligned imagery from both cameras into a single dataset, simplifying your post-processing workflow.
- High-Resolution Panchromatic Imagery: Capture sharp detail with 1.6 cm/pixel GSD at 60m AGL, enabling pan-sharpened multispectral outputs.
- Plug-and-Play Integration with DJI SkyPort: Fully compatible with DJI drone platforms using SkyPort adapters—ideal for Matrice series users.
- Calibrated, Scientific-Grade Data: Comes with a calibration panel and downwelling light sensor (DLS) to ensure radiometric accuracy across flights.
- Multi-Platform Flexibility: Works seamlessly with fixed-wing and multirotor UAVs using MicaSense integration kits.
-
Rugged Field-Ready Design: Built to withstand real-world conditions with industrial-grade materials, passive cooling, and robust enclosures.
Precision Imaging for Data-Driven Agriculture
From row crops to orchards, vineyards to research plots, the RedEdge-P Dual provides the actionable data agronomists and growers need to make informed decisions. Unlike single-sensor multispectral cameras, this dual setup delivers a wider range of crop insights—without compromising on spatial resolution or workflow simplicity.
Real-World Use Cases for the RedEdge-P Dual
- Chlorophyll & NDVI Monitoring: Track plant stress and nutrient levels with high-fidelity NDVI, NDRE, and other vegetation indices.
- Precision Irrigation Planning: Identify over- or under-watered areas using multispectral reflectance data.
- Yield Forecasting & Crop Scouting: Use accurate imagery to estimate yield and guide on-the-ground scouting.
- Disease & Pest Detection: Spot early signs of disease or pest pressure before they spread.
-
Research & Trials: Capture consistent, scientific-grade data for academic or field trials.
Payload Capabilities
The RedEdge-P Dual system is engineered for versatility. Both sensors are perfectly synchronized, offering 10 bands with minimal parallax and distortion. Key payload features include:
- Dual SD Card Storage: Independent storage ensures fast write speeds and backup redundancy.
- Fast Triggering (up to 3 frames/sec): Capture images rapidly for smooth, overlapping coverage even at higher drone speeds.
-
Metadata-Rich Files: Each image is geotagged with GPS, light, and angle information for use in post-processing software like Pix4D, Agisoft Metashape, and more.
Why Choose the MicaSense RedEdge-P Dual Over Other Payloads?
- More Bands, More Insights: Outperforms traditional five-band sensors by doubling spectral resolution.
- Higher GSD: Get sharper imagery without sacrificing multispectral capability.
- Easy Workflow Integration: Compatible with industry-leading software and DJI drone platforms.
-
Expandable System: Designed to scale with your UAV fleet and evolving project needs.
Why Buy from DSLRPros?
- Industry Experience: Trusted by growers, agronomists, and enterprise UAV users for over a decade.
- Expert Consultation: Not sure which payload suits your platform or field conditions? Our drone specialists will help you get it right the first time.
- Authorized Dealer: All MicaSense products purchased from DSLRPros are backed by official warranties and support.
Custom Bundles Available: Ask us about RedEdge-P Dual kits pre-configured for Matrice 300 RTK, fixed-wing platforms, or dual-battery missions.
Specifications
| Weight | 745 g / 26.2 oz (two sensors, mounting hardware, DLS2, and cable) |
| Dimensions | 13.2 cm x 8.8 cm x 9.67 cm / 5.1 in x 3.1 in x 3.5 in |
| Spectral brands |
Coastal blue 444(28)* Blue 475(32), Green 531(14)* Green 560(27), Red 650(16)* Red 668(14) Red Edge 705(10)* Red Edge 717(12) Near-IR 740(18)* Near-IR 842(57) |
| RGB output | 5.1 MP** (global shutter, aligned with all bands) |
| Sensor resolution |
1456 x 1088 (1.6 MP per multispectral band) 2464 x 2056 (5.1 MP panchromatic band) |
| Ground sample distance |
7.7 cm / 3 in per pixel (per multispectral band) at 120 m / ~400 ft AGL 3.98 cm / 1.5 in per pixel (panchromatic band) at 120 m / ~400 ft AGL |
| Field of view | 50° HFOV x 38° VFOV (multispectral), 44° HFOV x 38° VFOV (panchromatic) |
| Capture rate | Up to 3 images per second raw DNG |
| Storage | CFexpress card |
| Interfaces | Three configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. |
| External power | 7.0 V - 25.2 V |
| Power input | 11/14.0/20W (standby, average, peak) |
| Heat |
Ambient without airflow: 0-40 °C / 0-104 °F Ambient with airflow >0.5 meter per second / >1.1 mph: 0-50 °C / 0-122 °F |
| IP rating |
IP4X |
*Denote RedEdge-P blue bands. **With appropriate post-processing.
Note: Specifications are subject to change without notice
In The Box
- RedEdge-P
- RedEdge-P blue
- DLS light sensor
- CRP calibrated reflectance panel
- USB Wi-Fi dongle
- Lens cover
- Integration cables
- Mounting hardware
- CFexpress card
- CFexpress card reader
- Hard carrying case
- Start guide
