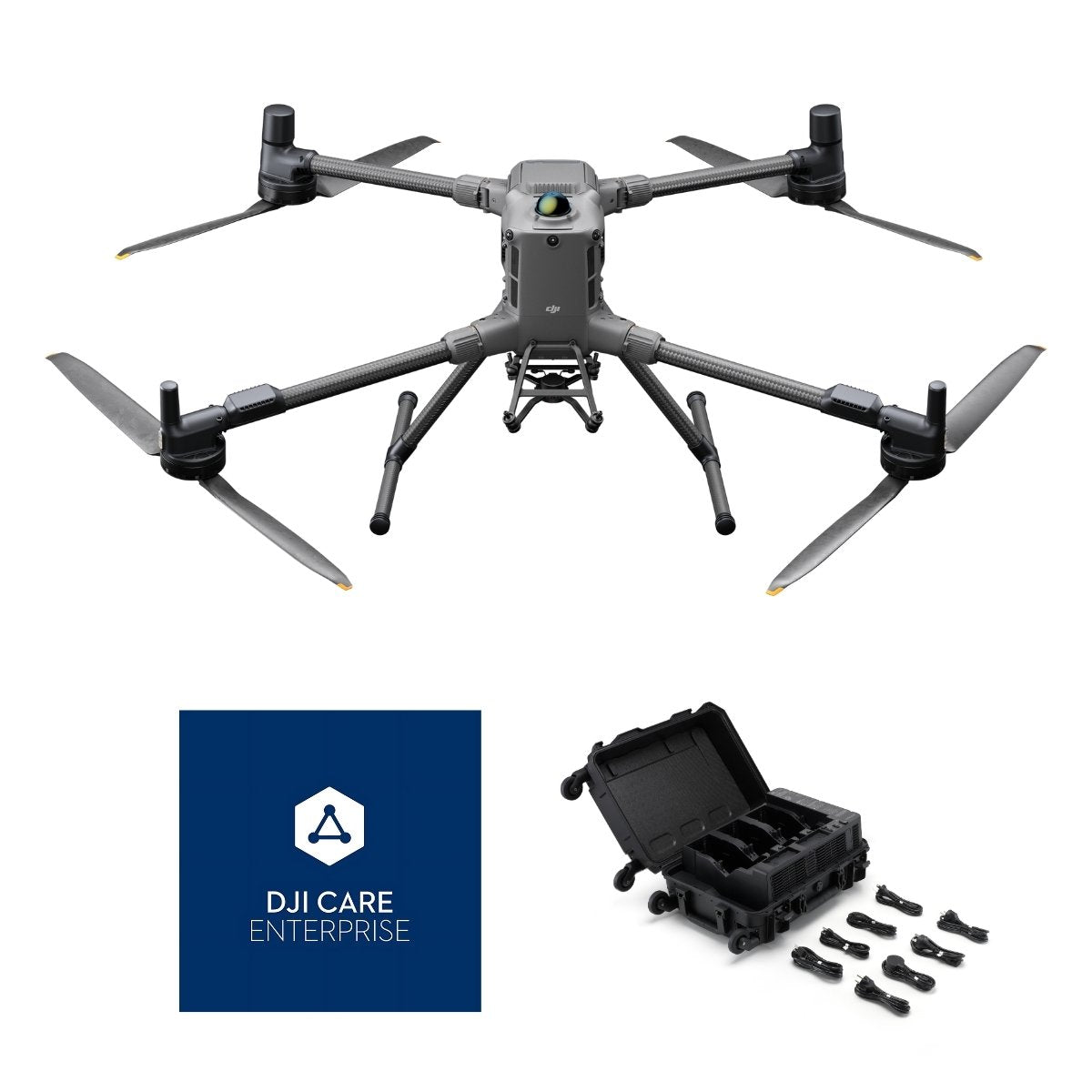

DJI Matrice 400 + BS100 Battery Station + Auto-Activated Care Enterprise Plus
Unmatched Uptime. Uncompromising Performance.
The DJI Matrice 400 is DJI's most powerful and versatile drone platform to date-and this enterprise bundle takes it even further. Paired with the BS100 Intelligent Battery Station and DJI Care Enterprise Plus (auto-activated), this configuration delivers continuous operations, maximum protection, and total payload flexibility in a single mission-ready system.
Built for industrial inspections, utility mapping, public safety, search and rescue, and demanding geospatial work, the M400 boasts a 59-minute forward flight time, 6kg payload capacity, and one of the most advanced obstacle sensing systems ever deployed on a commercial UAV. Backed by rapid charging, automated battery management, and enterprise-grade care coverage, this bundle is built to fly more missions with fewer delays.
Designed for the Field, Engineered for Scale
The BS100 Intelligent Battery Station redefines operational efficiency. It charges up to three TB100 batteries to 100% in just 45 minutes (220V) and supports Quiet Mode for silent charging in sensitive areas. Integrated auto-discharge and real-time diagnostics protect battery lifespan, while full control from the RC Plus 2 streamlines on-site battery rotation.

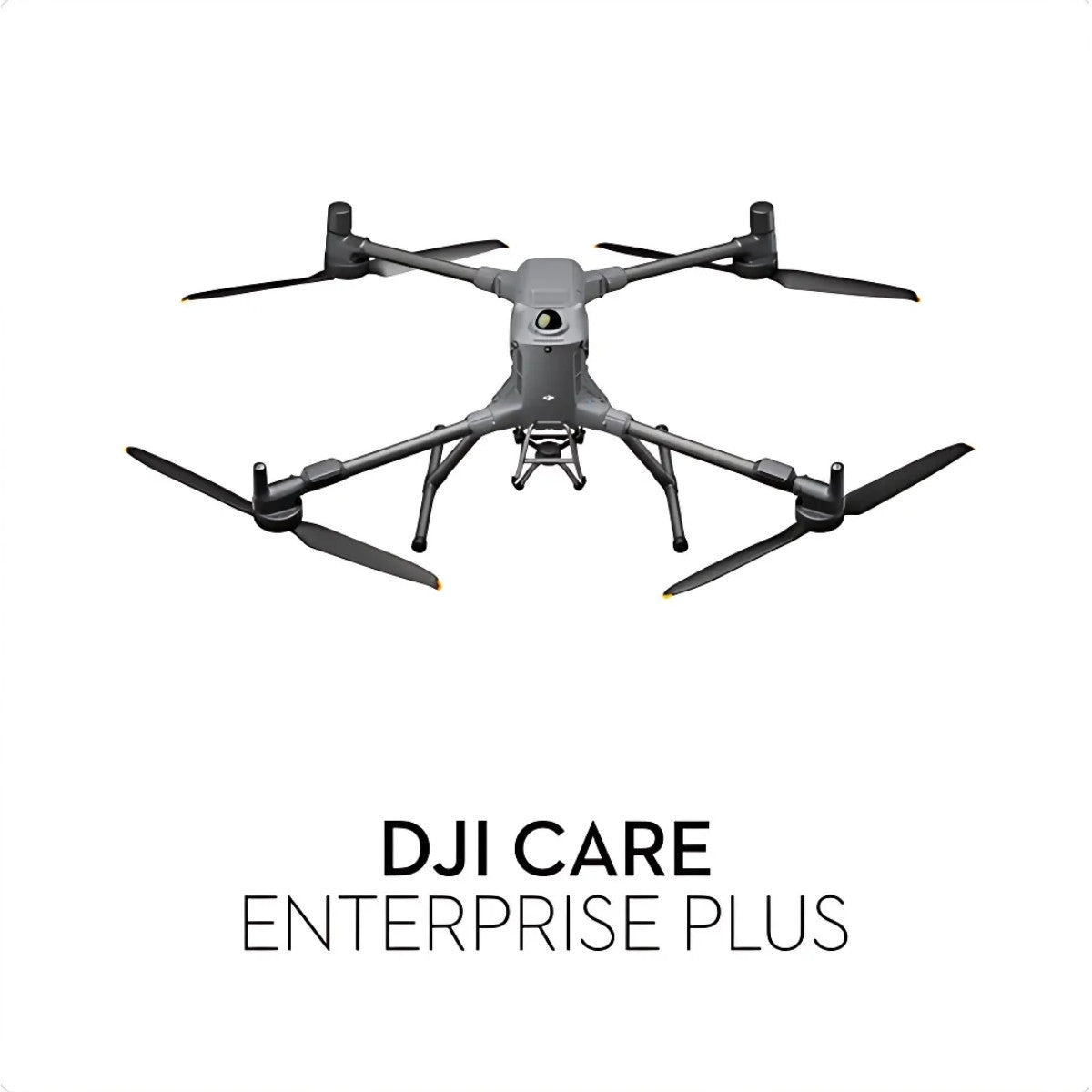

Auto-activated DJI Care Enterprise Plus ensures your drone is protected the moment it's powered on-covering accidental damage, replacements, and minimizing downtime for critical field operations. No activation steps or manual linking required.
Key Features
- DJI's most advanced enterprise drone with 59-minute forward flight time
- 6kg max payload capacity with support for up to 7 simultaneous payloads
- Rotating LiDAR, mmWave radar, and low-light fisheye vision for triple-layer obstacle avoidance
- IP55-rated airframe for rain, dust, and harsh environments; -20 °C to 50 °C temperature range
- BS100 Intelligent Battery Station: 3 × TB100 full charge in 45 minutes (220V)
- Charging modes: Quiet, Standard, Rapid, and Auto-Discharge, all remote-controlled
- DJI O4 Enterprise transmission system: 40 km range, 1080p/60fps live stream
- Dual 4G dongle support and sub-2GHz fallback for interference-resilient data links
- Auto-activated DJI Care Enterprise Plus: immediate coverage, no activation required
Compatible Payloads
The Matrice 400 is built to support a wide array of DJI and third-party payloads through its advanced gimbal ports and E-Port V2 interfaces:
- Zenmuse H30 Series - All-in-one ISR sensor (wide, zoom, thermal, NIR, laser rangefinder)
- Zenmuse L2 LiDAR - 240k pts/s frame-based LiDAR + 4/3" RGB camera for point-cloud deliverables
- Zenmuse P1 Photogrammetry - 45MP full-frame stills with 0.7s interval shooting and swappable lenses
- Zenmuse Spotlight S1 - 32W long-throw spotlight for tactical night operations
- Zenmuse Speaker V1 - 114 dB broadcast capability for emergency and public announcement applications
- Manifold 3 - Onboard NVIDIA® 100 TOPS processor for real-time AI and onboard autonomy
- 3rd-Party Payloads - Gas sensors, UV/multispectral cameras, facade cleaners, oblique cameras
- Tethered Power Systems - DJI TB100C-compatible for continuous flight and persistent surveillance
Applications
- Public Safety & SAR: Execute long-duration, high-visibility, or low-light search and rescue with thermal, spotlight, and audio tools.
- Infrastructure & Utilities: Use LiDAR, photogrammetry, and obstacle-aware autonomy to inspect towers, lines, bridges, and substations.
- Geospatial & Mapping: Rapidly map large corridors, slopes, or elevation profiles with centimeter-grade accuracy and consistent GSD.
- Maritime & Offshore Ops: Launch and land on vessels, detect objects at sea, and relay live visuals to command centers onshore.
- Construction & AEC: Capture high-res ortho/oblique imagery, 3D mesh, and point clouds for digital twins, site monitoring, and modeling.
- Specialized Operations: Execute tethered missions, facade cleaning, or environmental data collection with real-time battery turnover.
Why Buy from DSLRPros
DSLRPros is trusted by law enforcement, utility providers, federal contractors, and industrial firms nationwide. We offer more than just hardware-we provide fully configured systems, workflow consultation, onboarding, and long-term technical support. Our team works with you to determine the right payloads, software integrations, and mission strategies to help you get the most out of your Matrice 400 investment.
We don't just ship drones-we deliver operational advantage.
Ready for What Comes Next
Request a quote, book a hands-on demo, or consult with one of our enterprise UAV specialists to build the right system for your next mission.
Specifications
Aircraft
- Takeoff Weight (with propellers): Without Batteries: 5020 ± 20 g; With Batteries: 9740 ± 40 g
- Max Takeoff Weight: 15.8 kg
- Dimensions: Unfolded: 980×760×480 mm; Folded: 490×490×480 mm; Carrying Case: 779×363×528 mm
- Max Payload: 6 kg
- Propeller Size: 25 inches
- Diagonal Wheelbase: 1070 mm
- Max Ascent Speed: 10 m/s
- Max Descent Speed: 8 m/s
- Max Horizontal Speed: 25 m/s
- Max Takeoff Altitude: 7000 m
- Max Flight Time: 59 minutes
- Max Hover Time: 53 minutes
- Max Flight Distance: 49 km
- Max Wind Resistance: 12 m/s
- Max Yaw Angular Velocity: 100°/s
- Max Pitch Angle: 35°
- Operating Temperature: –20° to 50 °C
- GNSS: GPS + Galileo + BeiDou + GLONASS*
-
Hovering Accuracy:
- Vertical: ±0.1 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
- Horizontal: ±0.3 m (vision), ±0.5 m (satellite), ±0.1 m (RTK)
- RTK GNSS Accuracy: 1 cm + 1 ppm (H), 1.5 cm + 1 ppm (V)
- RTK Heading: Better than 2°
- ADS‑B In: Range: 20 km
- Internal Storage: N/A
- Ports: USB‑C Debug, E‑Port V2 ×4, Cellular Dongle 2 ×2
- Propeller Model: 2510F
- Beacon: Built-in
- Ingress Protection: IP55
Gimbal
- Max Payload (Single Connector): 1400 g
- Max Payload (Dual Connector): 950 g
- Max Payload (Third Connector): 3 kg (quick‑release), 6 kg (screw lock)
Sensing System
- Sensors: Omnidirectional binocular vision, LiDAR, infrared, mmWave radar
- Forward/Backward: Range: 0.4–21 m; Detection: 0.4–200 m; FOV: 90°×90°
- Lateral: Range: 0.6–21 m; Detection: 0.5–200 m; FOV: 90°×90°
- Downward: Range: 0.5–19 m; FOV: 160° front/rear, 105° sides
- Rotating LiDAR: Range: 0.5–100 m; FOV: 360°×58°
- Upper LiDAR (3D ToF): Range: 0.5–25 m; FOV: 60°×60°
- Infrared: Range: 0.3–8 m; FOV: 60°×60°
- mmWave Radar: Range: 36–50 m; FOV: ±45°
FPV Camera
- Resolution: 1080p
- Field of View: DFOV 150°, HFOV 139.6°, VFOV 95.3°
- Frame Rate: 30 fps
- Night Vision: Starlight-grade
Video Transmission
- System: DJI O4 Enterprise Enhanced
- Live View: 3‑channel 1080p/30fps
- Frequencies & Power: Multiple bands including 902–928 MHz, 2.4 GHz, and 5.8 GHz
- Max Distance: 40 km (FCC), 20 km (CE)
- Performance with Interference: 1.5–40 km depending on strength
- Max Download Speed: 80 Mbps
- Antennas: 8 WLAN, 2 sub2G, 4G ×4
- Other Features: Dual Control, Cellular Dongle support
Battery
- Model: TB100
- Capacity: 20254 mAh
- Voltage: 48.23 V
- Max Charging Voltage: 54.6 V
- Cell Type: Li-ion 13S
- Energy: 977 Wh
- Weight: 4720 ± 20 g
- Charging Temp: 5–45 °C
- Discharging Temp: –20–75 °C
- Heating: Onboard & Station Support
- Discharge Rate: 4C
- Max Charging Power: 2C
- Cycle Count: 400
Battery Station
- Model: BS100
- Weight: 11.8 kg
- Dimensions: 605×410×250 mm
- Supported Batteries: TB100 / TB100C / WB37
- Operating Temperature: –20–40 °C
- Input: 100–240 V AC
-
Output:
- TB100: up to 2184 W
- WB37: 52 W
- USB‑C: up to 65 W
- Charging Channels: 3 TB100 & 2 WB37
- Modes: Ready‑to‑Fly, Standard, Fast, Silent
- Charging Time: 45–110 min depending on mode and voltage
Remote Controller (DJI RC Plus 2)
- Video Transmission: DJI O4 Enterprise Enhanced
- Max Distance: 40 km (FCC), 20 km (CE)
- Frequencies: Multiple bands
- Antennas: 2T4R dual‑band + sub2G 2T2R
- Wi‑Fi: 802.11 a/b/n/ac/ax, up to 1774.5 Mbps
- Bluetooth: 5.2
- Screen: 7.02″, 1920×1200, 1400 nits
- Battery: Internal (6500 mAh) + Optional External (4920 mAh)
- Runtime: 3.8 h (internal), 7 h (w/ external)
- Charging Time: ~2 h
- Storage: 8 GB RAM + 128 GB + microSD
- Ports: HDMI, SD, USB‑C (PD), USB‑A
- Weight: 1.15 kg
- Dimensions: 268×163×94.5 mm
- GNSS: GPS + Galileo + BeiDou
- OS: Android 11
Supported Accessories
- Zenmuse H30/H30T/L2/P1
- Zenmuse S1, V1
- Manifold 3
- DJI RC Plus 2 sub2G SDR
- Cellular Dongle 2
- D‑RTK 3 & 2
- X‑Port, E‑Port V2
- SkyPort V3 Adapter
In the Box
- 1x Aircraft (with propeller holder)
- 1x Carrying Case
- 2x Propellers (Pair)
- 6x Propeller Washers and Screws
- 1x Remote Controller (with DJI RC Plus 2 sub2G SDR Module)
- 1x Power Cable
- 1x BS100 Intelligent Battery Station
- 1x Remote Controller Strap and Bracket (with two screws)
- 1x WB37 Intelligent Battery
- 2x Landing Gear
- 1x USB-C to USB-C Cable
- 1x Screws and Tool Set
- 1x Cleaning Tool Set
- 1x Rubber Port Covers and Screws
- 4x Gimbal Damper
- 1x Care Enterprise Plus for M400
- 1x Intelligent Flight Battery (purchased individually and shipped separately)
